Open AccessArticle
Sensors 2017, 17(7), 1549; https://doi.org/10.3390/s17071549

Rapid Detection of Ascorbic Acid Based on a Dual-Electrode Sensor System Using a Powder Microelectrode Embedded with Carboxyl Multi-Walled Carbon Nanotubes

School of Food Science and Technology, Henan University of Technology, Lianhua Road 100#, Zhengzhou 450001, China
*
Author to whom correspondence should be addressed.
Received: 31 May 2017 / Revised: 21 June 2017 / Accepted: 30 June 2017 / Published: 2 July 2017
(This article belongs to the Section Chemical Sensors)
View Full-Text   |   Download PDF [4613 KB, uploaded 2 July 2017]   |

Abstract

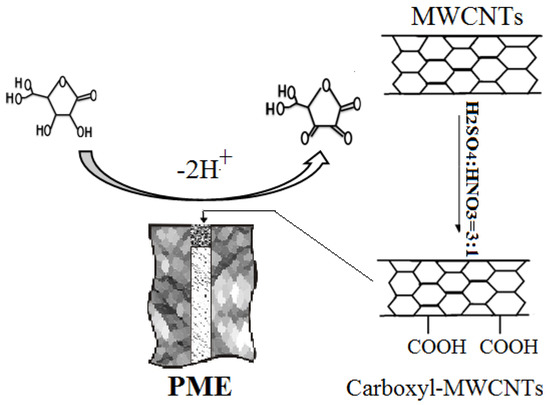

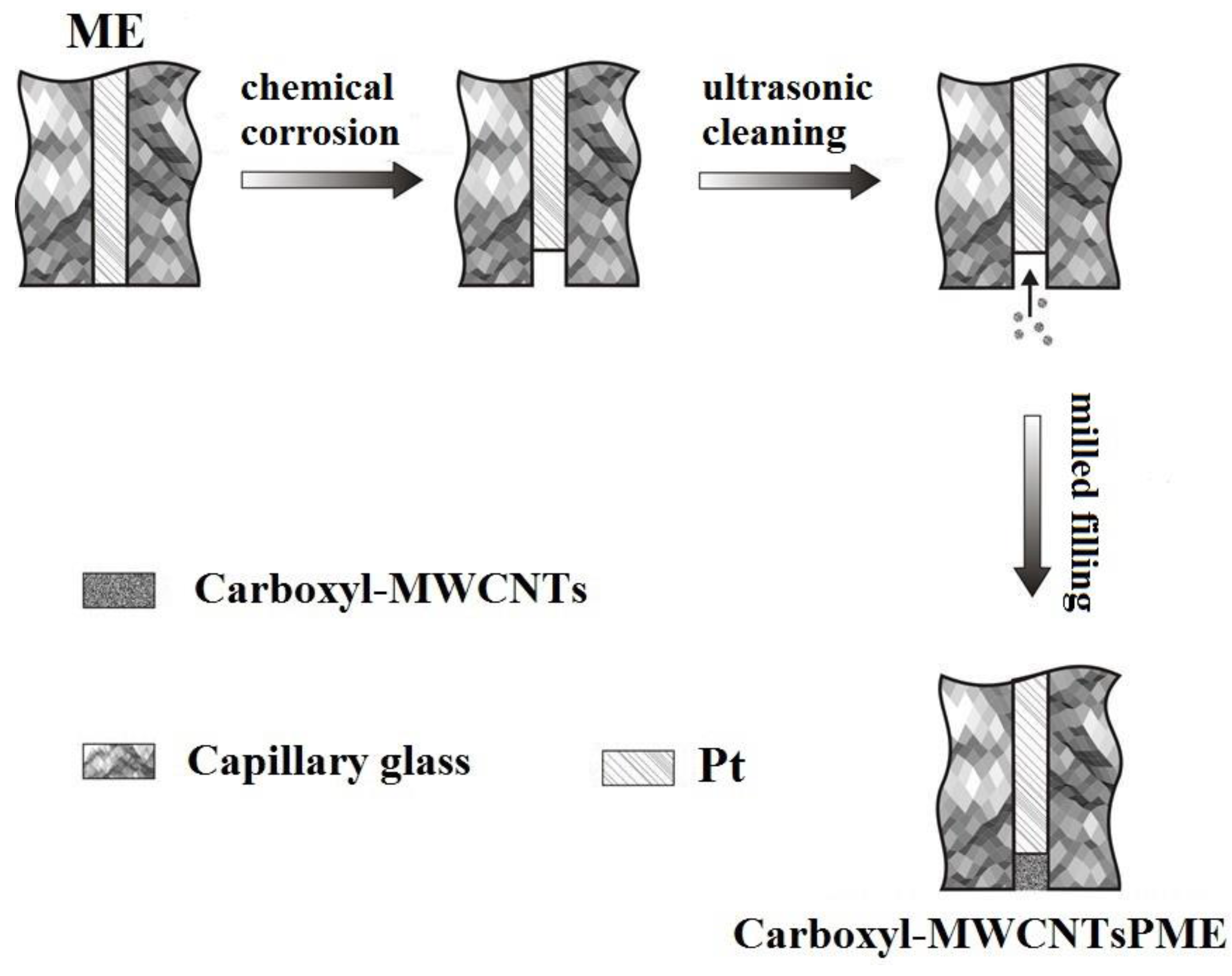

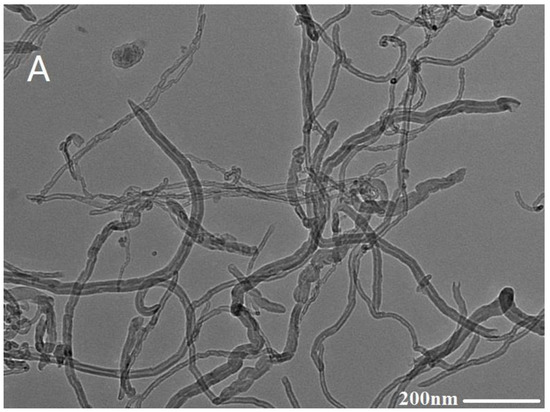

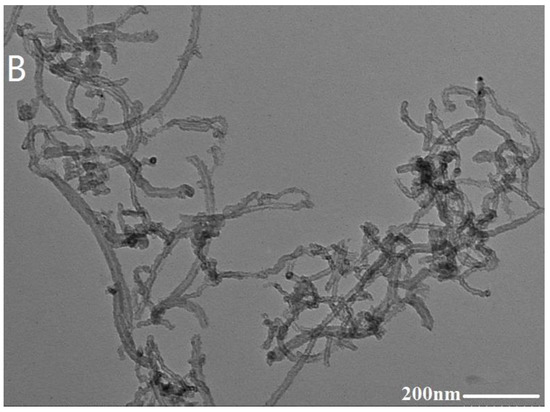

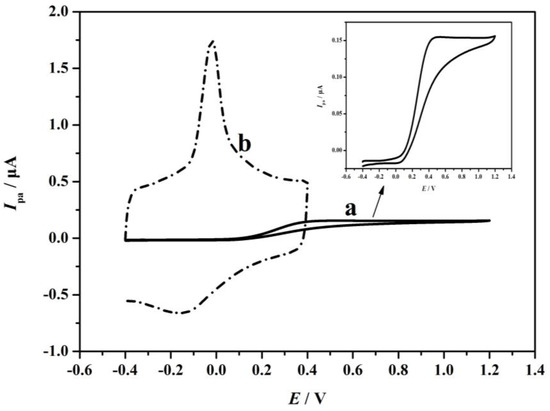

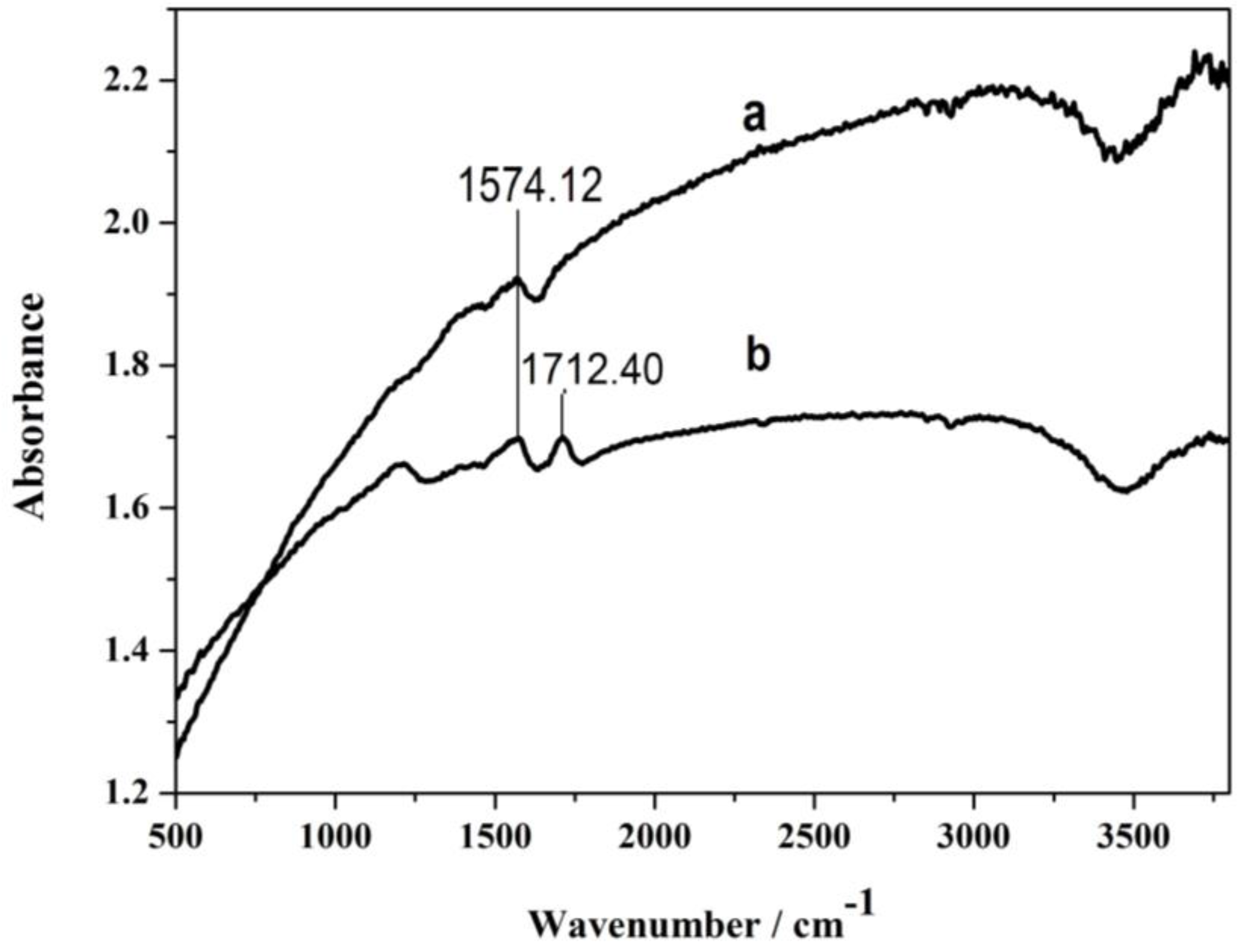

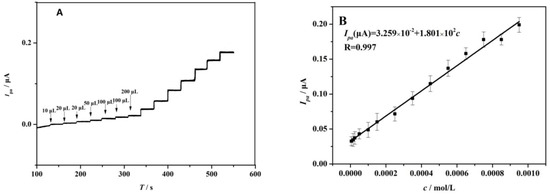

In this paper, carboxyl groups were introduced by liquid oxidation methods onto multi-walled carbon nanotubes (MWCNTs) to improve the MWCNTs’ electrocatalytic properties. A platinum wire microelectrode (ME) was corroded using aqua regia and subsequently embedded with MWCNTs to achieve more active sites, producing a so-called powder microelectrode (PME). Compared with conventional MEs, the PME has a larger specific surface area and more active sites. When PME was used to detect ascorbic acid (AA), the AA oxidation potential shifted negatively and current peak was visibly increased. The calibration curve obtained for AA was in a range of 5.00 × 10−6~9.50 × 10−4 mol·L−1: Ipa(μA) = 3.259 × 10−2 + 1.801 × 102 C (mol·L−1) under the optimum testing conditions. Moreover, the detection and quantitation limits were confirmed at 4.89 × 10−7 mol·L−1 and 1.63 × 10−7 mol·L−1, respectively. When the fabricated PME was practically applied to detect AA, it was shown a recovery rate of 94~107% with relative standard deviation (RSD) <5%. The proposed strategy thus offers a promising, rapid, selective and low-cost approach to effective analysis of AA. View Full-Text
Keywords: ascorbic acid; multi-walled carbon nanotubes; platinum wire microelectrode; powder microelectrode ascorbic acid; multi-walled carbon nanotubes; platinum wire microelectrode; powder microelectrode
Figures

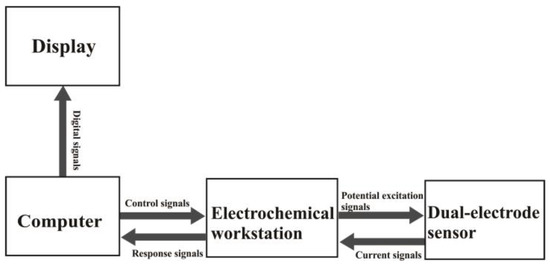

Figure 1
