Open AccessArticle
Sensors 2017, 17(6), 1449; doi:10.3390/s17061449

Measurement of Rayleigh Wave Beams Using Angle Beam Wedge Transducers as the Transmitter and Receiver with Consideration of Beam Spreading

1
School of Traffic and Transportation Engineering, Central South University, Changsha 410075, China
2
Division of Mechanical and Automotive Engineering, Wonkwang University, Iksan 570-749, Korea
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 5 April 2017 / Revised: 31 May 2017 / Accepted: 16 June 2017 / Published: 20 June 2017
(This article belongs to the Special Issue Surface Acoustic Wave and Bulk Acoustic Wave Sensors)
View Full-Text   |   Download PDF [8155 KB, uploaded 20 June 2017]   |

Abstract

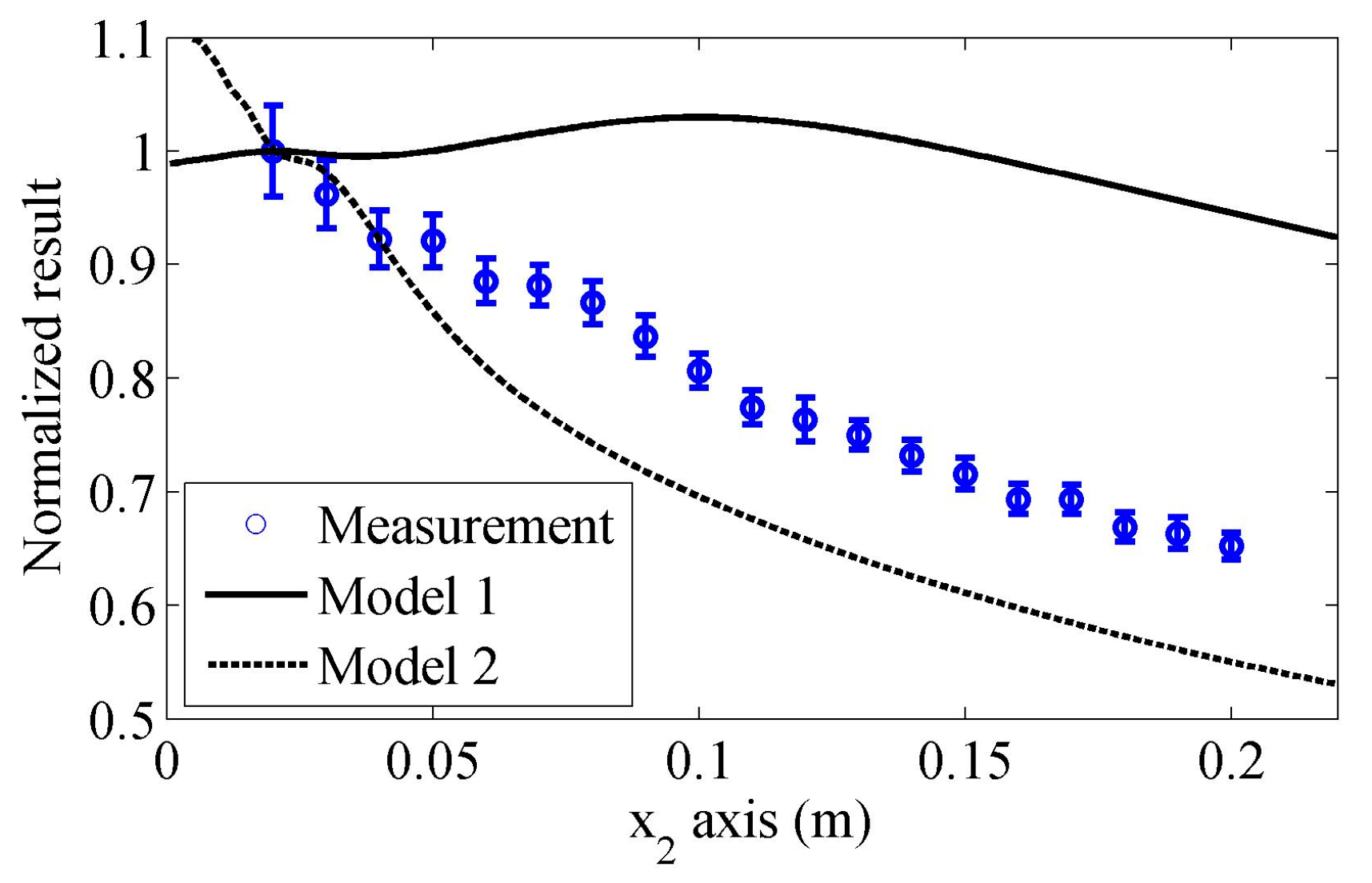

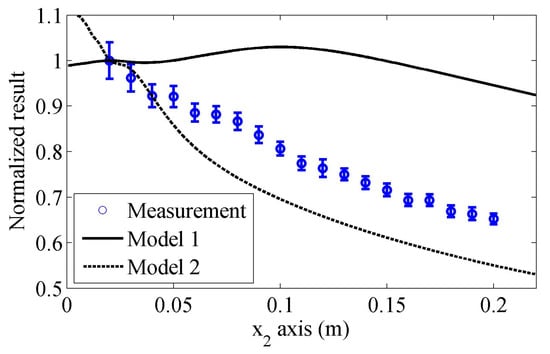

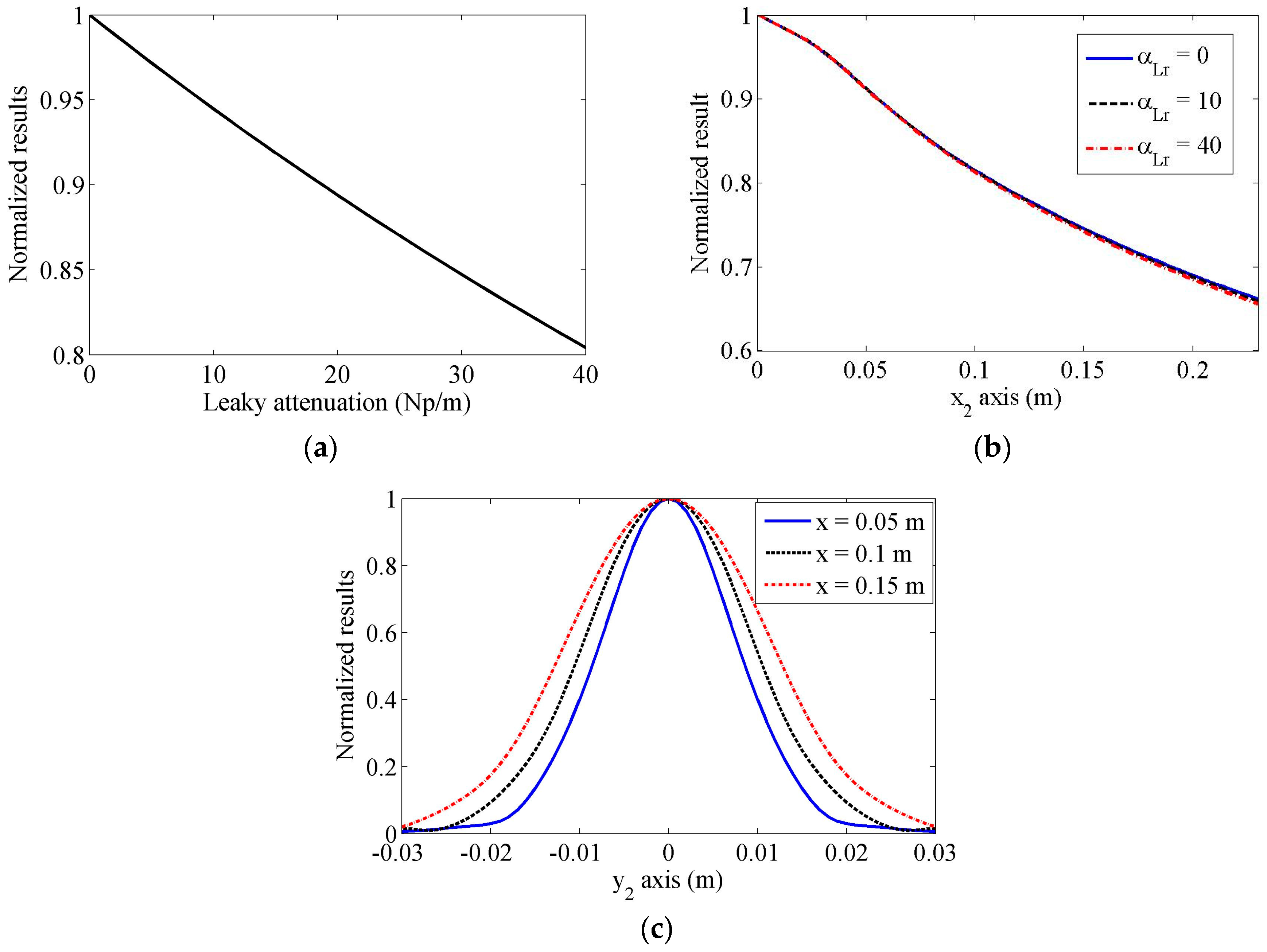

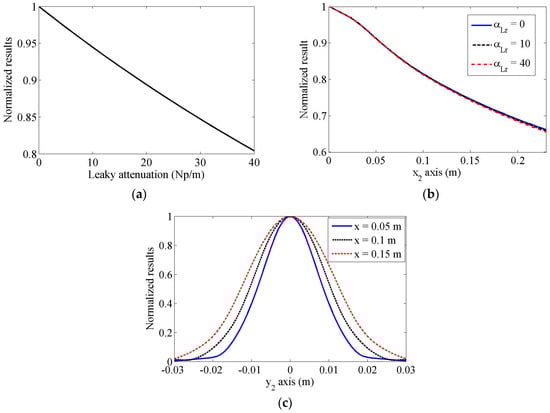

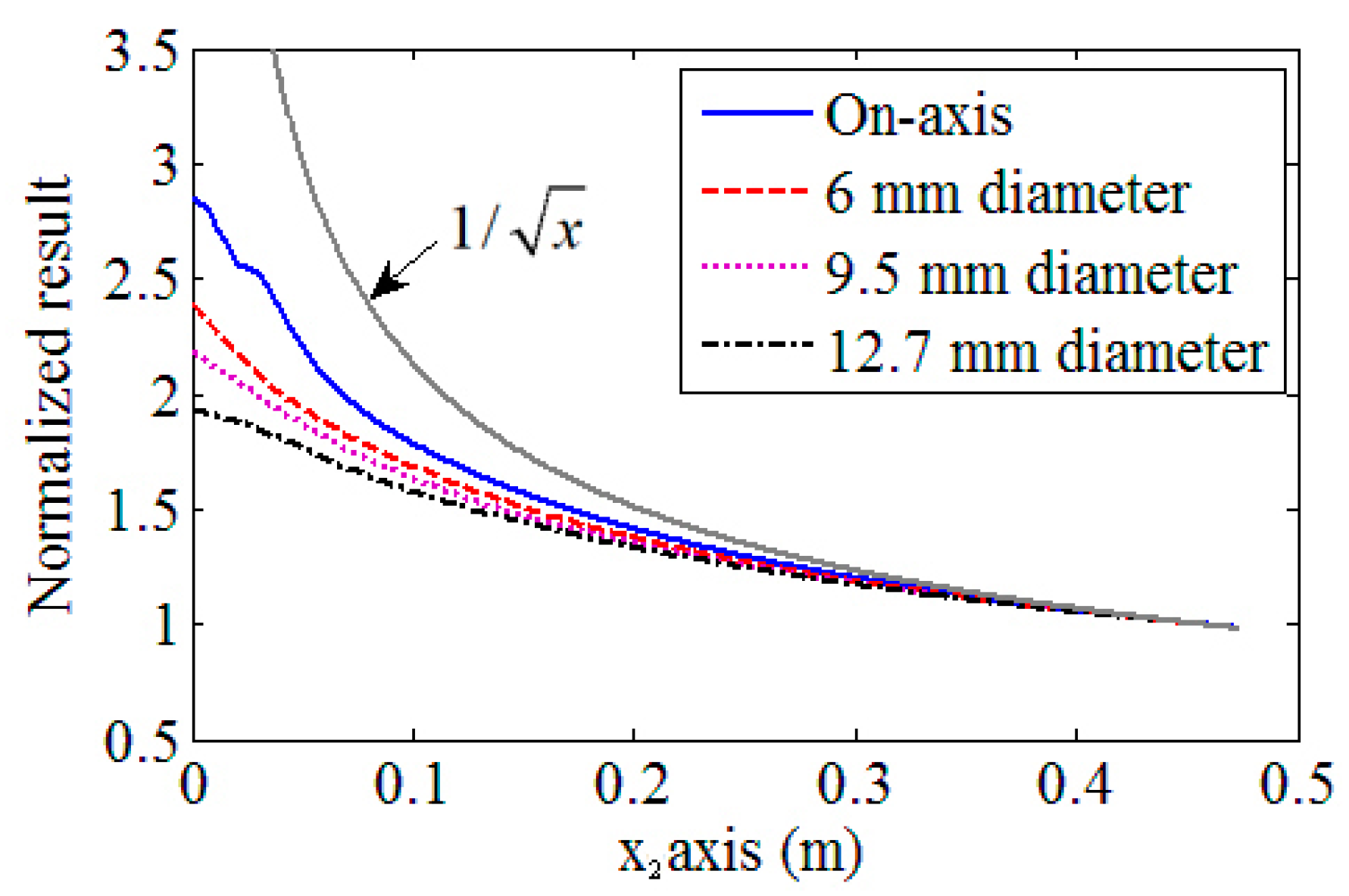

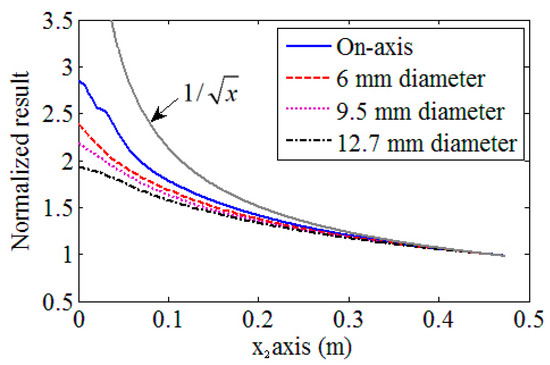

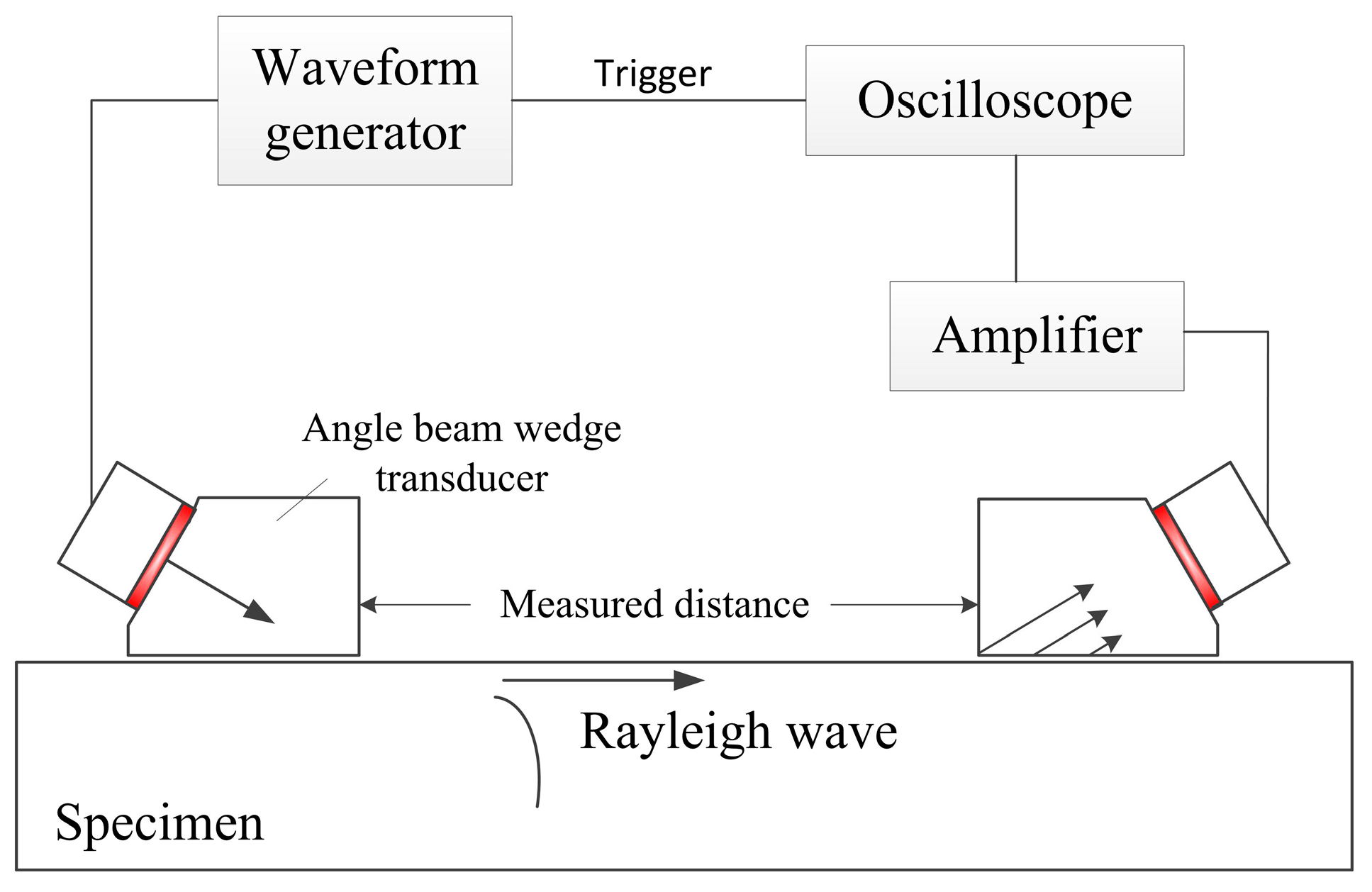

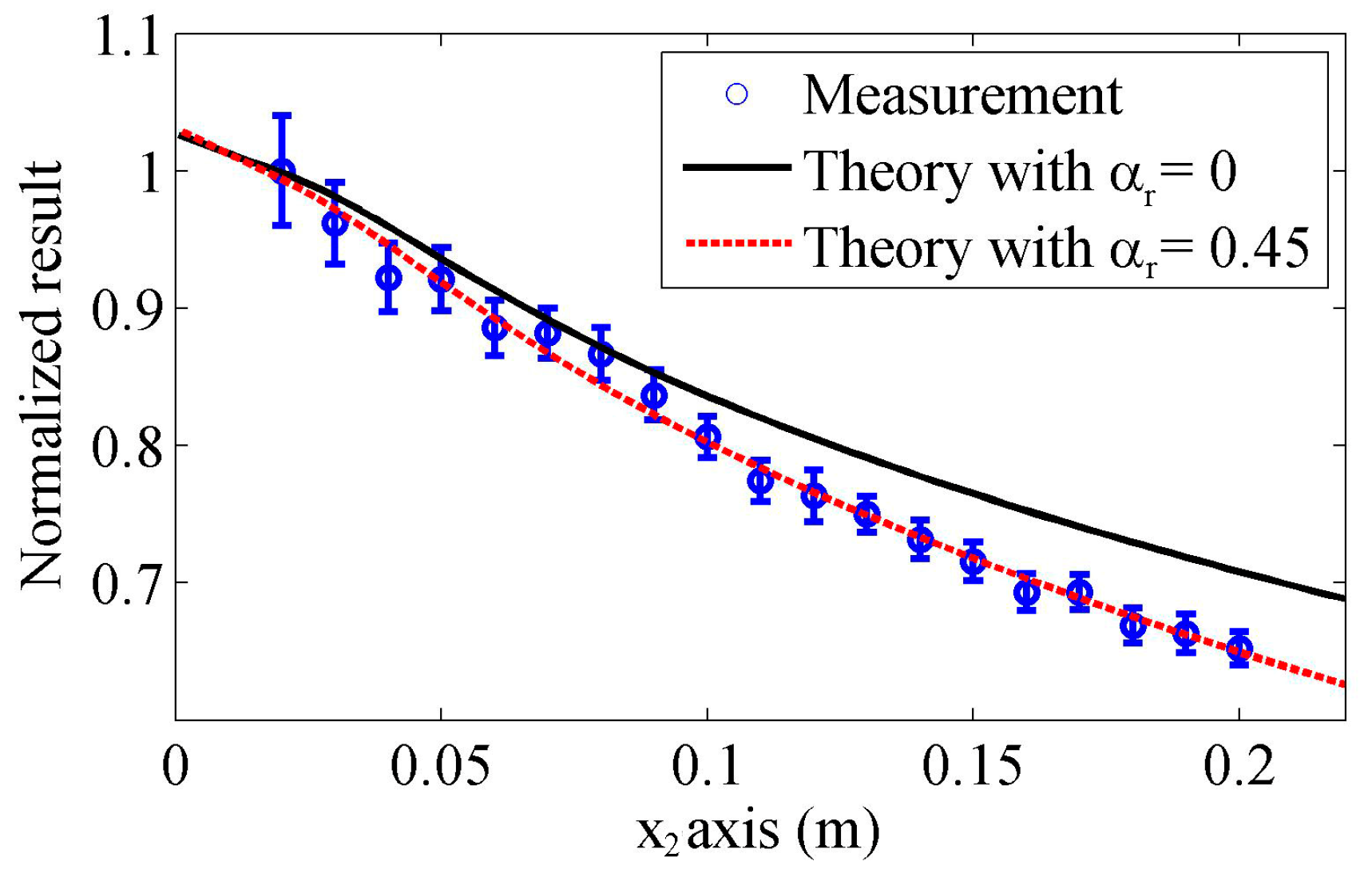

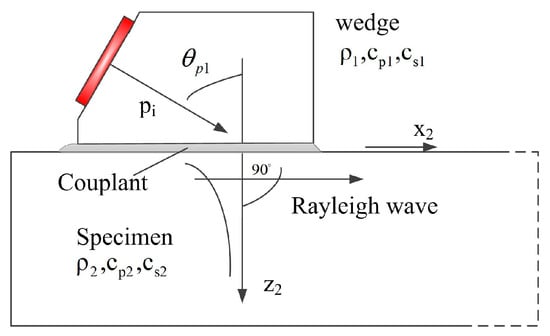

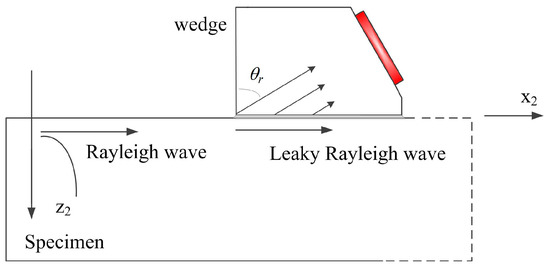

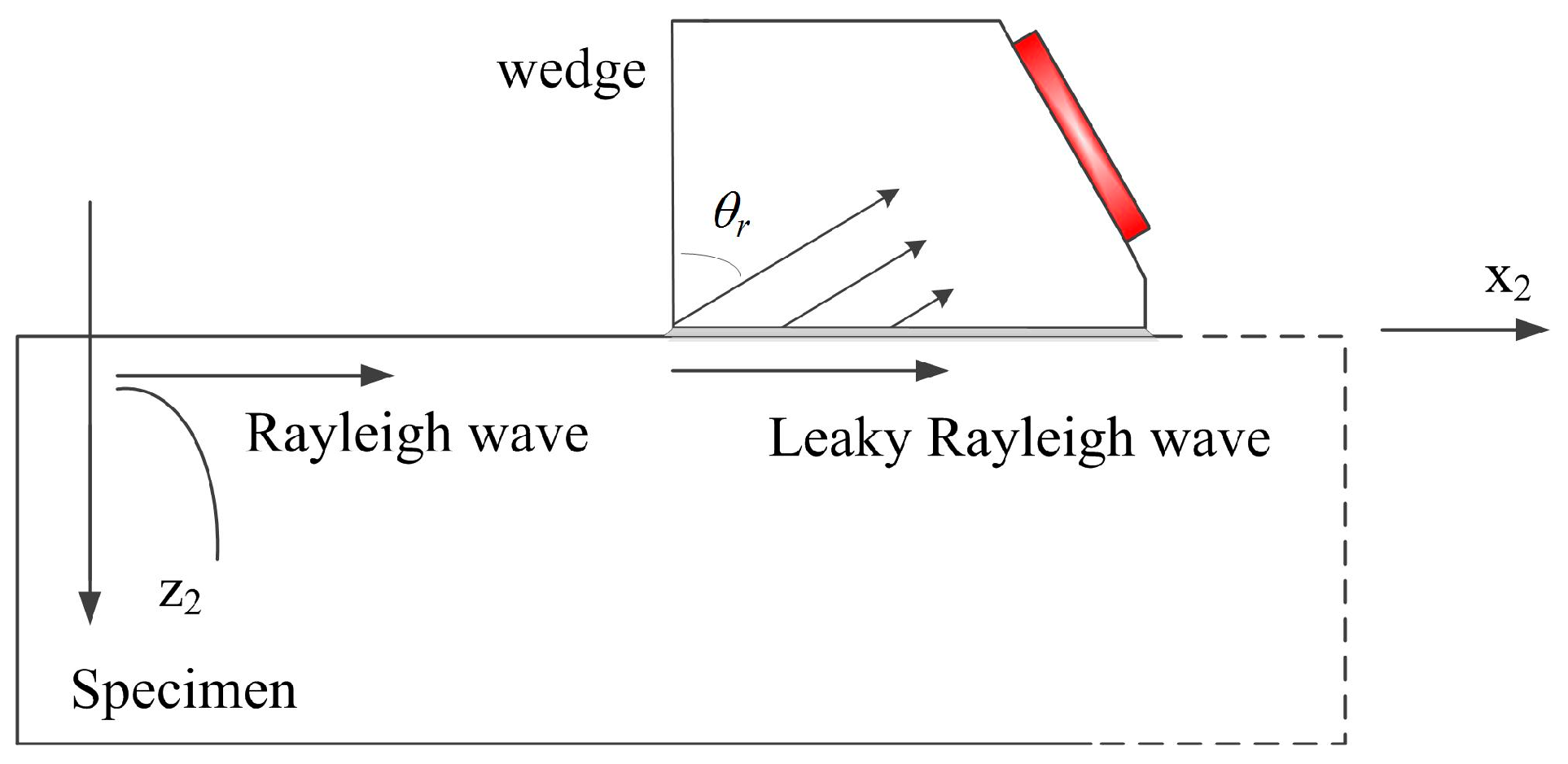

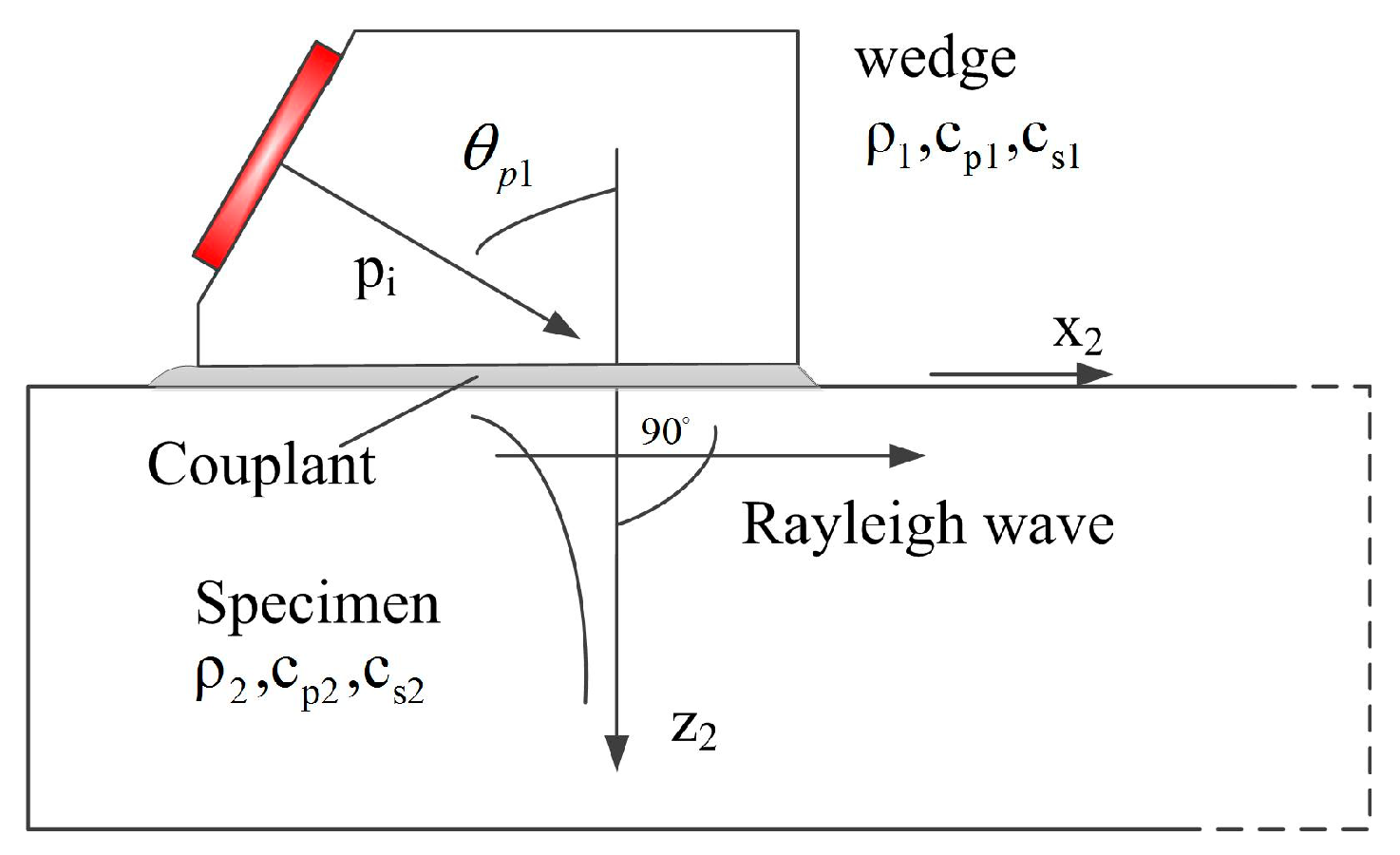

A theoretical model, along with experimental verification, is developed to describe the generation, propagation and reception of a Rayleigh wave using angle beam wedge transducers. The Rayleigh wave generation process using an angle beam wedge transducer is analyzed, and the actual Rayleigh wave sound source distributions are evaluated numerically. Based on the reciprocity theorem and considering the actual sound source, the Rayleigh wave beams are modeled using an area integral method. The leaky Rayleigh wave theory is introduced to investigate the reception of the Rayleigh wave using the angle beam wedge transducers, and the effects of the wave spreading in the wedge and transducer size are considered in the reception process. The effects of attenuations of the Rayleigh wave and leaky Rayleigh wave are discussed, and the received wave results with different sizes of receivers are compared. The experiments are conducted using two angle beam wedge transducers to measure the Rayleigh wave, and the measurement results are compared with the predictions using different theoretical models. It is shown that the proposed model which considers the wave spreading in both the sample and wedges can be used to interpret the measurements reasonably. View Full-Text
Keywords: Rayleigh wave; angle beam wedge transducer; leaky Rayleigh wave theory; area integral model Rayleigh wave; angle beam wedge transducer; leaky Rayleigh wave theory; area integral model
Figures

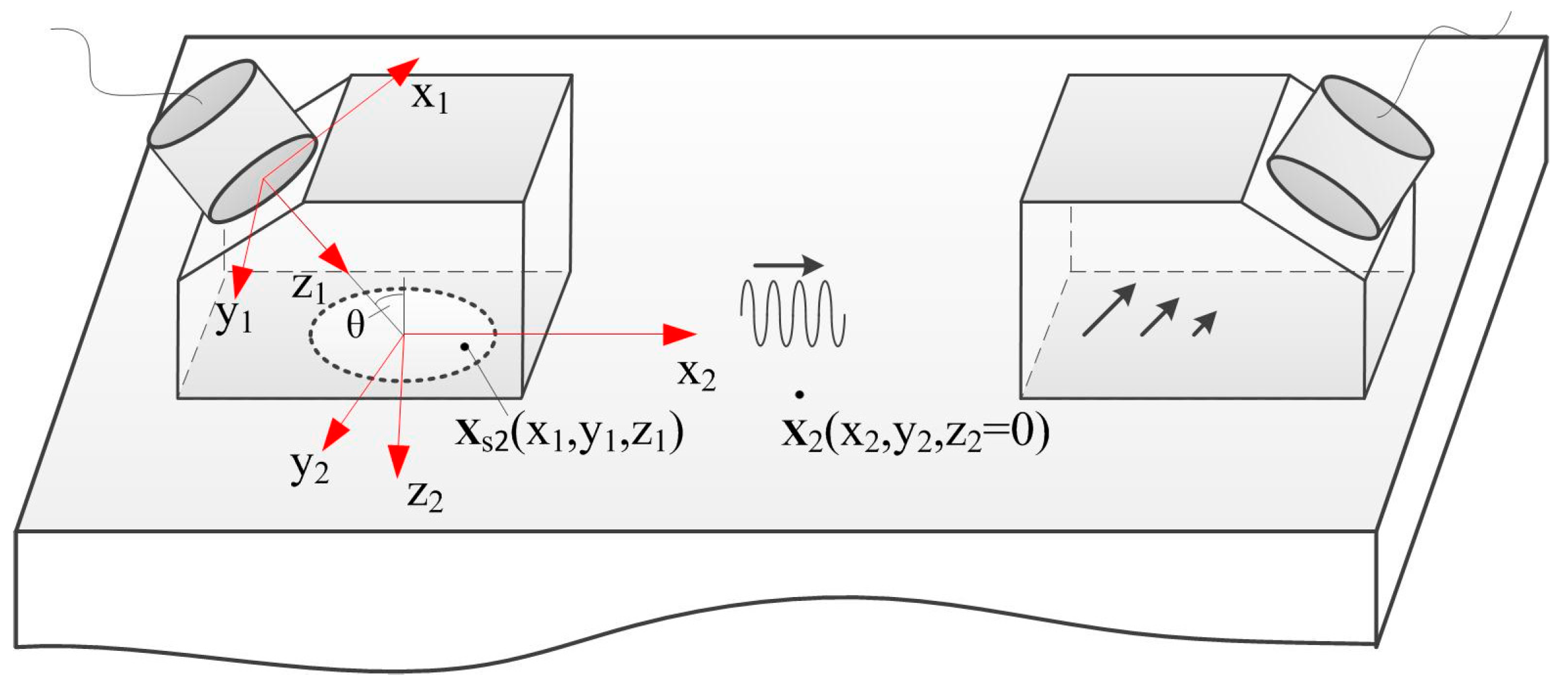

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
