Sensors 2017, 17(6), 1398; doi:10.3390/s17061398

Tunable Temperature Response of a Thermochromic Photonic Gel Sensor Containing N-Isopropylacrylamide and 4-Acryloyilmorpholine

1
Department of Chemistry, Sejong University, 209 Neungdong-ro, Gwngjin-gu, Seoul 05006, Korea
2
Engain Co. Ltd. Korea Bio Park BLD C-201, Seongnam 13488, korea
3
School of Advanced Materials Engineering, Kookmin University, 77 Jeongneung-ro, Seongbuk-gu, Seoul 02707, Korea
*
Authors to whom correspondence should be addressed.
Received: 3 May 2017 / Revised: 7 June 2017 / Accepted: 9 June 2017 / Published: 15 June 2017
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [3260 KB, uploaded 15 June 2017]   |

Abstract

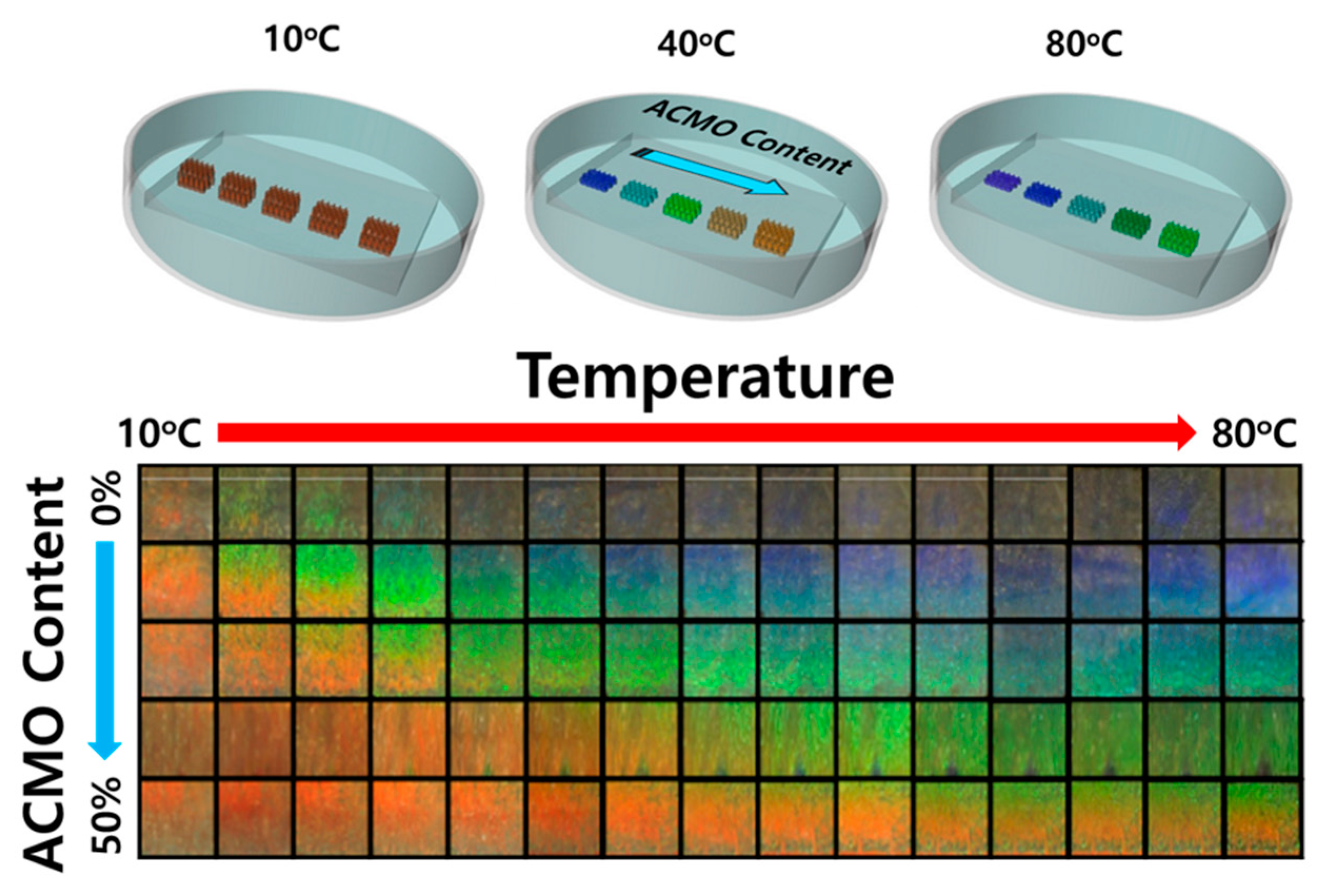

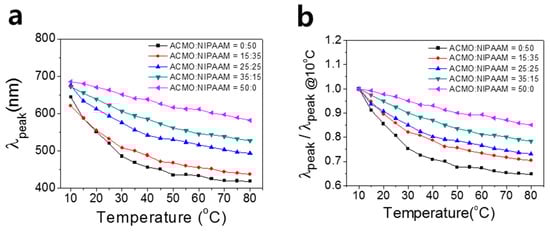

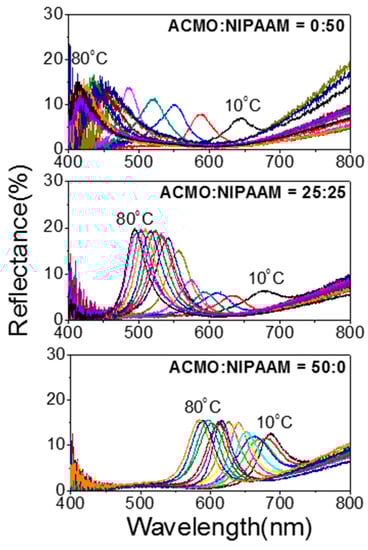

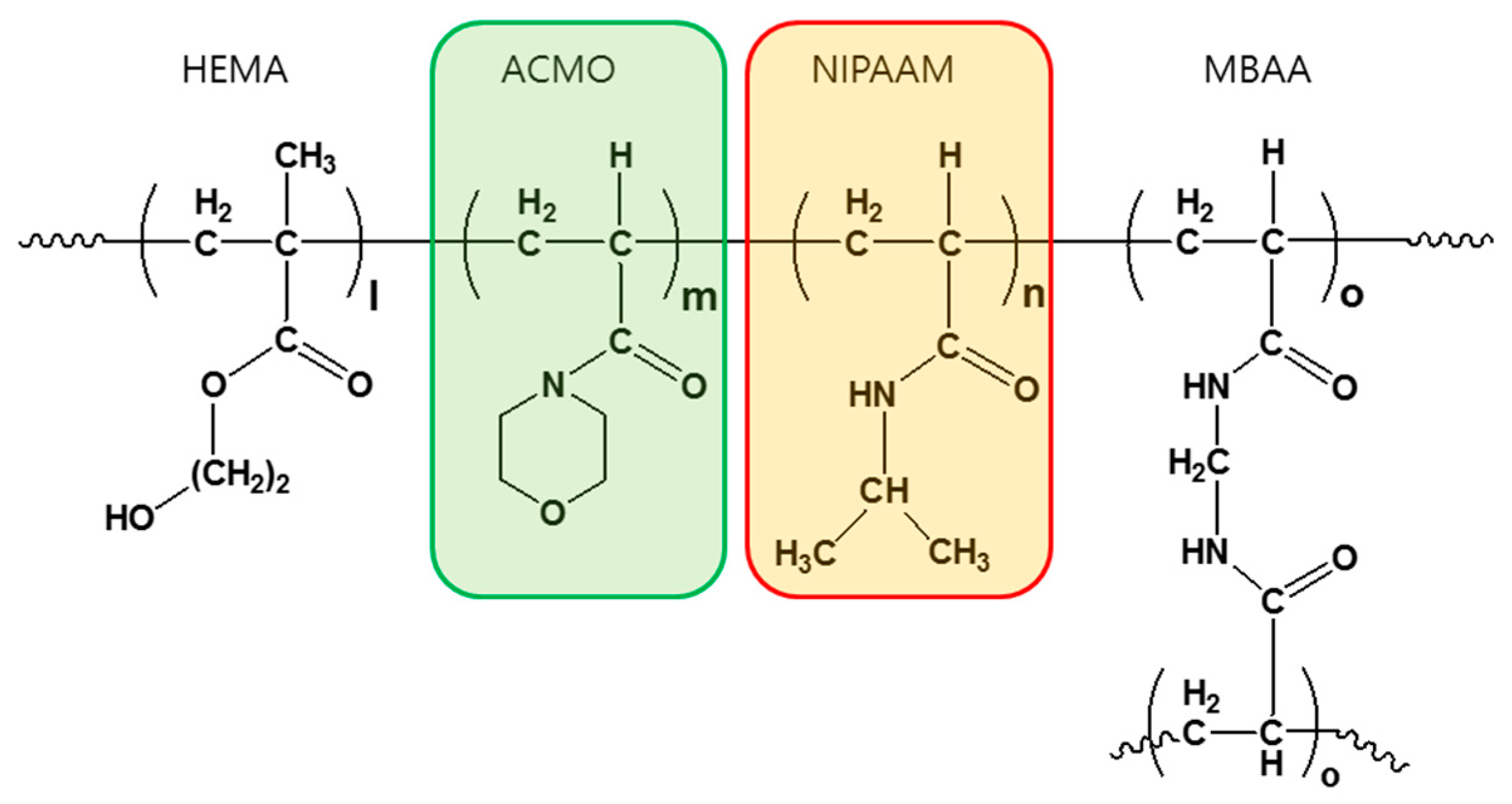

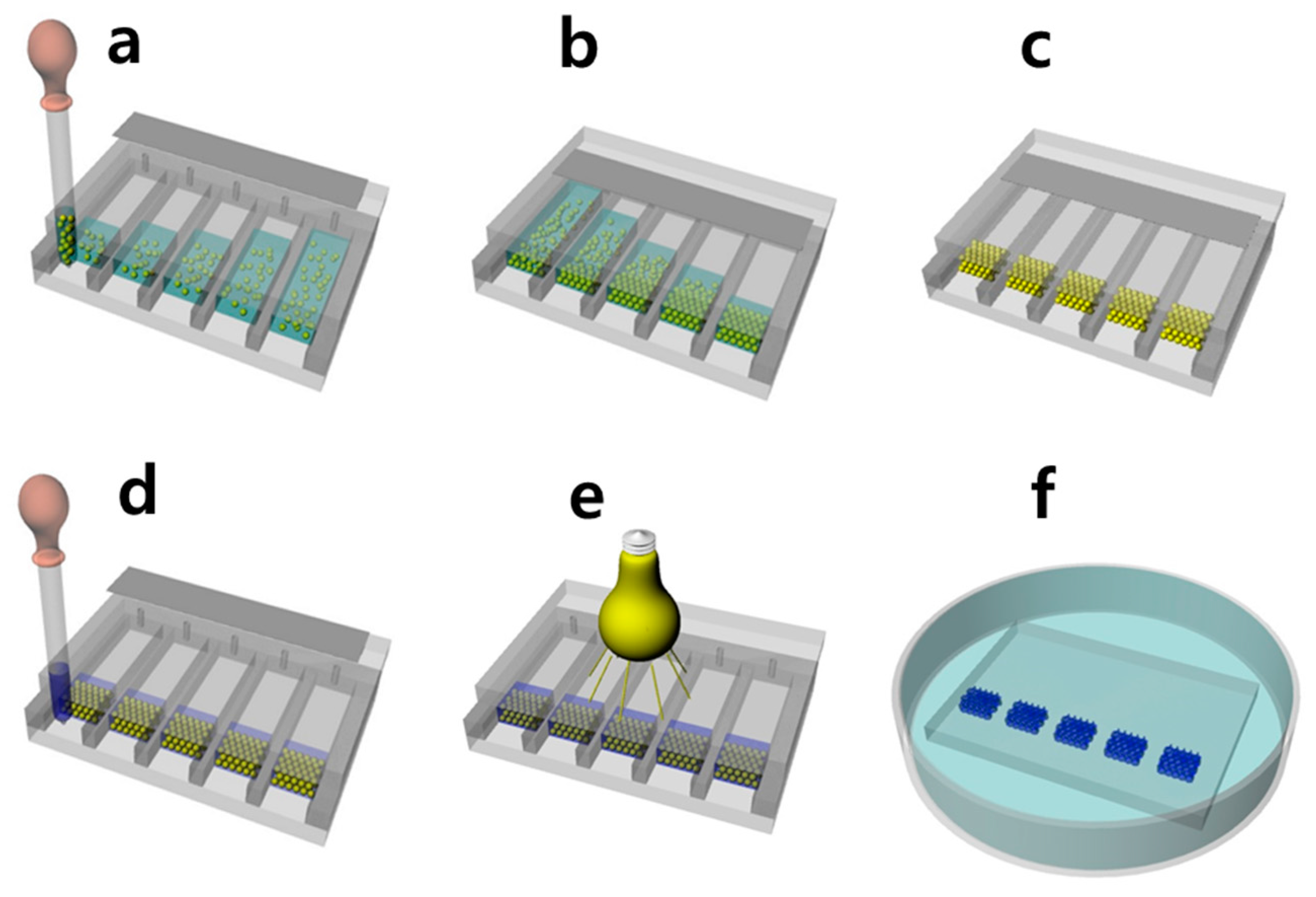

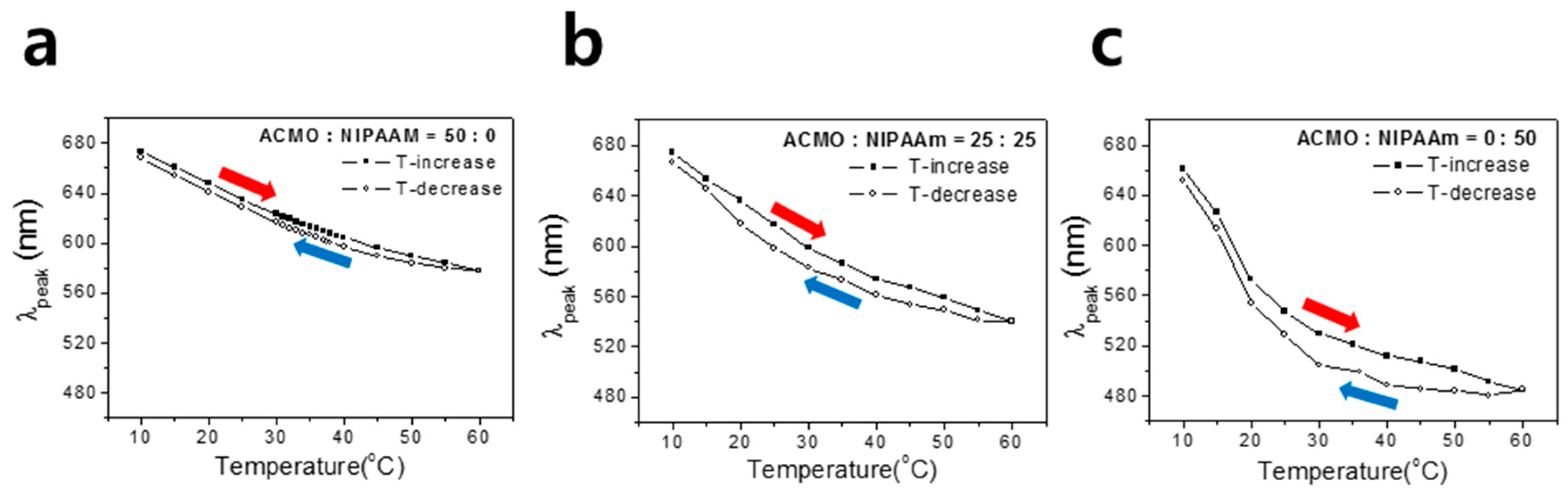

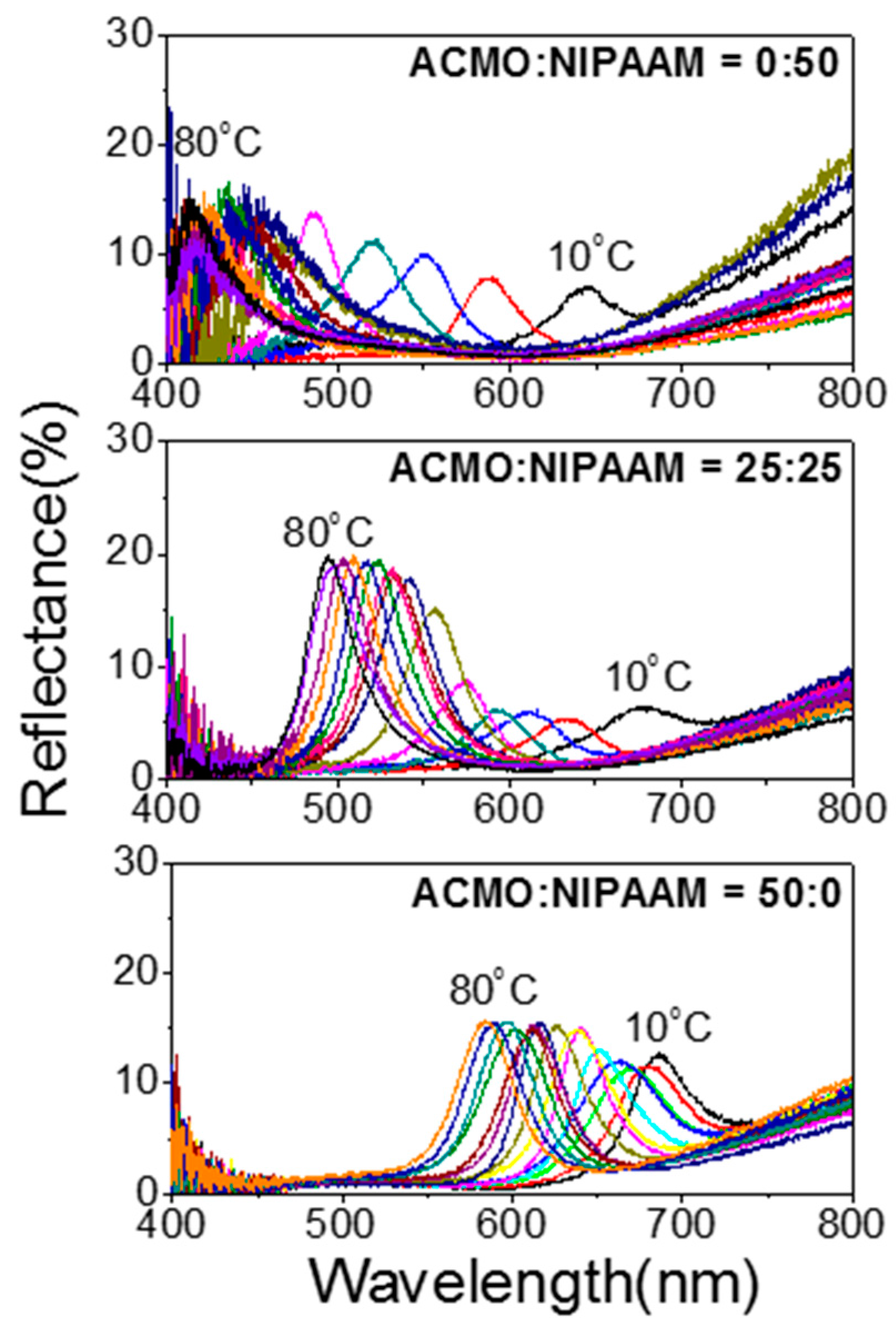

In this study, thermochromic photonic gels were fabricated using 2-hydroxyethyl methacrylate (HEMA) as a hydrogel building block, and 4-Acryloyl morpholine (ACMO) and N-isopropylacrylamide (NIPAAM) as thermoresponsive monomers with different critical solution temperature behaviors. Rapid photopolymerization of opal-templated monomer mixtures of varying ACMO contents formed five individual thermochromic inverse opal photonic gels integrated on a single substrate. With temperature variation from 10 °C to 80 °C, the changes in reflective colors and reflectance spectra of the respective thermochromic gels were noted, and λpeak changes were plotted. Because NIPAAM exhibits a lower critical solution temperature (LCST) at 33 °C, the NIPAAM-only gel showed a steep slope for dλpeak/dT below 40 °C, whereas the slope became flatter at high temperatures. As the ACMO content increased in the thermochromic gel, the curve of dλpeak/dT turned out to be gradual within the investigated temperature range, exhibiting the entire visible range of colors. The incorporation of ACMO in NIPAAM-based thermochromic gels therefore enabled a better control of color changes at a relatively high-temperature regime compared to a NIPAAM-only gel. In addition, ACMO-containing thermochromic gels exhibited a smaller hysteresis of λpeak for the heating and cooling cycle. View Full-Text
Keywords: temperature sensor; N-isopropylacrylamide; 4-Acryloyilmorpholine; lower critical solution temperature; opal templating; photonic gel temperature sensor; N-isopropylacrylamide; 4-Acryloyilmorpholine; lower critical solution temperature; opal templating; photonic gel
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
