Sensors 2017, 17(6), 1283; doi:10.3390/s17061283

A Novel Real-Time Path Servo Control of a Hardware-in-the-Loop for a Large-Stroke Asymmetric Rod-Less Pneumatic System under Variable Loads

Department of Mechanical and Computer-Aided Engineering, Feng Chia University; Taichung 407, Taiwan
Academic Editor: Vittorio M. N. Passaro
Received: 15 April 2017 / Revised: 30 May 2017 / Accepted: 31 May 2017 / Published: 4 June 2017
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [5638 KB, uploaded 4 June 2017]   |

Abstract

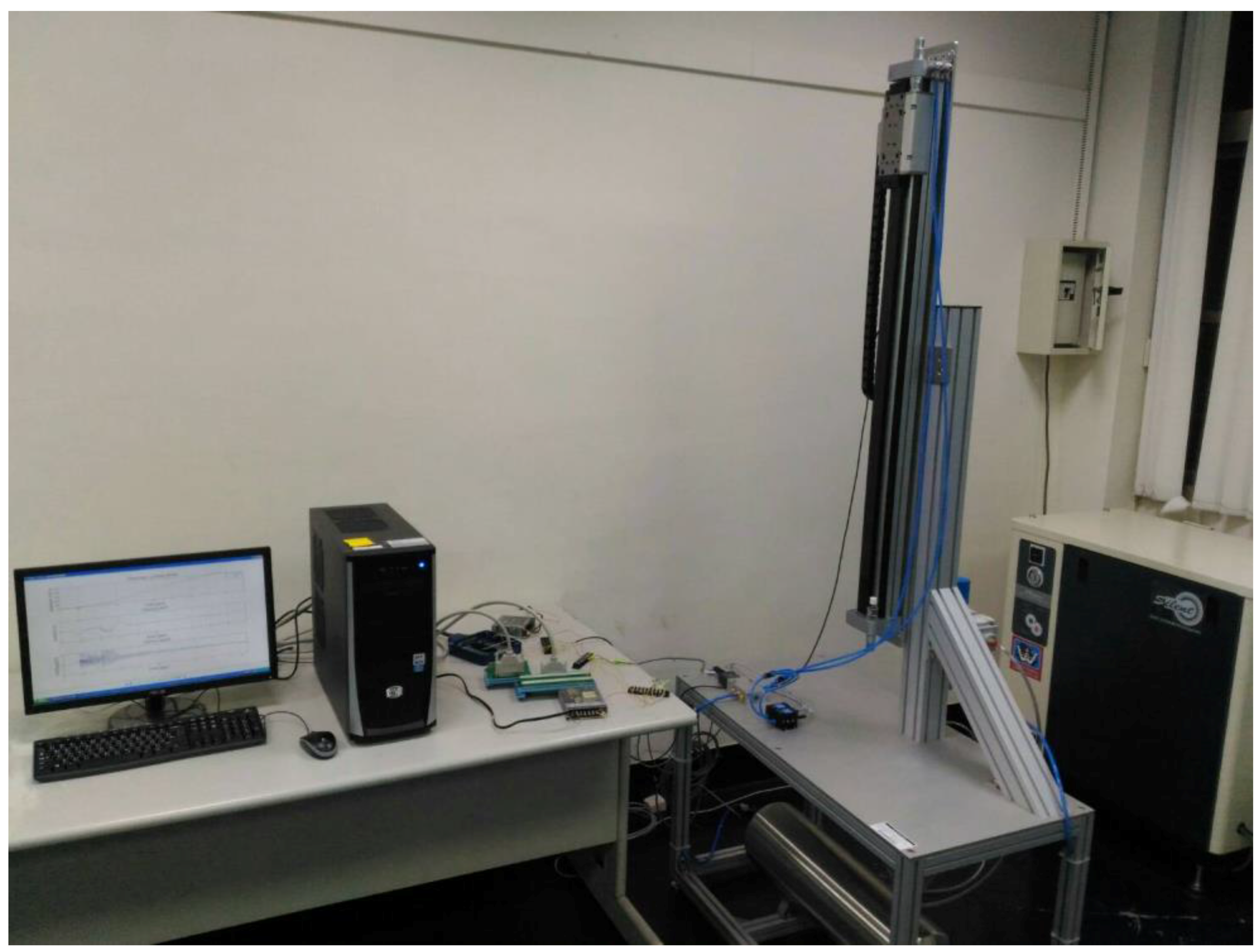

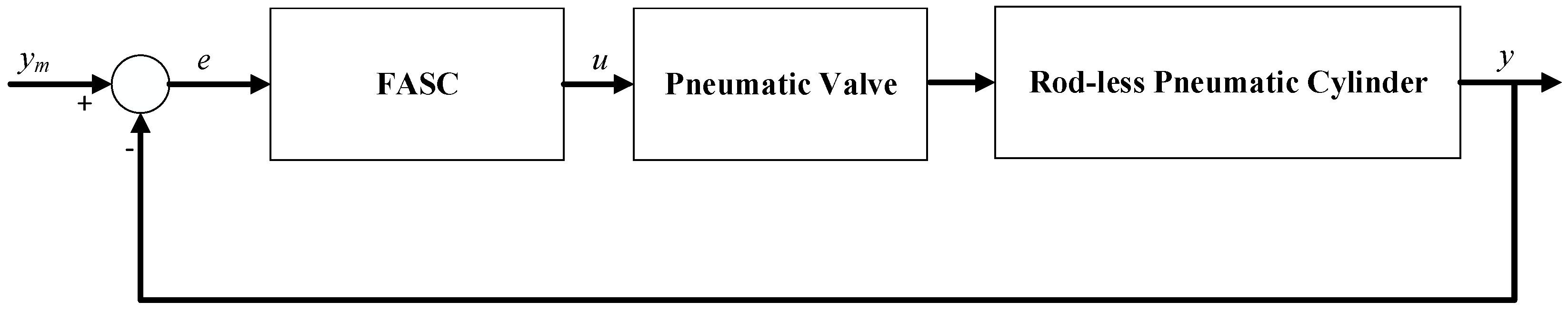

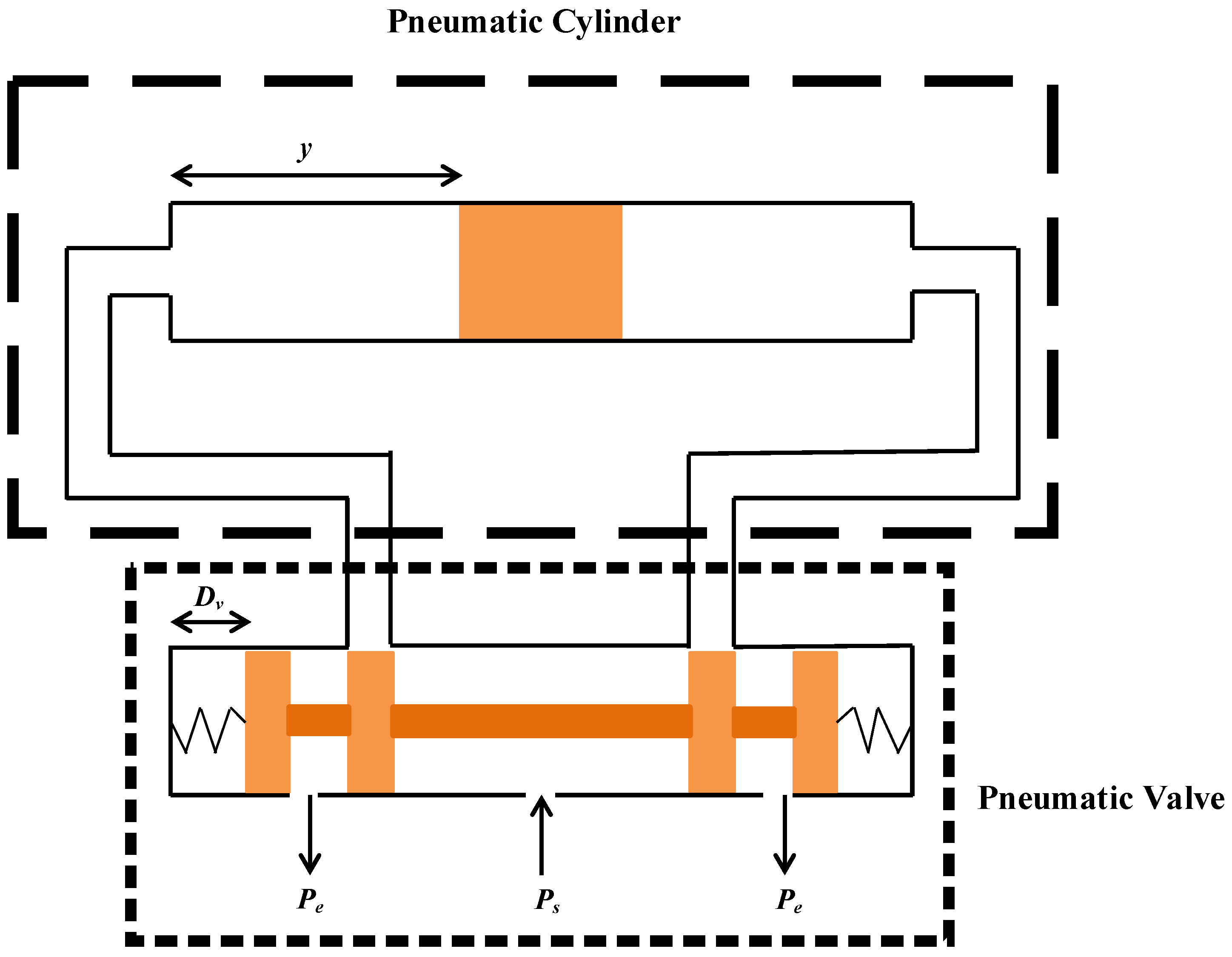

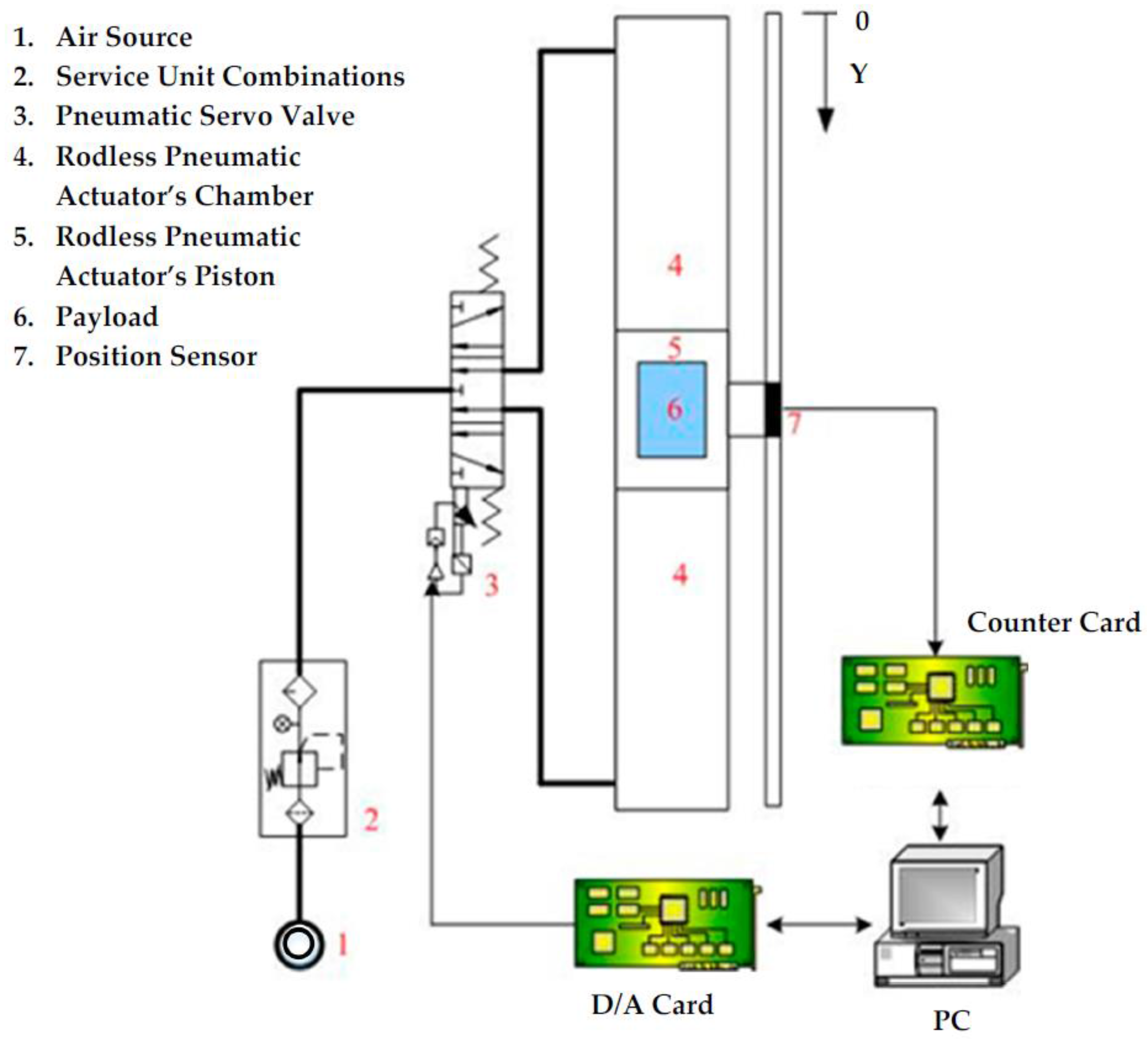

This project aims to develop a novel large stroke asymmetric pneumatic servo system of a hardware-in-the-loop for path tracking control under variable loads based on the MATLAB Simulink real-time system. High pressure compressed air provided by the air compressor is utilized for the pneumatic proportional servo valve to drive the large stroke asymmetric rod-less pneumatic actuator. Due to the pressure differences between two chambers, the pneumatic actuator will operate. The highly nonlinear mathematical models of the large stroke asymmetric pneumatic system were analyzed and developed. The functional approximation technique based on the sliding mode controller (FASC) is developed as a controller to solve the uncertain time-varying nonlinear system. The MATLAB Simulink real-time system was a main control unit of a hardware-in-the-loop system proposed to establish driver blocks for analog and digital I/O, a linear encoder, a CPU and a large stroke asymmetric pneumatic rod-less system. By the position sensor, the position signals of the cylinder will be measured immediately. The measured signals will be viewed as the feedback signals of the pneumatic servo system for the study of real-time positioning control and path tracking control. Finally, real-time control of a large stroke asymmetric pneumatic servo system with measuring system, a large stroke asymmetric pneumatic servo system, data acquisition system and the control strategy software will be implemented. Thus, upgrading the high position precision and the trajectory tracking performance of the large stroke asymmetric pneumatic servo system will be realized to promote the high position precision and path tracking capability. Experimental results show that fifth order paths in various strokes and the sine wave path are successfully implemented in the test rig. Also, results of variable loads under the different angle were implemented experimentally. View Full-Text
Keywords: rod-less pneumatic cylinder; asymmetrical load; fourier series approximation technique; path tracking servo control; hardware-in-the-loop rod-less pneumatic cylinder; asymmetrical load; fourier series approximation technique; path tracking servo control; hardware-in-the-loop
