Sensors 2017, 17(4), 775; doi:10.3390/s17040775

Performance Assessment of a Humidity Measurement System and Its Use to Evaluate Moisture Characteristics of Wheelchair Cushions at the User–Seat Interface

1
The Higher Educational Key Laboratory for Measuring & Control Technology and Instrumentations of Heilongjiang Province, Harbin University of Science and Technology, Harbin 150080, China
2
Murdoch University Chiropractic Clinic, Murdoch University, Murdoch 6150, Australia
3
Welsh Institute of Chiropractic, University of South Wales, Treforest, Pontypridd CF37 1DL, UK
4
Faculty of Life Science and Education, University of South Wales, Treforest, Pontypridd CF37 1DL, UK
*
Author to whom correspondence should be addressed.
Received: 25 February 2017 / Revised: 27 March 2017 / Accepted: 28 March 2017 / Published: 5 April 2017
(This article belongs to the Special Issue Humidity Sensors)
View Full-Text   |   Download PDF [1239 KB, uploaded 6 April 2017]   |

Abstract

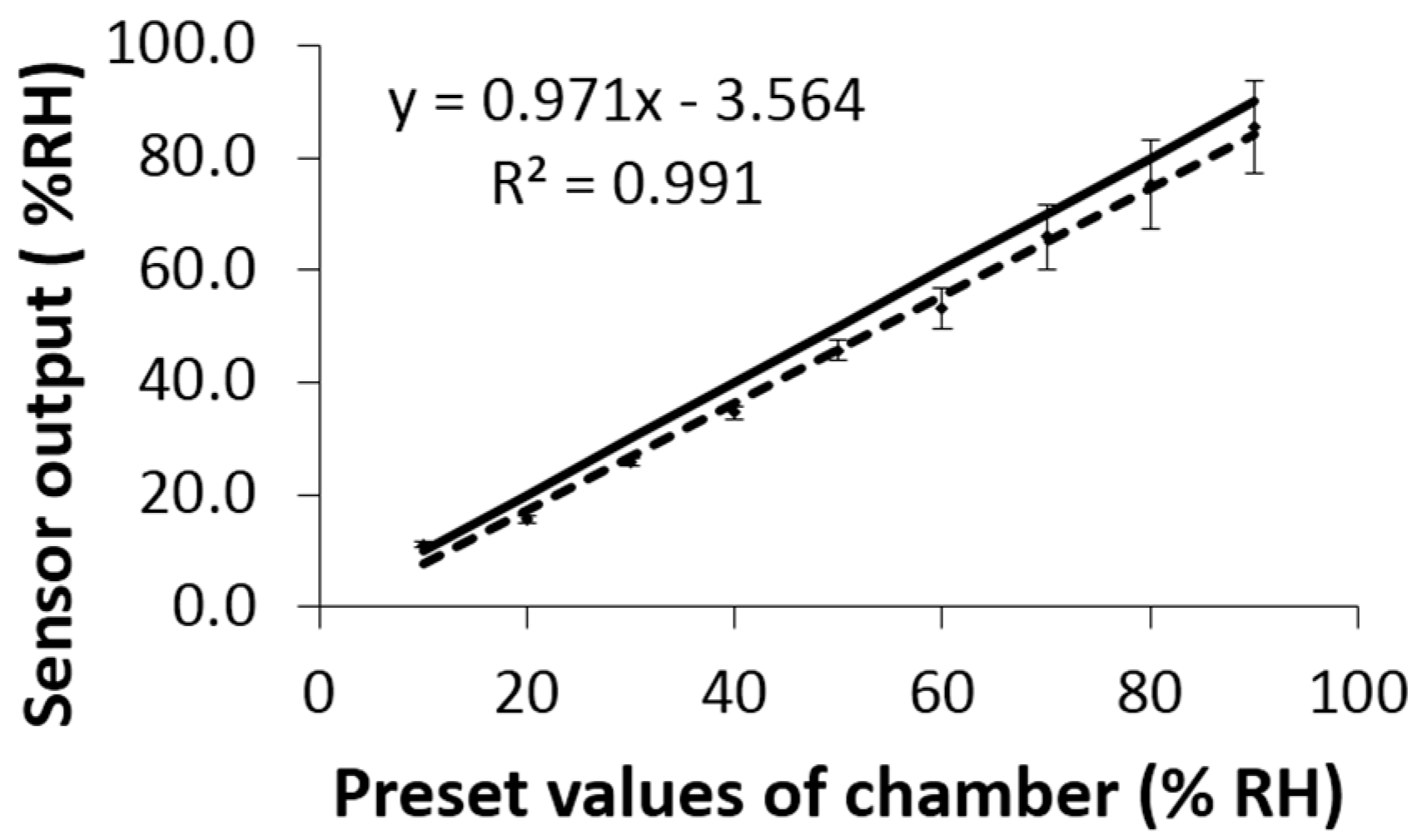

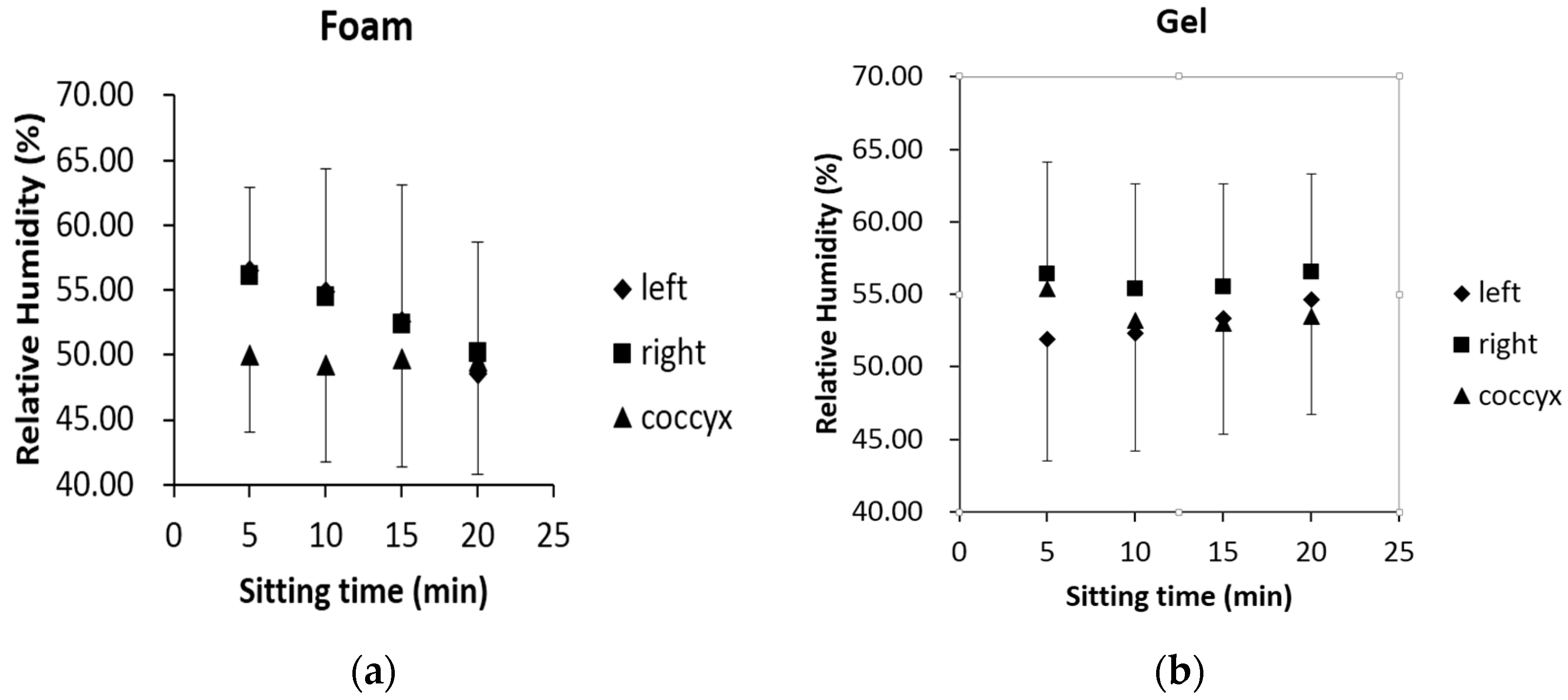

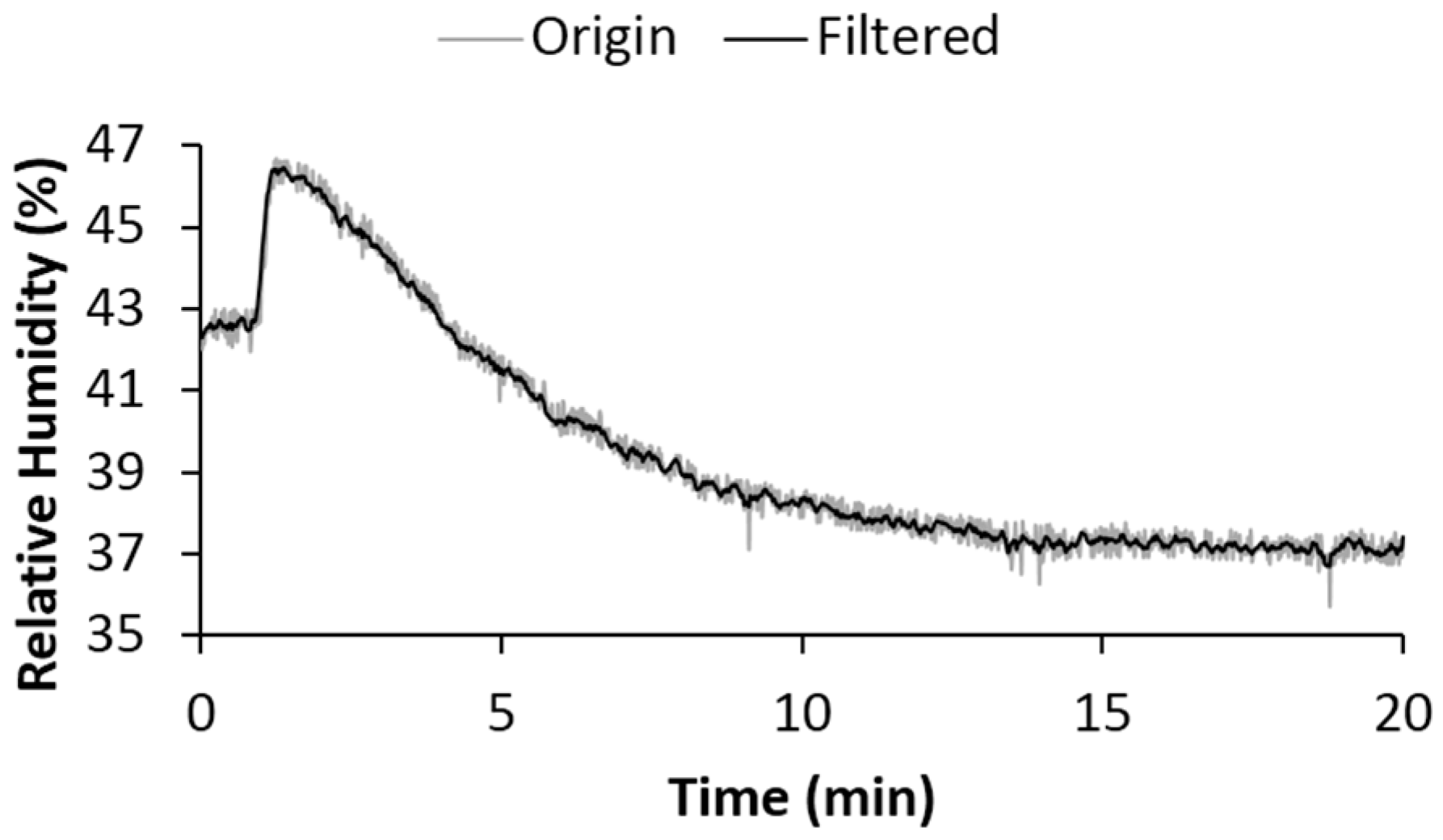

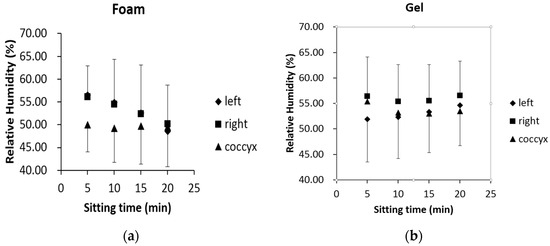

Little is known about the changes in moisture that occur at the body–seat interface during sitting. However, as increased moisture can add to the risk of skin damage, we have developed an array of MEMS (Micro-Electro-Mechanical System) humidity sensors to measure at this interface. Sensors were first evaluated against traceable standards, followed by use in a cross-over field test (n = 11; 20 min duration) using different wheelchair cushions (foam and gel). Relative humidity (RH) was measured at the left mid-thigh, right mid-thigh and coccyx. Sensors were shown to be unaffected by loading and showed highly reliable responses to measured changes in humidity, varying little from the traceable standard (<5%). Field-test data, smoothed through a moving average filter, revealed significant differences between the three chosen locations and between the gel and foam cushions. Maximum RH was attained in less than five minutes regardless of cushion material (foam or gel). Importantly, RH does not appear to distribute uniformly over the body–seat interface; suggesting multiple sensor positions would appear essential for effectively monitoring moisture in this interface. Material properties of the cushions appear to have a significant effect on RH characteristics (profile) at the body–seat interface, but not necessarily the time to peak moisture. View Full-Text
Keywords: humidity measurement; cushion; wheelchair; sensor position humidity measurement; cushion; wheelchair; sensor position
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Liu, Z.; Cheng, H.; Luo, Z.; Cascioli, V.; Heusch, A.I.; Nair, N.R.; McCarthy, P.W. Performance Assessment of a Humidity Measurement System and Its Use to Evaluate Moisture Characteristics of Wheelchair Cushions at the User–Seat Interface. Sensors 2017, 17, 775.
