Open AccessArticle
Sensors 2017, 17(12), 2899; https://doi.org/10.3390/s17122899

Fiber Fabry-Perot Force Sensor with Small Volume and High Performance for Assessing Fretting Damage of Steam Generator Tubes

The Key Laboratory of Optoelectronic Technology & System (Ministry of Education), Chongqing University, Chongqing 400044, China
*
Author to whom correspondence should be addressed.
Received: 29 October 2017 / Revised: 28 November 2017 / Accepted: 11 December 2017 / Published: 13 December 2017
(This article belongs to the Special Issue Optical Fiber Sensors 2017)
View Full-Text   |   Download PDF [5147 KB, uploaded 13 December 2017]   |

Abstract

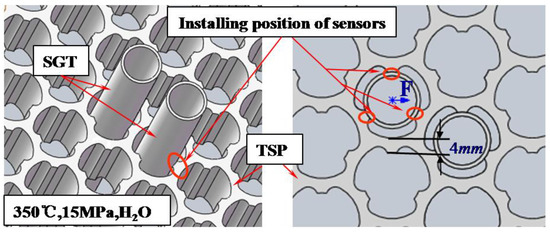

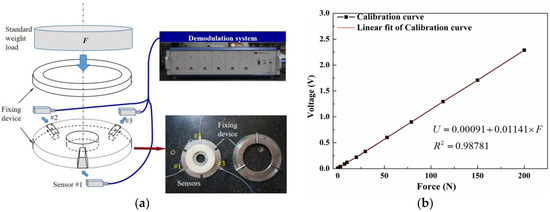

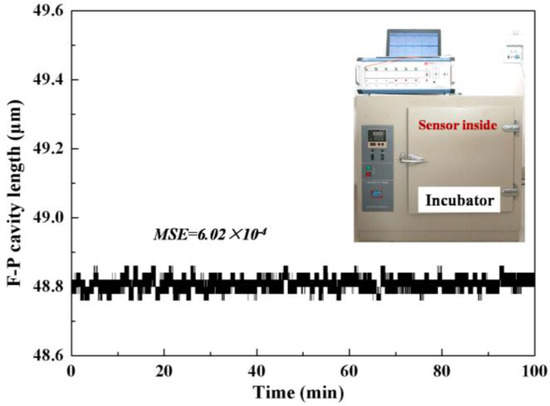

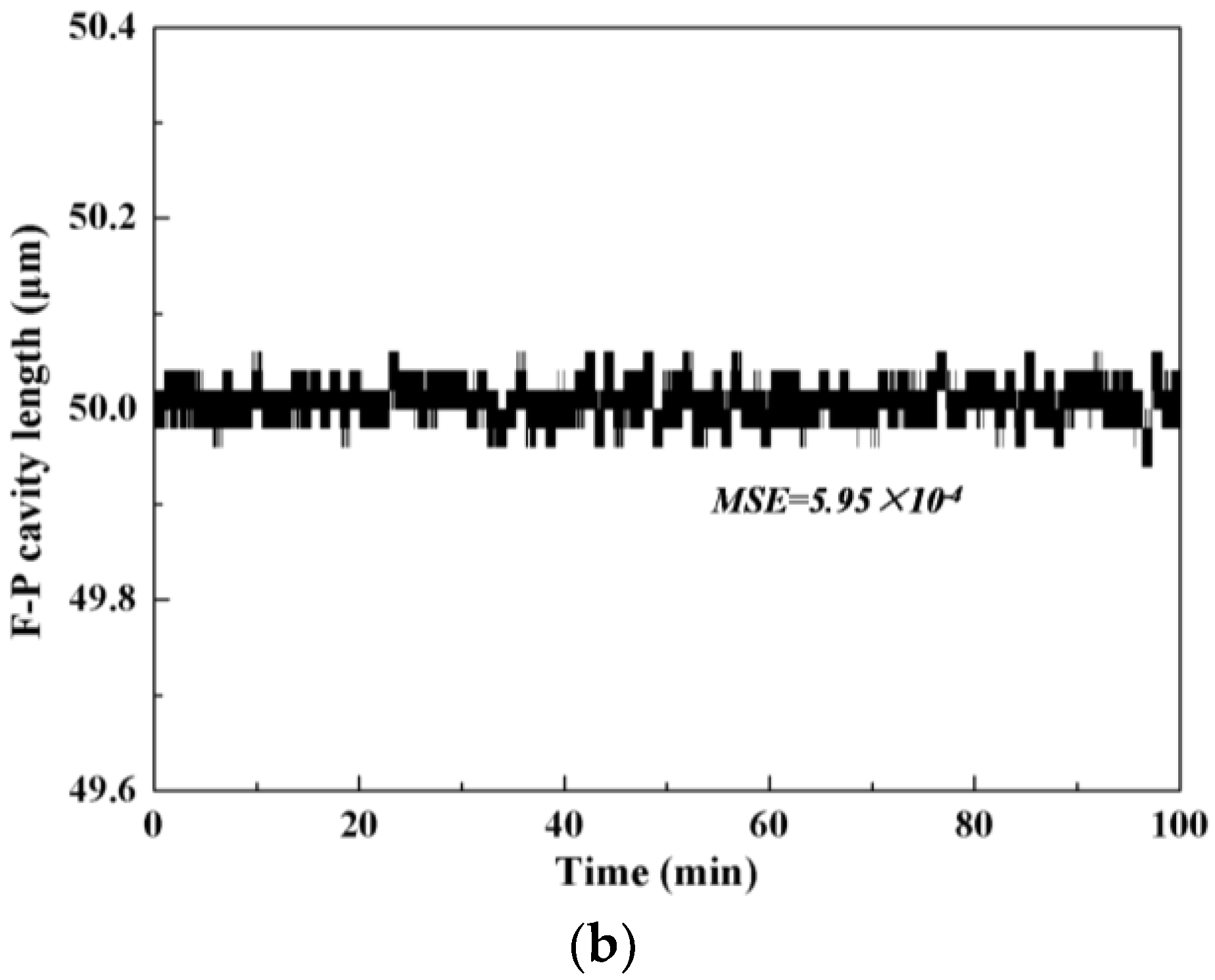

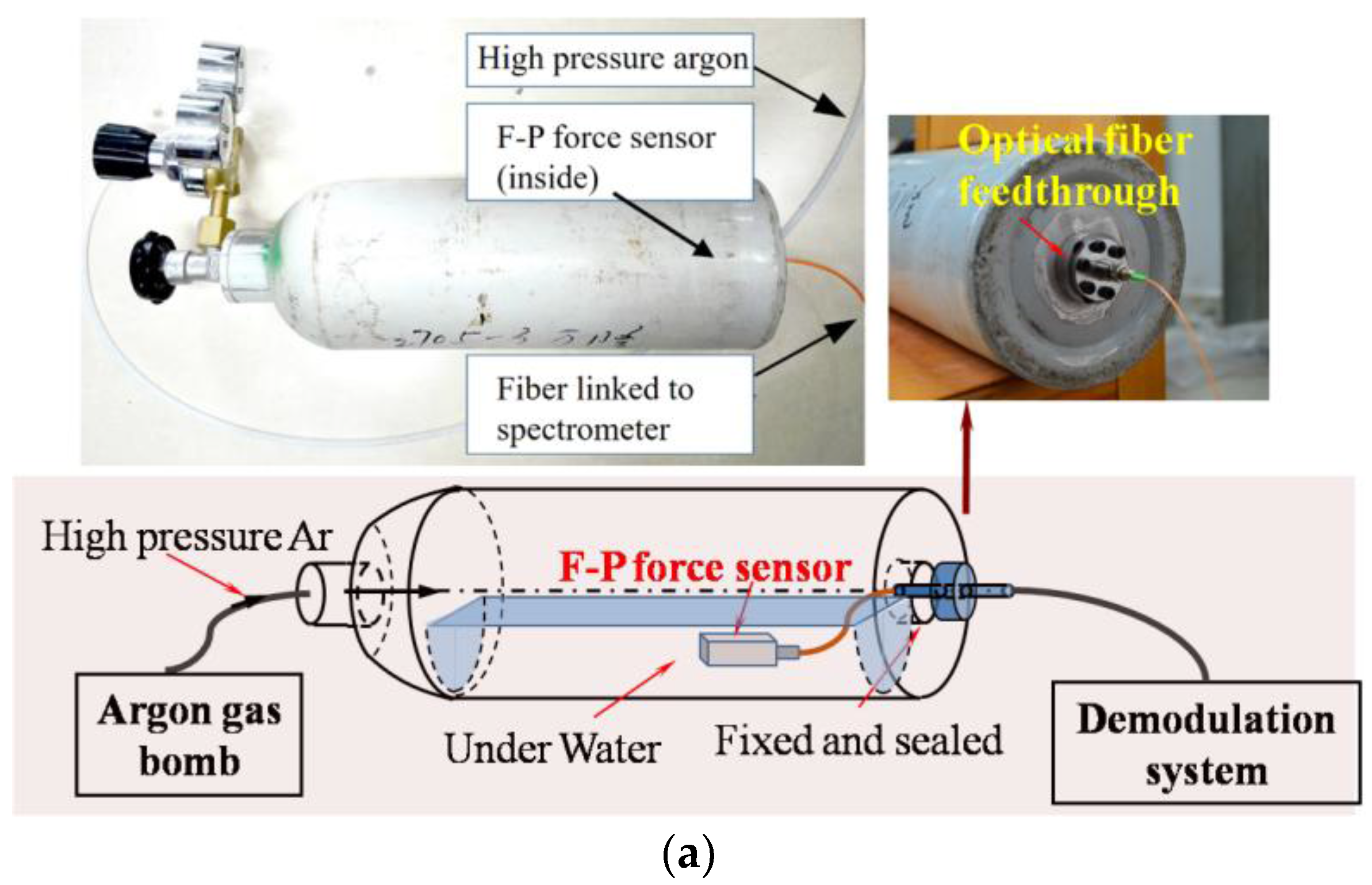

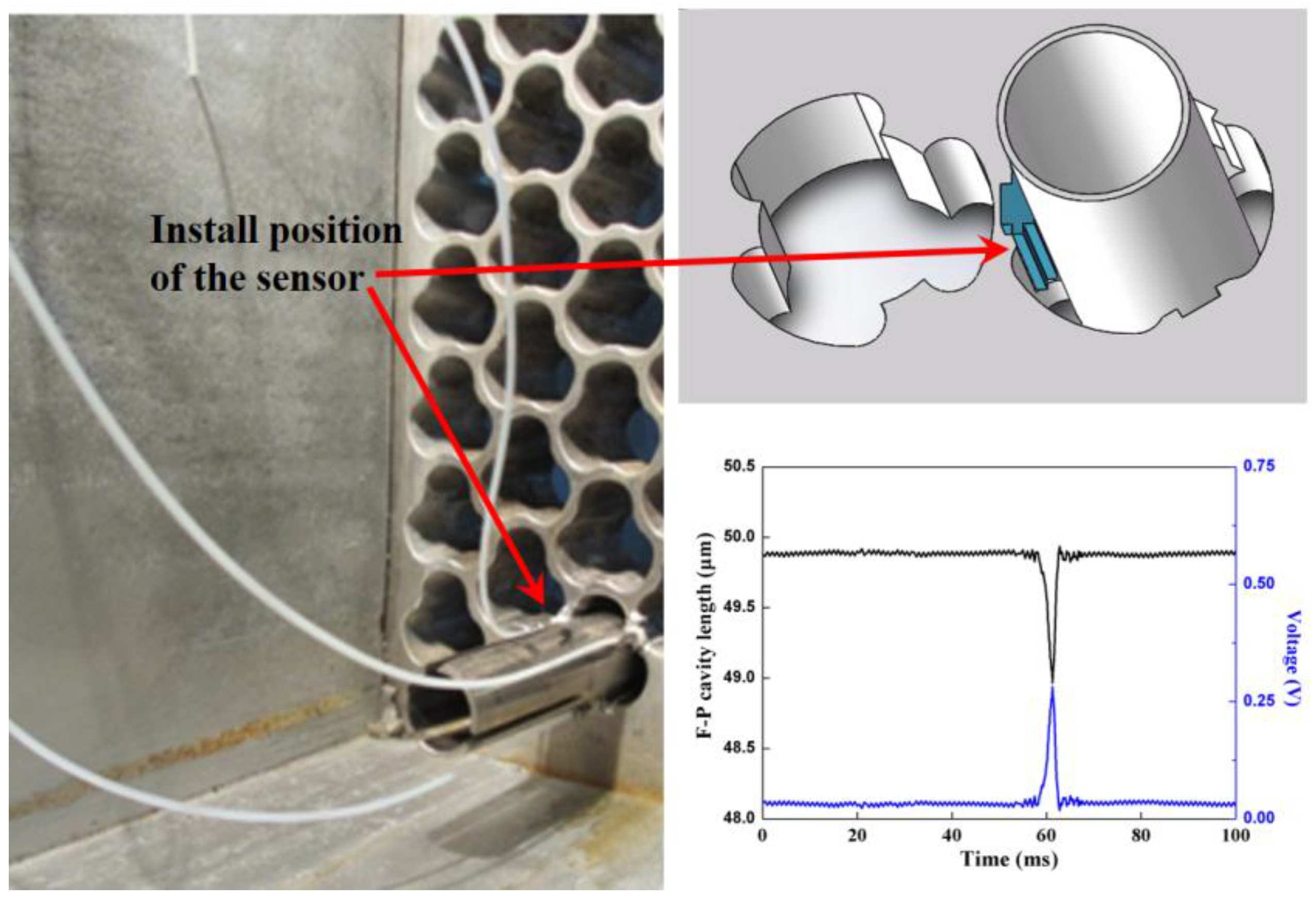

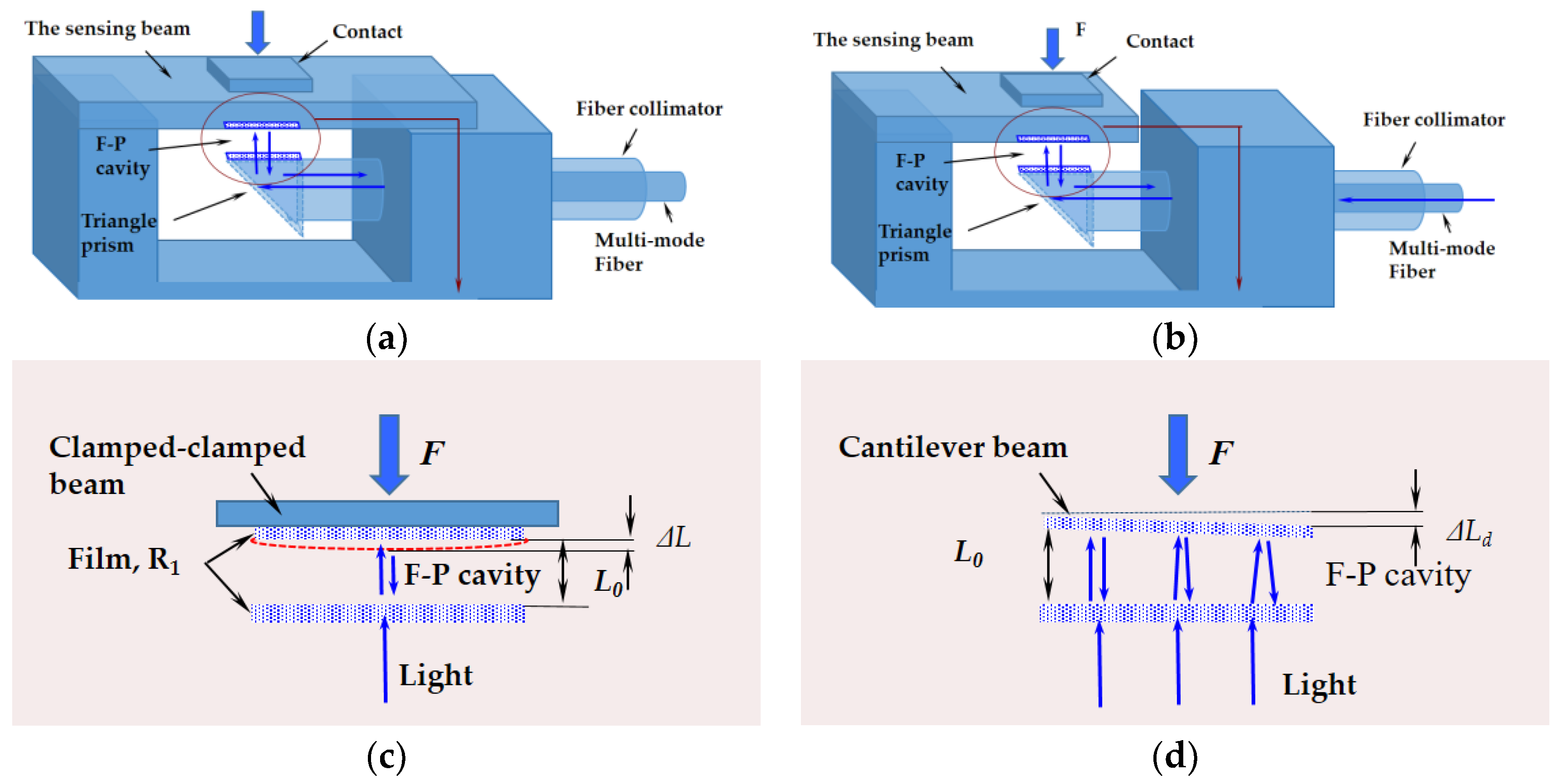

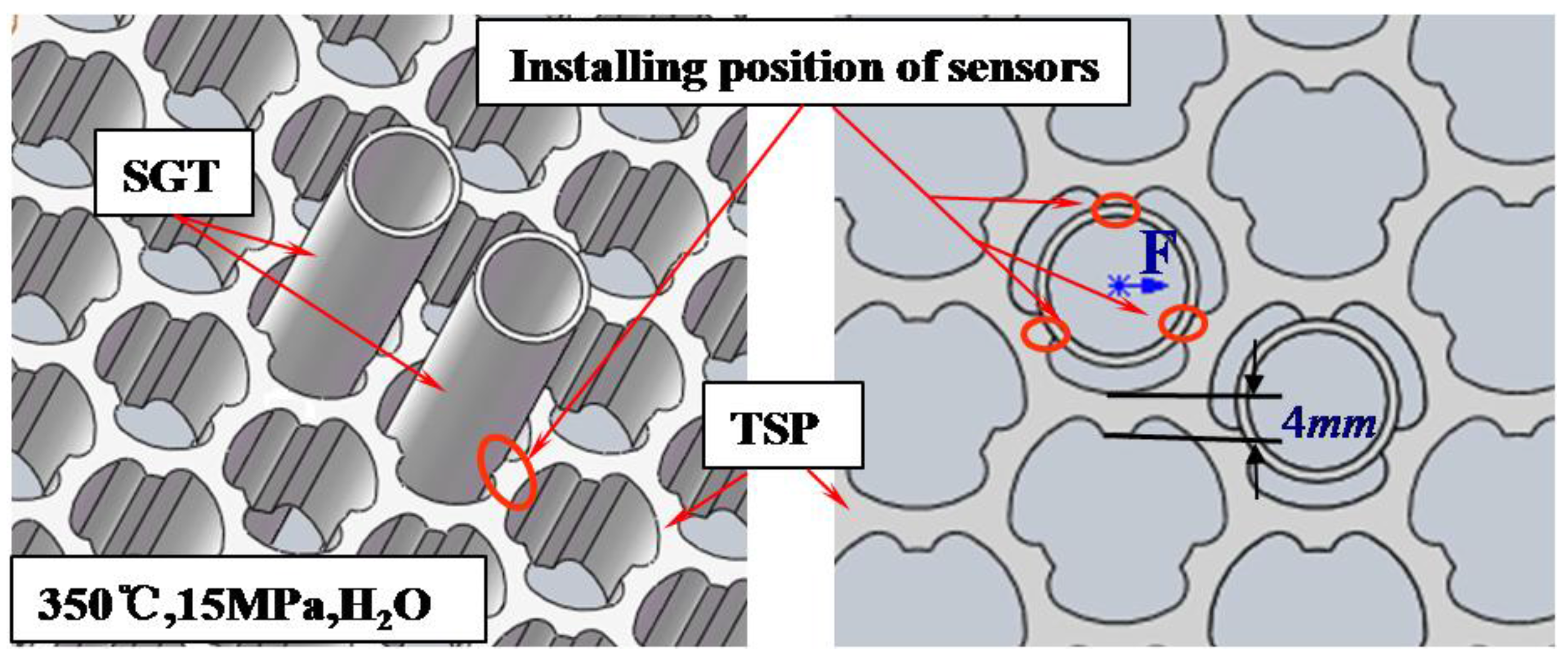

Measuring the radial collision force between the steam generator tube (SGT) and the tube support plate (TSP) is essential to assess the fretting damage of the SGT. In order to measure the radial collision force, a novel miniaturized force sensor based on fiber Fabry-Perot (F-P) was designed, and the principle and characteristics of the sensor were analyzed in detail. Then, the F-P force sensor was successfully fabricated and calibrated, and the overall dimensions of the encapsulated fiber F-P sensor were 17 mm × 5 mm × 3 mm (L × W × H). The sensor works well in humid, high pressure (10 MPa), high temperature (350 °C), and vibration (40 kHz) environments. Finally, the F-P force sensors were installed in a 1:1 steam generator test loop, and the radial collision force signals between the SGT and the TSP were obtained. The experiments indicated that the F-P sensor with small volume and high performance could help in assessing the fretting damage of the steam generator tubes. View Full-Text
Keywords: fiber optics sensor; steam generator tube; fretting damage; collision force measurement fiber optics sensor; steam generator tube; fretting damage; collision force measurement
Figures

Figure 1
