Sensors 2017, 17(12), 2721; https://doi.org/10.3390/s17122721

A Method for Measurement of Nonlinearity of Laser Interferometer Based on Optical Frequency Tuning

1
College of Precision Instrument and Opto-Electronics Engineering, Tianjin University, Tianjin 300072, China
2
Changcheng Institute of Metrology & Measurement, Beijing, 100095, China
*
Author to whom correspondence should be addressed.
Received: 11 October 2017 / Revised: 15 November 2017 / Accepted: 21 November 2017 / Published: 24 November 2017
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [2841 KB, uploaded 25 November 2017]   |

Abstract

A method for measuring the nonlinearity of laser interferometer using optical frequency tuning technique is presented in this paper. The basic principle of this method is to make the fractional part of an interference fringe change by tuning the laser frequency and determining the nonlinearity of interferometer by comparing the fractional fringe change measured by the interferometer to that calculated from the laser frequency change. An experimental interferometric system with a wavelength tunable laser source is set up and the nonlinearity of the interferometer is measured. Since it does not require the precise displacement mechanism to produce the optical path difference change, this method is more convenient to use and may achieve a higher accuracy than the conventional measurement methods. The nonlinearity of the arbitrary interferometric phase can be measured by changing the laser frequency with this method. Experiments results have shown that the repeatability of nonlinearity measurement is less than 0.2 nm. This method can be applied to interferometry-based high precision dimensional measurements, such as coordinate measurement and displacement sensor calibration. View Full-Text
Keywords: interferometry; frequency tuning; nonlinearity; measurement interferometry; frequency tuning; nonlinearity; measurement
Figures

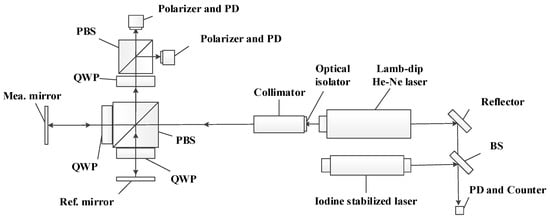

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
