Sensors 2017, 17(11), 2672; doi:10.3390/s17112672

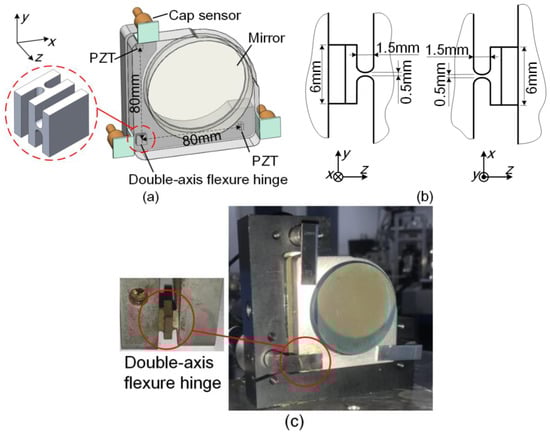

Two-Dimensional Micro-/Nanoradian Angle Generator with High Resolution and Repeatability Based on Piezo-Driven Double-Axis Flexure Hinge and Three Capacitive Sensors

Center of Ultra-precision Optoelectronic Instrument Engineering, Harbin Institute of Technology, Harbin 150080, China
*
Authors to whom correspondence should be addressed.
Received: 21 September 2017 / Revised: 10 November 2017 / Accepted: 17 November 2017 / Published: 19 November 2017
(This article belongs to the Special Issue Piezoelectric Micro- and Nano-Devices)
View Full-Text   |   Download PDF [7096 KB, uploaded 20 November 2017]   |

Abstract

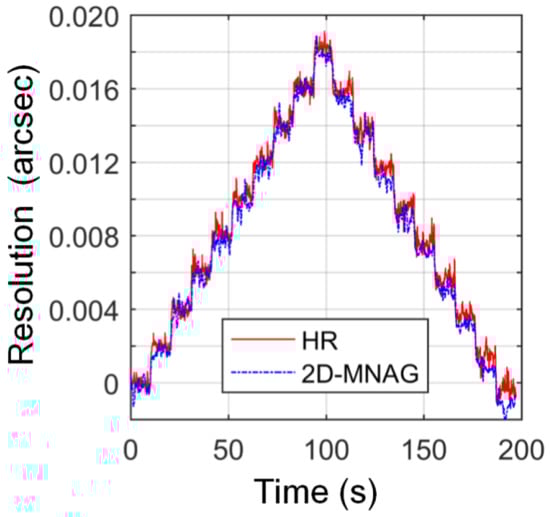

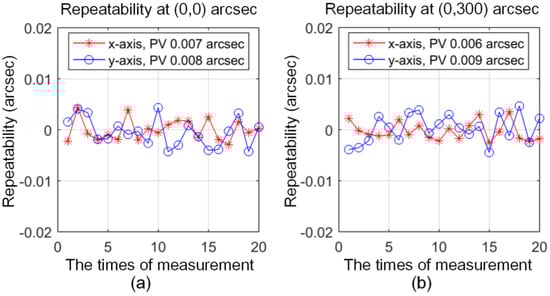

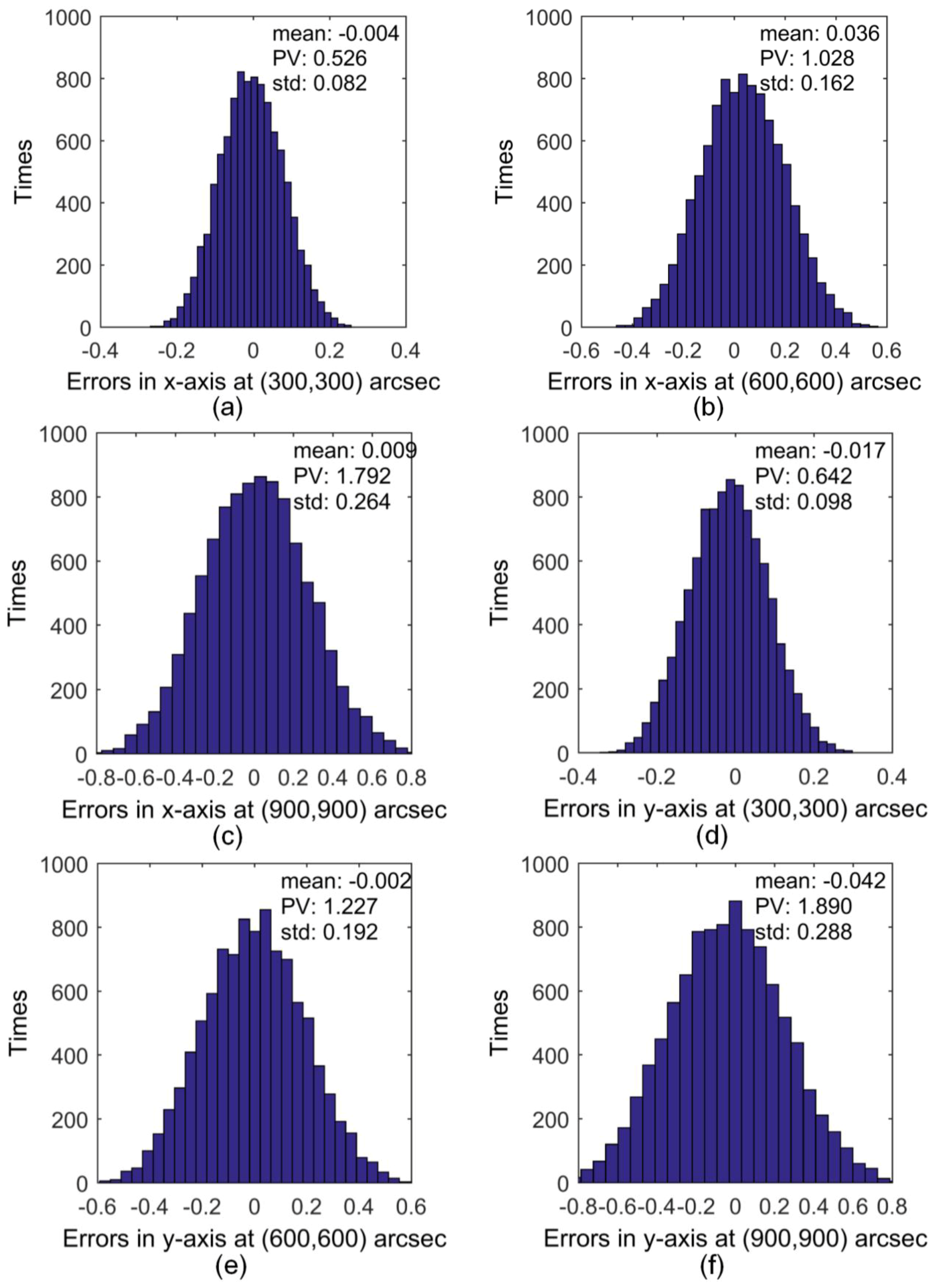

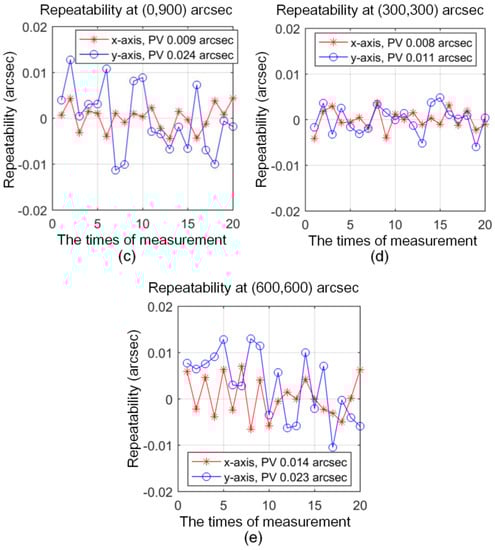

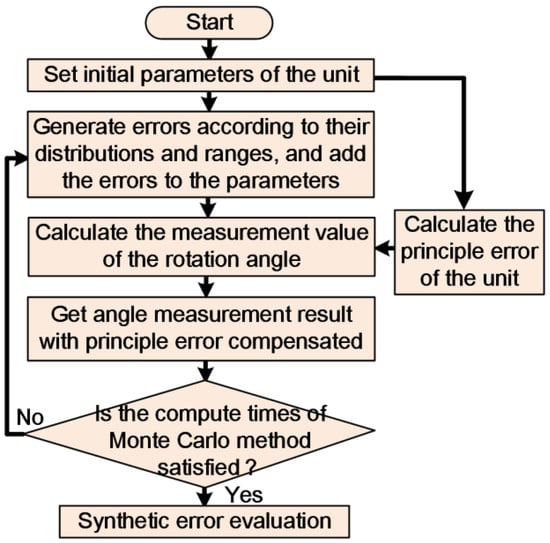

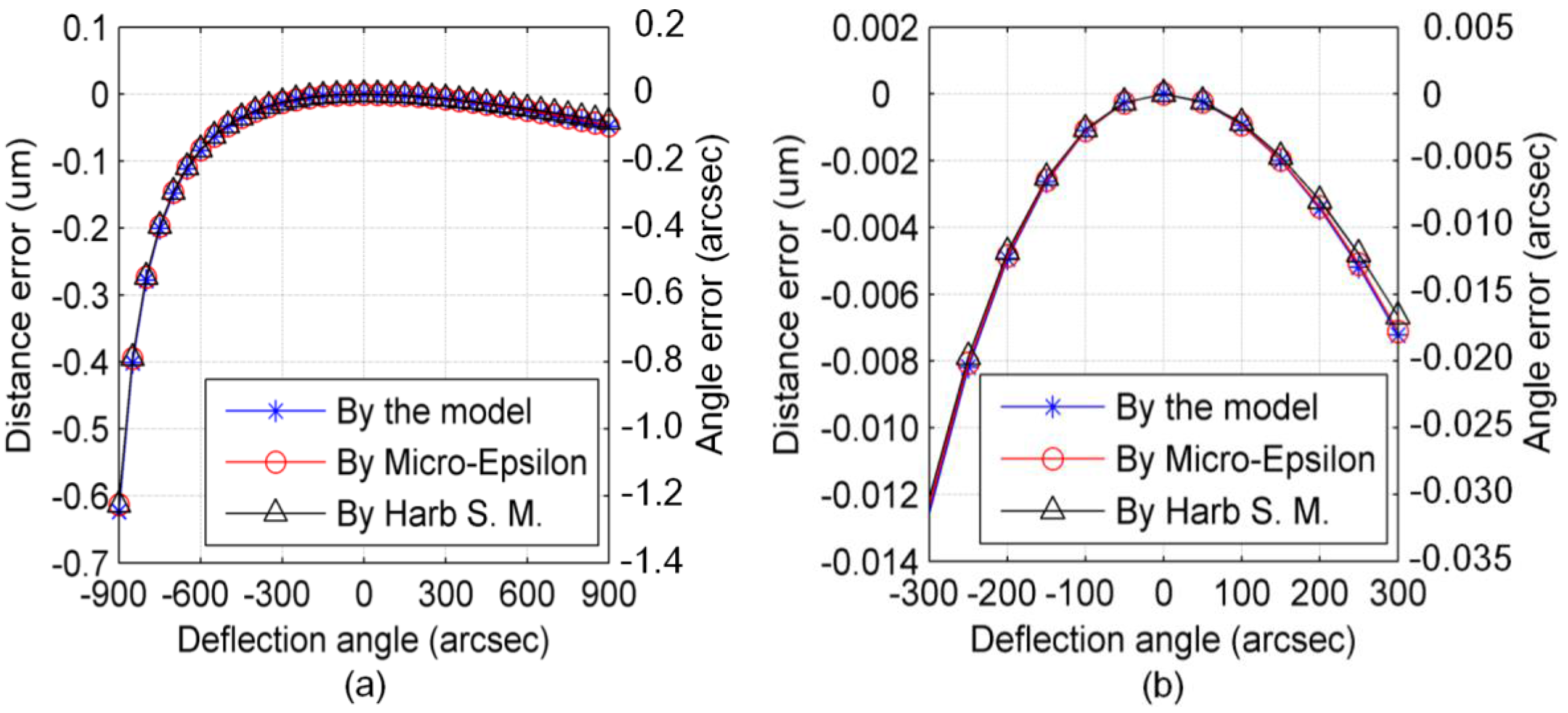

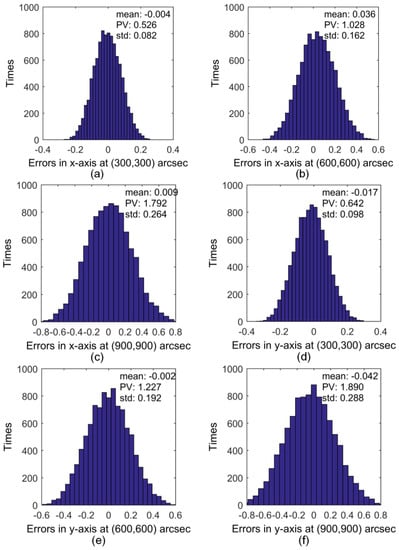

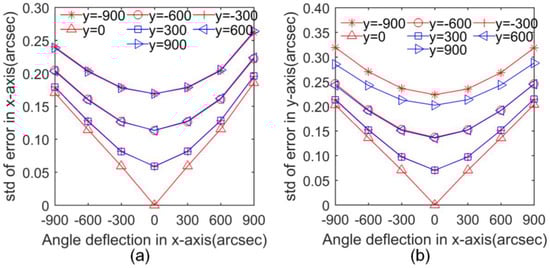

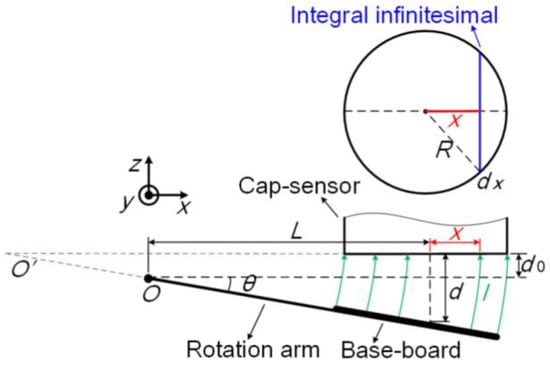

This study presents a two-dimensional micro-/nanoradian angle generator (2D-MNAG) that achieves high angular displacement resolution and repeatability using a piezo-driven flexure hinge for two-dimensional deflections and three capacitive sensors for output angle monitoring and feedback control. The principal error of the capacitive sensor for precision microangle measurement is analyzed and compensated for; so as to achieve a high angle output resolution of 10 nrad (0.002 arcsec) and positioning repeatability of 120 nrad (0.024 arcsec) over a large angular range of ±4363 μrad (±900 arcsec) for the 2D-MNAG. The impact of each error component, together with the synthetic error of the 2D-MNAG after principal error compensation are determined using Monte Carlo simulation for further improvement of the 2D-MNAG. View Full-Text
Keywords: angle generator; angular deflection; angle calibration; flexure hinge; capacitive sensor; Monte Carlo method angle generator; angular deflection; angle calibration; flexure hinge; capacitive sensor; Monte Carlo method
