Open AccessTechnical Note
Sensors 2016, 16(9), 1518; doi:10.3390/s16091518

Forward-Looking Infrared Cameras for Micrometeorological Applications within Vineyards

Center for Atmopsheric Research, University of Canterbury, Christchurch 8140, New Zealand
*
Author to whom correspondence should be addressed.
Academic Editor: Gonzalo Pajares Martinsanz
Received: 30 June 2016 / Revised: 19 August 2016 / Accepted: 13 September 2016 / Published: 18 September 2016
(This article belongs to the Special Issue Imaging: Sensors and Technologies)
View Full-Text   |   Download PDF [3335 KB, uploaded 18 September 2016]   |

Abstract

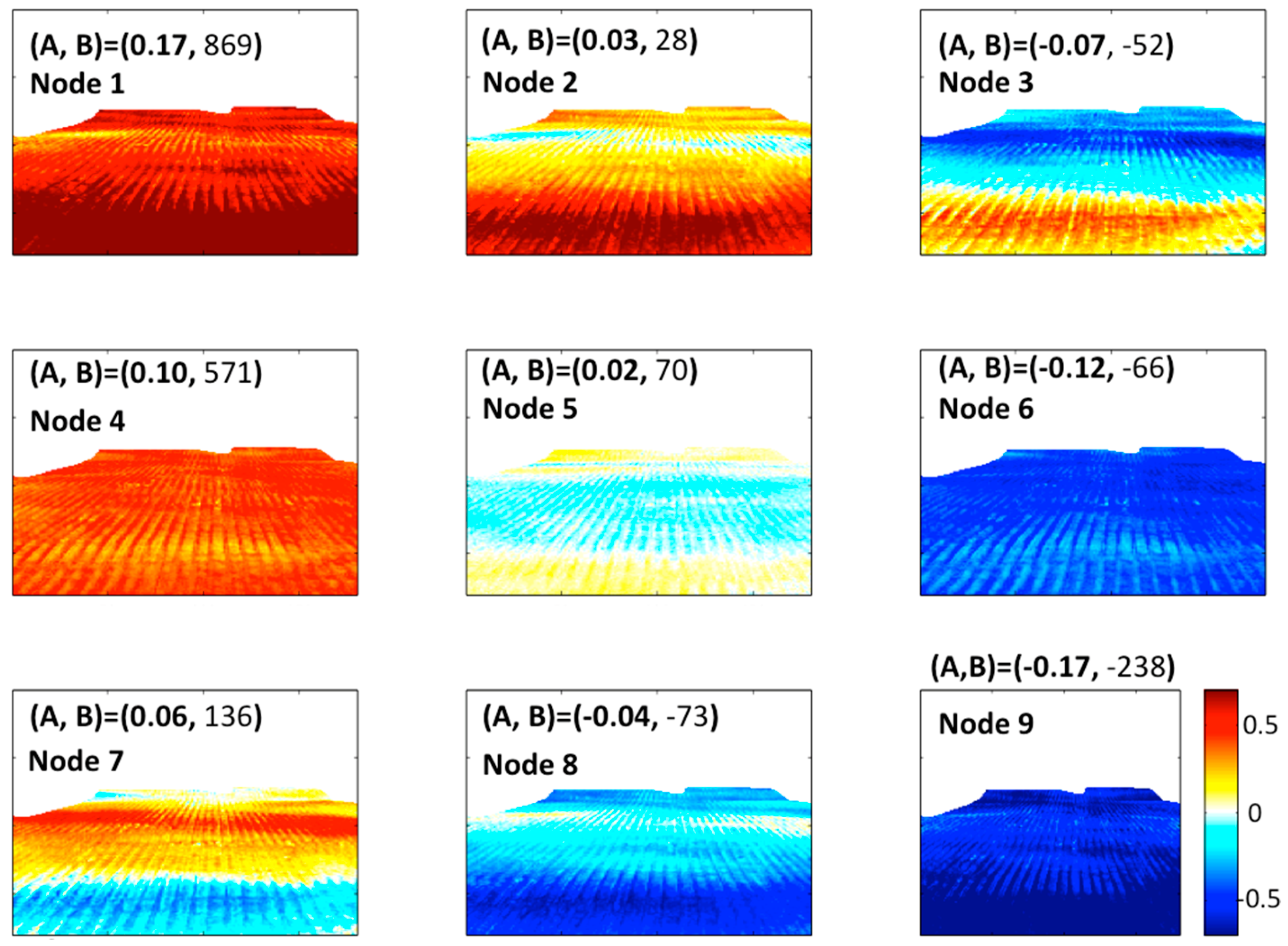

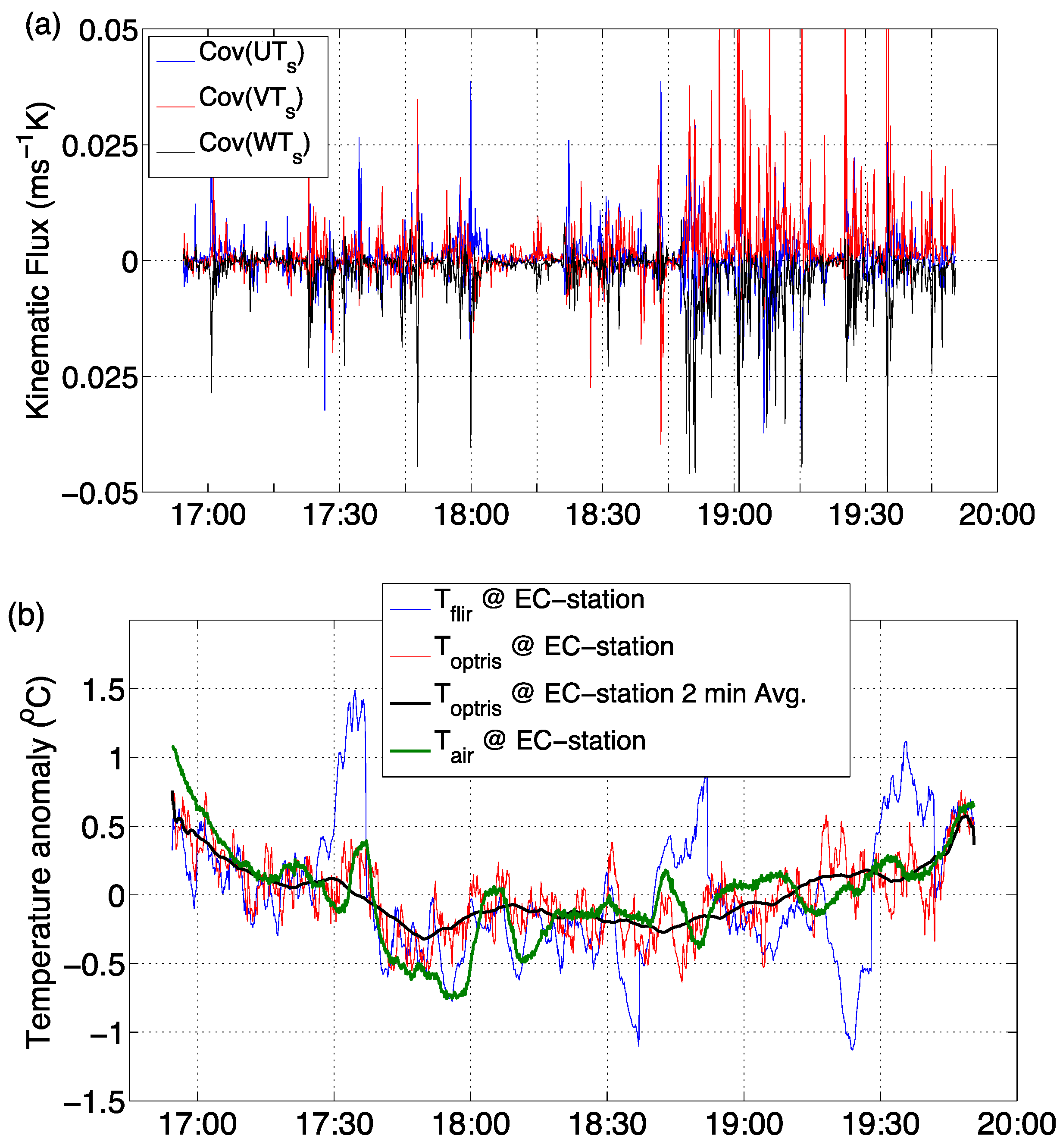

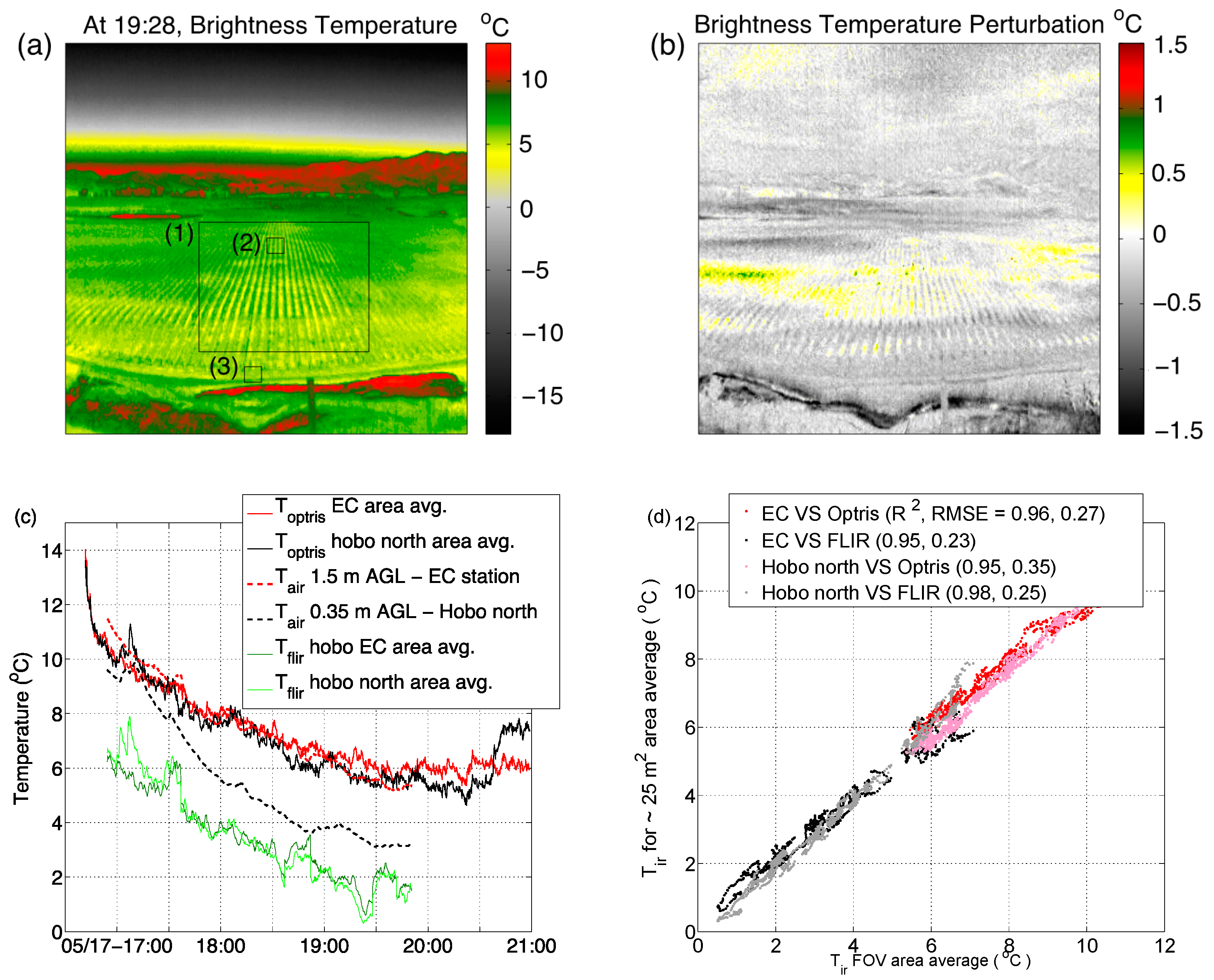

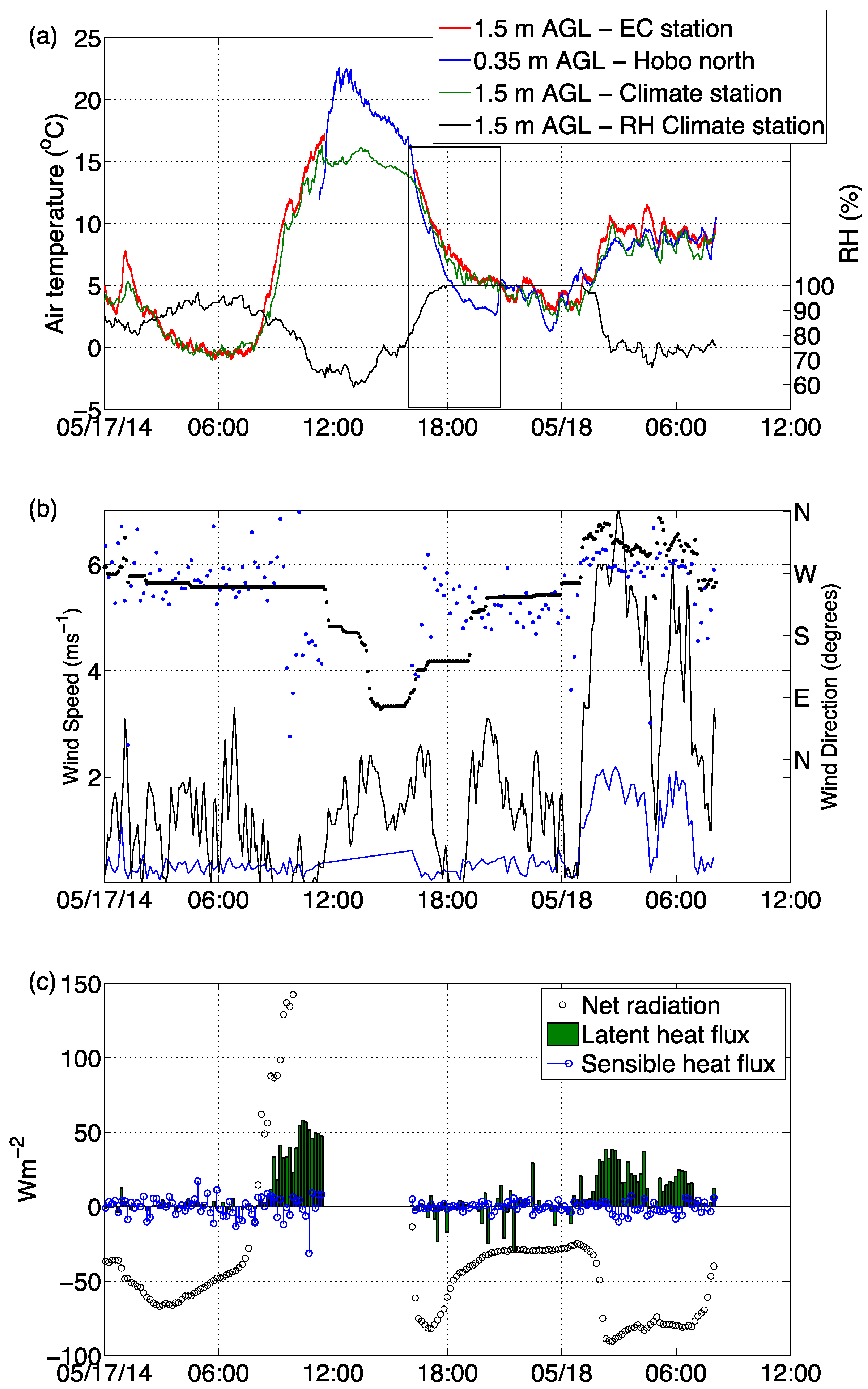

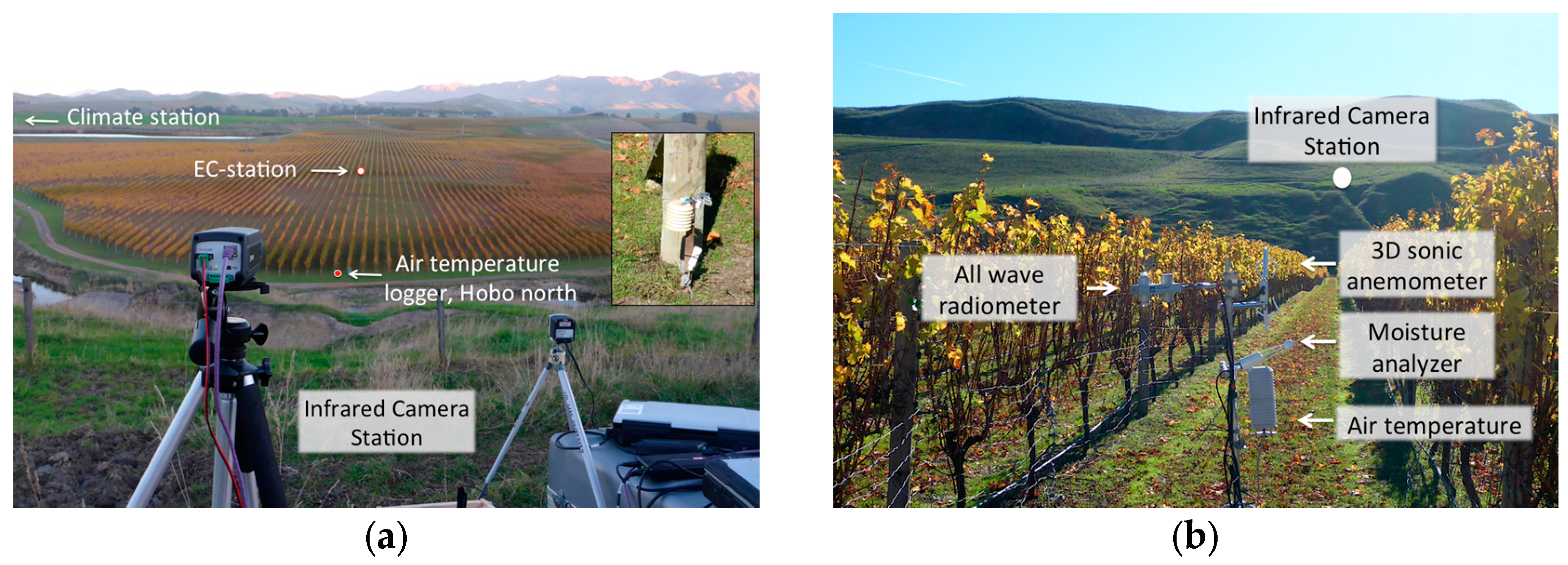

We apply the principles of atmospheric surface layer dynamics within a vineyard canopy to demonstrate the use of forward-looking infrared cameras measuring surface brightness temperature (spectrum bandwidth of 7.5 to 14 μm) at a relatively high temporal rate of 10 s. The temporal surface brightness signal over a few hours of the stable nighttime boundary layer, intermittently interrupted by periods of turbulent heat flux surges, was shown to be related to the observed meteorological measurements by an in situ eddy-covariance system, and reflected the above-canopy wind variability. The infrared raster images were collected and the resultant self-organized spatial cluster provided the meteorological context when compared to in situ data. The spatial brightness temperature pattern was explained in terms of the presence or absence of nighttime cloud cover and down-welling of long-wave radiation and the canopy turbulent heat flux. Time sequential thermography as demonstrated in this research provides positive evidence behind the application of thermal infrared cameras in the domain of micrometeorology, and to enhance our spatial understanding of turbulent eddy interactions with the surface. View Full-Text
Keywords: time sequential thermography; micrometeorology; self-organizing maps; surface energy balance; turbulence; microclimate; infrared camera time sequential thermography; micrometeorology; self-organizing maps; surface energy balance; turbulence; microclimate; infrared camera
Figures

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Katurji, M.; Zawar-Reza, P. Forward-Looking Infrared Cameras for Micrometeorological Applications within Vineyards. Sensors 2016, 16, 1518.
