Sensors 2016, 16(8), 1294; doi:10.3390/s16081294

Development of Gated Pinned Avalanche Photodiode Pixels for High-Speed Low-Light Imaging

1
KU Leuven, ESAT, Kasteelpark Arenberg 10, B-3001 Leuven, Belgium
2
Imec, Kapeldreef 75, B-3001 Leuven, Belgium
*
Author to whom correspondence should be addressed.
Academic Editor: Albert Theuwissen
Received: 29 February 2016 / Revised: 8 August 2016 / Accepted: 10 August 2016 / Published: 15 August 2016
(This article belongs to the Special Issue Photon-Counting Image Sensors)
View Full-Text   |   Download PDF [4160 KB, uploaded 15 August 2016]   |

Abstract

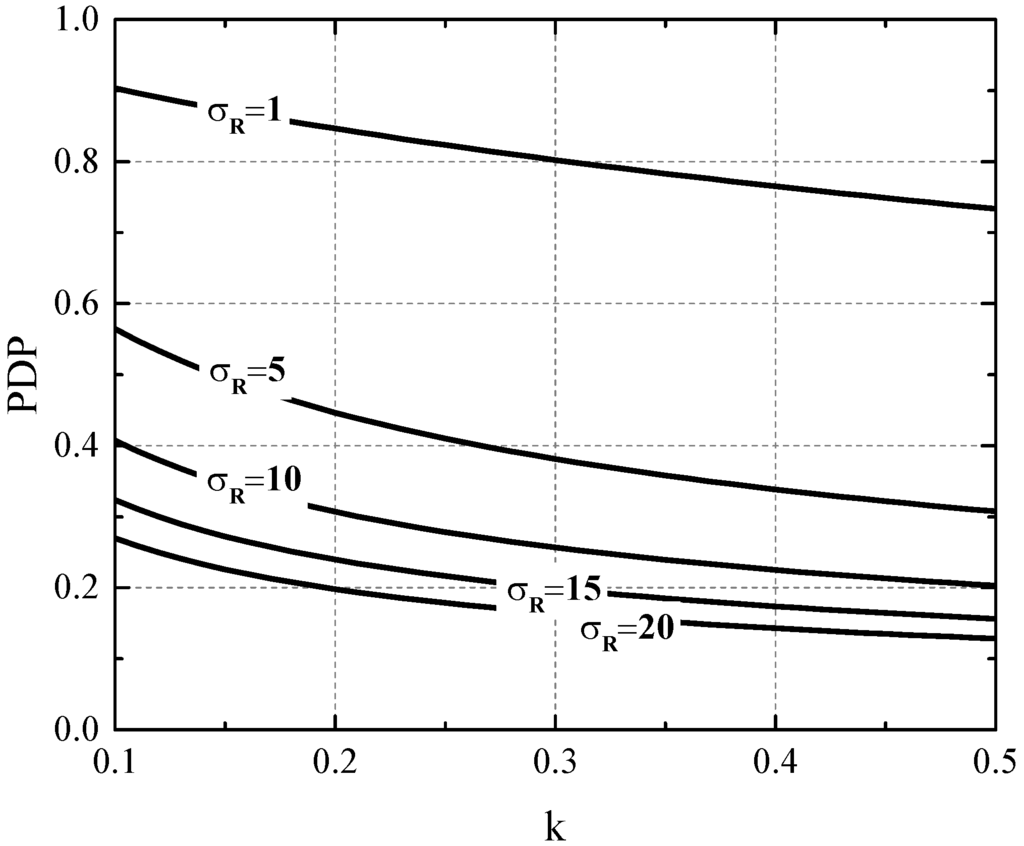

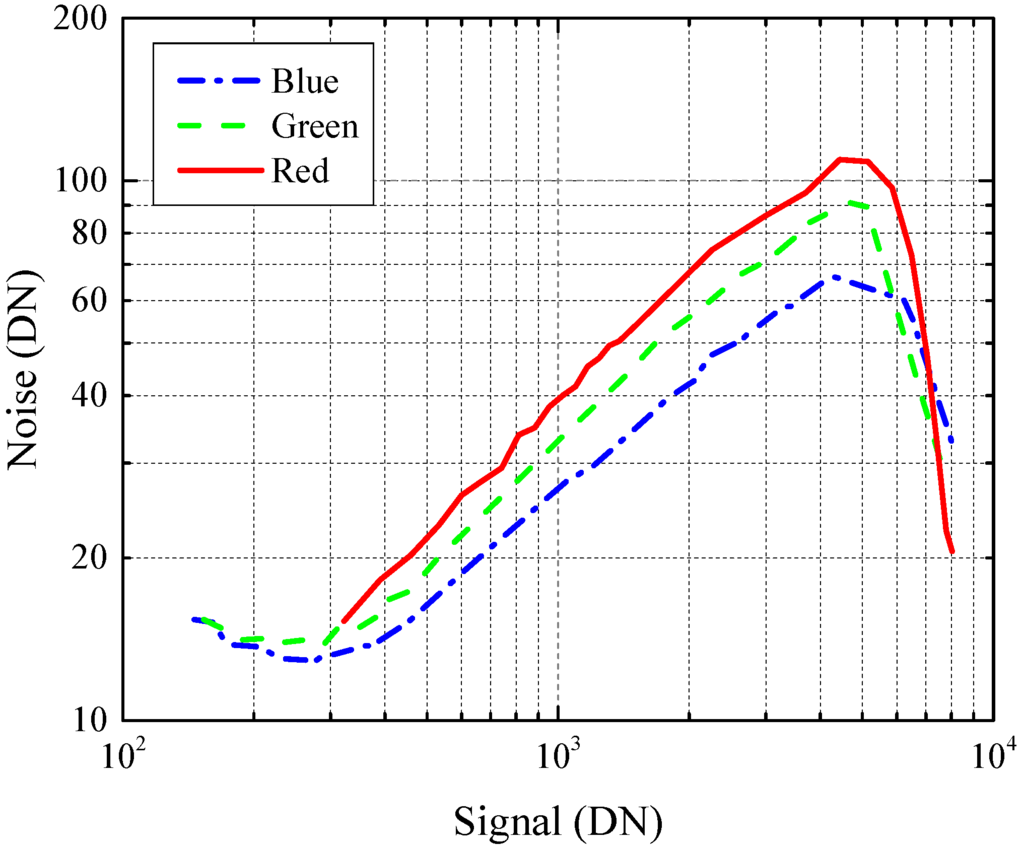

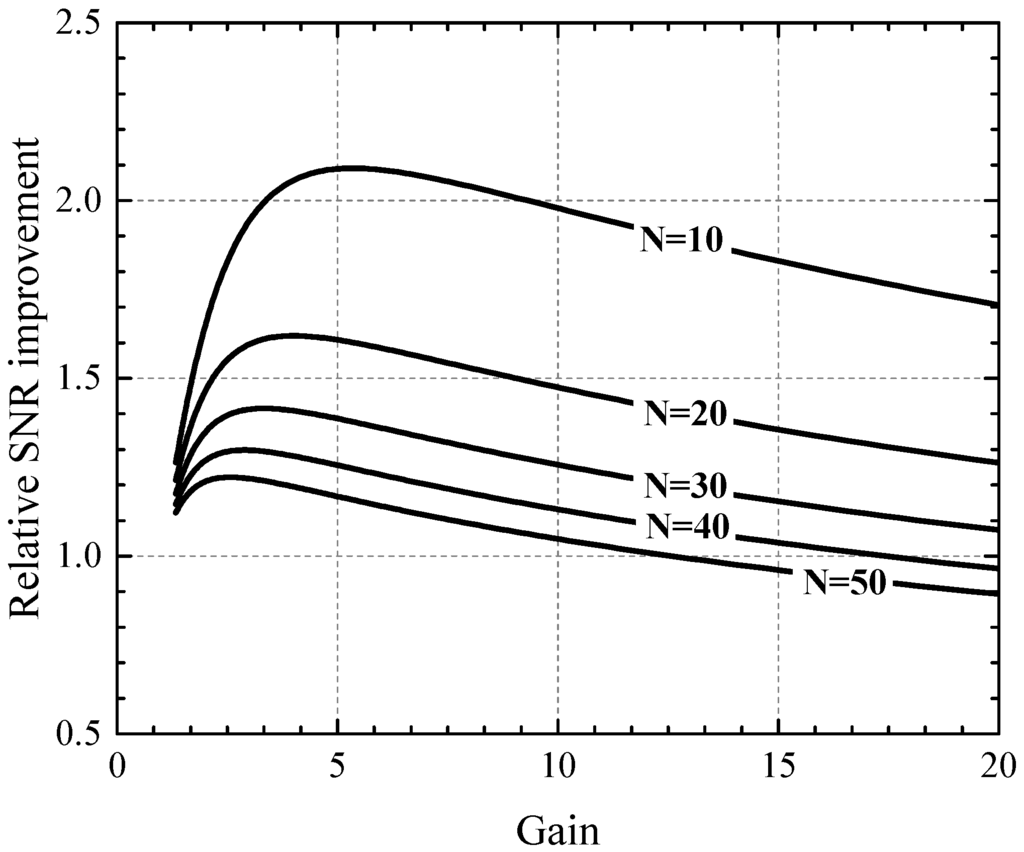

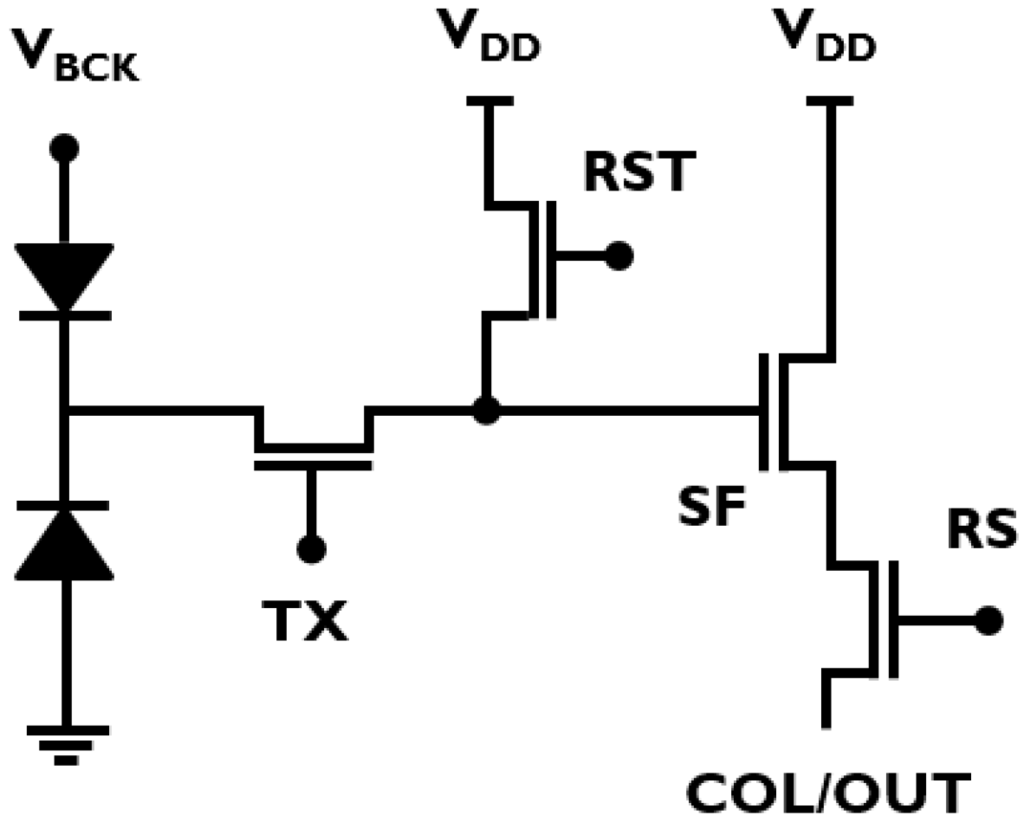

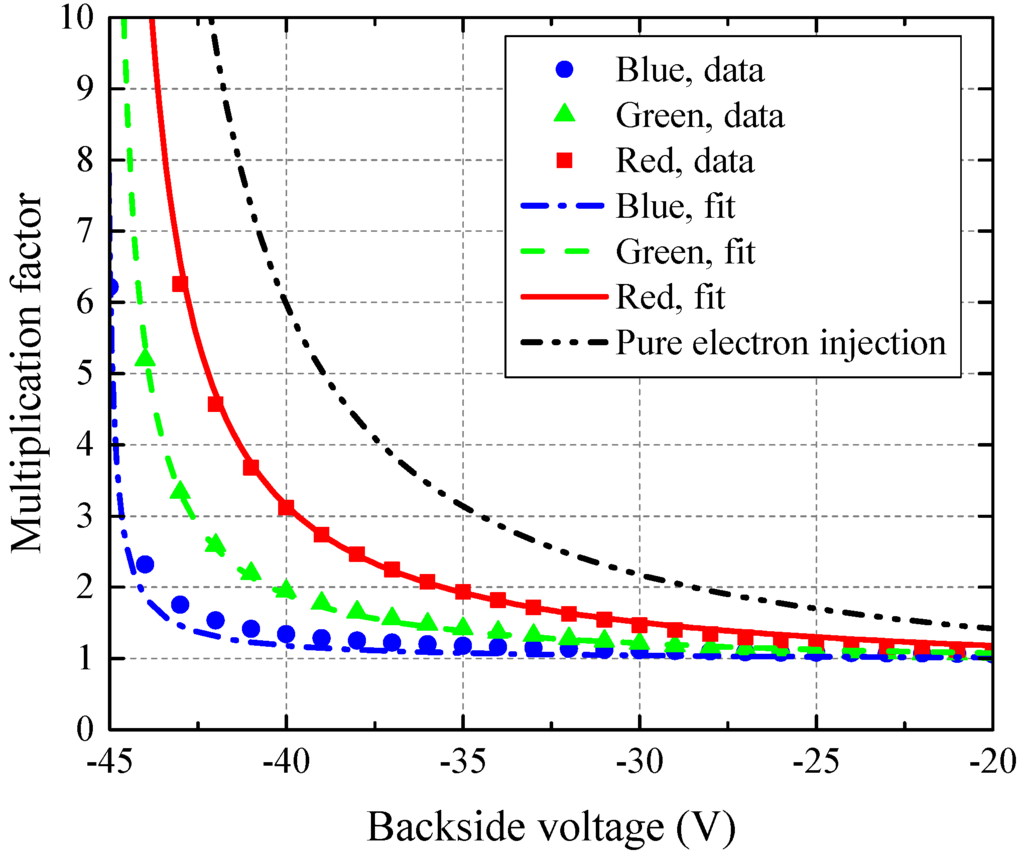

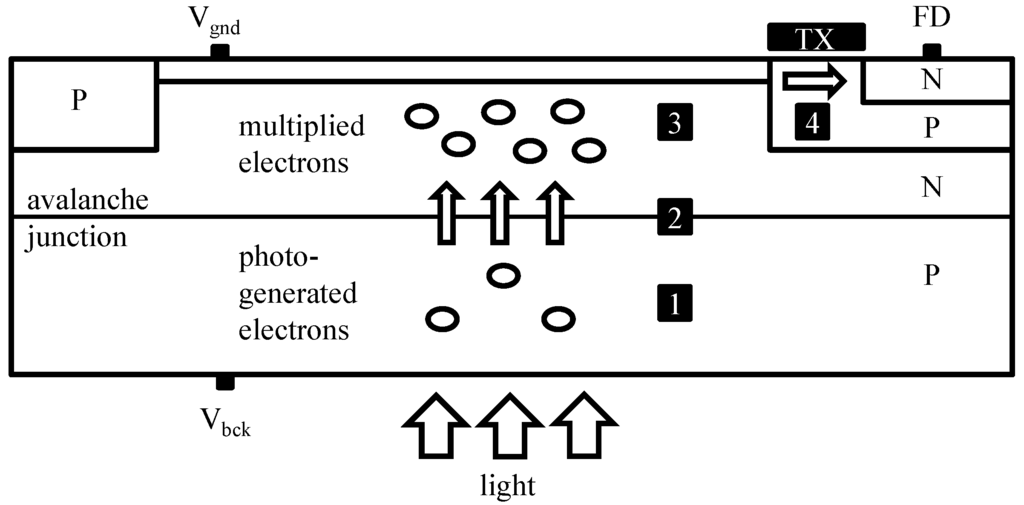

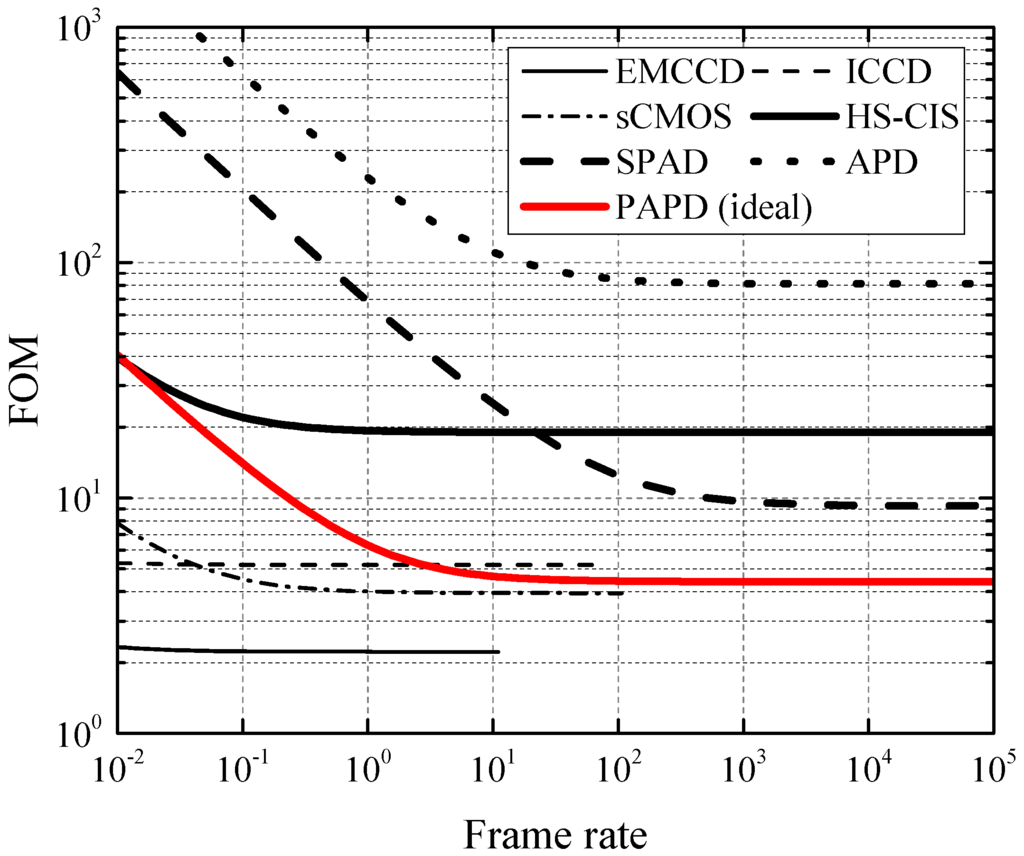

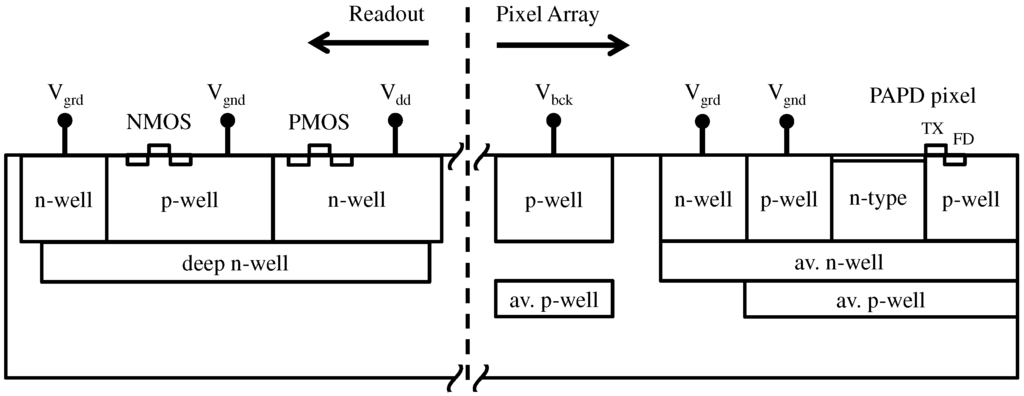

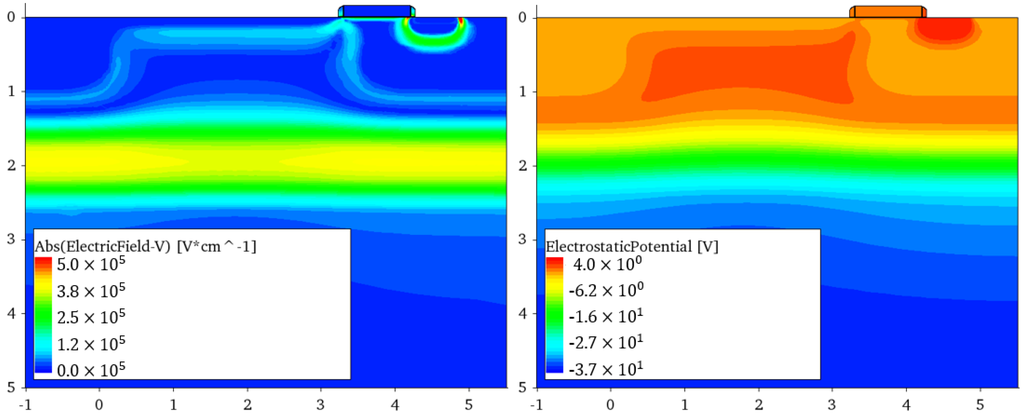

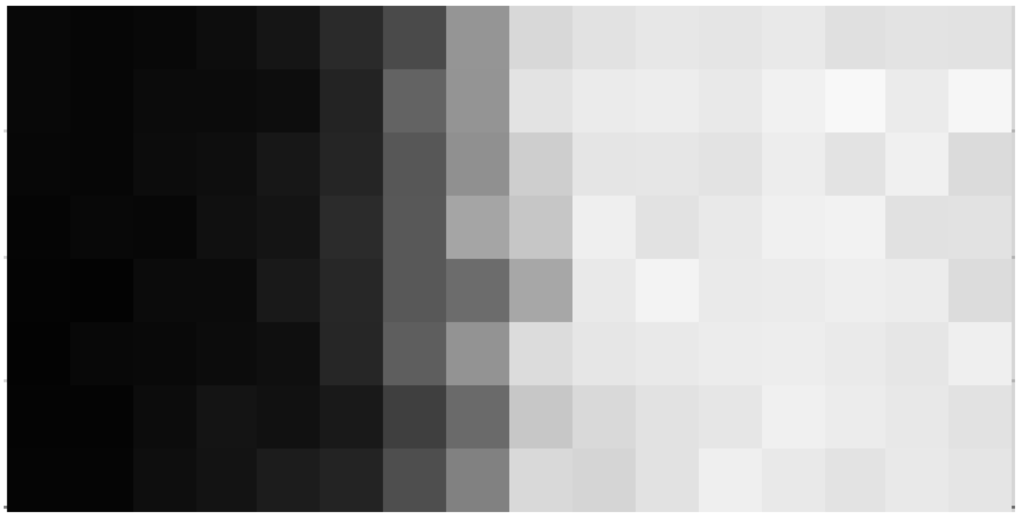

This work explores the benefits of linear-mode avalanche photodiodes (APDs) in high-speed CMOS imaging as compared to different approaches present in literature. Analysis of APDs biased below their breakdown voltage employed in single-photon counting mode is also discussed, showing a potentially interesting alternative to existing Geiger-mode APDs. An overview of the recently presented gated pinned avalanche photodiode pixel concept is provided, as well as the first experimental results on a 8 × 16 pixel test array. Full feasibility of the proposed pixel concept is not demonstrated; however, informative data is obtained from the sensor operating under −32 V substrate bias and clearly exhibiting wavelength-dependent gain in frontside illumination. The readout of the chip designed in standard 130 nm CMOS technology shows no dependence on the high-voltage bias. Readout noise level of 15 e - rms, full well capacity of 8000 e - , and the conversion gain of 75 µV / e - are extracted from the photon-transfer measurements. The gain characteristics of the avalanche junction are characterized on separate test diodes showing a multiplication factor of 1.6 for red light in frontside illumination. View Full-Text
Keywords: APD; avalanche photodiode; CIS; CMOS; high-speed; image sensor; PAPD; pinned; pixel APD; avalanche photodiode; CIS; CMOS; high-speed; image sensor; PAPD; pinned; pixel
