Real-Time Two-Dimensional Mapping of Relative Local Surface Temperatures with a Thin-Film Sensor Array

Key Laboratory for the Physics & Chemistry of Nanodevices, and Department of Electronics, Peking University, Beijing 100871, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 14 March 2016 / Revised: 8 June 2016 / Accepted: 9 June 2016 / Published: 25 June 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [3095 KB, uploaded 25 June 2016]   |

Abstract

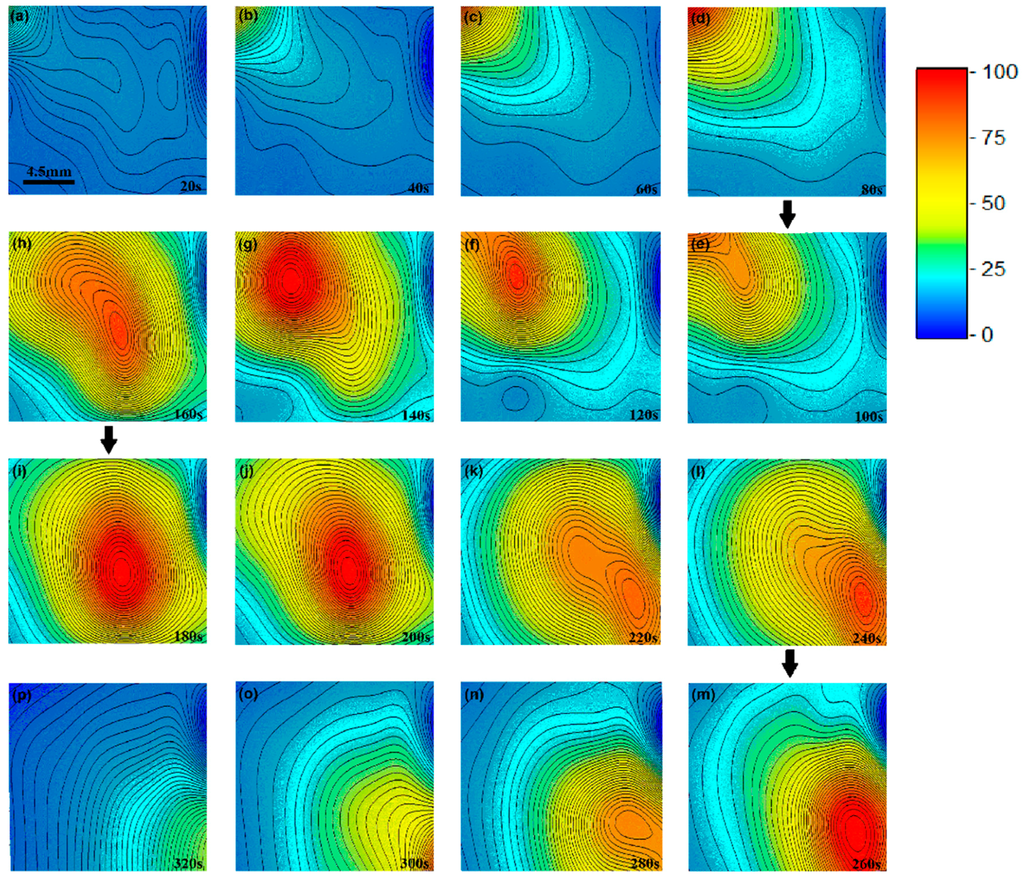

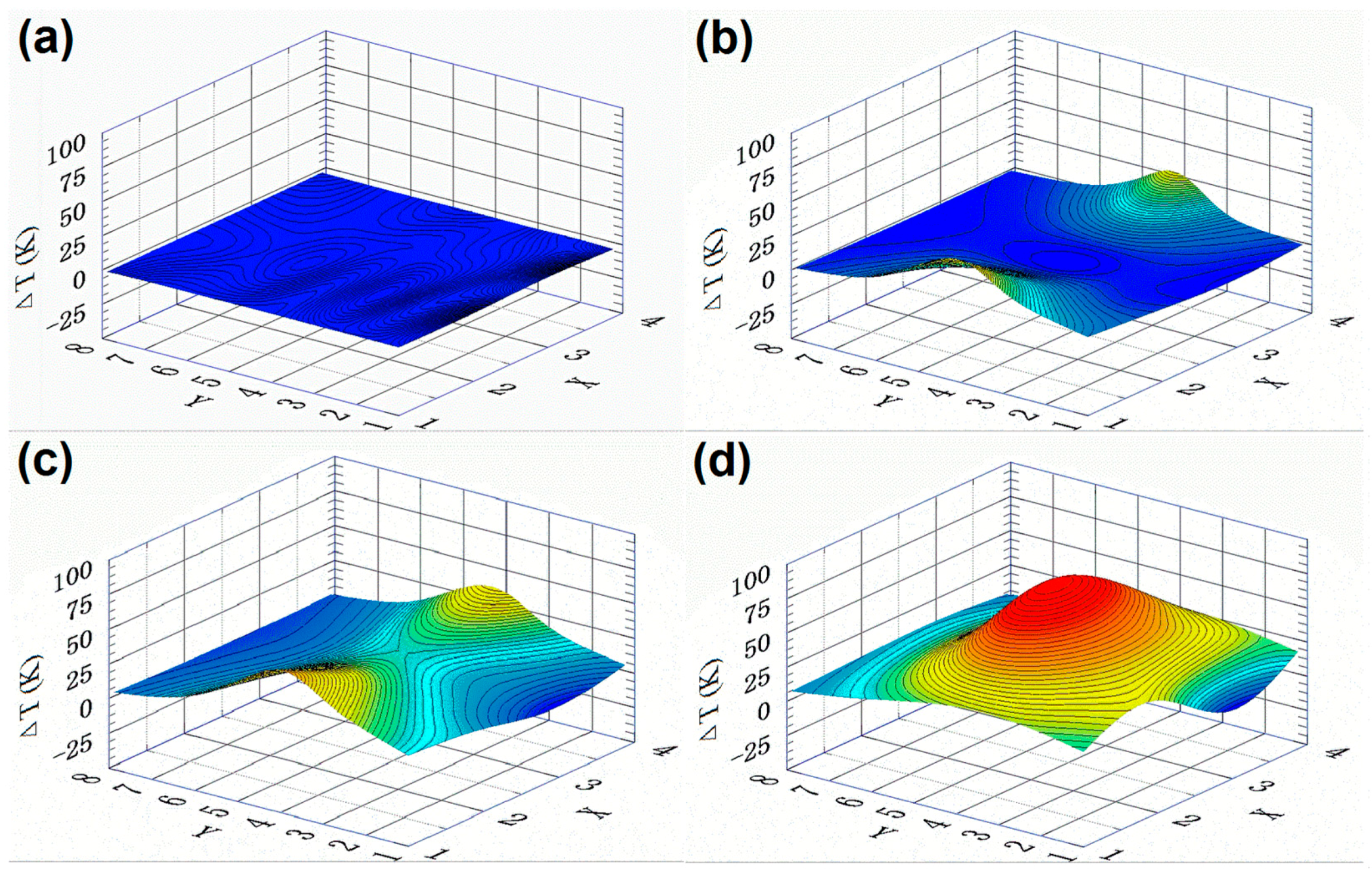

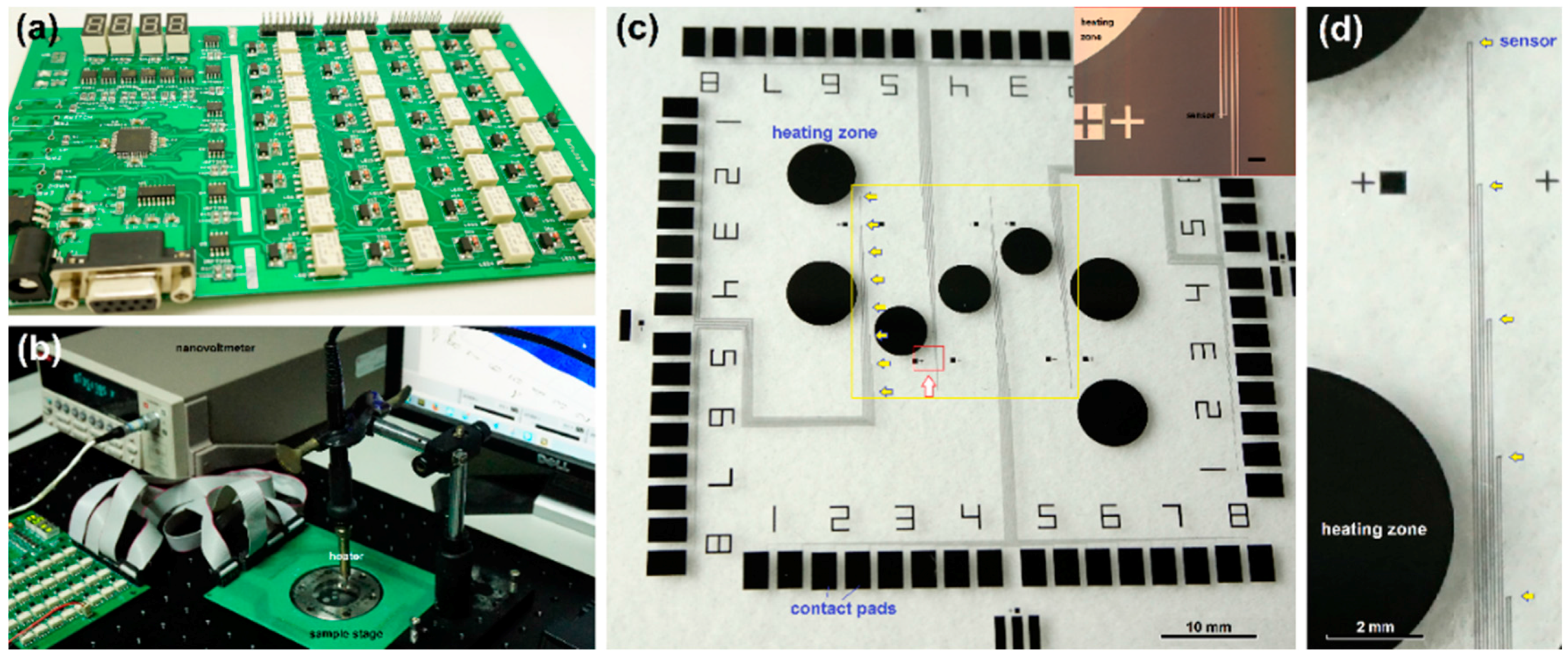

Dynamic mapping of an object’s local temperature distribution may offer valuable information for failure analysis, system control and improvement. In this letter we present a computerized measurement system which is equipped with a hybrid, low-noise mechanical-electrical multiplexer for real-time two-dimensional (2D) mapping of surface temperatures. We demonstrate the performance of the system on a device embedded with 32 pieces of built-in Cr-Pt thin-film thermocouples arranged in a 4 × 8 matrix. The system can display a continuous 2D mapping movie of relative temperatures with a time interval around 1 s. This technique may find applications in a variety of practical devices and systems. View Full-Text
Keywords: temperature measurement; multiplexer; real-time; two-dimensional mapping; temperature sensor array temperature measurement; multiplexer; real-time; two-dimensional mapping; temperature sensor array
