Sensors 2016, 16(7), 1131; doi:10.3390/s16071131

Modeling for IFOG Vibration Error Based on the Strain Distribution of Quadrupolar Fiber Coil

College of Automation, Harbin Engineering University, Harbin 150001, China
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 24 May 2016 / Revised: 1 July 2016 / Accepted: 1 July 2016 / Published: 21 July 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [2661 KB, uploaded 21 July 2016]   |

Abstract

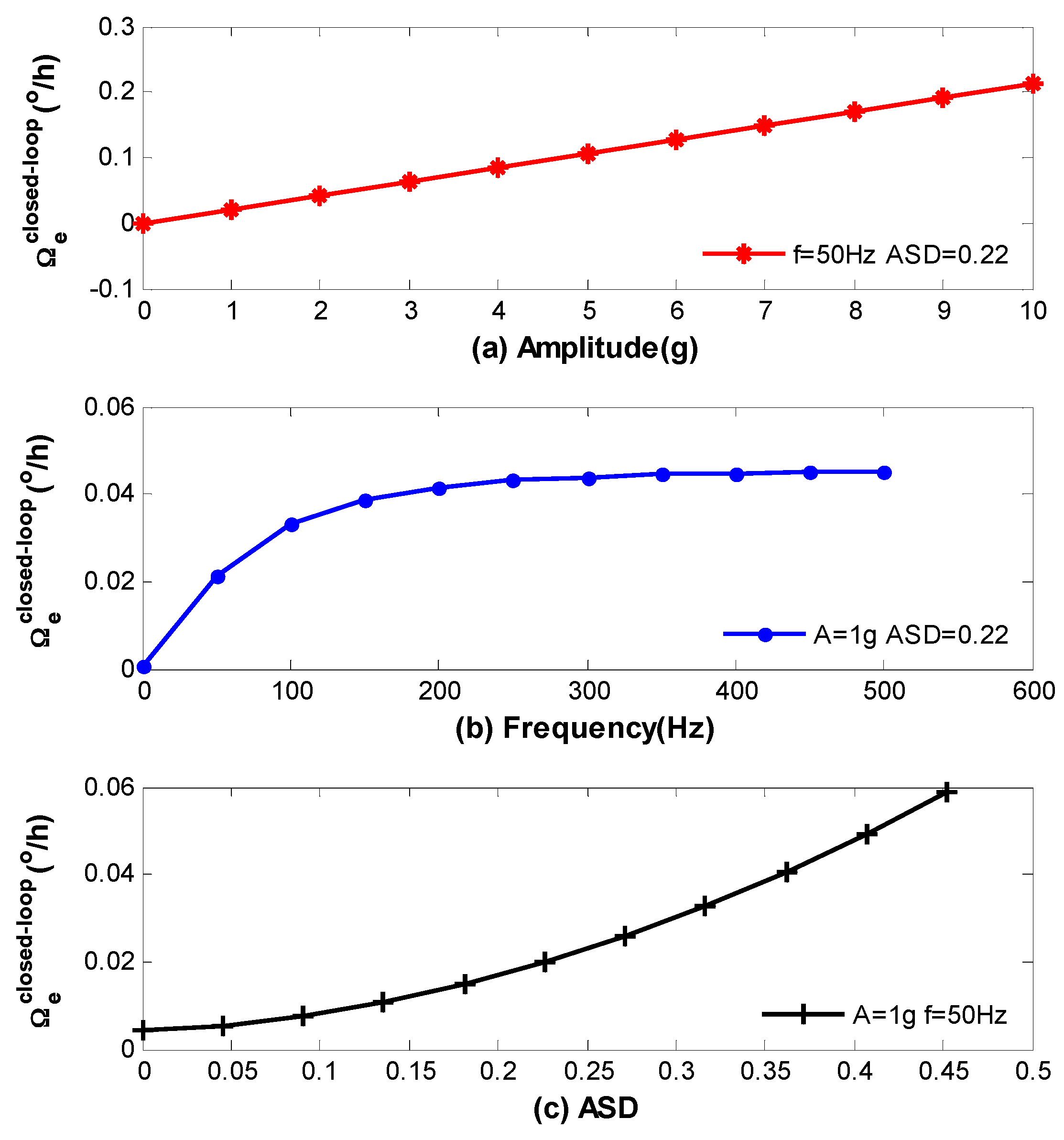

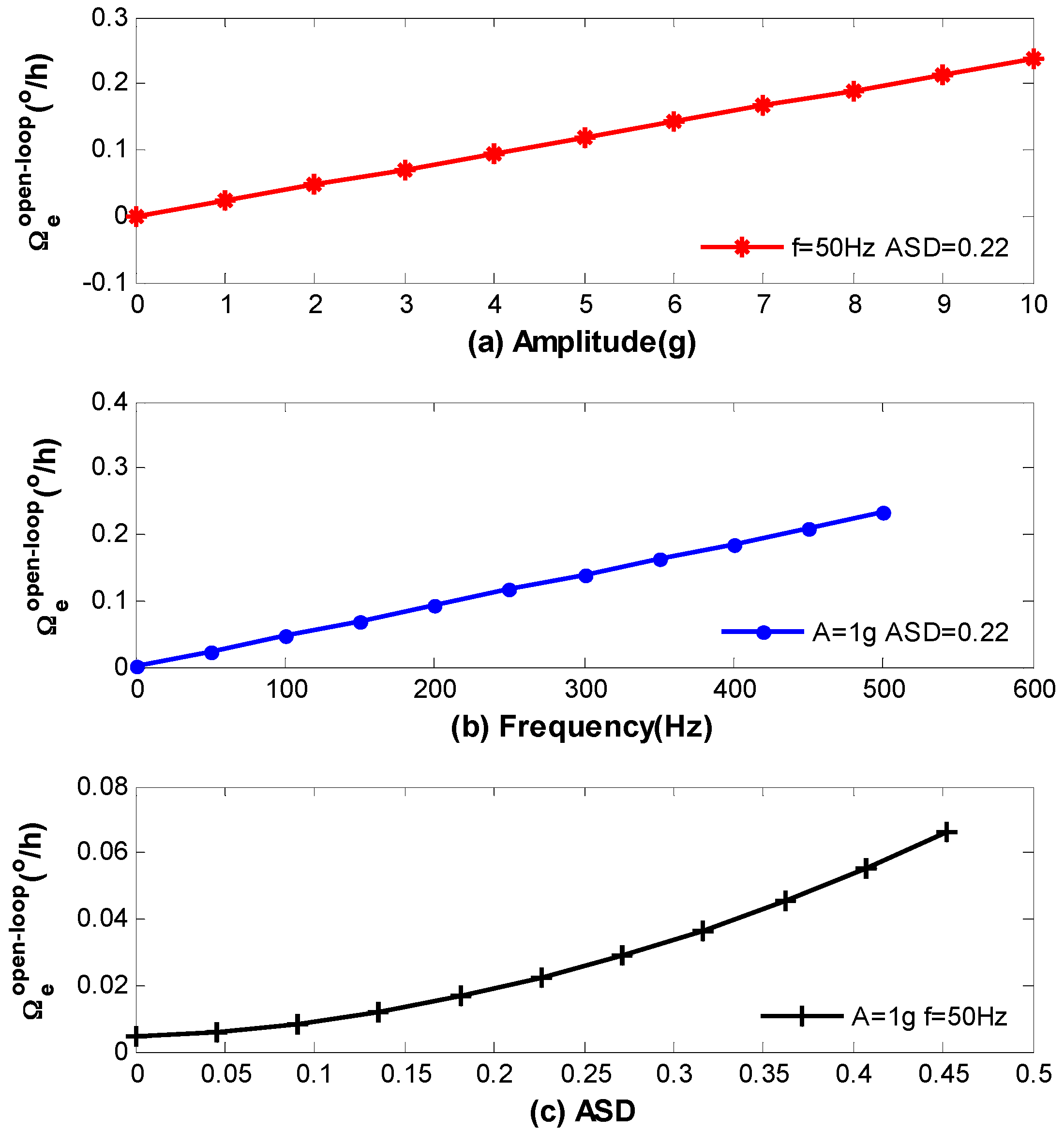

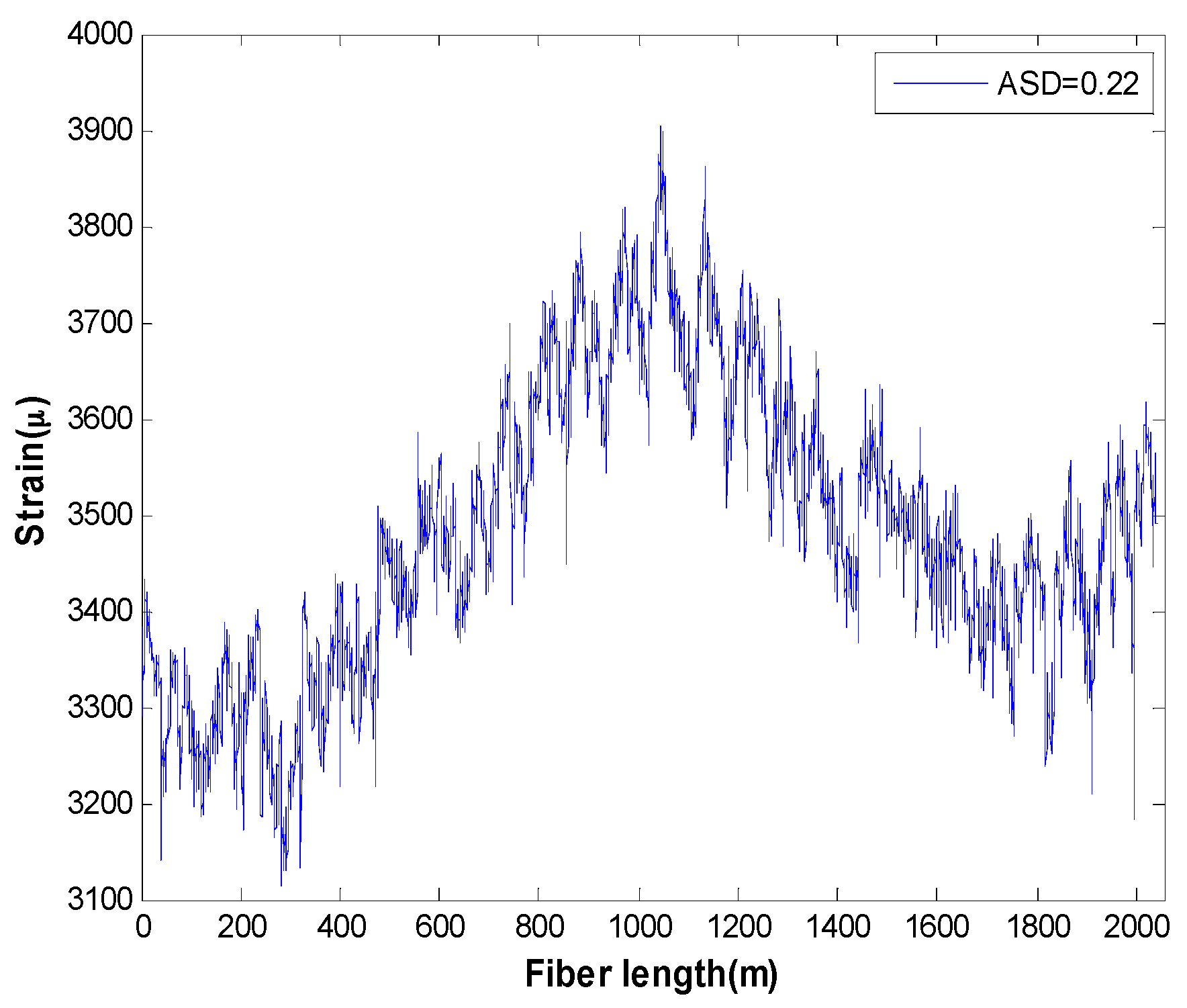

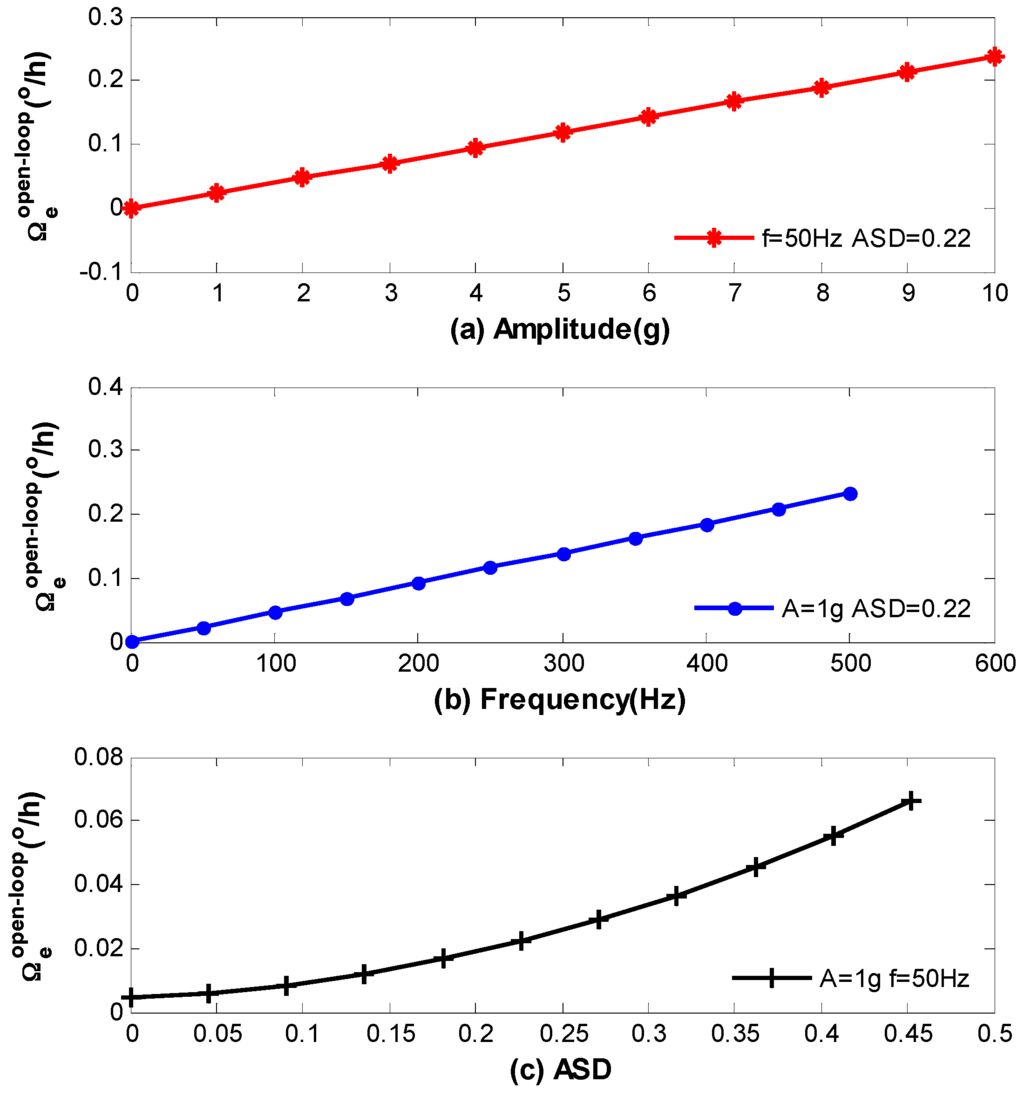

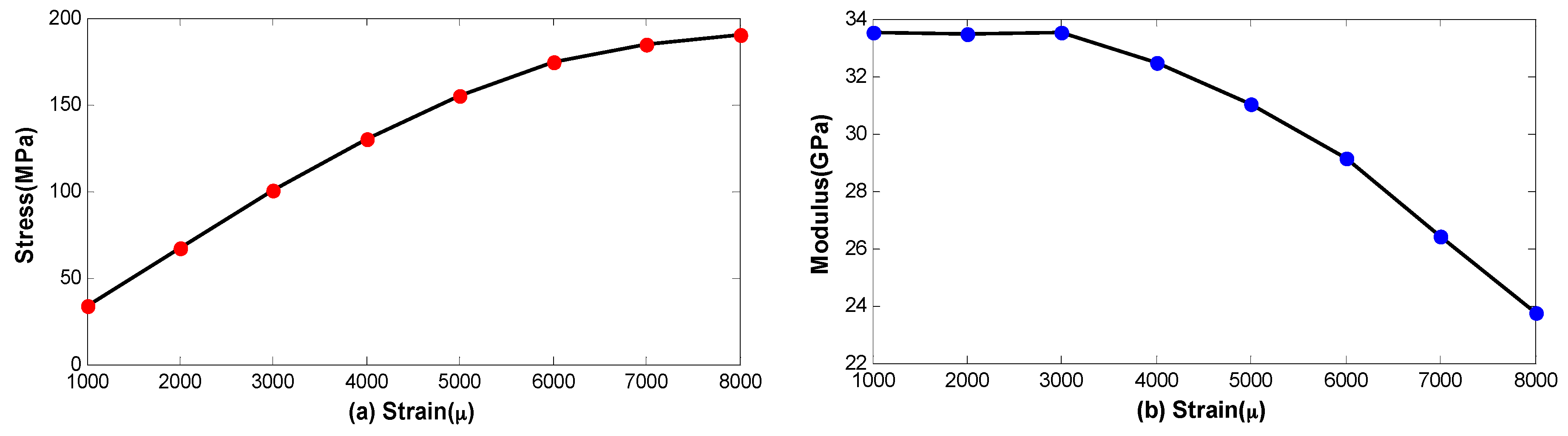

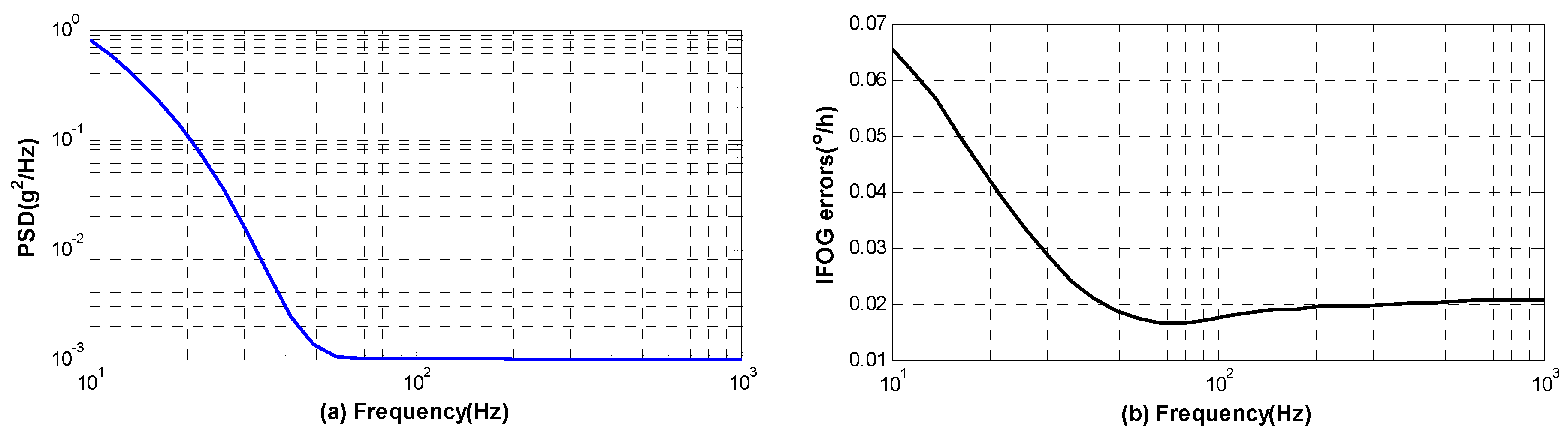

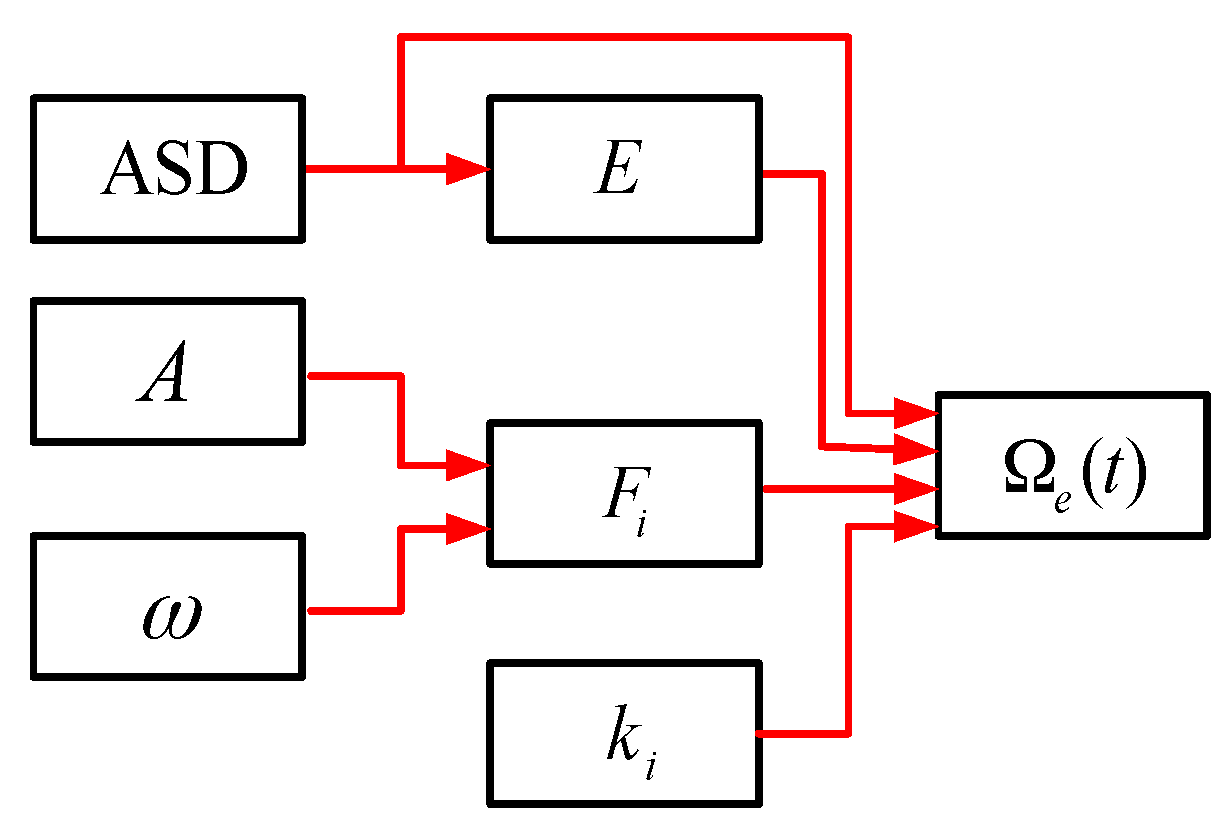

Improving the performance of interferometric fiber optic gyroscope (IFOG) in harsh environment, especially in vibrational environment, is necessary for its practical applications. This paper presents a mathematical model for IFOG to theoretically compute the short-term rate errors caused by mechanical vibration. The computational procedures are mainly based on the strain distribution of quadrupolar fiber coil measured by stress analyzer. The definition of asymmetry of strain distribution (ASD) is given in the paper to evaluate the winding quality of the coil. The established model reveals that the high ASD and the variable fiber elastic modulus in large strain situation are two dominant reasons that give rise to nonreciprocity phase shift in IFOG under vibration. Furthermore, theoretical analysis and computational results indicate that vibration errors of both open-loop and closed-loop IFOG increase with the raise of vibrational amplitude, vibrational frequency and ASD. Finally, an estimation of vibration-induced IFOG errors in aircraft is done according to the proposed model. Our work is meaningful in designing IFOG coils to achieve a better anti-vibration performance. View Full-Text
Keywords: fiber elastic modulus; quadrupolar fiber coil; vibration model; asymmetry of strain distribution fiber elastic modulus; quadrupolar fiber coil; vibration model; asymmetry of strain distribution
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
