Sensors 2016, 16(6), 826; doi:10.3390/s16060826

Determination of Specific Losses in the Limbs of an Epstein Frame Using a Three Epstein Frame Methodology Applied to Grain Oriented Electrical Steels

1
Laboratoire Systèmes Electrotechniques et Environnement (LSEE), University of Artois, EA 4025, F-62400 Béthune, France
2
Thyssenkrupp Electrical Steel, F-62330 Isbergues, France
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Academic Editors: Slawomir Wiak and Manuel Pineda Sanchez
Received: 23 February 2016 / Revised: 28 May 2016 / Accepted: 1 June 2016 / Published: 4 June 2016
View Full-Text   |   Download PDF [1122 KB, uploaded 4 June 2016]   |

Abstract

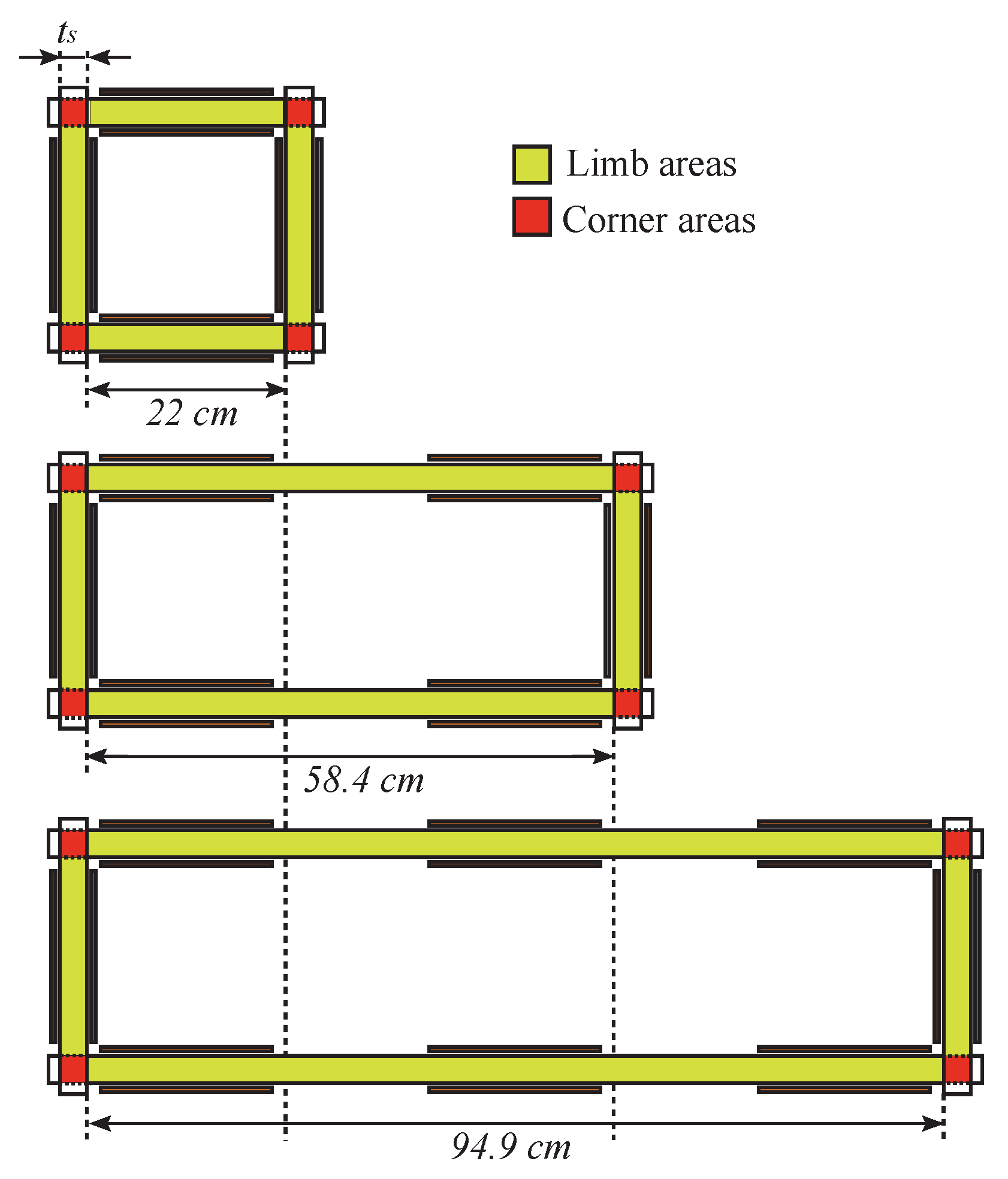

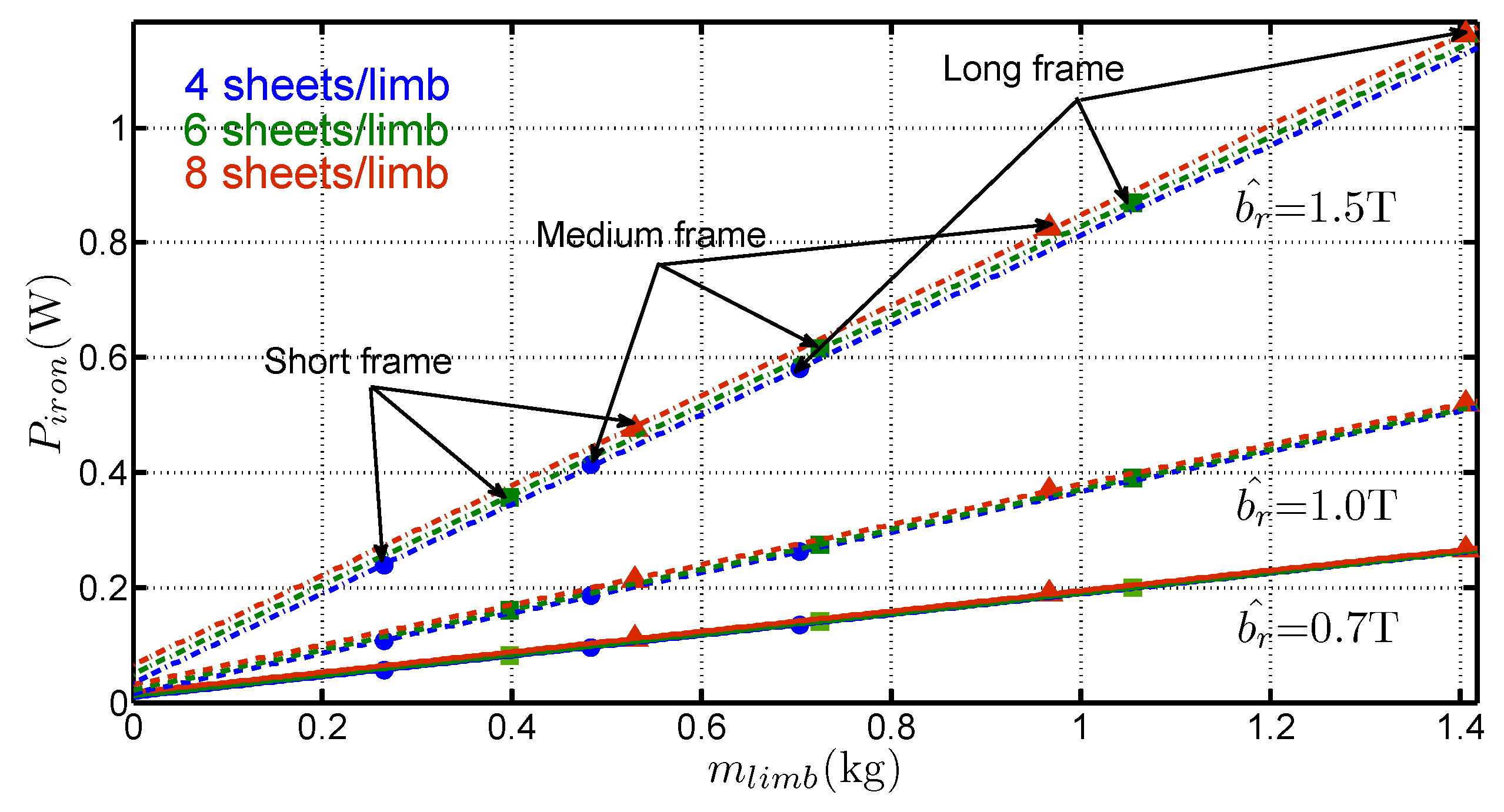

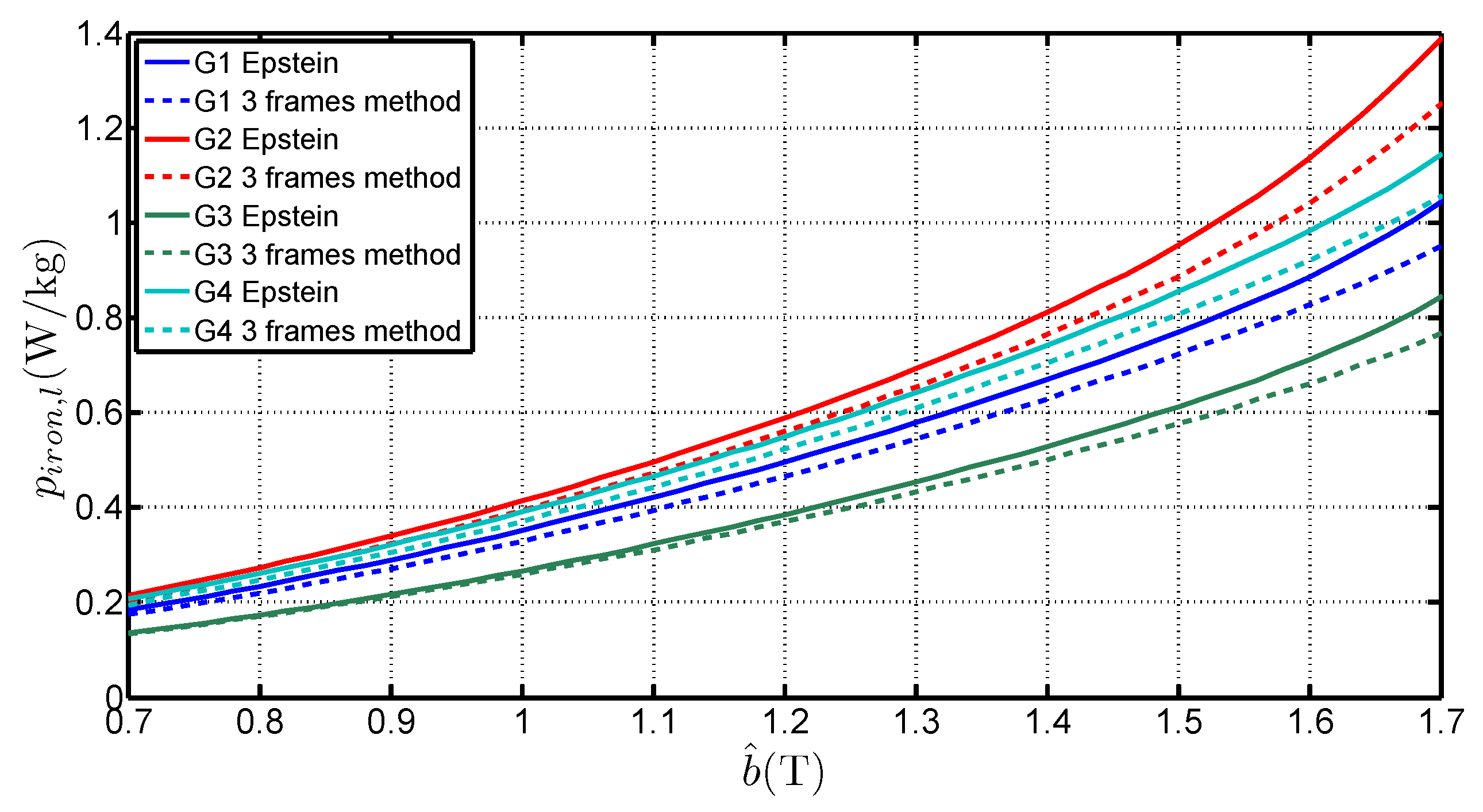

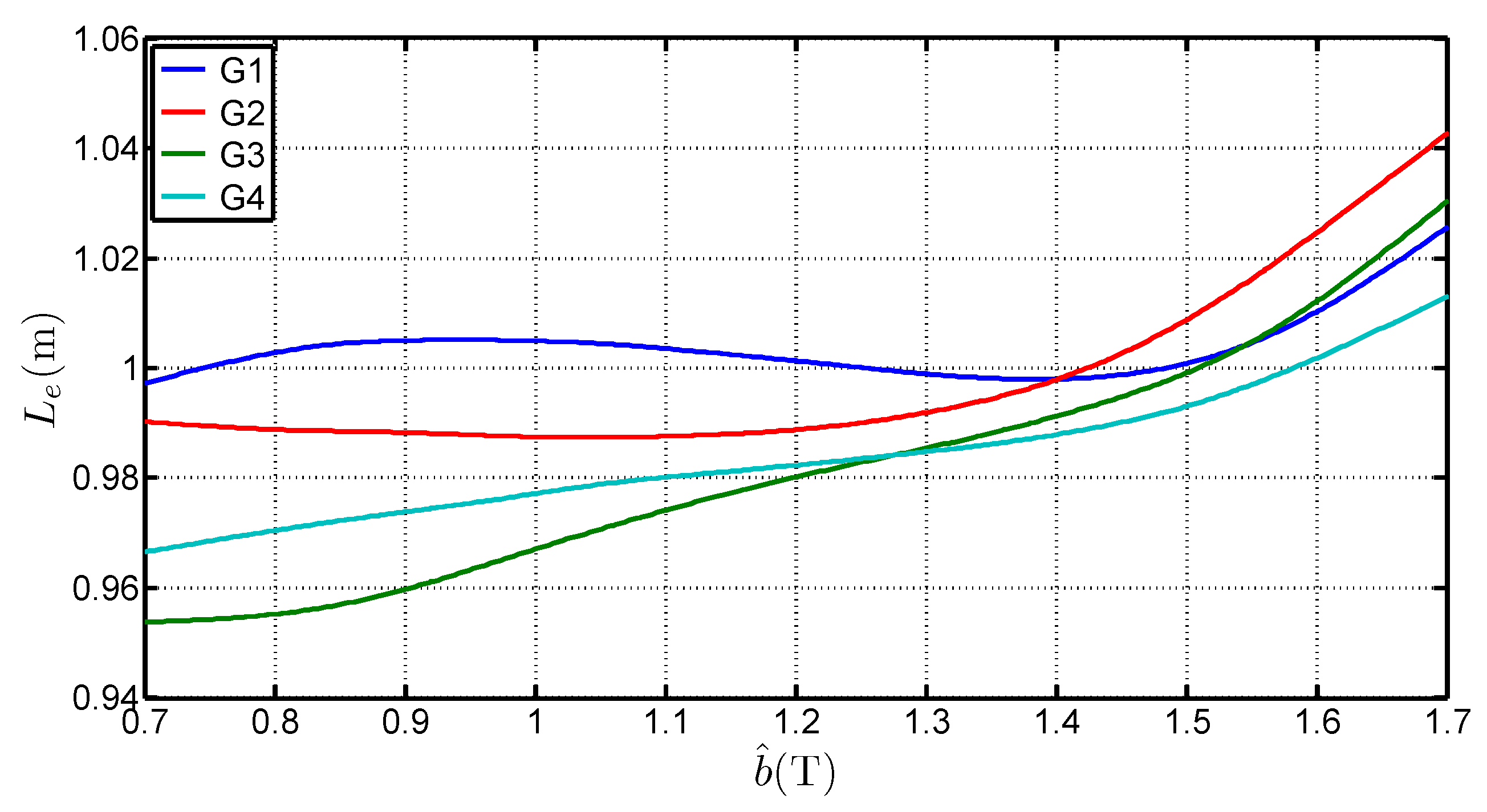

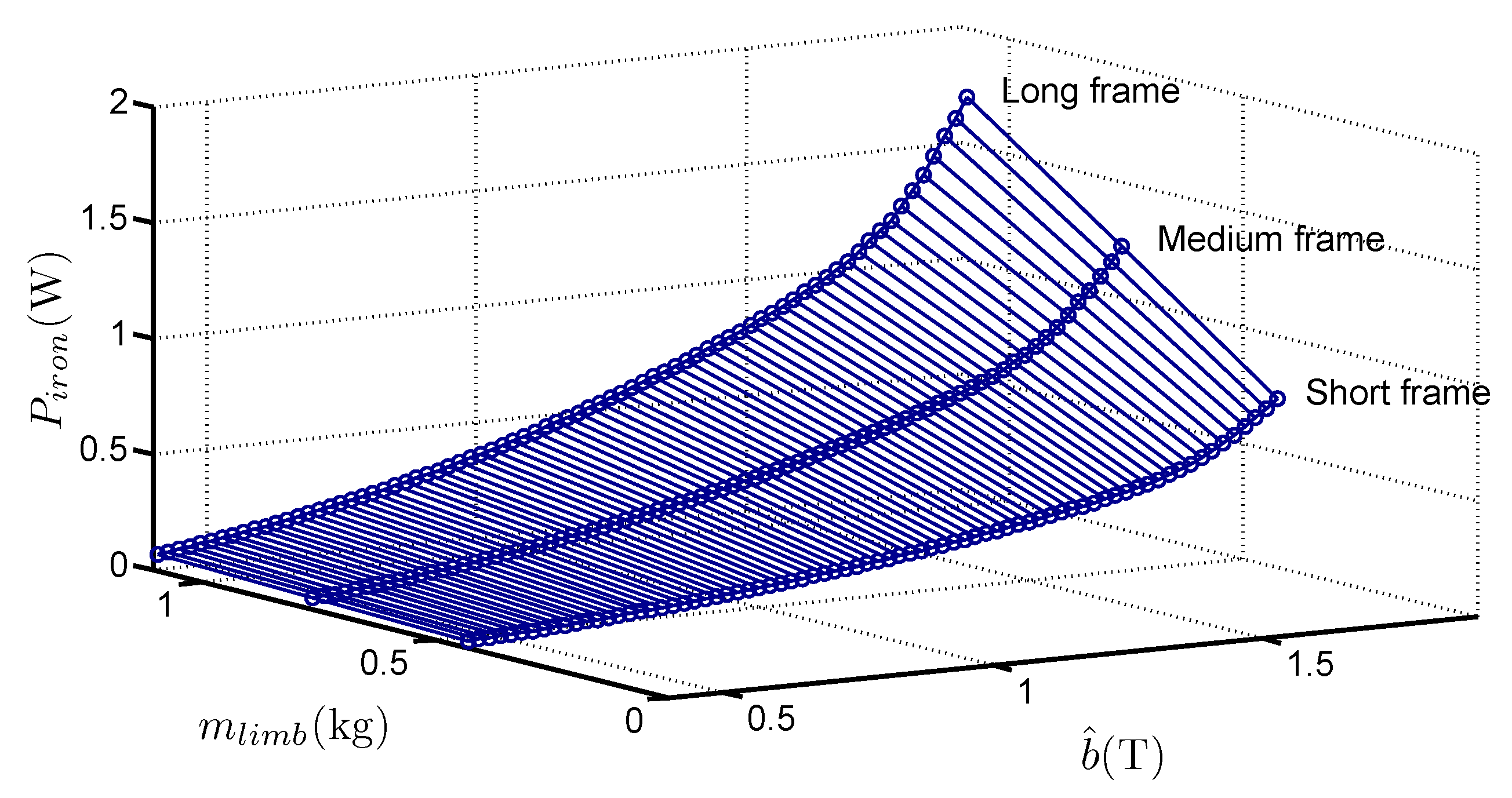

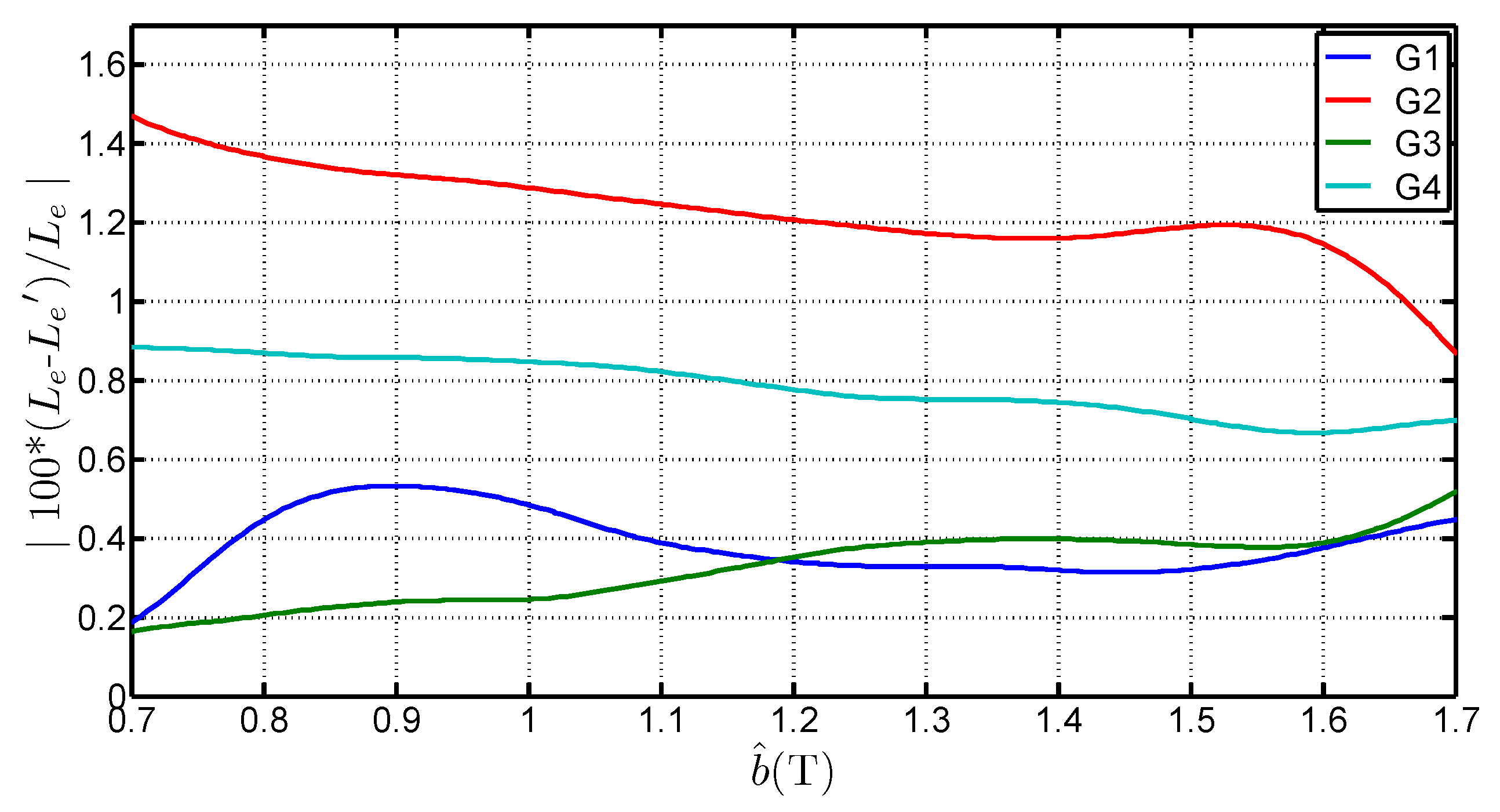

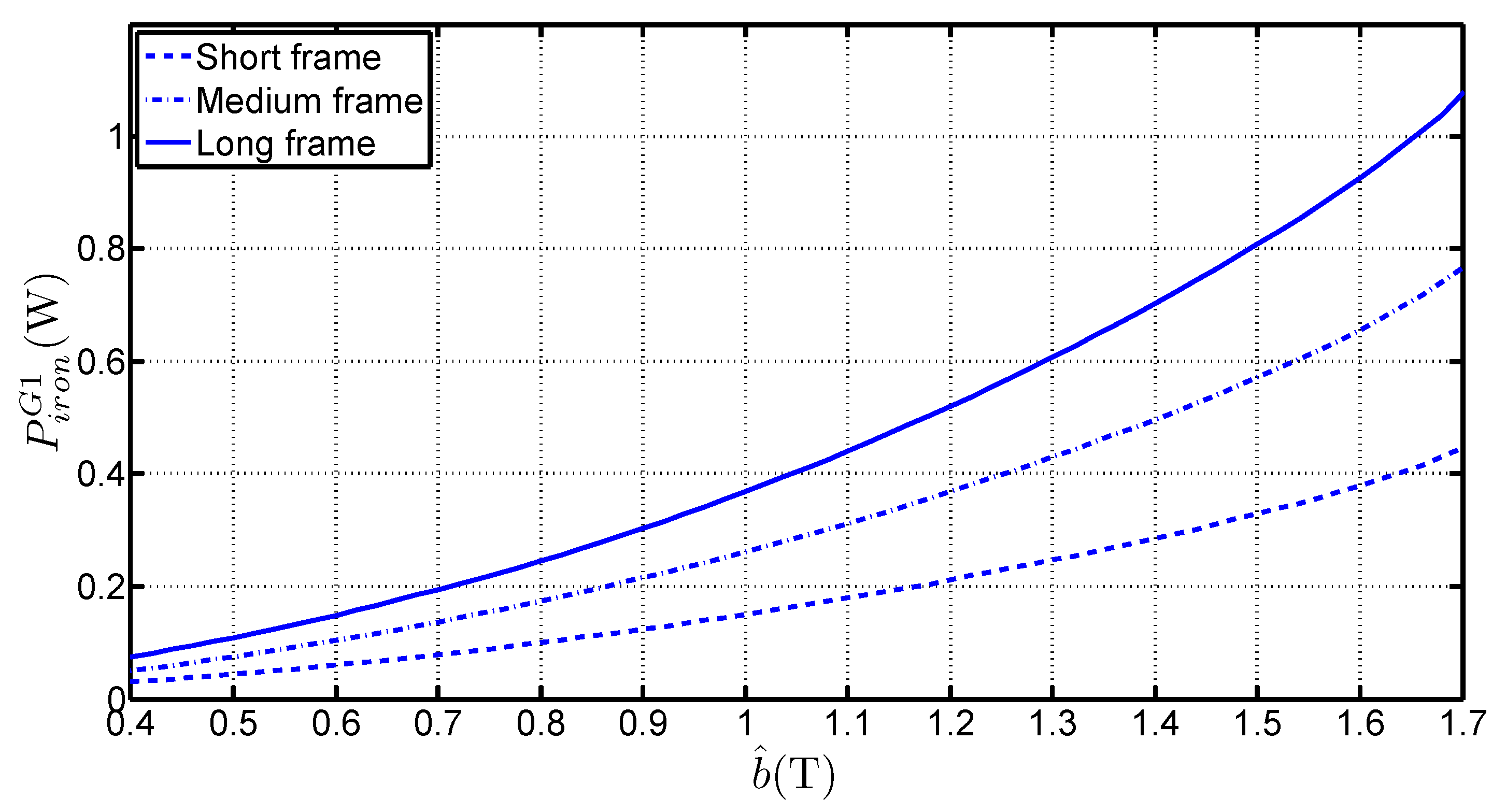

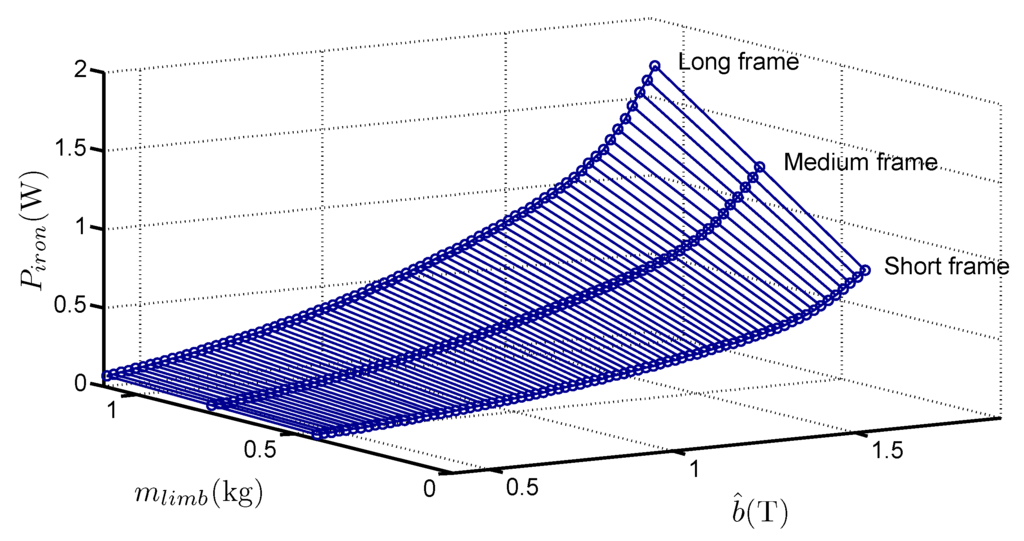

An experimental method to characterize the magnetic properties of Grain Oriented Electrical Steel in the rolling direction is proposed in this paper. It relies on the use of three 25 cm Epstein frames combined to generate three test-frames of different lengths. This enables the identification of the effective specific losses of the electrical steel when magnetization is applied along the rolling direction. As a consequence, it evidences the deviation of the loss figures obtained using the standardised Epstein test. The difference in losses is explained by the fact that the described method gives “only” the losses attached to the straight parts. The concept of the magnetic path length as defined by the standard is discussed. View Full-Text
Keywords: electrical steel; Epstein frame; specific losses; grain oriented electrical steel; Epstein frame; specific losses; grain oriented
