Sensors 2016, 16(5), 742; doi:10.3390/s16050742

A Novel Transient Fault Current Sensor Based on the PCB Rogowski Coil for Overhead Transmission Lines

School of Electronic Information and Electrical Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 15 March 2016 / Revised: 10 May 2016 / Accepted: 11 May 2016 / Published: 21 May 2016
(This article belongs to the Section Physical Sensors)

Abstract

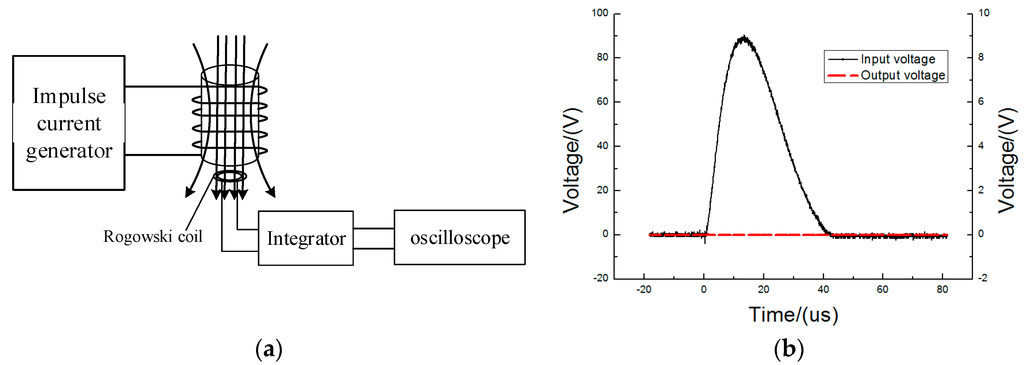

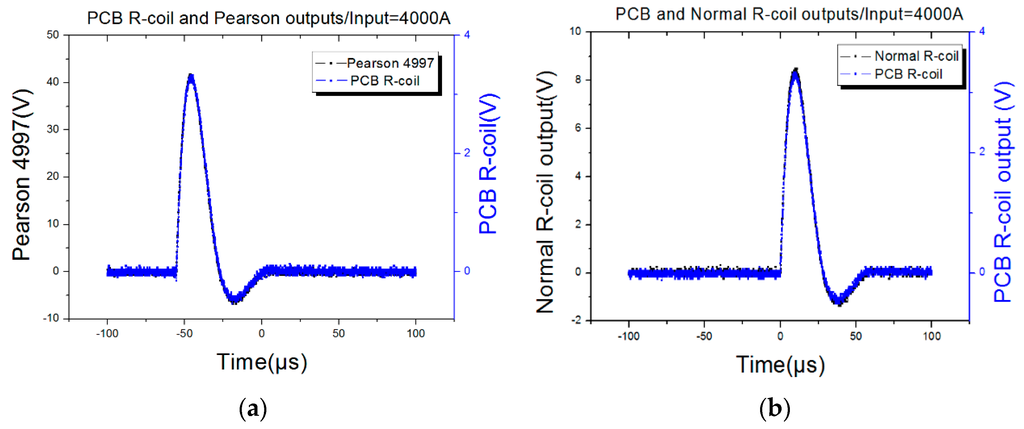

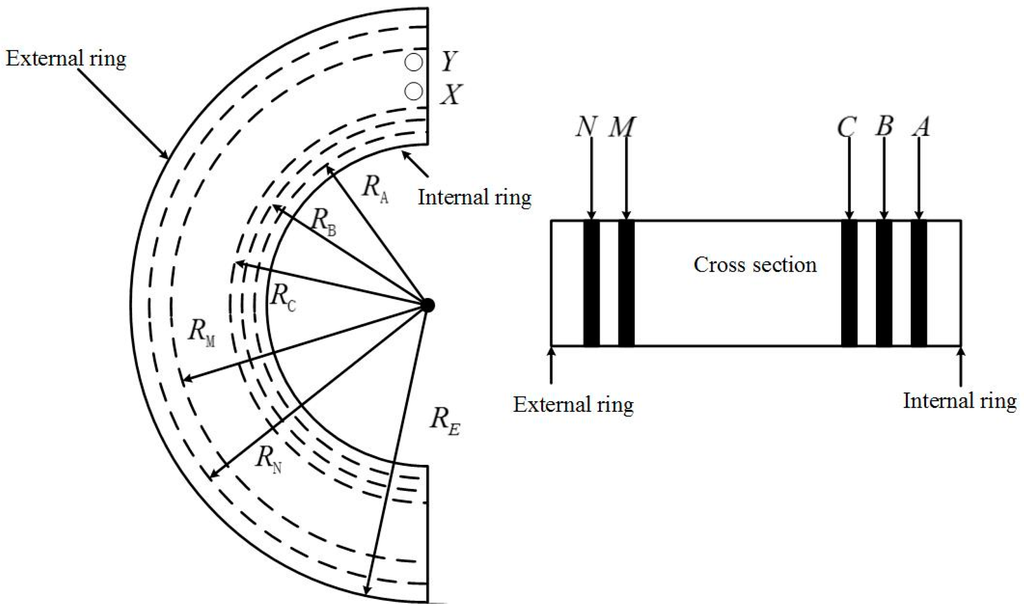

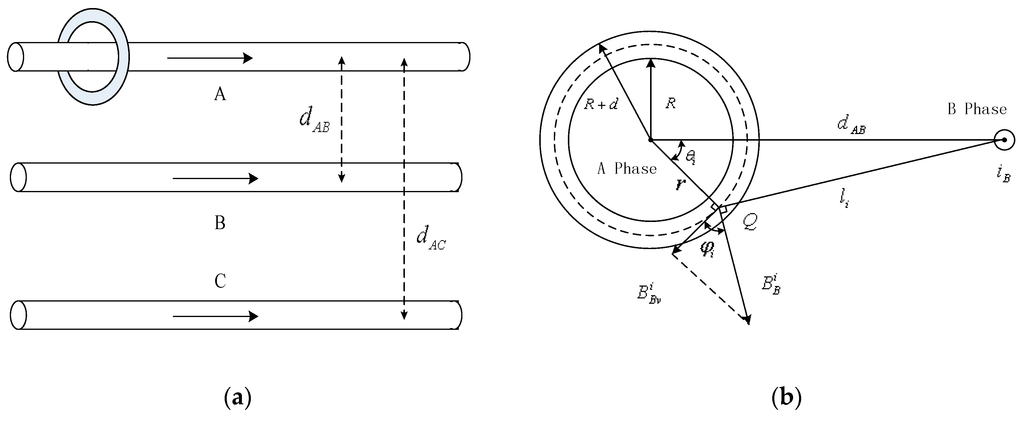

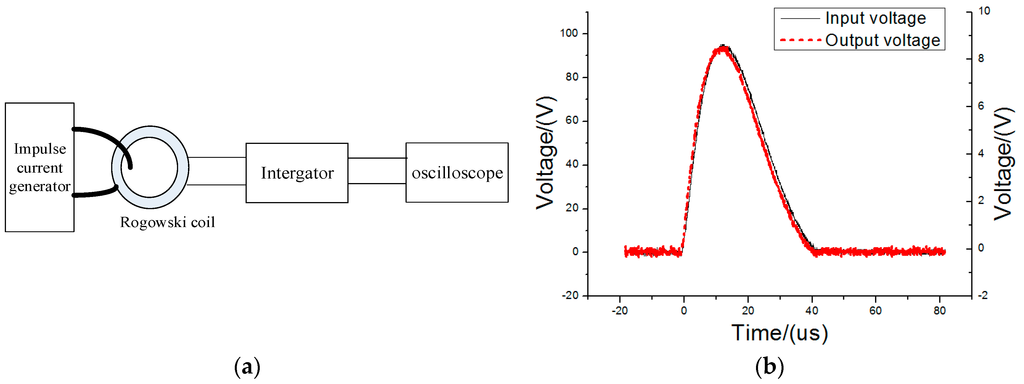

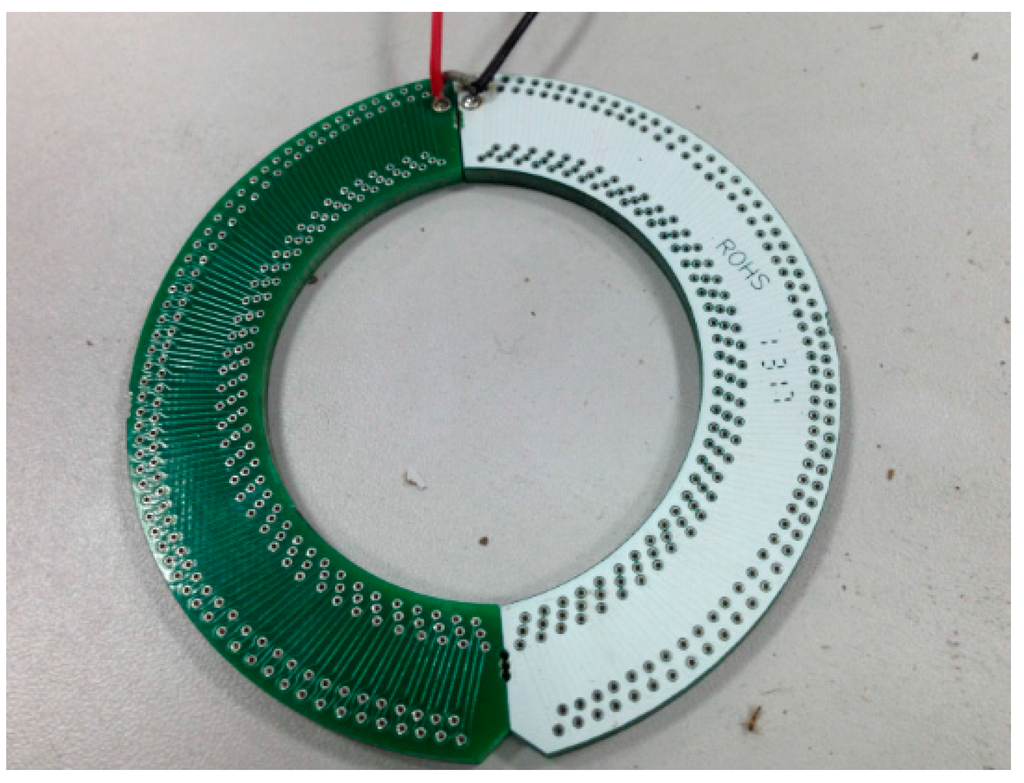

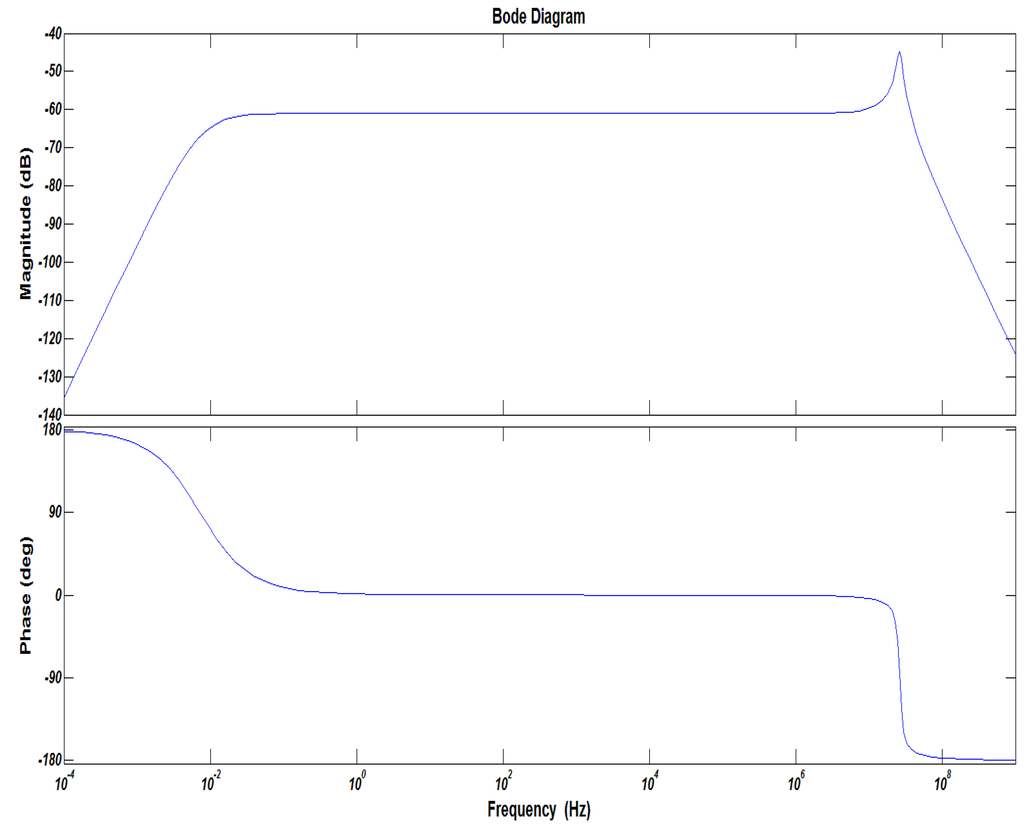

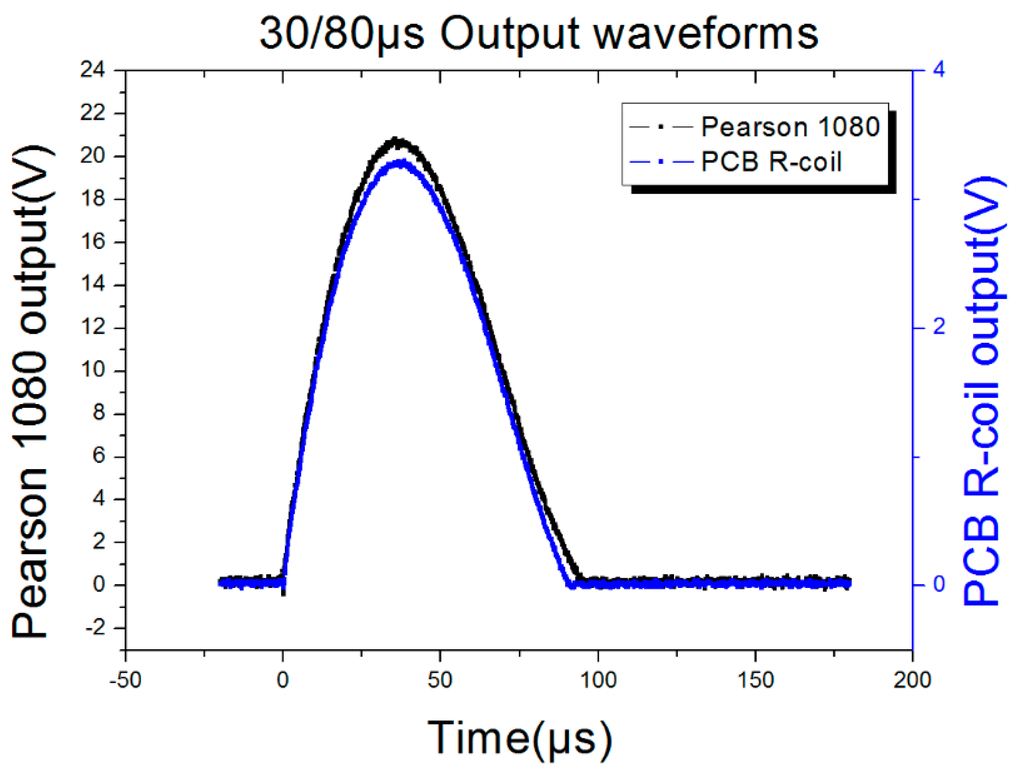

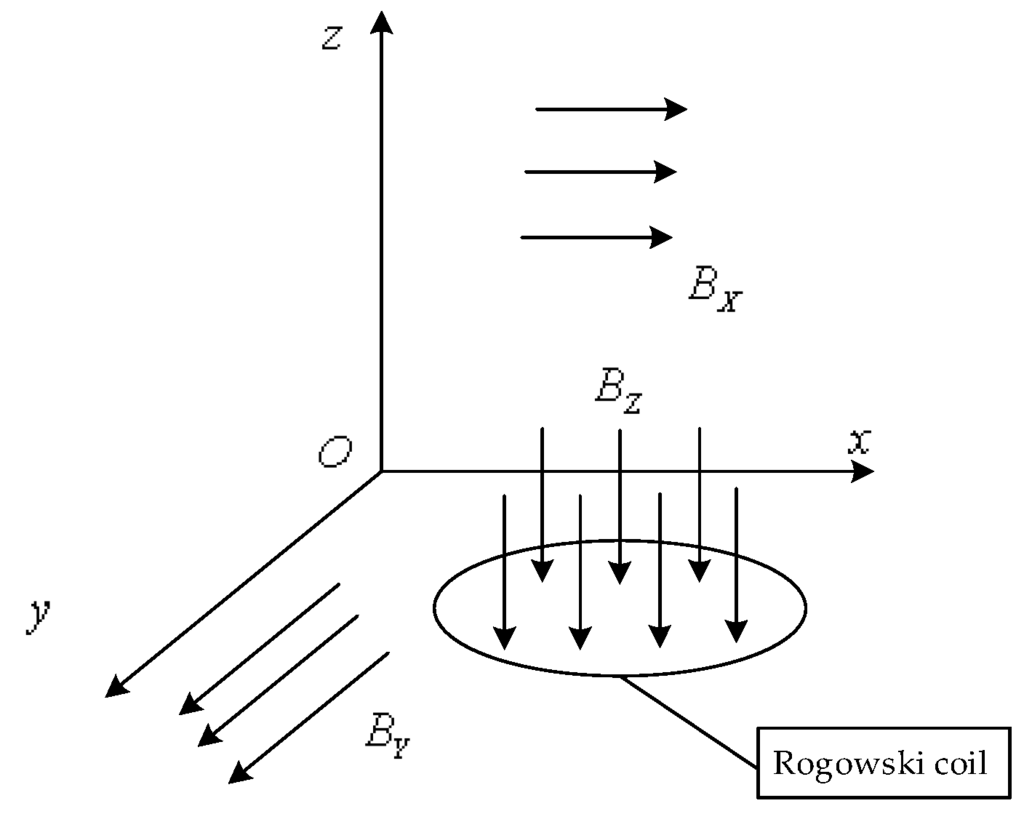

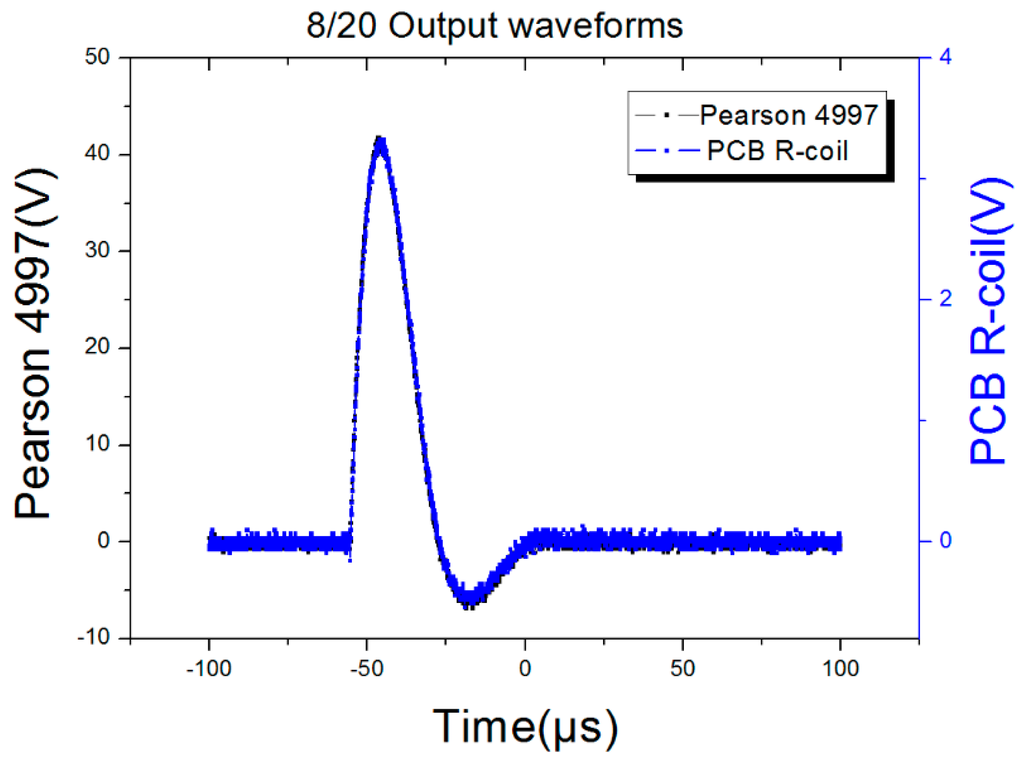

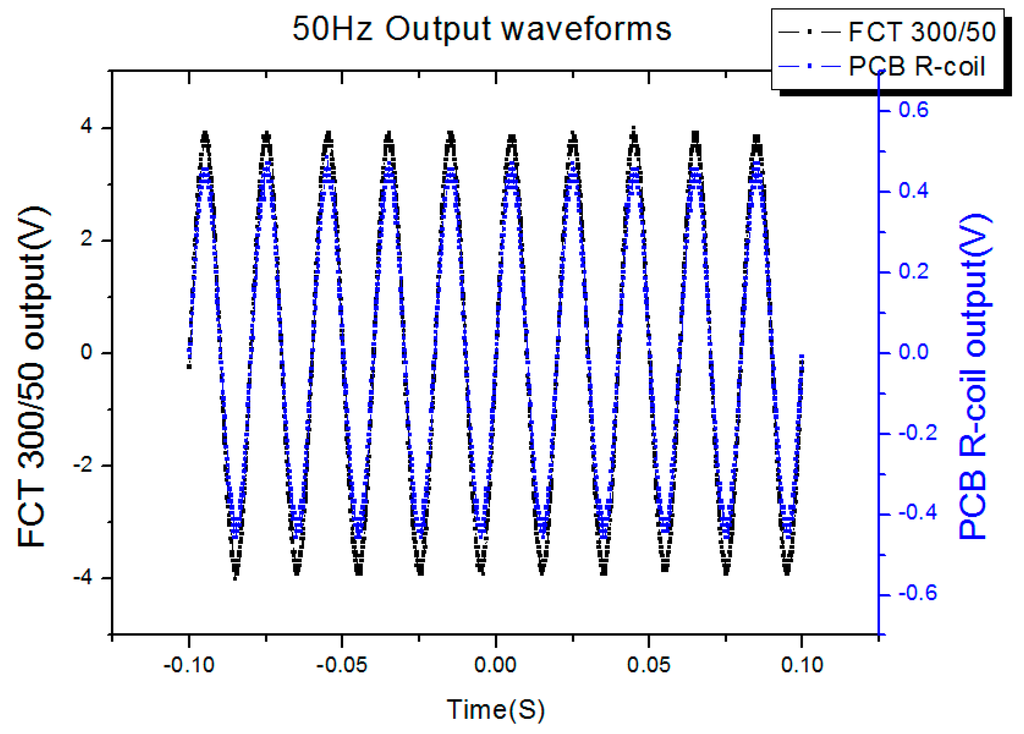

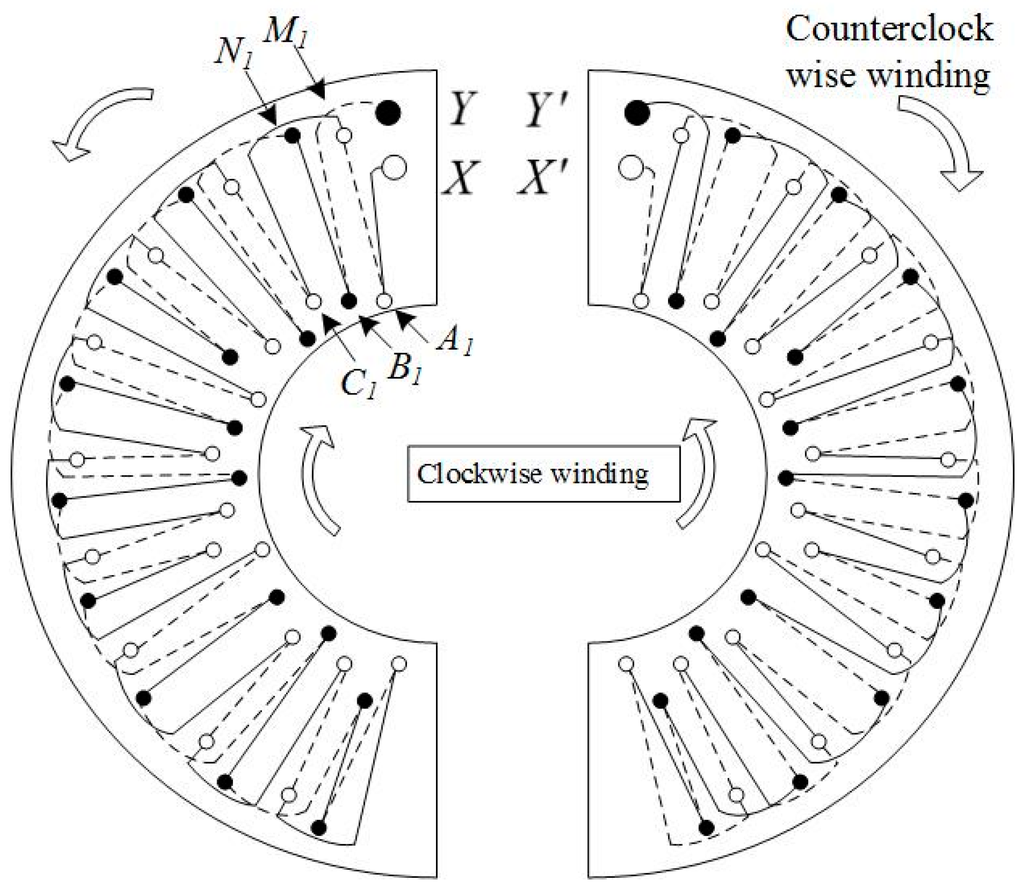

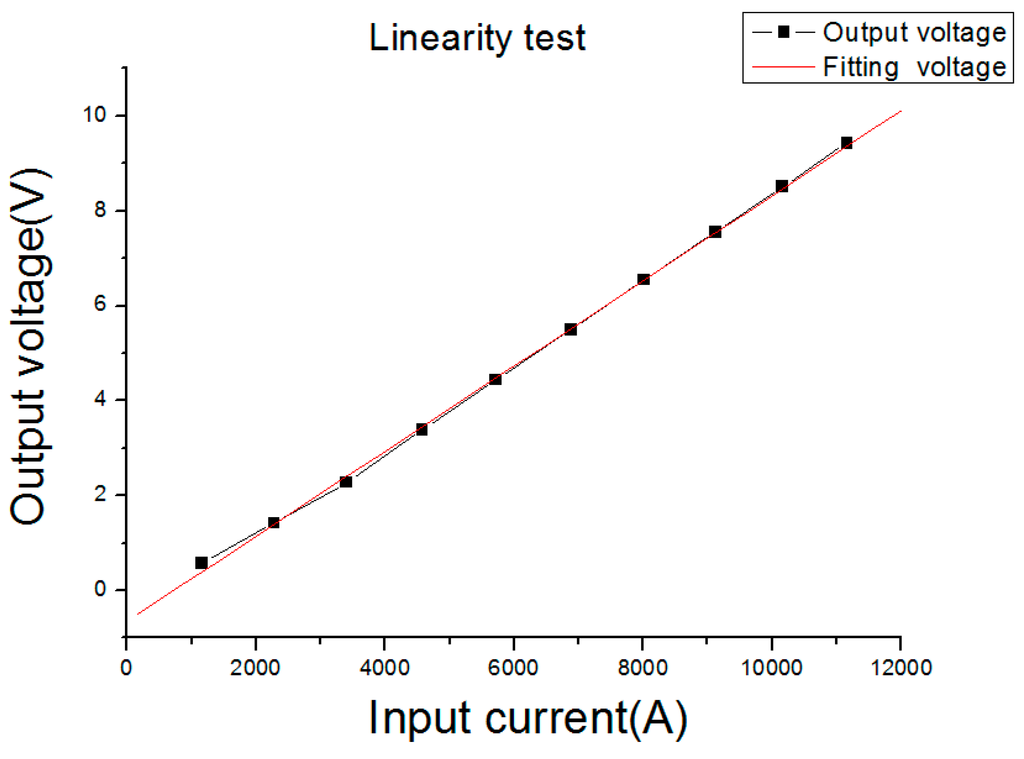

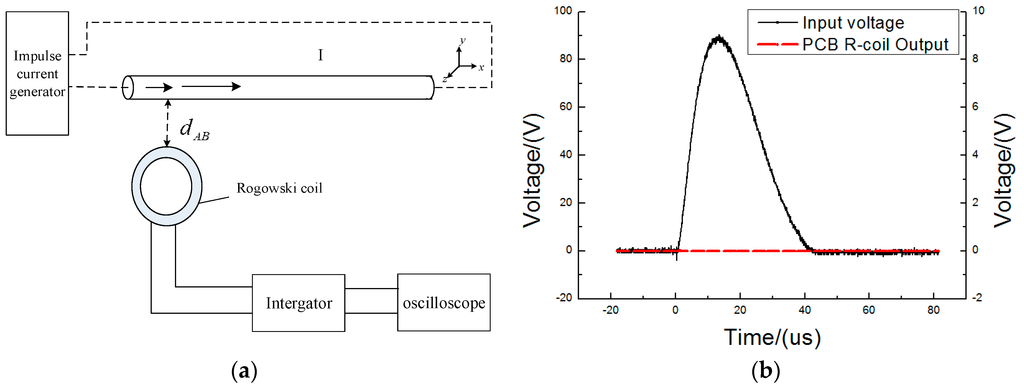

The accurate detection of high-frequency transient fault currents in overhead transmission lines is the basis of malfunction detection and diagnosis. This paper proposes a novel differential winding printed circuit board (PCB) Rogowski coil for the detection of transient fault currents in overhead transmission lines. The interference mechanism of the sensor surrounding the overhead transmission line is analyzed and the guideline for the interference elimination is obtained, and then a differential winding printed circuit board (PCB) Rogowski coil is proposed, where the branch and return line of the PCB coil were designed to be strictly symmetrical by using a joining structure of two semi-rings and collinear twisted pair differential windings in each semi-ring. A serial test is conducted, including the frequency response, linearity, and anti-interference performance as well as a comparison with commercial sensors. Results show that a PCB Rogowski coil has good linearity and resistance to various external magnetic field interferences, thus enabling it to be widely applied in fault-current-collecting devices. View Full-Text
Keywords: overhead transmission line; fault current; PCB Rogowski coil; differential winding; open structure; high-frequency transient fault current overhead transmission line; fault current; PCB Rogowski coil; differential winding; open structure; high-frequency transient fault current
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
