Open AccessArticle
Sensors 2016, 16(5), 730; doi:10.3390/s16050730

A Novel Attitude Estimation Algorithm Based on the Non-Orthogonal Magnetic Sensors

Department of Automation, Nanjing University of Science and Technology, No. 200, Xiaolingwei Street, Xuanwu District, Nanjing 210094, China
Author to whom correspondence should be addressed.
Academic Editor: Susana Cardoso de Freitas
Received: 8 March 2016 / Revised: 13 May 2016 / Accepted: 15 May 2016 / Published: 19 May 2016
(This article belongs to the Special Issue Magnetoresistive Sensors under Extreme Conditions)
View Full-Text   |   Download PDF [2207 KB, uploaded 19 May 2016]   |

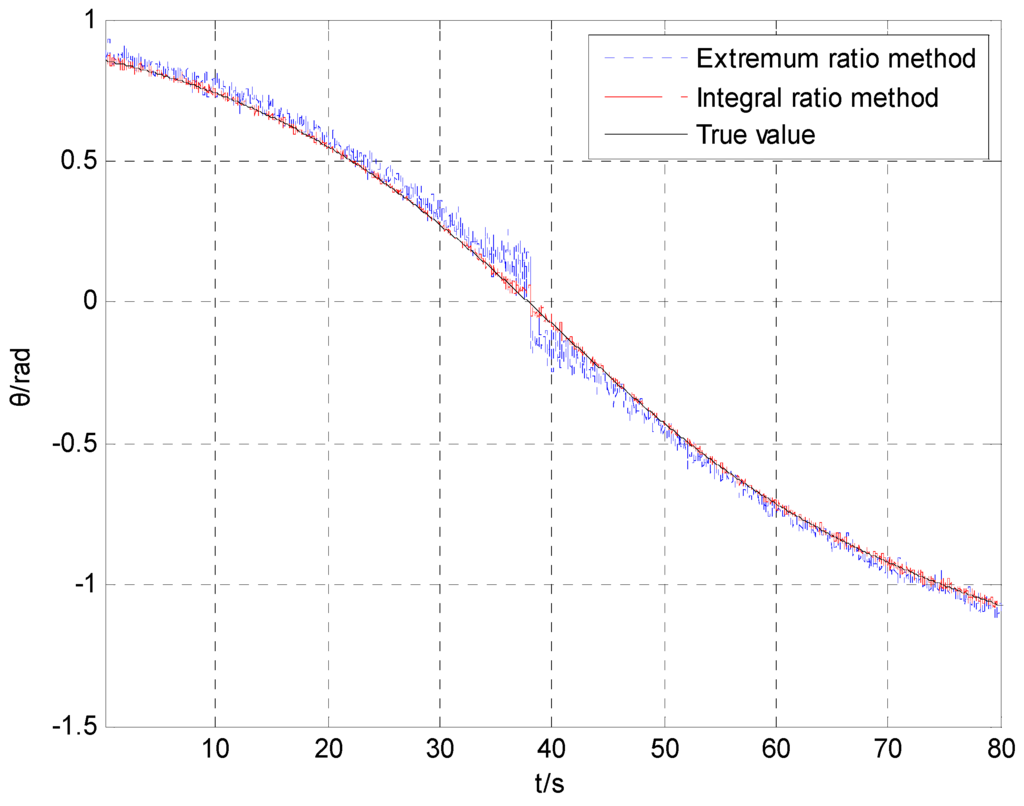

Because the existing extremum ratio method for projectile attitude measurement is vulnerable to random disturbance, a novel integral ratio method is proposed to calculate the projectile attitude. First, the non-orthogonal measurement theory of the magnetic sensors is analyzed. It is found that the projectile rotating velocity is constant in one spinning circle and the attitude error is actually the pitch error. Next, by investigating the model of the extremum ratio method, an integral ratio mathematical model is established to improve the anti-disturbance performance. Finally, by combining the preprocessed magnetic sensor data based on the least-square method and the rotating extremum features in one cycle, the analytical expression of the proposed integral ratio algorithm is derived with respect to the pitch angle. The simulation results show that the proposed integral ratio method gives more accurate attitude calculations than does the extremum ratio method, and that the attitude error variance can decrease by more than 90%. Compared to the extremum ratio method (which collects only a single data point in one rotation cycle), the proposed integral ratio method can utilize all of the data collected in the high spin environment, which is a clearly superior calculation approach, and can be applied to the actual projectile environment disturbance. View Full-Text
Keywords: extremum ratio method; integral ratio method; least square; magnetic sensor; projectile attitude extremum ratio method; integral ratio method; least square; magnetic sensor; projectile attitude

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
