A Fiber Bragg Grating Sensing-Based Micro-Vibration Sensor and Its Application

School of Mechanical and Electronic Engineering, Wuhan University of Technology, Wuhan 430000, Hubei, China
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 14 February 2016 / Revised: 6 April 2016 / Accepted: 12 April 2016 / Published: 15 April 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [5435 KB, uploaded 15 April 2016]   |

Abstract

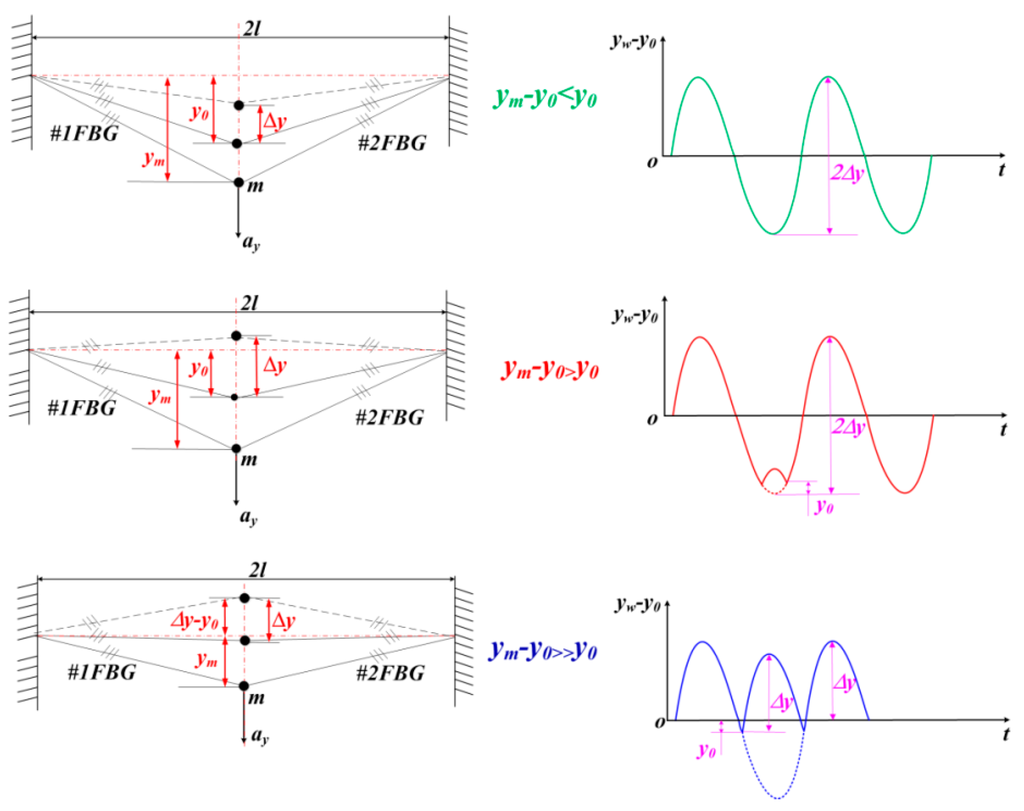

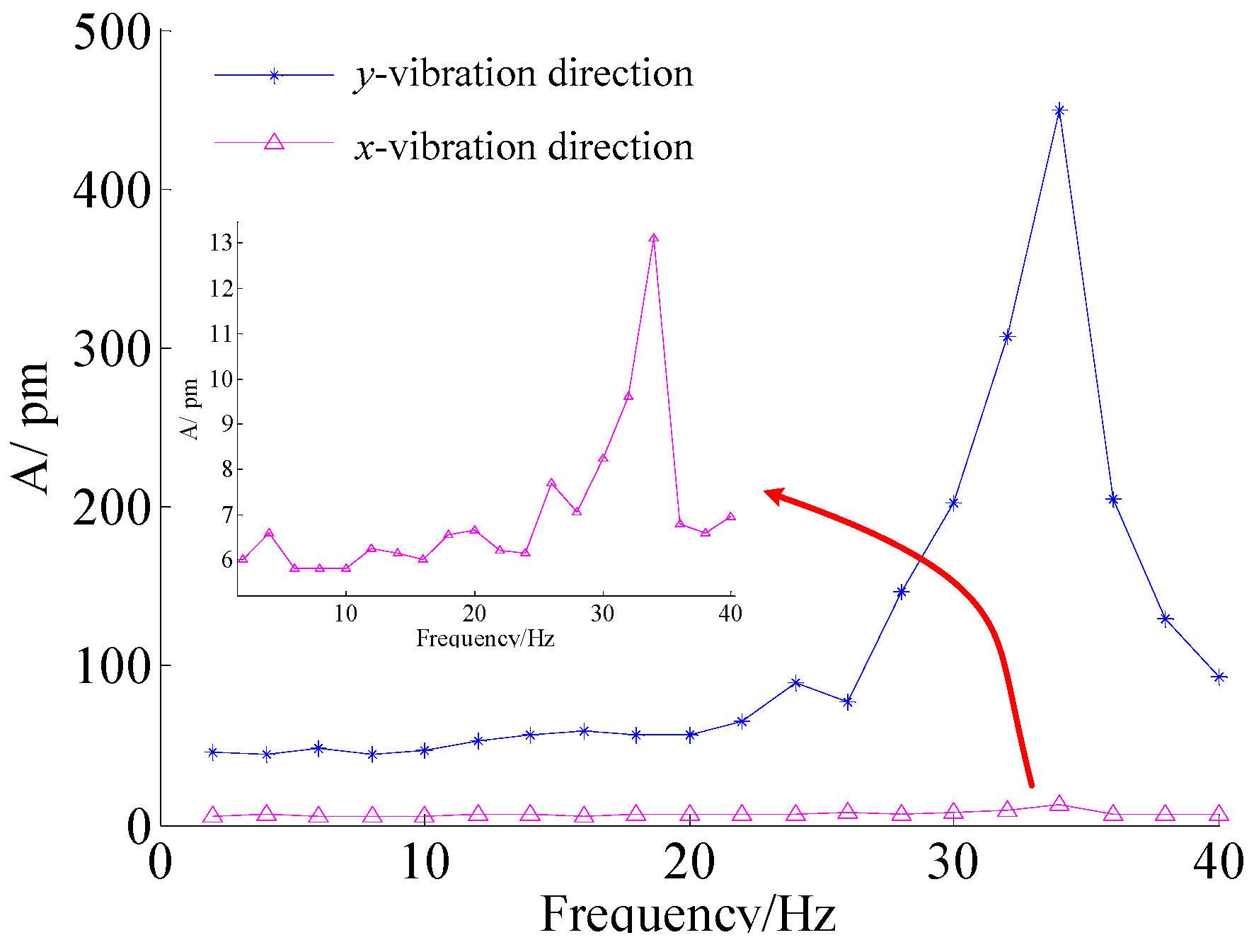

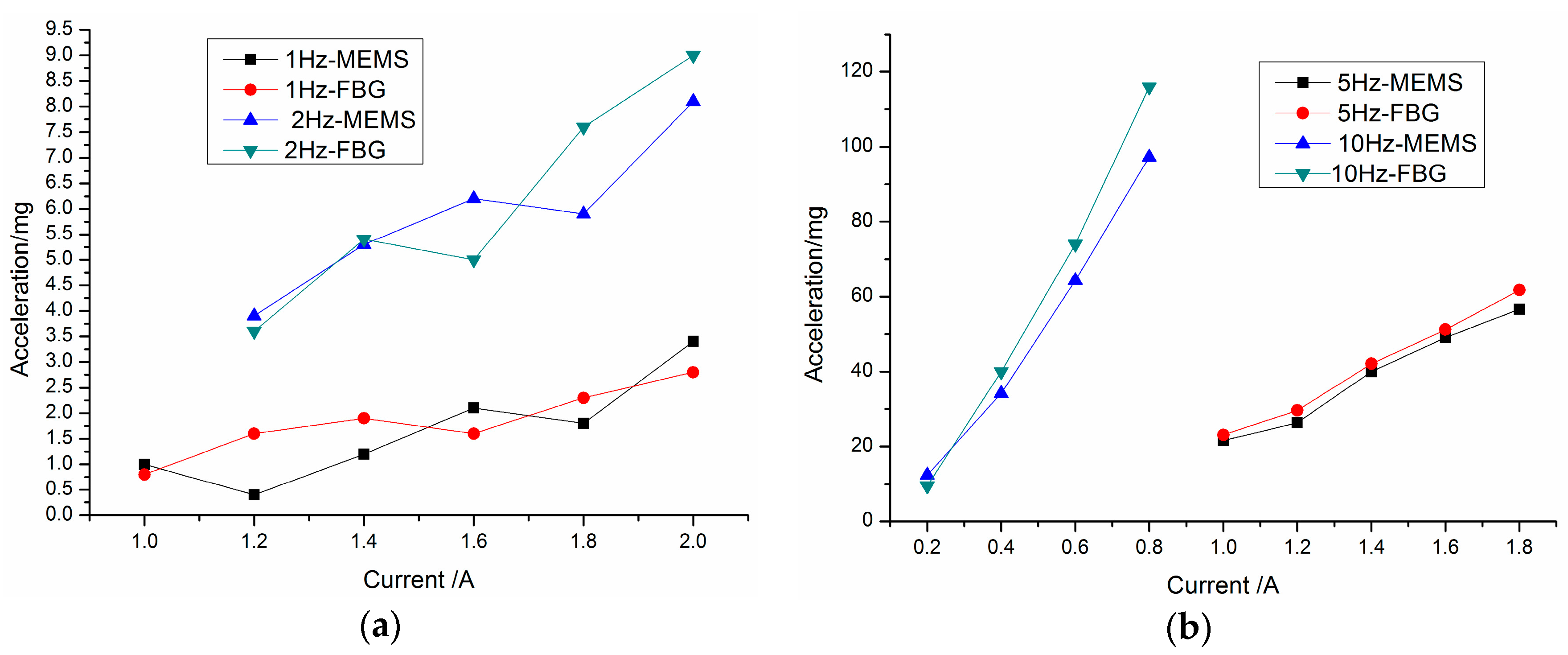

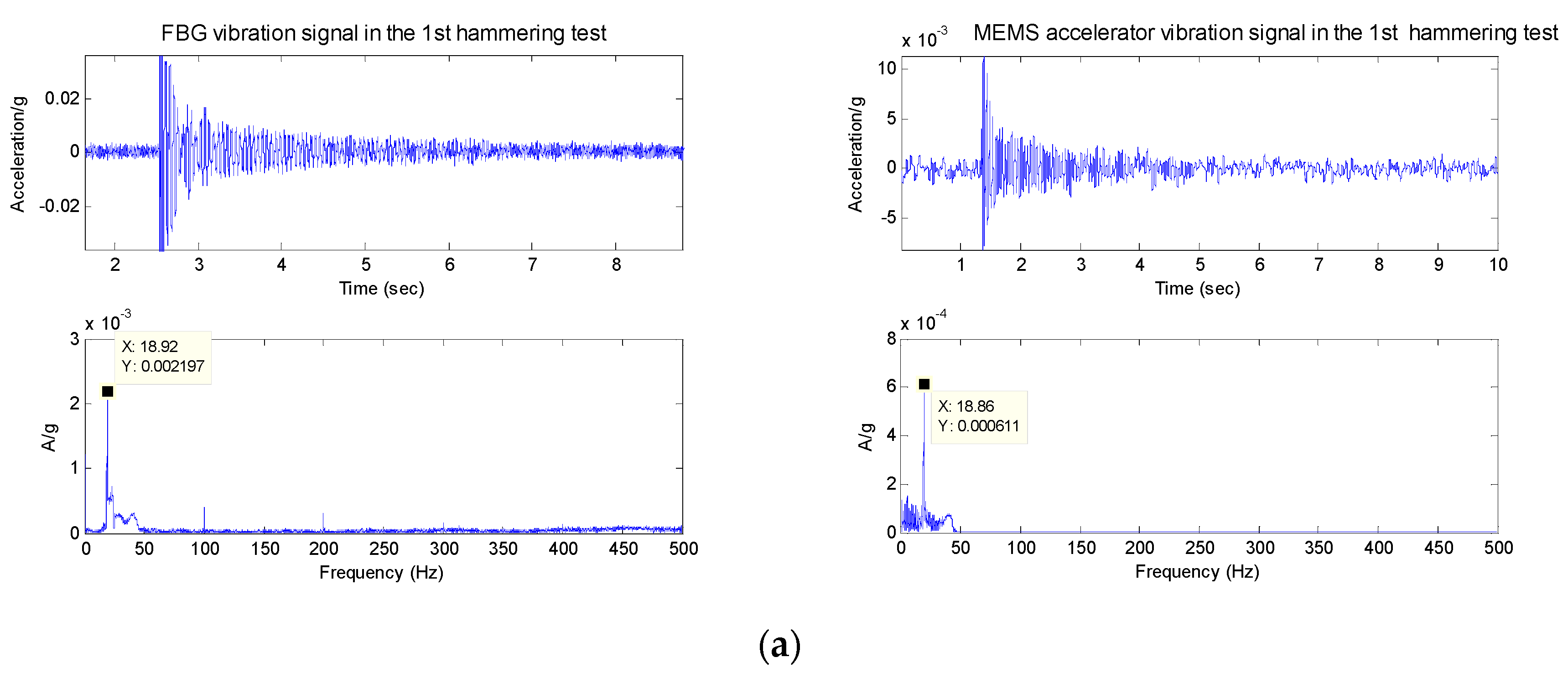

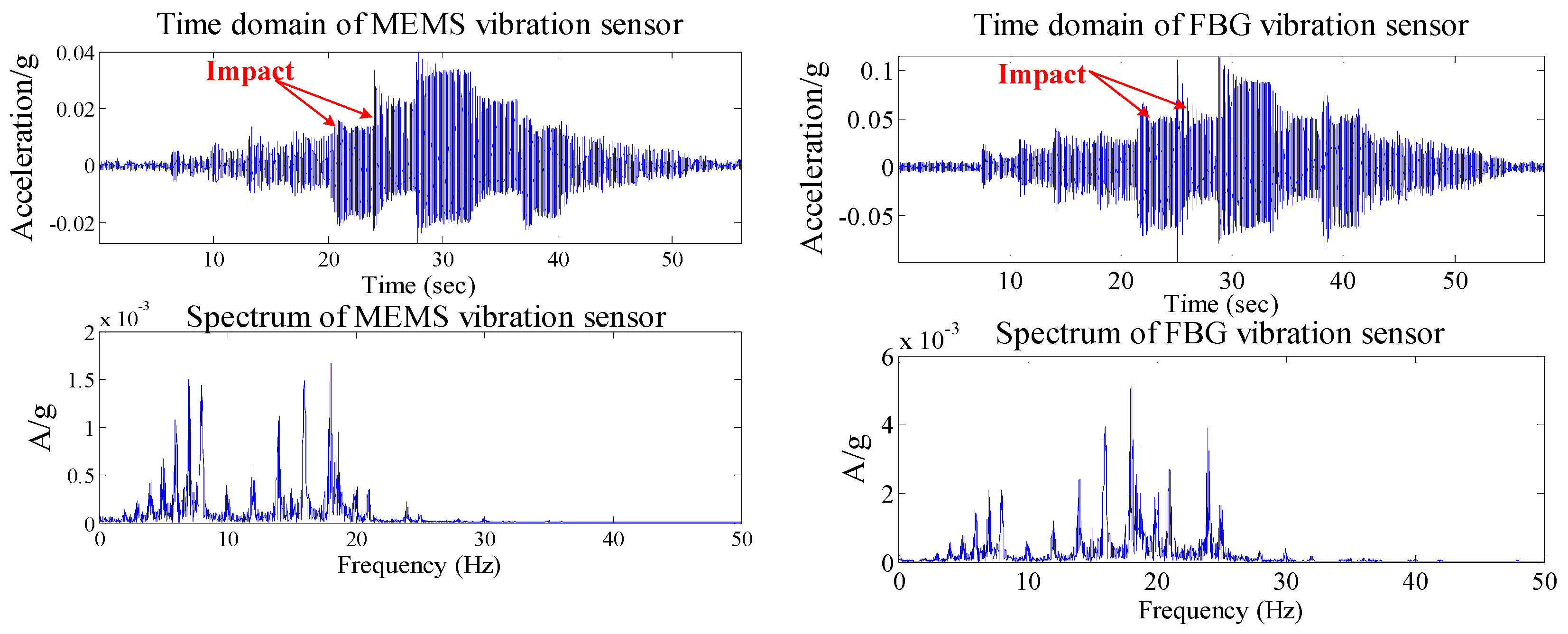

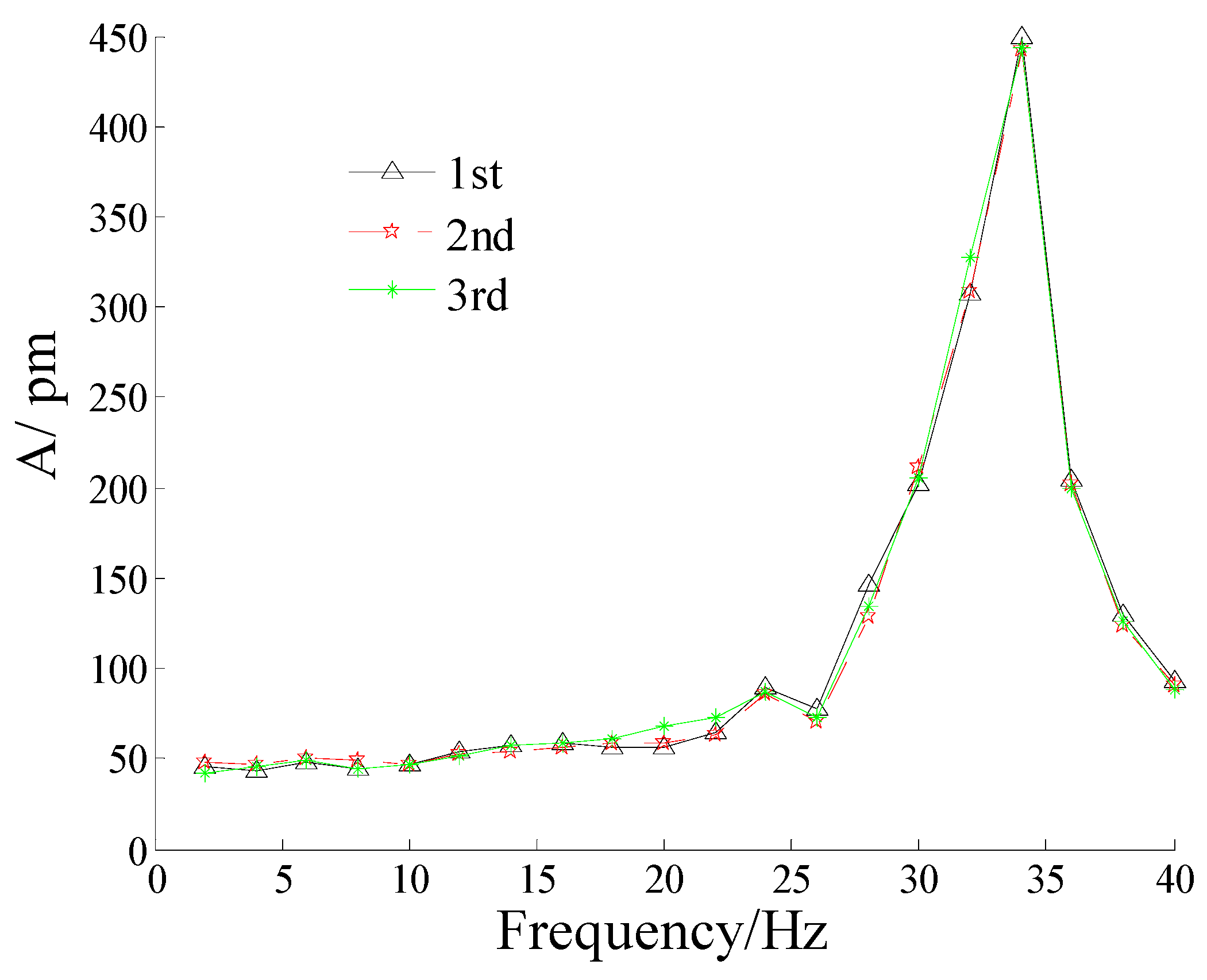

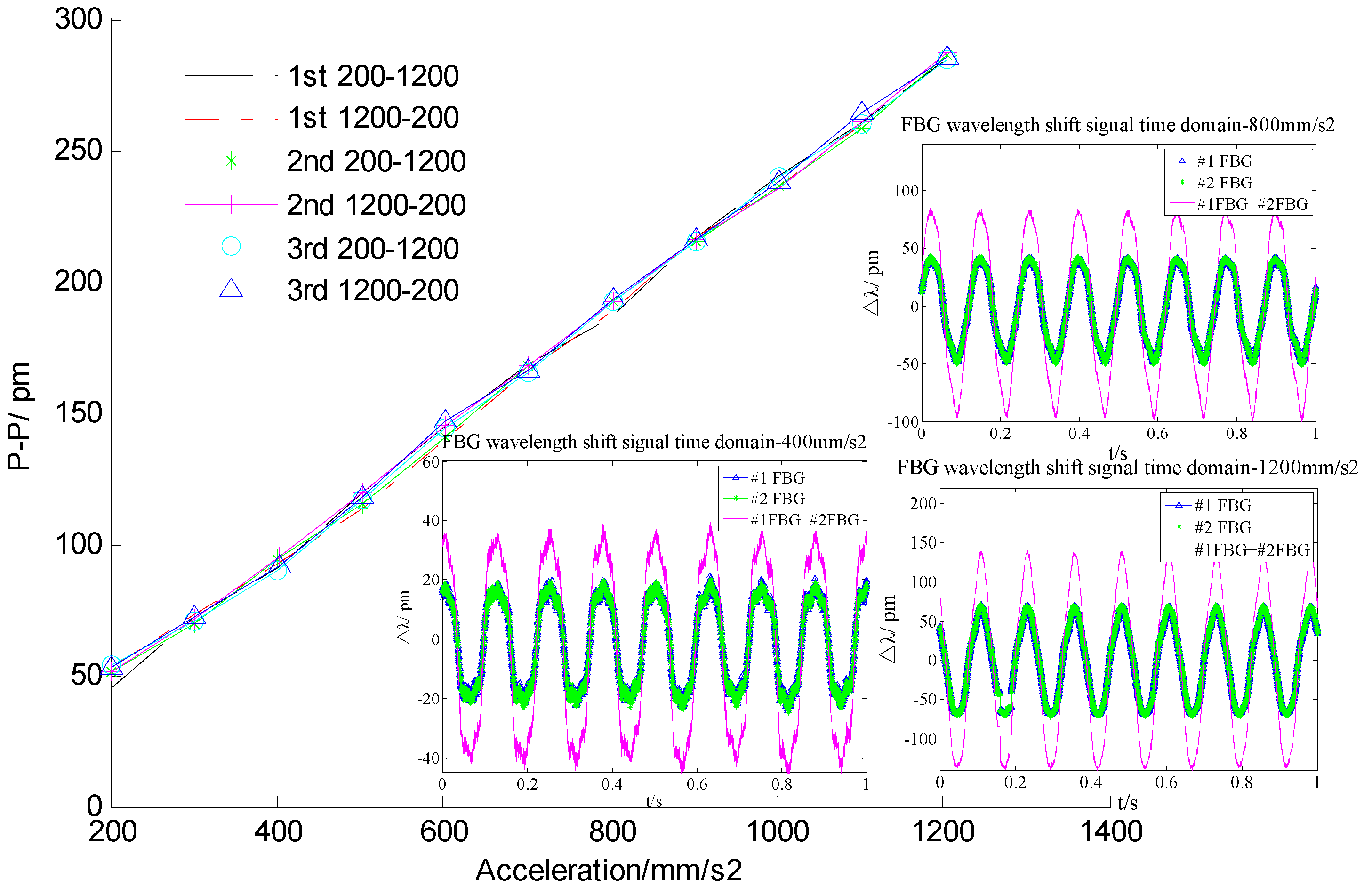

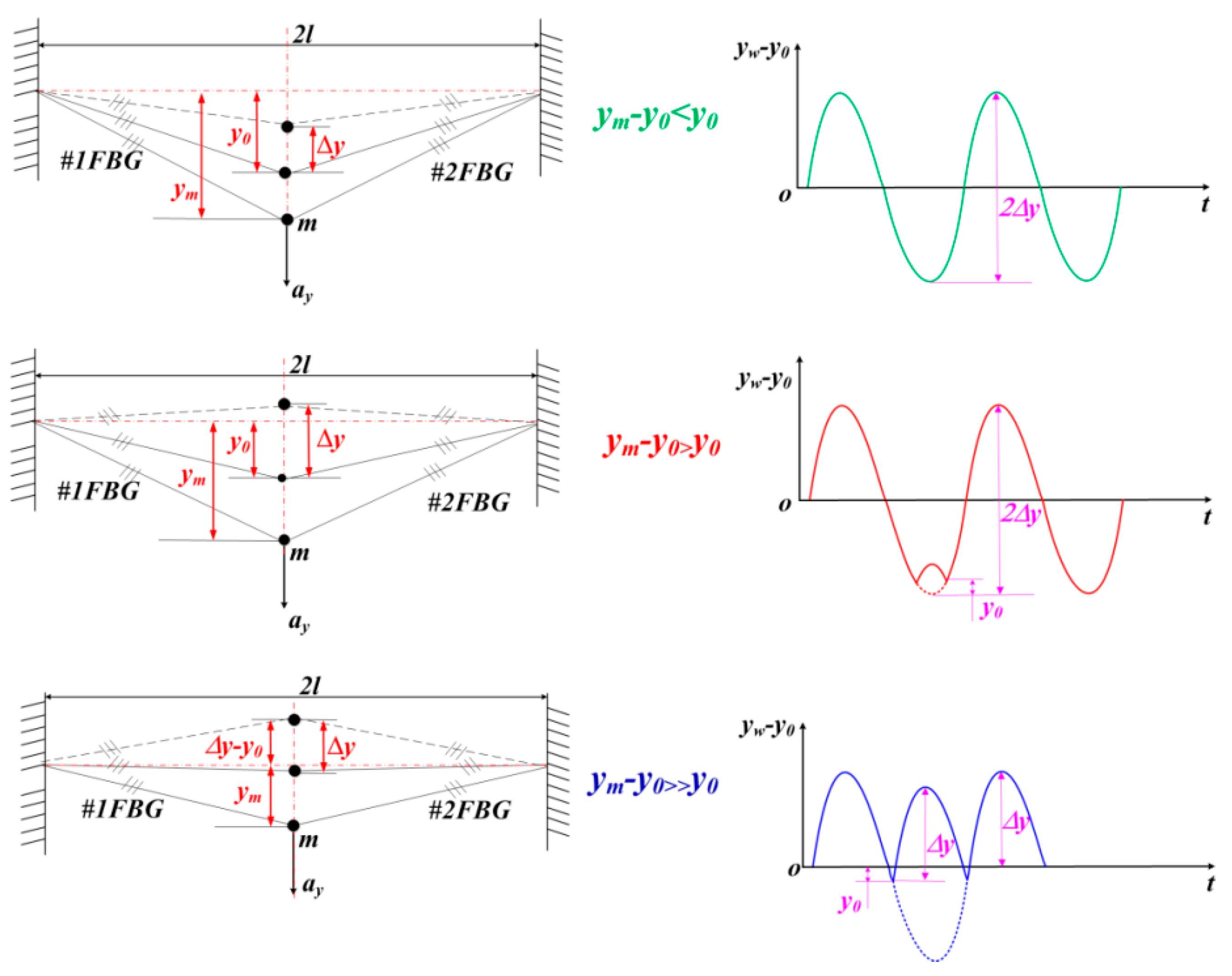

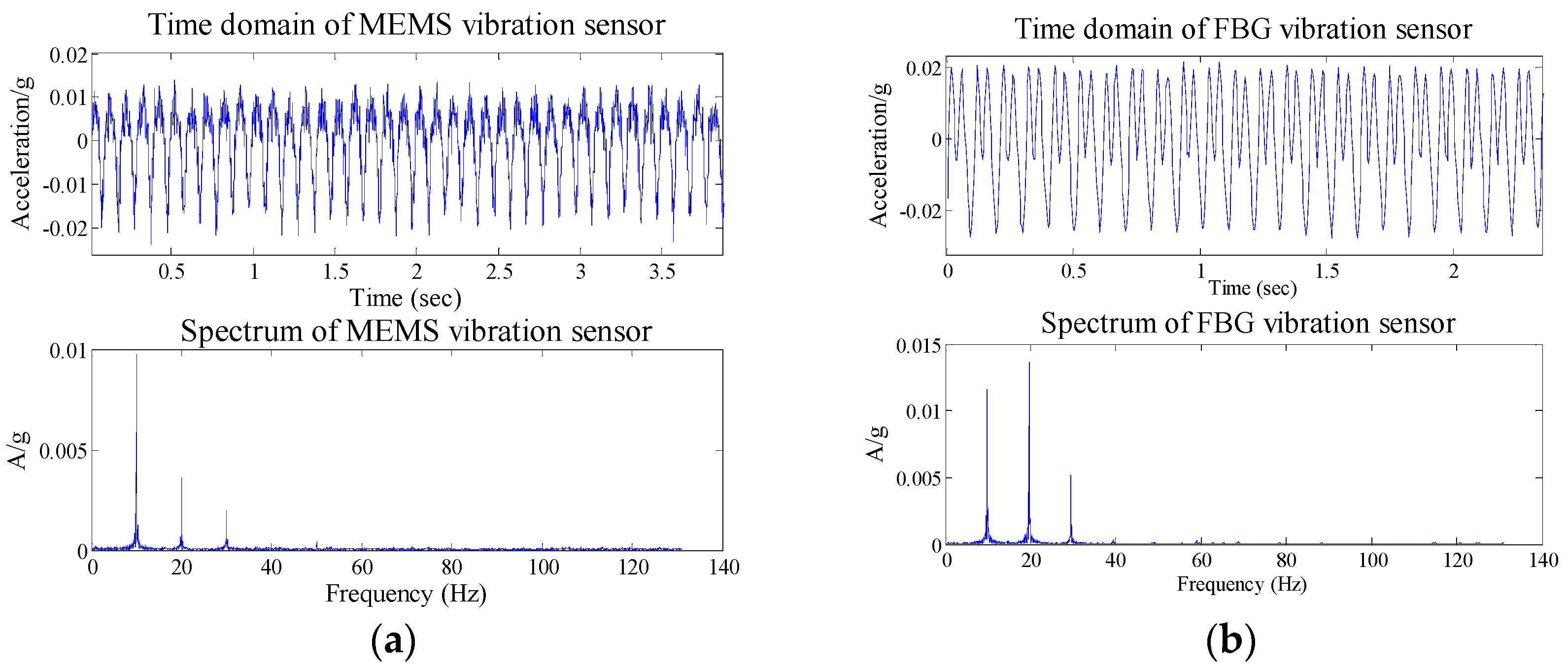

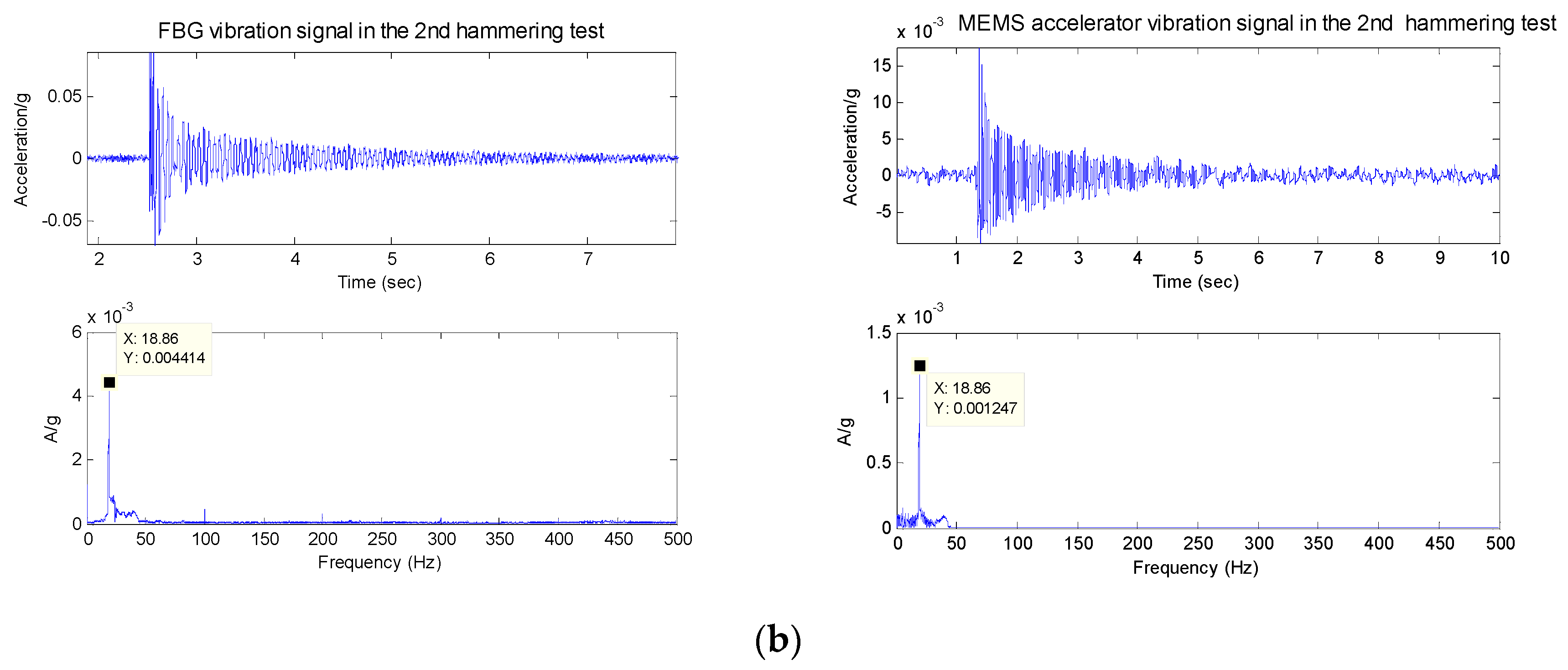

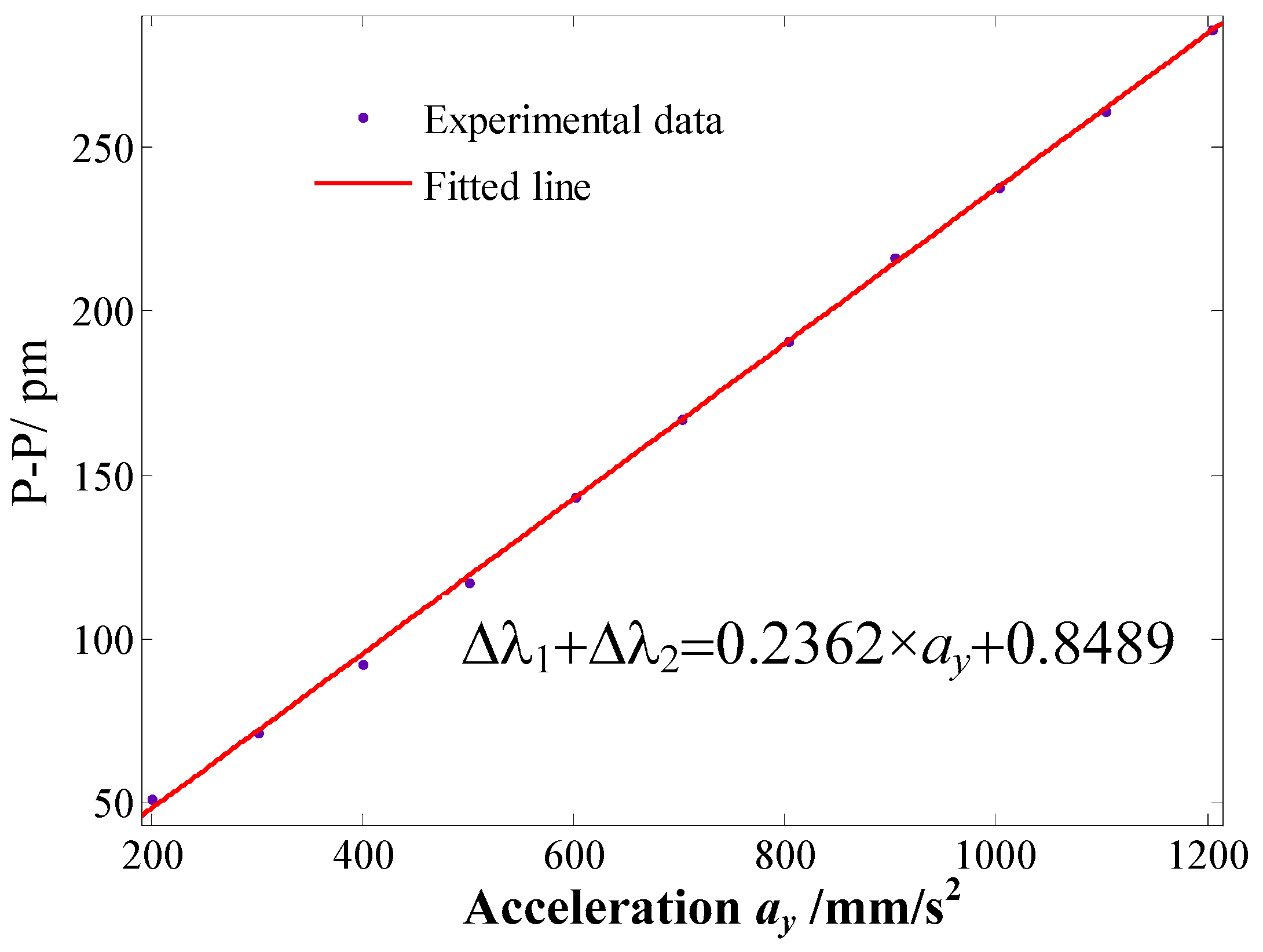

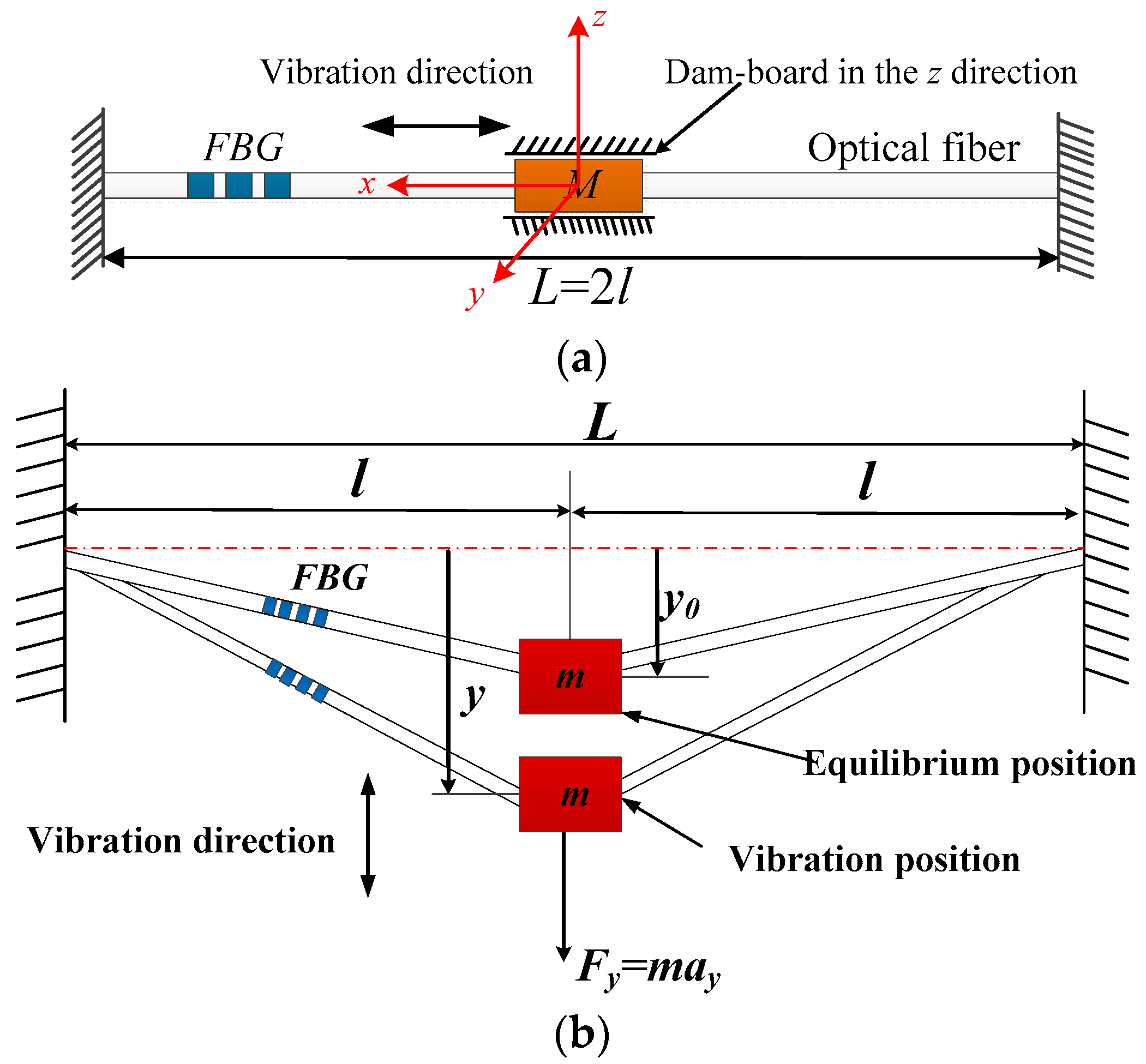

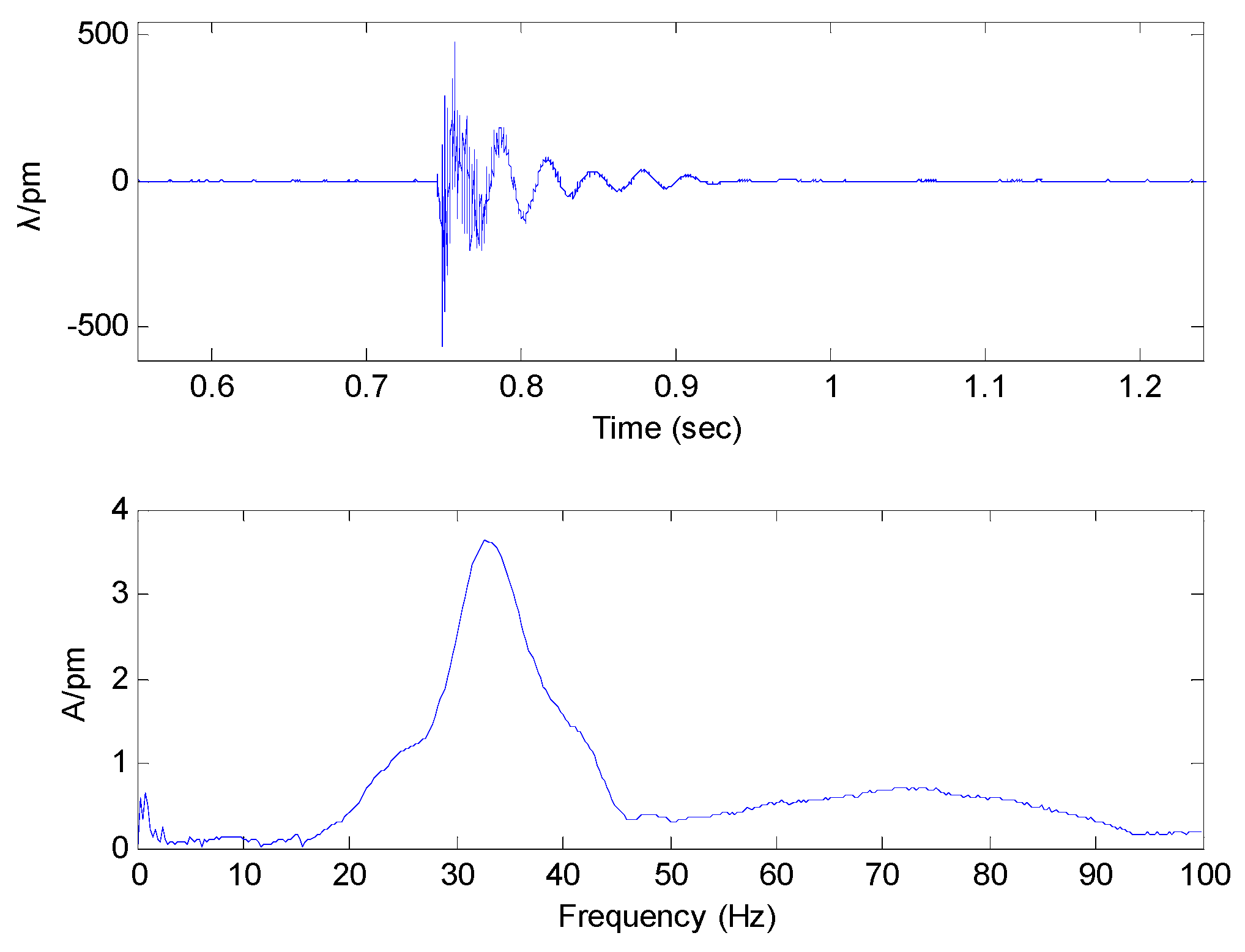

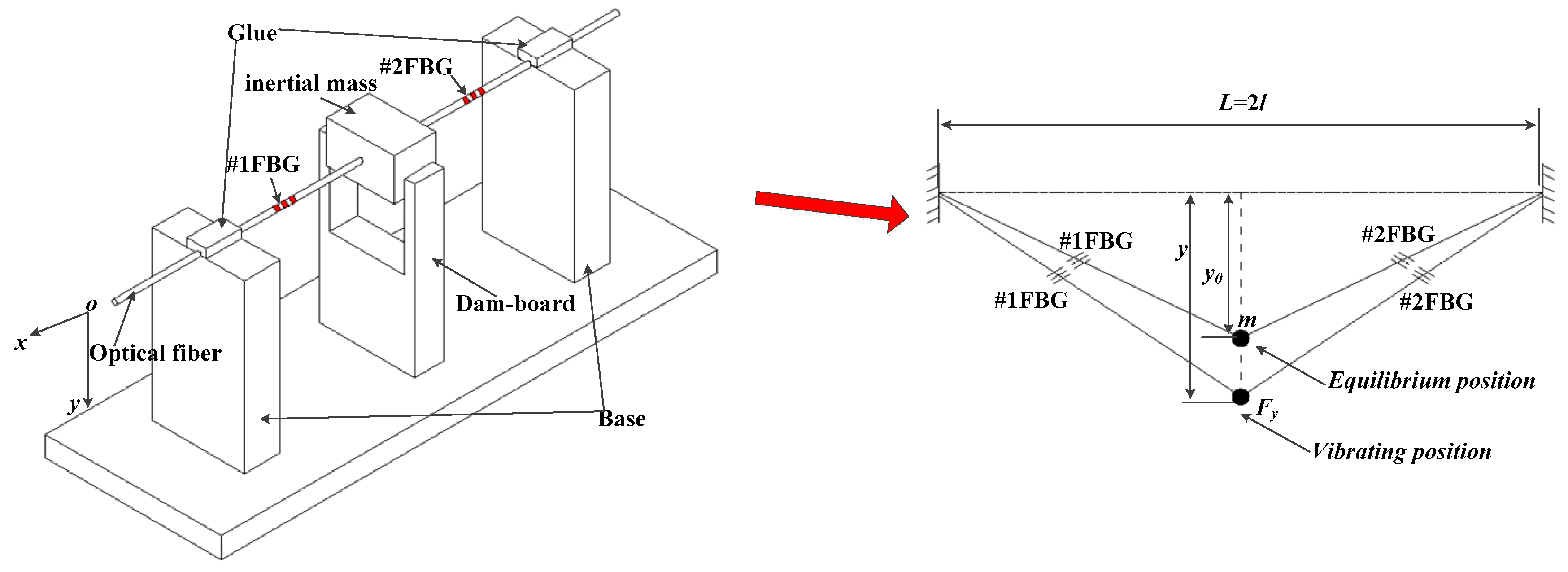

This paper proposes a fiber Bragg grating sensing-based micro-vibration sensor. The optical fiber has been directly treated as an elastomer to design the micro-vibration sensor, which possesses two FBGs. The mass is fixed on the middle of the fiber, and the vertical vibration of the mass has been converted into the axial tension/compression of the fiber. The principle of the sensor has been introduced, and the experiment conclusions show that the sensor sensitivity is 2362 pm/g within the range of 200–1200 mm/s2, which is consistent with theoretical analysis sensitivity of 2532.6 pm/g, and it shows an excellent linearity of 1.376%, while the resonant frequency of the sensor is 34 Hz, and the flat frequency range resides in the 0–22 Hz range. When used to measure micro-vibrations, its measured frequency relative error is less than 1.69% compared with the values acquired with a MEMS accelerometer, and the amplitude values of its measured vibration signal are consistent with the MEMS accelerometer under different excitation conditions too, so it can effectively realize the micro-vibration measurements. View Full-Text
Keywords: micro-vibration; fiber Bragg grating; vibration sensor micro-vibration; fiber Bragg grating; vibration sensor
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
