Sensitivity Enhancement in Magnetic Sensors Based on Ferroelectric-Bimorphs and Multiferroic Composites

1
Physics Department, Oakland University, Rochester, MI 48309, USA
2
Electrical and Computer Engineering Department, Oakland University, Rochester, MI 48309, USA
3
Institute for Information Systems, Novgorod State University, Veiky Novgorod 173003, Russia
*
Author to whom correspondence should be addressed.
Academic Editor: Andreas Hütten
Received: 11 January 2016 / Revised: 13 February 2016 / Accepted: 16 February 2016 / Published: 20 February 2016
(This article belongs to the Special Issue Magnetic Sensor Device-Part 1)
View Full-Text   |   Download PDF [1095 KB, uploaded 22 February 2016]   |

Abstract

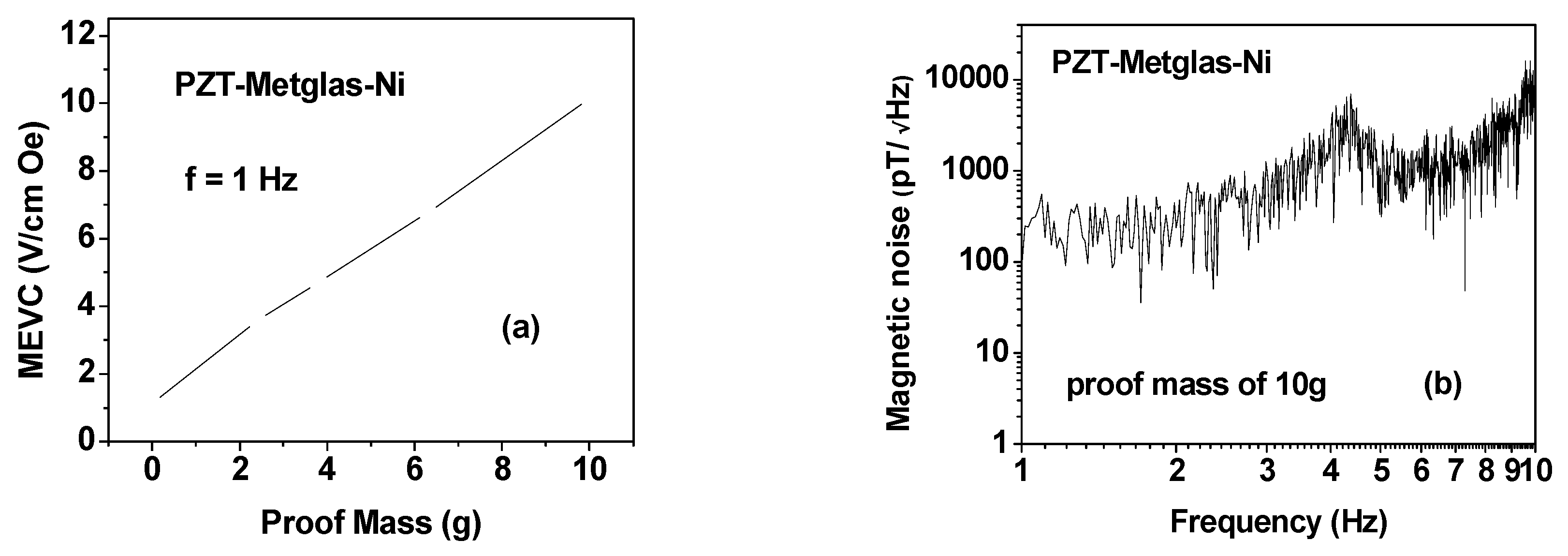

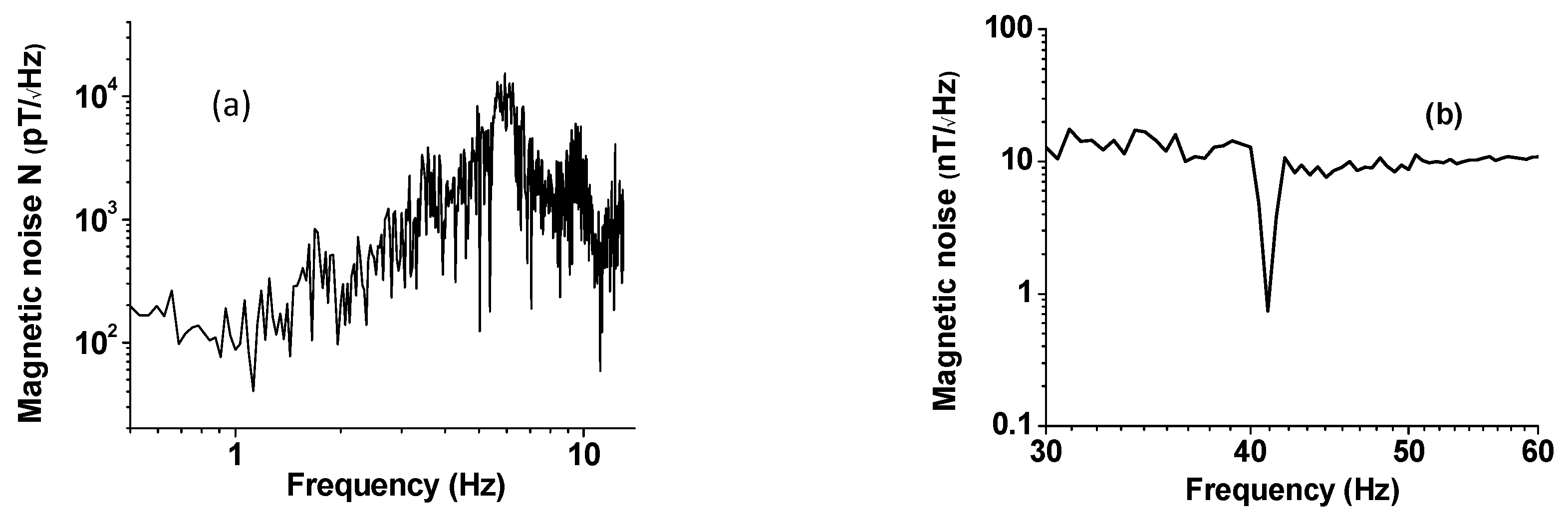

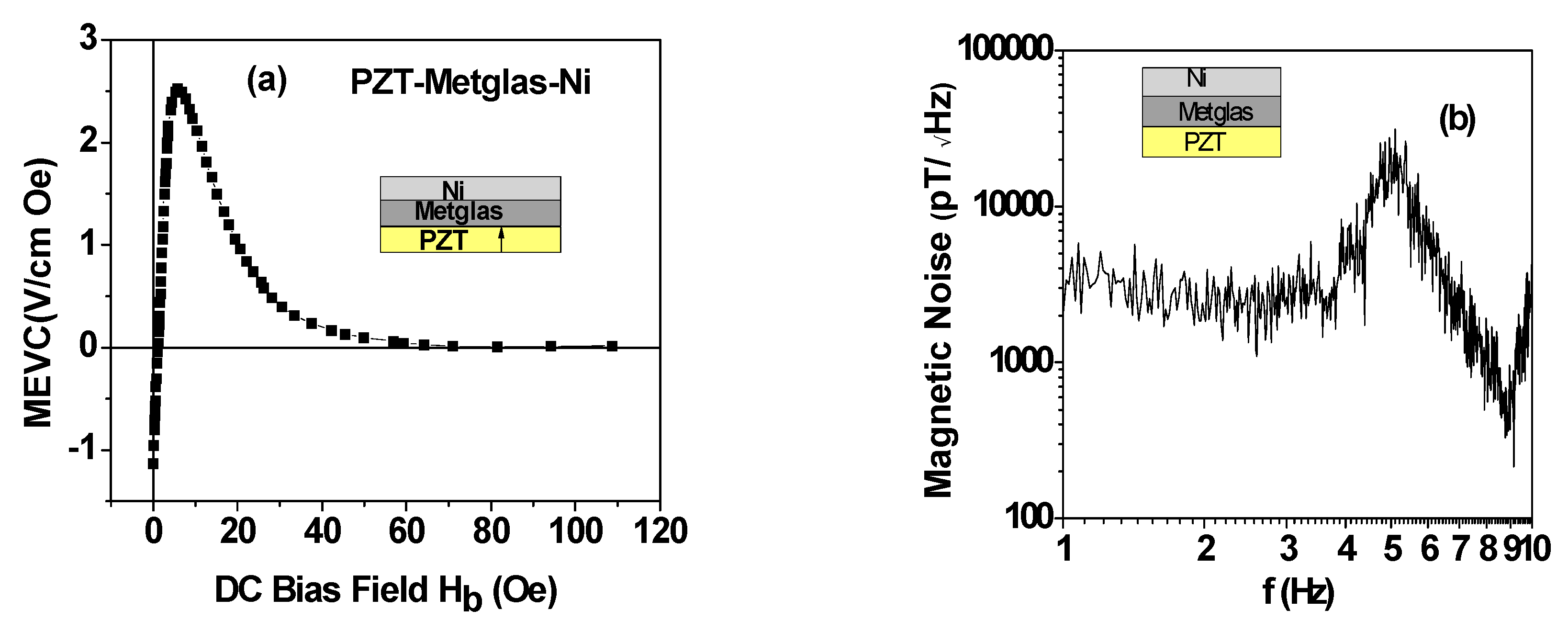

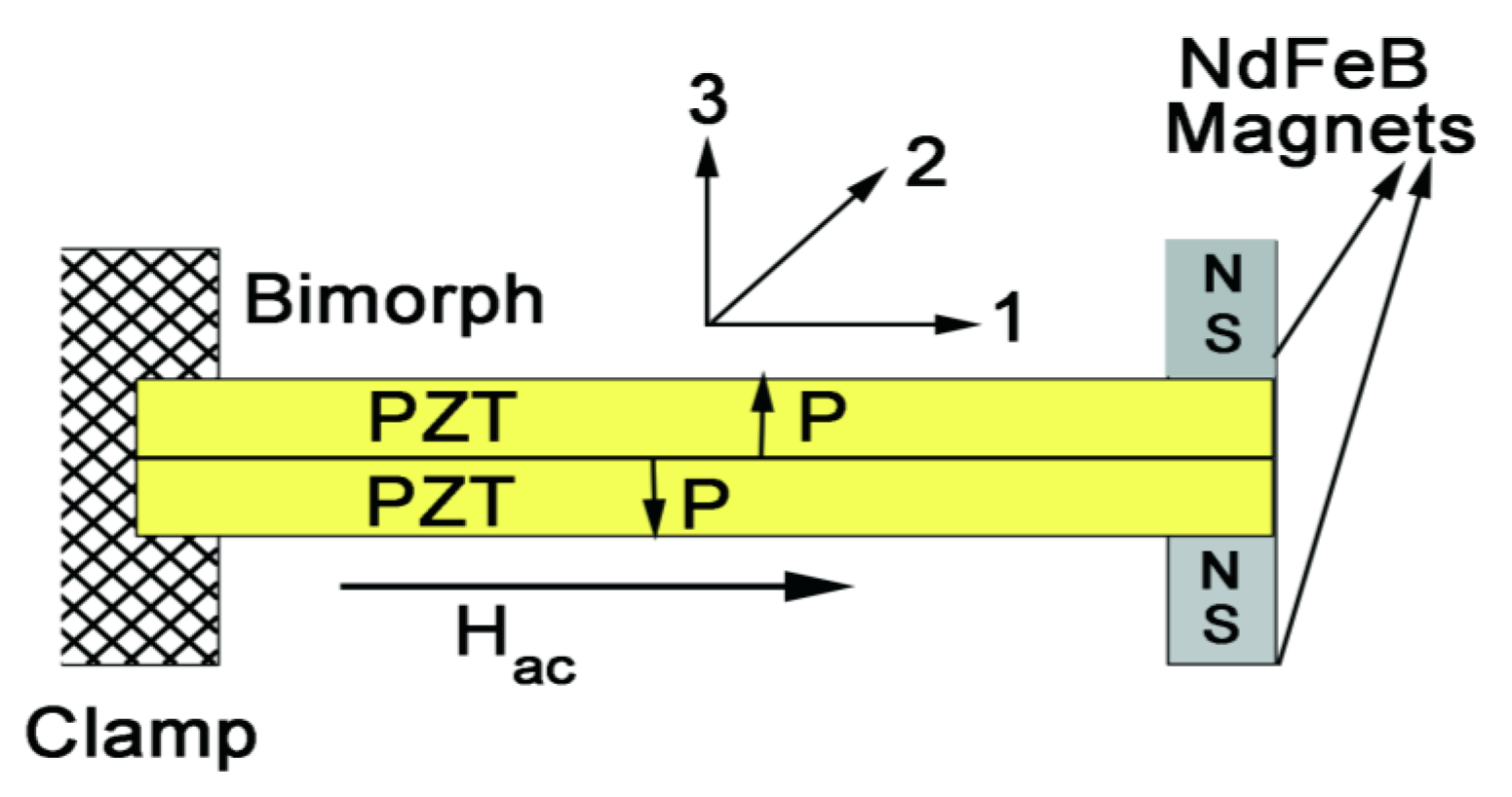

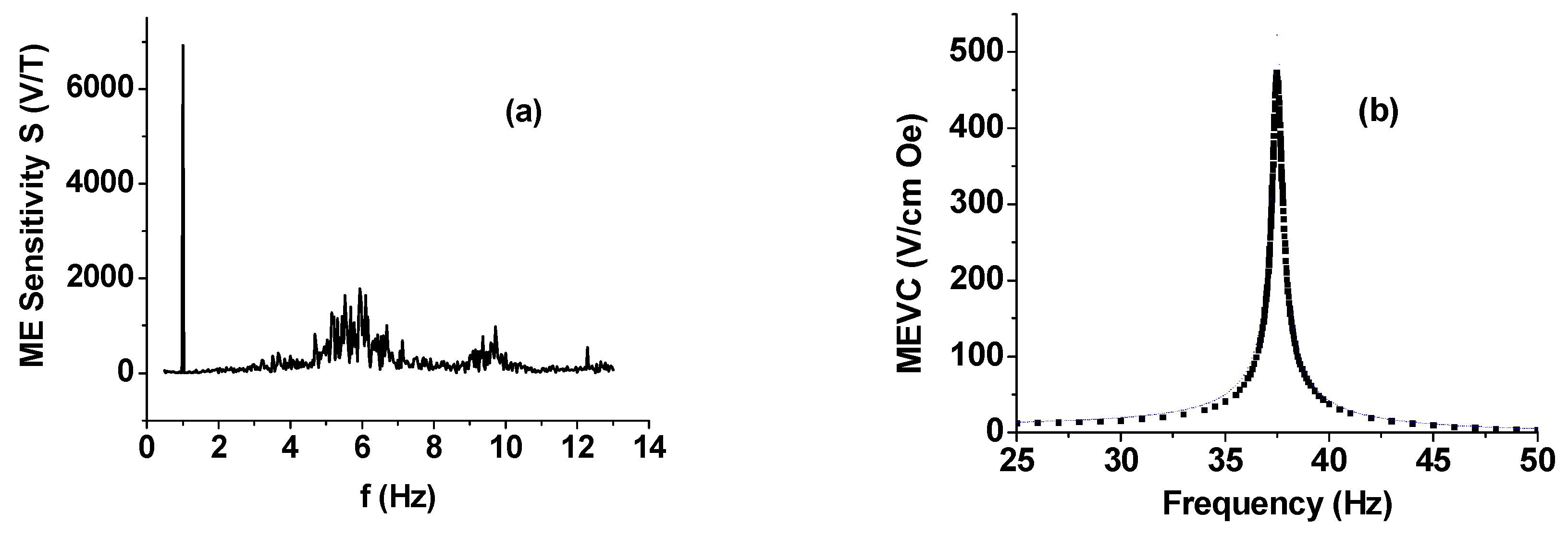

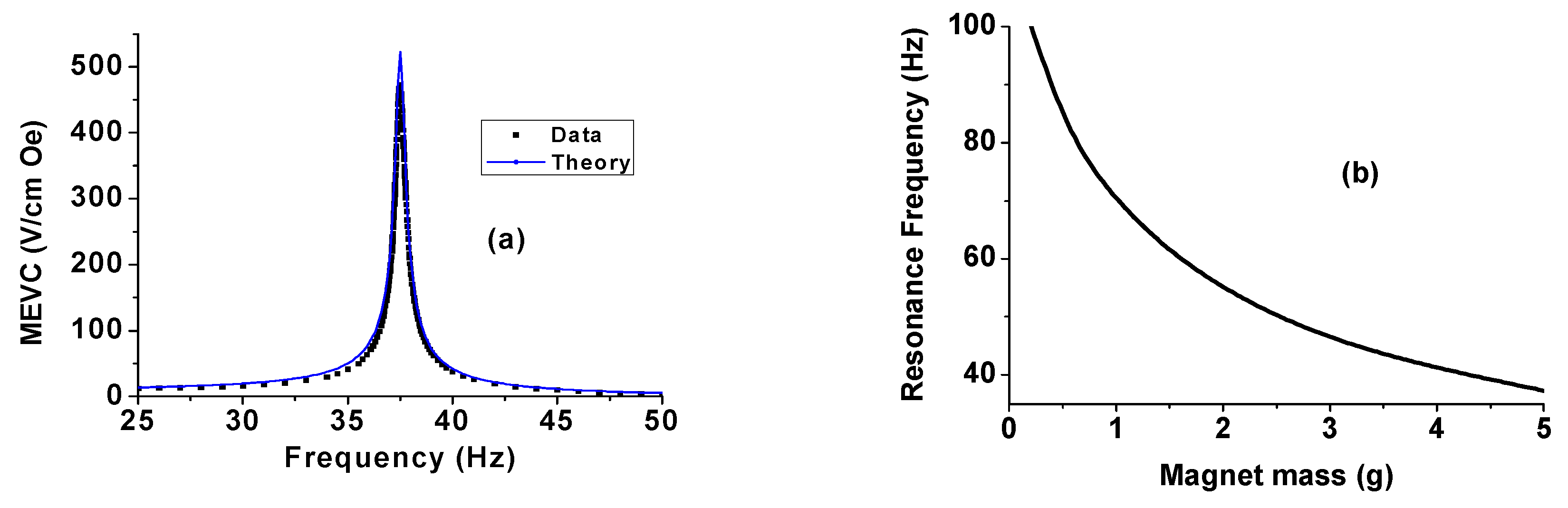

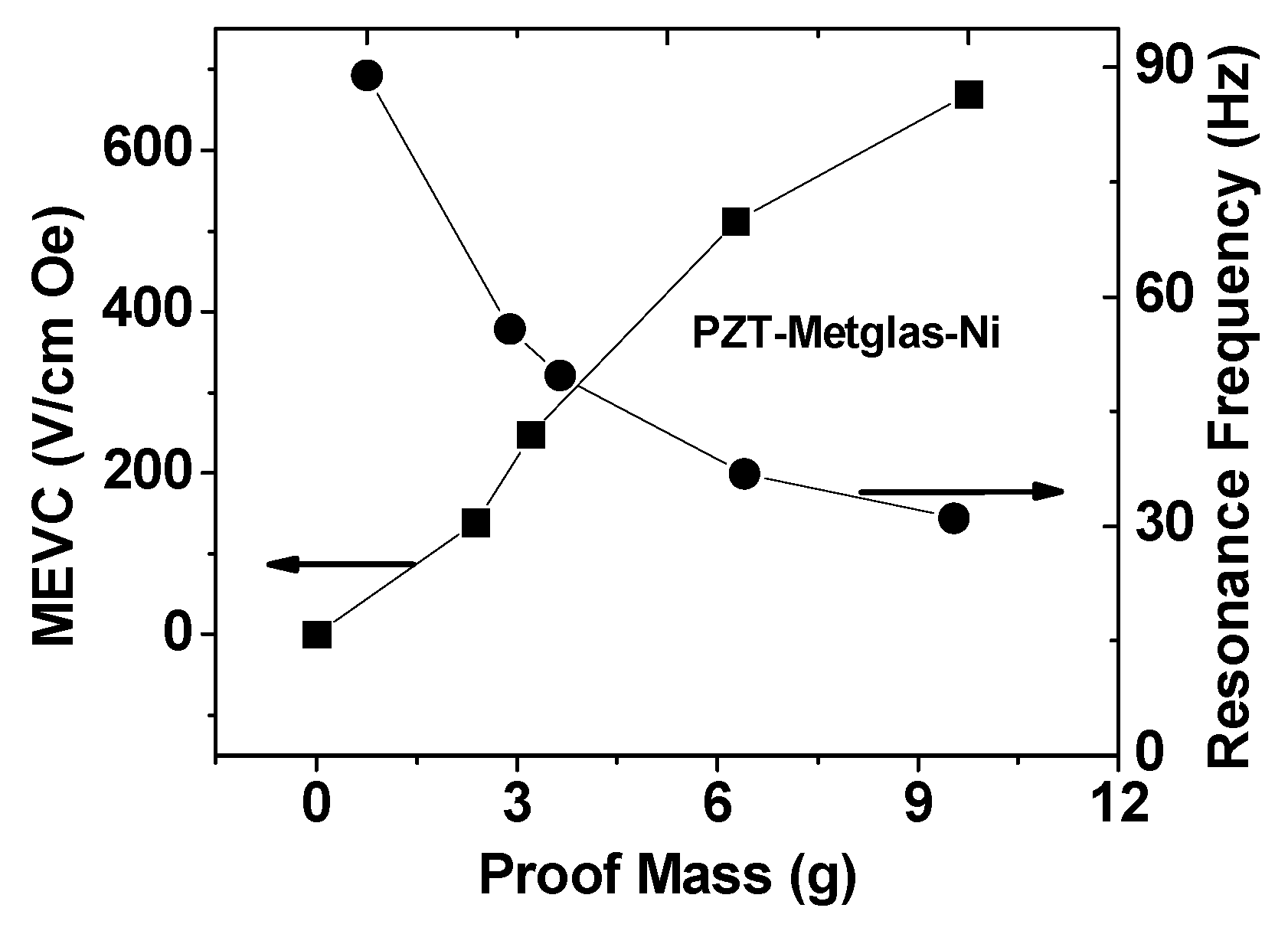

Multiferroic composites with ferromagnetic and ferroelectric phases have been studied in recent years for use as sensors of AC and DC magnetic fields. Their operation is based on magneto-electric (ME) coupling between the electric and magnetic subsystems and is mediated by mechanical strain. Such sensors for AC magnetic fields require a bias magnetic field to achieve pT-sensitivity. Novel magnetic sensors with a permanent magnet proof mass, either on a ferroelectric bimorph or a ferromagnetic-ferroelectric composite, are discussed. In both types, the interaction between the applied AC magnetic field and remnant magnetization of the magnet results in a mechanical strain and a voltage response in the ferroelectric. Our studies have been performed on sensors with a Nd-Fe-B permanent magnet proof mass on (i) a bimorph of oppositely-poled lead zirconate titanate (PZT) platelets and (ii) a layered multiferroic composite of PZT-Metglas-Ni. The sensors have been characterized in terms of sensitivity and equivalent magnetic noise N. Noise N in both type of sensors is on the order of 200 pT/√Hz at 1 Hz, a factor of 10 improvement compared to multiferroic sensors without a proof mass. When the AC magnetic field is applied at the bending resonance for the bimorph, the measured N ≈ 700 pT/√Hz. We discuss models based on magneto-electro-mechanical coupling at low frequency and bending resonance in the sensors and theoretical estimates of ME voltage coefficients are in very good agreement with the data. View Full-Text
Keywords: magnetic sensor; piezoelectric; ferroelectric; multiferroic; bimorph; bending resonance; proof mass; permanent magnet magnetic sensor; piezoelectric; ferroelectric; multiferroic; bimorph; bending resonance; proof mass; permanent magnet
