Open AccessArticle
Sensors 2016, 16(1), 67; doi:10.3390/s16010067

Integrated Amorphous Silicon p-i-n Temperature Sensor for CMOS Photonics

Department of Information Engineering Infrastructures and Sustainable Energy (DIIES), “Mediterranea” University, Reggio Calabria 89122, Italy
*
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M.N. Passaro
Received: 8 November 2015 / Revised: 20 December 2015 / Accepted: 25 December 2015 / Published: 6 January 2016
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [1157 KB, uploaded 7 January 2016]   |

Abstract

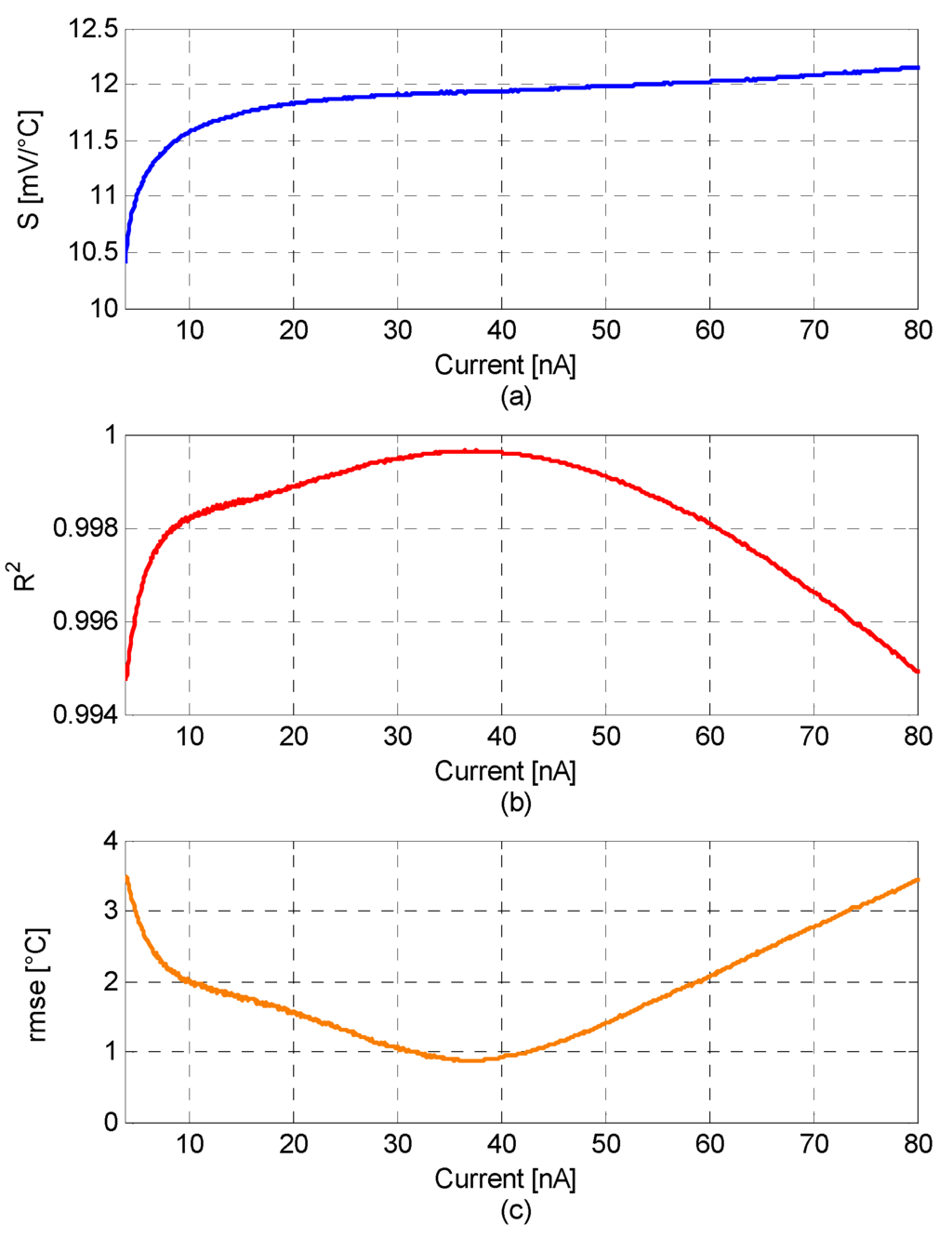

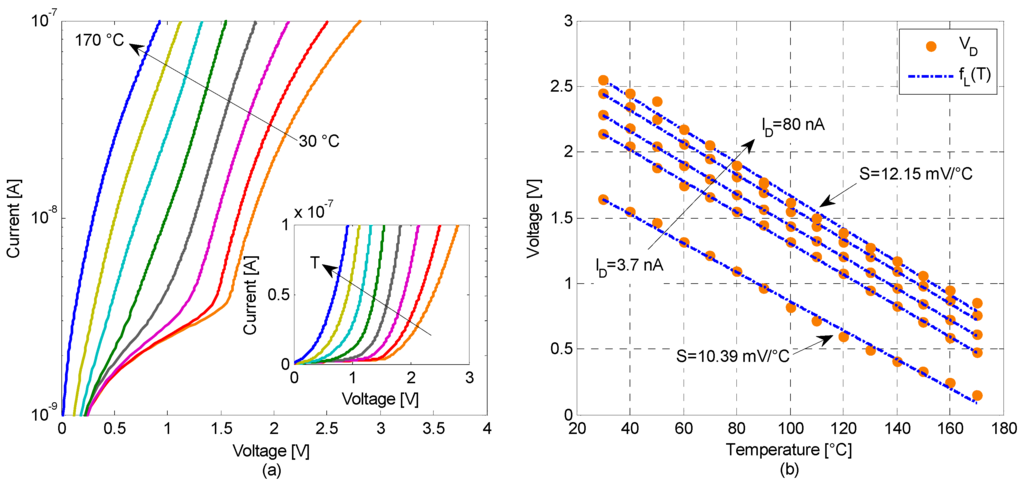

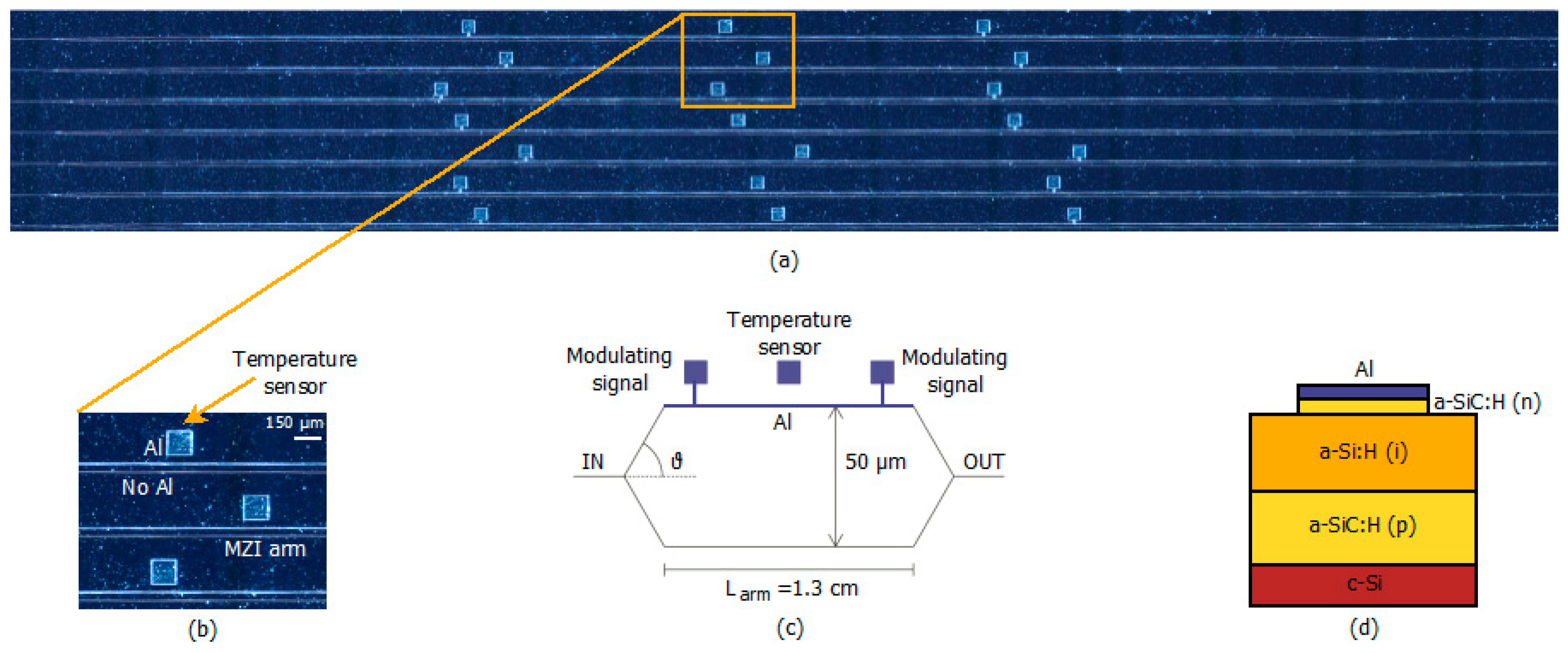

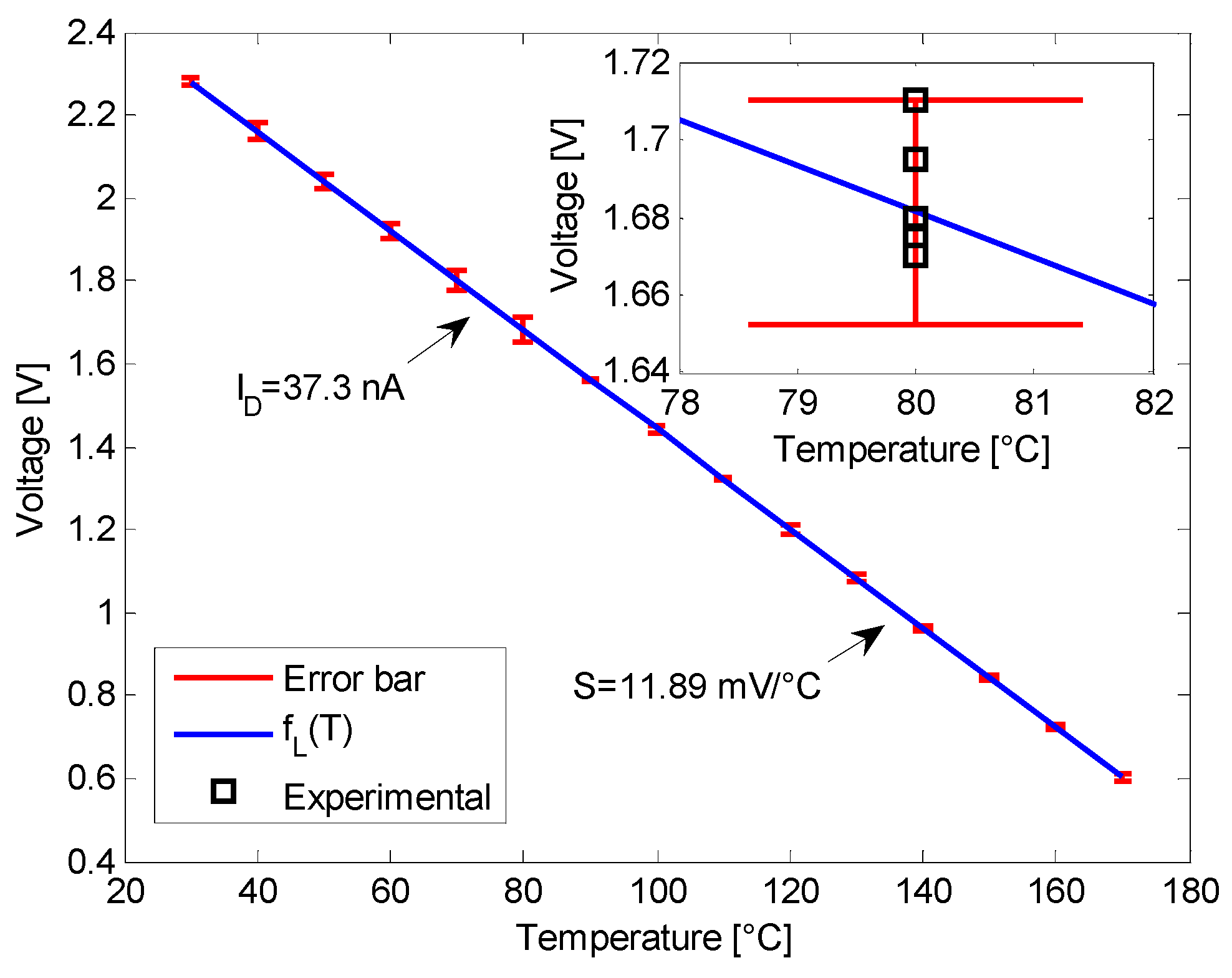

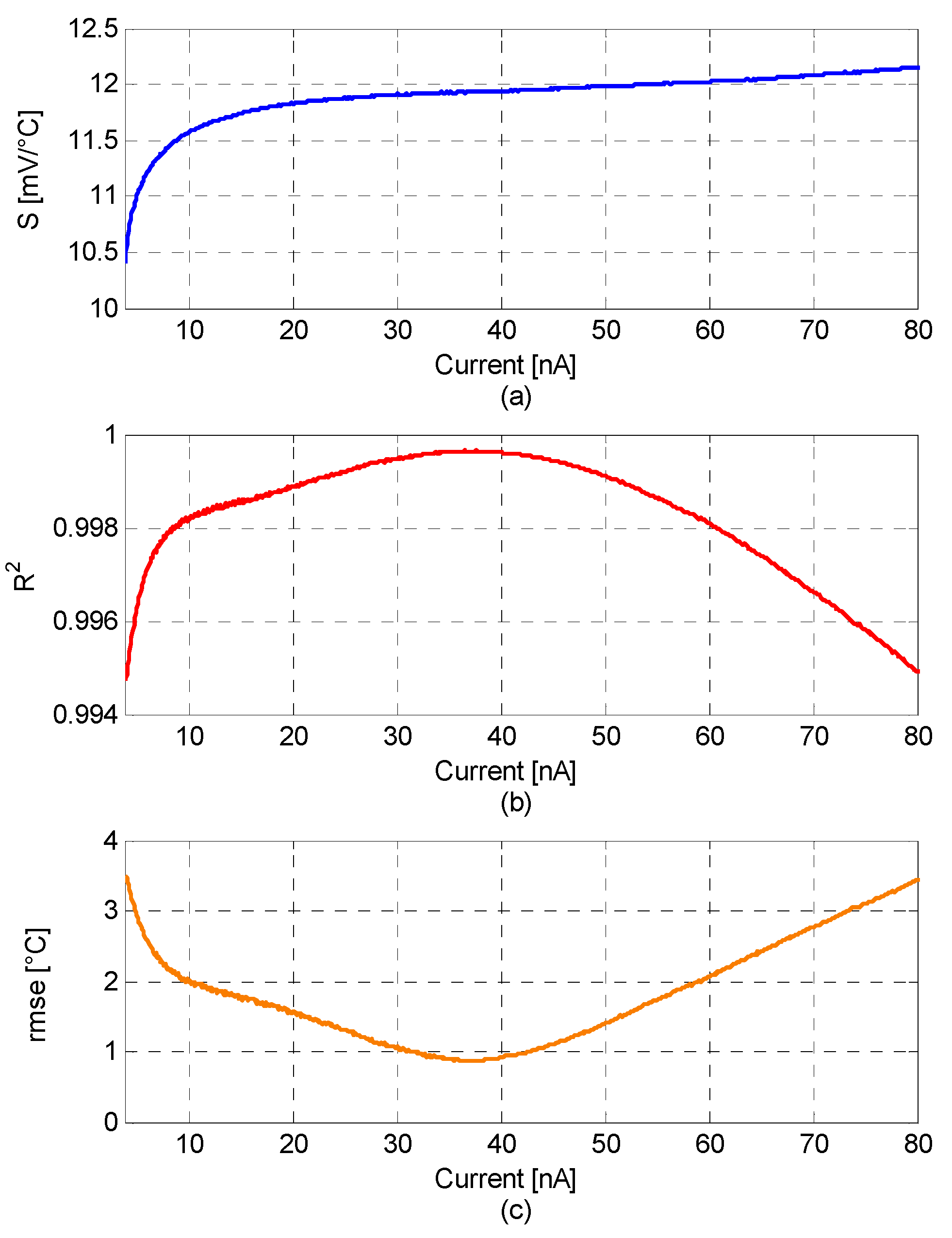

Hydrogenated amorphous silicon (a-Si:H) shows interesting optoelectronic and technological properties that make it suitable for the fabrication of passive and active micro-photonic devices, compatible moreover with standard microelectronic devices on a microchip. A temperature sensor based on a hydrogenated amorphous silicon p-i-n diode integrated in an optical waveguide for silicon photonics applications is presented here. The linear dependence of the voltage drop across the forward-biased diode on temperature, in a range from 30 °C up to 170 °C, has been used for thermal sensing. A high sensitivity of 11.9 mV/°C in the bias current range of 34–40 nA has been measured. The proposed device is particularly suitable for the continuous temperature monitoring of CMOS-compatible photonic integrated circuits, where the behavior of the on-chip active and passive devices are strongly dependent on their operating temperature. View Full-Text
Keywords: p-i-n diode; temperature sensors; amorphous silicon; photonic integrated circuit p-i-n diode; temperature sensors; amorphous silicon; photonic integrated circuit
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Rao, S.; Pangallo, G.; Della Corte, F.G. Integrated Amorphous Silicon p-i-n Temperature Sensor for CMOS Photonics. Sensors 2016, 16, 67.
