A Lateral Differential Resonant Pressure Microsensor Based on SOI-Glass Wafer-Level Vacuum Packaging

1
State Key Laboratory of Transducer Technology, Institute of Electronics, Chinese Academy of Sciences, Beijing 100190, China
2
University of Chinese Academy of Sciences, Beijing 100190, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 11 June 2015 / Revised: 31 July 2015 / Accepted: 10 August 2015 / Published: 21 September 2015
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [743 KB, uploaded 21 September 2015]   |

Abstract

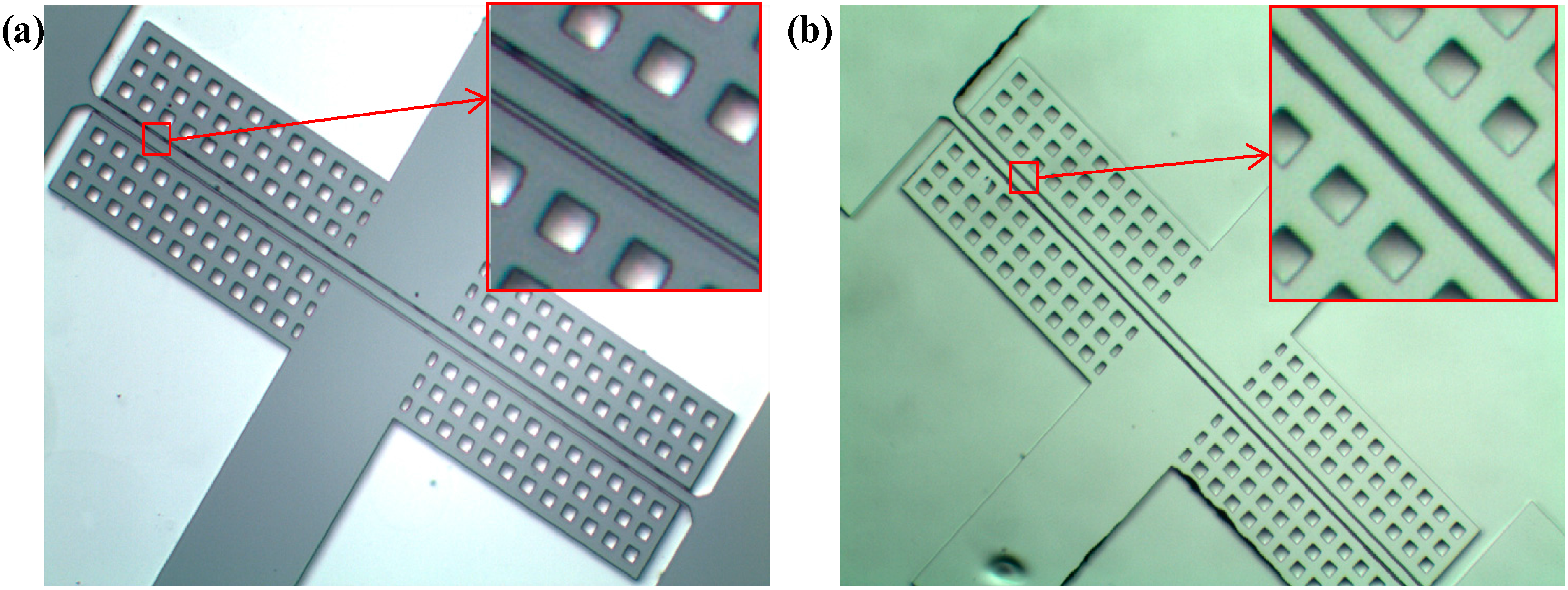

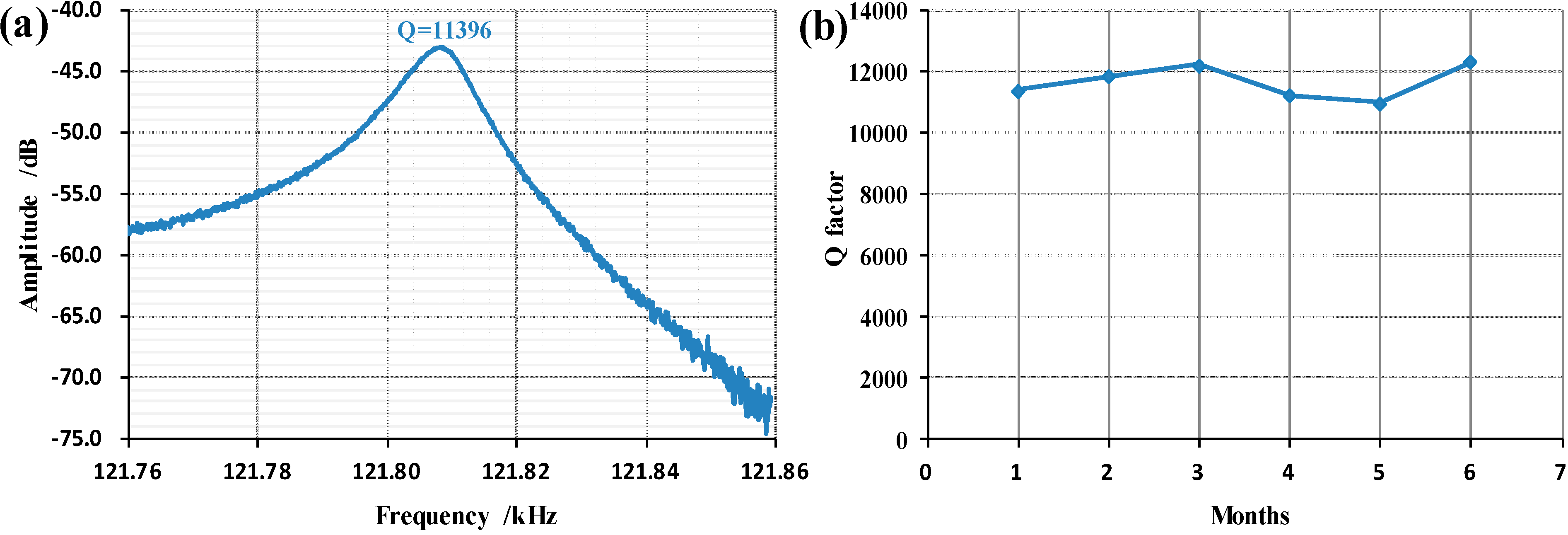

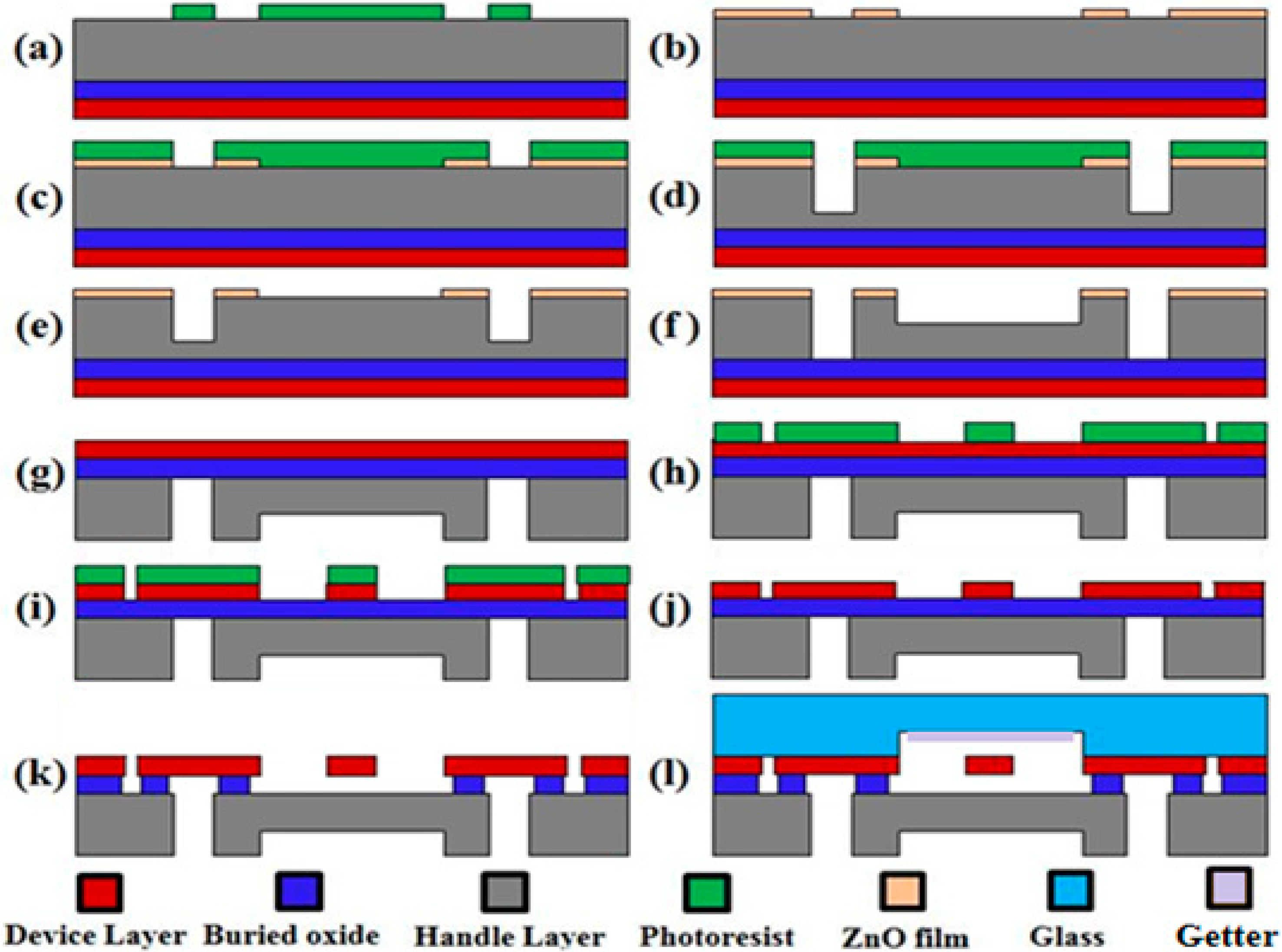

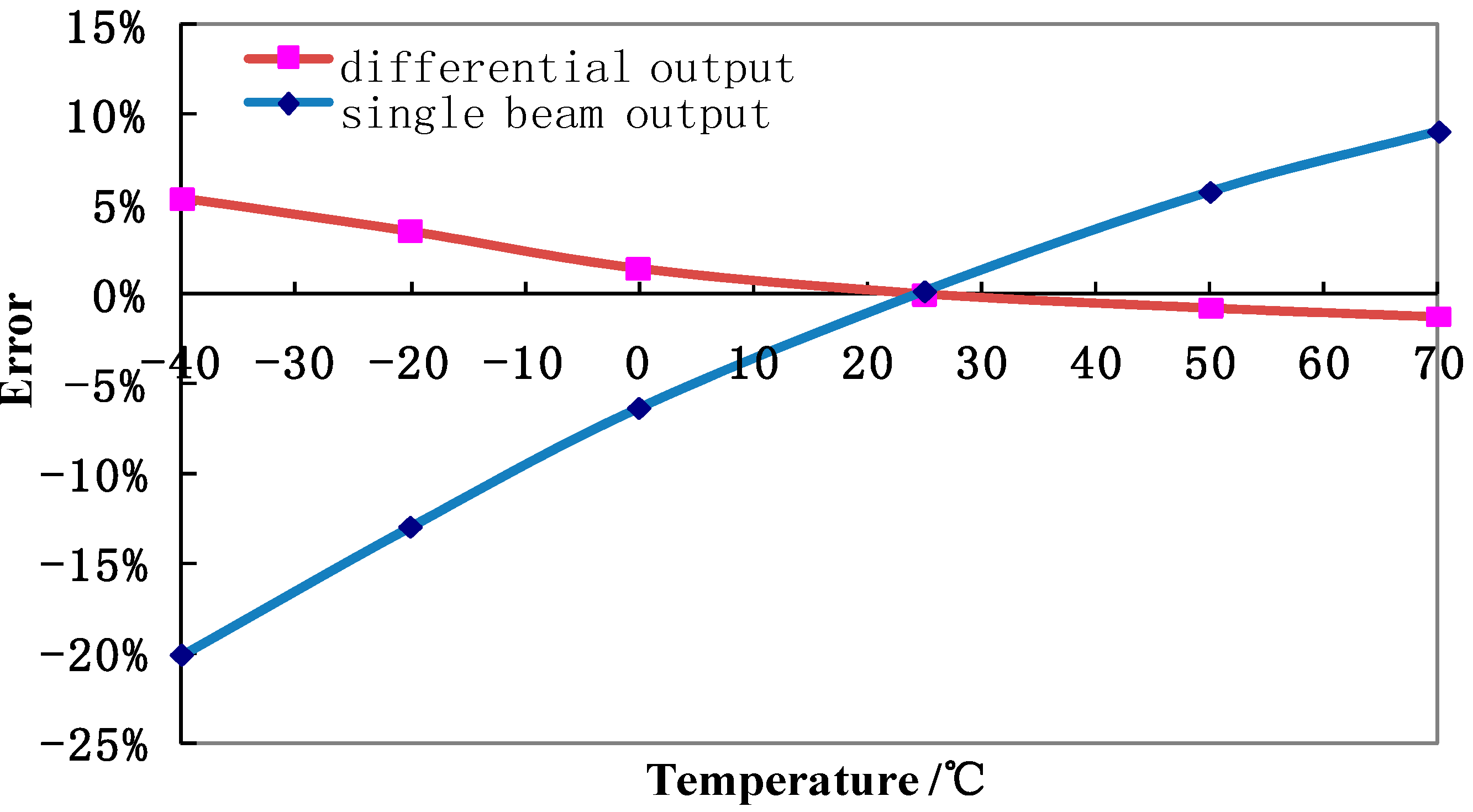

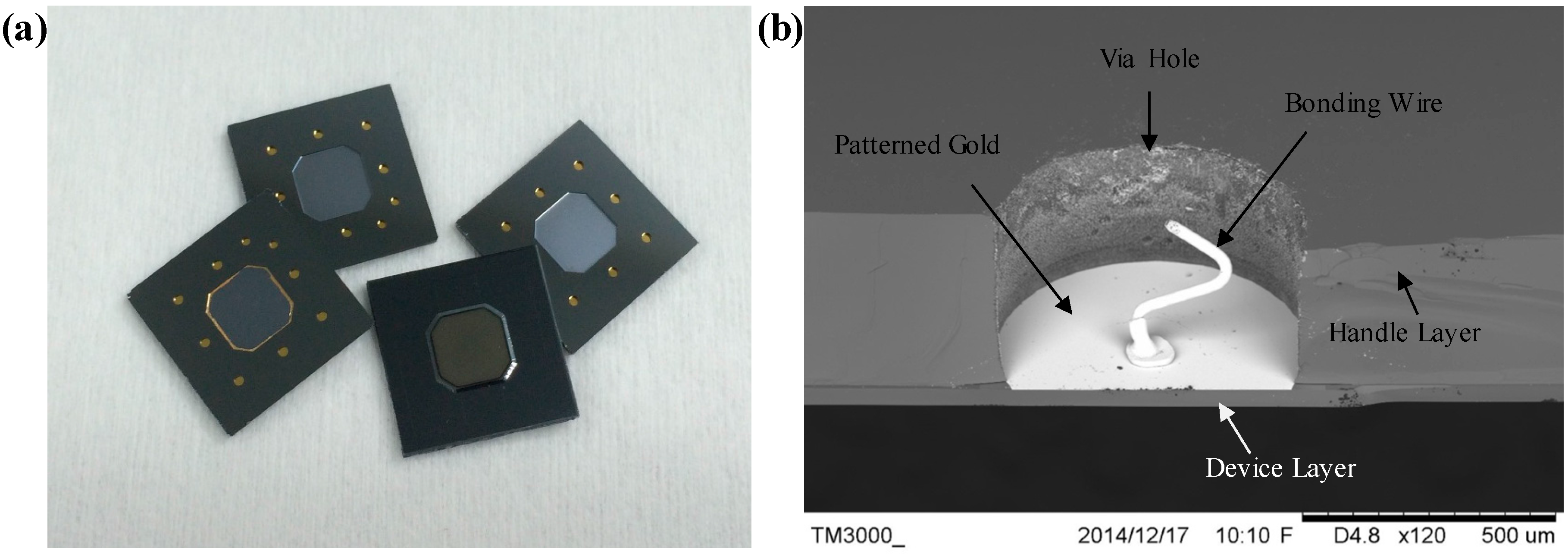

This paper presents the fabrication and characterization of a resonant pressure microsensor based on SOI-glass wafer-level vacuum packaging. The SOI-based pressure microsensor consists of a pressure-sensitive diaphragm at the handle layer and two lateral resonators (electrostatic excitation and capacitive detection) on the device layer as a differential setup. The resonators were vacuum packaged with a glass cap using anodic bonding and the wire interconnection was realized using a mask-free electrochemical etching approach by selectively patterning an Au film on highly topographic surfaces. The fabricated resonant pressure microsensor with dual resonators was characterized in a systematic manner, producing a quality factor higher than 10,000 (~6 months), a sensitivity of about 166 Hz/kPa and a reduced nonlinear error of 0.033% F.S. Based on the differential output, the sensitivity was increased to two times and the temperature-caused frequency drift was decreased to 25%. View Full-Text
Keywords: resonant pressure sensor; differential frequency output; vacuum packaging; anodic bonding; wire interconnection; mask-free metallization resonant pressure sensor; differential frequency output; vacuum packaging; anodic bonding; wire interconnection; mask-free metallization
