Sensors 2015, 15(3), 6091-6104; doi:10.3390/s150306091

Low-Cost Photolithographic Fabrication of Nanowires and Microfilters for Advanced Bioassay Devices

1
Nanomaterials Optoelectronics Laboratory, Polymer Program, University of Connecticut, Storrs, CT 06269, USA
2
Biorasis Inc., 23 Fellen Road, Storrs, CT 06268, USA
3
Department of Chemistry, University of Connecticut, Storrs, CT 06269, USA
4
Institute of Materials Science, University of Connecticut, Storrs, CT 06269, USA
5
Department of Cell Biology, University of Connecticut Health Center, Farmington, CT 062032, USA
6
School of Chemistry, National University of Ireland, Galway, Ireland
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Academic Editor: Kagan Kerman
Received: 14 January 2015 / Revised: 21 February 2015 / Accepted: 2 March 2015 / Published: 12 March 2015
View Full-Text   |   Download PDF [8153 KB, uploaded 12 March 2015]   |

Abstract

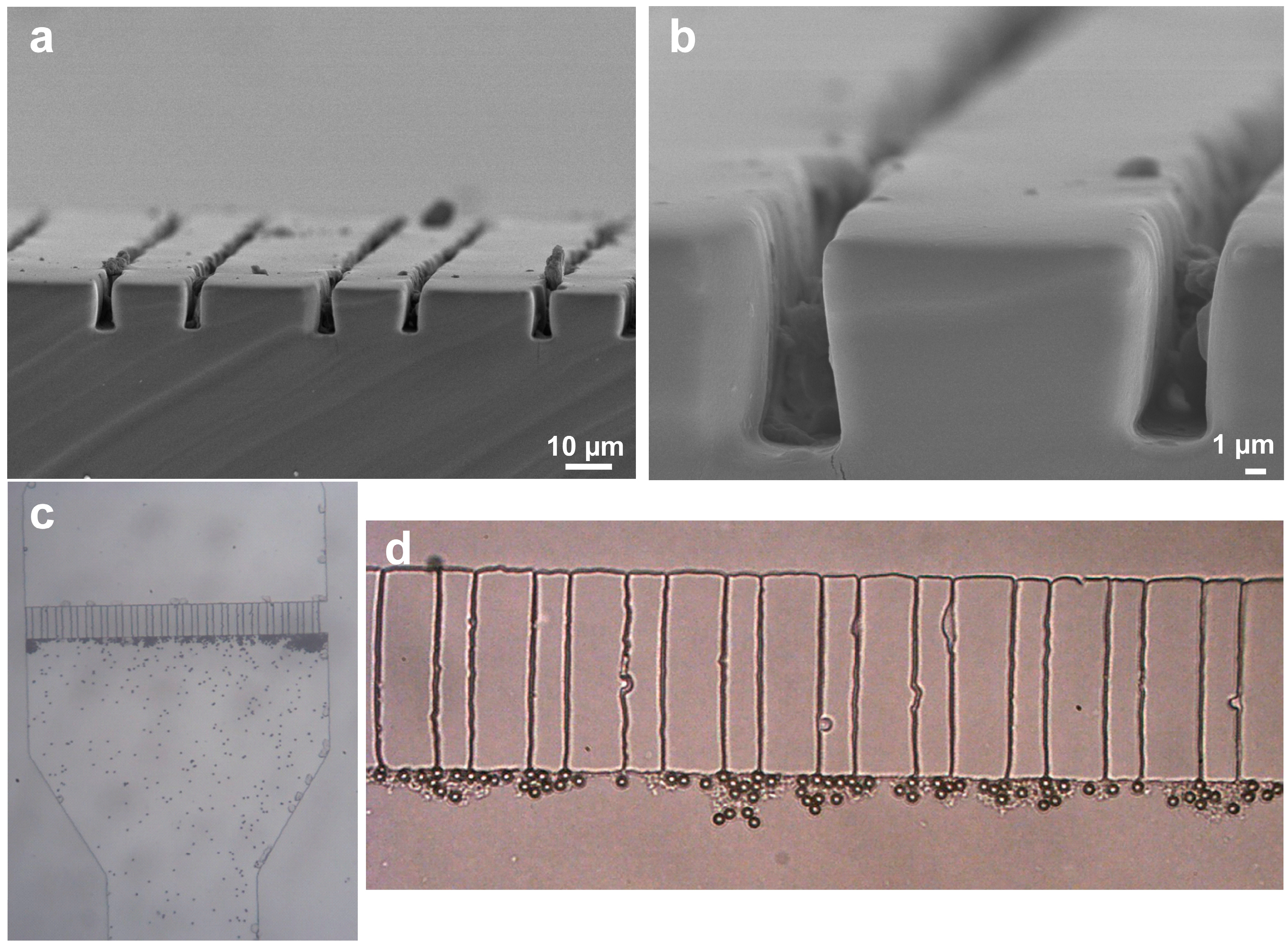

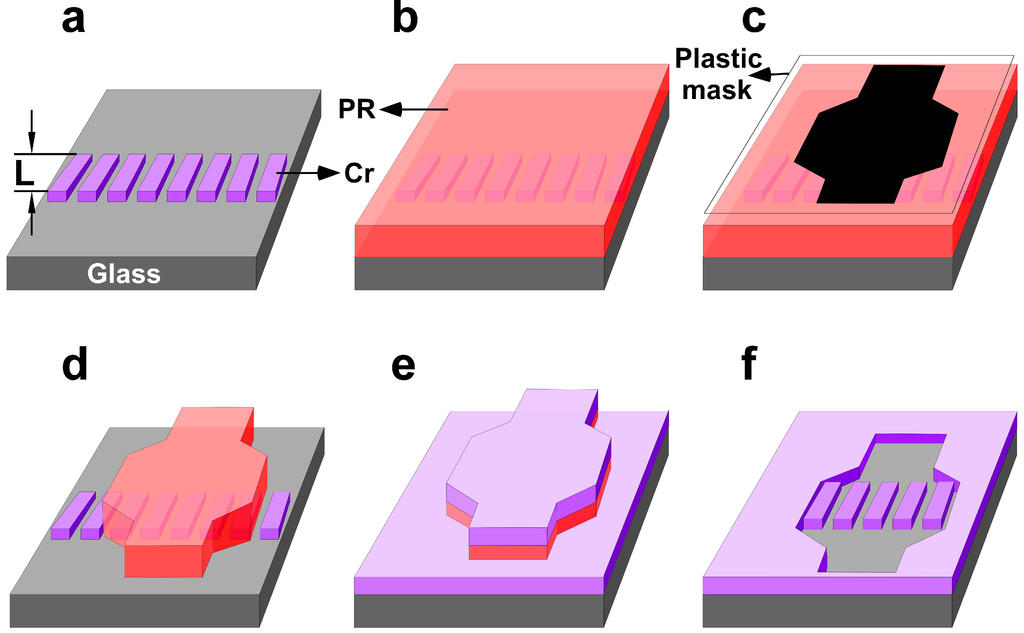

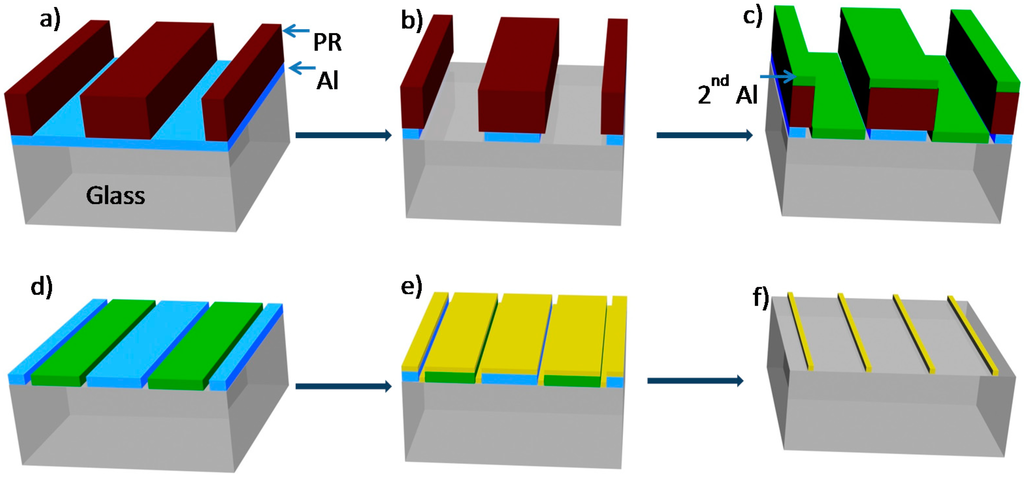

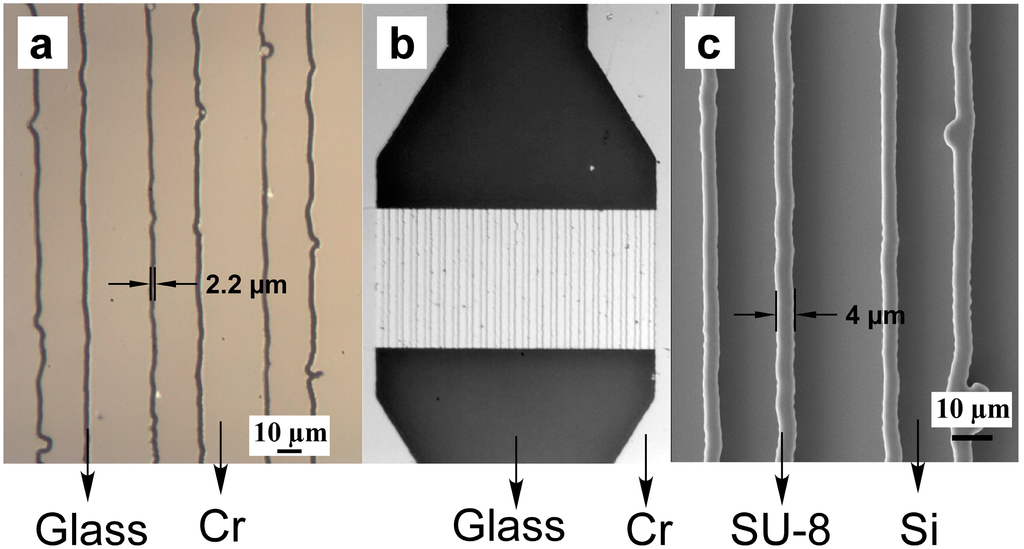

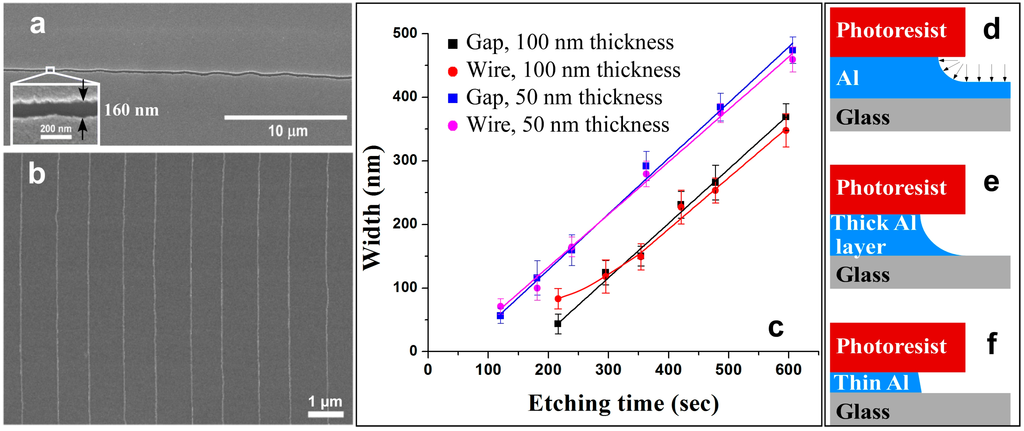

Integrated microfluidic devices with nanosized array electrodes and microfiltration capabilities can greatly increase sensitivity and enhance automation in immunoassay devices. In this contribution, we utilize the edge-patterning method of thin aluminum (Al) films in order to form nano- to micron-sized gaps. Evaporation of high work-function metals (i.e., Au, Ag, etc.) on these gaps, followed by Al lift-off, enables the formation of electrical uniform nanowires from low-cost, plastic-based, photomasks. By replacing Al with chromium (Cr), the formation of high resolution, custom-made photomasks that are ideal for low-cost fabrication of a plurality of array devices were realized. To demonstrate the feasibility of such Cr photomasks, SU-8 micro-pillar masters were formed and replicated into PDMS to produce micron-sized filters with 3–4 µm gaps and an aspect ratio of 3. These microfilters were capable of retaining 6 µm beads within a localized site, while allowing solvent flow. The combination of nanowire arrays and micro-pillar filtration opens new perspectives for rapid R&D screening of various microfluidic-based immunoassay geometries, where analyte pre-concentration and highly sensitive, electrochemical detection can be readily co-localized. View Full-Text
Keywords: nanowire; nanogaps; microelectrode arrays; sensor; immunoassay; microfluidic; photolithography; isotropic etching nanowire; nanogaps; microelectrode arrays; sensor; immunoassay; microfluidic; photolithography; isotropic etching
