Sensors 2015, 15(10), 25898-25918; doi:10.3390/s151025898

A Validation of the Spectral Power Clustering Technique (SPCT) by Using a Rogowski Coil in Partial Discharge Measurements

1
Departamento de Ingeniería Eléctrica, Universidad Técnica Federico Santa María, Av. Vicuña Mackenna 3939, Santiago de Chile 8940000, Chile
2
Generation and Distribution Network Area. Dept. Electrical Engineering. Innovation, Technology and R&D, Boslan S.A. Consulting and Engineering, Calle de la Isla Sicilia 1, Madrid 28034, Spain
3
Departamento de Ingeniería Eléctrica, Universidad Politécnica de Madrid, Ronda de Valencia 3, Madrid 28012, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Gonzalo Pajares Martinsanz
Received: 4 September 2015 / Revised: 3 October 2015 / Accepted: 6 October 2015 / Published: 13 October 2015
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Spain 2015)
View Full-Text   |   Download PDF [3148 KB, uploaded 13 October 2015]   |

Abstract

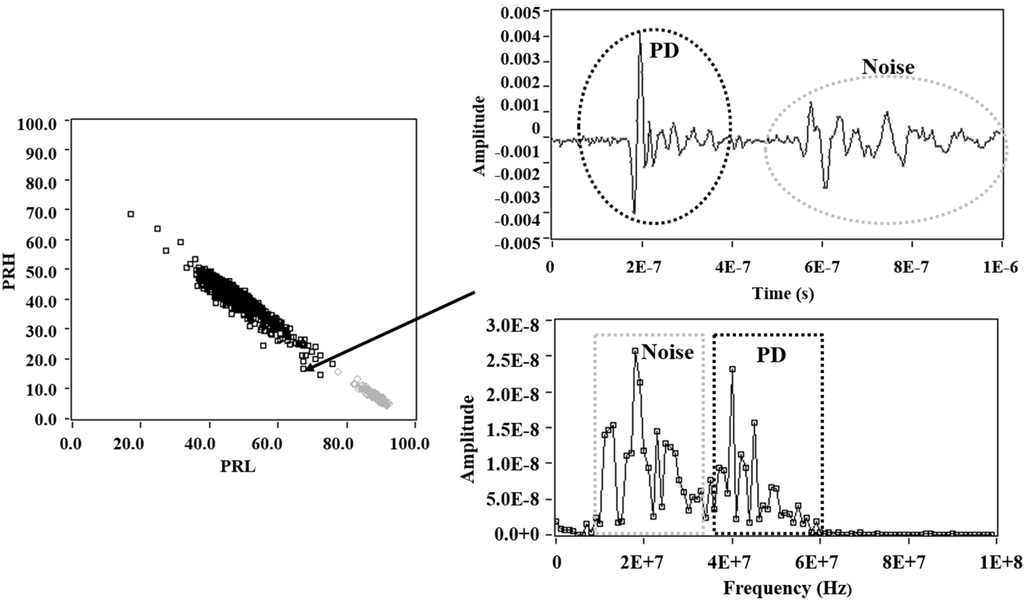

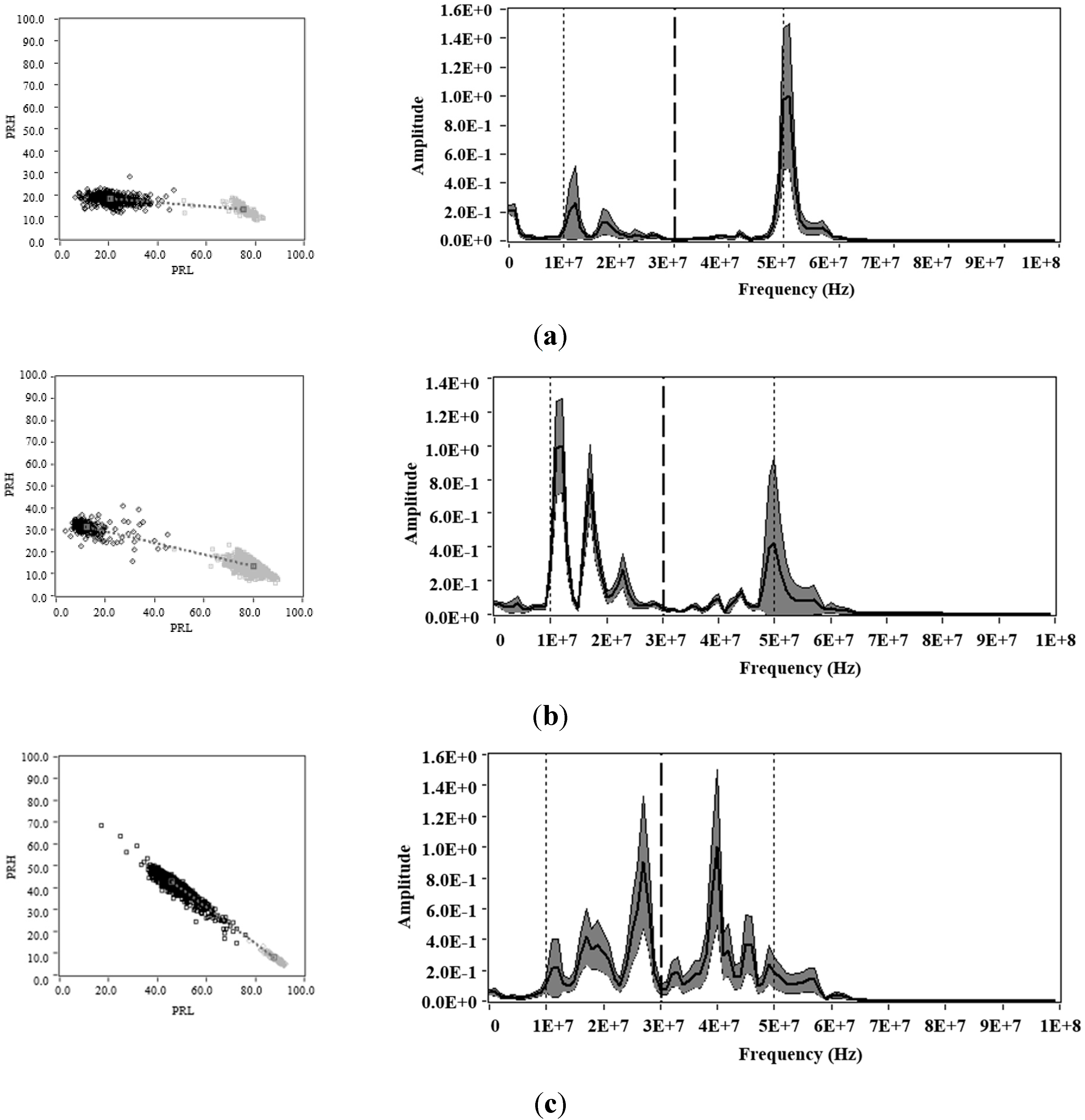

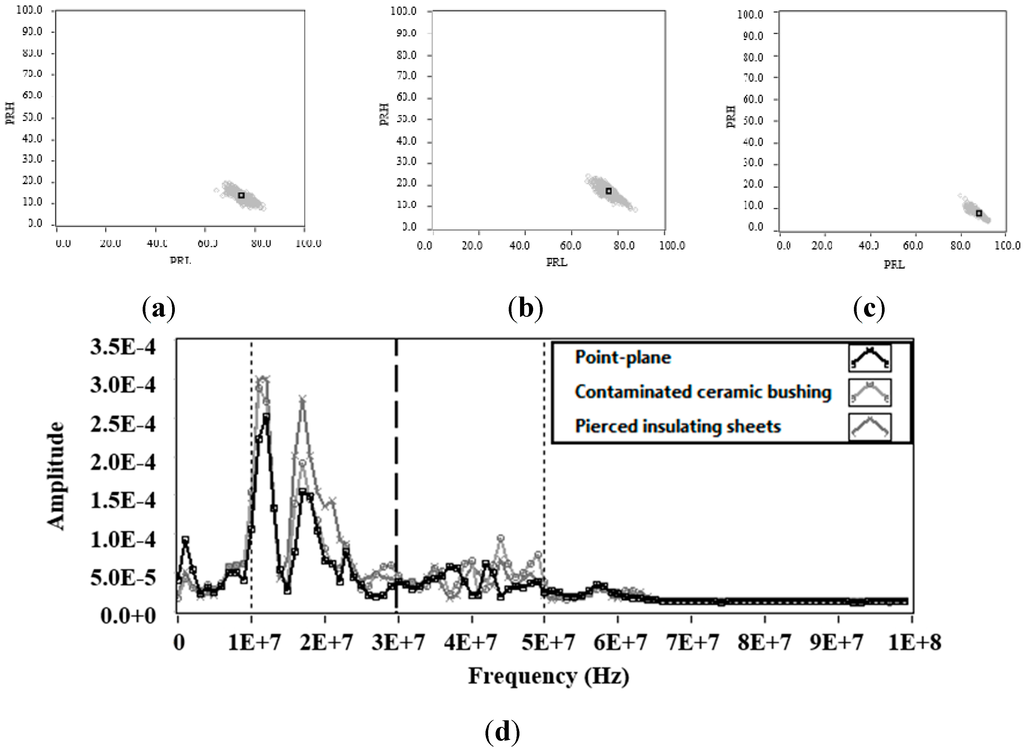

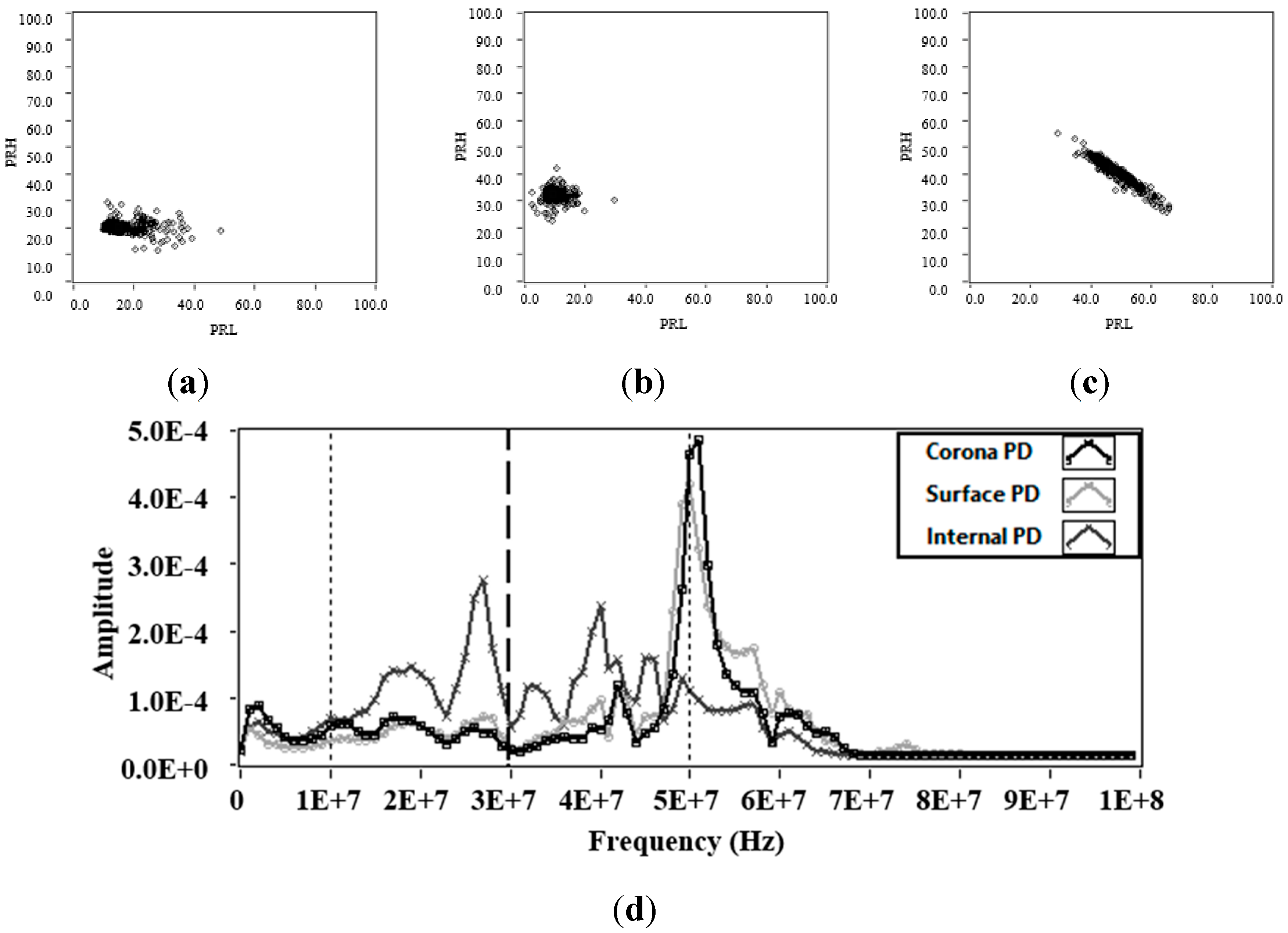

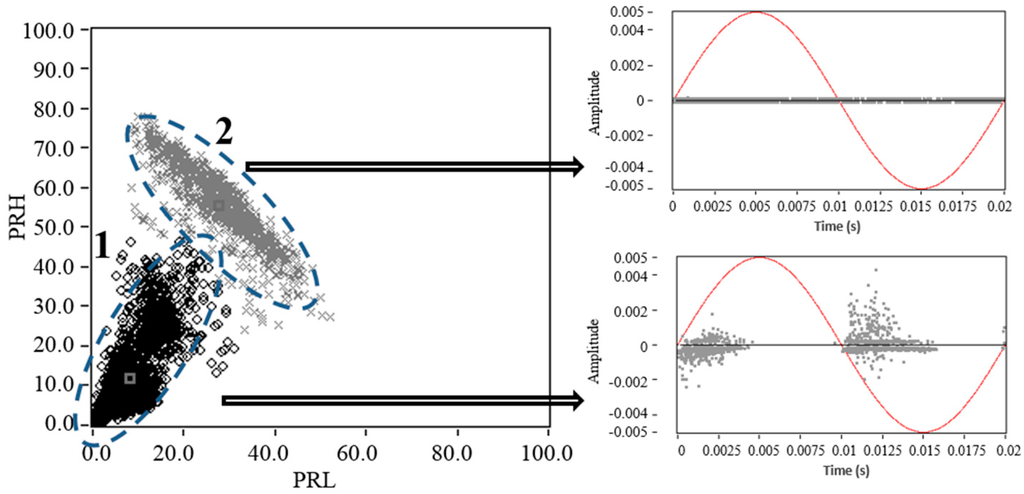

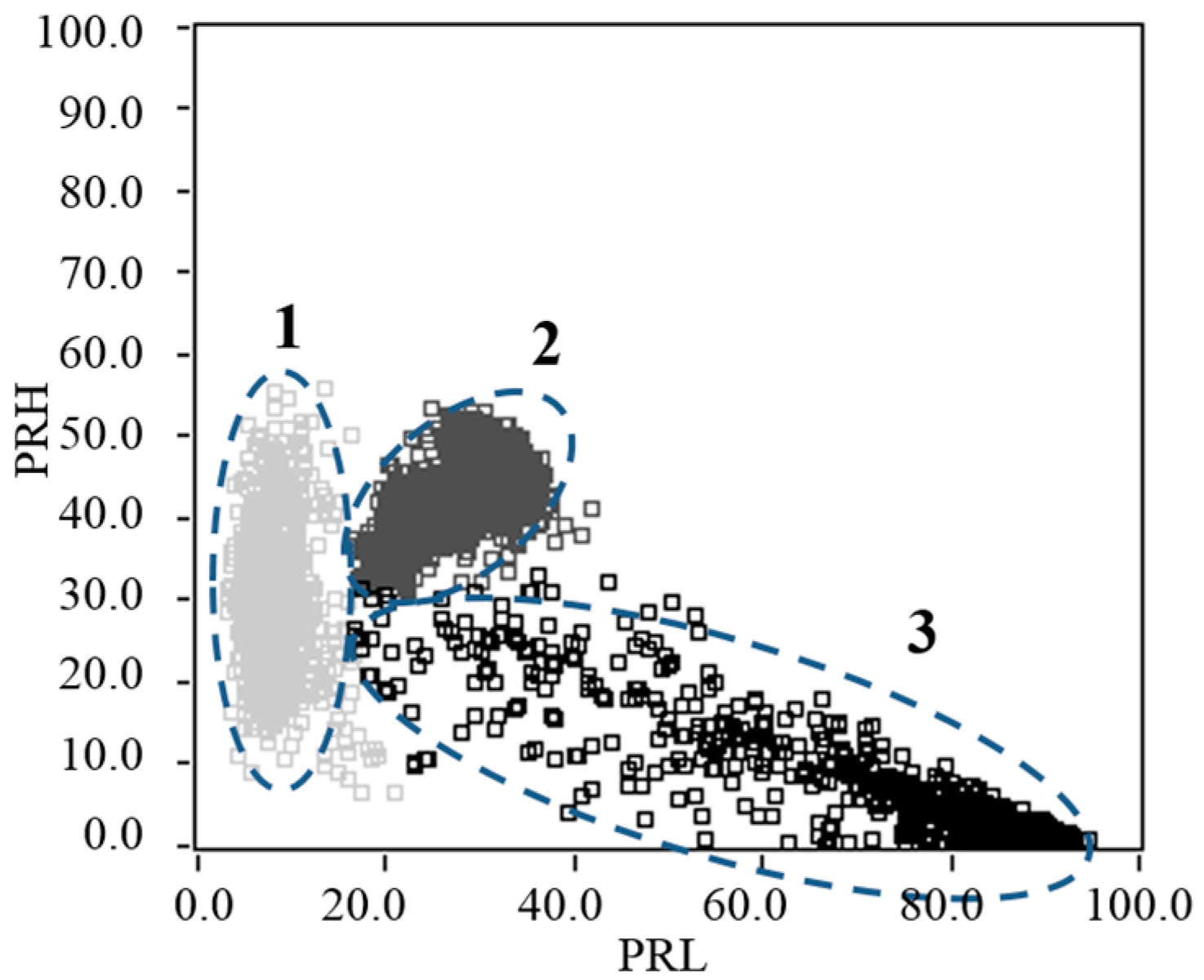

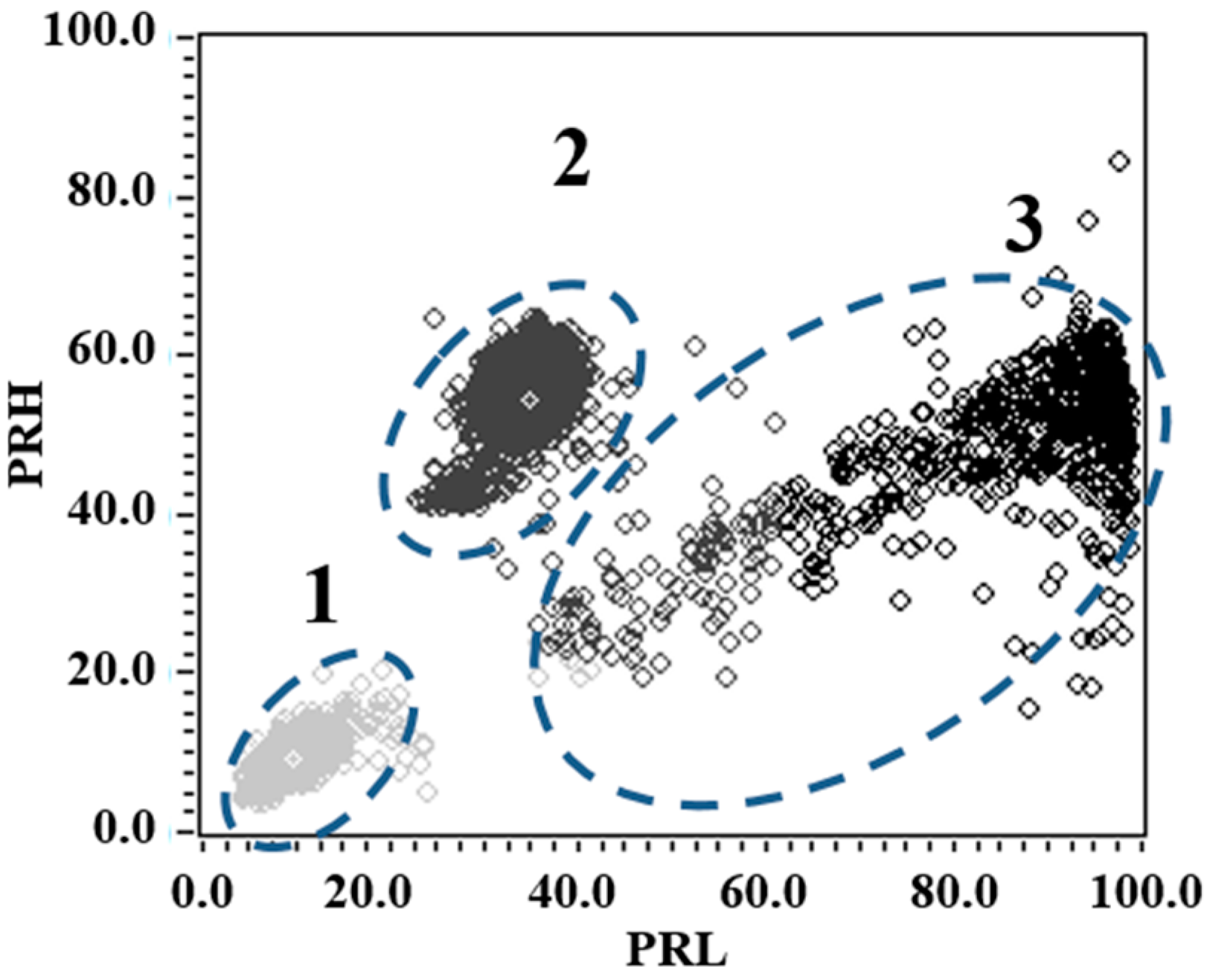

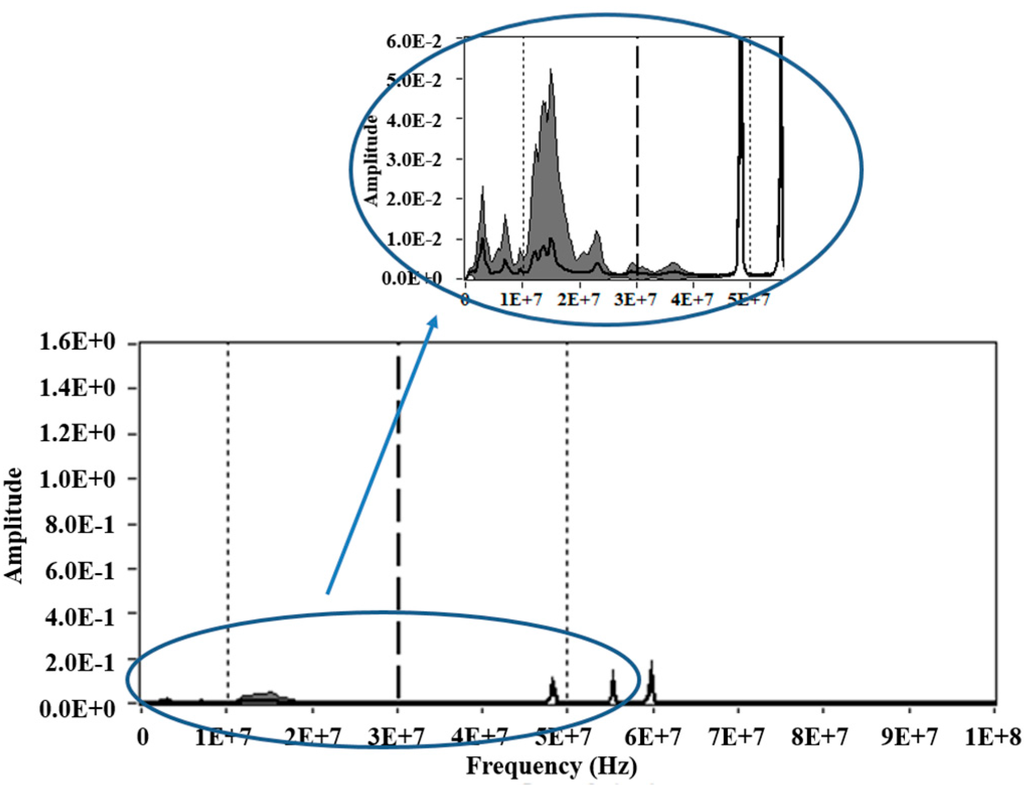

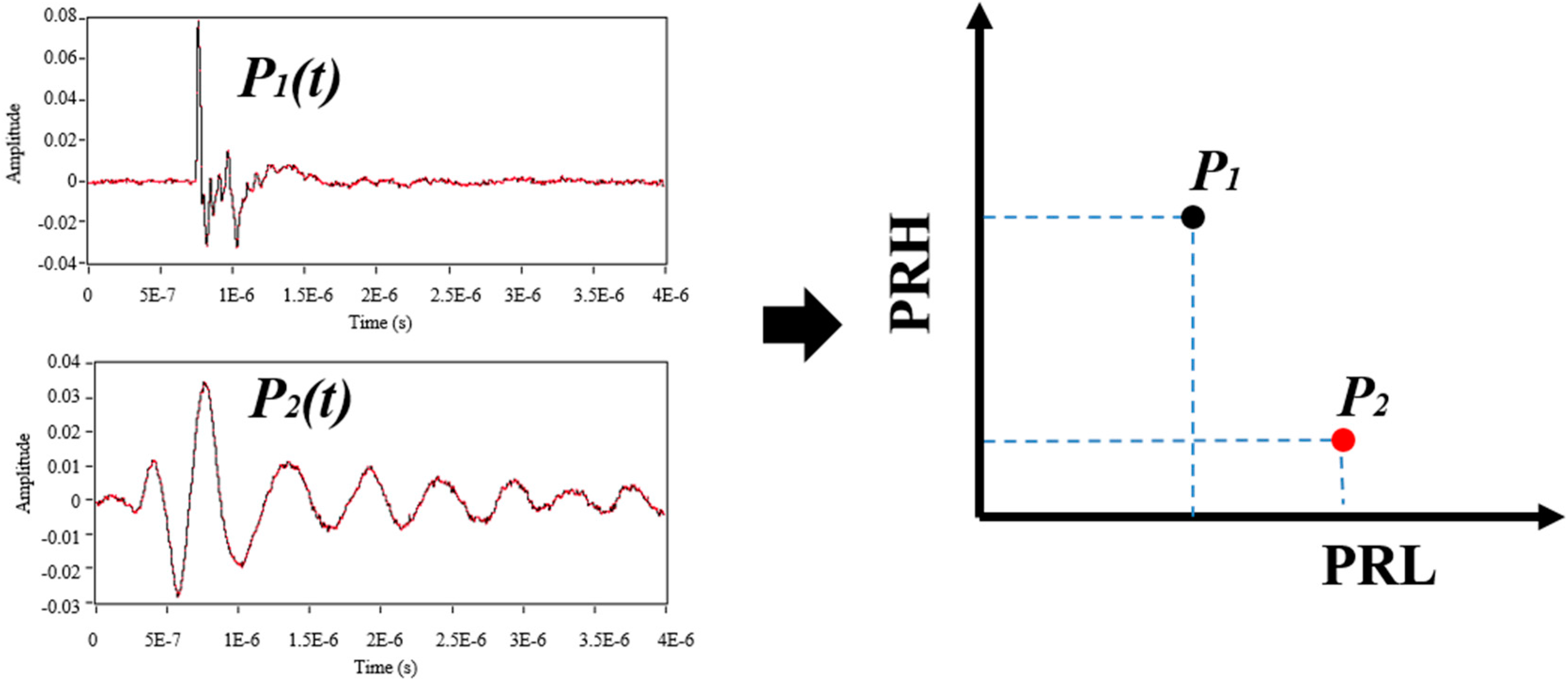

Both in industrial as in controlled environments, such as high-voltage laboratories, pulses from multiple sources, including partial discharges (PD) and electrical noise can be superimposed. These circumstances can modify and alter the results of PD measurements and, what is more, they can lead to misinterpretation. The spectral power clustering technique (SPCT) allows separating PD sources and electrical noise through the two-dimensional representation (power ratio map or PR map) of the relative spectral power in two intervals, high and low frequency, calculated for each pulse captured with broadband sensors. This method allows to clearly distinguishing each of the effects of noise and PD, making it easy discrimination of all sources. In this paper, the separation ability of the SPCT clustering technique when using a Rogowski coil for PD measurements is evaluated. Different parameters were studied in order to establish which of them could help for improving the manual selection of the separation intervals, thus enabling a better separation of clusters. The signal processing can be performed during the measurements or in a further analysis. View Full-Text
Keywords: partial discharges (PD); Rogowski coil; wideband PD measurements; clustering techniques; condition monitoring; electrical insulation condition; on-line PD measurements; pattern recognition; signal processing partial discharges (PD); Rogowski coil; wideband PD measurements; clustering techniques; condition monitoring; electrical insulation condition; on-line PD measurements; pattern recognition; signal processing
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Ardila-Rey, J.A.; Albarracín, R.; Álvarez, F.; Barrueto, A. A Validation of the Spectral Power Clustering Technique (SPCT) by Using a Rogowski Coil in Partial Discharge Measurements. Sensors 2015, 15, 25898-25918.
