Sensors 2014, 14(8), 15067-15083; doi:10.3390/s140815067

Wave Dispersion and Attenuation on Human Femur Tissue

1 Department of Mechanics of Materials and Constructions, Vrije Universiteit Brussel, Pleinlaan 2, 1050 Brussels, Belgium 2 Department of Radiology, UZ Brussel,Vrije Universiteit Brussel, Avenue du Laerbeek 101, 1090 Brussels, Belgium 3 Department of Mechanical Engineering and Aeronautics, University of Patras, Panepistimioupolis Rion, 26500 Patra, Greece
* Author to whom correspondence should be addressed.
Received: 30 May 2014 / Revised: 27 July 2014 / Accepted: 6 August 2014 / Published: 15 August 2014
View Full-Text   |   Download PDF [1529 KB, uploaded 15 August 2014]   |   Browse Figures

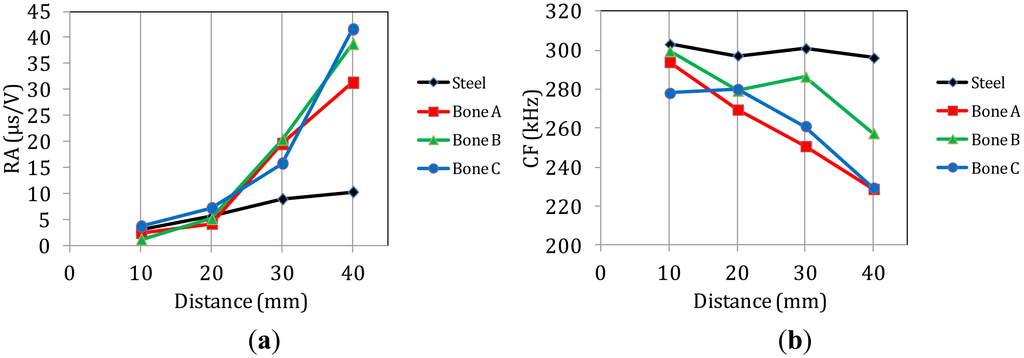

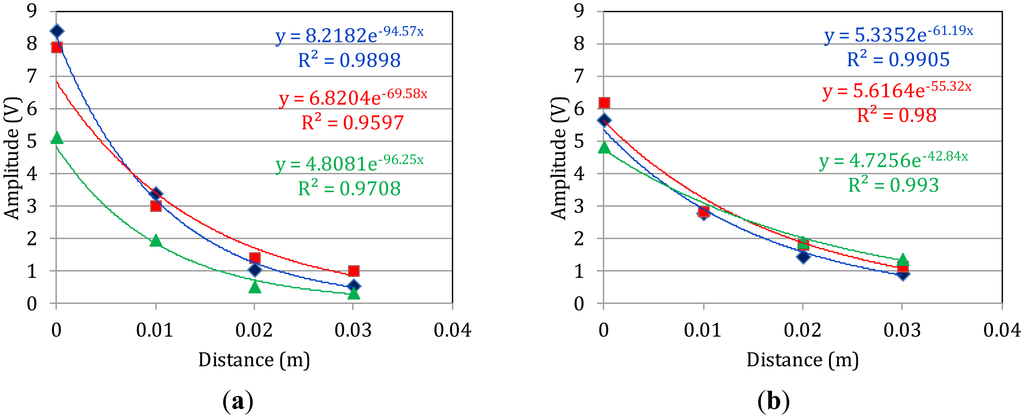

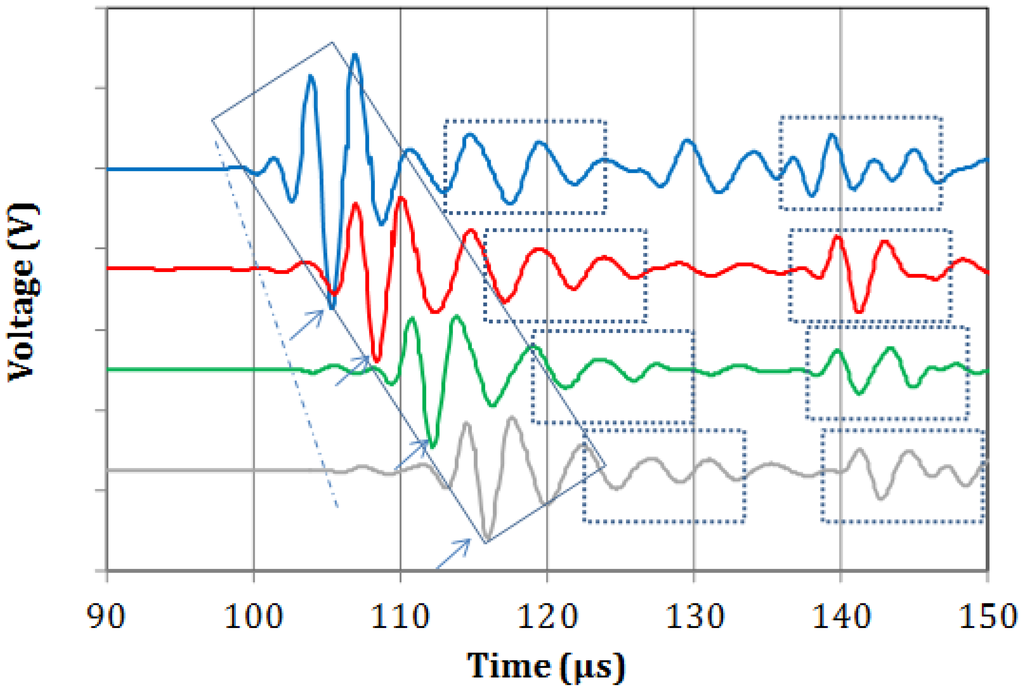

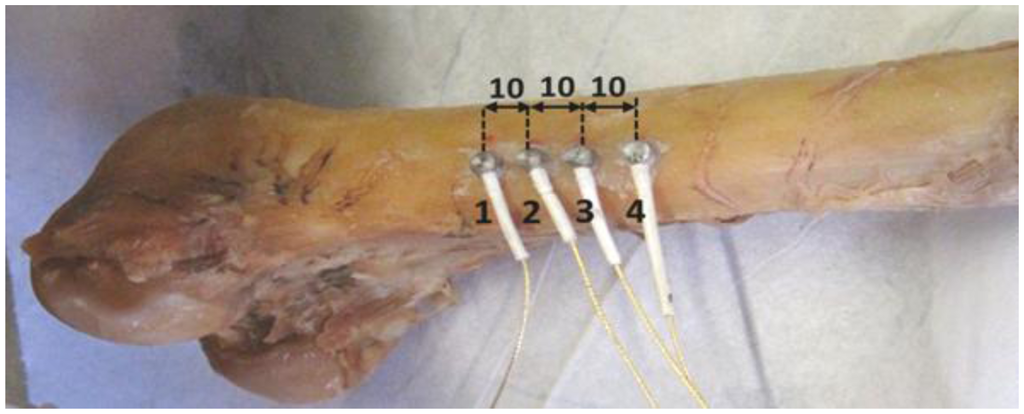

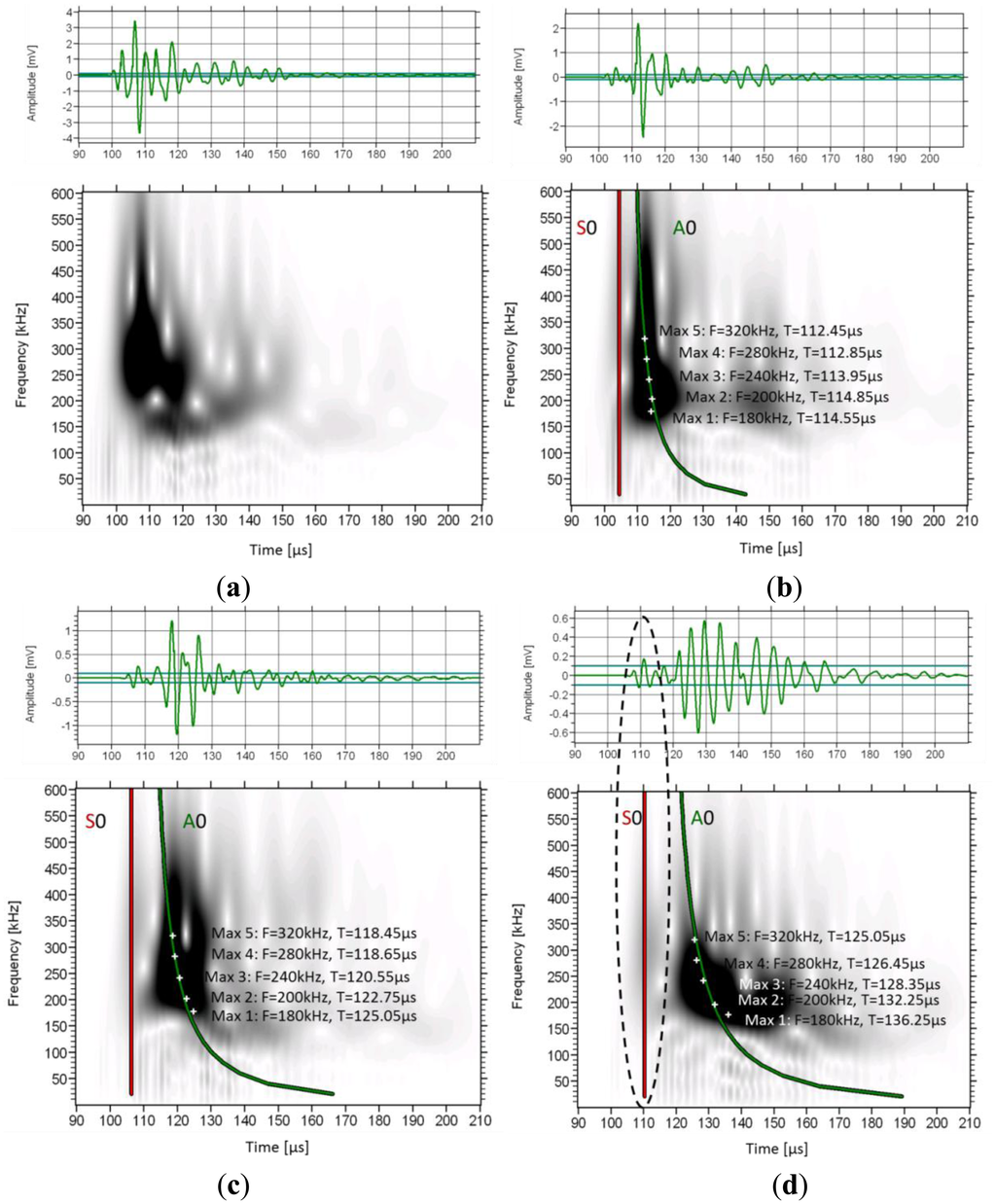

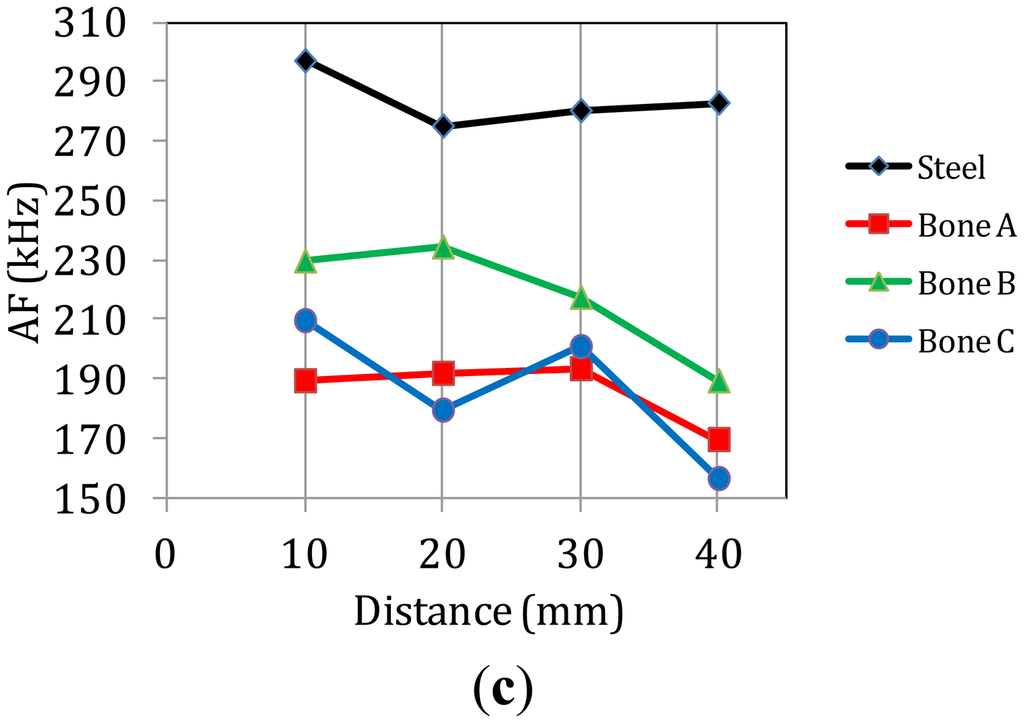

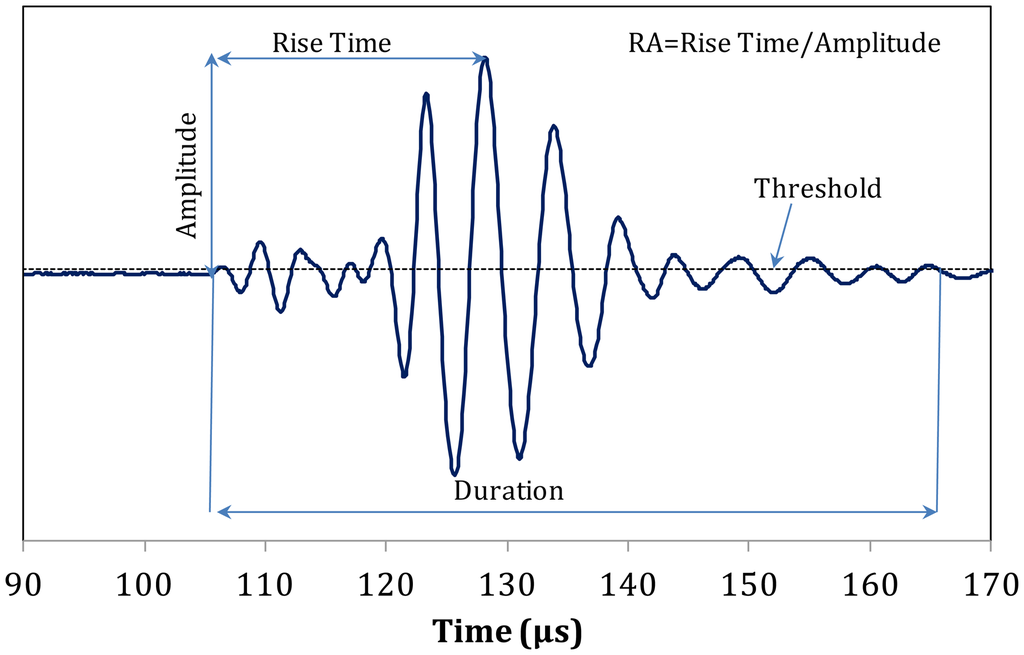

Cortical bone is a highly heterogeneous material at the microscale and has one of the most complex structures among materials. Application of elastic wave techniques to this material is thus very challenging. In such media the initial excitation energy goes into the formation of elastic waves of different modes. Due to “dispersion”, these modes tend to separate according to the velocities of the frequency components. This work demonstrates elastic wave measurements on human femur specimens. The aim of the study is to measure parameters like wave velocity, dispersion and attenuation by using broadband acoustic emission sensors. First, four sensors were placed at small intervals on the surface of the bone to record the response after pencil lead break excitations. Next, the results were compared to measurements on a bulk steel block which does not exhibit heterogeneity at the same wave lengths. It can be concluded that the microstructure of the tissue imposes a dispersive behavior for frequencies below 1 MHz and care should be taken for interpretation of the signals. Of particular interest are waveform parameters like the duration, rise time and average frequency, since in the next stage of research the bone specimens will be fractured with concurrent monitoring of acoustic emission.
Keywords: ultrasound; frequency; acoustic emission; waveform; dispersion; bone ultrasound; frequency; acoustic emission; waveform; dispersion; bone
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
