Sensors 2014, 14(8), 13324-13347; doi:10.3390/s140813324

A Sensor Fusion Method for Tracking Vertical Velocity and Height Based on Inertial and Barometric Altimeter Measurements

The BioRobotics Institute, Scuola Superiore Sant'Anna, Viale Rinaldo Piaggio, Pontedera 34 56025, Pisa, Italy
*
Author to whom correspondence should be addressed.
Received: 26 January 2014 / Revised: 8 July 2014 / Accepted: 21 July 2014 / Published: 24 July 2014
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [3901 KB, uploaded 24 July 2014]   |

Abstract

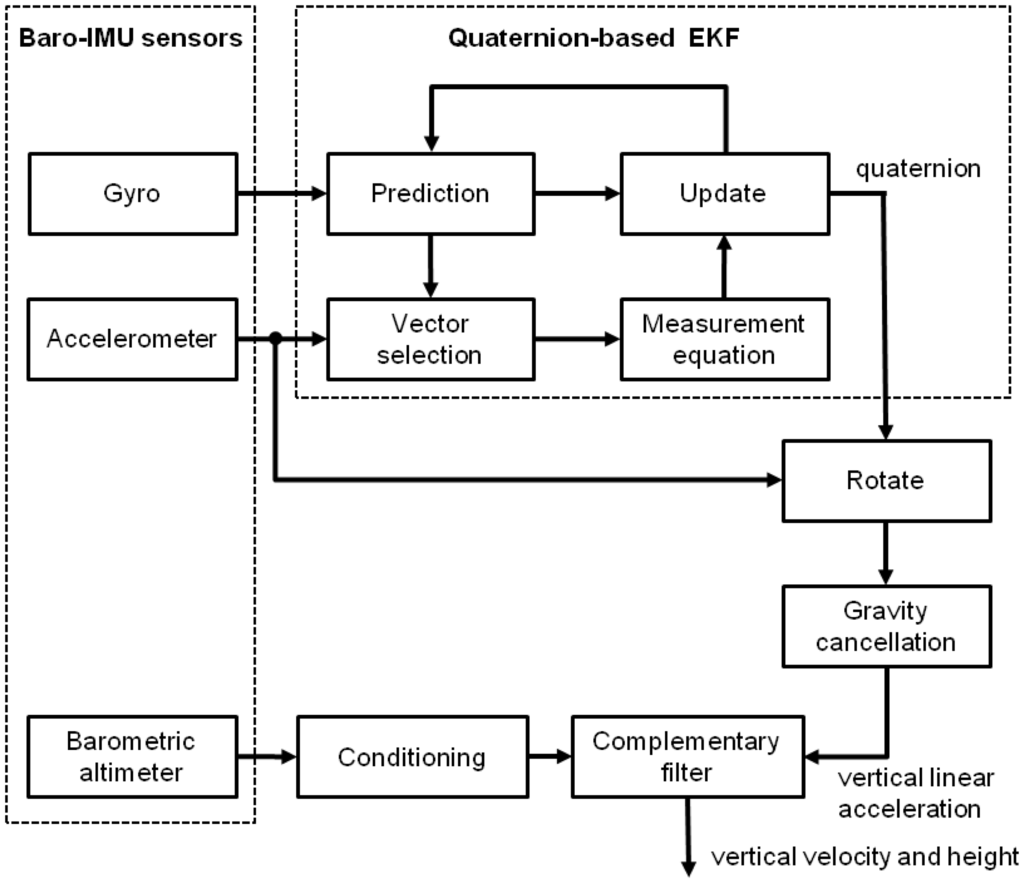

A sensor fusion method was developed for vertical channel stabilization by fusing inertial measurements from an Inertial Measurement Unit (IMU) and pressure altitude measurements from a barometric altimeter integrated in the same device (baro-IMU). An Extended Kalman Filter (EKF) estimated the quaternion from the sensor frame to the navigation frame; the sensed specific force was rotated into the navigation frame and compensated for gravity, yielding the vertical linear acceleration; finally, a complementary filter driven by the vertical linear acceleration and the measured pressure altitude produced estimates of height and vertical velocity. A method was also developed to condition the measured pressure altitude using a whitening filter, which helped to remove the short-term correlation due to environment-dependent pressure changes from raw pressure altitude. The sensor fusion method was implemented to work on-line using data from a wireless baro-IMU and tested for the capability of tracking low-frequency small-amplitude vertical human-like motions that can be critical for stand-alone inertial sensor measurements. Validation tests were performed in different experimental conditions, namely no motion, free-fall motion, forced circular motion and squatting. Accurate on-line tracking of height and vertical velocity was achieved, giving confidence to the use of the sensor fusion method for tracking typical vertical human motions: velocity Root Mean Square Error (RMSE) was in the range 0.04–0.24 m/s; height RMSE was in the range 5–68 cm, with statistically significant performance gains when the whitening filter was used by the sensor fusion method to track relatively high-frequency vertical motions. View Full-Text
Keywords: sensor fusion; inertial sensors; barometric altimeters; motion tracking; Kalman filtering sensor fusion; inertial sensors; barometric altimeters; motion tracking; Kalman filtering
