Enhanced Monocular Visual Odometry Integrated with Laser Distance Meter for Astronaut Navigation
Previous Article in Journal
Surface Plasmon Resonance for Cell-Based Clinical Diagnosis
Sensors 2014, 14(3), 4960-4980; doi:10.3390/s140304960
Article

Application of an Instrumental and Computational Approach for Improving the Vibration Behavior of Structural Panels Using a Lightweight Multilayer Composite

1,* , 2
,
2
 and
2
1 Department of Materials Science and Metallurgical Engineering, Graphic Expression in Engineering, Cartographic Engineering, Geodesy and Photogrammetry, Mechanical Engineering and Manufacturing Engineering, Universidad de Valladolid, Pº del Cauce 59, Valladolid 47011, Spain 2 Department of Construction and Manufacturing Engineering, Universidad Nacional de Educación a Distancia (UNED), C/Juan del Rosal 12, Madrid 28040, Spain
* Author to whom correspondence should be addressed.
Received: 16 November 2013 / Revised: 18 February 2014 / Accepted: 7 March 2014 / Published: 11 March 2014
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [1326 KB, uploaded 21 June 2014]   |   Browse Figures

Abstract

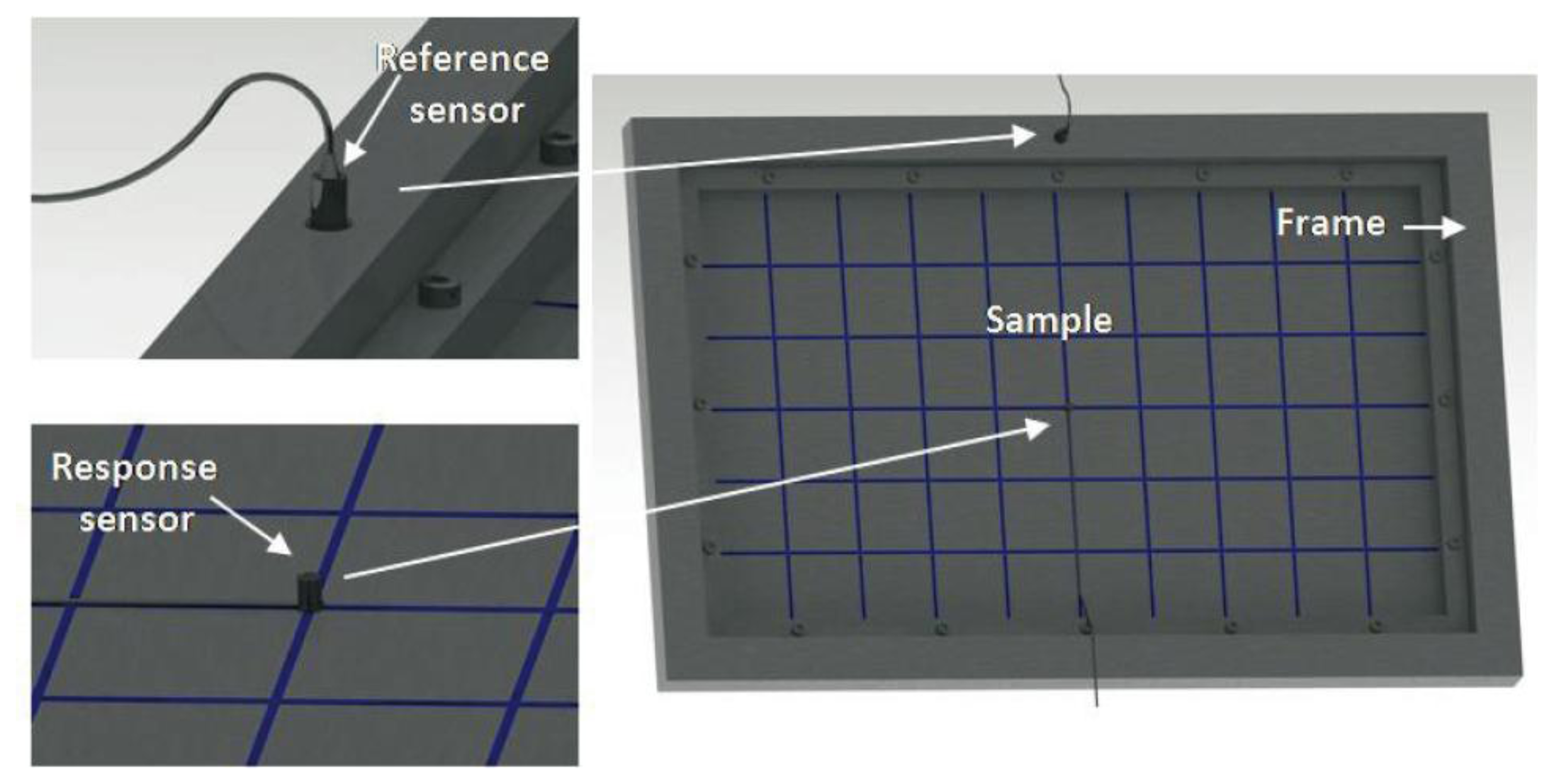

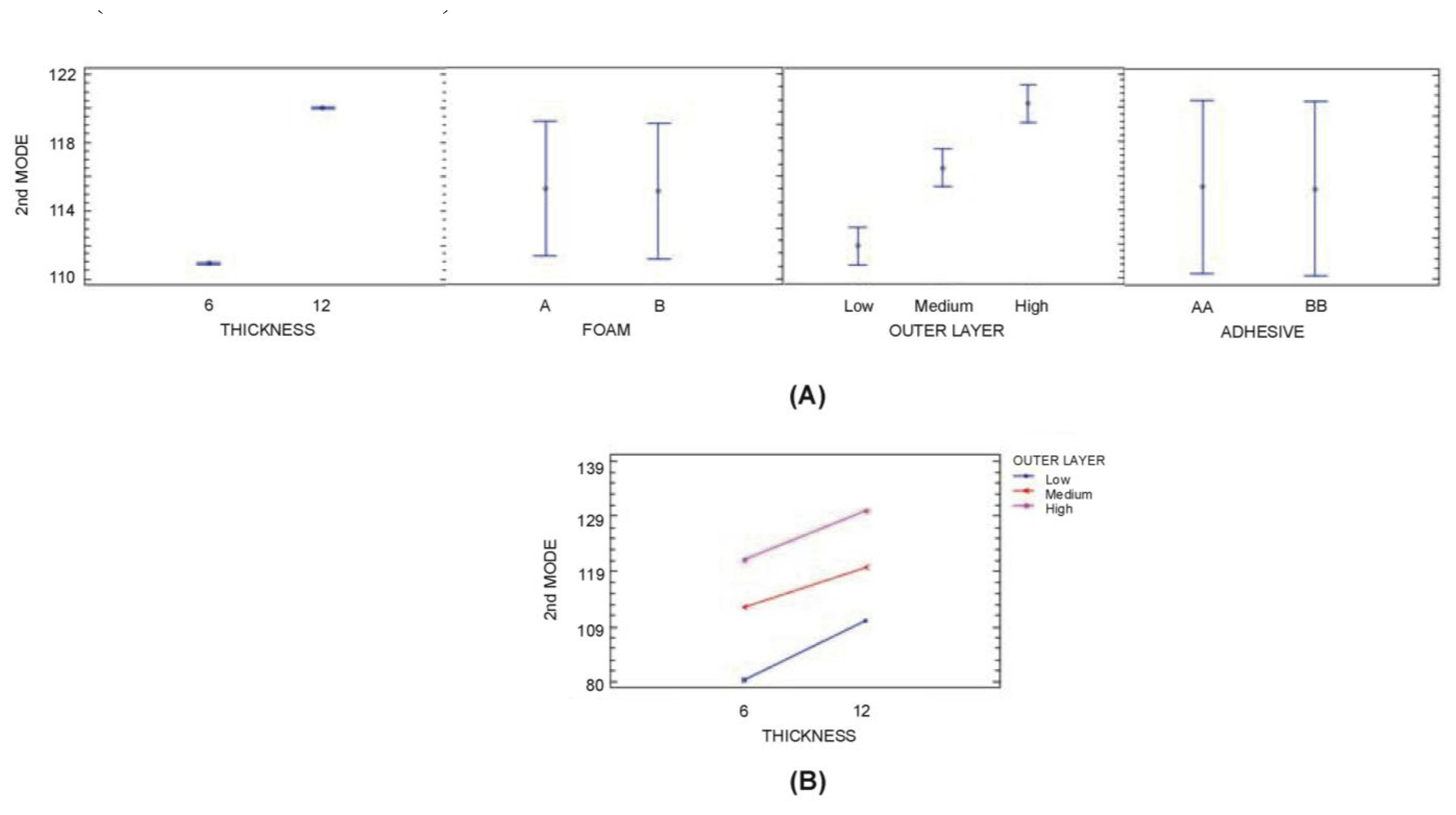

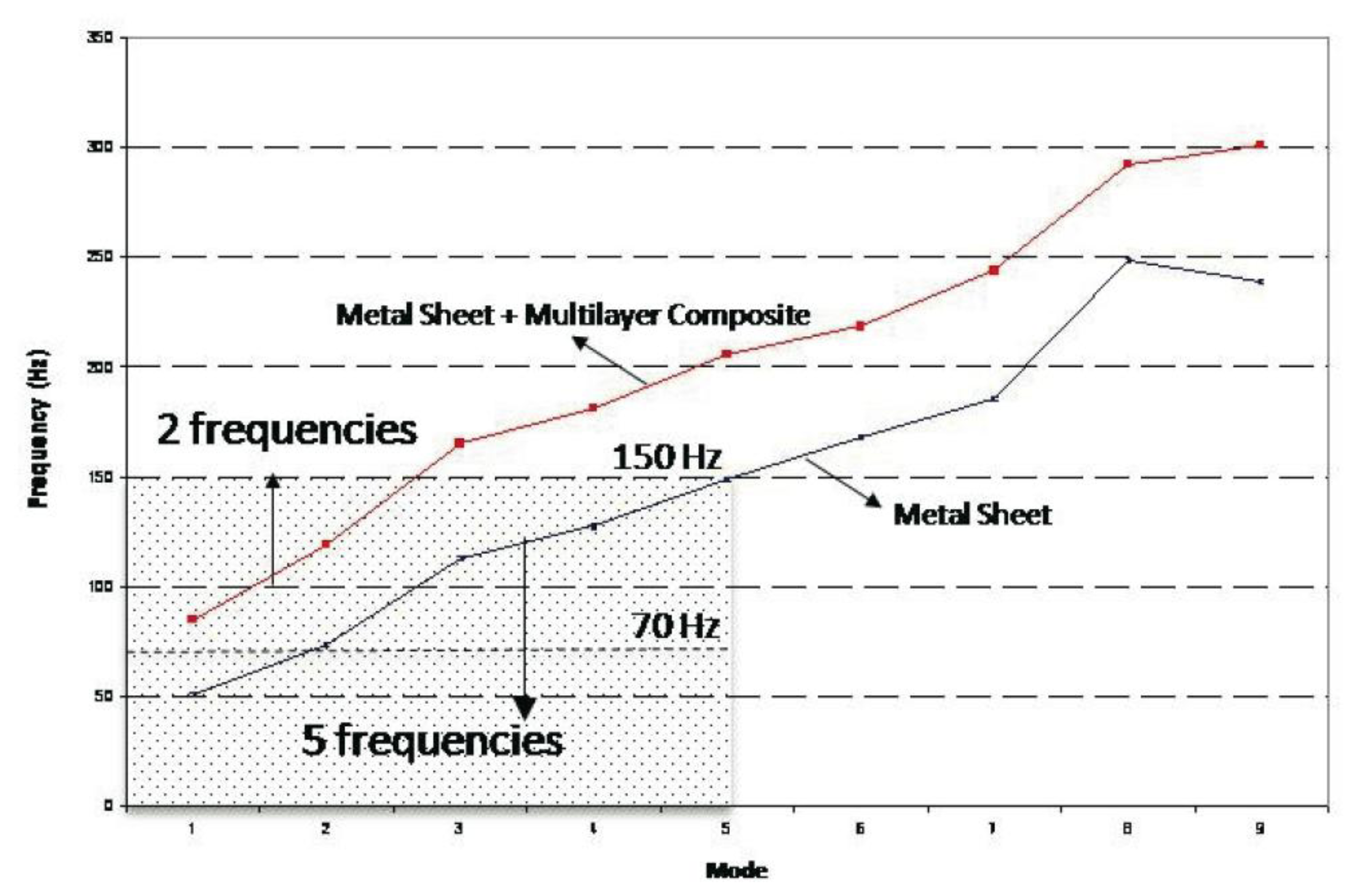

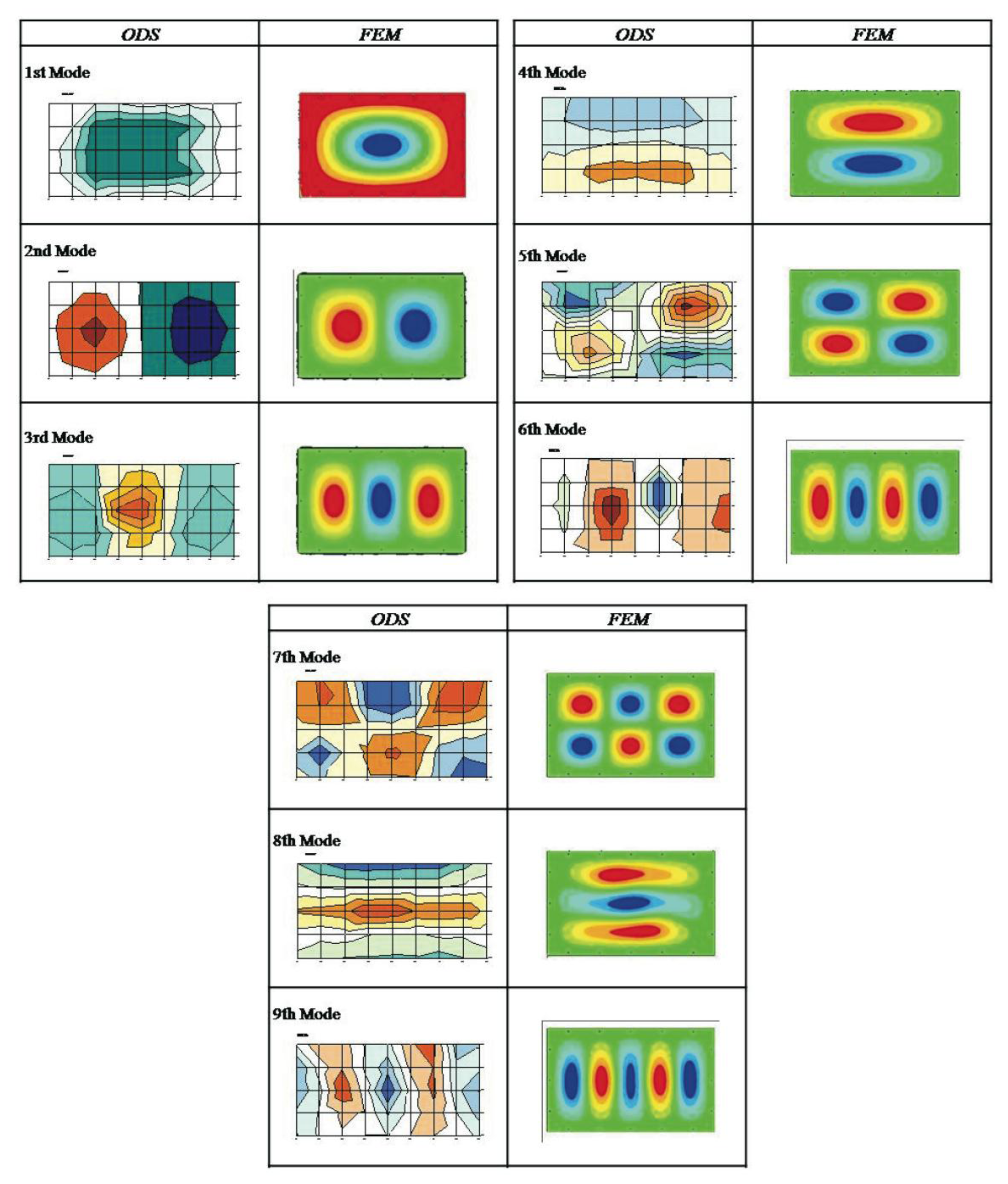

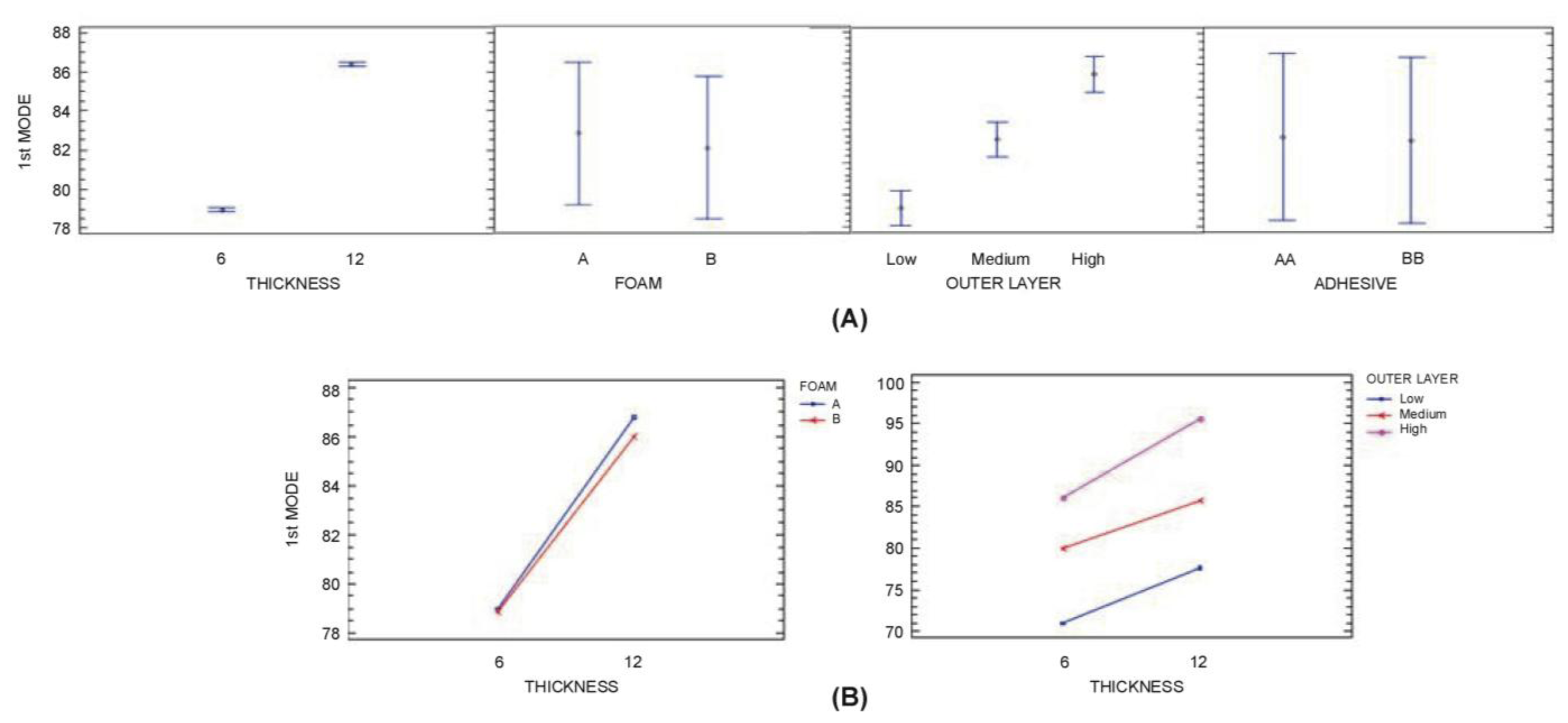

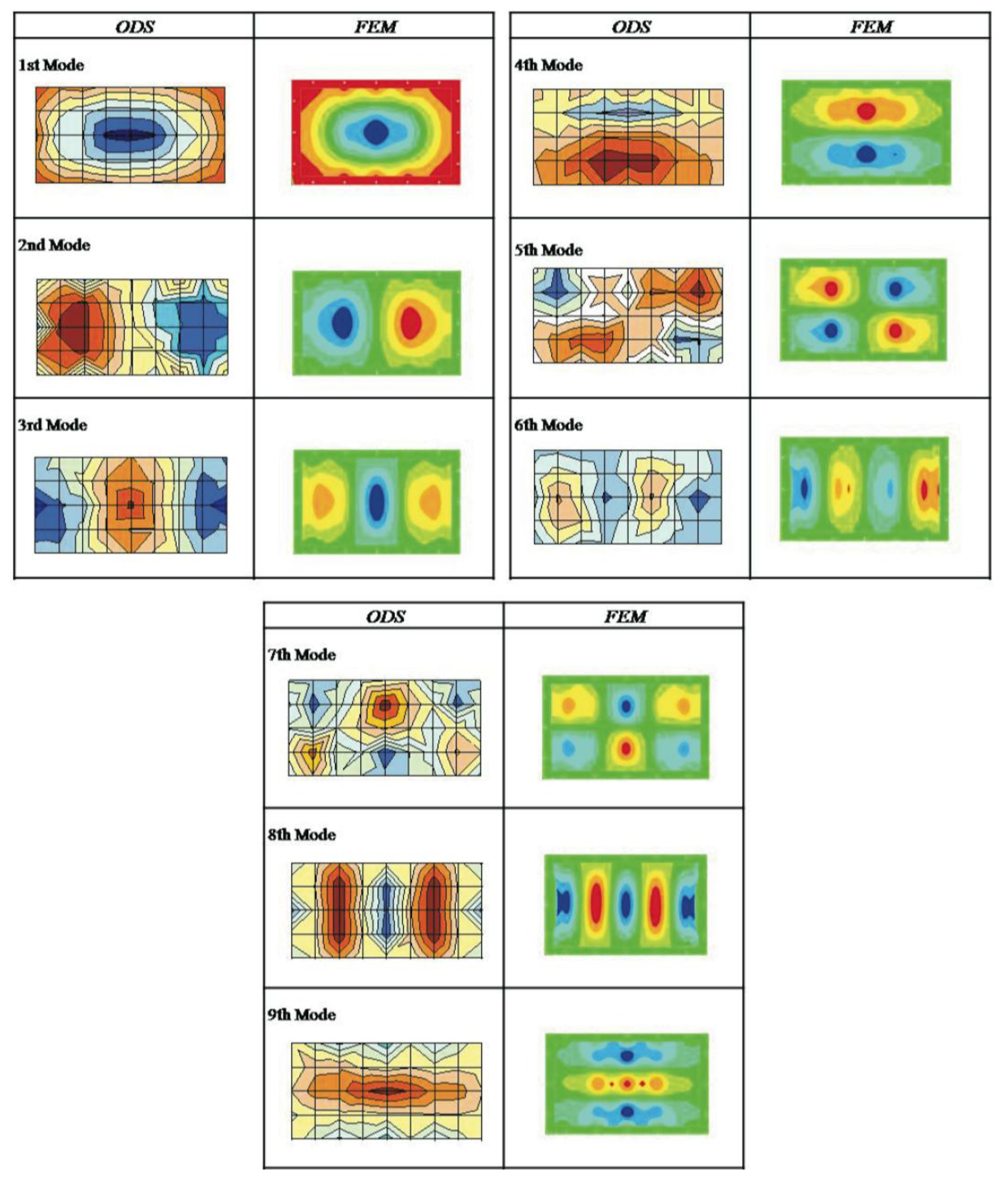

This work presents a hybrid (experimental-computational) application for improving the vibration behavior of structural components using a lightweight multilayer composite. The vibration behavior of a flat steel plate has been improved by the gluing of a lightweight composite formed by a core of polyurethane foam and two paper mats placed on its faces. This composite enables the natural frequencies to be increased and the modal density of the plate to be reduced, moving about the natural frequencies of the plate out of excitation range, thereby improving the vibration behavior of the plate. A specific experimental model for measuring the Operating Deflection Shape (ODS) has been developed, which enables an evaluation of the goodness of the natural frequencies obtained with the computational model simulated by the finite element method (FEM). The model of composite + flat steel plate determined by FEM was used to conduct parametric study, and the most influential factors for 1st, 2nd and 3rd mode were identified using a multifactor analysis of variance (Multifactor-ANOVA). The presented results can be easily particularized for other cases, as it may be used in cycles of continuous improvement as well as in the product development at the material, piece, and complete-system levels.
Keywords: vibration sensors; ODS instrumental test; FEM; improvement; composite vibration sensors; ODS instrumental test; FEM; improvement; composite
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote
MDPI and ACS Style

Sánchez, A.; García, M.; Sebastián, M.A.; Camacho, A.M. Application of an Instrumental and Computational Approach for Improving the Vibration Behavior of Structural Panels Using a Lightweight Multilayer Composite. Sensors 2014, 14, 4960-4980.
