Sensors 2013, 13(3), 3473-3500; doi:10.3390/s130303473

Article
Evaluating the Power Consumption of Wireless Sensor Network Applications Using Models
Antônio Dâmaso , Davi Freitas , Nelson Rosa *, Bruno Silva and Paulo Maciel
Centre of Informatics, Federal University of Pernambuco, 50740-540, Recife, PE, Brazil; E-Mails: avld@cin.ufpe.br (A.D.); dsf3@cin.ufpe.br (D.F.); bs@cin.ufpe.br (B.S.); prmm@cin.ufpe.br (P.M.)
*
Author to whom correspondence should be addressed: E-Mail: nsr@cin.ufpe.br; Tel.: +55-81-2126-8430; Fax: +55-81-2126-8438.
Received: 15 January 2013; in revised form: 20 February 2013 / Accepted: 2 March 2013 /
Published: 13 March 2013

Abstract

: Power consumption is the main concern in developing Wireless Sensor Network (WSN) applications. Consequently, several strategies have been proposed for investigating the power consumption of this kind of application. These strategies can help to predict the WSN lifetime, provide recommendations to application developers and may optimize the energy consumed by the WSN applications. While measurement is a known and precise strategy for power consumption evaluation, it is very costly, tedious and may be unfeasible considering the (usual) large number of WSN nodes. Furthermore, due to the inherent dynamism of WSNs, the instrumentation required by measurement techniques makes difficult their use in several different scenarios. In this context, this paper presents an approach for evaluating the power consumption of WSN applications by using simulation models along with a set of tools to automate the proposed approach. Starting from a programming language code, we automatically generate consumption models used to predict the power consumption of WSN applications. In order to evaluate the proposed approach, we compare the results obtained by using the generated models against ones obtained by measurement.
Keywords:
Wireless Sensor Networks; power consumption; simulation; nesC; coloured Petri net

1. Introduction

Wireless Sensor Networks (WSNs) consist of a set of nodes (motes) capable of sensing, storing, processing, and communicating. The critical issue in developing WSN applications is the limited amount of energy usually available in the motes. An application can take years to drain the battery of the sensor node or consume it in a matter of weeks. Therefore, application developers must always adopt best practices in order to reduce the power consumption as much as possible.

The developer shall evaluate the power consumption of applications prior their deployment in the field. By evaluating the power consumption, it is possible to estimate the application's lifetime, be aware of application's power consumption bottleneck, to adopt strategies to increase the network lifetime, to anticipate the time to replace the sensor node (to maintain always-on network) and so on.

The best way to carry out the power consumption evaluation is directly on the physical hardware, by periodically measuring the remaining battery, as was used by [14]. This process, however, has several problems such as the need of high financial investment, reproducibility of the environment, inherent dynamism, complexity and size of WSNs (thousands of nodes), and the potential impact of hardware and human failures.

Another way for conducting the power consumption evaluation is by adopting modelling. Such models may be analytically evaluated and/or simulated. Although modelling may provide less accurate results than measuring, it provides the designers the flexibility and agility to evaluate complex scenarios without interfering on the actual environment. Furthermore, evaluating WSN applications at higher level (software level) may have many advantages, but the most prominent is the time required to conduct the analysis. These are key attributes in mature and well defined power-aware design process [5].

In this context, this paper presents an approach for evaluating the power consumption of WSN applications through modelling. A set of basic models has been defined in order to express the power consumption of commands and structures of a programming language (nesC), whilst a translator takes responsibility of generating the respective model (coloured Petri net—CPN [68]) for the whole application. Starting from a WSN application written in nesC, its power consumption model is generated and evaluated in such way that enable us to automatically check the impact on the power consumption of every change in the application.

Considering what is being proposed, this paper has the following unique contributions: (1) a fully automated process for evaluating the power consumption of WSN applications, (2) a complete set of reusable CPN consumption models of WSN applications, and (3) a tool that generates power consumption models from WSN application code written in nesC. It is worth observing that nesC is the programming language most used for implementing actual WSN applications, whilst Petri nets has been widely adopted as a powerful modelling notation used to many different purposes and in several application domains [9,10].

The rest of this paper is organized as follows: Section 2 introduces basic concepts necessary to understand the rest of the paper. Next, Section 3 presents the proposed models and tools. Section 4 performs an experimental evaluation of the proposed solution, followed by the presentation of related work in Section 5. Finally, the last section presents conclusions and future work.

2. Background

In this section, we describe some basic concepts in order to help to understand the paper's contributions. Initially, we present coloured Petri nets, followed by basic concepts of WSNs. Finally, we conclude this section showing some notions of TinyOS and nesC.

2.1. Coloured Petri Nets (CPNs)

Petri nets (PN) [11] are a family of formal techniques used to model a wide range of systems through a graphical notation. Petri nets enables us to check properties about the proposed models, such as reachability, boundedness, liveness and reversibility [9]. Nowadays, there are many extensions (e.g., timed, stochastic, coloured) that have been defined with particular purposes. In common, all of them have four basic elements: places, transitions, arcs and tokens. The places represent the system variables, transitions represent actions (or events) that occur within the system, arcs denote relations between places and transitions and vice versa, and the tokens are the place's values.

CPN [68] is an executable model that is both state and action oriented, and combines the capabilities of Petri nets [9,10] with the capabilities of a high-level programming language (CPN ML). CPN ML is a functional programming language based on Standard ML [12] that provides the primitives for the definition of data types. CPN considers the concept of time that allows to capture the delay taken by events in the system. Therefore, CPN can be applied to evaluate performance measures. It worth mentioning that having the capability of programming languages is quite handy for stochastic simulation purposes and for random variation generation, in particular, so fundamental in performance studies.

2.1.1. CPN Tools

CPN Tools [13] is the main tool used to design coloured Petri nets. Each place has a name, a colour set and an initial marking. The name identifies the place, the colour set determines the types of tokens that can be stored, and the place may also have an initial value. This initial value is used to start the CPN model. Figure 1(a) illustrates a place (place01) containing one token set to zero. Outside the place there are an initial marking (set to 0) and a colour set (INT).

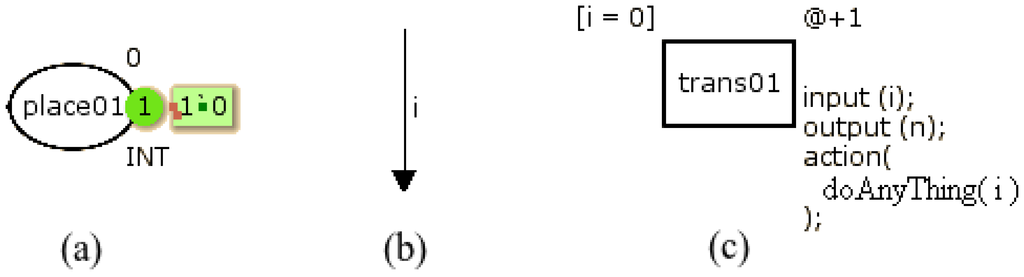

Figure 1(b) shows an arc with a single annotation that is a variable (i) of the same type of the input place colour. Figure 1(c) illustrates a transition containing: identification (trans01), guard, time and code. The guard ([i = 0]) is a Boolean expression and must be true to enable the transition. When the transition is fired, the time fragment (@+1) adds a certain amount of time in the CPN model and the code assigned to the transitions must be executed. The code is divided into three parts: input, output and action. The action contains the CPN ML code to perform some activity that processes the input (input) and returns a value (output).

Hierarchical CPN aims to represent CPN models at different abstraction levels that that may be connected to each other. This feature is very useful for building large models (e.g., to represent an application). In practice, this feature enables us to divide the model into multiple modules, where each module has a CPN. In addition, it allows the reuse of modules, which reduces the size of the model. These independent models (called sub modules) are represented by a substitution transitions in the main module. These modules are connected through places and the connections always involve only two places: one in the sub modules (called port) and another in the super modules (called socket). A socket passes a token to its respective port, and vice-versa. There are three kinds of ports: input, output, and I/O. An input port receives a token from the socket; an output port sends a token to the super modules and I/O port can both send and receive tokens.

The CPN Tools has an important mechanism to periodically extract information about marking of places and occurring biding elements: Monitor. A monitor may be used to observe, inspect, stop, control or modify the simulation of a CPN model. In practice, the monitor can observe and take appropriate actions based on the observations. There is support for four kinds of monitors, namely breakpoint (to stop a simulation), data collector (to extract numerical data from a net), write-in-files (to update files during simulations) and user-defined (used to any purpose).

State space models, such as Petri nets, aim at automatic analysis and verification of the behavior of systems. The basic analysis methods build the system's state space considering all state transitions (reachability graph). This process can be fully automated. Unfortunately, such methods suffer from a problem that is fundamental that led many to believe that state space methods would never work well enough for large systems. Nevertheless, the great rewards of the state space models have stimulated researchers to undertake studies to lessen the problem [14]. There are many strategies and methods to tackle this problem, among them, it should be highlighted approaches that exploits structural attributes of the model [10,11], reductions in the reachability graph and at the net level [15], exploration of symmetries within the reachability graph [9], the adoption of partial state space generation methods [16,17], and simulation [6,18,19]. Simulation itself may be understood as a partial state space generation methods, since it stops generating new states when a criterion is reached. This particular work extensively uses reductions at the net level and adopts stochastic simulation as the fundamental strategy for conducting the evaluation.

2.2. Wireless Sensor Network (WSN)

Wireless Sensor Networks (WSNs) are an emerging technology which consists of the improvement of three technologies [20]: microprocessors, wireless communications and micro-electromechanical systems (MEMs). A WSN is typically formed by thousands of small nodes, with low computational power, few available resources (e.g., memory), a short-range communication and generally non-rechargeable battery. The set of nodes allows the network to be able to perform complex tasks, which may be difficult to be performed by a single node [21]. WSNs have usually a dynamic topology and each node has a type of sensing equipment to analyze a given phenomenon (e.g., temperature, luminosity). Through this device, it can capture the phenomenon occurred, and transmit it to a sink node, responsible for disseminating the data to the observer (or the Internet). Due to the large number of participating nodes in the network, it can be considered as an advantage the short distance between them, using a multi-hop communication (as opposed to using long-range communication) to save energy in data transmission [22].

2.2.1. TinyOS and nesC

TinyOS [23] is an open-source and event-based operating system specially designed to run in devices with low computational power and limited storage as WSN nodes. TinyOS executes in many different motes (e.g., IRIS [24], MICAZ) and provide facilities for the development of applications. TinyOS was developed in nesC [25], an extension to C, optimized to meet the limited storage of sensor nodes.

In terms of programming, an application in nesC is built out of components that are wired together. A component has a specification and an implementation in which the specification defines provided/used interfaces, whilst the implementation consists of the nesC code that implements the specification. In practice, the provided interface characterises the functionality of the component and the used interface defines the functionality required by the component.

An interface in nesC is bidirectional and used to communicate the components. The interface specifies a set of functions named command and events, in which commands must be implemented by the interface's provider, whilst events must be implemented by the interface's users. Task is another function present in the component, beyond commands and events. It is a special kind of function that neither returns anything (void) nor has arguments. A task works as an independent locus of control and unlike events and commands, are posted in a queue and lately executed by a schedule (following a FIFO policy). In this way, interactions between components may be very complex and typically a component registers the interest in some event that is signalized when it occurs. For example, a component that invokes a command like “read temperature” must implement the event “read temperature done” that is executed right after the completion of command “read temperature”. In practice, commands typically go “downwards” (from application to closer the hardware) and events call “upwards” (closer to the hardware to the application).

nesC has an execution model consisting of run-to-completion tasks (non pre-empted) and interrupt handlers that are signalled asynchronously by the hardware. The aforementioned scheduler is responsible for executing the tasks in any order and, as the tasks cannot be pre-empted, they are atomic with respect to each other, but are not atomic with respect to interrupt handlers. As a consequence of this execution model, the code of a nesC application may be divided into two parts: synchronous code (SC) and asynchronous code (AC). The SC is only reachable from tasks and includes functions, commands events and tasks. On the other hand, the AC is reachable from at least one interrupt handler.

In terms of programming, nesC has the same set of operators of the language C: math (+, ×, −, /), function call, assignment (=, +=, −=, ×=, /=), byte (<, >, &, |), logical (>, >=, <, <=, ==, !=), cast, and primary expressions (identifiers, constants, string literals, parenthesized expression). The function call has new operators in nesC: call α used to invoke a command (α); signal ε, for call an event (ε); and post Ω, for invoking a task (Ω). Additionally, the language has statements divided into three categories: selection, iteration and jump statements. Selection statements choose one branch to execute based on the evaluation of an expression (called controlling expression;. Selection statements may have many branches and each branch has a Boolean expression and a body. The selection statement executes the first branch whose evaluation of the controlling expression is true. This kind of statement has two representations (if-then-else and switch) as shown in the following”.

If (expression) {switch (expression)
 expression list;{
} case 0: expression list;
Else if (expression){ case 1: expression list;
 expression list; …
} default: expression list;
}
  (a)  (b)

Iteration statements execute the attached statement (called the body) repeatedly until the controlling expression evaluates to false [26]. It has three statements: while, do-while and for. The controlling expression of a while statement is evaluated before each execution of the body. Whilst, the controlling expression of a do-while statement is evaluated after each execution of the body. Finally, for statement is used to execute many times the body. This statement has three expressions: first expression is associated with the initialization, the second expression is the controlling statement, which is evaluated before of the iteration, and last expression usually specifies the size of increment.

While (exp)dofor (exp, exp, exp)
{{{
expression list;expression list;expression list;
}} while (exp);}
 (a) (b) (c)

The control flow in an iteration statement can be altered by a jump statement. Jump statements cause unconditional transfer of control [26]. It has three statements: continue, break and return. The continue statement ignores the instruction subsequent and pass the control to the controlling statement. The break statement terminates the switch (only selection statement) or iteration statements, whilst the return statement finishes the function.

3. CPN Models

In order to evaluate the power consumption of WSN applications, we have followed three main activities as shown in Figure 2.

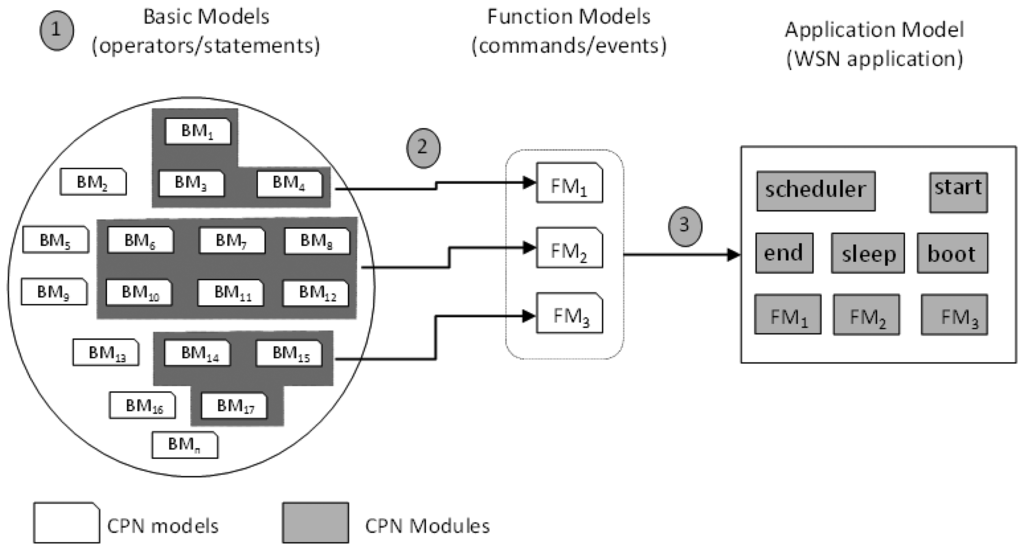

Initially, we defined a set of reusable CPN models (referred to “basic models”) to express the power consumption of nesC operators (e.g., assignment) and statements (e.g., if-then-else). Each nesC statement/operator is modelled through a basic CPN model and has associated its respective power consumption (obtained by measurement using actual WSN motes). Next, these basic models are composed into a model (referred to “function model”) to express the power consumption of nesC functions (tasks, events and commands). Finally, as a nesC application consists of tasks, commands and events, we compose the function models to express the power consumption of the whole application in what we call “application model”. This model represents a nesC application independent from a particular hardware platform. These models are described in the next subsections.

3.1. Basic Models

First step towards the modelling of power consumption of nesC applications is to define CPN models for each statement and operator of nesC. As some of them have the same structure, it is possible to group them into five different groups: operators, calling commands, selection statement, iteration statement and event receive. Next subsections present details about these groups.

3.1.1. Operators

Due to their similar structures, operators such as arithmetic (+, −, ×, /, and the modulus operator %.), relational (>, >=, <, <=, ==, !=), logical (&& and ‖), increment (++), decrement (−−), bitwise (&, |, ^), ≪, ≫,∼), and assignment (=; have been modelled through a generic CPN model as shown in Figure 3. The transition op_1 represents the operator and has associated the power consumption calculations.

An action (action) is executed when op_1 is triggered and consists of three calculations performed by the functions addEnergy(), calcTime() and addResourceEnergy(). The function addEnergy() calculates a random value following the normal distribution of the instruction's power consumption at that time using its input parameters (energyMean and energyVariance). Next, this function updates the power consumption (global variable) of the entire application. By generating a random value, it is possible to define a confidence interval that must contain it. Function calcTime() calculates the time consumed by the operation. Similarly to the previous function, calcTime() also uses the mean and variance to generate a random value to the time. Finally, the function addResourceEnergy() calculates the power consumed by the resources of the mote (radio and LEDs) that may be active while the operation executes (see more details in Section 3.4). It is worth observing that the aforementioned mean and variance of time/power consumption are particular to each operator and are obtained by measurement.

This model has two properties (see Section 2.1): bounded, because place Operator does not store tokens; and it has not dead transition, because transition op_1 will always run.

3.1.2. Selection Statements

The selection statements if-then-else and switch are represented using the same CPN model as they have branches, and only one of them runs (see Section 2.2.1). As these statements have branches, it is necessary to associate the probability of each branch to be true. The application developer is responsible for manually associating this probability through a C comment. For example, in the following nesC code, the probabilities associated by the application developer to each branch are: 80% (E_SUCESS), 15% (E_ERROR) and 5% (otherwise).

switch (e){
 case E_SUCESS: //@0.80
  value = v; break;
 case E_ERROR: //@0.15
  value = -1; break;
 default: //@0.05
  value = 0;
}

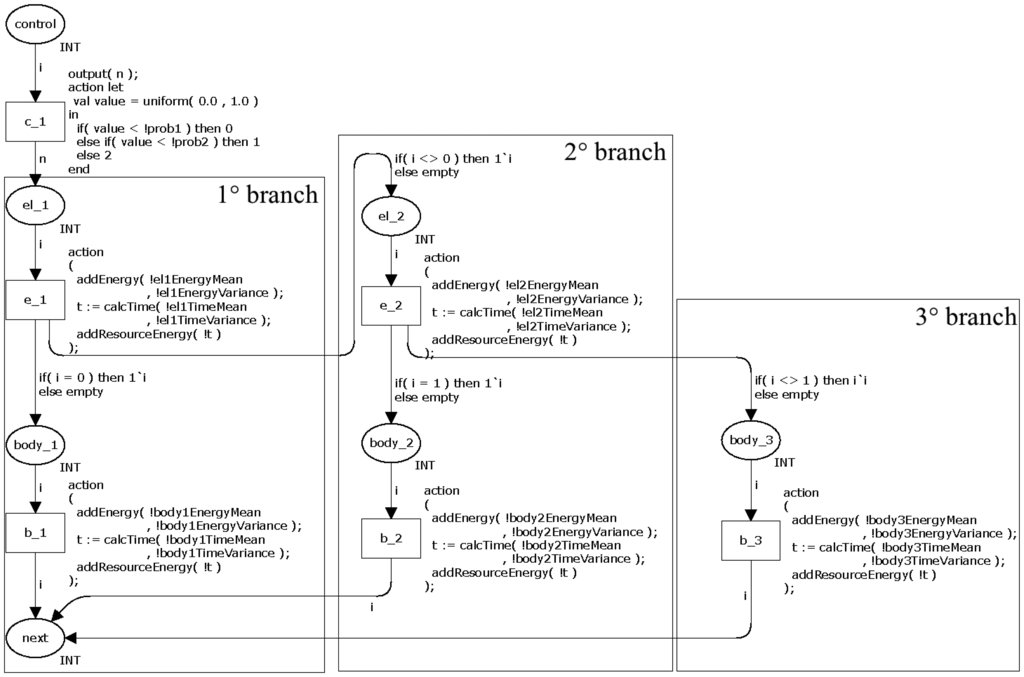

Figure 4 shows the CPN model for representing the statements if-the-else and switch. The transition c1 decides the branch to be executed by generating a random value between 0 and 1 following the uniform distribution. The token value is the decided value by this transition and this value will be used by the subsequent transition.

The places el_x (e.g., el_1 and el_2) and body_y (e.g., body_1, body_2 and body_3) have power consumption calculations related to the each branch. The place el_x represents the controlling expression and body_x represent the body.

As mentioned in Section 2.2.1, a selection statement executes the branch when its controlling expression returns true. In other words, the controlling expression of a branch consumes energy before deciding if it executes the body (when return true) or passes the control to the next branch (when return false). The transition e_x (e.g., e_1 and e_2) represents this behaviour in the CPN model. This transition checks if it runs the body or passes to the next branch. For example, the place el_1 verifies the token value and move the token to place body_1 (when the value is equal to 0) or to place el_2 (when the value is nonzero). The transition e_2 has a similar behaviour.

This model has similar properties to the previous model when all branches have a probability greater then zero. On the other hand, in the case a branch has associated a probability equal to zero (//@0.0), it means that its body will never be executed. Consequently, the transition associated to this branch (e.g., b_1, b_2 and b_3 inFigure 4) becomes a dead transition.

3.1.3. Iteration Statements

Due to their particularities, the loop statements (while, do-while and for) have different CPN models. The statement while has a control that (1) checks if an expression is true and (2) then executes the body (in case the Boolean expression is true). When the body terminates, the control checks the expression again. This cycle ends when the expression returns false. Similarly to the command if-then-else, the command while also has an expression that must be evaluated in order to decide what to do next. Hence, a probability is associated to the control return, i.e., the probability of the loop repeats. Similarly to the selection statements (Section 3.1.2), the application developer must associate a probability (commands while and do-while) or a number of times the body runs (statement for) to the loop control.

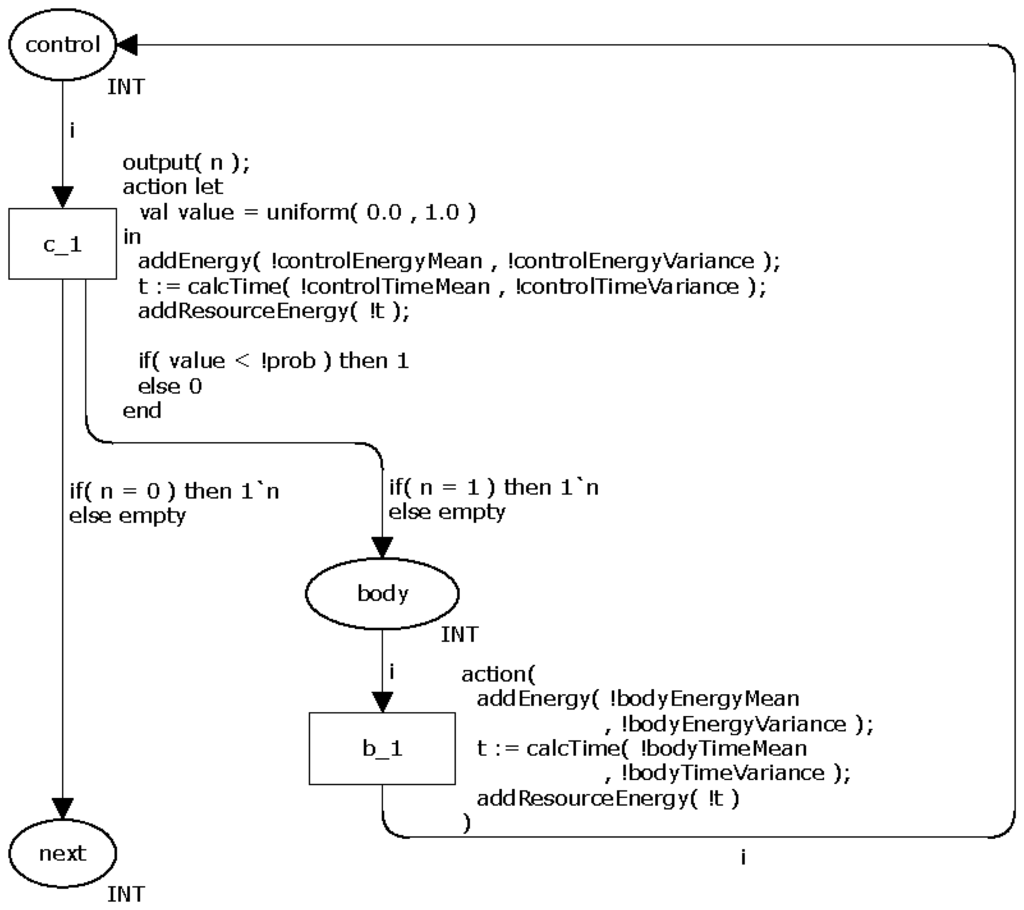

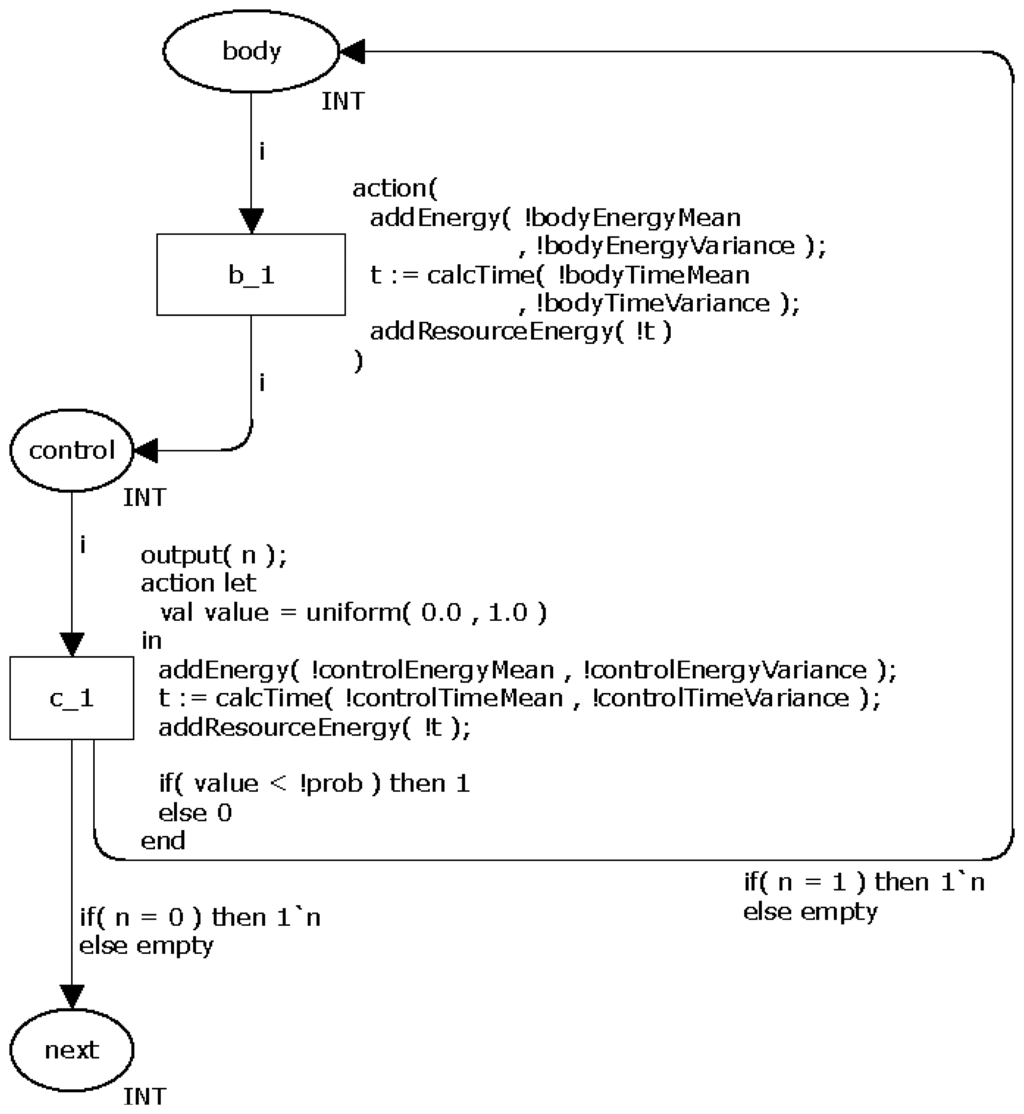

Figure 5 shows the CPN model for representing the command while. The transition c_l is similar to one adopted in the command if-then-else and decides whether the loops repeats (the token moves from place control to body) or not (token moves to next). The place body models the command(s) executed in the body. Similarly to the selection statements, this model may have dead transitions when the probability associated to the commands is zero.

Similarly to the previous commands, the power consumption of command while is also calculated using the functions addEnergy(), calcTime() and addResourceEnergy().

The CPN model for representing the command do-while is very similar to the command while. The only and fundamental difference between them is that the do-while ensures that the body will be executed at least once. This feature means that this model has not dead transitions. Figure 6 depicts the proposed CPN model.

Finally, the last loop command, namely for, consists of four parts: initialization, control, step and body. The first three ones may be modelled as shown in Section 3.1.1, i.e., by using the assignment, logical and increment/decrement operators. The body part is similar to those presented in the previous loop commands.

Figure 7 illustrates the proposed CPN model for representing the command for. The places assign, control, inc and body model by the initialization, control, step and body, respectively. The initialization is performed before the loop itself and occurs only once. The transition c_1 decides the number of times (N) the loop must repeat based on a value set by the application developer. This model has dead transitions in the case a probability associated to the command is equal to zero.

3.1.4. Calling Command: call

As mentioned in Section 2.2.1, the calling command call α is used to invoke a nesC command (α), to signal an event (ε) or to post a task (Ω). As a consequence, the proposed model has some particular elements when compared to the previous one. Firstly, the power consumption depends on the function α being invoked; post command does not follow this rule because it only tells to scheduler what task should run next. Secondly, in the case an event ε (e.g., sendDone()) must be signalised after executing the function α (e.g., send()), the event ε must be pushed into a function queue (described in Section 3.3); while a task must always be queued. Additionally, the execution of call may enable/disable a mote's resource (like radio or LED), which has an impact on the overall power consumption calculation.

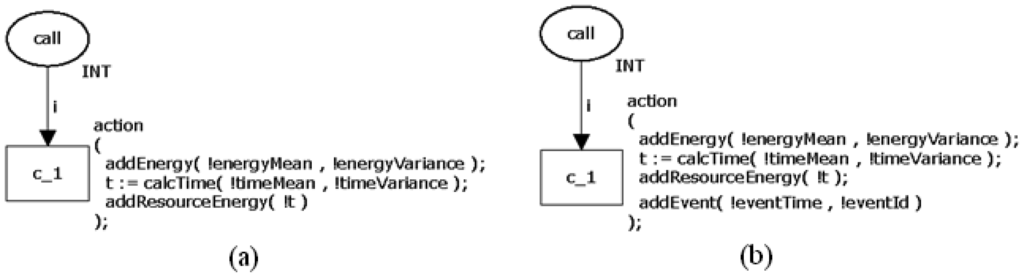

Figure 8 depicts two CPN models for representing the call command. First model (a) is very similar (with the same properties of the model) to one shown in Figure 3, whilst the second one (b) models the situation in which an event or task will be signalised after the completion of the command being invoked. In the last case, the function addFunction() push the function (to be signalised) into the aforementioned function queue and has two parameters: the time (functionTime) the task or event must execute and the function identifier (functionId).

3.1.5. Event receive

Generally, the events in the nesC language represent responses to the execution of a command. For example, when an application executes the command start to enable a radio, it discovers if the radio is turned on through the event startDone. Another example is when the application collects a temperature. It executes the command read and receives a value through the event readDone when the temperature is collected. Additionally, there is an event, named receive, that depends on the occurrence of an external event. The event receive is triggered when a new message arrives in the sensor node. Unlike the previous events, this event has a probability associated that indicates the chance of its occurrence. Figure 9 presents the CPN model (called module receive) of this event.

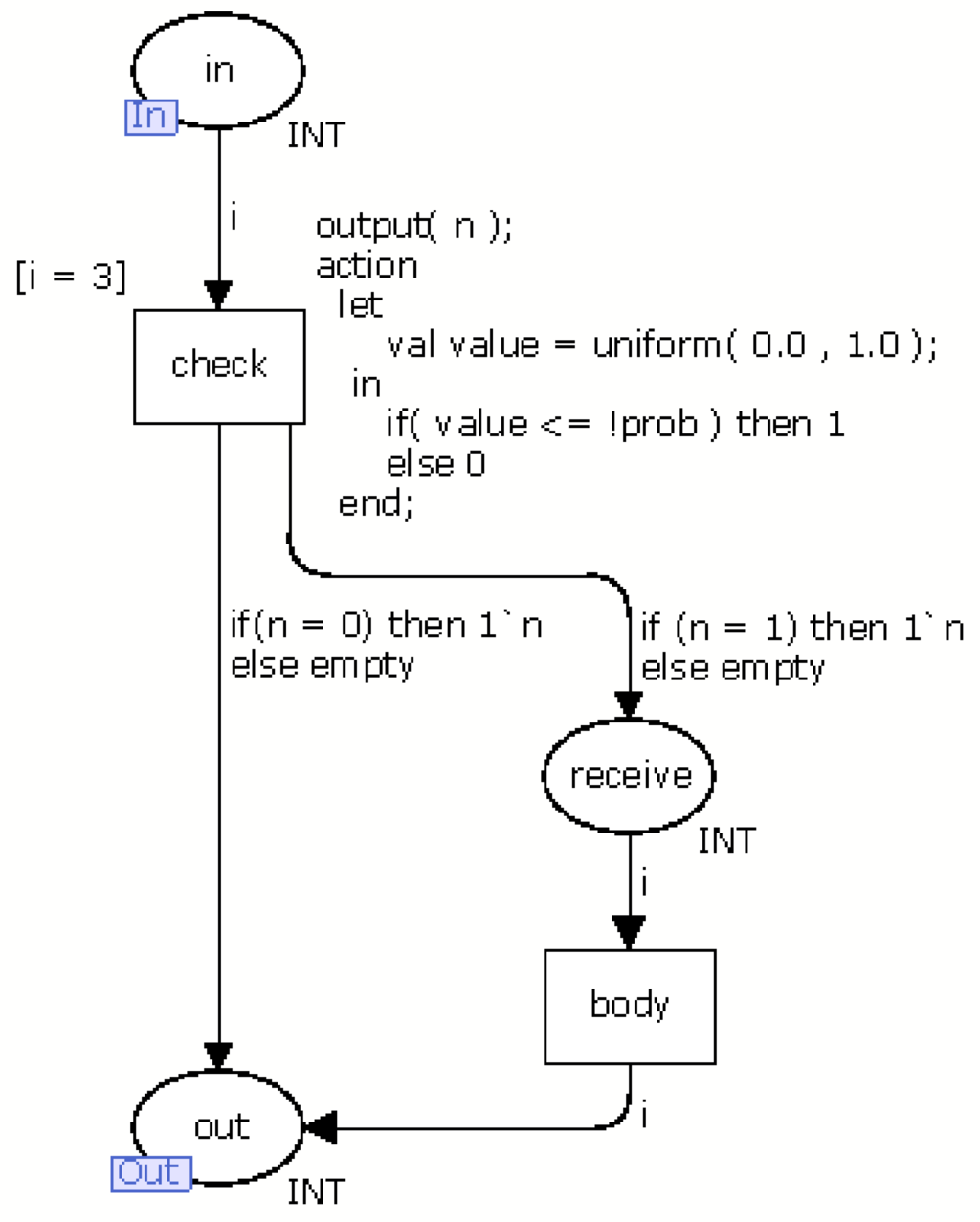

The module receive has a transition, named check, to decides if it receives a message by generating a random value between 0 and 1 following the uniform distribution. If the generated value is less than or equal to the probability this event occurs, the token moves from place in to receive. Otherwise, token moves to out. Places in and out are input and output ports, respectively (see Section 2.1.1). The transition body models the command(s) executed in this event. The CPN model of the others events have the places (in and out) and the transition body.

3.2. Function Models

Prior to present what is a Function models, it is worth remembering that the implementation of a nesC application consists of a set of functions, named task, command and events (see Section 2.2.1), that are very similar to C functions. On the other hand, a function itself is a block of code containing a set of operators/statements such as assignments, loops and if-then-else. As presented in the previous section, these elements are modelled by the Basic models. Therefore, a Function model consists of a set of Basic models that are put together according to a proposed rule. In order to better illustrate this composition, consider the following nesC function (command):

command void Module.read(){
SLEEP_TIME = 100; //assign
call Temp.read(); //invocation
}

This function has two elements, assignment (=) and invocation (call), that are executed sequentially. Hence, its respective Function model is simply the composition of the Basic models of these two operators as shown in Figure 10.

The assignment operator is modelled through the place assign and the transition a_1, whilst the invocation operator is modelled by the place call and the transition c_1 (see Section 3.1.1). These Basic models are merged according to the following rule: the transition from the first model (a_1) is connected (connector) to the place in the second model (call). This rule is used to compose all Basic models.

3.3. Application Models

To understand how the application model is obtained, it is important to observe that applications written in nesC are event-driven in such way that the order the application executes is only partially defined at compile time (see Section 2.2.1) due to the occurrence of tasks and events (e.g., the arrival of a message sent by another WSN node). Hence, a modelling element, named scheduler, has been introduced to explicitly treat with the occurrence of these tasks or events, and serves as the key element in the application models. These features make the application model generic, allowing represent any nesC application independent from the hardware platform.

Each application model is organized into CPN modules (see Section 2.1.1) and each module models nesC tasks, commands and events (see Section 2.2.1). Events that depends on the occurrence of an external factor (e.g., another WSN node sends a message), has a probability associated by the application developer that indicates the probability and time of this particular event occurs. Figure 11 shows a schematic view of the Application model.

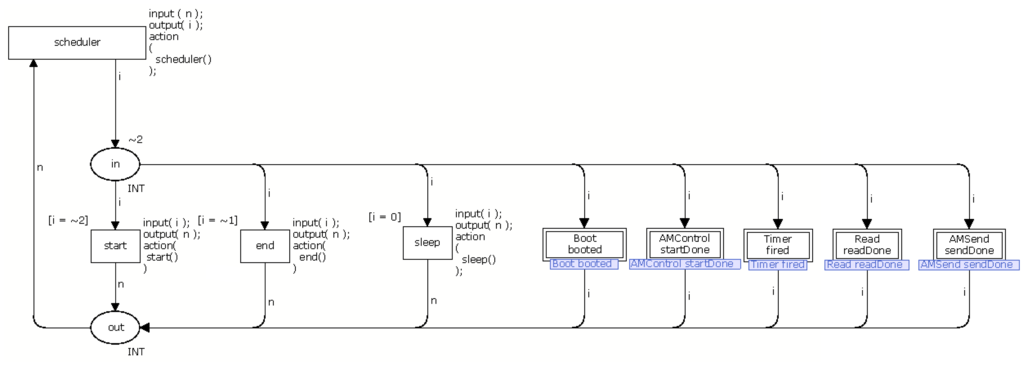

The scheduler has the following basic elements: a function queue, five transitions (scheduler, start, end, sleep, boot) and two places (in, out). The tasks and events are stored in a queue and each one has associated an identifier and the time indicating when the task or event must occur. In this way, tasks or events are removed from the queue based on this time, e.g., the queued function with shortest time is the next to occur. In the case two different functions have the same time, one first queued is the next to be triggered.

The transition scheduler acts as an orchestrator that defines the next transition (or module) to be triggered according to the time associated to the task or event. Additionally, the task or event that is type AC will be selected by the transition scheduler and it can not preempt the execution SC. In other words, AC is executed like a SC (see Section 2.2.1).

At this point, it is worth observing that the event receive (see Section 3.1.5) is never putted in queue, as it depends on an external event (when a third-party message arrives in the mote). We solved this problem by allowing the scheduler to alternatively select an event from the queue and the event receive. Additionally, the radio should be enabled to run the module receive.

The places in and out are sockets and identify the beginning and the end of activities, respectively. The place in is also the starting point of the model, indicating that the first transition to be performed (the other transitions will be chosen by the transition scheduler). It worth observing that the combination of transition scheduler, that decides which activity should be performed, with the place in, starting point of the application model and beginning of activities, leads to a reversible model. In other words, the model will always return to the starting point of the model through the transition scheduler.

In the case the queue is empty (no function is ready to be triggered), the transition sleep is triggered indicating that the application does not need to execute any task. The transition start is executed only once, it initializes all variables and puts the first function in the function queue. The transition end indicates the end of the application execution and may be executed several times.

The transitions boot, timer, t1, and tn depend on the application being modelled. These transitions correspond to task or event implemented by the application and each transition serves as a bridge between the module scheduler and the respective function module. For example, the transitions boot and timer represents the respective boot and timer module. The transition t1 and tn represents other function (task or event) implemented by the application.

3.4. Power-Related Functions

The CPN models introduced in the previous sections use three auxiliary functions that we have defined to compute power-related measurements: addEnergy(), calcTime() and addResourceEnergy(). Functions addEnergy()and calcTime() are responsible for calculating the power consumption and performance, respectively, of an operator modelled. On the other hand, function addResourceEnergy()is used to calculate the power consumption of the resource (radio and LEDs).

The pseudo-code (Due to the complexity of the syntax of CPN ML, we adopted a pseudo-code to facilitate the understanding of the function codes.) of the function addEnergy is presented in the following:

1Function addEnergy (real mean, real variance){
2 var energy = normal (mean, variance);
3 energy_app = (!energy_app) + energy;
4 return energy;
5}

The parameters mean and variance are used to calculate a random value following the normal distribution (variable energy in line 2) that represents the power consumption of a transition. It is worth observing that function normal() belongs to the CPN Tools library. The generated value is then added to the variable (energy_app) used to store the application's power consumption. Function calcTime is similar to addEnergy, but it generates a random time associated to each transition.

The proposed infrastructure supports many distribution probabilities, among them exponential, Erlang, polynomials, normal, and so on [27]. The system considered in this work, however, being an embedded system in which each mote is mainly devoted to few local non interfering activities, makes the system quite stable as can witnessed through the measures collected. Nevertheless, variation still exits, since the system is not deterministic. In this study, the normal probability distribution was the one that best fitted the measured data. Finally, the pseudo-code of function addResourceEnergy is shown in the following:

1function addResourceEnergy (real time) {
2 if (radioIsOn) {
3  var energy = radio_power * time;
4  energy_app = (!energy_app) + energy;
5 }
6 if (led0IsOn) {
7  var energy = led0_power * time;
8  energy_app = (!energy_app) + energy;
9 }
10 if (led1IsOn) {
11  var energy = led1_power * time;
12  energy_app = (!energy_app) + energy;
13 }
14 if (led2IsOn) {
15  var energy = led2_power * time;
16  energy_app = (!energy_app) + energy;
17 }
18}

This function calculates the power consumption of the resources (e.g., LEDs) available in the sensor node. In this particular case, the adopted mote (IRIS mote) has one radio and three LEDs. Each resource has associated a global variable that indicates if the resource is active (on) or not. In the case the resource is on, the power consumption due to the resource is calculated and added to the variable that stores the application's power consumption (energy_app). It is worth observing that as we do not know how long the resource is on, this function is associated to each transition present in the model.

3.5. Translator

In order to automatically generate the function and application models along with their power consumption evaluation, the nesc2cpn translator was implemented. The translator nesc2cpn generates the power consumption models from nesC programs and then interacts with the CPN Tools that simulates and yields power consumption metrics of these models.

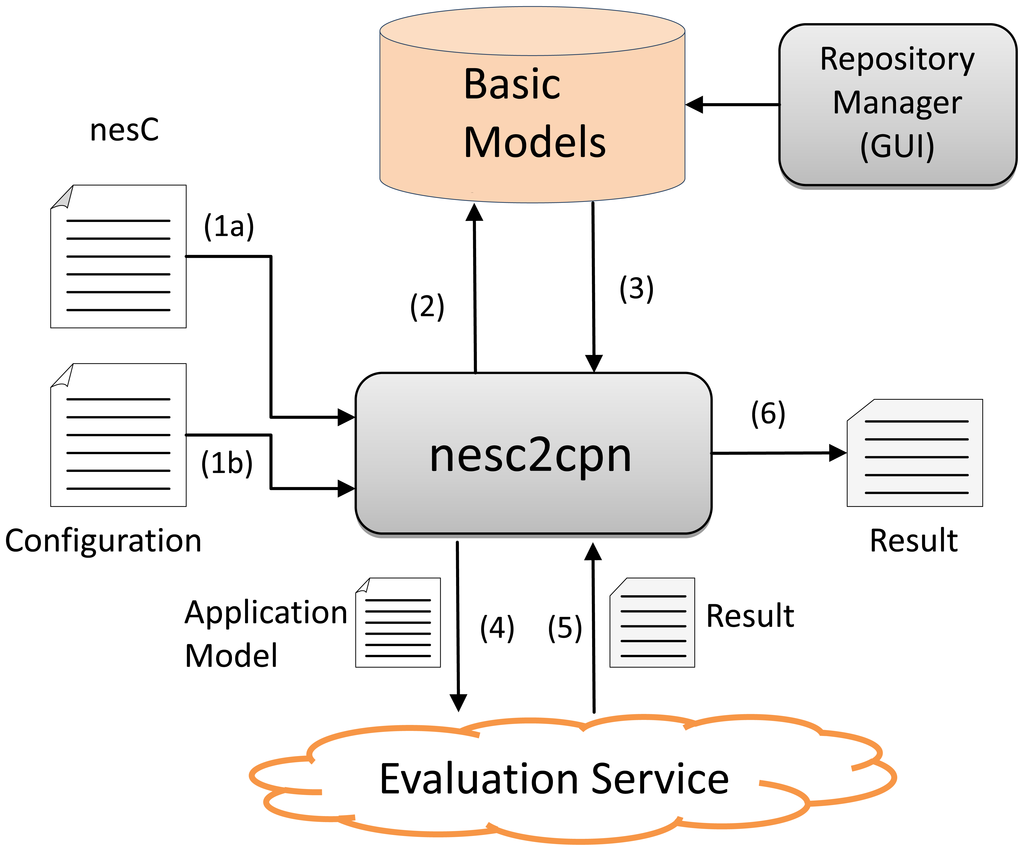

According to Figure 12, the nesc2cpn receives a nesC program as input (1a) and some configurations parameters such as hardware platform, level of confidence and batch length (1b) (see Section 4.2.1). Next, it accesses the repository of CPN basic models (2-3) and generates the respective application model. The generated application model is then passed to the Evaluation Service (4) that simulates it in the Internet and yields the power consumption results (mean, variance and standard deviation) (5-6).

The Evaluation Service is a Web service (implemented in Java, available at http://ec2-23-22-219-74.compute-1.amazonaws.com:8080/EvaluationService/ws?wsdl) that has two functions, named evaluateApplication and getResult. Function evaluateApplication is used to evaluate a model asynchronously as the evaluation can be take hours or days. When this function is invoked, it saves the model (to be evaluated latter) and returns a request id. This request id is used to get the results of the evaluation by invoking the function getResult.

The nesc2cpn translator is an API (implemented in Java, available at https://github.com/sensor2model-group/nesc2cpn ), which provides three methods: evaluateSync, EvaluateAsync, getResult. The first two methods are used to generate and evaluate the CPN models in a synchronous or asynchronous way; method getResult is used to retrieve the results when the model in evaluates in a asynchronous way. Finally, the Repository Manager enable us to include and update the basic models in the repository, e.g., to add a basic model of a new hardware platform.

4. Experimental Evaluation

The goal of this experimental evaluation is to compare the power consumption of nesC applications using two different techniques: measurement, by executing the nesC applications in an actual mote; and simulation, using the CPN models of the nesC applications generated by the nesc2cpn translator.

Next sections present how the measurements were carried out using actual motes (Section 4.1) and the comparison between simulation and measurement results (Section 4.2).

4.1. Measurement Procedure

The nesC applications used in the both experiments were deployed in an IRIS (the datasheet of the IRIS mote is available at http://www.memsic.com/products.html) mote, connected to a MTS400 basic environment sensor board. These applications were compiled by nesC version 1.3.1, built on top of the TinyOS 2.1.1. An oscilloscope (Agilent DSO03202A) was used to measure the power consumption of the mote executing the applications. A PC was connected to the oscilloscope that captures the code snippet execution start and end times by monitoring a LED of the mote, which is turned on/off to signal the execution start/end. The PC runs a tool named AMALGHMA [28] that was responsible for calculating the power consumption.

In order to measure the power consumption of each nesC operator (see Section 2.2.1) and built-in nesC commands available in TinyOS (e.g., send, receive, read), it was created a generic application as shown in the following:

1implemention {
2
3 event void Boot.booted(){
4  call Timer.startPeriodic (100);
5 }
6
7 event void Timer.fired(){ //start power measurement
8  operator; //first time
9  operator; //second time
10  …
11  operator; //N - 1 time
12  operator; //N time
13 } //stop power measurement
14}

To reduce the interference in the measurement process, this application does not enable any mote resource (e.g., radio and LED) and repeats the measuring until the average value achieves a specified error. The power consumption of a particular operator ( operator) is obtained by dividing the obtained measurement by the number of repetitions.

A similar approach was used to assess the power consumption of the mote's resources (e.g., radio and LEDs). However, in this case a simple application was executed with and without the particular resource active (on). The difference between both power consumption measurements is the resource's power consumption.

4.2. Application

As the focus of this paper is to evaluate the application, we have implemented five nesC applications and generated their respective CPN models using the nesc2cpn. These applications have the following characteristics: an application only containing nesC statements (see Section 3.1.1), more specifically this application (named App1) calculates the average of five numbers; an application that has one invoke to collect the temperature, which is a typical WSN application (named App2); an application that uses a selection statement (see Section 3.1.2) for aggregating sensed values (named App3); an application that calculates the average of five sensed values (similar to App1), but used together an iteration statement (named App4); and an application that collects the temperature and sends it to another sensor node (named App5).

We evaluated a small piece of code of App1 to App4 and an entire application was evaluated in App5. These applications serve to show how the tool and proposed model are flexible in such way that they can be used to evaluate a small piece of code or an entire application. Prior to present the evaluation itself, it is worth introducing the stopping criteria adopted in the simulations.

4.2.1. Stopping Criteria

The simulation of proposed application models is steady-state and takes a long duration. In practice, it is necessary to define a criterion to stop the simulation. The batch means is one of the best solutions to solve this problem and is widely adopted.

The batch means divides the simulation parts (called batch) with similar sizes. Next, it computes the average of each batch and constructs a list (called batch means) with theses averages. We can determine the error of the simulation through batch means. The error is calculated with the following equation:

E = t ( k , 1 , α ) × s k
where t is the value of the T-Student distribution with degree of freedom K-1 and level of confidence (defined by user) equal to 1-α, k is the size of the batch means and S is the standard derivation of the batch means. We compare the error of the batch means (E) with a value defined by the user, called “max error”. The simulation stops when E is less than or equal to the max error.

4.2.2. Result

The first nesC application (App1) is showed in the following:

1implemention {
2 int8_t mean = 0, a = 8, b = 16, c = 32, d = 64, e = 127;
3
4 event void Boot.booted(){
5  call Timer.startPeriodic (100);
6   }
7
8 event void Timer.fired(){ //start measure
9  mean = (a + b + c + d + e) / 5;
10 } //end measure
11}

This application would have only one assignment command (see Section 3.1.1). However, its power consumption would be equal to an application without any command. This occurs because as the variable will not used in the program (as the program has only one assignment), the compiler performs an optimization and discards this assignment in order to reduce the power consumption. Hence, the application App1, whose purpose is to evaluate the assignment command, also includes arithmetic operators (+ and /).

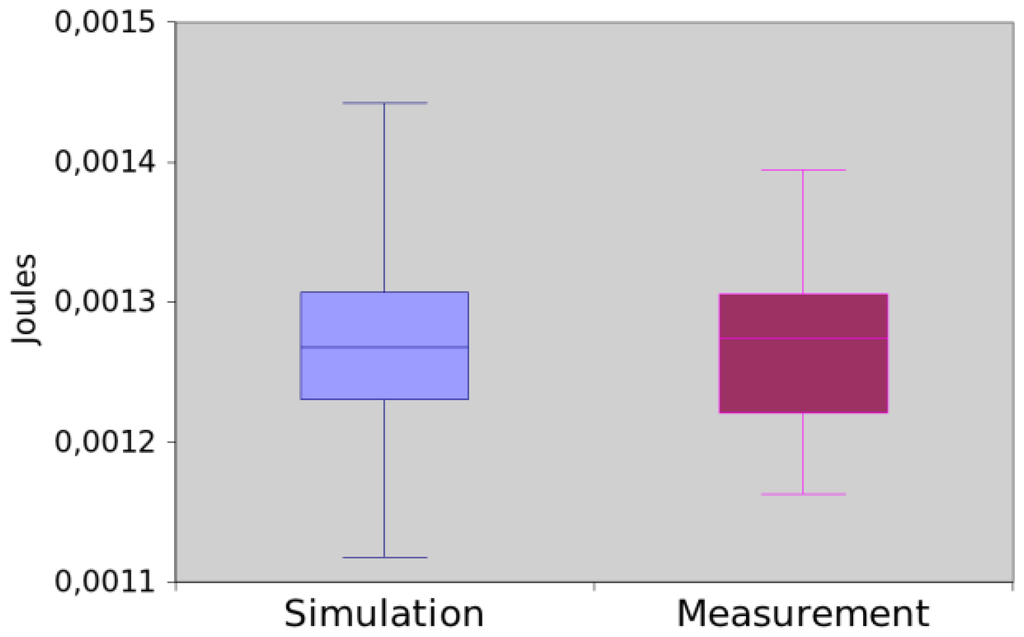

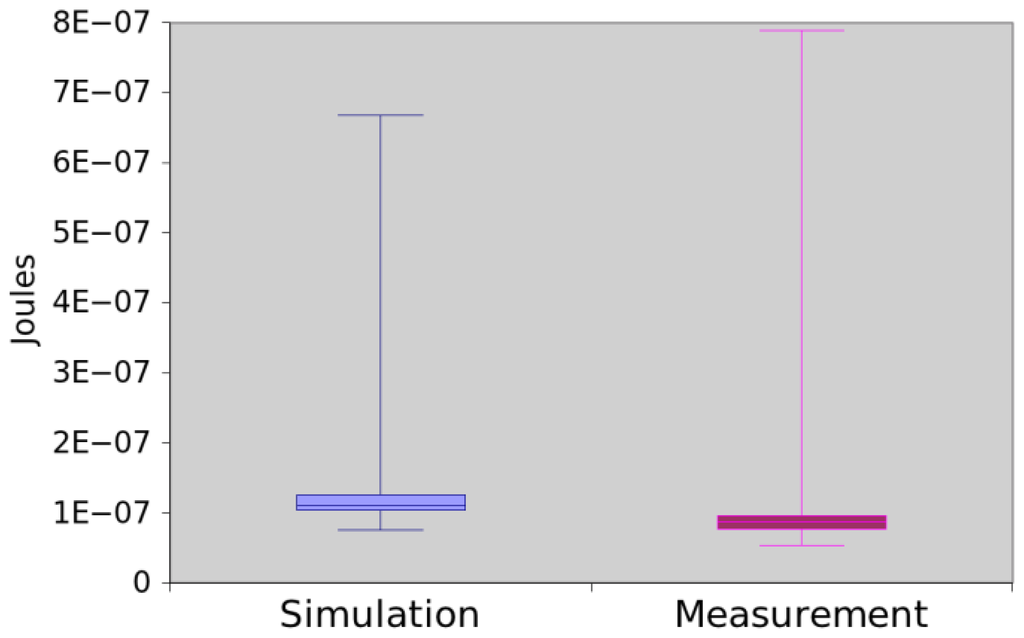

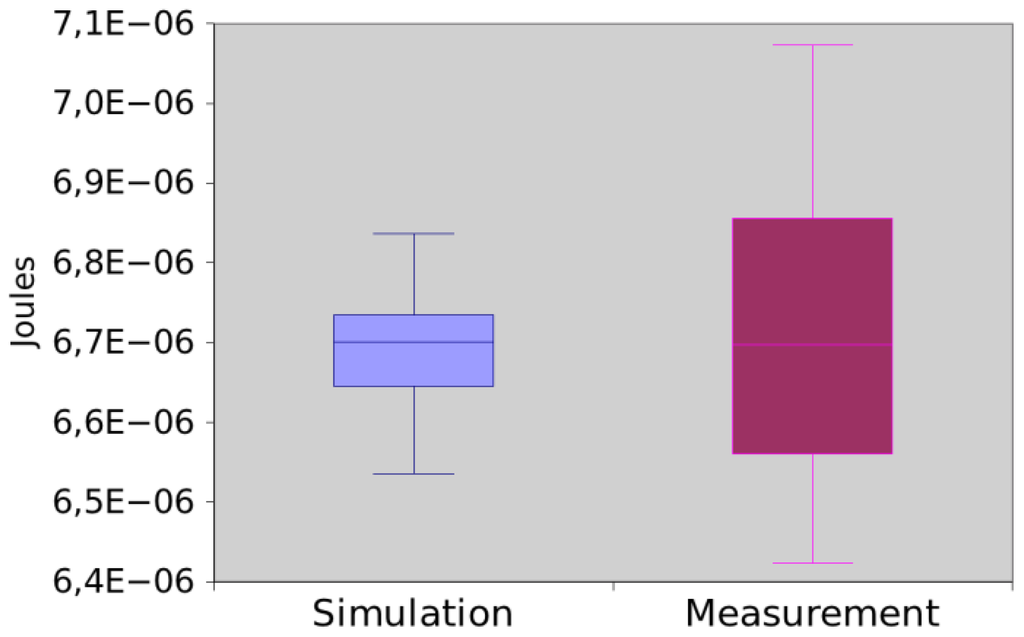

Figure 13 shows the power consumption of App1 trough measurement and simulation. The mean difference between simulation and measurement is 0.35%. As the values are very close, we decided to check if those means are significantly different. By applying the hypothesis testing, it returns a p-value equal to 0.520920. Hence, we concluded that there is no sufficient evidence to reject that simulation and measurement returned different values.

The second nesC application (App2) simply collects a temperature:

1
2void readTemperature(){ //start measure
3 call Temp.read();
4}
5
6event void Tem.readDone(error_t err, float value){
7 // do nothing
8} //end measure
9

The initial code of this application is very similar to App1. App2 invokes the command read (3) to collect a temperature and the event readDone is triggered when the reading operation terminates, i.e., the sensor obtained the temperature. Figure 14 illustrates that the results obtained by measurement and simulation are very similar and they have a difference around 0.19%. Additionally, we confirmed that they are similar as the hypothesis testing returns p-value equal to 0.8276.

App3 has a function that uses three variables for aggregating data along with a selection statement (if-then-else):

1
2void aggregate(int8_t value){ //start measure
3 total = total + value;
4 size = size + 1;
5
6 if (size == 5){ //@0.20
7
8  mean = total / 5;
9  total = 0;
10  size = 0;
11 }
12} //end measure

The declaration of variables and boot code (1) are similar to App1. The function aggregate(), as commonly found in WSN applications, makes a calculation (e.g., average) over obtained measures. The statement if-then-else has associated a probability of 20% (//@0.20) because it is executes once one in five.

The results obtained by simulation and measurement are illustrated in the Figure 15. The mean difference between two methods was of 23.30%. Again, we apply the hypothesis testing to them (generated p-values equal to 0.115351), which shows that there is not sufficient evidence to assert that the methods return different data.

The fourth application, namely App4, is shown in the following:

1
2void mean(){ //start measure
3 total = 0;
4  for(i = 0; i < 5; i++){ //@5.0
5  total = total + value [i];
6 }
7 mean = total / 5;
8} //end measure

Similarly to App1, this program calculates the average of five numbers, but it uses an iteration statement (for) to sum them (4-6). Figure 16 shows the power consumption obtained through measurement and simulation. In this case, the mean difference is around 3.09% and the hypothesis testing returned a p-value equal to 0.072628. Hence, there is no evidence that simulation and measurement values are different.

Finally, the last application (App5) collects the temperature and sends it to another sensor node as shown in the following:

1implemention{
2 message_t pckt; msg_t* msg;
3
4 event void Boot.booted(){
5
6  msg = (msg_t*) call Packet.getPayload (&pckt, size (msg_t));
7  call RadioControl.start();
8 }
9
10 event void RadioControl.startDone(error_t e){
11  call Timer.startOneShot (100);
12 }
13
14 event void Timer.fired(){
15
16  call Temp.read();
17 }
18
19 event void Temp.readDone(error_t e, float value){
20  msg->error = e;
21  msg ->value = value;
22  call RadioSender.send (BASE_STATION, &pckt, 28);
23 }
24
25
26 event void RadioSender.sendDone(error_t e, message_t p){
27  call Timer.startOneShot (100);
28   }
29  }

The behaviour of this application consists of turning on the radio in the boot (4–7). When the radio is already started, the application collects a temperature (13–15) after 100 milliseconds (9–11). Next, the application creates a message and sends it to the base station (17–21). This behaviour is repeated each 100 milliseconds (23–25) in a loop. shows the scheduler (see Section 3.3) of App5.

The results obtained by both methods are depicted in Figure 18. The mean difference between them was of 6.71%. The hypothesis testing returns the p-value equal to 0.083238. Hence, we can assume that, for this experiment, both methods return the same values.

The results of the evaluation of these five applications shows that the proposed approach is flexible by allowing the evaluation of either an entire application or just a piece of code (function). It is also possible to observe that the results obtained by measurement and simulation are very close in all cases. Additionally, this test also shows that for more complex codes (which likely consumes more power) and for small applications (which likely consume less power) there is no difference between both methods.

5. Related Work

In this section, we present and compare existing approaches for evaluating the power consumption of WSN applications. These approaches have been grouped considering the artefact available for the evaluation (source code, behaviour/states description) and evaluation technique adopted (measurement, simulation and analytical modelling).

5.1. Measurement

Hiltunen et al. [2] evaluated the performance and power consumption of the POCOBOS middleware through measurement in Imote2. In particular, their objective was to show the impact on the middleware in the performance and power consumption.

Lajara et al. [3] also used the measurement technique, but focused on comparing the power consumption of WSN operating systems (e.g., TinyOS, Contiki and others). In order to perform the comparison, two motes were used (Tmote Sky and MICAz) and four different applications, representing common task (e.g., read a temperature and send this value).

Chan et al. [1] measured the power consumption of different encryption algorithms (e.g., RC5, RSA) in Mica2. They created an application that encrypts a message and send it. The resulting power consumption is obtained by adding the CPU's power consumption (to execute the algorithm) and the power consumption due to the message transmission (to send the encrypted message).

In all cases, the aforementioned approaches need to assembly an environment to perform the measurements: (1) the application, middleware or operating system code (2) the WSN motes (e.g., IRIS, MICAz) to deploy the programming code; (3) the power supply (e.g., Icel Manaus PS-1500) to maintain the constant voltage of the WSN mote; (4) one oscilloscope (e.g., Agilent DSO3102A) to the measurement data; and (5) one program that collects data from the oscilloscope (e.g., AMALGHMA). One initial limitation of measurement approaches is the setting-up of the environment that is composed by several elements. Additionally, WSNs are usually composed by thousands of nodes and it is usually unfeasible to measure the power consumption of individual nodes.

5.2. Simulation

Simulation approaches mainly focus on defining and simulating models of architectures (hardware platform), operating systems and applications. AVRORA [29] provides a cycle-accurate model of the MICA mote family and has been used to evaluate the power consumption of MICA and MICA2 hardware platforms.

While some simulations are related to a specific mote or mote family, Somov [30] presents a simulation framework to estimate power consumption of WSN applications for arbitrary hardware platforms. This framework describes the possible states of each component (e.g., memory and radio) separately and each state has the energy consumption and performance associated. A set of these components represents a particular hardware platform.

The need of both evaluating new operating systems and testing real-code applications before their deployment motivated the appearance of operating system emulation environments [31]. A well-known example is the TOSSIM [32] simulator for TinyOS. Its main propose is to execute TinyOS applications without their deployment in actual WSN nodes. TOSSIM ignores some hardware behaviours like interruptions of the CPU.

Unlike the aforementioned approaches that simulate directly the programming code, existing researches also concentrate on defining behavioural models of WSNs. Shareef and Zhu [33] use Deterministic and Stochastic Petri Nets (DSPNs) to model the behaviour of IMote2's CPU and radio. Each place represents a state of the processor or the radio. The number of tokens present in each place at the end of simulation represents the time spent (in percentage terms) in that state. To find out the consumption of each state, it multiplies the amount of tokens by the average power consumption of the respective state. NS-2 [34] and OPNET [35] are well-known simulators that may be used to evaluate the power consumption of WSNs.

Most of these applications are strongly coupled to a particular hardware platform, which makes difficult the adoption of the same approach for different WSN motes. In particular, our solution facilitates the evaluation of new platforms, as the presented models are generic and only need to be configured to a particular mote. Another advantage of the proposed approach is the generation of power consumption results from a programming language code in an automatic way.

5.3. Analytical Modelling

Current approaches that use analytical modelling focus on the evaluation of WSN networks and not in WSN applications: Shinghal et al. [18] estimated the lifetime of particular WSN motes developed by them; Rusli at al. [36] evaluated the performance of the Opportunity Routing (OR) protocol [37]; Manjeshwar et al. [38] modelled, evaluated and compared the energy consumption of two protocols, namely LEACH [39,40] and APTEEN [41]); Sahota et al. [42] proposed and evaluated a new MAC protocol name DS-MAC [43]; and Cano et al. [44] verify the benefits (overhearing and collision) of Low Power Listening (LPL) [45] of MAC protocols.

6. Conclusions and Future Work

This paper presented an approach for evaluating the power consumption of WSN applications through simulation. The proposed approach consists of a set CPN models that represents the power consumption of nesC operators, which are assembled together to model the power consumption of the whole application. Basic in this strategy is the development and implementation of the nesc2cpn translator that is responsible for both generating the CPN models and evaluating their power consumption by interacting with the CPN Tools.

The main contribution of this paper is the proposition of an approach that automatically generates the power consumption of a WSN application straight from its nesC code. By composing the proposed CPN models, the translator is able to generate function and application models that allow a fine and coarse grained power consumption evaluation of WSN applications. The proposed models and the translator were evaluated in such way that the power consumption results obtained through simulating the generated models and actual measurement were very similar and it was not possible to make distinction between them.

We have now started to solve the limitations of the model (e.g., asynchronous codes) and to extend the proposed solution in order to allow the power consumption evaluation of wireless sensor networks (e.g., thousands of WSN nodes, network protocols and lower power listening) using the generated application models. Due to the possible increase in the size of simulation models, the implemented tools are now being migrated to a cloud computing environment with a greater processing power. Finally, a nesC editor is now being developed and integrated into the proposed translator to allow a power aware development of WSN applications.

This work has been partially supported by the “Fundação de Amparo à Ciência e Tecnologia do Estado de Pernambuco” (FACEPE) through the process number IBPG-0396-1.03/10.

References

  1. Chang, C.-C.; Nagel, D.; Muftic, S. Assessment of Energy Consumption in Wireless Sensor Networks: A Case Study for Security Algorithms. Proceedings of IEEE International Conference on Mobile Ad hoc and Sensor Systems, MASS, Pisa, Italy, 8– 11 October 2007; pp. 1–6.
  2. Hiltunen, J.; Ala-Louko, M.; Taumberger, M. Experimental performance evaluation of POBICOS middleware for wireless sensor networks. Commun. Netw. 2012, doi:10.5402/2012/180369.
  3. Lajara, R.; Pelegrí-Sebastiá, J.; Solano, J.J.P. Power consumption analysis of operating systems for wireless sensor networks. Sensors 2010, 10, 5809–5826.
  4. Shinghal, K.; Noor, A.; Srivastava, N.; Singh, R. Power measurements of Wireless Sensor Network node. Int. J. Comput. Eng. Sci. (IJCES) 2011, 1, 8–13.
  5. Yeap, G. Practical Low Power Digital VLSI Design; Kluwer Academic Publishers: Dordrecht, The Netherlands, 1998.
  6. Jensen, K.; Kristensen, L. Coloured Petri Nets: Modelling and Validation of Concurrent Systems; Springer: New York, NY, USA, 2009.
  7. Jensen, K. Coloured Petri Nets: Basic Concepts, Analysis Methods and Practical Use; Springer Verlag: London, UK, 1995; Volume 2.
  8. Jensen, K.; Kristensen, L.; Wells, L. Coloured Petri Nets and CPN Tools for modelling and validation of concurrent systems. Int. J. Softw. Tools Technol. Transfer. 2007, 9, 213–254.
  9. Murata, T. Petri nets: Properties, analysis and applications. Proc. IEEE 1989, 77, 541–580.
  10. Silva, M.; Terue, E.; Colom, J. Linear Algebraic and Linear Programming Techniques for the Analysis of Place/Transition Net Systems. In Lectures on Petri Nets I: Basic Models; Reisig, W., Rozenberg, G., Eds.; Springer: Berlin/Heidelberg, Germany, 1998; pp. 309–373.
  11. Desel, J.; Reisig, W. Place/Transition Petri Nets. In Lectures on Petri Nets I: Basic Models: Advances in Petri Nets.; Reisig, W., Rozenberg, G., Eds.; Springer: Berlin/Heidelberg, Germany, 1998; pp. 122–173.
  12. Milner, R.; Tofte, M.; Macqueen, D. The Definition of Standard ML; MIT Press: Cambridge, MA, USA, 1997.
  13. CPN Tools. Available online: http://cpntools.org/ (accessed on 22 November 2012).
  14. Valmari, A. Stubborn Set Methods for Process Algebras. Proceedings of the DIMACS Workshop on Partial Order Methods in Verification, New York, NY, USA, 24– 26 July 1997; pp. 213–231.
  15. Clarke, E.; Enders, R.; Filkorn, T.; Jha, S. Exploiting symmetry in temporal logic model checking. Form. Meth. Syst. Des. 1996, 9, 77–104.
  16. Valmari, A. The State Explosion Problem. In Lectures on Petri Nets I: Basic Models, Advances in Petri Nets, Volumes Based on the Advanced Course on Petri Nets.; Springer-Verlag: London, UK, 1996; pp. 429–528.
  17. Beyer, D. Improvements in BDD-Based Reachability Analysis of Timed Automata. In Proceedings of the International Symposium of Formal Methods Europe on Formal Methods for Increasing Software Productivity; Springer-Verlag: London, UK, 2001; pp. 318–343.
  18. Asmussen, S.; Glynn, P.W. Stochastic Simulation: Algorithms and Analysis; Springer: New York, NY, USA, 2007.
  19. Haas, P. Stochastic Petri Nets: Modeling, Stability, Simulation; Springer: New York, NY, USA, 2010.
  20. Agre, J.; Clare, L. An integrated architecture for cooperative sensing networks. Computer 2000, 33, 106–108.
  21. Akyildiz, I.; Su, W.; Sankarasubramaniam, Y.; Cayirci, E. Wireless sensor networks: A survey. Computer Networks 2002, 38, 393–422.
  22. Pottie, G.J.; Kaiser, W.J. Embedding the Internet: Wireless integrated network sensors. Commun. ACM 2000, 43, 51.
  23. Levis, P.; Madden, S.; Polastre, J.; Szewczyk, R.; Whitehouse, K.; Woo, A.; Gay, D.; Hill, J.; Welsh, M.; Brewer, E.; Culler, D. TinyOS: An Operating System for Sensor Networks. In Ambient Intelligence; Weber, W., Rabaey, J.M., Aarts, E., Eds.; Springer: Berlin/Heidelberg, Germany; pp. 115–148.
  24. MEMSIC. Wireless Module Iris: Iris Datasheet. Available online: http://www.memsic.com (accessed on 22 November 2012).
  25. Gay, D.; Levis, P.; von Behren, R.; Welsh, M.; Brewer, E.; Culler, D. The nesC Language: A Holistic Approach to Networked Embedded Systems. Proceedings of the Conference on Programming Language Design and Implementation, ACM SIGPLAN, New York, NY, USA, May 2003; pp. 1–11.
  26. Silicon Graphics Inc. C Language Reference Manual. SGI®, Document Number: 007–0701–150, Available online: http://techpubs.sgi.com (accessed on 22 November 2012).
  27. Trivedi, K.S. Probability and Statistics with Reliability. Queuing and Computer Science Applications; John Wiley & Sons: New York, NY, USA, 2002.
  28. Tavares, E.; Silva, B.; Maciel, P. An Environment for Measuring and Scheduling Time-Critical Embedded Systems with Energy Constraints. Proceedings of Sixth IEEE International Conference on Software Engineering and Formal Methods, (SEFM 08), Cape Town, South Africa, 10– 14 November 2008; pp. 291–300.
  29. Titzer, B.; Lee, D.; Palsberg, J. Avrora: Scalable Sensor Network Simulation with Precise Timing. Fourth International Symposium on Information Processing in Sensor Networks (IPSN), Los Angeles, CA, USA, 25– 27 April 2005; pp. 477–482.
  30. Somov, A.; Minakov, I.; Simalatsar, A.; Fontana, G.; Passerone, R. A Methodology for Power Consumption Evaluation of Wireless Sensor Networks. Proceedings of IEEE Conference on Emerging Technologies Factory Automation, (ETFA), Mallorca, Spain, 22– 26 September 2009; pp. 1–8.
  31. Haase, J.; Molina, J.; Dietrich, D. Power-aware system design of wireless sensor networks: Power estimation and power profiling strategies. IEEE Tran. Indust. Inform. 2011, 7, 601–613.
  32. Levis, P.; Lee, N.; Welsh, M.; Culler, D. TOSSIM: Accurate and Scalable Simulation of Entire TinyOS Applications. Proceedings of the 1st International Conference on Embedded Networked Sensor Systems, New York, NY, USA, 5– 7 November 2003; pp. 126–137.
  33. Shareef, A.; Zhu, Y. Energy Modelling of Wireless Sensor Nodes Based on Petri Nets. Proceedings of the 39th International Conference on Parallel Processing (ICPP), San Diego, CA, USA, 13– 16 September 2010; pp. 101–110.
  34. ISI. The Network Simulator—NS2; University of Southern California: Los Angeles, CA, USA. Available online: http://www.isi.edu/nsnam/ns (accessed on 15 September 2012).
  35. Chang, X. Network Simulations with OPNET. Proceedings of the 1999 Winter Simulation Conference, Squaw Peak, Phoenix, AZ, USA, 5– 8 December 1999; pp. 307–314.
  36. Rusli, M.; Harris, R.; Punchihewa, A. Markov Chain-Based Analytical Model of Opportunistic Routing Protocol for Wireless Sensor Networks. Proceedings of IEEE Region 10 Conference TENCON 2010, Fukuoka, Japan, 21– 24 November 2010; pp. 257–262.
  37. Biswas, S.; Morris, R. Opportunistic routing in multi-hop wireless networks. Computer Communication Review, ACM SIGCOMM, Portland, Oregon, USA, 30 August– 3 September 2004. Volume 34; pp. 69–74.
  38. Manjeshwar, A.; Zeng, Q.-A.; Agrawal, D. An analytical model for information retrieval in wireless sensor networks using enhanced APTEEN protocol. IEEE Trans. Parall. Distrib. Syst. 2002, 13, 1290–1302.
  39. Heinzelman, W. Application-Specific Protocol Architectures for Wireless Networks. Ph.D. Thesis, Massachusetts Institute of Technology, Cambridge, MA, USA, 2000.
  40. Heinzelman, W.; Chandrakasan, A.; Balakrishnan, H. Energy-Efficient Communication Protocol for Wireless Microsensor Networks. Proceedings of the 33rd Annual Hawaii International Conference on System Sciences (HICSS-33), Island of Maui, Hawaii, USA, 4– 7 January 2000; pp. 3005–3014.
  41. Manjeshwar, A.; Agrawal, D. APTEEN: A Hybrid Protocol for Efficient Routing and Comprehensive Information Retrieval in Wireless Sensor Networks. Proceedings of International Parallel and Distributed Processing Symposium (IPDPS), Fort Lauderdale, FL, USA, 15– 19 April 2002; pp. 195–202.
  42. Sahota, H.; Kumar, R.; Kamal, A. A wireless sensor network for precision agriculture and its performance. Wirel. Commun. Mobile Comput. 2011, 12, 1628–1645.
  43. Lin, P.; Qiao, C.; Wang, X. Medium Access Control with a Dynamic Duty Cycle for Sensor Networks. Proceedings of IEEE Wireless Communications and Networking Conference (WCNC), Atlanta, GA, USA, 21– 25 March 2004; pp. 1534–1539.
  44. Cano, C.; Bellalta, B.; Barcelo, J.; Oliver, M.; Sfairopoulou, A. Analytical Model of the LPL with Wake up after Transmissions MAC Protocol for WSNs. Proceedings of 6th International Symposium on Wireless Communication Systems (ISWCS), Siena-Tuscany, University of Siena, Siena, Italy, 7– 10 September 2009; pp. 146–150.
  45. Hill, J.; Culler, D. Mica: A wireless platform for deeply embedded networks. IEEE Micro 2002, 22, 12–24.
Sensors 13 03473f1 200
Figure 1. (a) place and token, (b) arc and (c) transition representations in CPN Tools.

Click here to enlarge figure

Figure 1. (a) place and token, (b) arc and (c) transition representations in CPN Tools.
Sensors 13 03473f1 1024
Sensors 13 03473f2 200
Figure 2. Schematic view of the CPN models definition.

Click here to enlarge figure

Figure 2. Schematic view of the CPN models definition.
Sensors 13 03473f2 1024
Sensors 13 03473f3 200
Figure 3. Generic CPN model of the nesC operators.

Click here to enlarge figure

Figure 3. Generic CPN model of the nesC operators.
Sensors 13 03473f3 1024
Sensors 13 03473f4 200
Figure 4. CPN model of the commands if-then-else and switch.

Click here to enlarge figure

Figure 4. CPN model of the commands if-then-else and switch.
Sensors 13 03473f4 1024
Sensors 13 03473f5 200
Figure 5. CPN model of the command while.

Click here to enlarge figure

Figure 5. CPN model of the command while.
Sensors 13 03473f5 1024
Sensors 13 03473f6 200
Figure 6. CPN model of the command do-while.

Click here to enlarge figure

Figure 6. CPN model of the command do-while.
Sensors 13 03473f6 1024
Sensors 13 03473f7 200
Figure 7. CPN model of the command for.

Click here to enlarge figure

Figure 7. CPN model of the command for.
Sensors 13 03473f7 1024
Sensors 13 03473f8 200
Figure 8. CPN models of the command call.

Click here to enlarge figure

Figure 8. CPN models of the command call.
Sensors 13 03473f8 1024
Sensors 13 03473f9 200
Figure 9. CPN model of the event receive.

Click here to enlarge figure

Figure 9. CPN model of the event receive.
Sensors 13 03473f9 1024
Sensors 13 03473f10 200
Figure 10. CPN Model of the function.

Click here to enlarge figure

Figure 10. CPN Model of the function.
Sensors 13 03473f10 1024
Sensors 13 03473f11 200
Figure 11. Schematic representation of the Application model.

Click here to enlarge figure

Figure 11. Schematic representation of the Application model.
Sensors 13 03473f11 1024
Sensors 13 03473f12 200
Figure 12. Overview of nesc2cpn translator.

Click here to enlarge figure

Figure 12. Overview of nesc2cpn translator.
Sensors 13 03473f12 1024
Sensors 13 03473f13 200
Figure 13. Power consumption of App1.

Click here to enlarge figure

Figure 13. Power consumption of App1.
Sensors 13 03473f13 1024
Sensors 13 03473f14 200
Figure 14. Power consumption of App2.

Click here to enlarge figure

Figure 14. Power consumption of App2.
Sensors 13 03473f14 1024
Sensors 13 03473f15 200
Figure 15. Power consumption of App3.

Click here to enlarge figure

Figure 15. Power consumption of App3.
Sensors 13 03473f15 1024
Sensors 13 03473f16 200
Figure 16. Power consumption of App4.

Click here to enlarge figure

Figure 16. Power consumption of App4.
Sensors 13 03473f16 1024
Sensors 13 03473f17 200
Figure 17. module scheduler of App5.

Click here to enlarge figure

Figure 17. module scheduler of App5.
Sensors 13 03473f17 1024
Sensors 13 03473f18 200
Figure 18. Power consumption of App5.

Click here to enlarge figure

Figure 18. Power consumption of App5.
Sensors 13 03473f18 1024
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
