Sensors 2013, 13(2), 1902-1918; doi:10.3390/s130201902
Article

3D LIDAR-Camera Extrinsic Calibration Using an Arbitrary Trihedron

* , *  and
Department of Information Science and Electronic Engineering, Zhejiang University, Hangzhou 310027, Zhejiang, China
* Authors to whom correspondence should be addressed.
Received: 14 November 2012 / Revised: 8 January 2013 / Accepted: 24 January 2013 / Published: 1 February 2013
(This article belongs to the Section Remote Sensors)
View Full-Text   |   Download PDF [3521 KB, 21 June 2014; original version 21 June 2014]   |   Browse Figures

Abstract

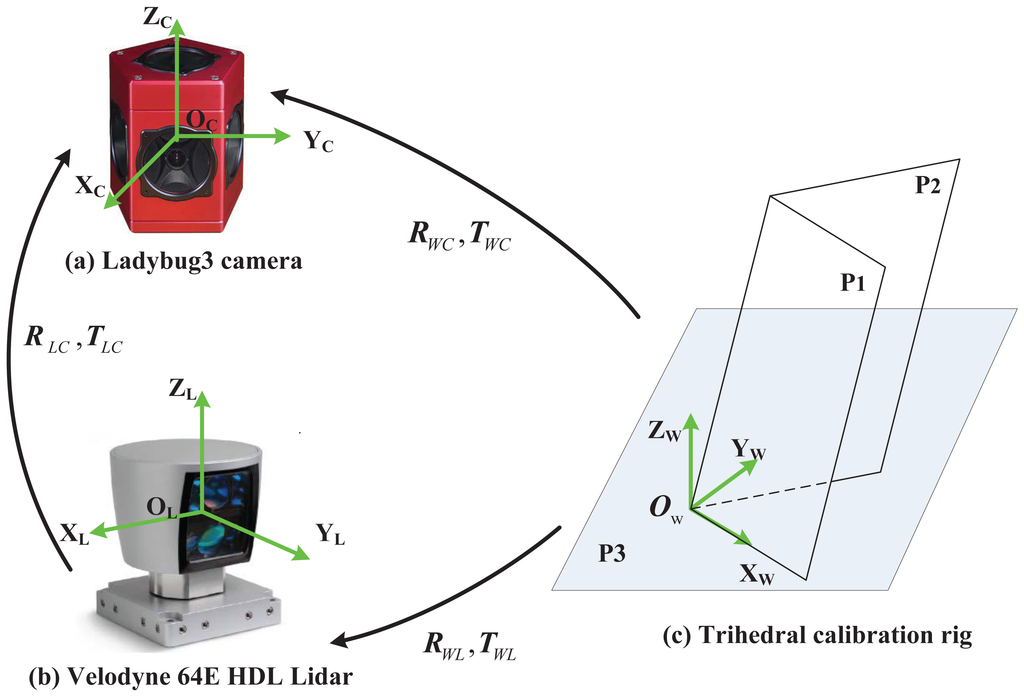

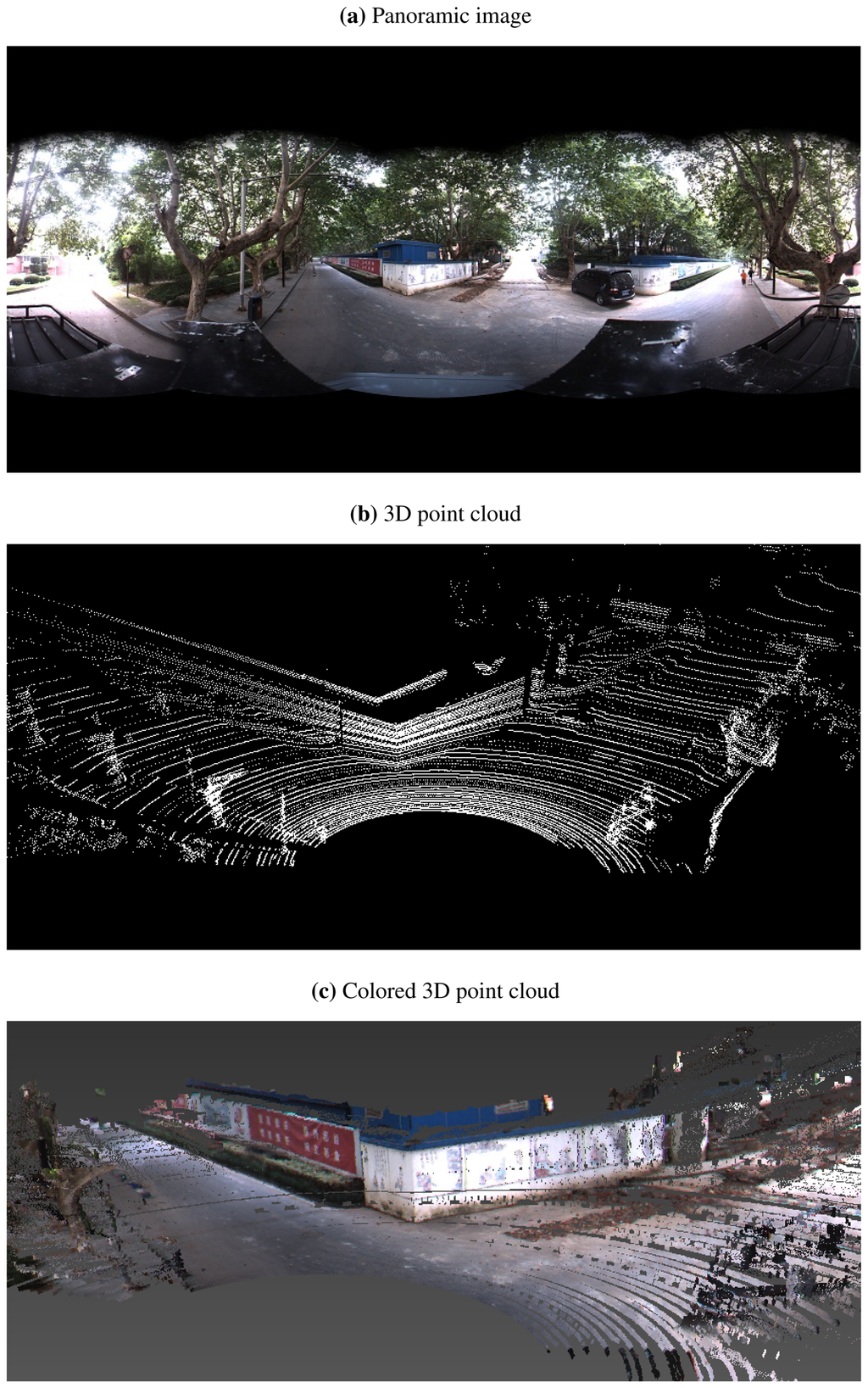

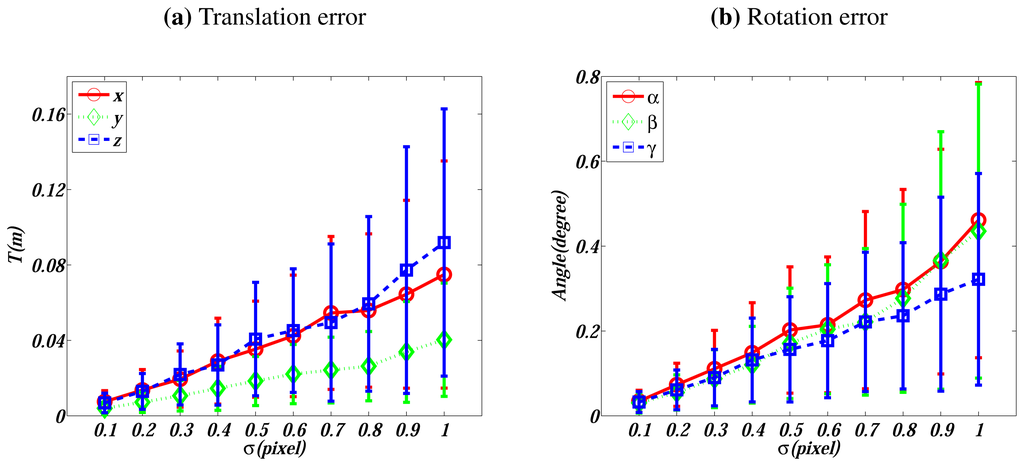

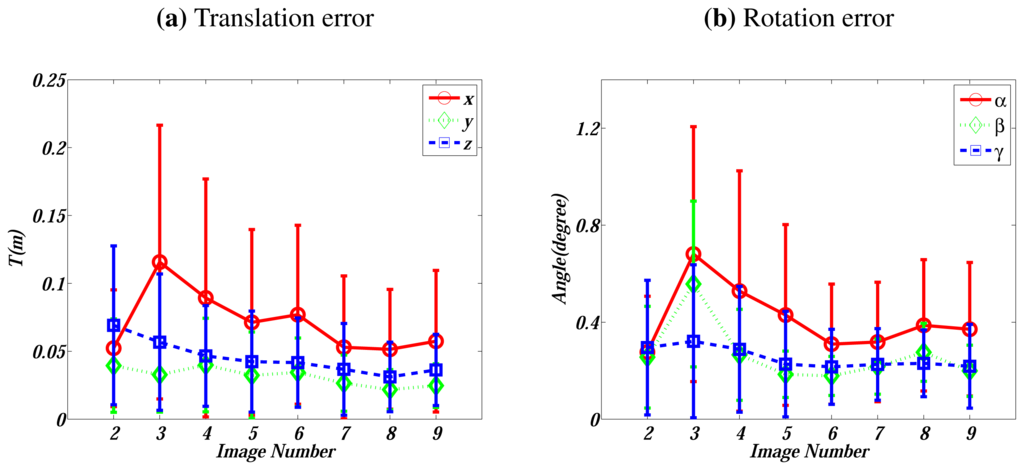

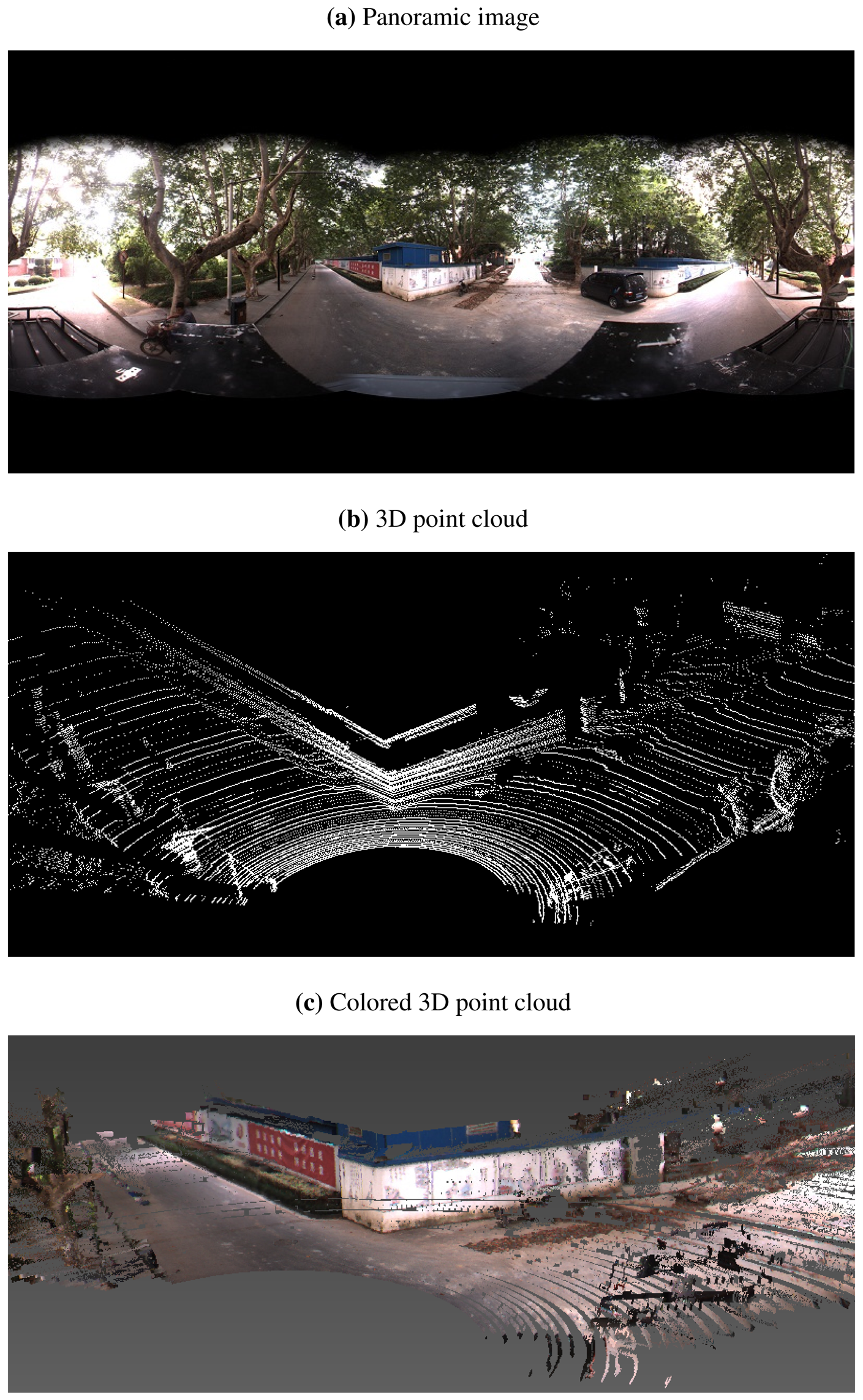

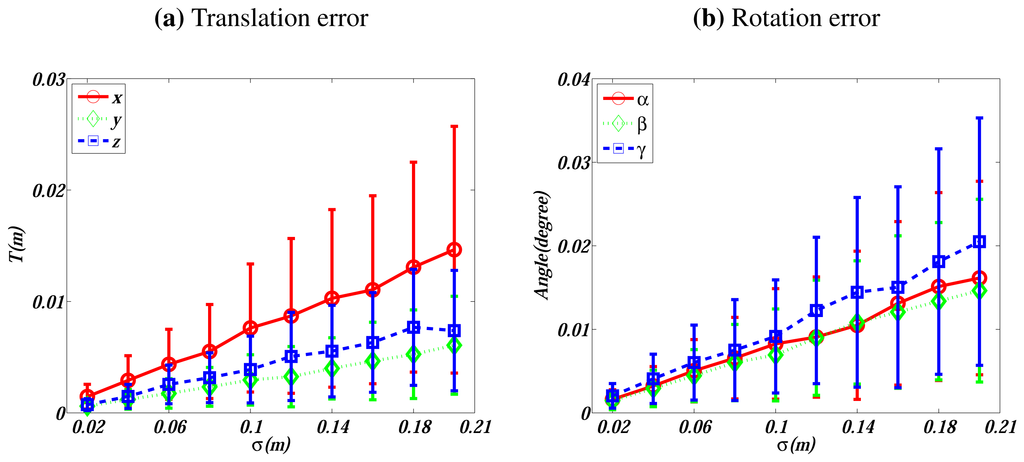

This paper presents a novel way to address the extrinsic calibration problem for a system composed of a 3D LIDAR and a camera. The relative transformation between the two sensors is calibrated via a nonlinear least squares (NLS) problem, which is formulated in terms of the geometric constraints associated with a trihedral object. Precise initial estimates of NLS are obtained by dividing it into two sub-problems that are solved individually. With the precise initializations, the calibration parameters are further refined by iteratively optimizing the NLS problem. The algorithm is validated on both simulated and real data, as well as a 3D reconstruction application. Moreover, since the trihedral target used for calibration can be either orthogonal or not, it is very often present in structured environments, making the calibration convenient.
Keywords: extrinsic calibration; 3D LIDAR-camera system; sensor fusion extrinsic calibration; 3D LIDAR-camera system; sensor fusion
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
