Sensors 2013, 13(12), 17067-17083; doi:10.3390/s131217067
Article

Adaptation of Soil Physical Measurement Techniques for the Delineation of Mud and Lakebed Sediments at Neusiedler See

1,* , 2
, 1
, 1
, 1
 and 1
1 Institute of Hydraulics and Rural Water Management, University of Natural Resources and Life Sciences, Vienna, Nußdorfer Lände 11, Vienna 1190, Austria 2 Institute of Surveying, Remote Sensing and Land Information, University of Natural Resources and Life Sciences, Vienna, Peter-Jordan-Straße 82, Vienna 1190, Austria
* Author to whom correspondence should be addressed.
Received: 20 October 2013 / Revised: 3 December 2013 / Accepted: 8 December 2013 / Published: 12 December 2013
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [1636 KB, 21 June 2014; original version 21 June 2014]   |   Browse Figures

Abstract

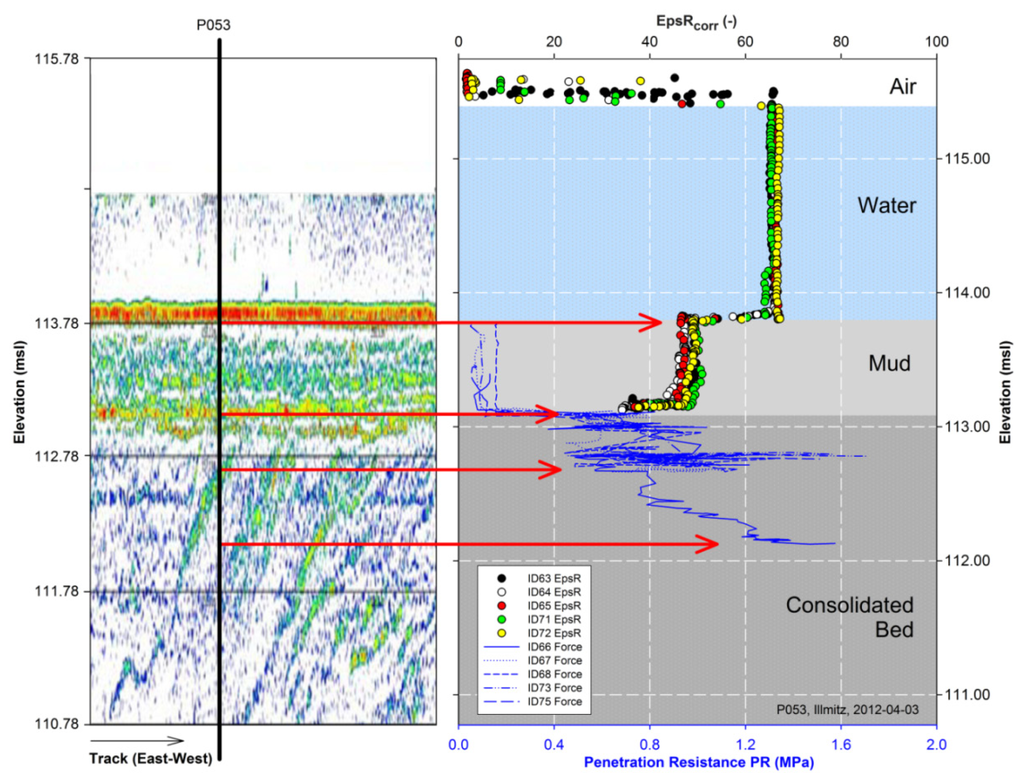

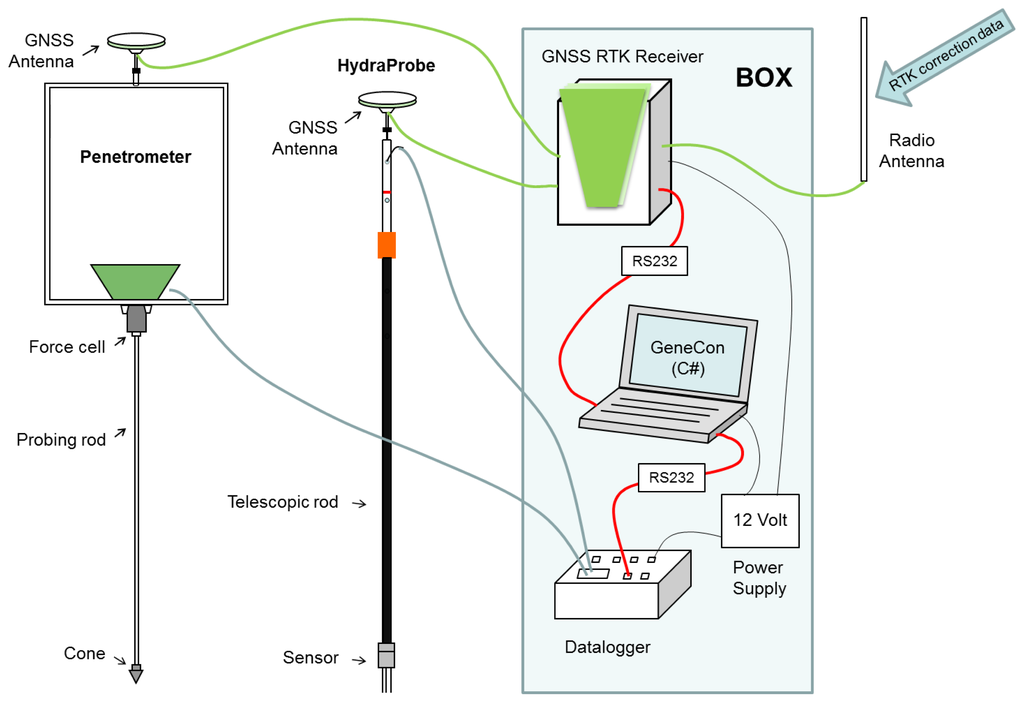

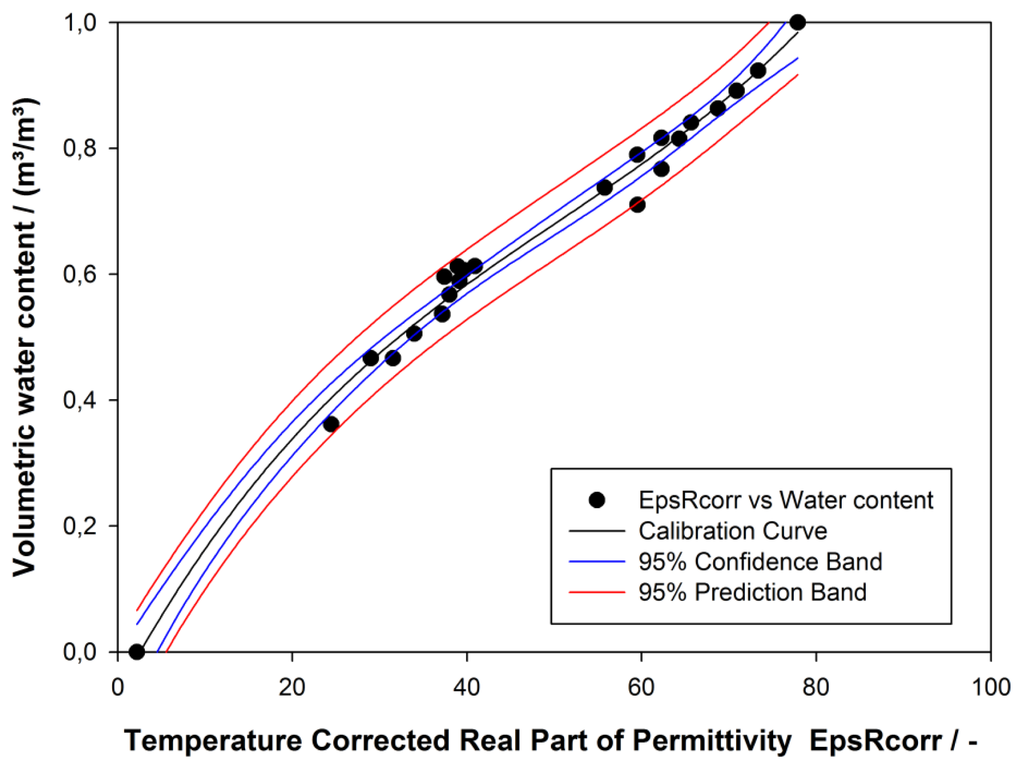

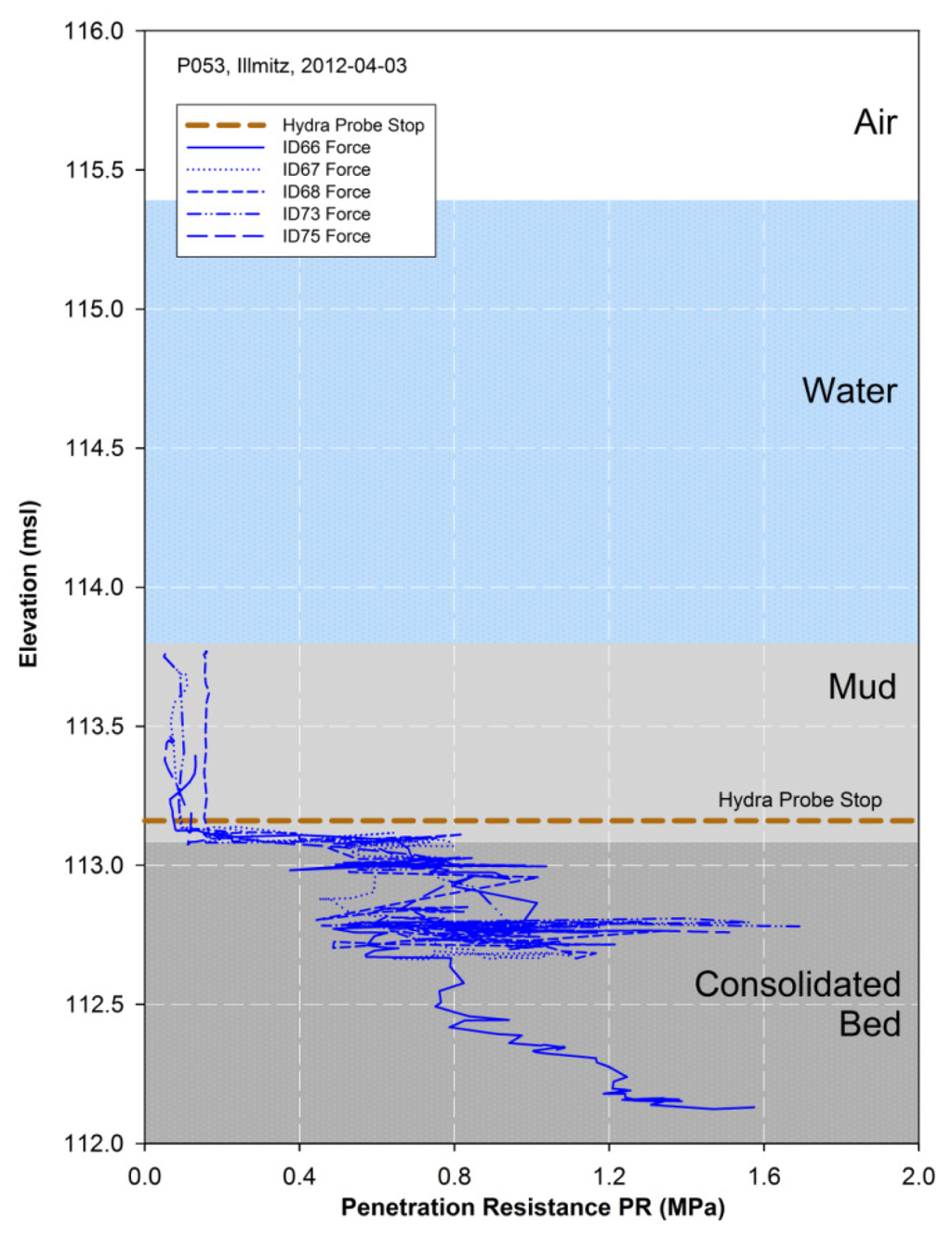

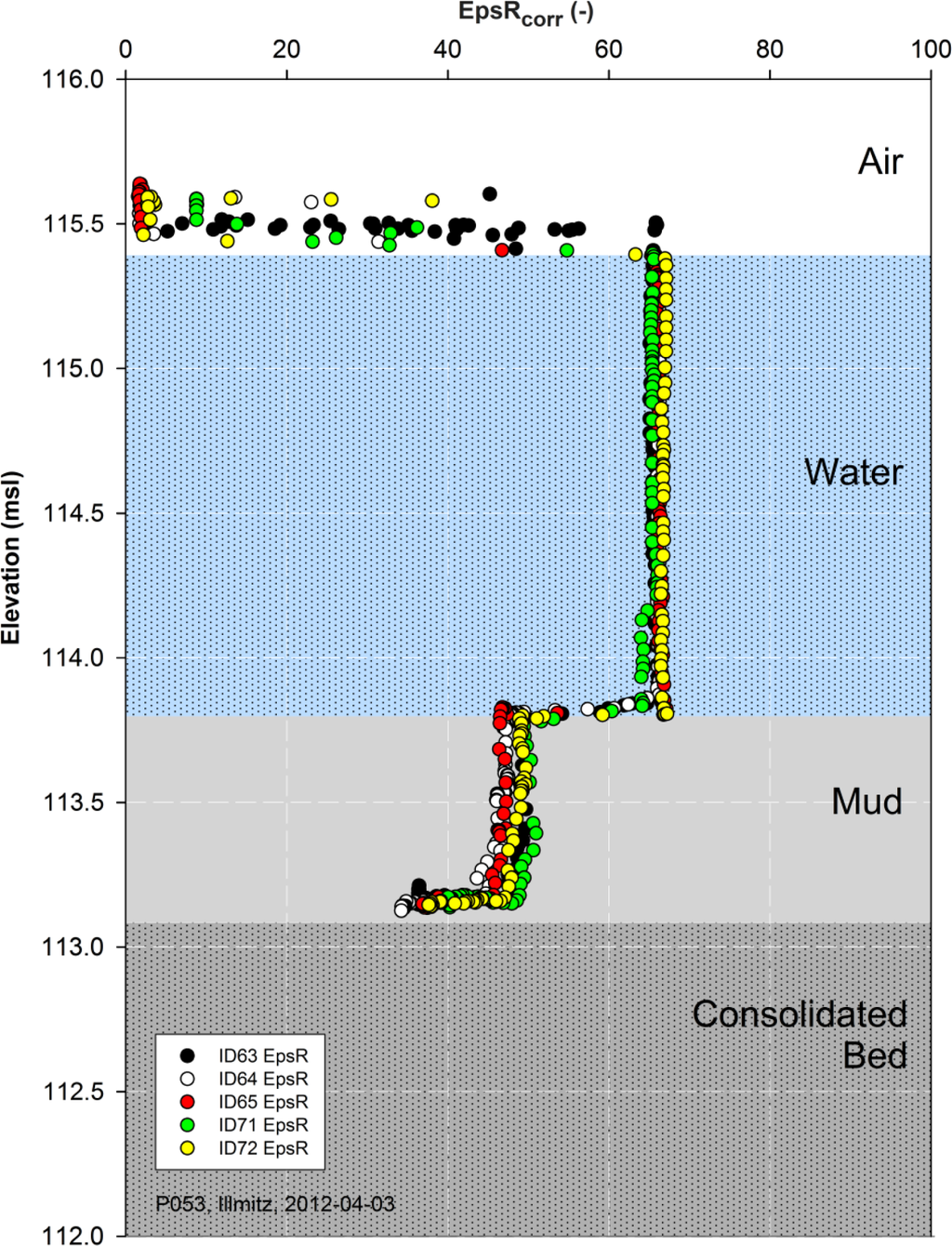

For many water management issues of shallow lakes with non-consolidated sediments hydrographic surveys of the open water area and reed belt areas are required. In the frame of water management strategy for the steppe lake Neusiedler See, located between Austria and Hungary, a hydrographic survey was conducted. In the open water area (water depth ≥1 m) a sediment echosounder was used. To validate these measurements and to distinguish between water, mud, and sediment layers in the shallow lake and reed belt area additional measurements were needed. As no common standard methods are available yet, we developed a measurement system based on two commonly applied soil physical measurement techniques providing reproducible physical values: a capacitive sensor and a cone penetrometer combined with GNSS-positioning enable dynamic measurements of georeferenced vertical water-mud-bedsediments profiles. The system bases on site-specific calibrated sensors and allows instantaneous, in situ measurements. The measurements manifest a sharp water-mud interface by a sudden decline to smaller water content which is a function of the dielectric permittivity. A second decline indicates the transition to compacted mud. That is concurrently the density where the penetrometer starts registering significant penetration resistance. The penetrometer detects shallow lakebed-sediment layers. Within the lake survey this measurement system was successfully tested.
Keywords: sediment profiles; mud layer delineation; shallow steppe lake; cone penetrometer; FDR; echo sounding sediment profiles; mud layer delineation; shallow steppe lake; cone penetrometer; FDR; echo sounding
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Export to BibTeX |
EndNote


MDPI and ACS Style

Kogelbauer, I.; Heine, E.; D'Amboise, C.; Müllebner, C.; Sokol, W.; Loiskandl, W. Adaptation of Soil Physical Measurement Techniques for the Delineation of Mud and Lakebed Sediments at Neusiedler See. Sensors 2013, 13, 17067-17083.
