Sensors 2012, 12(8), 10693-10706; doi:10.3390/s120810693

A Wide Linear Range Eddy Current Displacement Sensor Equipped with Dual-Coil Probe Applied in the Magnetic Suspension Flywheel

Science and Technology on Inertial Laboratory, School of Instrumentation Science and Opto-Electronics Engineering, Beijing University of Aeronautics and Astronautics, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Received: 10 June 2012 / Revised: 27 June 2012 / Accepted: 12 July 2012 / Published: 6 August 2012
(This article belongs to the Section Physical Sensors)
View Full-Text   |   Download PDF [2131 KB, uploaded 21 June 2014]   |

Abstract

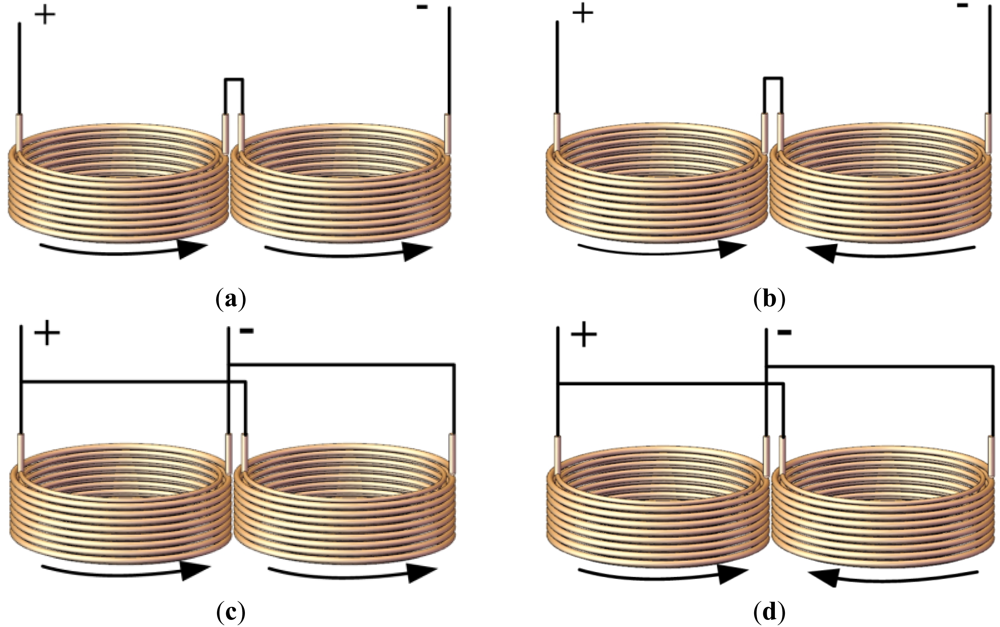

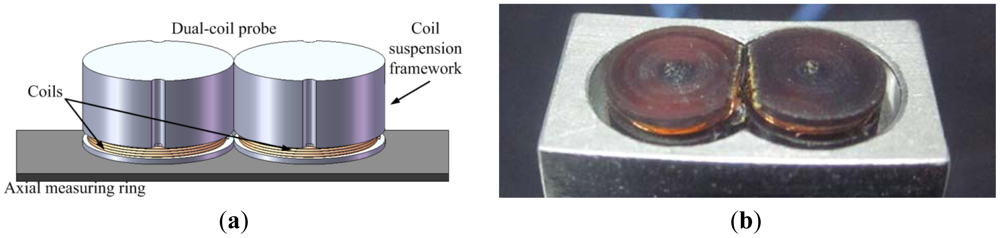

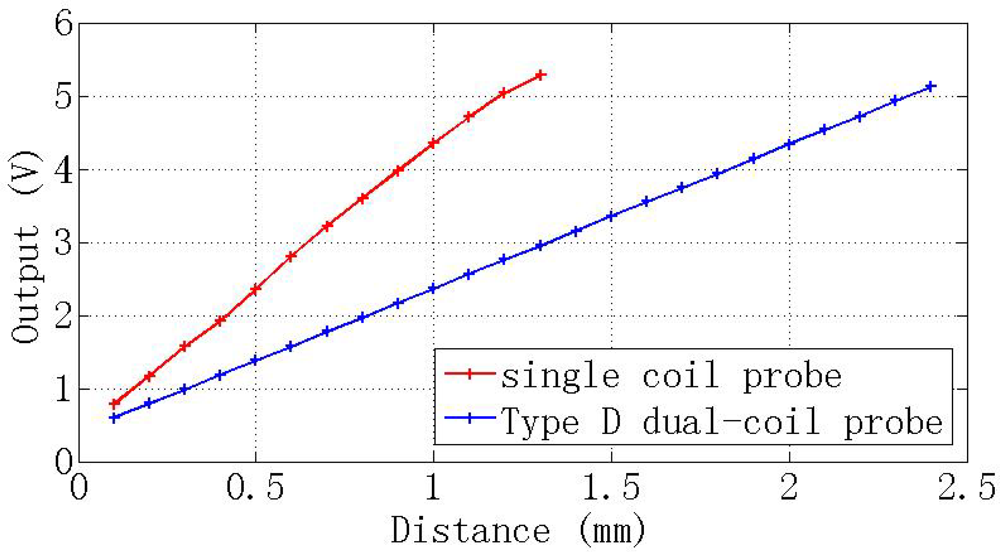

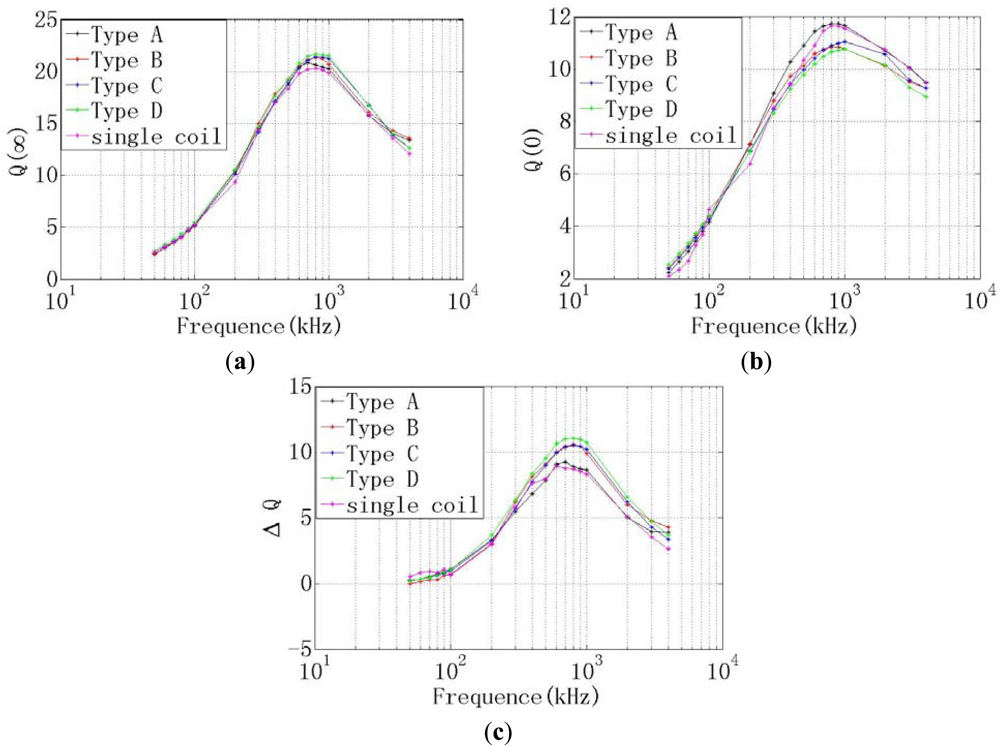

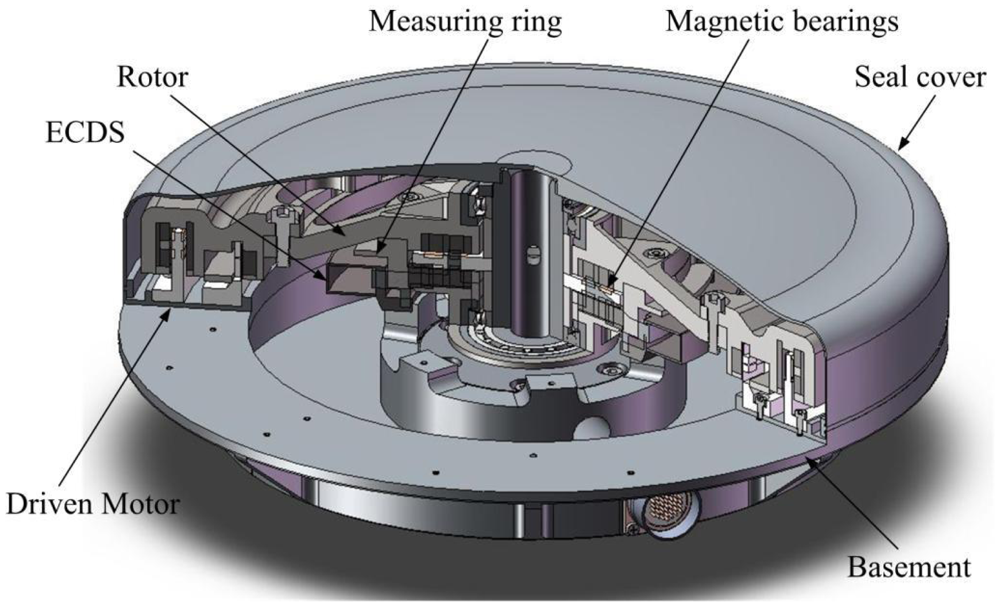

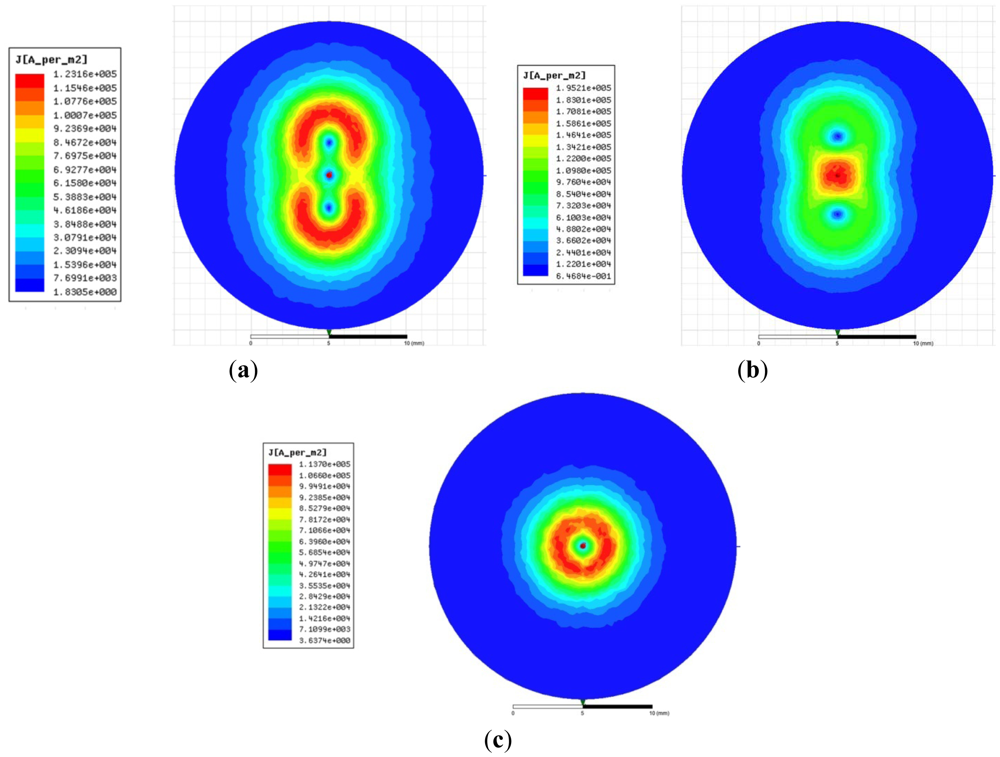

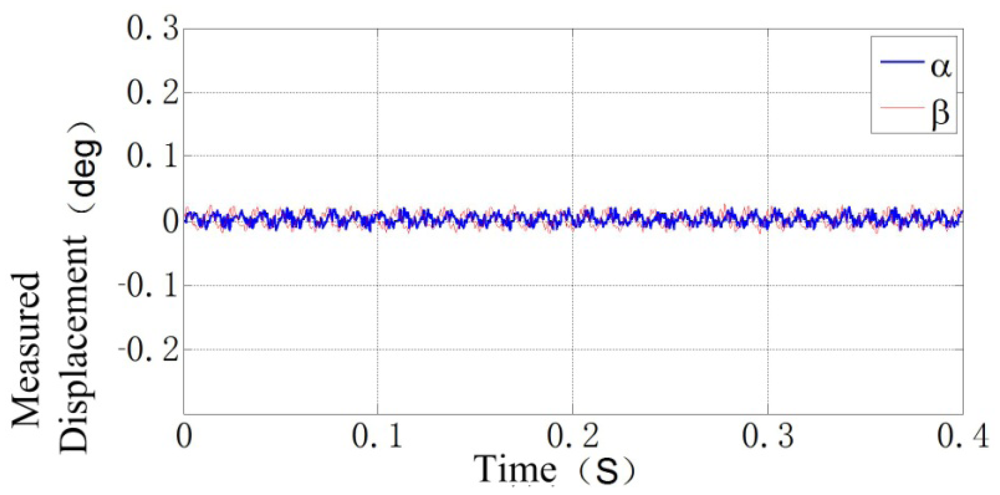

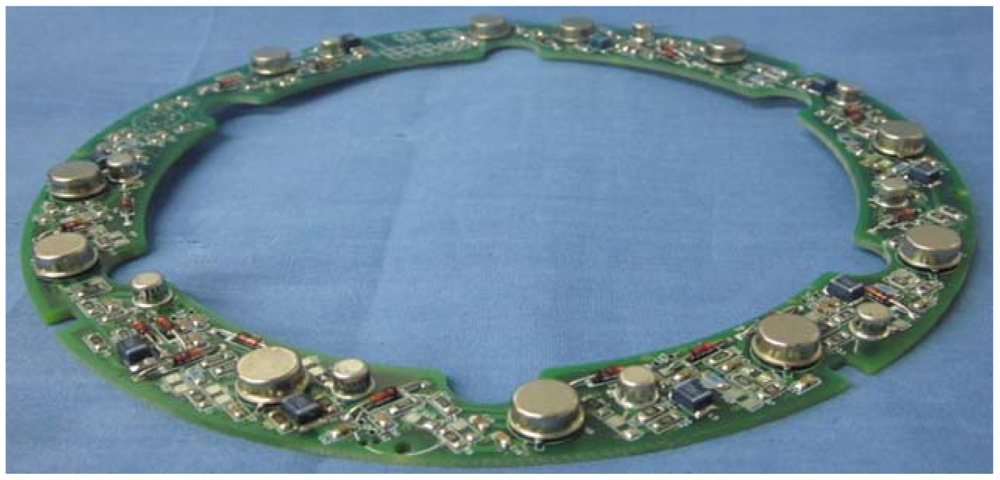

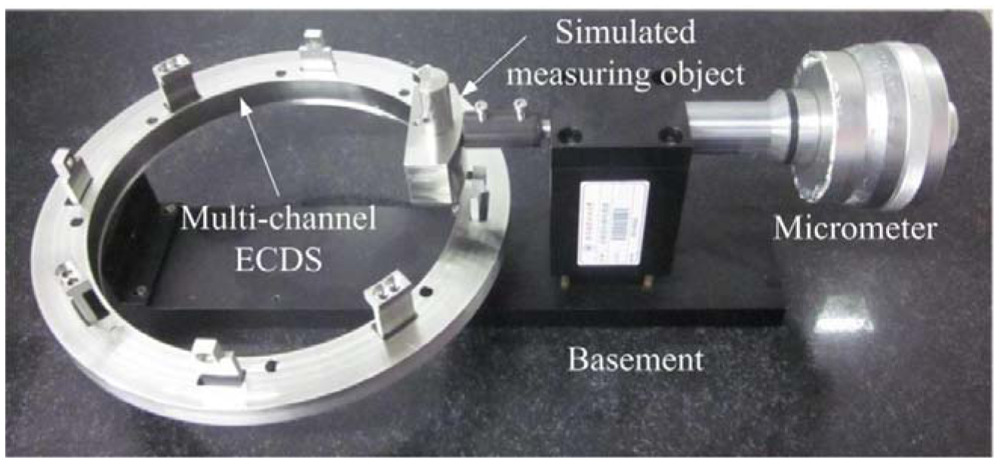

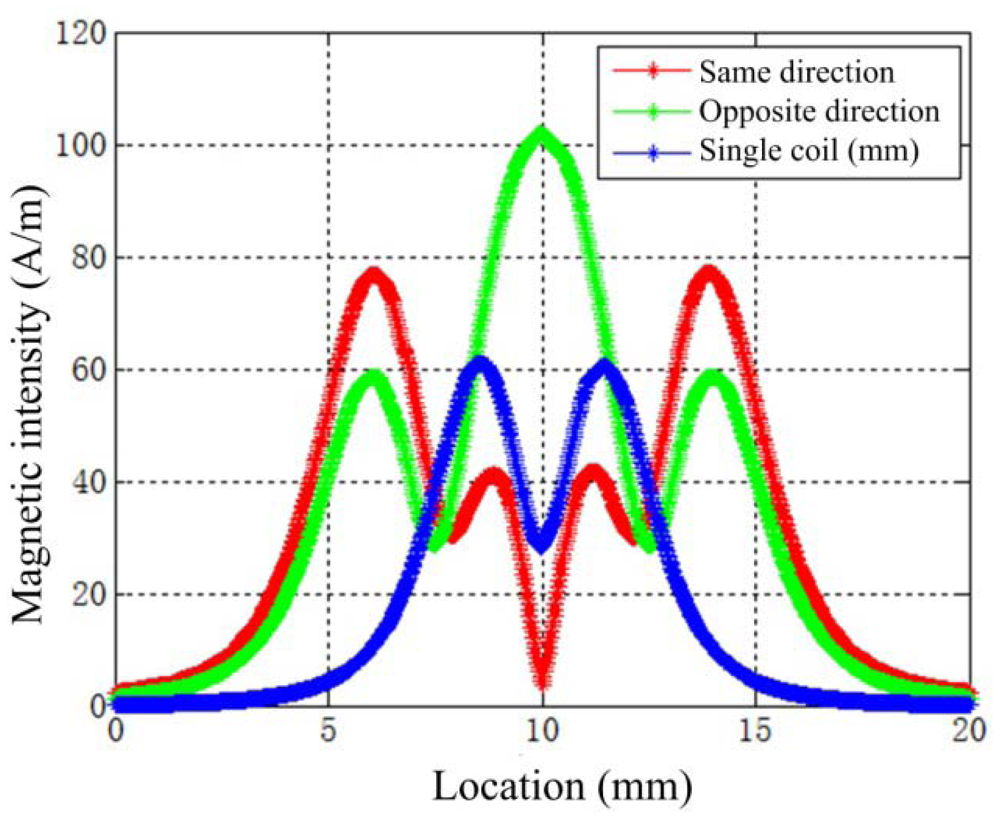

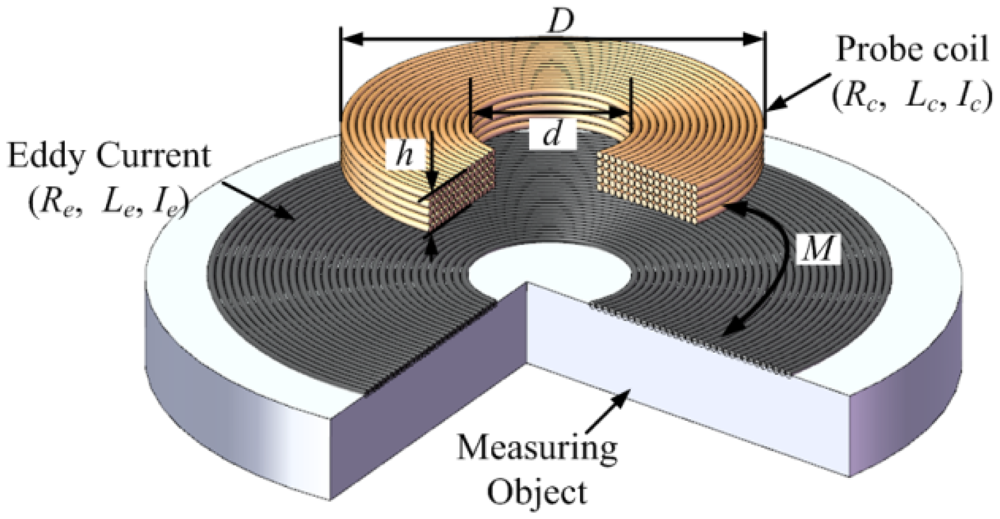

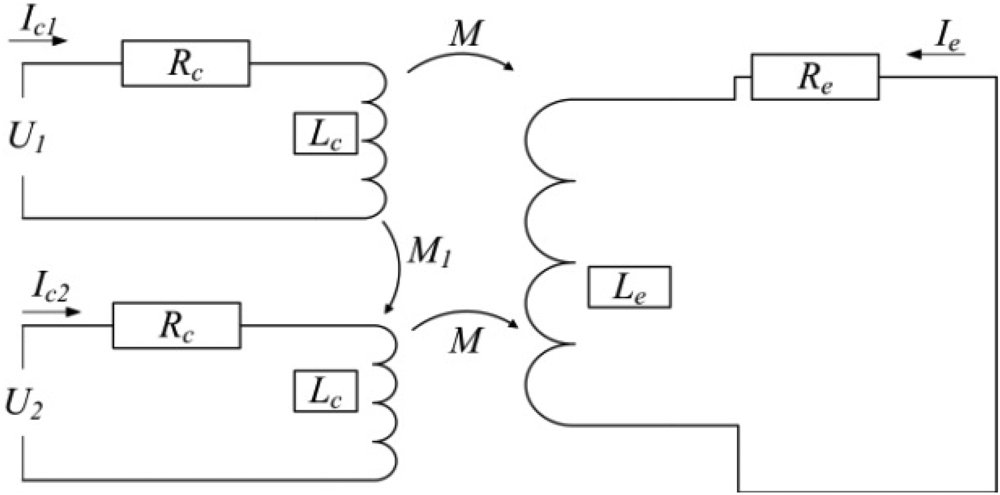

The Eddy Current Displacement Sensor (ECDS) is widely used in the Magnetic Suspension Flywheel (MSFW) to measure the tiny clearance between the rotor and the magnetic bearings. The linear range of the ECDS is determined by the diameter of its probe coil. Wide clearances must be measured in some new MSFWs recently designed for the different space missions, but the coil diameter is limited by some restrictions. In this paper, a multi-channel ECDS equipped with dual-coil probes is proposed to extend the linear range to satisfy the demands of such MSFWs. In order to determine the best configuration of the dual-coil probe, the quality factors of the potential types of the dual-coil probes, the induced eddy current and the magnetic intensity on the surface of the measuring object are compared with those of the conventional single-coil probe. The linear range of the ECDS equipped with the selected dual-coil probe is extended from 1.1 mm to 2.4 mm under the restrictions without adding any cost for additional compensation circuits or expensive coil materials. The effectiveness of the linear range extension ability and the dynamic response of the designed ECDS are confirmed by the testing and the applications in the MSFW.

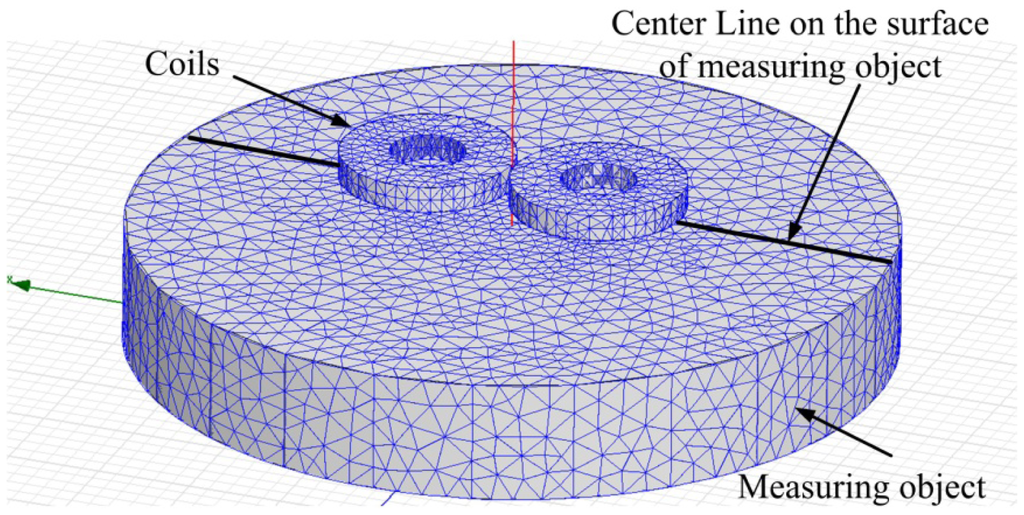

Keywords: eddy current displacement sensor; dual-coil probe; magnetic suspension flywheel; FEM analysis eddy current displacement sensor; dual-coil probe; magnetic suspension flywheel; FEM analysis
