A Portable and Power-Free Microfluidic Device for Rapid and Sensitive Lead (Pb2+) Detection
Chunhui Fan 1,2, Shijiang He 2, Gang Liu 3, Lianhui Wang 1,* and Shiping Song 2,*
Laboratory of Advanced Materials, Fudan University, 2205 Songhu Road, Shanghai 200438, China
Laboratory of Physical Biology, Shanghai Institute of Applied Physics, Chinese Academy of Sciences, Shanghai 201800, China
Shanghai Institute of Measurement and Testing Technology, Shanghai 201203, China
Authors to whom correspondence should be addressed; Tel.: +86-21-3919-4065 (S.S.); Fax: +86-21-3919-4702 (S.S.).
Received: 29 May 2012; in revised form: 6 June 2012 / Accepted: 2 July 2012 / Published: 10 July 2012


: A portable and power-free microfluidic device was designed for rapid and sensitive detection of lead (Pb2+). 11-mercaptoundecanoic acid (MUA)-functionalized gold nanoparticles (MUA-AuNPs) aggregated in the presence of Pb2+ for the chelation mechanism. When we performed this analysis on a polydimethylsiloxane (PDMS) microfluidic chip, the aggregations deposited onto the surface of chip and formed dark lines along the laminar flows in the zigzag microchannels. This visual result can be observed by the naked eye through a microscope or just a drop of water as a magnifier. Ten μM Pb2+ was successfully detected.
gold nanoparticles; Pb2+; 11-mercaptoundecanoic acid; microfluidic chip

1. Introduction

Heavy metal ions (HMIs), such as lead (Pb2+), mercury (Hg2+) represent significant hazards to the environment and human health [14], since they can contaminate the soil and water and enter the water supply and food chain. Their residues and toxicity cause serious and long-term effects. Thus development of rapid and sensitive methods for the detection of HMIs has become a very urgent need and has drawn a lot of research interest in recent years.

So far, many techniques have been developed to detect HMIs such as atomic absorption/emission spectroscopy (AAS), inductively coupled plasma-mass spectrometry (ICP-MS) and mass spectroscopy (MS) [57]. However, most of the existing methods rely heavily on expensive and complicated techniques, thus fast and simple sensors are in great demand.

Gold nanoparticles (AuNPs) have been extensively explored as sensing probes because of their unique optical and electrochemical properties [8]. Since Mirkin et al. [9,10] first reported that AuNPs' aggregation is accompanied by a color change, colorimetrical assay methods utilizing AuNPs have been widely developed. Xia et al. achieved a universal colorimetric assay employing gold nanoparticles and water-soluble conjugated polyelectrolytes, including nucleic acid, small molecules, proteins, and inorganic ions [11], while Wang et al., developed a platform for the detection of magnesium and pyrophosphate ions [12]. Besides, colorimetric analysis have also made progress in the detection of viruses and bacteria [13,14]. Recently, the application of modified AuNPs in HMI detection has attracted considerable research interest. For example, Lu's group developed a sensor based on the Pb2+-dependent DNAzyme and AuNPs [15]. In the presence of Hg2+, oligo-T can form a thymine-Hg2+-thymine (T-Hg2+-T) complex, thus many novel Hg2+ detection approaches have been developed based on oligo-T modified AuNPs [16,17].

More recently, 11-mercaptoundecanoic acid (MUA) functionalized gold nanoparticles have been demonstrated as good probes for the detection of HMIs in aqueous solution by Hupp et al. [18]. Compared to other AuNP probes, MUA modified AuNPs are simple and cheap to produce, which suggests their huge potential for practical applications. In our previous work [19], a portable device based on power-free PDMS microfluidic technology has been developed. The sensor can detect mercury ions with great sensitivity with the naked eyes, which shows great practicality in analysis of actual samples.

In this work, we detected Pb2+ with AuNPs which are modified by MUA (MUA-AuNPs). As probes, The chelation between MUA and Pb2+ will cause the aggregation of the MUA-AuNPs. We can obviously see the solution color changed from red to purple caused by the effect of plasmonic coupling (Figure 1). While on our power-free PDMS microfluidic device, the aggregations thus formed deposited onto the surface of PDMS, resulting in a dark line which can be observed under a microscope.

2. Materials and Methods

2.1. Reagents and Materials

PDMS (Sylgard 184) was purchased from Dow Corning (Midland, MI, USA). Chloroauric acid trihydrate (HAuCl4·3H2O), HMIs and 11-mercaptoundecanoic acid (MUA, Figure 2) were obtained from Sigma (St. Louis, MO, USA). Deionized water (18.2 MΩ) produced by the Milli-Q system was used throughout the experiments.

2.2. Preparation of Au Nanoparticles

Fifteen (15) nm Au nanoparticles (AuNPs) were prepared by citrate reduction of HAuCl4 which is similar to Grabar's method [20]. 1% trisodium citrate solution (4 mL) was added to a boiling solution of HAuCl4 (99 mL deionized water and 1 mL 1% HAuCl4). The mixture was kept boiling and stirring for about 30 min until the color of the aqueous change from yellow to red. After that, the solution was cooled to room temperature while being stirred continuously and then the prepared AuNPs was stored at 4 °C.

2.3. Modification of AuNPs

The modification of AuNPs with 11-mercaptoundecanoc acid (MUA-AuNPs) was carried out mainly as reported [18] with some changes as follows: aqueous solution (500 μL) consisting of MUA (2.4 mM) and an equivalent amount of sodium hydroxide (2.4 mM) were added to 15 nm Au nanoparticle suspension (500 μL). The mixed solution was stirred with the speed of 450 rpm in 80 °C for 1 h on the Thermo mixer (Eppendorf, Hamburg, Germany). After cooling down to room temperature, the mixture was centrifuged twice (10,000 rpm, 10 mins, 4 °C) and the supernatant was replaced with deionized water.

2.4. Fabrication of Microfluidic Chips

Microfluidic chips with Y shape and zigzag microchannels were firstly fabricated according to standard photolithographic methods [21]. Then a negative master was prepared on the silicon wafer by SU-8 photoresist, and a plasma etcher was used to realize the passivation of the master. The prepared master was placed in a glass bottom dish. After that, PDMS prepolymer (10:1 v/v mixture) was degassed and cast onto the master. After heating for 2 h at 80 °C, the PDMS was removed from the substrate and the holes punched with corresponding metal pipes. We used a flat PDMS slab (3 mm thick) as the substrate that bonding with the prepared PDMS layer to form the channels for chemical reaction. The dimensions of the finished microchannels in the chip are 100 μm (width) × 30 μm (height), and the whole chip are 3.5 cm (width) × 5 cm (length).

2.5. Preparation and Inletting of the Regent

After degassing at 10 kPa for 1 h, the microfluidic chip was immediately sealed with adhesive tape except for the inlet reservoirs to be ready for Pb2+ detection. The MUA modified AuNPs and different test samples were added into two inlet reservoirs using micropipette.

3. Results and Discussions

3.1. Colorimetric Analysis in Solution

Our AuNP-based HMI sensor was based on the colour change caused by the surface plasmon resonance effect on AuNP aggregation. It is known that normal AuNPs with diameter between 10 nm to 50 nm appear red in colour in water [22,23], as we can see from the tube 1 in Figure 3, when Pb2+ was added, chelate interaction with the carboxylate groups of MUA-AuNPs occurred, which shortens the distance between the gold nanoparticles and formed aggregates. Owing to the inter-particle coupled plasmon excitons in the aggregated states, a red-to-purple color change can be observed in the solutions. As shown in Figure 3, the colorimetric response to Pb2+ resulted in an obvious color change in the number two and three tubes. We challenged the strategy with other metal ions, including Mn2+ and Zn2+, and the experimental results demonstrated that Pb2+ had a much stronger signal (data not shown). Yet to be improved, an obvious megascopic response can only be obtained with concentrations higher than 0.025 mM in solution.

3.2. Au-MUA's Deposition in the Microfluidic Channels Induced by Pb2+

PDMS has been widely used in microfluidic systems for their optical transparency, low toxicity and ease of fabrication properties [24,25]. More importantly, with its high gas solubility, PDMS was demonstrated to be a great potential material for power-free microchips [26]. The equilibrium concentration of gas dissolved in PDMS is directly proportional to the local gas pressure around the PDMS. Accordingly, when a vacuum degassed PDMS device returns to the atmosphere, it will absorb air to establish new state of equilibrium which will automatically cause a negative pressure in the microfluidics channels. This is the basic principle of a power-free PDMS device. Our PDMS chip was fabricated with two Y-shaped zigzag micro-channels, and the two inlets were at the equal position of the upper corners of Y shape [19]. Zigzag shaped channels were designed to favour solution mixing. The PDMS microfluidic chip was firstly degassed in an airtight vacuum desiccator for 1 h, then 3 μL of MUA-AuNPs solution and 3 μL of different concentrations of Pb2+ (or deionized water, unknown samples) were added into each inlet reservoir. Drawn by the negative pressure in the channels, the droplets from two inlets simultaneously flowed to the junction and mixed together in the channels. Since the passages have twists and turns these enhanced the degree of mixing, and MUA-AuNPs and Pb2+ reacted sufficiently. Carboxylate groups on the surface of MUA-AuNPs chelated Pb2+, and made the nanoparticles aggregate. Gradually, a dark line can be observed using microscope in the presence of Pb2+ whereas no line can be seen without Pb2+. As we can see from Figure 4, the Pb2+ solution with a concentration as low as 10 μM could form a very clear line, while the blank samples generated no visual signal (Figure 4A). The time for solution flowing from inlet to outlet reservoir was less than 15 min, which is a remarkable advantage for real use. It was demonstrated to be a simple, fast and feasible method which showed great superiority of the power-free microfluidic device.

With a high throughout microfluidic chip that include eight microchannels, different concentrations of HMIs can be detected simultaneously. The process of sample injection was the same with the operation of the single microchannel microfluidic chip. The same analysis effect was achieved even on a multi-microchannel microfluidic chip. As shown in Figure 5, the channels numbered from 5 to 8 that contained Pb2+ displayed obvious dark lines. In contrast, the control ions, such as Na+, Ca2+ and Mg2+ did not show any aggregation (lines 1–4 in Figure 5).

Interestingly, just with the help of a drop of water as a magnifier, the lines can be seen with the naked eye. As shown in Figure 6, the microchannels can be identified clearly under a normal camera. Therefore we can read out the results easily due to the visible aggregation lines, which is quite important for the field testing.

4. Conclusions

In summary, we have developed a simple and portable Pb2+ sensor on a microfluidic chip with a detection limit of 10 μM Pb2+ which is competitive with traditional physico-chemical quantitative methods. Among the numerous methods that focus on metal ions detection, such as fluorescence and colorimetric methods [2729], electrical detection based on reduced grapheme [30], surface enhanced Ramans cattering (SERS) sensors [31,32] and so on, our device has obvious advantages. Firstly, it is considearbly more convenient because it is power-free and reusable, and we can read the analysis results with our naked eyes through just a water drop as a magnifier. Secondly, it is an effective and fast detection method, that the whole detection process can be completed in less than a quarter hour. Thirdly, it is a low-cost analysis because no expensive and complicated reagents or equipment are needed. Thus, we believe our strategy offers a Pb2+ sensor with great potential popularity, and with proper probes and condition optimization, many other targets can be detected.


This work was supported by the National Science Foundation of China (91127037 and 91123037), the General Administration of Quality Supervision, Inspection and Quarantine of PRC (2010QK294), Shanghai Municipal Bureau of Quality and Technical Supervision (2012-04, 2012-03), Shanghai Postdoctoral Sustentation Fund, China (11R21420800), The National Basic Research Program of China (2012CB933301).


  1. Hamilton, J.W.; Kaltreider, R.C.; Bajenova, O.V.; Ihnat, M.A.; McCaffrey, J.; Turpie, B.W.; Rowell, E.E.; Oh, J.; Nemeth, M.J.; Pesce, C.A.; et al. Molecular basis for effects of carcinogenic heavy metals on inducible gene expression. J. Environ. Health 1998, 106, 1005–1015. [Google Scholar]
  2. Claudio, E.S.; Godwin, H.A.; Magyar, J.S. Fundamental coordination chemistry, environmental chemistry, and biochemistry of lead(II). Prog. Inorg. Chem. 2003, 51, 1–144. [Google Scholar]
  3. Adriano, D.C. Trace Elements in Terrestrial Environments: Biogeochemistry, Bioavailability and Risks of Metals, 2nd ed.; Springer-Verlag: New York, NY, USA, 2001. [Google Scholar]
  4. Sánchez-Camazano, M.; Sánchez-Martin, M.J.; Lorenzo, L.F. Significance of soil properties for content and distribution of cadmium and lead in natural calcareous soils. Sci. Total Environ. 1998, 218, 217–226. [Google Scholar]
  5. Gasparik, J.; Vladarova, D.; Capcarova, M.; Smehyl, P.; Slamecka, J.; Garaj, P.; Stawarz, R.; Massanyi, P. Concentration of lead, cadmium, mercury and arsenic in leg skeletal muscles of three species of wild birds. J. Environ. Sci. Health A 2010, 45, 818–823. [Google Scholar]
  6. Townsend, A.T.; Miller, K.A.; McLean, S.; Aldous, S. The determination of copper, zinc, cadmium and lead in urine by high resolution ICP-MS. J. Anal. At. Spectrom. 1998, 13, 1213–1219. [Google Scholar]
  7. Flamini, R.; Panighel, A. Mass spectrometry in grape and wine chemistry. Part II: The consumer protection. Mass Spectrom. Rev. 2006, 25, 741–774. [Google Scholar]
  8. Link, S.; El-Sayed, M.A. Optical properties and ultrafast dynamics of metallic nanocrystals. Annu. Rev. Phys. Chem. 2003, 54, 331–366. [Google Scholar]
  9. Mirkin, C.A.; Letsinger, R.L.; Mucic, R.C.; Storhoff, J.J. A DNA-based method for rationally assembling nanoparticles into macroscopic materials. Nature 1996, 382, 607–609. [Google Scholar]
  10. Elghanian, R.; Storhoff, J.J.; Mucic, R.C.; Letsinger, R.L.; Mirkin, C.A. Selective colorimetric detection of polynucleotides based on the distance-dependent optical properties of gold nanoparticles. Science 1997, 277, 1078–1081. [Google Scholar]
  11. Xia, F.; Zuo, X.L.; Yang, R.Q.; Xiao, Y.; Kang, D.; Vallée-Bélisle, A.; Gong, X.; Yuen, J.D.; Hsu, B.B.Y.; Heeger, A.J.; et al. Colorimetric detection of DNA, small molecules, proteins, and ions using unmodified gold nanoparticles and conjugated polyelectrolytes. Proc. Natl. Acad. Sci. USA 2010, 107, 10837–10841. [Google Scholar]
  12. Wang, H.B.; Xu, W.; Zhang, H.; Li, D.W.; Yang, Z.Q.; Xie, X.J.; Li, T.H.; Liu, X.G. EcoRI-Modified gold nanoparticles for dual-mode colorimetric detection of magnesium and pyrophosphate ions. Small 2011, 7, 1987–1992. [Google Scholar]
  13. Xie, X.J.; Xu, W.; Li, T.H.; Liu, X.G. Colorimetric detection of HIV-1 ribonuclease H activity by gold nanoparticles. Small 2011, 7, 1393–1396. [Google Scholar]
  14. Miranda, O.R.; Li, X.N.; Garcia-Gonzalez, L.; Zhu, Z.J.; Yan, B.; Bunz, U.H.F.; Rotello, V.M. Colorimetric bacteria sensing using a supramolecular enzyme-nanoparticle biosensor. J. Am. Chem. Soc. 2011, 133, 9650–9653. [Google Scholar]
  15. Wang, Z.D.; Lee, J.H.; Lu, Y. Label-free colorimetric detection of lead ions with a nanomolar detection limit and tunable dynamic range by using gold nanoparticles and DNAzyme. Adv. Mater. 2008, 20, 3263–3267. [Google Scholar]
  16. Xue, X.J.; Wang, F.; Liu, X.G. One-step, room temperature, colorimetric detection of mercury (Hg2+) using DNA/nanoparticle conjugates. J. Am. Chem. Soc. 2008, 130, 3244–3245. [Google Scholar]
  17. Lee, J.S.; Han, M.S.; Mirkin, C.A. Colorimetric detection of mercuric ion (Hg2+) in aqueous media using DNA-functionalized gold nanoparticles. Angew. Chem. Int. Ed. 2007, 46, 4093–4096. [Google Scholar]
  18. Kim, Y.; Johnson, R.C.; Hupp, J.T. Gold nanoparticle-based sensing of “Spectroscopically Silent” heavy metal ions. Nano Lett. 2001, 1, 165–167. [Google Scholar]
  19. He, S.J.; Li, D.; Zhu, C.F.; Song, S.P.; Wang, L.H.; Long, Y.T.; Fan, C.H. Design of a gold nanoprobe for rapid and portable mercury detection with the naked eye. Chem. Commun. 2008, 40, 4885–4887. [Google Scholar]
  20. Grabar, K.C.; Freeman, R.G.; Hommer, M.B.; Natan, M.J. Preparation and characterization of Au colloid monolayers. Anal. Chem. 1995, 67, 735–743. [Google Scholar]
  21. Xia, Y.N.; Whitesides, G.M. Soft lithography. Angew. Chem. Int. Ed. 1998, 37, 551–575. [Google Scholar]
  22. Ghosh, S.K.; Pal, T. Interparticle coupling effect on the surface plasmon resonance of gold nanoparticles: From theory to applications. Chem. Rev. 2007, 107, 4797–4862. [Google Scholar]
  23. Daniel, M.-C.; Astruc, D. Gold nanoparticles: Assembly, supramolecular chemistry, quantum-size related properties, and applications towards biology, catalysis and nanotechnology. Chem. Rev. 2004, 104, 293–346. [Google Scholar]
  24. Whitesides, G.M. The origins and the future of microfluidics. Nature 2006, 442, 368–373. [Google Scholar]
  25. Mark, D.; Haeberle, S.; Roth, G.; von Stetten, F.; Zengerle, R. Microfluidic lab-on-a-chip platforms: Requirements, characteristics and applications. Chem. Soc. Rev. 2010, 39, 1153–1182. [Google Scholar]
  26. Hosokawa, K.; Sato, K.; Ichikawa, N.; Maeda, M. Power-free poly(dimethylsiloxane) microfluidic devices for gold nanoparticle-based DNA analysis. Lab Chip 2004, 4, 181–185. [Google Scholar]
  27. Liu, J.W.; Lu, Y. Improving fluorescent DNAzyme biosensors by combining inter-and intramolecular quenchers. Anal. Chem. 2003, 75, 6666–6672. [Google Scholar]
  28. Liu, J.W.; Lu, Y. Rational design of “Turn-On” allosteric DNAzyme catalytic beacons for aqueous mercury ions with ultrahigh sensitivity and selectivity. Angew. Chem. Int. Ed. 2007, 46, 7587–7590. [Google Scholar]
  29. Nolan, E.M.; Lippard, S.J. A “Turn-On” fluorescent sensor for the selective detection of mercuric ion in aqueous media. J. Am. Chem. Soc. 2003, 125, 14270–14271. [Google Scholar]
  30. Sudibya, H.G.; He, Q.Y.; Zhang, H.; Chen, P. Electrical detection of metal ions using field-effect transistors based on micropatterned reduced graphene oxide films. ACS Nano 2011, 5, 1990–1994. [Google Scholar]
  31. Krpetic, Z.; Guerrini, L.; Larmour, I.A.; Reglinski, J.; Faulds, K.; Graham, D. Importance of nanoparticle size in colorimetric and SERS-based multimodal trace detection of Ni(II) ions with functional gold nanoparticles. Small 2011, 7, 1987–1992. [Google Scholar]
  32. Yin, J.; Wu, T.; Song, J.B.; Zhang, Q.; Liu, S.Y.; Xu, R.; Duan, H.W. SERS-active nanoparticles for sensitive and selective detection of cadmium ion (Cd2+). Chem. Mater. 2011, 23, 4756–4764. [Google Scholar]
Figure 1. Schematic illustration of the chelation mechanism of Pb2+ ions and MUA-AuNPs.
Figure 1. Schematic illustration of the chelation mechanism of Pb2+ ions and MUA-AuNPs.
Sensors 12 09467f1 1024

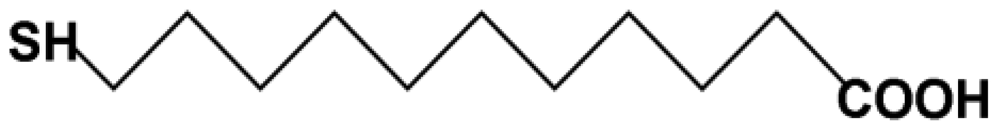

Figure 2. 11-Mercaptoundecanoic acid (MUA) molecule (C11H22O2S).
Figure 2. 11-Mercaptoundecanoic acid (MUA) molecule (C11H22O2S).
Sensors 12 09467f2 1024
Figure 3. Photographic image of MUA-AuNPs, with their colour visibly changed in the presence of Pb2+. (1) Deionized water; (2) 0.05 mM Pb2+; (3) 0.025 mM Pb2+; (4) 0.01 mM Pb2+; (5) 0.005 mM Pb2+.
Figure 3. Photographic image of MUA-AuNPs, with their colour visibly changed in the presence of Pb2+. (1) Deionized water; (2) 0.05 mM Pb2+; (3) 0.025 mM Pb2+; (4) 0.01 mM Pb2+; (5) 0.005 mM Pb2+.
Sensors 12 09467f3 1024

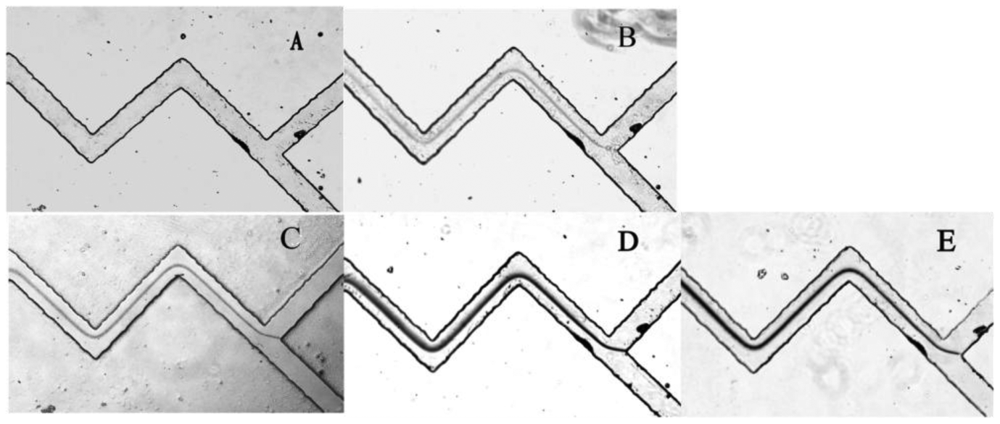

Figure 4. Microscope images of the analysis results for different concentration of Pb2+: (A) Deionized water; (B) 10 μM Pb2+; (C) 25 μM Pb2+; (D) 50 μM Pb2+;(E) 100 μM Pb2+.
Figure 4. Microscope images of the analysis results for different concentration of Pb2+: (A) Deionized water; (B) 10 μM Pb2+; (C) 25 μM Pb2+; (D) 50 μM Pb2+;(E) 100 μM Pb2+.
Sensors 12 09467f4 1024

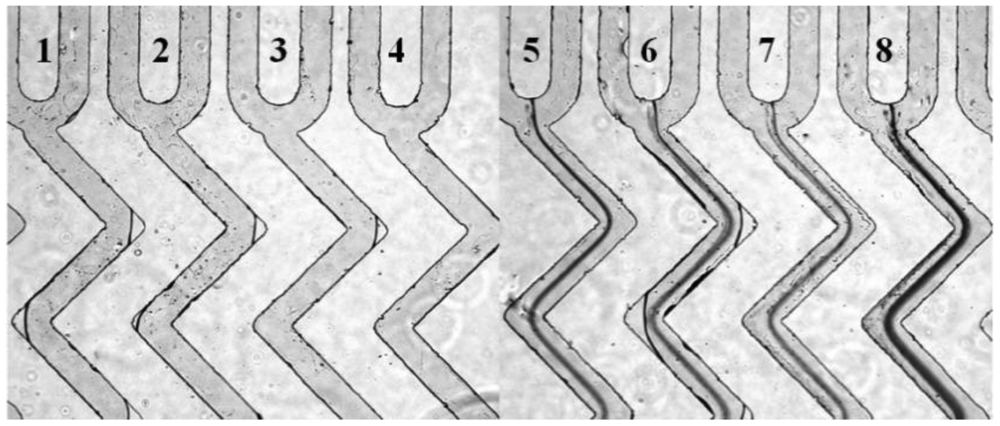

Figure 5. Microscope images of the lines in multi-microchannels microfluidic chip in the presence of different ion solutions. (1) 100 μM Mg2+; (2) 100 μM Ca2+; (3) 100 μM NaCl; (4) Deionized water; (5) 10 μM Pb2+; (6) 25 μM Pb2+; (7) 50 μM Pb2+; (8) 100 μM Pb2+.
Figure 5. Microscope images of the lines in multi-microchannels microfluidic chip in the presence of different ion solutions. (1) 100 μM Mg2+; (2) 100 μM Ca2+; (3) 100 μM NaCl; (4) Deionized water; (5) 10 μM Pb2+; (6) 25 μM Pb2+; (7) 50 μM Pb2+; (8) 100 μM Pb2+.
Sensors 12 09467f5 1024

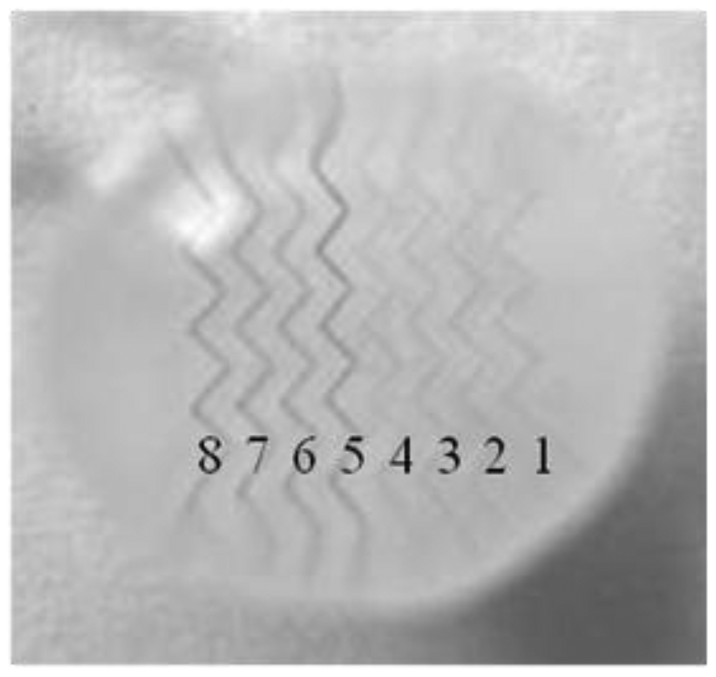

Figure 6. Image taken by a camera through a drop of water on a microfluidic chip. Channel 1–8 showed the analysis result from samples of different concentrations of various ions corresponding to the results shown in Figure 4: (1) Deionized water; (2) 0.1 mM NaCl; (3) 0.1 mM Ca2+; (4) 0.1 mM Mg2+; (5) 0.1 mM Pb2+; (6) 0.05 mM Pb2+; (7) 25 μM Pb2+; (8) 10 μM Pb2+.
