Sensors 2012, 12(7), 8526-8543; doi:10.3390/s120708526
Article

Analysis and Design of a Speed and Position System for Maglev Vehicles

,
,
 and *
Received: 3 May 2012; in revised form: 5 June 2012 / Accepted: 6 June 2012 / Published: 25 June 2012
(This article belongs to the Section Physical Sensors)

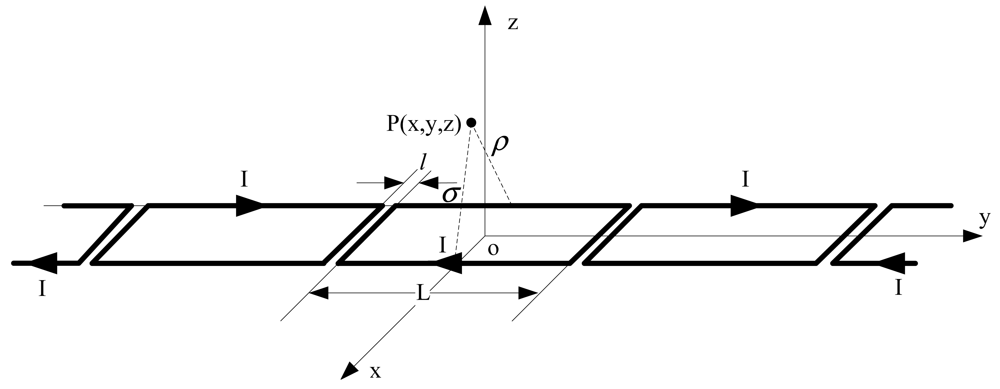

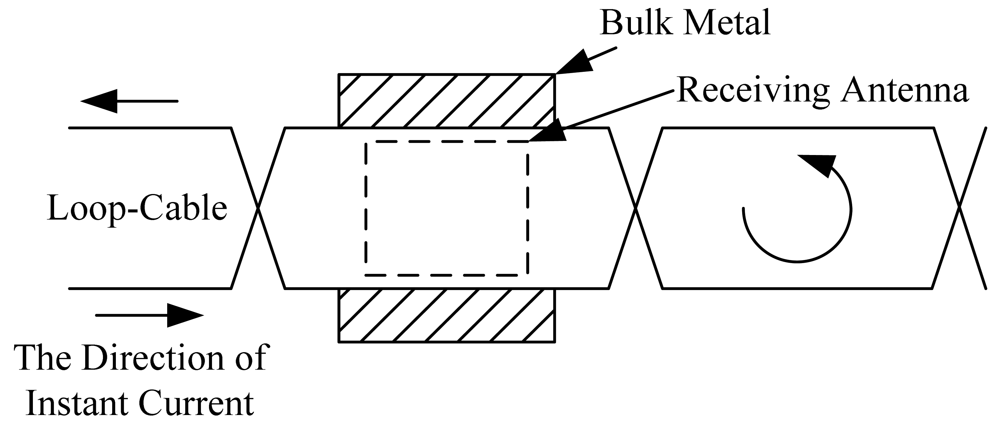

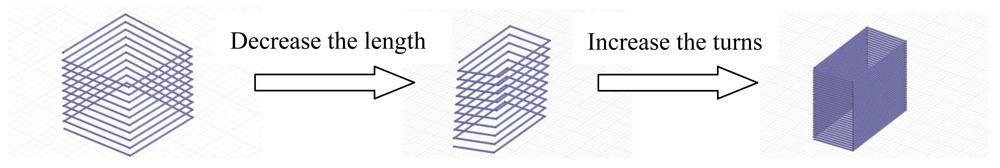

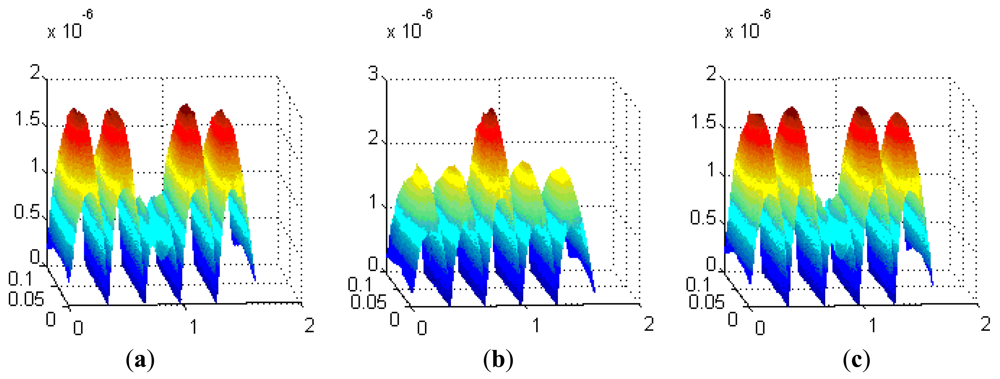

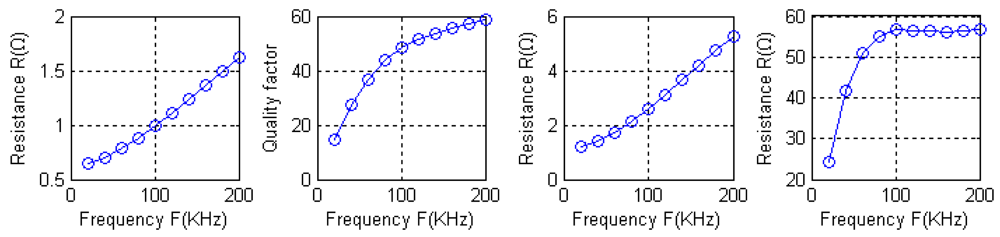

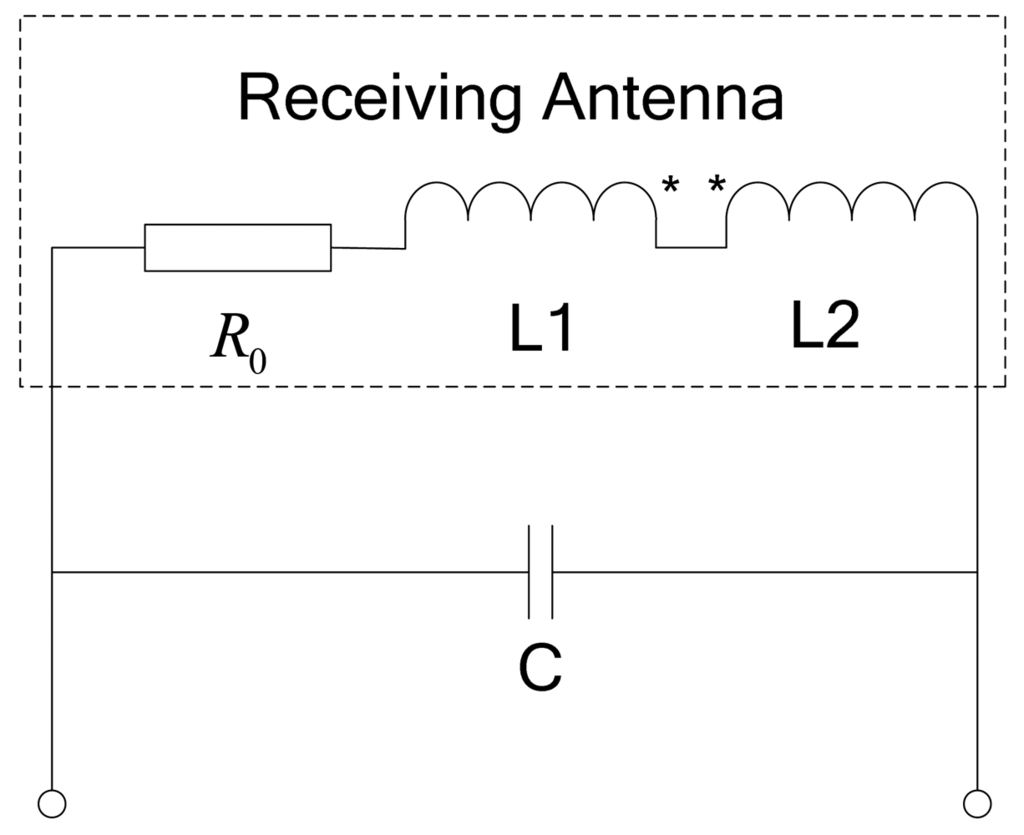

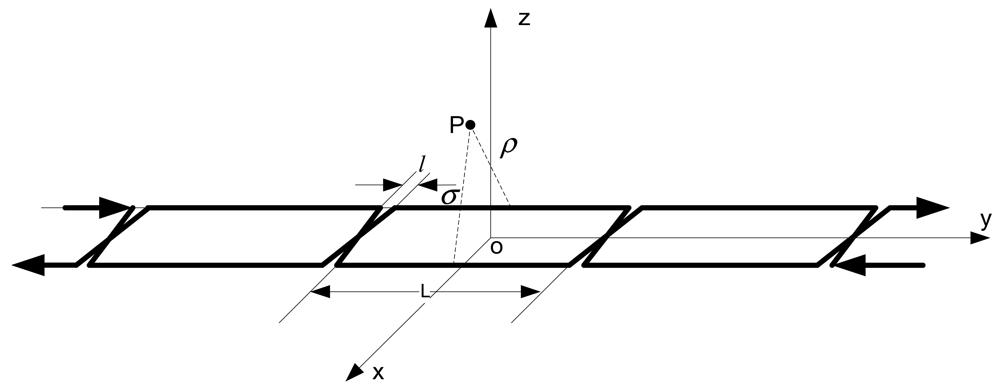

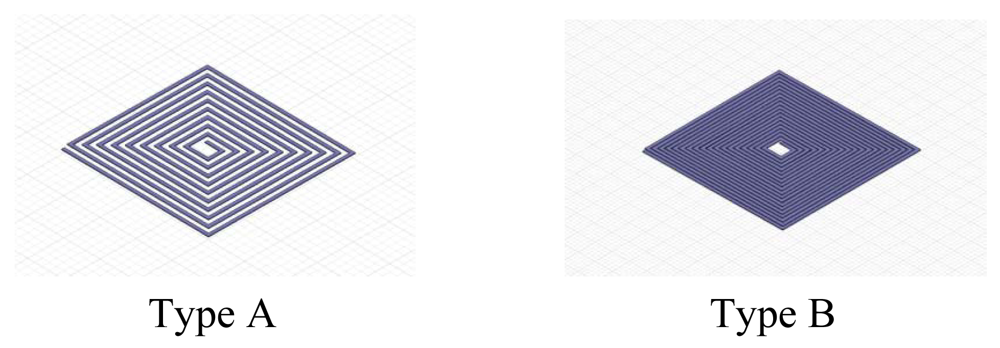

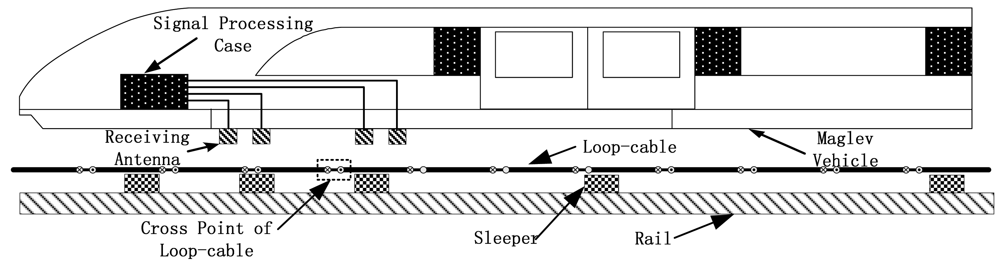

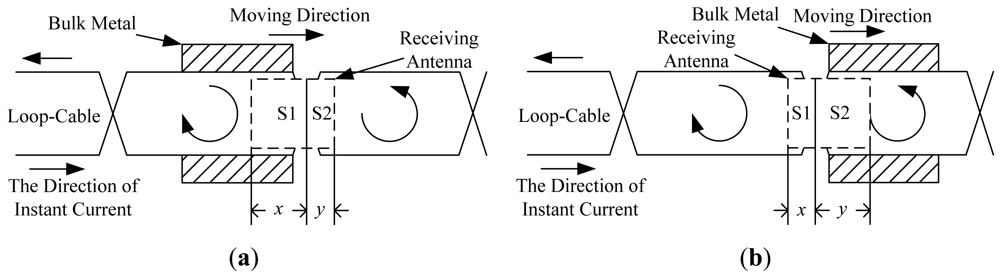

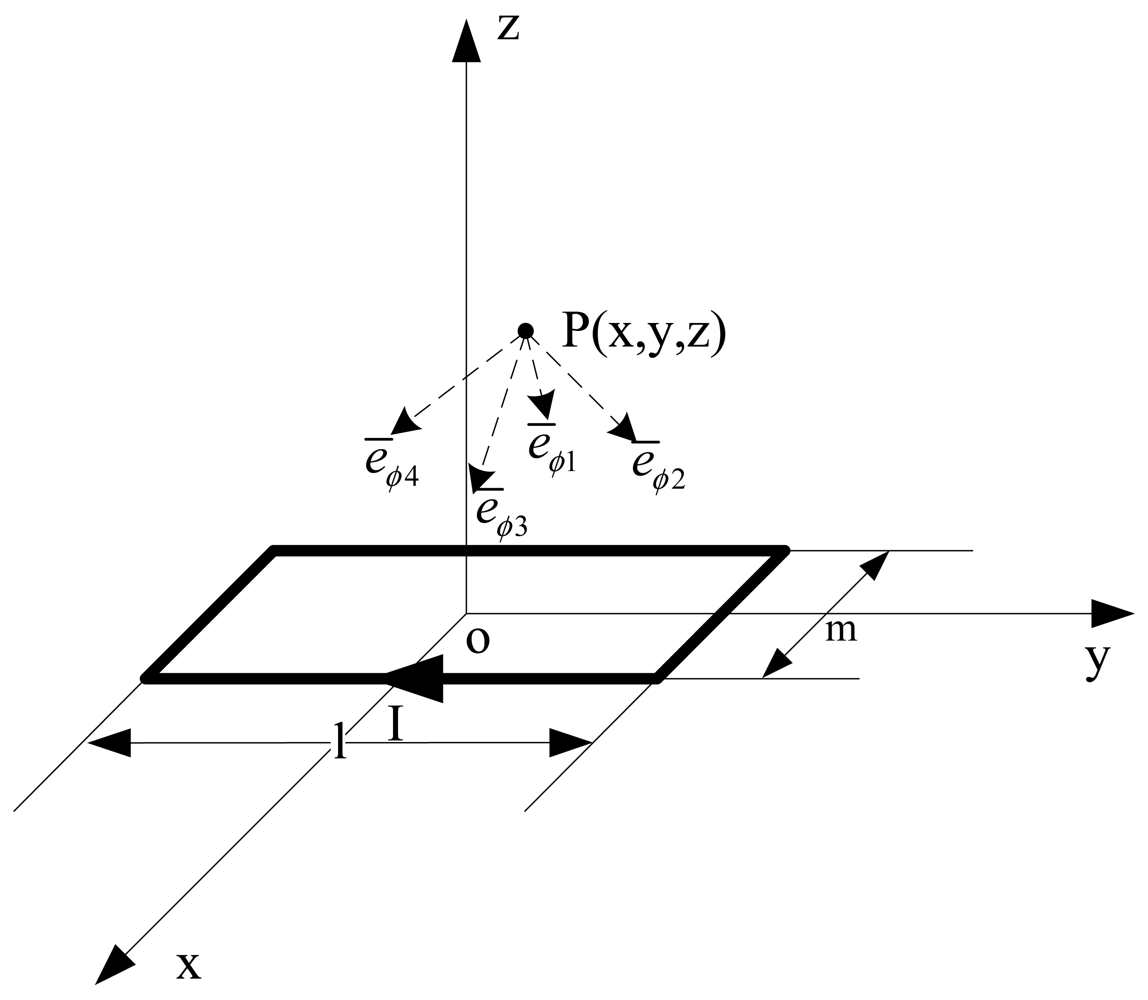

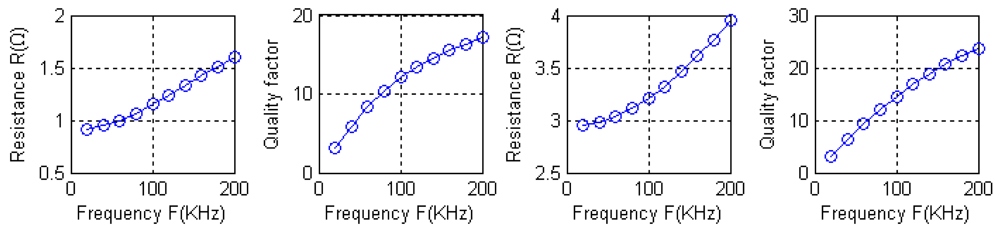

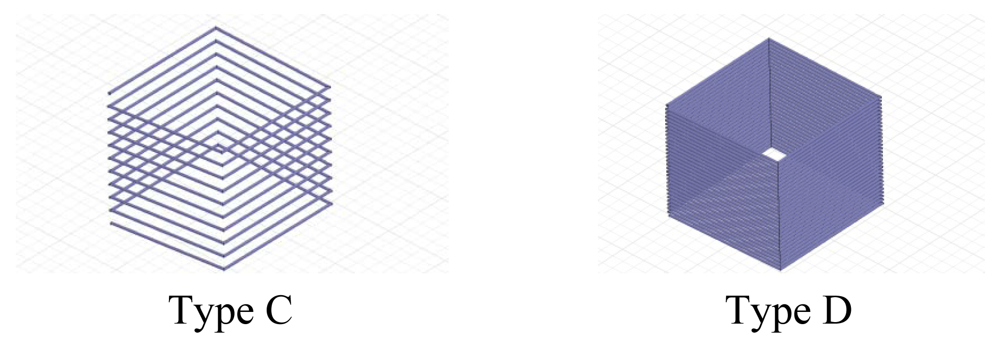

Abstract: This paper mainly researches one method of speed and location detection for maglev vehicles. As the maglev train doesn’t have any physical contact with the rails, it has to use non-contact measuring methods. The technology based on the inductive loop-cable could fulfill the requirement by using an on-board antenna which could detect the alternating magnetic field produced by the loop-cable on rails. This paper introduces the structure of a speed and position system, and analyses the electromagnetic field produced by the loop-cable. The equivalent model of the loop-cable is given and the most suitable component of the magnetic flux density is selected. Then the paper also compares the alternating current (AC) resistance and the quality factor between two kinds of coils which the antenna is composed of. The effect of the rails to the signal receiving is also researched and then the structure of the coils is improved. Finally, considering the common-mode interference, 8-word coils are designed and analyzed.
Keywords: maglev vehicle; speed and position detection; coils; loop-cable; 8-word coils maglev vehicle; speed and position detection; coils; loop-cable; 8-word coils
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
