Electromagnetic Field Analysis and Modeling of a Relative Position Detection Sensor for High Speed Maglev Trains
Song Xue , Ning He * and Zhiqiang Long
College of Mechatronics Engineering and Automation, National University of Defense Technology, Changsha 410073, China; E-Mails: songself@126.com (S.X.); zhqlong@263.net (Z.L.)
*
Author to whom correspondence should be addressed; E-Mail: hening0606@126.com; Tel.: +86-1387-4902-744; Fax: +86-731-8451-6000.
Received: 20 March 2012; in revised form: 4 May 2012 / Accepted: 4 May 2012 /
Published: 15 May 2012

Abstract

: The long stator track for high speed maglev trains has a tooth-slot structure. The sensor obtains precise relative position information for the traction system by detecting the long stator tooth-slot structure based on nondestructive detection technology. The magnetic field modeling of the sensor is a typical three-dimensional (3-D) electromagnetic problem with complex boundary conditions, and is studied semi-analytically in this paper. A second-order vector potential (SOVP) is introduced to simplify the vector field problem to a scalar field one, the solution of which can be expressed in terms of series expansions according to Multipole Theory (MT) and the New Equivalent Source (NES) method. The coefficients of the expansions are determined by the least squares method based on the boundary conditions. Then, the solution is compared to the simulation result through Finite Element Analysis (FEA). The comparison results show that the semi-analytical solution agrees approximately with the numerical solution. Finally, based on electromagnetic modeling, a difference coil structure is designed to improve the sensitivity and accuracy of the sensor.
Keywords:
relative position detection sensor; electromagnetic modeling; multipole theory; new equivalent source method; second-order vector potential; difference coil structure

1. Introduction

High speed maglev trains are driven by a linear synchronous motor [1,2]. The rotor is the suspension electromagnet, and the long stator inlaid with 3-phase windings has a tooth-slot structure [1,3], shown in Figure 1.

The operating principle of the relative position detection sensor is based on nondestructive examination technology [47]. There are detecting coils arranged on one side of the sensor facing the tooth-slot structure, as shown in Figure 2. When the train is moving, the coil inductance varies periodically because of the tooth-slot structure. Thus, the relative position can be obtained by detecting the changing coil inductance [8,9].

This paper studies the electromagnetic modeling of the sensor analytically, which lays an essential foundation for the sensor design work. Nowadays, with the development of PC technology, complex electromagnetic modeling problems can be realized through numerical methods precisely and conveniently, whereas, analytical methods are complicated, time consuming, and may even have no solution. Usually, in order to get a solution, model simplification is needed, which decreases the precision of the solution. However, analytical methods can get the expression of the field distribution function, represent less of a calculation load for computers, and are beneficial for the development of theories to some extent. They can be used to do some preliminary analysis and get a rough estimate for a problem to guide the principle design work. Numerical methods can be introduced later to guide the detailed design and parameter optimization.

Usually, it's difficult to solve 3-D electromagnetic problems with complex boundaries directly through separation of variables or mirror methods, etc. So, many researches are focused on 3-D field problems which can be converted to 2-D ones. Besides, second-order vector potential (SOVP) [10,11] can be introduced in to simplify vector field problems to scalar field ones. Reference [10] studies the electromagnetic field in an electrically conductive right-angled wedge due to an inductive excitation by a coil in air. The problem is simplified to a 2-D one. The magnetic induction intensity is expressed by a second-order vector potential (SOVP). The scalar components of the SOVP are expressed in terms of series expansions through Fourier transform. Reference [12] studies the 3-D Eddy-Current modeling problem with a spherical boundary in a spherical coordinate system. References [1315] propose a semi-analytical method called Multipole Theory (MT). Its solution procedure and expressions are similar to those in reference [12], but this method is based on refined theoretical derivations, and can be applied to electromagnetic modeling problems with complicated boundaries by introducing New Equivalent Sources (NES).

The electromagnetic modeling of the relative position detection sensor is studied analytically in this paper. Firstly, the electromagnetic field in air due to an inductive excitation by a rectangular coil is calculated and analyzed. Based on this, a simplified model of the sensor is established. Then the magnetic induction density distribution of the simplified model is calculated semi-analytically according to the MT and NES methods, and a corresponding numerical solution is obtained through Finite Element Analysis (FEA). The comparison results show that the semi-analytical solution approximately agrees with the numerical solution. Finally, based on the modeling, a difference coil structure is designed to improve the sensitivity and precision of the sensor.

2. Sensor Model Simplification

2.1. Electromagnetic Field in Free Space Due to a Rectangular Coil

The excitation frequency of the detecting coil is chosen to be about 2 MHz. The corresponding wavelength is λ = v/f = 150 m, which is much larger than the length of a tooth-slot period (86 mm). Thus, it can be considered a static magnetic field. Considering an ideal rectangular coil with current I and turn number N shown in Figure 3, according to Biot-Savart Law, the magnetic induction intensity at an arbitrary position P(x,y,z) due to each side of the coil is calculated respectively as follows [1618]:

B AB = μ 0 NI [ z j ( y + b ) k ] 4 π [ ( y + b ) 2 + z 2 ] ( sin β 1 sin α 1 )
where: α 1 = t g 1 ( a + x ) ( y + b ) 2 + z 2, β 1 = t g 1 a x ( y + b ) 2 + z 2;
B BC = μ 0 NI [ ( x a ) k z i ] 4 π [ ( x a ) 2 + z 2 ] ( sin β 2 sin α 2 )
where: α 2 = t g 1 ( b + y ) ( x a ) 2 + z 2, β 2 = t g 1 b y ( x a ) 2 + z 2;
B D C = μ 0 NI [ z j ( y b ) k ] 4 π [ ( y b ) 2 + z 2 ] ( sin β 3 sin α 3 )
where: α 3 = t g 1 a x ( y b ) 2 + z 2, β 3 = t g 1 ( a + x ) ( y b ) 2 + z 2;
B A D = μ 0 NI [ ( x + a ) k z i ] 4 π [ ( x + a ) 2 + z 2 ] ( sin β 4 sin α 4 )
where: α 4 = t g 1 b y ( x + a ) 2 + z 2, β 4 = t g 1 ( b + y ) ( x + a ) 2 + z 2, and i⃑, j⃑ and k⃑ denote the unit vectors of coordinate axes X, Y and Z respectively.

According to the electromagnetic field superposition principle, the magnetic induction intensity in free space due to the rectangular coil is obtained as follows:

B c = B AB + B BC + B CD + B DA

2.2. Sensor Model Simplification

The coil-stator system model is shown in Figure 4.

The length and width of the coil and the width of a slot or a tooth denoted by lw are all 43 mm, the depth of a slot is about hs = 50 mm, and the width of the long stator is about ls = 100 mm. Under normal working conditions, the distance between the coil plane and tooth plane is h = 8 mm.

The model is too complex for an analytical solution of the field, so some reasonable simplification is needed. Supposing I = 1 A and N = 1, according to Equations (1) to (5), the Z-direction component of the magnetic induction intensity at the tooth plane and the slot plane due to the rectangular coil excitation are simulated as shown in Figure 5.

According to Figure 5, the magnetic field is mainly distributed near the area facing the coil, and the magnetic induction intensity decreases rapidly with the increasing distance between the field plane and the coil plane, so the long stator shown in Figure 4 can be simplified to a series of cubes with an edge length lw = 43 mm shown in Figure 6.

Furthermore, considering the periodicity, the coil inductance is figured out only when 0< ld < lw shown in Figure 7. That's to say, the simplified model only consists of a cube and a square coil. In addition, the magnetic field due to the excitation coils is relatively weak, so the cube made of laminated silicon steel is regarded to be working in the linear region.

3. Electromagnetic Modeling of the Sensor

3.1. Multipole Theory for 3-D Static Magnetic Field

In a 3-D static field comprising several domains separated by medium boundaries, there exists a certain scalar W, such as electric potential or scalar magnetic potential, satisfying the Laplace equation:

2 W = 2

The domain in which W is to be solved is called the valid domain. In order to get the solution of W in this domain, auxiliary source points should be introduced into the field according to MT. An auxiliary source point set in the valid domain is called an inside pole. Otherwise, the pole is called an outside pole. For an open valid domain, there is no inside pole. For a finite valid domain, at most one inside pole can be set in it, and the pole had better be set at the geometrical center of the domain to make its corresponding series expansion converge fast [10].

The outside poles are set according to the boundaries. If all the inner angles between adjacent boundaries of the valid domain are less than 180°, each boundary should be assigned to an outside pole. For a spherical boundary surface, the pole should be set at the centre of the spherical surface to make the series expansion converge fast. For a plane boundary, it can be treated as a part of a spherical surface with an infinite radius. In this case, the series expansion corresponding to the plane boundary is reduced to a constant. Furthermore, if there exist inner angles greater than 180°, W can't be solved based on MT. In this case, the NES method [10] is introduced to solve the field approximately. The NES method will be discussed in the following section. The requirement of the inner angles of boundaries is called the expansion condition in MT.

Consider the situation shown in Figure 8. The inside pole is set at the centre of the valid domain denoted by O1. The outside pole is set at O2, the centre of spherical surface Γ2. The solution to the Laplace Equation (6) in the valid domain is given as follows [4,7,8]:

W = A + l = 1 N l r i l ( A i l P l ( cos θ i ) + m = 1 l P l m ( cos θ i ) ( A i lm cos m α i + B i lm sin m α i ) ) + p = 1 N p [ A op r op + l = 1 N op r op ( l + 1 ) ( A op l P l ( cos θ op ) + m = 1 l P l m ( cos θ i ) ( A op lm cos m α op + B op lm sin m α op ) ) = k = 1 N α k U k
where r i = | r r i 1 |, r i 1 is the position vector of the inside pole; r op = | r r op n |, r op n is the position vector of the P th outside pole; Ni is the order of the inside pole ; Np is the number of the outside poles (in Figure 8, Np = 1); Nop is the order of the P th outside pole; N is the total number of the terms of the series expression; A, A i l, A i lm, B i lm, A op, A op l, A op lm are coefficients determined by boundary conditions; Pl(cosθi) is Legendre polynomial and Plm(cosθi) is associated Legendre function. ai and θi are coordinates of field point P in spherical coordinate system O1. aop and θop are coordinates of field point P in spherical coordinate system of the pth outside pole (in Figure 8, it is O2).

Experientially, to get a precise enough solution, the order of a pole corresponding to a spherical surface boundary can be set to 6, and the order of an inside pole corresponding to a cubic domain can be set to 10.

3.2. New Equivalent Source Method

3.2.1. Spherical Equivalent Source Method

Suppose the domain to be solved is the space outside the cube shown in Figure 9. The inner angle between adjacent boundaries is 270° dissatisfying the expansion conditions. In order to apply the MT method, we fill the cube with auxiliary spheres and treat these spherical surfaces as the boundaries instead of the surface of the cube. After this approximate substitution, MT can be applied to the problem. The substituted boundaries could be more approximate to the cube, if the cube is filled with more spheres. But increasing the number of the spheres will complicate the solution procedure.

3.2.2. Circular Equivalent Source Method

A circular equivalent source is shown in Figure 10. The scalar magnetic potential Ù at an arbitrary position P(x,y,z) due to the source satisfies Laplace equation, and has a solution given as follows [10]:

Ω = 1 2 π μ 0 r 0 ρ k = 0 m c Q k 1 / 2 ( Y ) ( c k cos k α + d k sin k α )
where ck and dk are undetermined coefficients; Y=((z-z0)2+r02+ρ2)/2r0ρ; and Qk-1/2 is half-integer degree Legendre function [19], which can be expressed by the hypergeometric function F(a,b,c,z) as Ql(t)= F(-l,l+1,1,(1-t)/2) [14].

Thus, similar to the spherical equivalent sources, the invalid domain can be filled with auxiliary circular sources to replace the actual boundaries.

3.3. Semi-Analytical Solution of the Electromagnetic Field of the Simplified Sensor Model

Usually, it is hard to get the solution of a 3-D electromagnetic field problem by solving the Maxwell's equations directly, so Smythe [20] proposed a second-order vector potential (SOVP) W⃗, which can be expressed as the sum of two components normal to each other:

W = e W 1 + e × W 2
where e⃗ denotes i⃗, j⃗, k⃗ or r = r e r ; W1 and W2 are scalar components. The vector potential A⃗ can be expressed as the curl of W⃗:
A = × W

In 3-D passive static electromagnetic field, the vector potential W⃗ satisfies the Helmholtz equation:

2 A + k 2 A = 0
where k2 = −jωμσ, ω denotes the angular frequency of the field, σ denotes the electric conductivity and μ denotes the magnetic permeability. Considering the long stator of the high speed maglev train is made of laminated silicon steel, its eddy current is weak enough to be ignored, so σ can be regarded to be 0, and Equation (11) is reduced to a Laplace equation.

According to Equations (911), it can be concluded that W1 and W2 satisfy the Laplace equations:

2 W 1 = 0
2 W 2 = 0

The magnetic induction intensity B⃗ satisfies:

B = × A = × × W

Formula (14) results in the following expressions in spherical coordinate system:

{ B r = r 2 W 1 r 2 + 2 W 1 r B θ = 2 W 1 r θ + 1 r W 1 θ B φ = 1 sin θ 2 W 1 r φ + 1 r sin θ W 1 φ

According to Equation (15), B⃗ is only a function of W1 which satisfies the Laplace Equation (12) and can be solved through MT and the NES method discussed above.

For the simplified problem model shown in Figure 7, there are two domains: the air domain (denoted by (I) and the silicon steel domain (denoted by II). The scalar components of SOVP in domain I and II denoted by WI1 and WII1 are calculated as follows, respectively:

  • Domain I

    In domain I, there exists an excitation coil, so the vector potential A I satisfies the Possion equation:

    2 A I = μ 0 J
    where J⃗ is the current density of the coil. A I is the sum of a particular solution A I c of Equation (16) and the solution of the Laplace equation about A I 0 , so the magnetic induction intensity B⃗I can be expressed as:
    B I = B I 0 + B I c

    The induction intensity due to the excitation coil in the free space can serve as a particular solution as B Ic , which is achieved in Equation (5).

    Considering domain I as the valid domain and according to the analysis above, it does not satisfy the expansion condition, so equivalent sources are introduced to replace the cubic boundary. The sectional view of the arrangement of equivalent sources in the cube is shown in Figure 11.

    The cube is filled with six equivalent sources. Source no. 1 is a spherical equivalent source and sources no. 2, 3, 4, 5 and 6 are circular equivalent sources. To calculate the inductance of the coil above the cube, the magnetic induction intensity near the upper surface of the cube should be precise enough, so equivalent sources are mainly set at the upper part of the cube to make the upper surface of equivalent sources more approximate to the upper plane of the cube. Because domain I is an open domain, there is no inside pole.

    Let WI1i denote the SOVP scalar component due to the i th source. According to the discussion above, we have:

    W I 11 = A op r op + l = 1 N op r op ( l + 1 ) ( A op l P l ( cos θ op ) + m = 1 l P l m ( cos θ i ) ( A op lm cos m α op + B op lm sin m α op ) )
    W I 12 + W I 13 + W I 14 + W I 15 + W I 16 = i = 1 5 1 2 π μ 0 r 0 i ρ k = 0 m c Q k 1 / 2 ( Y i ) ( c k cos k α i + d k sin k α i )

    As shown in Figure 7, the coil is moving along the X-axis, and the model is symmetrical referring to the X-O-Z plane, so the undetermined coefficients of the sine terms about α in Equations (18) and (19) are 0. Thus, WI1 can be expressed as follows:

    W I 1 = W I 11 + W I 12 + W I 13 + W I 14 + W I 15 + W I 16 = A op r op + l = 1 N op r op ( l + 1 ) ( A op l P l ( cos θ op ) + m = 1 l P l m ( cos θ i ) A op lm cos m α op ) + i = 1 5 1 2 π μ 0 r 0 i ρ k = 0 m c Q k 1 / 2 ( Y i ) c k cos k α i = i = 1 N 1 a i U 1 i
    where ai (i = 1…N1) are undetermined coefficients, and N1 is the term number. The meanings of other symbols are the same as in Equations (7) and (8). By substituting Equation (20) into Equation (15), the series expansion of B I 0 can be obtained.

  • Domain II

    There is no excitation source in domain II, so the vector potential A II satisfies the Laplace equation. The inner angles of the boundaries of domain II are 90° satisfying the expansion condition, and according to Section 3.1, the series expansions of the plane boundaries are reduced to constants, so there is only a series expansion of the inside pole set at the centre of the cube in this paper. Thus, WII1 can be expressed according to Equation (7) as follows:

    W II 1 = A + l = 1 N l r i l [ A i l P l ( cos θ i ) + m = 1 l P l m ( cos θ i ) A i lm cos m α i ] = i = 1 N 2 b i U 2 i
    Where bi (i = 1…N2) are undetermined coefficients, N2 is the term number. By substituting Equation (21) into Equation (15), the series expression of B II can be obtained.

  • Coefficients Determination

    The undetermined coefficients of Equations (20) and (21) can be determined by the Least Square (LS) method based on the boundary conditions. The boundary conditions between the air domain and the silicon steel domain are given as follows:

    { B I n = B II n B I t 1 / μ 0 = B II t 1 / μ B I t 2 / μ 0 = B II t 2 / μ
    where μ (about 5,600 μ0) denotes the permeability of silicon steel, BIn, BIIn and BIt1, BIIt1, BIt2, BIIt2 denote the normal components and tangential components of the magnetic induction intensity, respectively. The LS method is adopted to minimize the error between the solutions of the two domains on the boundary. The target function is given as follows:
    I L S = Γ [ ( B I n B II n ) 2 + ( B I t 1 μ 0 μ B II t 1 ) 2 + ( B I t 2 μ 0 μ B II t 2 ) 2 ] d s
    Where ILS is the function of the undetermined coefficients ai (i = 1…N1) and bi (i = 1…N2). In order to minimize ILS, let the partial derivatives of ILS about the undetermined coefficients equal to 0:
    { I L S a i = 0 i = 1 , 2 N 1 I L S b j = 0 j = 1 , 2 N 2

    There are (N1 + N2) equations in Equation (24), so the (N1 + N2) undetermined coefficients can be determined. After substituting the coefficients ai (i = 1…N1) in the expression of B I , the coil inductance L can be obtained as:

    L = Φ I = 1 I S B I d S
    where S denotes the area of the coil.

4. Comparison between the Solutions of Semi-Analytical Method and Numerical Method

4.1. Simulation Model of the Numerical Method

The Finite Element Analysis (FEA) software Ansoft Maxwell is used to simulate the electromagnetic field distribution of the relative position detection sensor. The simulation model is shown in Figure 12.

4.2. Results of the Semi-Analytical Method and the Numerical Method

The calculation results of the coil inductance at different positions along the x-axis are shown in Figure 13, where the analytical modeling algorithm is implemented through MATLAB. Some special functions such as the Legendre polynomial and the hypergeometric function can be called straightforwardly from the MATLAB function library. According to Figure 13, there are errors between the numerical solution and the semi-analytical one. The maximal error is about 4.314 nH, which is much less than the coil inductance. The errors are mainly due to the model simplification and the discretization to get the undetermined coefficients by the LS method. In general, the coil inductance calculated through the semi-analytical method tends to approximately agree with that obtained by the numerical method, and the errors are within a tolerable limit.

5. Coil Design and Improvement

According the electromagnetic modeling results, the relationship between the coil inductance and the tooth-slot structure is shown in Figure 14. The relative position information can be gotten through table-lookup method according to this relationship.

The curve shown in Figure 14 is similar to a sine wave but contains a large amount of harmonic components. When the coil is above a tooth, the slope ratio of the cure is small, which will reduce the sensitivity and accuracy of the table-lookup method. To improve this situation, a difference coil structure is proposed as shown in Figure 15. “8”-shaped Coils can counteract exterior electromagnetic disturbance. When the sensor is moving along the long stator at a certain constant speed, the relationship between the inductance of the two coils and the relevant displacement is shown in Figure 16(a). The phase difference of the two inductance curve is 180° because of the arrangement and dimension of the coils shown Figure 15. The difference inductance of the two coils has a better waveform as shown in Figure 16(b).

Thus, the precision of the sensor can be improved through the table-lookup method based on the relationship between the inductance difference and the relevant displacement. In addition, the difference operation can also counteract common mode disturbances such as temperature drift and enhance the performance of the sensor.

6. Conclusions

The relative position detection sensor obtains the relative displacement information between the train and the long stator by detecting the tooth-slot structure of the long stator based on nondestructive technology. This paper researches the electromagnetic field modeling of the sensor to guide the coil design and improvement. The electromagnetic field model of the coil-stator system is a complex three-dimensional (3-D) electromagnetic problem, so at first, the problem is simplified based on the analysis of the electromagnetic field distribution of a rectangular coil in free space. And then, MT and the NES method are adopted to get the series expansion of the magnetic induction intensity of the simplified model. The relationship between the coil inductance and the relative position is figured out afterwards. The inductance is also simulated through FEA. The comparison results show that the semi-analytical solution approximately agrees with the numerical solution. Finally, based on the modeling work, a difference coil structure is designed to improve the sensitivity and precision of the relative position detection sensor.

This work was performed at the Engineering Research Center of Maglev Technology at National University of Defense Technology with funding from National Natural Science Foundation of China under grant no. 60874015.

References

  1. Liu, H.Q. Transrapid; University of Electronic Since and Technology of China Press: Chengdu, China, 1995; pp. 74–88.
  2. Wu, X.M. Maglev Train; Shanghai Science and Technology Press: Shanghai, China, 2003.
  3. Li, L.; Wu, J. Research and design of a position detection sensor for high speed maglev train. Chin. J. Sens. Actuat. 2007, 7, 1510–1513.
  4. Deng, X.; Liu, Y. Electromagnetic imaging methods for nondestructive evaluation applications. Sensors 2011, 11, 11774–11808.
  5. García-Martín, J.; Gómez-Gil, E.; Vázquez-Sánchez, J. Non-destructive techniques based on eddy current testing. Sensors 2011, 11, 2525–2565.
  6. Zhu, Y.-K.; Tian, G.-Y.; Lu, R.-S.; Zhang, H. A review of optical NDT technologies. Sensors 2011, 11, 7773–7798.
  7. Zaoui, A.; Menana, H.; Feliachi, M.; Berthiau, G. Inverse problem in nondestructive testing using arrayed eddy current sensors. Sensors 2010, 10, 8696–8704.
  8. Xue, S.; Dai, C.; Long, Z. Research on Location and Speed Detection for High Speed Maglev Train Based on Long Stator. Proceedings of the 8th World Congress on Intelligent Control and Automation (WCICA), Jinan, China, 7–9 July 2010; Volume 7, pp. 6953–6958.
  9. Dai, C.; Long, Z.; Xie, Y.; Xue, S. Research on the filtering algorithm in speed and position detection of maglev trains. Sensors 2011, 11, 7204–7218.
  10. Theodoulidis, T.P.; Bowler, J.R. Eddy current coil interaction with a right-angled conductive wedge. R. Soc. 2005, 461, 3123–3139.
  11. Ma, Q.S.; Gao, G.; Sheng, J.N.; Jiang, K.X. Introducing a general analytical method for solving electromagnetic fields with complicated boundary. IEEE Trans. Magn. 1994, 30, 2920–2923.
  12. Theodoulidis, T.P.; Tsiboukis, T.D. Analytical and numerical solution of eddy-current problem in spherical coordinates based on the second-order vector potential formulation. IEEE Trans. Magn. 1997, 33, 2461–2472.
  13. Shen, J.N.; Ma, Q.S.; Yuan, B.; Zheng, Q.H.; Yan, Z.W. Theoretical Methods and Applications of Semi-Analytical Method in Analysis of Electromagnetic Field and Wave; Science Press: Beijing, China, 2006.
  14. Zheng, Q.H.; Xie, F. Solution of three-dimensional helmholtz equation by multipole theory method. Electromagnet Waves Appl. 1999, 13, 339–357.
  15. Zheng, Q.H.; Xie, F.; Yang, Y.; Lin, W. Solution of three-dimensional laplace equation by multipole theory method. Electromagnet Waves Appl. 1999, 13, 1153–1171.
  16. Lu, L. The study and design of suspensive gap detecting sensor for high speed maglev train. J. Natl. Univ. Def. Technol. 2007, 10, 14–17.
  17. Li, T. Study and Realization of High-Speed Maglev Vehicle Relative Location Sensor. Master Thesis, Southwest Jiaotong University, Chengdu, China, 2006.
  18. Hayt, W.H., Jr.; Buck, J.A. Engineering Electromagnetics; McGraw-Hill Companics: New York, NY, USA, 2001; pp. 212–215.
  19. Peng, F.Q; Yu, J.H. The characters and computation of legendre function with non-integral degree in SCHA. Acta Geod. Cartogr. Sin. 2000, 29, 204–208.
  20. Smythe, W.R. Static and Dynamic Electricity; Science Press: Beijing, China, 1982; pp. 404–409.
Sensors 12 06447f1 200

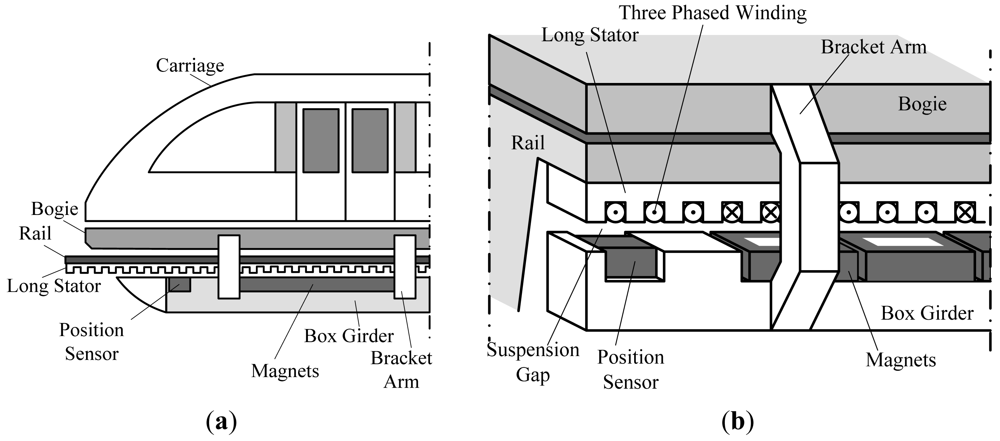

Figure 1. (a) Diagram of a high speed maglev train; (b) Diagram of the substructure of a high speed maglev train.

Click here to enlarge figure

Figure 1. (a) Diagram of a high speed maglev train; (b) Diagram of the substructure of a high speed maglev train.
Sensors 12 06447f1 1024
Sensors 12 06447f2 200

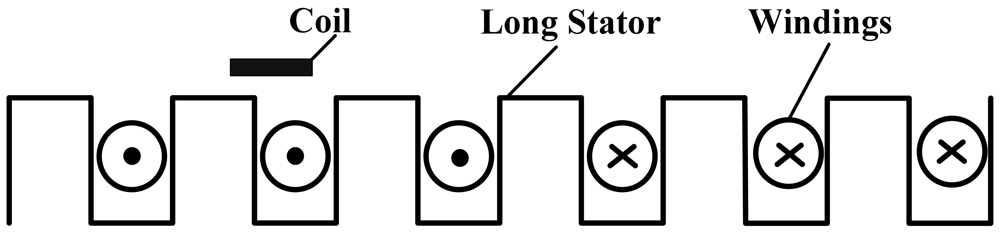

Figure 2. Diagram of the sensor coil and the long stator.

Click here to enlarge figure

Figure 2. Diagram of the sensor coil and the long stator.
Sensors 12 06447f2 1024
Sensors 12 06447f3 200
Figure 3. A rectangular coil in a Cartesian coordinate system.

Click here to enlarge figure

Figure 3. A rectangular coil in a Cartesian coordinate system.
Sensors 12 06447f3 1024
Sensors 12 06447f4 200
Figure 4. The coil-stator system.

Click here to enlarge figure

Figure 4. The coil-stator system.
Sensors 12 06447f4 1024
Sensors 12 06447f5 200
Figure 5. The Z-direction component of the magnetic induction intensity due to the rectangular coil excitation at (a) the tooth plane and (b) the slot plane.

Click here to enlarge figure

Figure 5. The Z-direction component of the magnetic induction intensity due to the rectangular coil excitation at (a) the tooth plane and (b) the slot plane.
Sensors 12 06447f5 1024
Sensors 12 06447f6 200
Figure 6. Simplified model of the coil-stator system.

Click here to enlarge figure

Figure 6. Simplified model of the coil-stator system.
Sensors 12 06447f6 1024
Sensors 12 06447f7 200
Figure 7. The final simplified model of the sensor.

Click here to enlarge figure

Figure 7. The final simplified model of the sensor.
Sensors 12 06447f7 1024
Sensors 12 06447f8 200

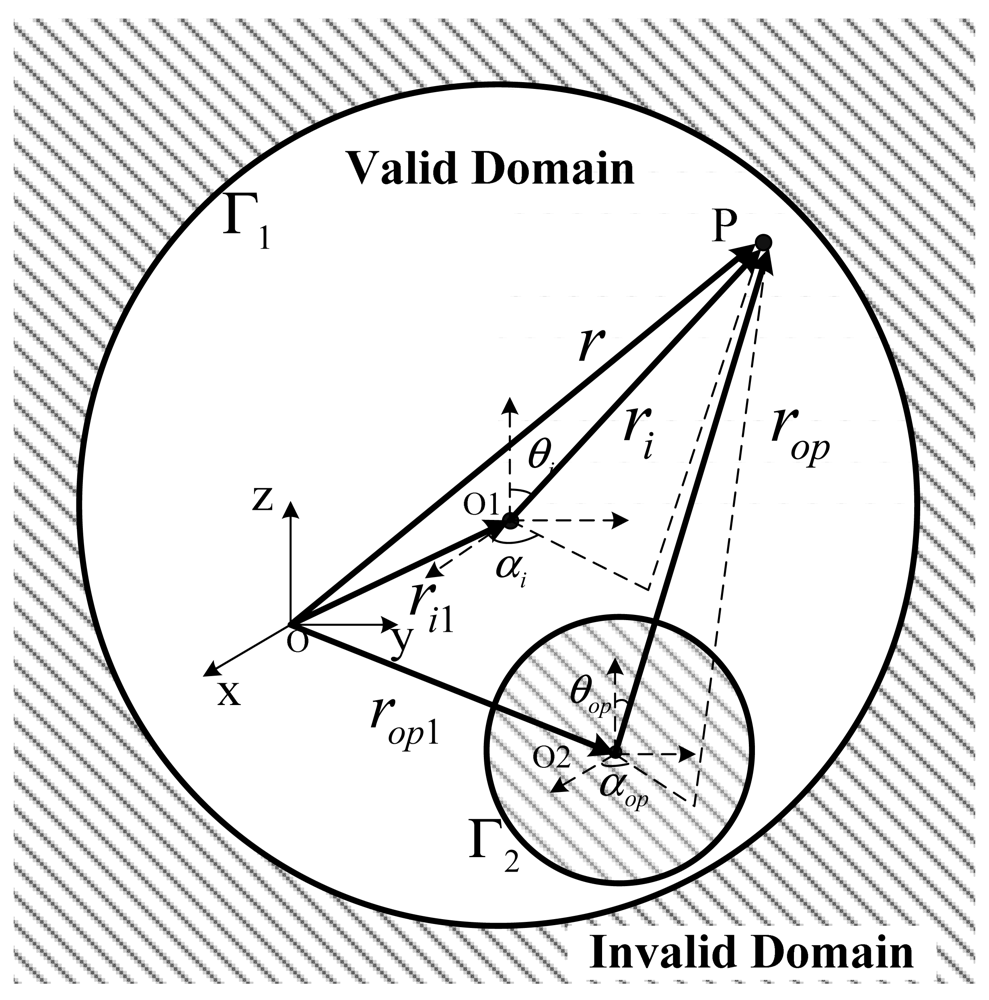

Figure 8. A field with two spherical boundaries.

Click here to enlarge figure

Figure 8. A field with two spherical boundaries.
Sensors 12 06447f8 1024
Sensors 12 06447f9 200

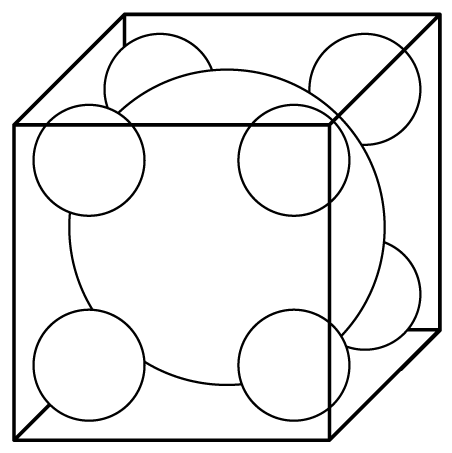

Figure 9. Spherical equivalent source.

Click here to enlarge figure

Figure 9. Spherical equivalent source.
Sensors 12 06447f9 1024
Sensors 12 06447f10 200

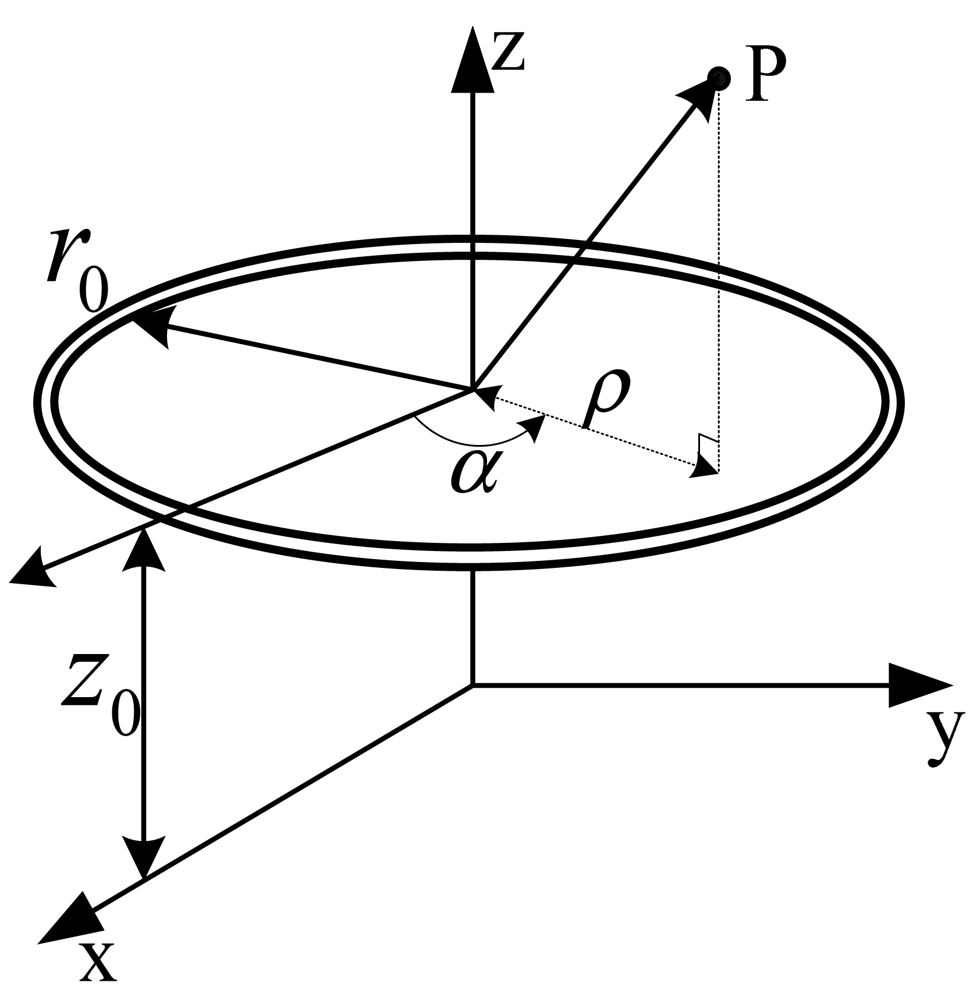

Figure 10. Circular equivalent source.

Click here to enlarge figure

Figure 10. Circular equivalent source.
Sensors 12 06447f10 1024
Sensors 12 06447f11 200

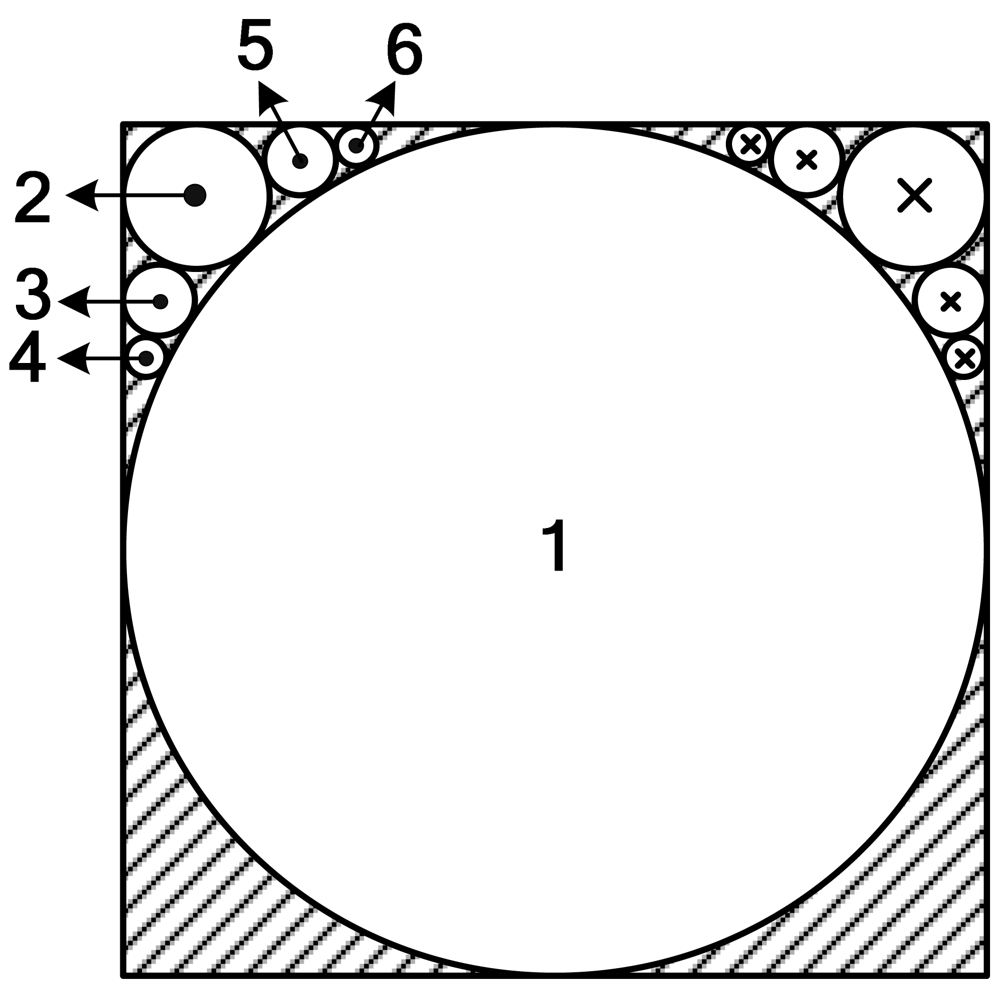

Figure 11. Configuration of the equivalent sources.

Click here to enlarge figure

Figure 11. Configuration of the equivalent sources.
Sensors 12 06447f11 1024
Sensors 12 06447f12 200
Figure 12. Simulation model of the numerical method.

Click here to enlarge figure

Figure 12. Simulation model of the numerical method.
Sensors 12 06447f12 1024
Sensors 12 06447f13 200

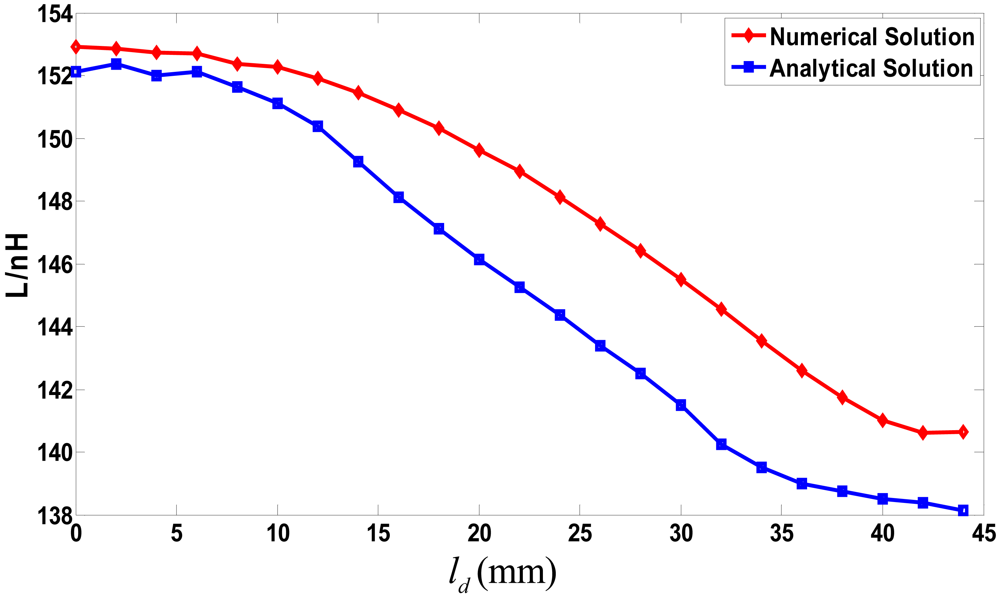

Figure 13. Relationship between coil inductance and relative position.

Click here to enlarge figure

Figure 13. Relationship between coil inductance and relative position.
Sensors 12 06447f13 1024
Sensors 12 06447f14 200

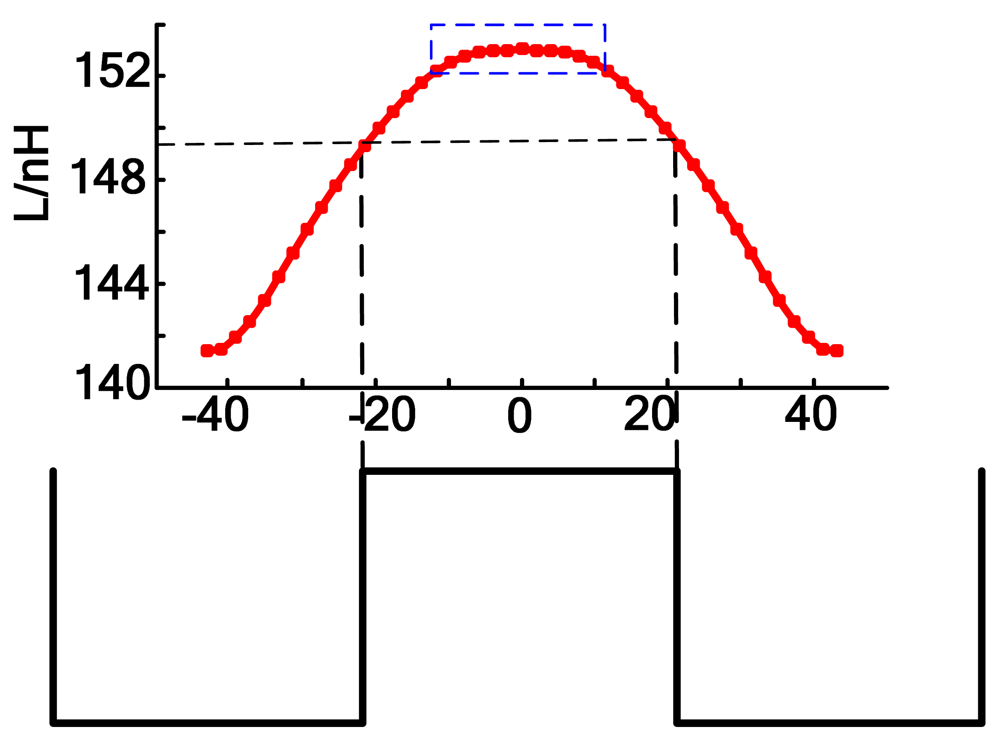

Figure 14. The relationship between coil inductance and the tooth-slot structure.

Click here to enlarge figure

Figure 14. The relationship between coil inductance and the tooth-slot structure.
Sensors 12 06447f14 1024
Sensors 12 06447f15 200

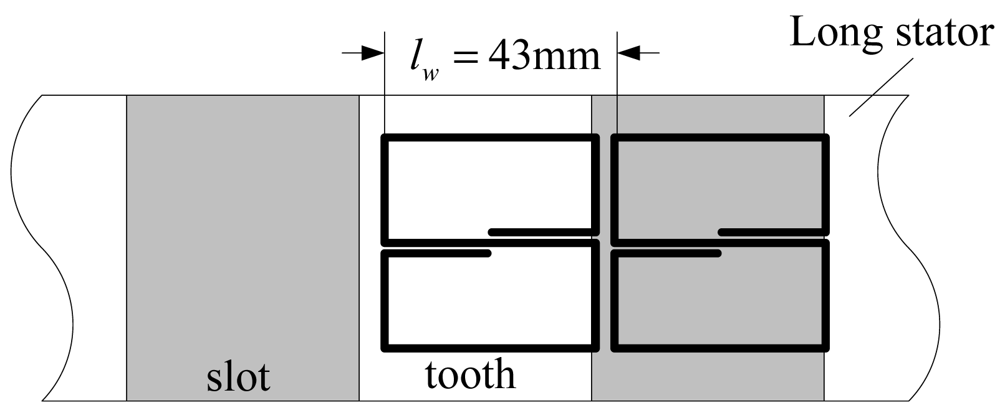

Figure 15. Difference coil structure.

Click here to enlarge figure

Figure 15. Difference coil structure.
Sensors 12 06447f15 1024
Sensors 12 06447f16 200

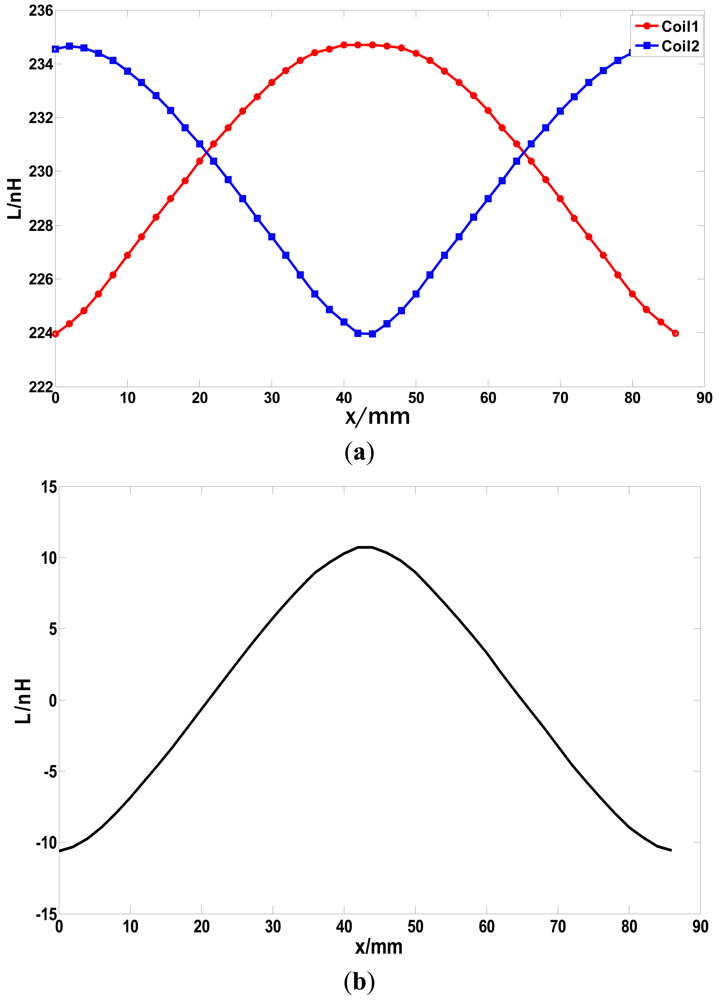

Figure 16. (a) Relative position and Inductance curve of coil 1 and 2; and (b) Inductance difference and relative position curve.
