Sensors 2012, 12(3), 3200-3203; doi:10.3390/s120303200

Direct Measurement of Lateral Force Using Dual Cantilevers

* ,
Department of Physics, Aichi University of Education, Hirosawa 1, Igaya-cho, Kariya 448-8542, Japan
* Author to whom correspondence should be addressed.
Received: 27 January 2012 / Revised: 29 February 2012 / Accepted: 2 March 2012 / Published: 7 March 2012
(This article belongs to the Special Issue Ultra-Small Sensor Systems and Components)
View Full-Text   |   Download PDF [225 KB, uploaded 21 June 2014]   |   Browse Figures

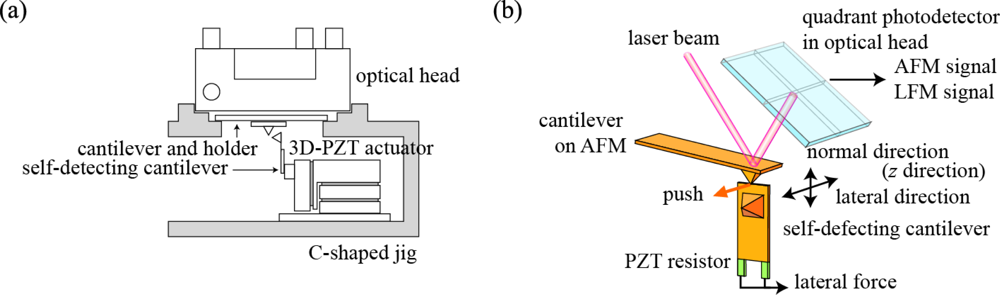

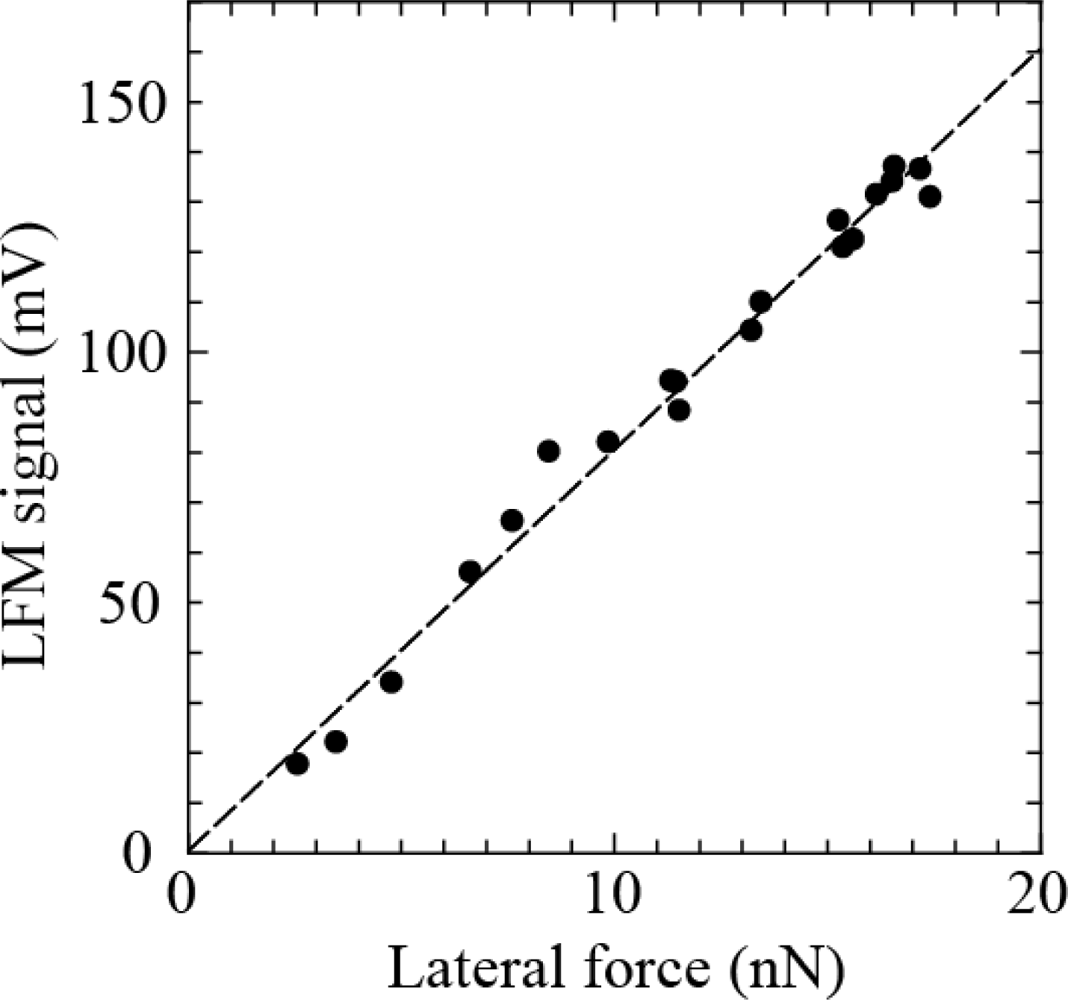

We have constructed an experimental system to measure a piconewton lateral force using dual cantilevers which cross with each other. The resolution of the lateral force is estimated to be 3.3 p ± 0.2 pN, which is comparable to forces due to thermal fluctuation. This experimental apparatus works so easily that it will enable us to determine forces during nano-manipulation and nano-tribological measurements.
Keywords: lateral force; dual cantilevers; piconewton lateral force; dual cantilevers; piconewton
