Sensors 2011, 11(9), 8674-8684; doi:10.3390/s110908674

Article
Real-Time Remote Monitoring of Temperature and Humidity Within a Proton Exchange Membrane Fuel Cell Using Flexible Sensors
Long-Sheng Kuo , Hao-Hsiu Huang , Cheng-Hao Yang and Ping-Hei Chen *
Department of Mechanical Engineering, National Taiwan University, Taipei, Taiwan; E-Mails: d94522017@ntu.edu.tw (L.-S.K.); r98522115@ntu.edu.tw (H.-H.H.); d95522002@ntu.edu.tw (C.-H.Y.)
*
Author to whom correspondence should be addressed; E-Mail: phchen@ntu.edu.tw; Tel.: +886-2-2367-0781; Fax: +886-2-2363-1755.
Received: 15 July 2011; in revised form: 19 August 2011 / Accepted: 5 September 2011 /
Published: 8 September 2011

Abstract

: This study developed portable, non-invasive flexible humidity and temperature microsensors and an in situ wireless sensing system for a proton exchange membrane fuel cell (PEMFC). The system integrated three parts: a flexible capacitive humidity microsensor, a flexible resistive temperature microsensor, and a radio frequency (RF) module for signal transmission. The results show that the capacitive humidity microsensor has a high sensitivity of 0.83 pF%RH−1 and the resistive temperature microsensor also exhibits a high sensitivity of 2.94 × 10−3 °C−1. The established RF module transmits the signals from the two microsensors. The transmission distance can reach 4 m and the response time is less than 0.25 s. The performance measurements demonstrate that the maximum power density of the fuel cell with and without these microsensors are 14.76 mW·cm−2 and 15.90 mW·cm−2, with only 7.17% power loss.
Keywords:
flexible humidity microsensor; flexible temperature microsensor; radio frequency module; power density

1. Introduction

The development of green energy has been continually emphasized recently due to increasing environmental protection consciousness. The fuel cell is one possible substitute since it produces no carbon dioxide but only water. Fuel cells can be characterized into several categories [1] such as alkaline fuel cells (AFC), phosphoric acid fuel cells (PAFC), solid oxide fuel cells (SOFC), direct methanol fuel cells (DMFC), and proton exchange membrane fuel cells (PEMFC). Among these kinds of fuel cell, PEMFC is widely used because of its compact size, light weight, low operating temperature, and high efficiency [2]. Two kinds of water transport mechanism exist in the proton exchange membrane [3,4]: one is electro-osmotic drag and the other is back diffusion. If these two operating mechanisms are unbalanced, flooding will occur at the anode or cathode flow channels so as to make cell voltage deteriorate. Therefore, it is crucial to build a way of detecting the flooding situation within fuel cells.

Several researchers have developed methods for inner flooding detection. Nishikawa et al. [5] drilled holes in bipolar plates, placing a commercial humidity-temperature sensor at the opened location to measure the local humidity. Lee et al. [6] manufactured humidity and temperature microsensors on metallic bipolar plates by microelectromechanical systems (MEMS) technology to monitor the moisture state. Although the above methods are distinctive, there are still some problems. For example, Nishikawa’s method may encounter gas leakage and flow channel damage problem, while the measurement position about Lee’s method would be hardly changeable.

Consequently, this study proposes flexible thin-film humidity and temperature microsensors embedded in PEM fuel cell for the purpose of preventing the above issues. In addition, this work also establishes a wireless module to integrate sensors because it has advantages of portability and dependability. Wireless sensors are generally smaller in size and lighter in weight so that it can be carried more easily than conventional instruments. Hence, the investigation employs wireless module to integrate microsensors.

The remaining sections are organized as follows: humidity microsensor, temperature microsensor, and wireless module are introduced first. Then, calibration for sensors, the result of wireless integration and measurement consequence within fuel cell are presented.

2. Experimental Setup

2.1. Humidity Microsensor

Humidity microsensors can be categorized into resistive and capacitive types [7,8], according to their output signals. In general, the capacitive humidity sensor is less affected by the temperature variation compared with the resistive humidity sensor. Therefore, in this investigation, a capacitive humidity sensor was used as our sensor. Figure 1(a) shows our designed parallel-type capacitive microsensor. Parylene is employed as the flexible substrate of sensor and polyimide is used as the dielectric substance due to its high sensitivity to moisture [9]. Electrode area is 2.91 mm × 2.91 mm and moisture layer is 3 μm thick, and its top electrode is designed with a number of 30 μm × 30 μm square holes in order to let sensing layer easily adsorb water vapor.

Figure 1(b) displays the MEMS fabrication flowchart of the flexible humidity microsensor. The process begins with the evaporation of a 7.5 μm thick layer of parylene on silicon (Section 1) as the flexible substrate of humidity sensor. Then, a 60 nm thick layer of Cr and a 250 nm thick layer of Au are deposited on parylene substrate using electron beam evaporator (Section 2) and wet-etching method is used so that the structure of bottom electrode is carried out (Sections 3 and 4). To form the pattern of sensing layer, photolithography process is employed as a result that a thickness of 3 μm polyimide is placed on the bottom electrode (Section 5). After finishing the configuration of the sensing layer, Cr and Au are deposited again on the sensing layer and the wet-etching method is used afterwards to define the structure of the top electrode (Sections 6 to 8). At the final step, a 3.75 μm layer of parylene is placed on the top electrode in order to protect the sensor and a reactive ion etching (RIE) system is utilized to open the sensing area to adsorb water vapor (Sections 9 and 10). Finally, the flexible sensor is peeled off from the silicon substrate (Section 11). Figure 1(c) displays the product of finished humidity microsensor.

2.2. Temperature Microsensor

Temperature microsensors are mainly classified into two kinds: thermocouples and resistive temperature sensors. Due to the reason that the fabrication process of thermocouples is complicated so as to increase cost and that resistive temperature sensor shows fine sensitivity, a resistive type sensor acted as our temperature sensor. Figure 2(a) displays the designed temperature microsensor. Its structure is a kind of serpentine resistor whose sensing area is 2.45 mm × 3 mm.

Figure 2(b) exhibits the MEMS procedure for the temperature microsensor, it starts with a 7.5 μm layer of parylene deposited on a silicon substrate (Section 1). Then a photolithography process is employed in attempt to form the pattern of the resistive temperature sensor (Section 2). After finishing the photolithography procedure, a 60 nm thick layer of Cr and a 250 nm thick layer of Au layer are vaporized on the pattern by using an electron beam evaporator apparatus and the remaining photoresist is stripped afterwards so that the structure of temperature sensor is completed (Sections 3 and 4). Moreover, parylene is deposited again so as to protect the temperature sensor. At last, the sensing area is opened using an RIE system to make it detect temperature variation (Sections 5 and 6). The last step is to peel off the flexible sensor from the silicon substrate (Section 7). The product of completed temperature microsensor is shown in Figure 2(c).

2.3. Wireless Module

Figure 3 exhibits the block diagram of the established microsensors integrated with wireless module. It is composed of the sensing circuits for each microsensor, microprocessor, and transmitter. The content of the sensing circuit for capacitive humidity sensor is that an input signal from a square wave oscillator transmits to RC circuit where C is the capacitive sensor, when the capacitance change happens, the time constant of output signal from sensor varies consequently. Then, this signal transmits to OP comparator and a microprocessor counts the time that the signal requires to reach the reference voltage. The sensing circuit for resistive temperature sensor is that a current source signal transfers to the resistive temperature sensor so that its output voltage signal changes with environmental temperature fluctuation. The output signal is dispatched to a differential amplifier circuit to make signal amplification and offset reduction, and the revised signal transmits to a microprocessor afterwards, whose ADC range is 0 to 3 V. When a microprocessor gets signals from each sensor, it transfers them to RF transmitter which operates at 433 MHz. Afterwards, wireless receiver takes in signals, transmitting them to a microprocessor so as to make data processing and to show them in display interface.

3. Results and Discussion

3.1. Calibration and Wireless Integration

The humidity microsensor is wire bonded using a dispenser and is tested inside an environmental chamber (Model HUNGTA-HT-8045A). Capacitance measurements were performed at 1 kHz using a LCR meter (Model Wayne Kerr 4230). Tests for the humidity sensor are conducted at various temperatures from 25 °C up to 70 °C as well as for different relative humidity levels ranging from 35%RH to 95%RH. The capacitance value of the microsensor is always recorded after waiting for 15 min at each measurement condition to assure that the whole volume of the climatic chamber reaches a stable temperature and humidity level. Figure 4 shows the humidity microsensor performance. One can see that the sensitivity of the humidity microsensor (defined by αH = ΔC/Δ%RH [10]) increases when the environmental temperature rises. This is because the thermal expansion causes the enlargement of electrode area so that the capacitance of sensor increases. The sensitivity of capacitive humidity sensor at best is 0.83 pF%RH−1 at 70 °C. In addition, the linearity gets better as the temperature increases. Table 1 exhibits a comparison between the sensitivity of capacitive humidity sensors reported in the literature [1113], and the sensitivity of sensor in this work demonstrates excellent result.

In the calibration of the temperature microsensor, it is also characterized in the same environmental chamber. Resistance measurements are made through a digital multi-meter (Model HP-HEWLETT-PACKARD-3478A). According to the reference [14], the sensitivity of resistive temperature sensor is described as:

α = R a R b R b Δ T
where Ra is resistance value at temperature a °C, Rb is the resistance value at temperature b °C, ΔT is the temperature difference (=a − b). Figure 5 displays the sensor performance with the sensitivity of 2.94 × 10−3 °C−1. In comparison with other works [1517] as shown in Table 2, this resistive temperature sensor achieves remarkable performance. The linear regression of sensor is 0.998, which demonstrates an excellent value.

The measurement results by wireless integration are displayed in Figures 6 to 8. Figure 6 shows the time constant measurement (=RC), which is processed by the microprocessor in the RF module. In order to fairly compare the results between capacitance measurement by LCR meter and RF module, we define a normalized factor Cn as follows:

C n ( T ) = C ( T ) C min   ( T ) C max   ( T ) C min   ( T )

Figure 7 shows that two sets of measurement data are very consistent, indicating that the processing and 8-bit resolution of RF module did a good job.

Figure 8 exhibits the voltage measurement of wireless integration of temperature sensor (through microprocessing and A/D conversion) and it displays that the linear regression of sensor is almost 1, which is close to that of temperature sensor performance. The resolution of temperature sensor is 0.1 °C. Moreover, the wireless measuring distance is 4 m at most and its response time is less than 0.25 s by the test.

3.2. Diagnosis within Fuel Cell

The wireless sensing system is implemented to perform internal diagnosis of a fuel cell. Figure 9 displays the experimental setup of the wireless sensing system and the fuel cell operating system. The fuel supply and humidification equipment provides humidified fuel gas for the three fuel cell stacks. When it begins to generate power as a result of getting fuel gas, the electronic load records the voltage condition of fuel cell and the wireless sensing system detects the internal status of the fuel cell during operation. Figure 10 exhibits the local humidity detection at the anode flow channel inlet within a fuel cell whose operating conditions are a fuel flow rate of 60 mL min−1 and humidification temperature of 70 °C. Flooding is observed after steady output voltage for 28 min. Thus, it is necessary to revise the humidification condition for the fuel cell to improve this situation. Figure 11 demonstrates the performance of fuel cell with and without microsensors. The maximum power density of the fuel cell with and without microsensors are respectively 14.76 mW·cm−2 and 15.90 mW·cm−2, indicating the power loss ratio of 7.17%. Such the power loss ratio is much better than 55% of Lee [18].

4. Conclusions

This study has successfully established a distinctive means for measuring the internal status of a PEMFC. A thin film and flexible capacitive humidity microsensor and a resistive temperature microsensor are fabricated using MEMS processing. The humidity sensor can reach a sensitivity of 0.83 pF%RH−1 and the temperature sensor exhibits a sensitivity of 2.94 × 10−3 °C−1. Furthermore, a portable, lightweight wireless RF module is developed to transmit the sensor signals. Such the design enables the diagnosis of a fuel cell out of the lab. The wireless detection distance reaches 4 m and its response time is less than 0.25 s. The performance tests show that the maximum power density of the fuel with and without microsensors are 14.76 mW·cm−2 and 15.90 mW·cm−2. In other words, the power density loss ratio is only 7.17%. With regard to further applications of the wireless sensing system, it can be integrated with humidification control equipment to achieve the formation of closed loop system so as to carry out the aim of in situ gas humidification management.

We would like to appreciate the financial support from Yen Tjing Ling Industrial Research Institute, R.O.C. (No. 99-SA52). We also want to show our gratitude to NTU NEMS research center, NTNU MOEMS lab, and AVC corporation for access to instruments.

References

  1. Carrette, L; Friedrich, KA; Stimming, U. Fuel cells: Principles, types, fuels, and applications. ChemPhysChem 2000, 1, 162–193. [Google Scholar]
  2. Dyer, CK. Fuel cells for portable applications. Fuel Cells Bull 2002, 2002, 8–9. [Google Scholar]
  3. Rowe, A; Li, X. Mathematical modeling of proton exchange membrane fuel cells. J. Power Sources 2001, 102, 82–96. [Google Scholar]
  4. Prater, KB. Polymer electrolyte fuel cells: A review of recent developments. J. Power Sources 1994, 51, 129–144. [Google Scholar]
  5. Nishikawa, H; Kurihara, R; Sukemori, S. Measurements of humidity and current distribution in a PEFC. J. Power Sources 2006, 155, 213–218. [Google Scholar]
  6. Lee, CY; Wu, GW; Hsieh, CL. In situ diagnosis of micrometallic proton exchange membrane fuel cells using microsensors. J. Power Sources 2007, 172, 363–367. [Google Scholar]
  7. Lazarus, N; Bedair, SS; Lo, CC; Fedder, GK. CMOS-MEMS capacitive humidity sensor. J. Microelectromech. Syst 2010, 19, 183–191. [Google Scholar]
  8. Shannon, MA; Leicht, TM; Hrnjak, PS; Miller, NR; Khan, FA. Thin-film resistance sensor for measuring liquid mass fraction in super-heated refrigerant. Sens. Actuat. A 2001, 88, 164–177. [Google Scholar]
  9. Dokmeci, M; Najafi, K. A high-sensitivity polyimide humidity sensor for monitoring hermetic micropackages. Proceedings of the 12th IEEE International Conference on Micro Electro Mechanical Systems, Orlando, FL, USA, 17–21 January 1999; pp. 279–284.
  10. Kim, Y; Jung, B; Lee, H; Kim, H; Lee, K; Park, H. Capacitive humidity sensor design based on anodic aluminum oxide. Sens. Actuat. B 2009, 141, 441–446. [Google Scholar]
  11. Gu, L; Huang, QA; Qin, M. A novel capacitive-type humidity sensor using CMOS fabrication technology. Sens. Actuat. B 2004, 99, 491–498. [Google Scholar]
  12. Kim, JS; Kwak, KY; Kwon, KH; Min, NK; Kang, MS. A locally cured polyimide-based humidity sensor with high sensitivity and high speed. Proceedings of the IEEE International Conference on Sensors, Lecce, Italy, 26–29 October 2008; pp. 434–437.
  13. Kim, JH; Hong, SM; Lee, JS; Moon, BM; Kim, K. High sensitivity capacitive humidity sensor with a novel polyimide design fabricated by MEMS technology. Proceedings of the 4th IEEE International Conference on Nano/Micro Engineered and Molecular Systems, Shenzhen, China, 5–8 January 2009; pp. 703–706.
  14. Wilson, JS. Sensor Technology Handbook; Butterworth-Heinemann: Boston, MA, USA, 2004. [Google Scholar]
  15. Xiao, S; Che, L; Li, X; Wang, Y. A cost-effective flexible MEMS technique for temperature sensing. Microelectron. J 2007, 38, 360–364. [Google Scholar]
  16. Shih, WP; Tsao, LC; Lee, CW; Cheng, MY; Chang, C; Yang, YJ; Fan, KC. Flexible temperature sensor array based on a graphite-polydimethylsiloxane composite. Sensors 2010, 10, 3597–3610. [Google Scholar]
  17. Innovative Sensor Technology, Available online: www.ist-ag.ch (accessed on 15 July 2011)..
  18. Lee, CY; Hsieh, WJ; Wu, GW. Embedded flexible microsensors in MEA for measuring temperature and humidity in a micro-fuel cell. J. Power Sources 2008, 181, 237–243. [Google Scholar]
Sensors 11 08674f1 1024
Figure 1. (a) A schematic view of designed capacitive humidity microsensor; (b) MEMS fabrication process for the humidity microsensor; and (c) Photograph of the humidity microsensor.

Click here to enlarge figure

Figure 1. (a) A schematic view of designed capacitive humidity microsensor; (b) MEMS fabrication process for the humidity microsensor; and (c) Photograph of the humidity microsensor.
Sensors 11 08674f1 1024
Sensors 11 08674f2 1024
Figure 2. (a) A schematic view of designed resistive temperature microsensor; (b) MEMS fabrication process for the temperature microsensor; and (c) Photograph of the temperature microsensor.

Click here to enlarge figure

Figure 2. (a) A schematic view of designed resistive temperature microsensor; (b) MEMS fabrication process for the temperature microsensor; and (c) Photograph of the temperature microsensor.
Sensors 11 08674f2 1024
Sensors 11 08674f3 1024

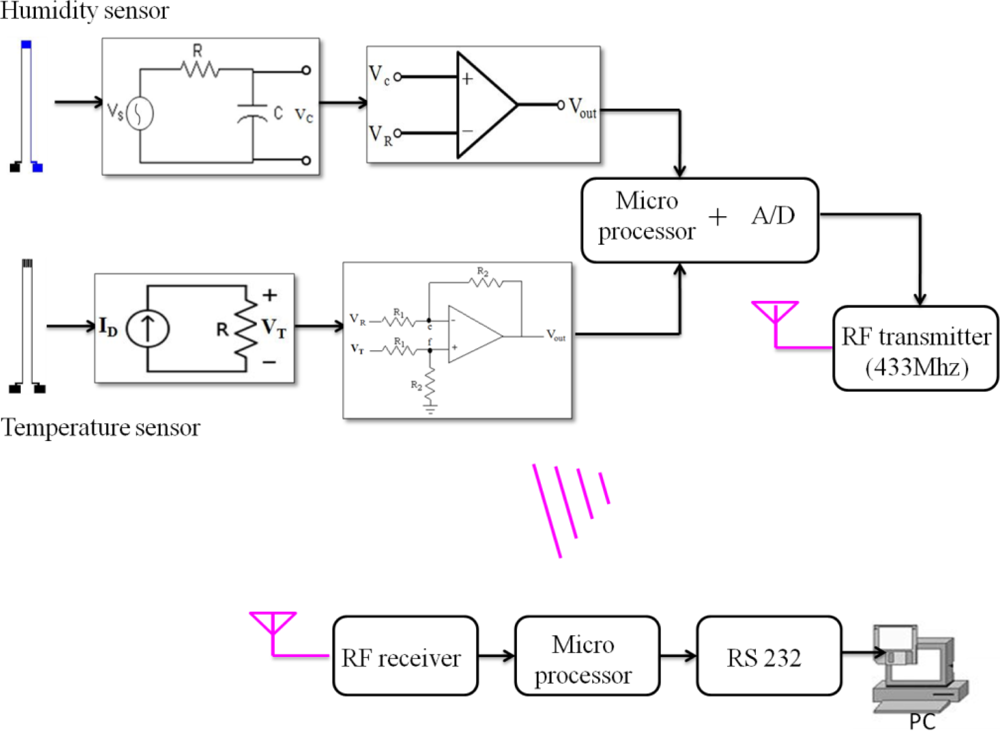

Figure 3. Block diagram of the wireless sensing system.

Click here to enlarge figure

Figure 3. Block diagram of the wireless sensing system.
Sensors 11 08674f3 1024
Sensors 11 08674f4 1024
Figure 4. Capacitive humidity microsensor performances at different temperatures in an environmental chamber.

Click here to enlarge figure

Figure 4. Capacitive humidity microsensor performances at different temperatures in an environmental chamber.
Sensors 11 08674f4 1024
Sensors 11 08674f5 1024
Figure 5. Resistive temperature microsensor performance.

Click here to enlarge figure

Figure 5. Resistive temperature microsensor performance.
Sensors 11 08674f5 1024
Sensors 11 08674f6 1024
Figure 6. Calibration of wireless integration for humidity sensor at different temperatures (25, 40, 55, 70 °C) in environmental chamber.

Click here to enlarge figure

Figure 6. Calibration of wireless integration for humidity sensor at different temperatures (25, 40, 55, 70 °C) in environmental chamber.
Sensors 11 08674f6 1024
Sensors 11 08674f7 1024
Figure 7. Comparison between capacitance measurement by LCR meter and by RF module at the temperature of 25 °C.

Click here to enlarge figure

Figure 7. Comparison between capacitance measurement by LCR meter and by RF module at the temperature of 25 °C.
Sensors 11 08674f7 1024
Sensors 11 08674f8 1024
Figure 8. Calibration of wireless integration for temperature sensor.

Click here to enlarge figure

Figure 8. Calibration of wireless integration for temperature sensor.
Sensors 11 08674f8 1024
Sensors 11 08674f9 1024
Figure 9. Photo of fuel cell operating system and wireless sensing system.

Click here to enlarge figure

Figure 9. Photo of fuel cell operating system and wireless sensing system.
Sensors 11 08674f9 1024
Sensors 11 08674f10 1024
Figure 10. The humidity diagnosis within fuel cell using wireless sensing system

Click here to enlarge figure

Figure 10. The humidity diagnosis within fuel cell using wireless sensing system
Sensors 11 08674f10 1024
Sensors 11 08674f11 1024
Figure 11. Fuel cell performance with and without microsensors.

Click here to enlarge figure

Figure 11. Fuel cell performance with and without microsensors.
Sensors 11 08674f11 1024
Table Table 1. Comparison of sensitivity for different capacitive humidity sensors using polyimide presented in the literature.

Click here to display table

Table 1. Comparison of sensitivity for different capacitive humidity sensors using polyimide presented in the literature.
ReferenceBest sensitivity
Gu et al. [11]5 fF%RH−1
Kim et al. [12]0.78 pF%RH−1
Kim et al. [13]0.35 pF%RH−1
This study0.83 pF%RH−1
Table Table 2. Comparison of sensitivity for different resistive temperature sensors presented in the literature.

Click here to display table

Table 2. Comparison of sensitivity for different resistive temperature sensors presented in the literature.
ReferenceElectrode materialSensitivity
Xiao et al. [15]Pt2.91 × 10−3 °C−1
Shih et al. [16]Pt2 × 10−3 °C−1
Innovative Sensor Technology [17]Pt3.85 × 10−3 °C−1
This studyAu2.94 × 10−3 °C−1
