Vision-Based Finger Detection, Tracking, and Event Identification Techniques for Multi-Touch Sensing and Display Systems
Previous Article in Journal
Lessons from the Field—Two Years of Deploying Operational Wireless Sensor Networks on the Great Barrier Reef
Sensors 2011, 11(7), 6856-6867; doi:10.3390/s110706856

Miniature Microring Resonator Sensor Based on a Hybrid Plasmonic Waveguide

* ,
State Key Laboratory of Advanced Optical Communication Systems and Networks, Department of Electronic Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
* Author to whom correspondence should be addressed.
Received: 4 June 2011 / Revised: 17 June 2011 / Accepted: 17 June 2011 / Published: 1 July 2011
(This article belongs to the Section Chemical Sensors)
View Full-Text   |   Download PDF [699 KB, uploaded 21 June 2014]   |   Browse Figures

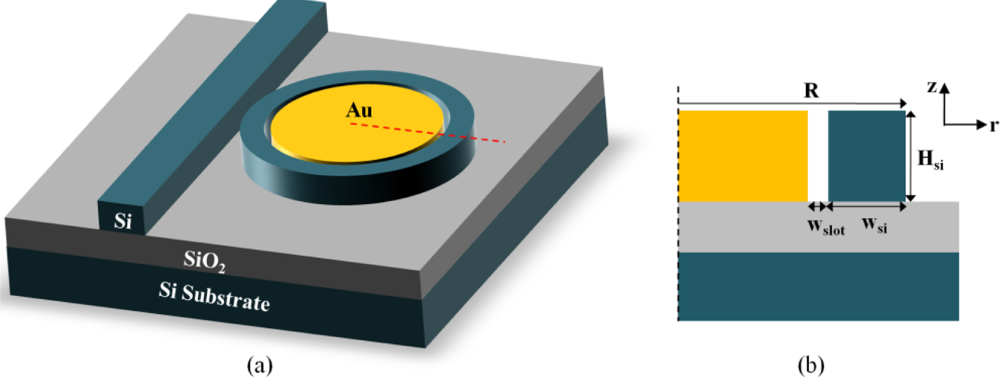

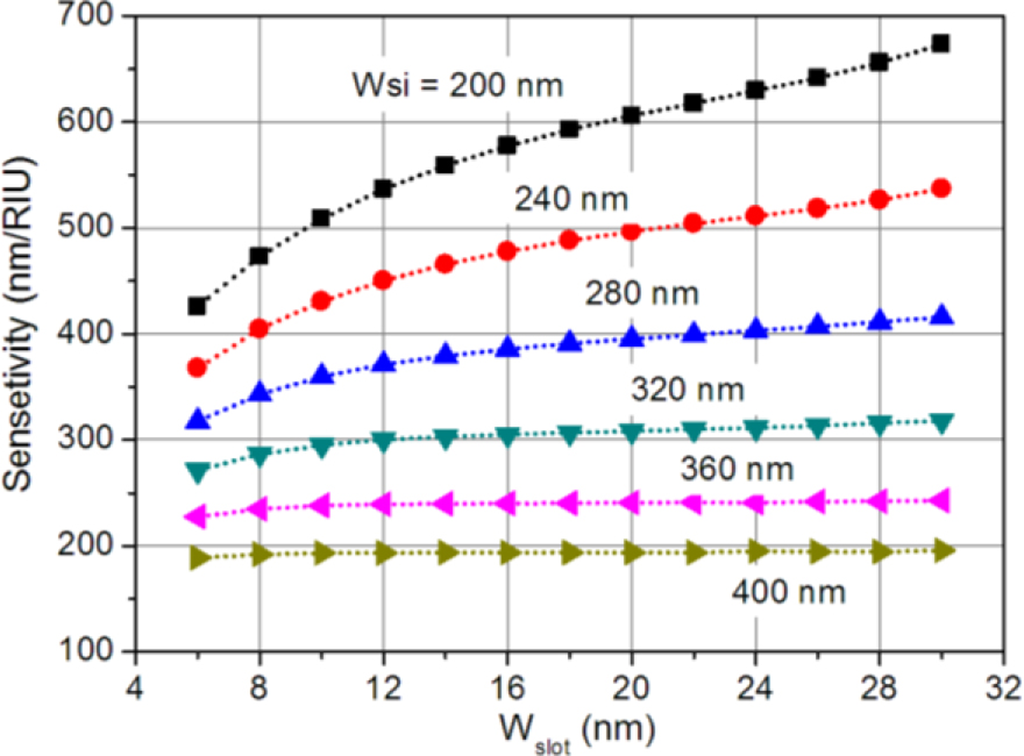

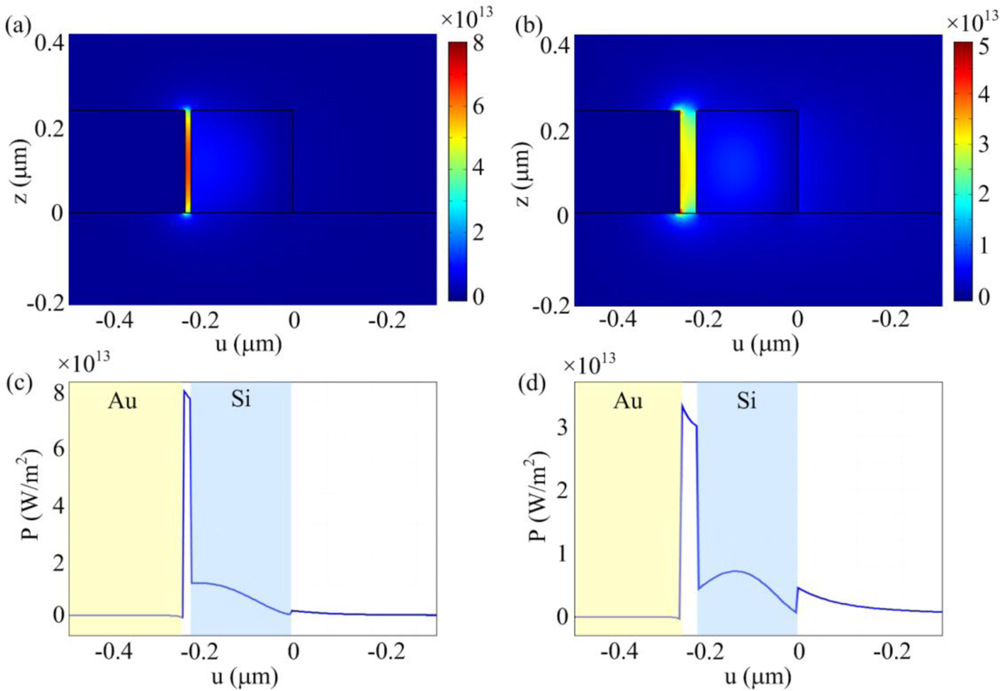

We propose a compact 1-mm-radius microring resonator sensor based on a hybrid plasmonic waveguide on a silicon-on-insulator substrate. The hybrid waveguide is composed of a metal-gap-silicon structure, where the optical energy is greatly enhanced in the narrow gap. We use the finite element method to numerically analyze the device optical characteristics as a biochemical sensor. As the optical field in the hybrid micoring resonator has a large overlap with the upper-cladding sensing medium, the sensitivity is very high compared to other dielectric microring resonator sensors. The compactness of the hybrid microring resonator is resulted from the balance between bending radiation loss and metal absorption loss. The proposed hybrid microring resonator sensors have the main advantages of small footprint and high sensitivity and can be potentially integrated in an array form on a chip for highly-efficient lab-on-chip biochemical sensing applications.
Keywords: surface plasmon resonance; resonators; sensors surface plasmon resonance; resonators; sensors
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
MDPI and ACS Style

Zhou, L.; Sun, X.; Li, X.; Chen, J. Miniature Microring Resonator Sensor Based on a Hybrid Plasmonic Waveguide. Sensors 2011, 11, 6856-6867.
