Sensors 2011, 11(12), 11901-11920; doi:10.3390/s111211901

Article
Contamination of Runoff Water at Gdańsk Airport (Poland) by Polycyclic Aromatic Hydrocarbons (PAHs) and Polychlorinated Biphenyls (PCBs)
Anna Maria Sulej *, Żaneta Polkowska and Jacek Namieśnik
Chemical Faculty, Gdańsk University of Technology, ul. Gabriela Narutowicza 11/12, 80-233 Gdańsk, Poland; E-Mails: zanpolko@pg.gda.pl (Z.P.); chemanal@pg.gda.pl (J.N.)
*
Author to whom correspondence should be addressed; E-Mail: anna.maria.sulej@gmail.com; Tel.: +48-58-347-1010; Fax: +48-58-347-2694.
Received: 4 November 2011; in revised form: 29 November 2011 / Accepted: 9 December 2011 /
Published: 20 December 2011

Abstract

: Airport runoff can contain high concentrations of various pollutants, in particular polycyclic aromatic hydrocarbons (PAHs) and polychlorinated biphenyls (PCBs), the environmental levels of which have to be monitored. Airport runoff water samples, collected at the Gdańsk-Rębiechowo Airport from 2008 to 2009, were analysed for PAHs and PCBs by gas chromatography. The aromatic fractions were separated by liquid-liquid extraction and analysed by GC/MS. Total PAH concentrations were 295–6,758 ng/L in 2008 and 180–1,924 ng/L in 2009, while total PCB levels in 2008 ranged from 0.14 to 0.44 μg/L and in 2009 from 0.06 to 0.23 μg/L. The PAH and PCB compositions in airport runoff waters were examined over a range of spatial and temporal scales to determine distributions, trends and possible sources. This pollution is mainly pyrolytic and related to anthropogenic activity. There were significant differences between the samples collected in the two seasons. An understanding of the magnitude of contamination due to airport runoff water is important for the effective management of airport infrastructure.
Keywords:
airport runoff water; PCBs; PAHs; pollutants

1. Introduction

Despite the many positives emerging from the rapid expansion of the air transport sector, all activities relating to airport operations lead to environmental contamination [14]. Increases in aviation developments have serious consequences on the surrounding air, soil and water bodies like lakes, rivers and ground water [5]. The management of local water and air quality is a significant environmental issue for many airports.

Wet deposition is one of the most important routes through which atmospheric pollutants reach the surface of the Earth. Atmospheric pollutants are scavenged to the largest extent during the initial stages of the precipitation event (first flush), and their concentration decreases exponentially with time [6]. This was observed among others in studies performed in Germany and Switzerland, in which the highest concentration of pollutants were observed in the initial portions of precipitation and runoff waters. Then, the rainfall waters and arising from them runoff waters, together with various toxic compounds, get into the soil, surface waters and groundwaters, which can be the source of drinking water [79].

A particularly important problem in airports managements is the contamination caused by airport runoff waters. Much of the land surface in urban areas is impervious, and does not allow rain and snowmelt to soak into the ground, thus contributing to the increase of runoff volume. Airport runoff waters are formed when rain or melting snow washes off the airport apron the chemicals used for deicing and antiicing, refuelling, vehicle cleaning and maintenance, as well as the products of fuel combustion and spilt fuel. Both precipitation and runoff waters get into the surface waters and even ground waters. Two particularly hazardous groups of chemicals that can enter the environment along with airport runoff waters are polycyclic aromatic hydrocarbons (PAHs) and polychlorinated biphenyls (PCBs) [1013].

In recent years, pollution by PAHs has led to numerous studies of their origin, distribution and fate in the environment. The sources of emissions of these compounds are numerous. PAHs released into the environment are mainly anthropogenic, and it is currently assumed that PAHs are mainly of pyrolytic origin. In addition, PAHs enter the environment through contamination by crude oils, coal, coal tar or various refinery products (petrogenic origin) [14] and natural sources like forest fires and volcanic activity [15,16].

PCBs also have a destructive effect on the environment. Their concentration in the environment, especially in rain and urban storm water, is presumed to have declined due to banned use, but despite this, PCBs are present in practically all environmental samples, sometimes at surprisingly high levels. PCBs can also be present in airport runoff waters [17,18]. Those present in airport storm water runoff are associated with specific activities, e.g., they were used as heat exchanger fluids, chemical stabilizers, and in hydraulic systems in the aluminium, copper and iron smelting industries. PCBs were also used as plasticizers in natural and synthetic rubber products like adhesives, installation materials, flame retardants, lubricants, chemical stabilizers in paints, pigments and oil varnishes at airports [19].

PAHs and PCBs are particularly hazardous to all compartments of the environment because they are highly toxic and carcinogenic [2022]. In view of this it is essential to draw greater attention to assessments of the effect of runoff on different compartments of the environment and on living organisms [23].

To date, PAH levels have been determined in only a few environmental samples, for example, in air samples from airports in Italy (99–114 ng/m3 [24]) and California (av. 18–570 ng/m3 [25,26]). PAHs were also determined in soil samples from Delhi International Airport (India) (1.7–7,529 μg/kg). The PAH compound most commonly determined was benzo(a)pyrene, with soil concentrations of 1.0–530 μg/kg [21,27]. No analysis has been done of airport runoff waters for the presence of PCBs. But the detection and quantitative determination of PCBs has been carried out in samples of water and bottom sediments from the river in the vicinity of Washington (USA) airport. The levels of these pollutants ranged from not detected to 22 μg/L in the river water and from 0.05 to 10,000 (mg/kg dry weight) in the bottom sediments [28].

To date relatively little information is available on the results of analyses of airport runoff waters. Nevertheless, this type of material object is attracting increasing attention as a source of information about its potential adverse effect on the environment [2832]. The present work deals with the determination of PAHs and PCBs found in airport runoff waters from the Lech Wałęsa Airport in Gdańsk, Poland. The PAH and PCB concentrations and distributions are discussed in terms of sampling location, seasonal variation, origin and sources.

2. Experimental Section

2.1. Sampling

The samples of runoff and precipitation water were collected during or shortly after the rainfall (depending on its intensity, at least 2–3 mm) at the Lech Wałęsa Airport in Gdańsk, the third-largest airport in Poland in three seasons—winter, spring and summer—from 2008 to 2009. They were taken in series of 25 in each season from small depressions. The sampling locations are areas of the airport with the greatest concentration of technical service operations: aircraft refuelling, loading and unloading (cargo aircraft), deicing, parking and servicing of ground staff vehicles. These are therefore sites where the largest amounts of pollutants enter drainage ditches with runoff and then into the environment at large. The sampling locations on Airport Gdańsk are labelled in Figure 1 and described in Table 1.

Atmospheric precipitation samples were collected during or immediately after a precipitation event. Rain samples were collected in 250 cm3 dark bottles equipped with glass funnels. Airport runoff samples at each location were collected in 1,000 mL bottles of dark glass using plastic tubes mounted at the edge of the asphalt surface to ensure free flow of the sample to the collection vessels. The samples were transported to the laboratory (usually within less than 1 h of collection. Prior to use, the syringes and tubing were rinsed with MilliQ water and then with the water to be sampled. As the runoff samples were usually highly contaminated with solids (sand, leaves, etc.), they had to be pre-filtered (0.45 μm, Millex®-HV). Bottles were stored at 4 °C in the dark until extraction [3337].

2.2. Chemicals

The organic compounds investigated were PCBs (PCB 28, PCB 52, PCB 101, PCB 118, PCB 153, PCB 138, PCB 180) and PAHs (naphthalene, acenaphthylene, acenaphthene, fluorene, phenanthrene, anthracene, fluoranthene, pyrene, chrysene, benzo(b)fluoranthene, benzo(k)fluoranthene, benzo(a)pyrene, benzo(a)anthracene, indeno(1,2,3-cd)pyrene, dibenz(a,h)anthracene), benzo(g,h,i)perylene. Predeuterated aromatic compounds (naphthalene-d8, benzo(a)anthracene-d12) and mixtures of 16 PAHs (2,000 μg/mL in dichloromethane) from Supelco (Bellefonte, PA, USA) and Restek Corporation (Bellefonte, PA, USA), respectively, were used as internal standards. A working stock solution was prepared from seven selected PCB standards, IUPAC Nos. 28, 52, 101, 118, 153, 138 and 180 (10 μg/mL in isooctane) from Restek Corporation. Certified standards of 13C-labelled PCB 28 and PCB 180 (40 μg/mL in nonane) were obtained from Cambridge Isotope Laboratories (Warsaw, Poland). All solvents used for sample processing and analyses were GC-pure quality and were purchased from Merck (Darmstadt, Germany).

2.3. Analytical Procedure

Approximately 1 L of samples was liquid-liquid extracted with 30 mL dichloromethane, two isotopically labelled internal standards of PCB 28 (270, 268 m/z) and PCB 180 (408, 406 m/z) and two deuterated internal standards: naphthalene-d8 (136 m/z) and benzo(a)anthracene-d12 (240 m/z) and shaken for 20–30 min. Internal standards were used for quality control. After liquid-liquid extraction (LLE) the extract was evaporated to a volume of 300 μL under a gentle stream of nitrogen. The runoff water samples so prepared were analysed by GC-MS. This organic analysis included 16 polycyclic aromatic hydrocarbons (PAH): naphthalene, acenaphthylene, acenaphthene, fluorene, phenanthrene, anthracene, fluoranthene, pyrene, benzo(a)anthracene, chrysene, benzo(b)fluoranthene, benzo-(k)fluoranthene, benzo(a)pyrene dibenz(a,h)anthracene, benzo(ghi)perylene and indeno(1,2,3-cd)-pyrene and seven polychlorinated biphenyls (PCB) IUPAC Nos. 28, 52, 101, 118, 138, 152, and 180. This procedure for determining PAHs and PCBs in water samples was carried out on the basis of the procedure described by ISO 17993 standard. It was subsequently modified in that a GC-MS system was used for the final determinations [3842]. Figure 2 shows a flow chart for the determination of PAHs and PCBs in samples of sea water. The experiments were performed using an Agilent Technologies 7890A gas chromatograph with an Agilent Technologies 5975C mass spectrometric detector and split/splitless injector. Table 2 gives information on the GC-MS operating conditions.

Mass detection was performed in the selected ion monitoring (SIM) mode. The following mass to ion ratios were monitored: (m/z) PAH: 128, 127, 152, 151, 153, 154, 166, 165, 178, 176, 203, 202, 228, 226, 252, 250, 277, 276, 278, and 279, and PCB: 256, 258, 290, 292, 234, 326, 358, 360, 392, and 394. Before sample analysis, the relevant standards were analysed to check column performance, peak height and resolution, and the limits of detection and quantification. A solvent blank, a standard mixture and a procedural blank were run in each sequence of samples to check for contamination, peak identification and quantification. Compounds were identified mainly by their retention times. Measuring range, detection and quantification limits are presented in Table 3.

3. Results and Discussion

3.1. Total Concentrations and Relative Distributions of PAH

Figure 3 shows the measured concentration of PAH determined in samples of runoff water collected from five locations at Gdansk Airport in 2008–2009; the PAH distribution was the same at most of the sampling sites in both 2008 and 2009.

This uniformity and the permanence of the total concentrations suggest a similar source of the PAHs in most of the samples. The sum of 16 PAHs (Σ PAH) ranged from 295 ng/L to 6,758 ng/L in 2008, and from 180 ng/L to 1,924 ng/L in 2009. The mean value of ΣPAH for the five sampling locations was around 1,703 ng/L in 2008 and 601 ng/L in 2009. Generally, PAH concentrations in the 2008 samples were higher than those in the samples from 2009. The next important feature is the predominance of naphthalene at all locations in 2008 and 2009 (Figure 3). Of all the PAHs in crude oil, naphthalene was present in the largest amounts and can therefore be used as an indicator substance for assessing whether an oil spill has occurred or not. The data in Figure 3 indicate that fuels spills did occur at all the sampling sites in both years of the study. PAH levels were the highest at Site 5. This is because rain water flushes pollutants off the concrete apron surface which then get into the environment around the edges of the airport with runoff water—there is no waste water treatment plant at this airport. Site 5 is additionally burdened with runoff from the road leading up to the airport entrance gate.

The seasonal changes in the sum of PAH concentrations in runoff samples collected in 2008–2009 from different locations on Gdansk Airport are shown in Figure 4. Comparison of the sum of PAHs in 2008 and 2009 shows that PAH levels were significantly higher in 2008 than in 2009. Moreover, the smallest amounts of PAHs were emitted in summer than in other seasons. Total PAH concentrations in winter 2009 were 1.8 times higher than in summer, and in spring 2009 they were 2.2 times higher than in summer. In spring 2008 [Figure 4(a)] PAH concentrations at all sampling sites were much higher than the winter values. Such high levels of PAHs in early spring samples could be due to the thaw typical of this time of the year, when contaminants accumulated in the frozen airport aprons are flushed out by melting snow and heavy rain. Throughout the research period the highest PAH levels were recorded at site 5 (the airport entrance gate). These contaminants may be carried onto the airport premises by technical service vehicles and by cars bringing passengers to the airport.

3.2. Diagnostic Ratio Analysis

Table 4 sets out literature information on the values of parameters that can be used to determine the origin of PAH compounds. Identifying the origin of PAH compounds in airport runoff waters is extremely important: without this information it is not possible to evaluate the extent of their interaction with the aquatic environment or to take appropriate action with regard to their biogdegradation (PAHs derived from combustion processes are more strongly bound to sediment particles and their biodegradation is therefore more difficult). Compounds of diagnostic significance are always those with a similar molecular mass. Such compounds have a similar environmental fate (adsorption, desorption, etc.), and likewise, their recoveries at the extraction stage prior to quantitative determination are also similar.

The nature of the emission source of PAHs can be defined using calculated values of indices expressing the concentration ratio of particular PAHs. During combustion processes the alkyl derivatives of PAHs are the less stable thermodynamic form; hence the concentration ratio of alkylphenanthrenes to phenanthrenes is used to show whether combustion processes, and also spills and the processing of crude oil, are sources of PAHs. The usual values of the indices (FLTH/PYR > 1, BaA/CHR > 1, BaA/(BaA+CHR) > 0.2—see Figure 5) indicate that combustion is responsible for the PAHs present in samples of airport runoff. In the case of all the runoff samples collected at all five sites on the airport in 2008, the value of FLTH/PYR [Figure 5(b)] indicated quite conclusively that the PAHs were of pyrolytic origin [14], whereas in 2009 the value of FLTH/PYR for all samples was <1, which points to the petrogenic origin of the PAHs [14,43].

According to previous studies, the value of the parameter BaA/CHR > 1 [Figure 5(a)] indicates pyrolytic sources, including incomplete combustion of fuels, while BaA/CHR < 1 indicates petrogenic sources, including spilt petroleum products or oil [50]. In most of the samples for which the PAHs were shown to be of pyrolytic origin, only the samples from the machinery park (2008) and the passenger terminal (2009) were of petrogenic origin (spilt fuel during refuelling, aircraft and ground service vehicle repairs; see Figure 5).

According to the data presented in Figure 5(c), the PAH ratio BaA/(BaA + CHR) of > 0.2 indicates pyrolytic sources, whereas BaA/(BaA + CHR) < 0.2 indicates petrogenic sources. The BaA/(BaA + CHR) ratios in 2008–2009 were generally higher than 0.2 at all the sampling sites. This result suggests the dominance of pyrolytic sources of PAHs in airport runoff waters in those years.

A cross-plot of the PHE/ANTH ratio vs. the FLUO/PYR ratio (Figure 6) indicates a high variability, most likely due to the intensive mixing of various PAH sources during transport and the deposition of PAHs. We selected the FLUO/PYR ratio for source discrimination because it covers gaseous as well as particle-transported PAHs. These compounds are characterized by similar boiling points, vapour pressures, photo-oxidation properties as well as octanol/air and plant/air-partitioning coefficients [59,60]. Hence, the cross-plot of the PHE/ANTH ratio against the FLUO/PYR ratio calculated for the 2008 samples generally indicates pyrolytic sources (62.5%) and mixed sources (37.5%), while the studies in 2009 suggest that PAHs in airport runoff waters were mainly of mixed (56.7%) and pyrolytic origin (23.3%).

The percentage relationship between pyrolytic, petrogenic and other sources of PAH emissions (shown in Table 5), needed for assessing the origin of PAHs found in the runoff samples from Gdansk Airport, suggest that fuel combustion is the main source of PAH emissions.

3.3. Correlations of PAH’s Concentration in Runoff vs. Precipitation

Average concentrations of particular analytes of PAHs determined in rainwater and runoff water for samples collected in 2008 from Gdansk Airport area are shown in Table 6. The values of time averaged concentrations of the PAHs taken for calculations were determined for samples collected at a given site at the same time for both the rainfall and the runoff.

The conducted analysis showed that 11 compounds from the PAHs group (naphthalene, acenaphthene, phenanthrene, anthracene, fluoranthene, pyrene, benzo(a)anthracene, chrysene, benzo(b)fluoranthene, benzo(a)pyrene, indeno(1,2,3-cd) pyrene) were determined in the runoff water samples collected in winter in 2008. However the analysis of rainfall water samples collected at the airport at the same time indicated the presence of only five compounds from the group (naphthalene, acenaphthene, phenanthrene, fluoranthene, benzo(g,h,i) perylene).

Generally, the quantitative analysis showed that the concentration levels of PAH compounds in runoff water samples collected in winter were significantly greater (about 5–8 times for naphthalene, acenaphthene, phenanthrene) and up to ca. 52 times higher for fluoranthene, compared with their concentrations determined in rainfall water samples.

The concentration level of pollutants from the group of PAH compounds also depends on the location of the sampling sites, from which runoff water samples were collected. Both in winter and spring, the highest concentration levels of the sum of PAHs were determined for the measurement point No. 5 (entry gate to the airport premises).

Determination of the analytes from the group of PCBs and PAHs during the spring season in the rainfall and runoff water samples showed no significant differences in the concentration levels of the compounds under investigation. However, the concentration of the sum of PAHs determined in runoff water samples was approximately 1.5 times higher in the winter season, compared with the spring one. Generally it can be noticed that the levels of pollutants from the group of PAHs in the samples collected in winter are much higher in comparison with the entire research period.

3.4. Total Concentrations and Relative Distributions of PCBs

The average PCB concentrations found in airport runoff water are given in Table 7. The overall concentration of 7 PCBs (ΣPCB) ranged from 0.14 to 0.44 μg/L in 2008 and from 0.06 μg/L to 0.23 μg/L in 2009. The highest PCB levels were determined in samples taken in 2008 from near the passenger terminal.

Figure 7 presents information on the seasonal variations of PCB concentrations in airport runoff water samples collected from the various sites on the airport premises. It is clear from these data that PCB levels were much higher in 2008 than in 2009. In contrast, the average sum of PCBs in runoff waters collected at all 5 sites in spring was much higher than the corresponding winter values. Site 3, the airport apron close to the passenger terminal, was an exception, however: the average PCB concentration in winter samples there was much higher than that in spring runoff samples. Indeed, PCB levels at this site were the highest of all throughout the measurement campaign in 2008–2009. The accumulation of PCBs at this site, immediately adjacent to the passenger terminal, may be due to the more intense service vehicle traffic there; these vehicles very probably carry this kind of contaminant. PCB levels in runoff water samples in 2009 [Figure 7(b)] were comparable to those obtained in 2008. Total PCB concentrations in spring 2009 at all the airport sites were higher than in the winter and summer of that year (spring 2009 was very cold and snowy); consequently, more fuel was consumed, and other operations supporting flight safety (deicing, etc.) were more frequent. Generally, concentrations of PCBs were the highest in winter and spring, probably as a result of certain procedures that are more commonly carried out in the cooler seasons (the use of heat exchanger fluids, chemical stabilizers, etc.).

3.5. Correlations of PCB’s Concentration in Runoff vs. Precipitation

Table 8 shows the average concentrations of PCBs determined in the rainfall and runoff water samples collected from Gdansk Airport area in 2008.

Based on the conducted analysis of rainfall and runoff water samples collected from the area of the airport, the presence of all seven compounds from the group of PCBs (PCB 28, PCB 52, PCB 101, PCB 118, PCB 153, PCB 138, PCB 180), both during the winter and spring season, can be noticed. The concentration levels of all seven investigated compounds in the runoff water samples during the entire research period were significantly higher, when compared with rainfall. In the runoff water samples collected during winter and spring seasons, the concentrations of individual compounds from the group of PCBs were from 1.5 to 13.5 (spring) times greater, when compared with rainfall. The highest concentration levels of the sum of PCBs were determined in the samples collected at the measurement site no. 3 (airport aprons close to the passenger terminal with parked aircraft) in winter, while at the measurement site no. 4 (machinery park) in spring.

The average concentration level of the sum of PCBs calculated for runoff water samples collected from all measurement locations at the airport is comparable to the concentration of the sum of PCBs in the runoff water samples determined during the spring season. However, the average concentration of the sum of PCBs determined in the runoff water samples collected in winter is up to ca. 4.5 times higher in comparison with the concentration of the sum of PAHs determined in the rainfall water samples. It can be concluded that the level of PCB pollution at the airport is highly influenced by both the season, during which the samples are collected, and the sampling point at the airport.

4. Summary and Conclusions

Runoff water samples and rainfall from Gdańsk Airport were analysed for their PAH and PCB contents over a range of spatial and temporal scales to determine distributions, trends and possible sources. The results from five airport sites from which 125 samples were collected in 2008–2009 suggest that airport runoff water contains small though significant quantities of PAHs and PCBs. It is of interest to compare the results of this study with published information, which, however, is generally limited to PAH levels in the air and soil at airports. Analysis of PCBs in airport runoff water samples is new. PAH concentrations in airport runoff waters are much higher than those in airport air samples (86–120 ng/m3) and are comparable with the values in airport soils (1.7–7,529 ng/kg).

This work is mainly focused on the analysis of runoff water samples, because the composition of such environmental samples contains a sum of pollutants derived both from atmospheric precipitation and washed directly from the airport platform. The runoff water samples are a valuable research material (especially in the case of determination of PAH compounds). The qualitative analysis revealed that 11 of 16 investigated PAH compounds can be detected and determined in runoff waters. In addition, the levels of pollutants from the group of PAHs and PCBs in the runoff water samples were from several to tens times higher compared with the concentrations of the same analytes in the rainfall water samples.

The conducted research studies of both runoff and rainfall water samples collected from the area of the airport indicate a significant impact of the season, during which the samples were collected, on the concentration levels of PAH and PCB pollutants. In winter, the concentration levels of the compounds from the group of PCBs and PAHs determined in both runoff and rainfall water samples are much higher in comparison with the other periods. The significant differences in the concentrations of PAH compounds in winter in the investigated environmental samples result from the fact that winter activity associated with maintaining the security at the airports is much greater than in the other seasons. In the harsh, winter weather conditions, aircrafts and vehicles require a longer period for starting the engines, airplanes also need more power during the takeoff, it is directly associated with burning of more fuel. In the winter season, inspections and repairs of the aircrafts are often carried out, what is connected with the consumption of large amounts of fluids, preservatives and related products, which are often a source of pollution.

Sampling point at the airport also has a significant impact on the level of pollutants present in the rainfall and runoff water samples. The highest concentration levels of pollutants from the group of PCBs and PAHs were determined in the places where there is a heavy traffic associated with the processing of the passengers, in the vicinity of the machinery park, runway and on the airport outskirts, where a large load of pollutants is carried by the movement and maintenance of vehicles leaving and entering the airport.

The sources of PAH emissions were also determined on the basis of the diagnostic ratios of levels of particular PAHs (comparison of calculated ratios with a particular criterion). In 2008 and 2009 pyrogenic sources were dominant in airport runoff water. Analysis of the various ratios showed that incomplete combustion of fuels was the major PAH source for the runoff system in the study area. Understanding the sources and pathways of pollutant transport from airports to environment is fundamental for the protection of ecosystems.

The conclusion to be drawn is that the intensity of air traffic has a significant influence on the amounts of PAHs and PCBs produced at the airport. Generally, PAH and PCB concentrations in airport runoff water in 2008 were much higher than in 2009; this is because in 2009 some 50,000 fewer passengers passed through Gdańsk Airport than in 2008.

The data presented here provide a useful baseline for airports—a source of information essential for assessing the hazard to surface and ground waters in their vicinity. They can also be used in the development of new norms for managing airport infrastructure, the aim of which should be to reduce the impact of airport operations on the biotic and abiotic environment.

The project was funded by the National Science Center awarded on the basis of the decision numbered DEC-2011/01/N/ST4/01913. The authors express their gratitude for the grant awarded within the framework of the interdisciplinary Development of Interdiscplinary PhD Studies in Modern Technologies project at the Gdańsk University of Technology, co-funded by the European Union.

References

  1. Cancilla, D.A.; Martinez, J.; Aggelen, G.C.V. Detection of aircraft deicing/antiicing fluid additives in a perched water monitoring well at an International airport. Environ. Sci. Technol 1998, 32, 3834–3835. [Google Scholar]
  2. Corsi, S.R.; Geis, S.W.; Bowman, G.; Failey, G.G.; Rutter, T.D. Aquatic toxicity of airfield-pavement deicer materials and implications for airport runoff. Environ. Sci. Technol 2009, 43, 40–46. [Google Scholar]
  3. French, H.K.; van der Zee, S.E.; Leijnse, A. Transport and degradation of propylene glycol and potassium acetate in the unsaturated zone. J. Contam. Hydrol 2001, 49, 23–48. [Google Scholar]
  4. Switzenbaum, M.; Veltman, S.; Wagoner, M.D.; Schoenberg, T. Best management practices for airport deicing stormwater. Chemosphere 2001, 43, 1051–1062. [Google Scholar]
  5. Luther, L. Environmental Impacts of Airport Operations, Maintenance, and Expansion; CRS Report for Congress;. Federation of American Scientists: Washington, DC, USA, 2007. [Google Scholar]
  6. Leister, D.H.; Baker, J.E. Atomospheric deposition of organic contaminants to the Chesapeake Bay. Atmos. Environ 1994, 18, 1499–1520. [Google Scholar]
  7. Bucheli, T.D.; Muller, S.R.; Heberle, S.; Schwarzenbach, R.P. Occurence and behaviour of pesticides in rainwater, roof runoff, and artificial stormwater infiltration. Environ. Sci. Technol 1998, 32, 3457–3464. [Google Scholar]
  8. Bucheli, T.D.; Muller, T.D.; Voegelin, S.R.; Schwarzenbach, R.P. Bituminous roof sealing membranes as major sources of the herbicide (R,S)-Mecoprop in roof runoff waters: Potential contamination of groundwater and surface water. Environ. Sci. Technol 1998, 32, 3465–3471. [Google Scholar]
  9. Förster, J. Patterns of roof runoff contamination and their potential implications on practice and regulation of treatment and local infiltration. Water Sci. Technol 1996, 33, 39–48. [Google Scholar]
  10. Breedveld, G.D.; Roseth, R.; Sparrevik, M.; Hartnik, T.; Hem, L.J. Persistence of the de-icing additive benzotriazole at an abandoned airport. Water Air Soil Pollut 2003, 3, 91–101. [Google Scholar]
  11. Hartwell, S.I.; Jordahl, D.M.; Evans, J.E.; May, E.B. Toxicity of aircraft de-icer and anti-icer solutions to aquatic organisms. Environ. Toxicol. Chem 1995, 14, 1375–1386. [Google Scholar]
  12. Hermens, J.; Canton, H.; Janssen, P.; Jong, R.D. Quantitative structure-activity relationships and toxicity studies of mixtures of chemicals with anesthetic potency: Acute lethal and sublethal toxicity to Daphnia magna. Aquat. Toxicol 1984, 5, 143–154. [Google Scholar]
  13. Sulej, A.M.; Polkowska, Ż.; Namieśnik, J. Analysis of airport runoff waters. Crit. Rev. Anal. Chem 2011, 41, 190–213. [Google Scholar]
  14. Budzinski, H.; Jones, I.; Bellocq, J.; Pierard, C.; Garrigues, P. Evaluation of sediment contamination by polycyclic aromatic hydrocarbons in the Gironde estuary. Mar. Chem 1997, 58, 85–97. [Google Scholar]
  15. Mahvi, A.; Mardani, G. Determination of phenanthrene in urban runoff of Tehran, capital of Iran. Iranian J. Environ. Health Sci. Eng 2005, 2, 5–11. [Google Scholar]
  16. Readman, J.W.; Fillmann, G.; Tolosa, I.; Bartocci, J.; Villeneuve, J.P.; Catinni, C.; Mee, L.D. Petroleum and PAH contamination of the Black Sea. Mar. Pollut. Bull 2002, 44, 48–62. [Google Scholar]
  17. Erickson, M.D. Analytical Chemistry of PCBs; Lewis: Chelsea, UK, 1992. [Google Scholar]
  18. Shaver, E.; Horner, R.; Skupien, J.; May, C.; Ridley, G. Fundamentals of Urban Runoff Management: Technical and Institutional Issues, 2nd ed; Terrene Institute: Alexandria, VA, USA, 1994. [Google Scholar]
  19. Walker, W.J.; McNutt, P.R.; Mash, C.K. The potential contribution of urban runoff to surface sediments of the Passaic River: Sources and chemical characteristics. Chemosphere 1999, 38, 363–377. [Google Scholar]
  20. Burton, G.A.; Pitt, R.E. Stormwater Effects Handbook: A Toolbox for Watershed Managers, Scientists, and Engineering; CRC Press: London, UK, 2002. [Google Scholar]
  21. Ray, S.; Khillare, P.S.; Agarwal, T.; Shridhar, V. Assessment of PAHs in soil around the International airport in Delhi, India. J. Hazard. Mater 2008, 156, 9–16. [Google Scholar]
  22. Yunker, M.B.; Macdonald, R.W. Alkane and PAH depositional history, sources and fluxes in sediments from the Fraser River Basin and Strait of Georgia, Canada. Org. Geochem 2003, 34, 1429–1454. [Google Scholar]
  23. Sulej, A.; Polkowska, Ż.; Namieśnik, J. Pollutants in airport runoff waters. Crit. Rev. Sci. Technol 2012. in press.. [Google Scholar]
  24. IvIavicoli, I.; Chiarotti, M.; Bergmaschi, A.; Marsili, R.; Carelli, G. Determination of airborne polycyclic aromatic hydrocarbons at an airport by gas chromatography-mass spectrometry and evaluation of occupational exposure. J. Chromatogr. A 2007, 1150, 226–235. [Google Scholar]
  25. Shishan, H.; Fruin, S.; Kozawa, K.; Mara, S.; Winter, A.M.; Paulson, S.E. Aircraft emission impacts in a neighborhood adjacent to a general aviation airport in Southern California. Environ. Sci. Technol 2009, 43, 8039–8045. [Google Scholar]
  26. Westerdahl, D.; Fruin, S.A.; Fine, P.L.; Siouta, C. The Los Angeles International airport as a source of ultrafine particles and other pollutants to nearby communities. Atmos. Environ 2008, 42, 3143–3155. [Google Scholar]
  27. Barcan, V.; Kovnatsky, E.; Shylina, A. Benz(a)pyrene in soils and berries in an area affected by jets over the Kola Peninsula. Atmos. Environ 2000, 34, 1225–1231. [Google Scholar]
  28. Larson, R. PCB Source Control Investigation of the City of Tukwila Stormwater System; Public Works Department: Tukwila, WA, USA, 2008. [Google Scholar]
  29. Safferman, S.I.; Azar, R.A.; Sigler, S. Passive nutrient addition for the biodegradation of ethylene glycol in storm water. J. Environ. Sci. Health 2002, 37, 955–967. [Google Scholar]
  30. Schoenberg, T.; Veltman, S.; Switzenbaum, M. Kinetics of anaerobic degradation of glycol-based Type I aircraft deicing fluids. Biodegradation 2001, 12, 59–68. [Google Scholar]
  31. Strong-Gunderson, J.M.; Wheelis, S.; Carroll, S.L.; Waltz, M.D.; Palumbo, A.V. Degradation of high concentrations of glycols, antifreeze, and deicing fluids. Available online: http://www.osti.gov/bridge/servlets/purl/146759-BBq0UX/webviewable/146759.pdf (accessed on 28 May 2011)..
  32. Vivona, M.A.; Mooney, P.E. Remediation of contaminated stormwater canal at Miami International airport. Water Eng. Manag 1997, 144, 24–29. [Google Scholar]
  33. Polkowska, Ż.; Skarżyńska, K.; Górecki, T.; Namieśnik, J. Formaldehyde in various forms of atmospheric precipitation and deposition from highly urbanized regions. Atmos. Environ 2002, 36, 361–369. [Google Scholar]
  34. Korhonen, M.; Kiviranta, A.; Ketola, R. Bulkdeposition of PAHs, PCBs and HCHs in Finland in summer seasons 1993–1996. Toxicol. Environ. Chem 1998, 66, 37–45. [Google Scholar]
  35. Levsen, K.; Behnert, S.; Prieb, B.; Svoboda, M.; DiWinkeler, H.; Zietlow, J. Organic compounds in precipitation. Chemosphere 1990, 21, 1037–1061. [Google Scholar]
  36. Rogge, W.F.; Hildeman, L.M.; Mazurek, M.A.; Cass, G.R.; Simoneit, B.R.T. Sources of fine organic aerosol 3. Road dust, tire debris, and organometallic brake lining dust: Roads and sources and sinks. Environ. Sci. Technol 1993, 9, 1892–1904. [Google Scholar]
  37. Manoli, E.; Samara, C. Polycyclic aromatic hydrocarbons in natural waters: Sources, occurrence and analysis. Trends Anal. Chem 1999, 6, 417–428. [Google Scholar]
  38. Wolska, L.; Rawa-Adkonis, M.; Namieśnik, J. Determining PAH and PCB in aqueous samples: Finding and evaluating sources of error. Anal. Bioanal. Chem 2005, 382, 1389–1397. [Google Scholar]
  39. Water Quality-Determination of 15 Polycyclic Aromatic Hydrocarbons (PAH) in Water by HPLC with Fluorescence Detection After Liquid-Liquid Extraction; ISO: Geneva, Switzerland, 2002.
  40. Wolska, L. Miniaturised analytical procedure of determining polycyclic aromatichydrocarbons and polychlorinated biphenyls in bottom sediments. J. Chromatogr. A 2002, 959, 173–180. [Google Scholar]
  41. Mechlinska, A.; Wolska, L.; Namiesnik, J. Isotope-labeled substances in analysis of persistent organic pollutants in environmental samples. Trends Anal. Chem 2010, 29, 820–831. [Google Scholar]
  42. Rogowska, J.; Mechlinska, A.; Wolska, L. Analytics of PAHs and PCBs in Aquatic Ecosystems. In Encyclopedia of Environmental Management; Taylor & Francis Group: London, UK, 2012. [Google Scholar]
  43. Ravindra, K.; Sokhi, R.; Grieken, R.V. Atmospheric polycyclic aromatic hydrocarbons: Source attribution, emission factors and regulation. Atmos. Environ 2008, 42, 2895–2921. [Google Scholar]
  44. Baumard, P.; Budzinski, H.; Garrigues, P. Polycyclic aromatic hydrocarbons in sediment and mussels of the Western Mediterranean Sea. Environ. Toxicol. Chem 1998, 17, 765–776. [Google Scholar]
  45. Baumard, P.; Budziński, H.; Garrigues, P. PAHs in Arcachon Bay, France: Origin and biomonitoring with caged organisms. Mar. Pollut. Bull 1998, 36, 577–586. [Google Scholar]
  46. Carey, D.; Farrington, J.W. Polycyctic aromatic hydrocarbons in Saccoglossus kowalewskyi (Agassiz). Estuarcstt Shelf Sci 1989, 29, 97–113. [Google Scholar]
  47. Pancirov, R.J.; Brown, R.A. Polynuclear aromatic hydrocarbons in marine tissues. Environ. Sci. Technol 1977, 11, 989–992. [Google Scholar]
  48. Donahue, N.M.; Robinson, A.L.; Stanier, C.O.; Pandis, S.N. Coupled partitioning, dilution, and chemical aging of semivolatile organics. Environ. Sci. Technol 2006, 40, 2635–2643. [Google Scholar]
  49. Tsapakis, M.; Stephanou, E.G.; Karakassis, I. Evaluation of atmospheric transport as a nonpoint source of polycyclic aromatic hydrocarbons in marine sediments of the Eastern Mediterranean. Mar. Chem 2003, 80, 283–298. [Google Scholar]
  50. King, A.J.; Readman, J.W.; Zhou, J.L. Determination of polycyclic aromatic hydrocarbons in water by solid-phase microextraction-gas chromatography-mass spectrometry. Anal. Chim. Acta 2004, 523, 259–267. [Google Scholar]
  51. Dickhut, R.M.; Canuel, E.A.; Gustafson, K.E.; Liu, K.; Arzayus, K.M.; Walker, S.E.; Edgecombe, G.; Gaylor, M.O.; MacDonald, E.H. Automotive sources of carcinogenic polycyclic aromatic hydrocarbons associated with particulate matter in the Chesapeake Bay region. Environ. Sci. Technol 2000, 34, 4635–4640. [Google Scholar]
  52. Fang, G.C.; Chang, C.N.; Wu, Y.S.; Fu, P.P.C.; Yang, I.L.; Chen, M.H. Characterization, identyfication of ambient air and road dust polycyclic hydrocarbons in central Taiwan, Taichung. Sci. Total Environ 2004, 327, 135–146. [Google Scholar]
  53. Yunker, M.B.; Macdonaldb, R.W.; Reginald, R.V.; Mitchelld, H.; Goyettee, D.; Sylvestrec, S. PAHs in the Fraser River basin: A critical appraisal of PAH ratios as indicators of PAH source and composition. Org. Geochem 2002, 33, 489–515. [Google Scholar]
  54. Mandalakis, M.; Tsapakis, M.; Tsoga, A.; Stephanou, E.G. Gasparticle concentrations and distribution of aliphatic hydrocarbons, PAHs, PCBs and PCDDyFs in the atmosphere of Athens (Greece). Atmos. Environ 2002, 27, 1892–1904. [Google Scholar]
  55. Ravinda, K.; Bencs, L.; Wauters, E.; deHoog, J.; Deutsch, F.; Roekens, E. Seasonal and site specyfic variation in vapor and aerosol chase PAHs over Flanders (Belgium) and their relation with anthropogenic activities. Atmos. Environ 2006, 40, 771–785. [Google Scholar]
  56. Rogge, W.F.; Hildemann, L.; AiMazurek, M.; Cass, G.R.; Simoneit, B.R.T. Sources of fine organic aerosol. 2. Non-catalyst and catalyst-equipped automobiles and hevy-duty diesel trucks. Environ. Sci. Technol 1993, 27, 636–651. [Google Scholar]
  57. Cretney, J.R. Analysis of polycyclic aromatic hydrocarbons in air particulate matter from a lightly industrialized urban area. Environ. Sci. Technol 1985, 19, 397–404. [Google Scholar]
  58. Kilemade, M.; Hartl, M.G.J.; Sheehan, D.; Mothersill, C.; Pelt, F.N.A.M.v.; O’Brien, N.M.; O’Halloran, J. An assessment of the pollutant status of surficial sediment in Cork Harbour in the South East of Ireland with particular reference to polycyclic aromatic hydrocarbons. Mar. Pollut. Bull 2004, 49, 1084–1096. [Google Scholar]
  59. Horstmann, M.; McLachlan, M.S. Atmospheric deposition of semivolatile organic compounds to two forest canopies. Atmos. Environ 1998, 32, 1799–1809. [Google Scholar]
  60. Weiss, P. Vegetation/soil distribution of semivolatile organic compounds in relation to their physicochemical properties. Environ. Sci. Technol 2000, 34, 1707–1714. [Google Scholar]
Sensors 11 11901f1 1024
Figure 1. Site description of the Lech Wałesa Airport at Gdańsk Rębiechowo.

Click here to enlarge figure

Figure 1. Site description of the Lech Wałesa Airport at Gdańsk Rębiechowo.
Sensors 11 11901f1 1024
Sensors 11 11901f2 1024

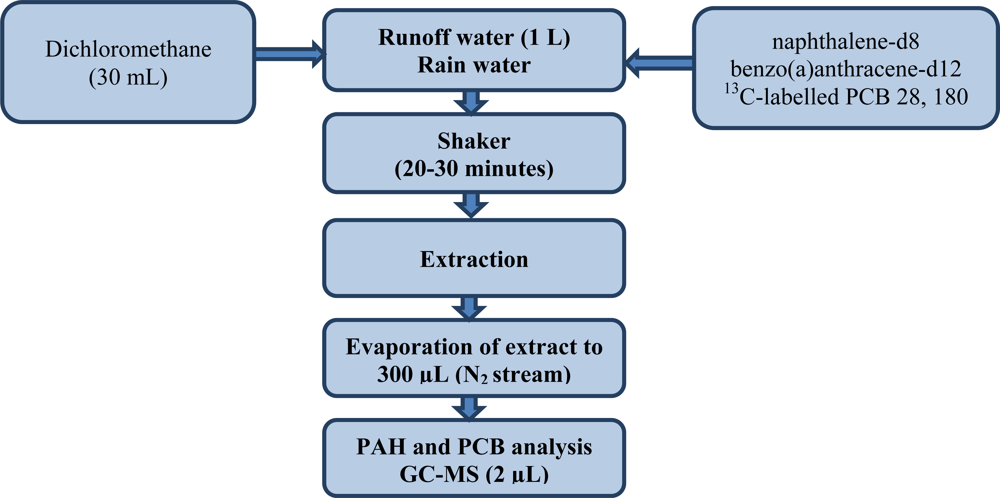

Figure 2. Flow chart of the procedure for preparing runoff water and rain samples for determining their PAH and PCB contents.

Click here to enlarge figure

Figure 2. Flow chart of the procedure for preparing runoff water and rain samples for determining their PAH and PCB contents.
Sensors 11 11901f2 1024
Sensors 11 11901f3 1024

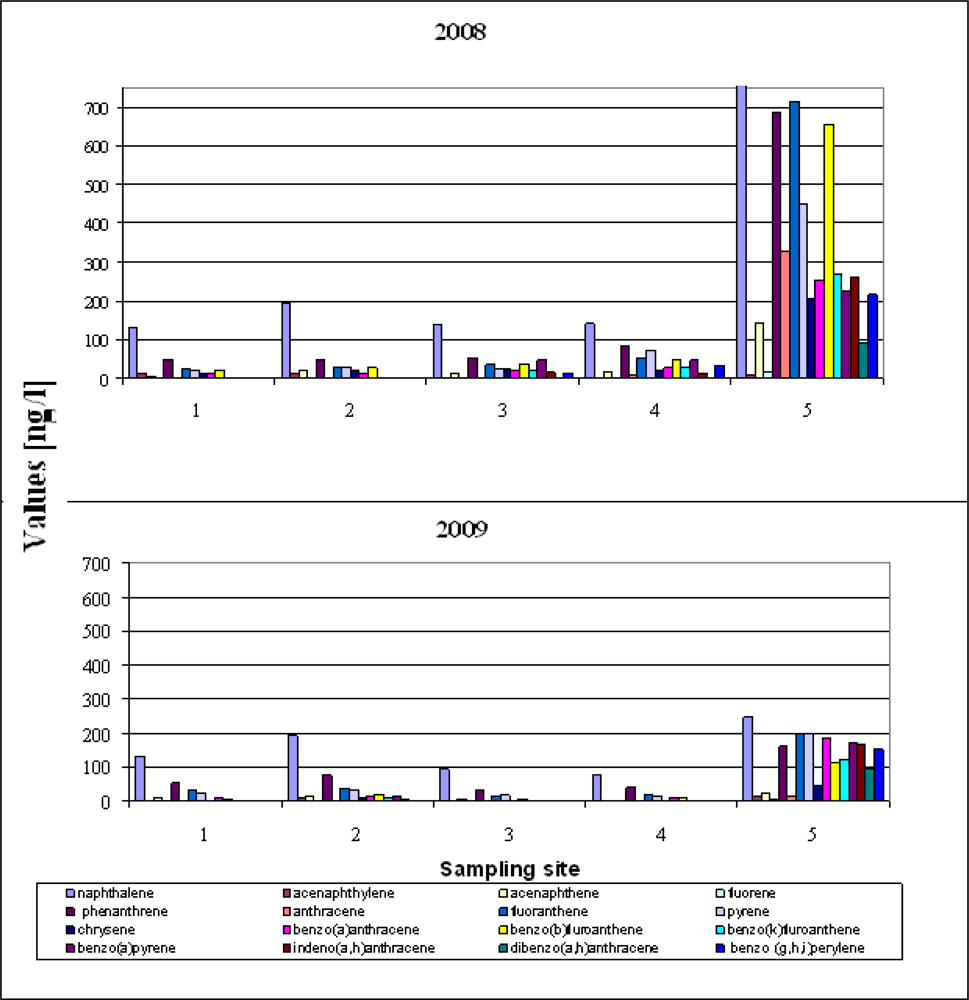

Figure 3. Concentration of PAHs determined in runoff water taken from five sampling locations at Gdańsk Airport (2008–2009).

Click here to enlarge figure

Figure 3. Concentration of PAHs determined in runoff water taken from five sampling locations at Gdańsk Airport (2008–2009).
Sensors 11 11901f3 1024
Sensors 11 11901f4 1024
Figure 4. Seasonal changes in total PAH concentrations in runoff water samples collected in 2008–2009.

Click here to enlarge figure

Figure 4. Seasonal changes in total PAH concentrations in runoff water samples collected in 2008–2009.
Sensors 11 11901f4 1024
Sensors 11 11901f5 1024

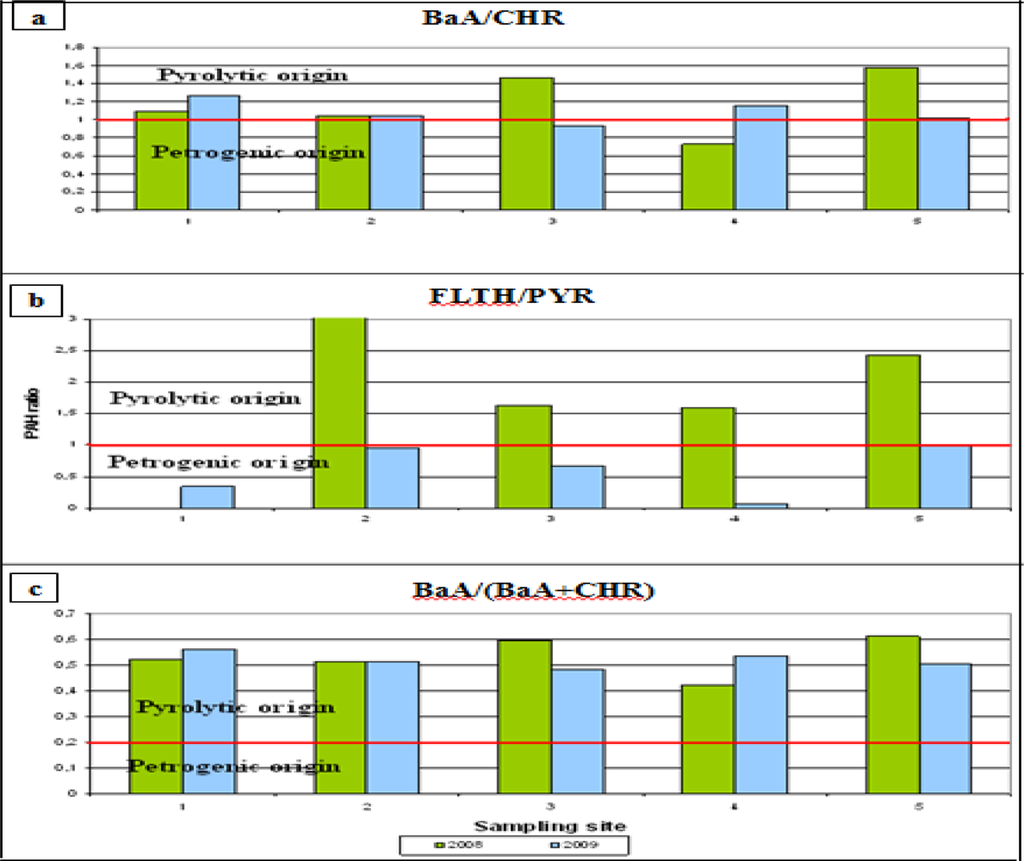

Figure 5. PAH isomer ratios for source indicators: (a) BaA/CHR; (b) FLTH/PYR; (c) BaA/(BaA + CHR). PAH isomer ratios were calculated for five sampling sites at Gdańsk Airport in 2008–2009.

Click here to enlarge figure

Figure 5. PAH isomer ratios for source indicators: (a) BaA/CHR; (b) FLTH/PYR; (c) BaA/(BaA + CHR). PAH isomer ratios were calculated for five sampling sites at Gdańsk Airport in 2008–2009.
Sensors 11 11901f5 1024
Sensors 11 11901f6 1024

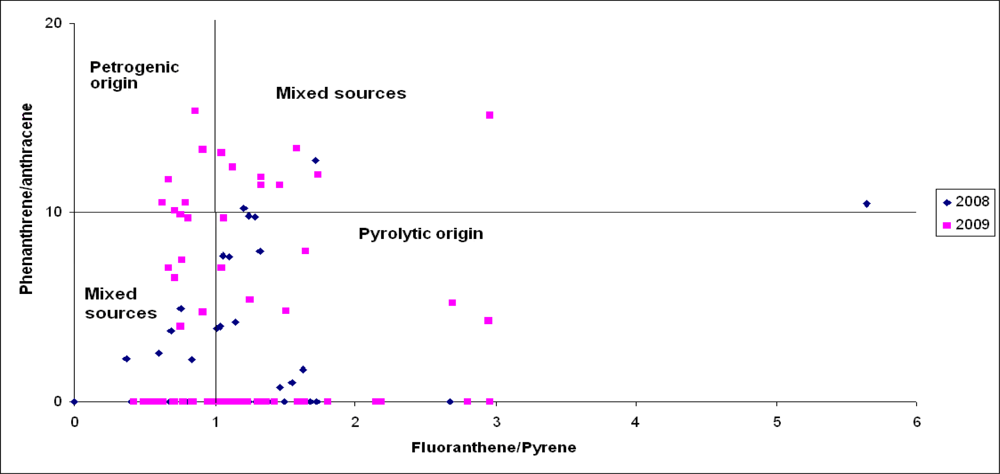

Figure 6. Cross-plot of phenanthrene/anthracene ratios against fluoranthene/pyrene ratios for airport runoff water sampled at different locations.

Click here to enlarge figure

Figure 6. Cross-plot of phenanthrene/anthracene ratios against fluoranthene/pyrene ratios for airport runoff water sampled at different locations.
Sensors 11 11901f6 1024
Sensors 11 11901f7 1024

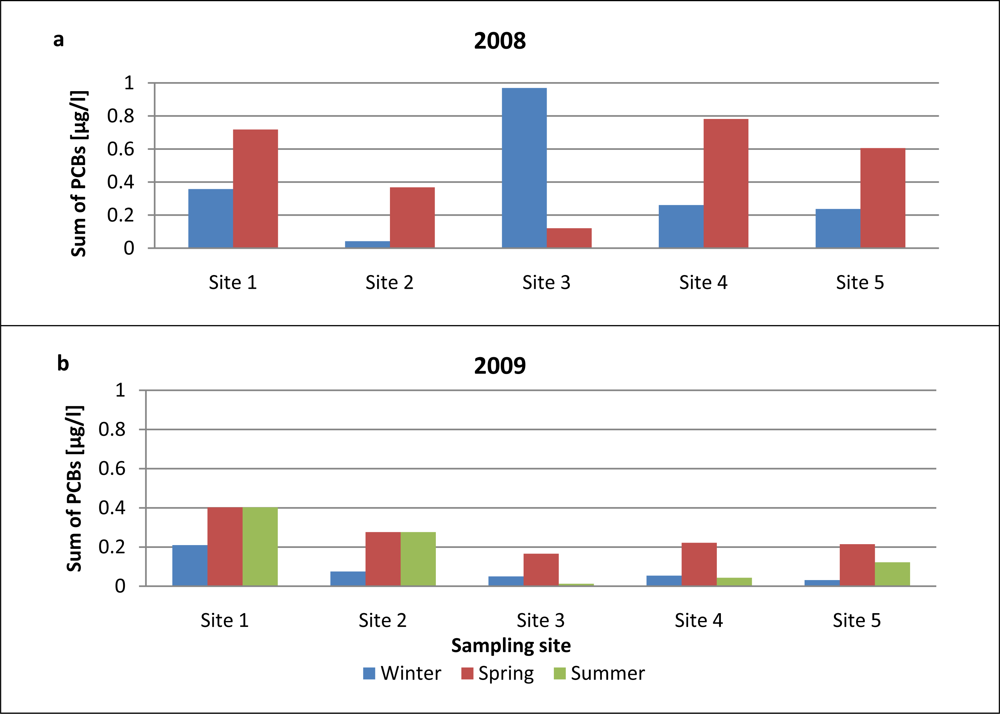

Figure 7. Seasonal changes in overall PCB levels in samples of airport runoff water in 2008–2009.

Click here to enlarge figure

Figure 7. Seasonal changes in overall PCB levels in samples of airport runoff water in 2008–2009.
Sensors 11 11901f7 1024
Table Table 1. Sampling site description of the Lech Wałesa Airport at Gdańsk Rębiechowo.

Click here to display table

Table 1. Sampling site description of the Lech Wałesa Airport at Gdańsk Rębiechowo.
Sample codeComments
1Airport apron close to the runway.
2Service road to the runway for ground staff, fire brigade, rescue teams.
3Airport aprons close to the passenger terminal with parked aircraft.
4Machinery park—parking and garages for ground staff, fire brigade and rescue team vehicles.
5Entry gate to the airport premises.
Table Table 2. Operating conditions of the GC-MS system.

Click here to display table

Table 2. Operating conditions of the GC-MS system.
ConditionRunoff water, rain water
CompoundsPAH, PCB
InjectorSplit/splitless
Injector volume2 μL
Carrier gasHelium—70 kPa
DetectorAgilent 5975C inert MSD with electron ionization operating in SIM (selected ion monitoring) mode
Integration systemMSD ChemStation
ColumnZebron capillary GC column
(30 m × 0.25 μm × 0.25 μm; max. temp. 320/340 °C)
Temperature programme40 °C do 120 °C (at 40 °C/min)
120 °C do 280 °C (at 5 °C /min)
280 °C for 17 min and 5 min (PCBs)
Table Table 3. Metrological characteristics of the analytical procedure used during this study.

Click here to display table

Table 3. Metrological characteristics of the analytical procedure used during this study.
AnalytePAHAbbreviationMeasuring range (ng/L)LOD (ng/L)LOQ (ng/L)

0.02–5600.0250.075

1NaphthaleneNAP0.034–5600.0341,02
2AcenaphthyleneACY0.0041–5600.00410.0123
3AcenaphtheneACE0.0041–5600.00410.0123
4FluoreneFLU0.0018–5600.00180.0054
5PhenanthrenePHE0.0025–5600.00250.0075
6AnthraceneANT0.0078–5600.00780.0234
7FluorantheneFLTH0.014–5600.0140.042
8PyrenePYR0.028–5600.0280.084
9ChryseneCHR0.0022–5600.00220.0066
10Benzo(b)fluorantheneBbF0.014–5600.0140.042
11Benzo(k)fluorantheneBkF0.0023–5600.00230.0069
12Benzo(a)pyreneBaP0.0055–5600.00550.0165
13Benzo(a)anthraceneBaA0.0017–5600.00170.0051
14Indeno(1,2,3-cd)pyreneIP0.43–5600.431.29
15Dibenz(a,h)anthraceneDahA0.014–5600.0140.042
16Benzo(ghi)peryleneB(ghi)PER0.014–5600.0220.066
Table Table 4. Characteristic values of molecular indices for determining the origins of PAHs.

Click here to display table

Table 4. Characteristic values of molecular indices for determining the origins of PAHs.
PAH ratioSources
PyrolyticPetrogenicOther
NAP/PHE>1 [43]<1 [43]-
PHE/ANT<10 [14,16,44,45]>10 [14]
>25 [44,45]
4.13 [46] Creosote
>15 [16] Crude oil;
50 [47,48] Fuel oil
ANT/(ANT + PHE)>0.1 [49]<0.1 [49]-
BaA/CHR>1 [50]
>0.9 [50]
<1 [50]
<0.4 [50]
0.47–0.59 [51,52] Petrol emissions;
1.05–1.17 [51,52] Coal emissions;
<1 [50]
<0.4 [50] Crude oil
BaA/(BaA + CHR)>0.2 [53]<0.2 [53]
FLTH/PYR>1 [14]<1 [14,43]1.5 [46] Creosote;
<1 [14] Crude oil;
0.9 [47] Fuel oil
FLTH/(FLTH + PYR)0.4–0.5 [53]
>0.5 [53]
<0.4 [53]<0.5 [36,52,5456] Petrol emissions;
>0.5 [52,5456] Diesel;
IP/(IP + benzo[ghi]perylene)0.18 [57] Petrol emissions;
0.48–0.57 [43] Coal emissions;
0.56 [57] Coal soot;
0.09 [58] Crude oil
Table Table 5. Percentage relationship between pyrolytic, petrogenic and other sources of PAH emissions at Gdańsk airport in 2008–2009.

Click here to display table

Table 5. Percentage relationship between pyrolytic, petrogenic and other sources of PAH emissions at Gdańsk airport in 2008–2009.
PAH ratio/sourceCriterionPyrolytic origin
20082009
NAP/PHE>1100%100%
PHE/ANT<10100%100%
ANT/ANT + PHE>0.1100%100%
BaA/CHr>180%60%
BaA/BaA + CHr>0.2100%100%
FLTH/PYR>1100%80%
FLTH/PFLTH + PYR>0.50%0%
Petrogenic origin
20082009
NAP/PHE<10%0%
PHE/ANT>100%0%
ANT/ANT + PHE<0.10%0%
BaA/CHR<120%40%
PAH ratio/sourceCriterionPyrolytic origin
20082009
BaA/BaA + CHr<0.20%0%
FLTH/PYR<10%0%
FLTH/PFLTH + PYR<0.420%20%
Other sources
20082009
FLTH/PYR0.90%20% fuel oil
FLTH/PFLTH + PYR>0.580% diesel80% diesel
IP/(IP + benzo[ghi]perylene)0.48–0.57NDND

ND—not detected.

Table Table 6. The average PCB concentration determined in the runoff and rainfall water samples.

Click here to display table

Table 6. The average PCB concentration determined in the runoff and rainfall water samples.
PCB (μg/L)WinterSpring

Average value of 5 sites from airportRainfallAverage value of 5 sites from airportRainfall

PCB280.020 ± 0.0150.004 ± 0.00020.055 ± 0.0120.006 ± 0.0003
PCB520.117 ± 0.0880.056 ± 0.00280.136 ± 0.0880.01 ± 0.0005
PCB1010.029 ± 0.0070.018 ± 0.00090.050 ± 0.0110.006 ± 0.0003
PCB1180.011 ± 0.0060.005 ± 0.00030.016 ± 0.0070.002 ± 0.0001
PCB1530.035 ± 0.0120.014 ± 0.00070.017 ± 0.0090.002 ± 0.0001
PCB1380.045 ± 0.0110.017 ± 0.00090.030 ± 0.0110.006 ± 0.0003
PCB1800.059 ± 0.0220.043 ± 0.00220.025 ± 0.0130.005 ± 0.0003
∑PCB0.317 ± 0.0980.157 ± 0.00790.328 ± 0.0490.036 ± 0.0018
Table Table 7. Average PCB concentrations found in runoff water samples from Gdańsk Airport (Sites 1–5).

Click here to display table

Table 7. Average PCB concentrations found in runoff water samples from Gdańsk Airport (Sites 1–5).
Lp.PCBConcentration (ug/L)
20082009

Site 1Site 2Site 3Site 4Site 5Site 1Site 2Site 3Site 4Site 5

1PCB280.1210.02790.00620.01310.01920.03760.02680.00400.01140.0602
2PCB520.09550.04200.1860.1440.18190.02440.01240.00080.01530.0106
3PCB1010.04030.02280.04950.05620.02870.01590.01260.00160.00320.0325
4PCB1180.01360.01740.01500.01640.00300.04580.02560.00920.00880.0014
5PCB1530.03090.00580.04390.03170.01930.05180.01140.00960.02030.0064
6PCB1380.04100.00800.08120.03970.01920.01310.01470.02980.00660.0088
7PCB1800.01720.01590.05770.09080.02900.04240.00300.00900.00990.0007

Total PCB0.3600.1400.4390.3920.3000.2310.1060.0640.0750.121
Table Table 8. The average PAH concentration determined in the runoff and rainfall water samples.

Click here to display table

Table 8. The average PAH concentration determined in the runoff and rainfall water samples.
PAH (ng/L)WinterSpring

Average value of 5 sites from airportRainfallAverage value of 5 sites from airportRainfall

1.naphthalene997 ± 89127 ± 13971 ± 21198 ± 11
2.acenaphthyleneNDND10 ± 1.310 ± 1.0
3.acenaphthene69 ± 2513 ± 2.661 ± 3.225 ± 1.2
4.fluoreneNDNDND22 ± 1.3
5.phenanthrene262 ± 4434 ± 1.7259 ± 9.1129 ± 22
6.anthracene124 ± 60ND130 ± 11ND
7.fluoranthene208 ± 894 ± 0.88223 ± 16153 ± 12
8.pyrene138 ± 54ND151 ± 29118 ± 16
10.benzo(a)anthracene27 ± 11ND52 ± 1373 ± 4.1
9.chrysene41 ± 15ND60 ± 8.1104 ± 10
11.benzo(b)fluorant-en122 ± 54ND168 ± 10221 ± 11
12.benzo(k)fluorant-enNDND22 ± 11154 ± 8.7
13.benzo(a)pyrene9 ± 1.9ND32 ± 15134 ± 7.9
14.indeno(1,2,3,-cd)pyrene3 ± 1.0ND11 ± 3.3137 ± 7.8
15.dibenzo(a,h)antraceneNDNDNDND
16.benzo(g,h,i)peryleneNDND21 ± 15127 ± 6.9
∑PAHs2000 ± 459179 ± 392172 ± 1111604 ± 80
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
