Sensors 2011, 11(12), 11809-11832; doi:10.3390/s111211809

Article
Surface Acoustic Wave (SAW) Vibration Sensors
Jerzy Filipiak 1, Lech Solarz 2,* and Grzegorz Steczko 1
1
Institute of Electronic and Control Systems, Technical University of Czestochowa, 17 A.K. Str., 42-200 Częstochowa, Poland; E-Mails: filipiak@el.pcz.czest.pl (J.F.); gem@gemsc.com.pl (G.S.)
2
Department of Civil Engineering, Military University of Technology, 2 Kaliskiego Str., 00-908 Warsaw, Poland
*
Author to whom correspondence should be addressed; E-Mail: lechsolarz@interia.pl; Tel./Fax: +48-22-6318-768.
Received: 5 November 2011; in revised form: 5 December 2011 / Accepted: 15 December 2011 /
Published: 19 December 2011

Abstract

: In the paper a feasibility study on the use of surface acoustic wave (SAW) vibration sensors for electronic warning systems is presented. The system is assembled from concatenated SAW vibration sensors based on a SAW delay line manufactured on a surface of a piezoelectric plate. Vibrations of the plate are transformed into electric signals that allow identification of the sensor and localization of a threat. The theoretical study of sensor vibrations leads us to the simple isotropic model with one degree of freedom. This model allowed an explicit description of the sensor plate movement and identification of the vibrating sensor. Analysis of frequency response of the ST-cut quartz sensor plate and a damping speed of its impulse response has been conducted. The analysis above was the basis to determine the ranges of parameters for vibrating plates to be useful in electronic warning systems. Generally, operation of electronic warning systems with SAW vibration sensors is based on the analysis of signal phase changes at the working frequency of delay line after being transmitted via two circuits of concatenated four-terminal networks. Frequencies of phase changes are equal to resonance frequencies of vibrating plates of sensors. The amplitude of these phase changes is proportional to the amplitude of vibrations of a sensor plate. Both pieces of information may be sent and recorded jointly by a simple electrical unit.
Keywords:
surface acoustic waves; vibration sensor; delay line; mechanical vibration; electronic warning system

1. Introduction

One of the possible applications of surface acoustic waves (SAWs) elements are sensors for different physical quantities. SAW sensors can be used to measure gas concentration [14], temperature, pressure [59] and mechanical quantities: moment (of force) in shaft rotation [10], tension [1113], acceleration [14,15] and vibrations [16].

The principle of operation of all SAW sensors is a measurement of an alteration in surface wave delay caused by the influence of measured physical quantity on the speed and propagation path length of a wave. That is why the construction of all such devices requires dealing with similar issues. However, some important issues characteristic of a group of sensors designed to measure some particular physical quantity may arise, depending on the type of quantity to be measured. For example, to create sensors designed to measure mechanical quantities it is necessary to solve an exemplary mechanical unit of a sensor. Moreover, it is also essential to prepare a simulation of an electrical-to-mechanical transducer and a simulation of an electrical unit cooperating with the sensor. The first issue mentioned is only relevant to SAW vibration and acceleration sensors.

In this work a SAW vibration sensor, designed specifically to be used in an electronic warning system is presented. The basic structure of a SAW vibration sensor is shown in Figure 1. The main part is an anisotropic plate made of a piezoelectric material. One side of the plate is stiffly attached to the sensor casing, while the other free side is loaded with the seismic mass. On the upper surface of the plate a SAW delay line in the form of a four-terminal network has been made.

Any motion of the casing of a sensor creates vibrations of a plate and an alteration in the time delay of a SAW delay line. It results in a high frequency signal phase which goes through such a line. The magnitude of an alteration of signal phase is proportional to the alteration in time delay of the SAW delay line. The frequency of the phase change is equal to the vibration frequency of the sensor plate.

The sensor plate is a continuous mechanical unit. Such a unit may, theoretically, possess an infinite number of natural vibration frequencies. A vibration sensor designed for an electronic warning system should have only one frequency of free vibration [14]. This allows the identification of a vibrating sensor.

The amplitude of high frequency signal phase changes will be proportional to the amplitude of vibrations of a sensor plate. Its magnitude may be used to determine the state of motion of a base to which sensor casing is fixed. It raises a basic question: is it possible to create a sensor shown in Figure 1 that will fulfill all of these requirements? The answer may be obtained as a result of an analysis of the dynamics of a movement of a sensor plate. The preparation of the analysis requires a mechanical model of a sensor. The mechanical properties of sensor plate determine the technical parameters of the mechanical sensors. The strength of a material determines the operating range of every sensor. In the case of movement of a sensor plate its mechanical properties are described by its frequency response (amplitude and phase). They determine the sensitivity, linearity, delay, operating range and accuracy of a sensor. That is why the next section will be devoted to a model of a mechanical unit of a sensor. The SAW vibration sensor is compared with micromechanical acceleration sensors based on silicon (Micro Electro Mechanical Systems accelerometers) and piezoelectric accelerometers in the Conclusions section.

2. Model of Mechanical Unit for SAW Vibration Sensor

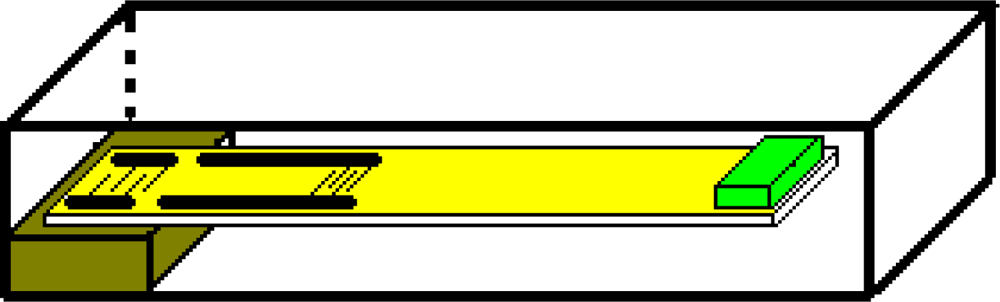

The object of consideration has been presented in Figure 2. One end of the plate is stiffly attached, and the other is free and without any concentrated mass. The piezoelectric properties of sensor plate will be omitted in the analysis.

The equation of a movement of an anisotropic body with the mass density ρ is:

σ ij x j + ρ 2 u i t 2 = 0

The stress tensor σij depends on the strain tensor εkl through Hook-Voight equation:

σ ij = C ijkl ε kl + Σ ijkl ε kl t
where: Cijkl—is a elasticity tensor, Σijkl—is a material damping tensor, ui—is a displacement vector,
ε kl = 1 2 ( u k x l + u l x k )   is a strain tensor

The mathematical description of this issue will be closed if the initial and boundary conditions are added to the aforementioned equations. Solving this problem is complicated. The causes of the complications are the huge number of non-vanishing modules of an elasticity and material damping tensor. The material damping tensor Σijkl has an identical symmetry as the elasticity tensor Cijkl. For materials typically used in SAW devices (quartz, lithium niobate), the value of damping constants are difficult to verify experimentally. For the higher class of symmetry of an anisotropic material, Equations (1) and (2) are simpler. For the isotropic material the elasticity tensor has only two independent components. therefore the elastic properties of an isotropic substance describe two quantities. They are often shown in form of a Young’s modulus E and a Poisson ratio ν. The following relations occur between quantities E, ν, and elasticity tensor components [17]:

E = C 1111 ,                   ν   = C 1122 C 1111 + C 1122

The description of viscous properties of an isotropic body done by material damping tensor is analogical. It is usually described by two quantities [17]:

τ = Σ 1111 E ,             η = Σ 1122 Σ 1111 + Σ 1122

The Young's modulus E is described as a proportion of a longitudinal stress to longitudinal strain for the direction of the functioning of a stress. To describe the mechanical properties of anisotropic materials taking into account it calla of symmetry and a particular direction of the stress a effective Young's modulus may be used E [17,18]. An exemplary expression for a inverse effective Young's modulus for a trigonal unit (lithium niobate, quartz) is:

1 / E = ( 1 l 3 2 ) 2 s 11 + l 3 4 s 33 + l 3 2 ( 1 l 3 2 ) ( 2 s 13 + s 44 ) + 2 l 2 l 3 ( 3 l 1 2 l 2 2 ) s 14
where: sij—is an element of an compliance matrix, lj—is a cosine of an angle between the chosen direction and the axis—j, in Cartesian coordinates.

The compliance matrix sij is the reverse of the stiffness elasticity matrix cij. It is possible to calculate the values of material damping coefficients in a chosen crystallographic direction, too. The presented approach allows one to model the anisotropic material using the isotropic model. In such a model the stresses are the sum of elastic and dissipative components:

σ = E ε + E τ ε t

We consider equivalent isotropic model of cylindrically bent plate [19]. Equation of free vibrations has the form:

ρ 2 w ( x , t ) t 2 + E e h 2 12 ( 1 + τ t ) 4 w ( x , t ) x 4 = 0
where ρ—mass density; h—plate thickness; L—plate length; τ—equivalent material damping coefficient,
E e = E 1 ν 2
Ee is an equivalent Young’s modulus.

At the boundaries we have:

w ( 0 , t ) = 0 , w ( 0 , t ) x = 0 , 2 w ( L , t ) x 2 = 0 , 3 w ( L , t ) x 3 = 0 ,

The solution to the boundary problem Equations (7) and (8) has the form:

w ( x , t ) = n = 1 W n ( x ) A n e ϖ n 2 2 t   sin ( ω ¯ n t + φ n )
where: constants An and φn are determined by initial conditions.

The angular frequency of non-damped vibrations is equal to:

ω n = k n 2 h l 2 E e 12 ρ

The angular frequency of damped vibrations is equal to:

ω ¯ m = ω m 1 ω m 2 τ 2 4
where:
k 1 = 1 , 875         k 2 = 4 , 694           k 3 = 7 , 855

The orthonormal set of function Wn (eigenfunctions) is taken from [19]. Only some elements in the sum Equation (9) represent vibrations. For N < n, where N is the greatest natural number for which ωN < 2/τ, the sum element represents very strongly damped movement and there is no resonance at this frequency. Each of the harmonics n = 1, 2, 3, ..... has part of the energy. How great is the part depends on the unit [normal vibrations, ωn, w(x)] and depends on activation.

In [20] a simplified model with one degree of freedom was presented and it is shown in Figure 3. It has been used to describe the dynamics of sensor plate movement. It was derived according to the Rayleigh method. This method is based on a simplified modeling of a plate with the use of an equivalent circuit with one degree of freedom which is energetically equivalent. The free end of sensor plate has been taken as a point of reduction.

Parameters in the model are as follows [21]:

m z = 0.25196 ρ b h l ,                                                   k z = 3.1169 E e   b   h 3 l 3 ,                                                   c z = τ 3.1169 E e   b   h 3 l 3

The model with one degree of freedom has only one resonance frequency. The equation of mass movement is as follows:

d 2 y ( t ) dt 2 + ω 0 2 τ dy ( t ) dt + ω 0 2 y ( t ) = F ( t ) m z

The solution of an equation for natural vibrations reads as follows:

y ( t ) = Ae ω 0 2 τ 2 t   sin ( ω r t + φ )
where:
ω 0 = 3.5172 ( h l 2 )   E e 12   ρ
ω r = ω 0 1 ω 0 2 τ 2 4

This is analogous to the Equation (10) obtained with the use of an isotropic model of a sensor plate. Comparison of the first frequency of the damped vibrations of the plate obtained in an isotropic model Equation (11) and the frequency of damped vibrations obtained with the use of a model with one degree of freedom Equation (17) fulfills the relation:

ω 1 = 0.9996 ω r

The first frequency of damped vibrations calculated in an isotropic model is 0.5 per cent lower than frequency calculated with the use of a discrete model. This difference could be smaller in case of a sensor construction with the concentrated mass attached to the movable end of the plate. That is why the model with one degree of freedom may be used to describe the movement of a sensor plate. It allows relatively easy simulation of vibrations of the plate with the mass attached to its movable end. Free vibrations of sensor plate are defined as a sum of damped harmonic frequency vibrations, but in free vibration damped vibrations with first harmonic frequency will dominate. The amplitudes of the superior harmonic vibrations will be extremely small. As it is shown in [14] their quantity is 40 dB smaller than the first harmonic amplitude.

This is the reason why a model with one degree of freedom [14,20,21] has been used to analyze the movement of the plate with concentrated mass. Vibrations of the plate have been activated by the movement of the sensor casing Y(t). The equation of movement is as following:

d 2 y ( t ) d t 2 + ω 0 2 τ dy ( t ) dt + ω 0 2 y ( t ) = ω 0 2 τ dY ( t ) dt + ω 0 2 Y ( t )
where:
ω 0 = 3.5172 ( h l 2 )   E e 12 ρ   1 1 + r   3.9689
r—is a ratio between seismic mass and mass of sensor plate.

The solution of the Equation (19) is a function:

y ( t ) = A exp [ ω 0 2 τ t 2 ]   sin [ ω r ( t + φ ) ] 4 ω r 4 ω 0 2 τ 2 0 t ( τ dY ( ξ ) dt + Y ( ξ ) ) · exp [ ω 0 2 τ 2 ( t ξ ) ] · sin [ ω r ( 1 ξ ) ] d ξ
where: constants A and φ are determined by initial conditions.

Relations between ω0 and ωr are as in identity [14]. In both components of the solution Equation (21) the following function appears:

ϕ δ ( t ) = Ae ω 0 2 τ 2 t   sin ( ω r t + ϕ )

This is a product of a harmonic and damping (exponentially decay with time) function. The frequency of a harmonic function is the resonance frequency of the unit. This function describes sensor impulse response and its natural vibrations. It is a sum of:

  • convolution of an impulse response of the plate and the component of describing movement of the sensor casing,

  • damped vibrations with the resonance frequency of a sensor plate.

It will always have a factor in the form of a harmonic function with the frequency equal to the resonance frequency of sensor plate and with variable amplitude. That is why the frequency response of sensor plate may be quantity identifying the sensor. The frequency response of the sensor plate is the ratio of the amplitude of the deflection plate sensor to the harmonic amplitude of its case The frequency response of the sensor plate calculated from the Equation (19) is as follows:

H ( ω ) = 1 + ( ω τ ) 2 [ 1 ( ω ω r ) 2 ] 2 + ( ω τ ) 2

Parameters in relation Equation (23) depends on mechanical properties of the sensor plate material. The quantities of elastic and viscous parameters for quartz are shown in Table 1 [22,23].

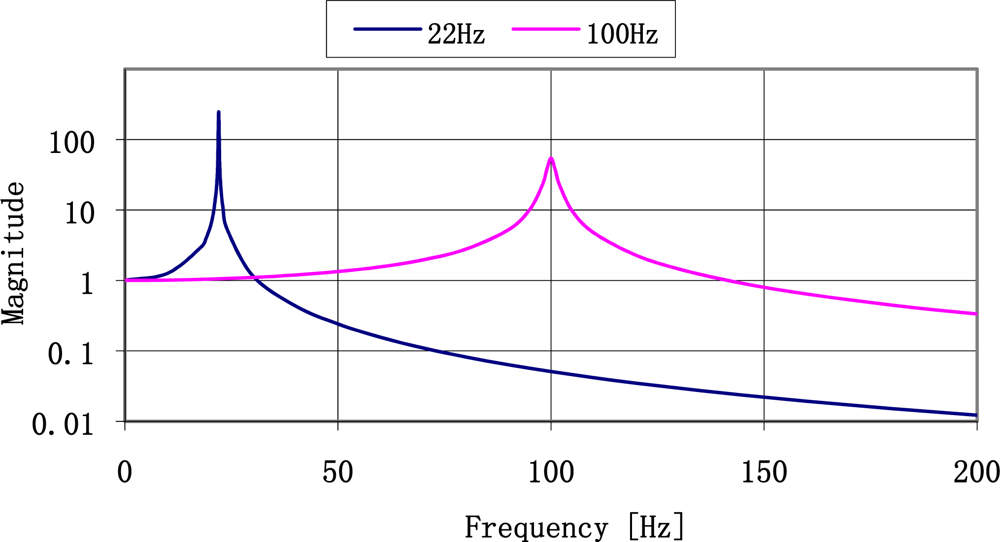

Theoretical frequency response for plates made of ST-cut quartz with the resonance frequencies of 22 Hz and 100 Hz are shown in Figure 4. The most important is that for low frequency the frequency response has narrower band and higher magnitude so the selectivity of the sensor is high. It decreases with increased resonance frequency.

The maximum value of the frequency response of the plate will occur for ω = ωr. It has been described with the relationship:

H ( ω r ) = 1 + ( ω r τ ) 2 ( 0 , 5 ω 0 τ ) 4 + ( ω r τ ) 2

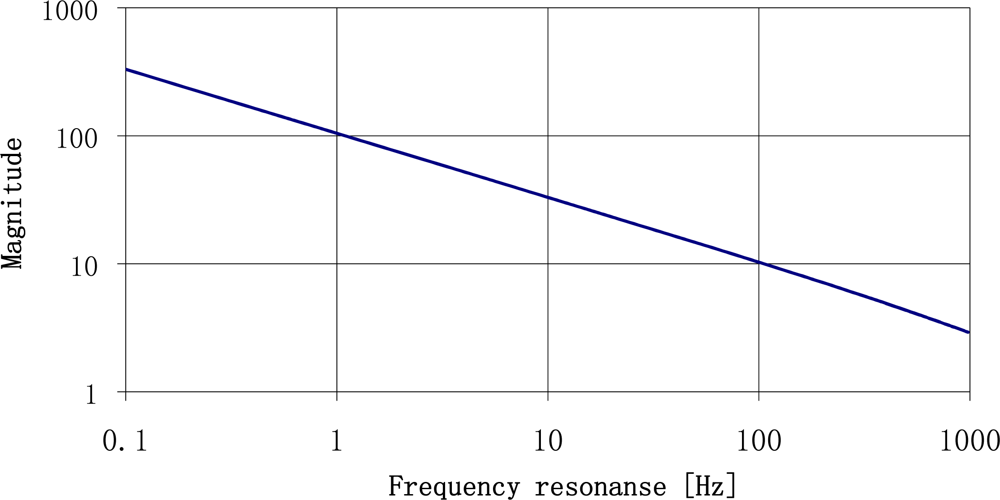

Its value exceeds repeatedly the value of static deflection (e.g., for the resonance frequency of 22 Hz it is 246 times higher). The change in maximum magnitude of frequency response as a function of resonance frequency of the plate is shown in Figure 5.

For the resonance frequency of a plate of 10 Hz the vibrations amplitude multiplication is 1,600 higher than the static deflection. This property may be used to construct sensors with high sensitivity levels, but it is necessary to answer one question beforehand: what is the lowest possible resonance frequency of a plate that we can manufacture? The answer is accessible on the basis of the described model and the length of available plates. The resonance frequency of sensor plate is described by Equation (20). It depends on plate length (l) and on quantity of a concentrated mass (r) attached to the free end of sensor plate.

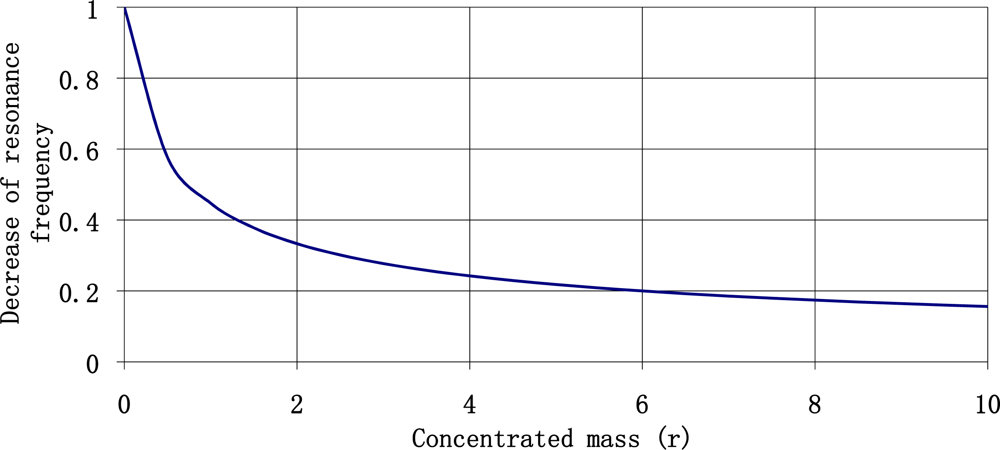

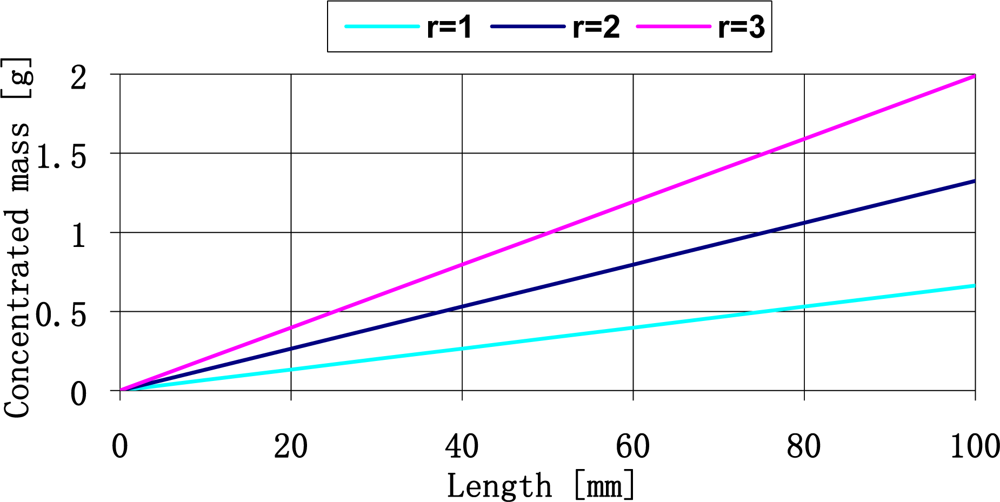

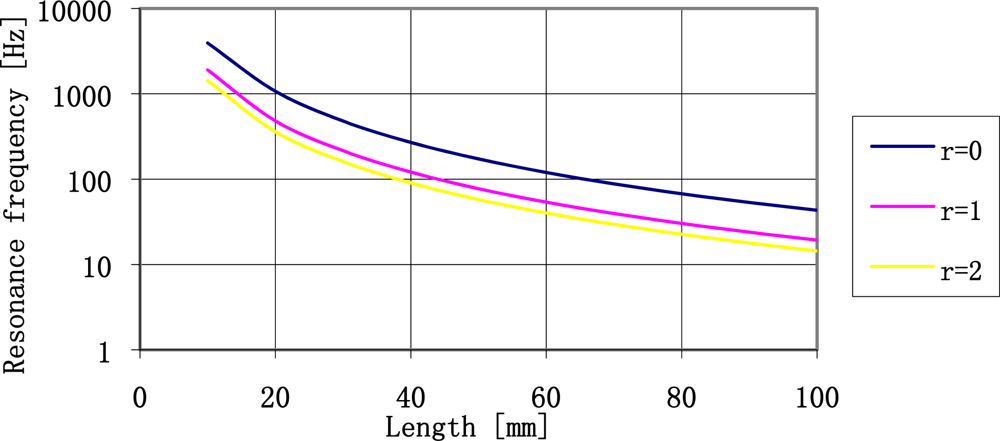

The increase of the concentrated mass lowers resonance frequency of the plate, simultaneously increasing stresses of the plate. The influence of a change of concentrated mass on resonance frequency of the sensor plate is shown in Figure 6.

It is clear that the use of concentrated mass quantities exceeding two times the mass of the plate enables decrease of resonance frequency of a plate. It is the most effective place to decrease the resonance frequency of a plate. Continuous increase of a concentrated mass does not substantially decrease the resonance frequency of sensor plate. The further analysis of sensor parameters will be limited to such range of concentrated mass quantities. The relationship between the value of resonance frequency of a plate made of ST-cut quartz and length of the plate determined by three different concentrated mass values is shown in Figure 7.

From the figure presented above we may conclude that it is relatively easy to create plates of resonance frequency form 20 Hz do 4 kHz. For the 0.5 mm thick plates it is necessary to use the concentrated mass up to 1.5 g. The relation between the concentrated mass and the plate length is shown in Figure 8.

The sensor impulse response presented by the relation Equation (25) has a damped character. Its fast fading can impose an upper limit on the resonance frequency. The damping value depends on the geometry of the plate and the equivalent damping coefficient. In order to simplify the illustration the impulse response damping measure has been introduced as a relative decrease of its quantity after one period. The relation of impulse response damping in the form of a function of length of ST-cut quartz plate for three different concentrated mass values is presented in Figure 9.

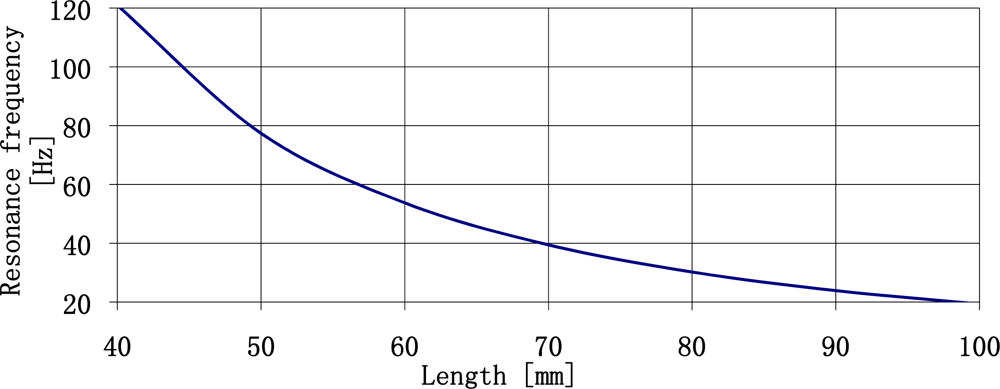

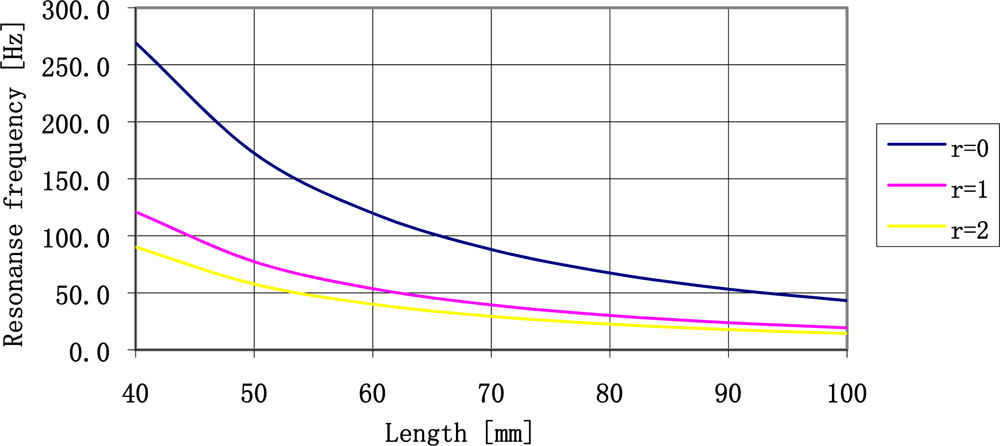

For plates longer than 40 mm loaded with a concentrated mass equal to the mass of the plate (r = l) the damping of free vibrations of the plate is relatively slow. The impulse response of shorter plates is dampened relatively fast. This is why it seems to be beneficial to possibly use long plates loaded with a concentrated mass equal to the plate mass. The value of resonance frequencies of plates that can be manufactured has changed. It seems that the range of resonance frequency plates available to use is limited to the range from 20 Hz to 250 Hz. The parameters of resonance frequencies of the plates in the aforementioned range are shown in Figure 10.

The above-mentioned considerations may be summarized as follows: SAW vibration sensors, which are designed to be used with the impulse response, may be manufactured with 0.5 mm thick ST-cut quartz. With the use of the concentrated mass equal to the mass of a plate it is possible to reach the natural frequencies of the plates from 20 Hz to 250 Hz. In the next section a design of a SAW delay line for a sensor will be discussed.

3. Delay Line for SAW Vibration Sensor

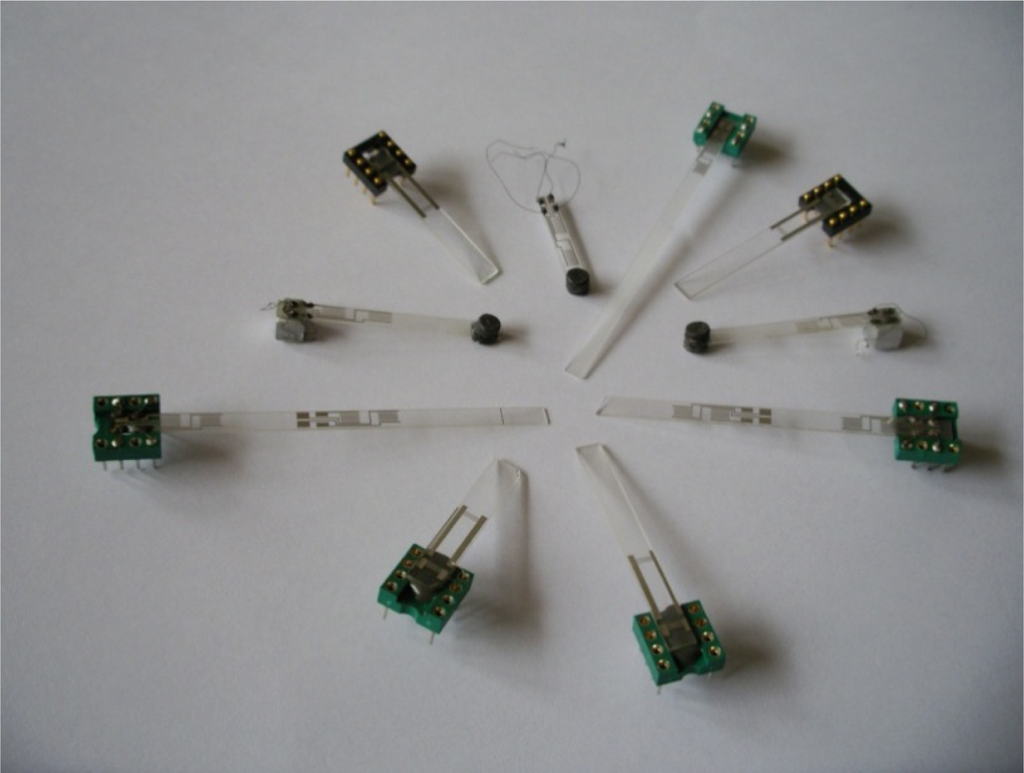

Figure 11 presents manufactured SAW delay lines for SAW vibration sensors. They consist of two cooperating interdigital transducers on a piezoelectric plate. From an electronic point of view, the line is a four-terminal network. Because of vibration sensor plate movement, electrodes feeding electrical signals to transducers should be placed on an immovable part of the plate. This ensures proper strength of electrical contacts to the electrodes. The electrodes are long and have a specified effective resistance. Because of plate movement, its casing is different than in classic SAW filters. These structural components are characteristic for SAW delay lines applied for vibration sensors. They cause an increase in signal going directly from input into line output and increase in-line loss.

Proper design of interdigital transducers requires knowledge of piezoelectric parameters of ST-cut quartz. Table 2 presents these parameters. Main parameters of ST-cut quartz are good temperature properties and low values of electromechanical coupling and dielectric permittivity. Both of them were a decisive factor when choosing ST-cut quartz as a material for the sensor plates.

Relation between relative time delay changes of the SAW Δτ/τ and temperature T describes the following dependence:

Δ τ τ = 34 10 9 ( T T 0 ) 2
where:
  • T —Temperature [Kelvin degree].

  • T0 —Return temperature (295 Kelvin degrees for ST-cut quarz).

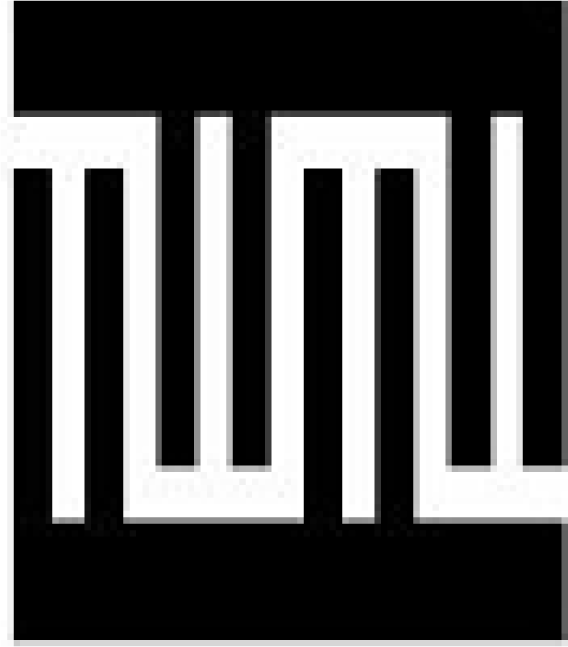

The delay line has been designed as two identical straight periodic interdigital transducers (IDTs) with double electrodes. Such a transducer structure enables to use their operation on the third harmonic. Figure 12 presents a transducer electrode unit.

The low value of electromechanical coupling for ST-cut quartz causes high losses in mismatch of its input impedance up to 50 Ω. In order to minimize the losses an operation mode of IDts has been set to match 50 Ω impedance for 74 MHz frequency. Figure 13 presents the way the transducer has been matched.

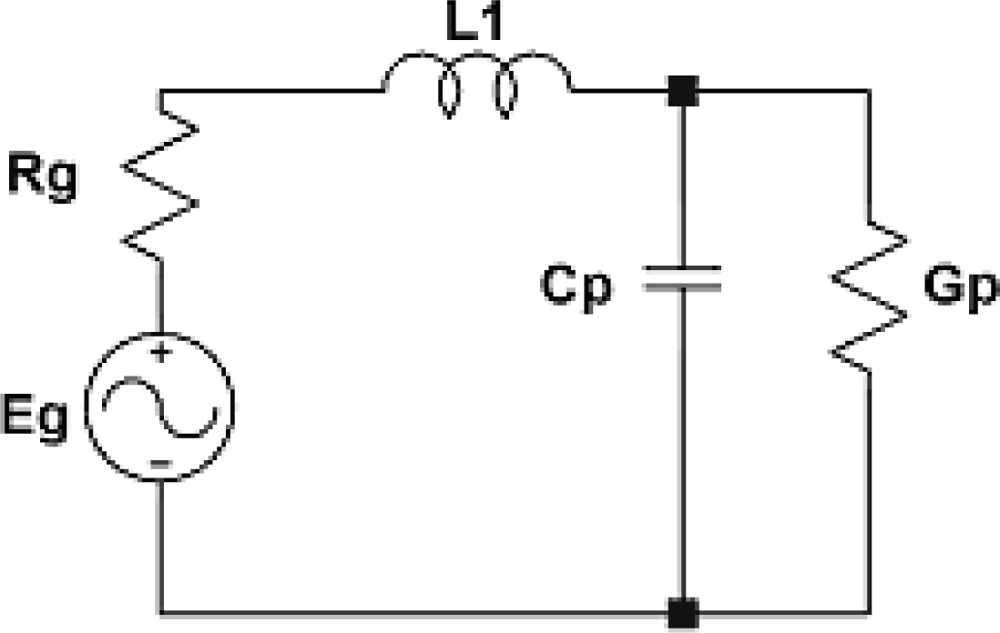

An element which matches the transducer of conductance Gp and capacity Cp to impedance Rg = 50 Ω is inductance L1. The analysis of transducer matching in the circuit in Figure 13 leads to dependence where on transducer conductance there is emitted available power:

G P G p 2 + ω 2 C p 2 = R g = 50 Ω

From the above dependence, using transducer electric circuit model [24] and substrate parameters (Table 2) the number of transducer electrodes and transducer aperture have been calculated. Transducer operation on the third harmonic has been used. For ST-cut quartz a medium frequency of line operation, 74 MHz, has been chosen. Electrode width and gaps between electrodes amounted to 16 μm, and length of surface wave amounted to 37 μm. For such parameters the following has been obtained: number of transducer electrodes N = 25 pairs and 2.5 mm aperture.

A transducer matching for 50 Ω impedance has been performed by measuring the coefficient of reflection. Figure 14 presents the change in value of the coefficient of reflection from the transducer in a circuit of impedance 50 versus frequency. For matching, an inductance of value L1 = 900 nH has been used.

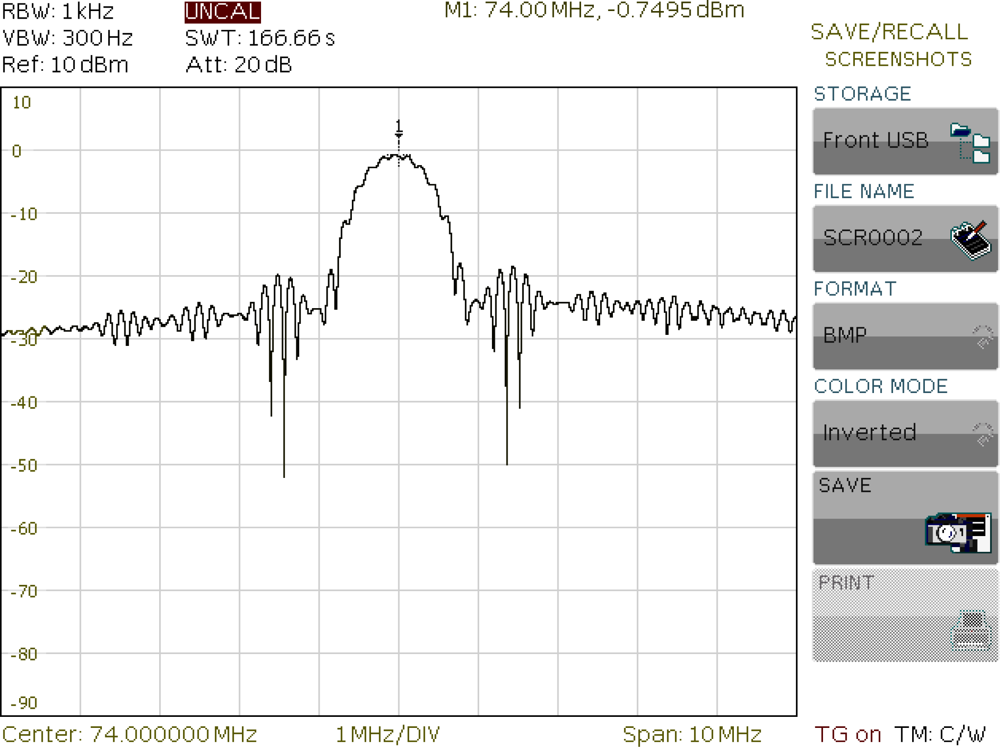

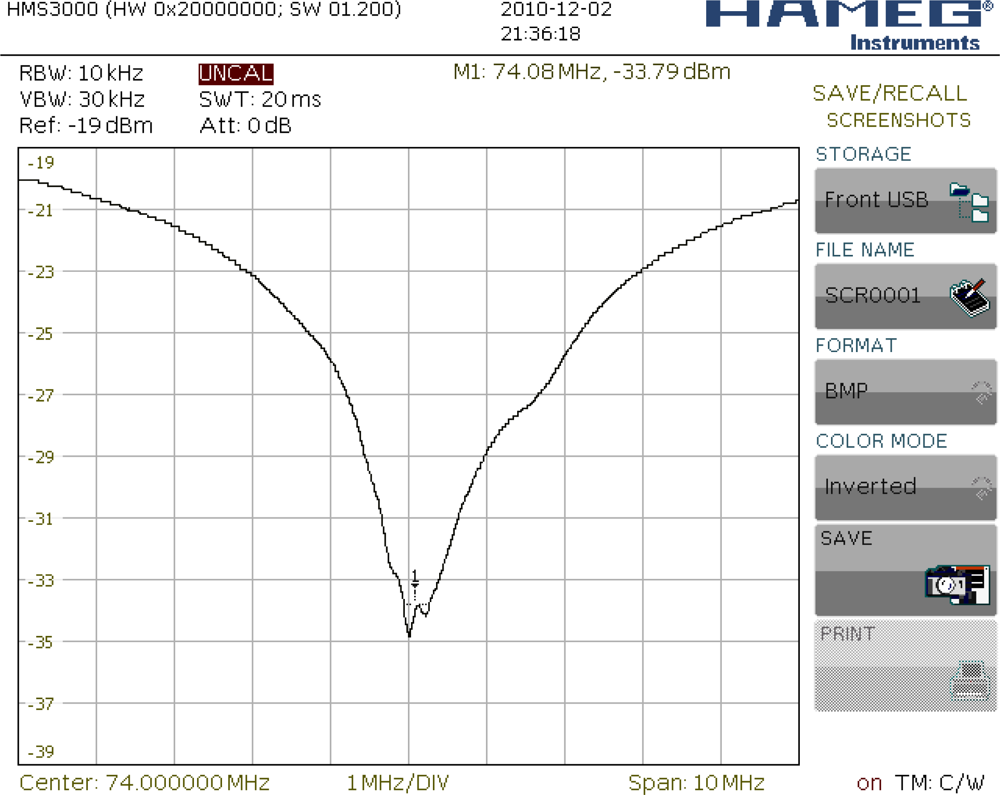

Experimental frequency characteristic amplitude of SAW vibration sensor (SAW-VS) presented in Figure 15.

Line losses after matching on frequency of 74 MHz amounted to −22 dB. SAW delay lines to be assembled in vibration sensor are presented in Figure 16.

Performed on ST-cut quartz plates and 0.5 mm thick, SAW delay lines constitute a mechanical set and (mechanical-electrical) transducer of a vibration sensor. The last part of a vibration sensor is an electric circuit which gives the possibility to measure time delay changes of a SAW. Experimental results concerning verification of the presented above theory of modeling of sensor plate are presented in the next section.

4. Experimental Examinations of Sensor Plates: Results

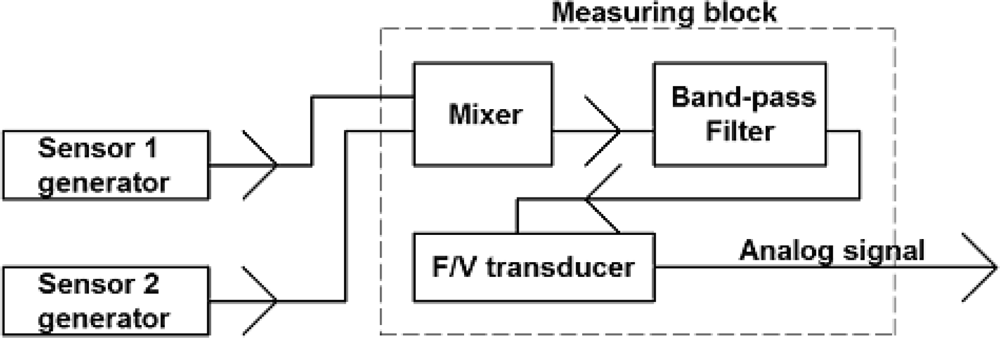

Usually, time delay change in SAW sensors is measured by means of two methods [2528], i.e., with a SAW generator and with a phase detector. The first one is based on the SAW generator frequency changes which have been made on the basis of the above discussed SAW delay line. The generator operates in feedback loop circuit. Figure 17 presents a scheme of the SAW generator.

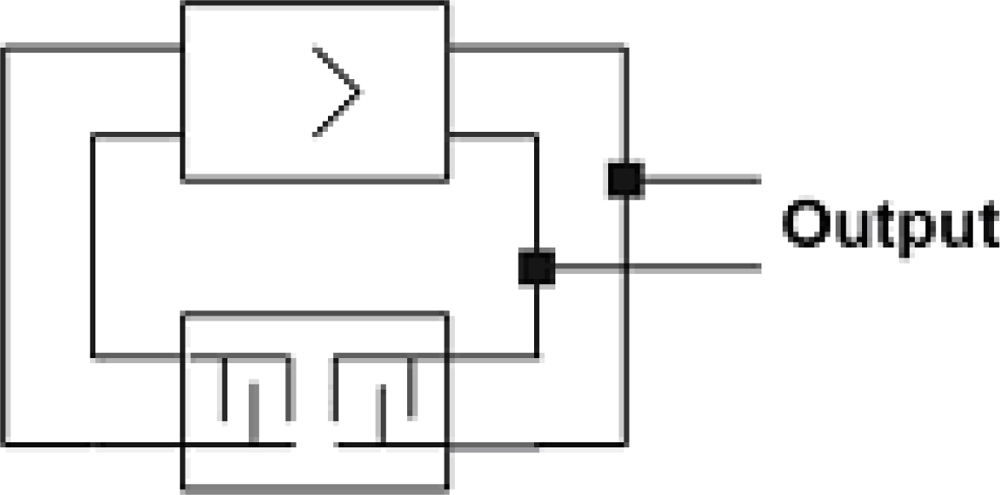

On the basis of the presented SAW delay lines two generators have been made. In each of them different vibrating plates were applied, one with 22 Hz, the other with 100 Hz resonance frequency. Generators operated on 73.8 MHz and 73.9 MHz. A 100 kHz difference between generators enabled their operation in the unit presented in Figure 18. The output signal from the measuring block through oscilloscope was loaded into a PC using the Agilent VEE software. Its amplitude was proportional to the frequency difference of both generators.

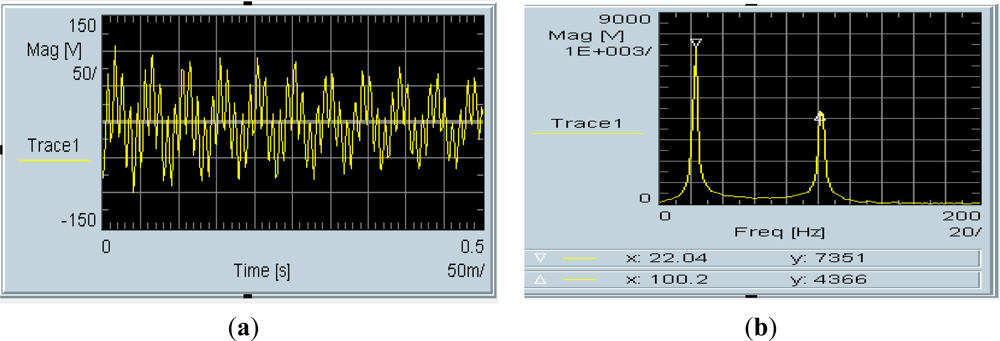

A fragment of the impulse response and its spectrum for the set of two activated sensors are presented in Figure 19. Impulse response Equation (19a) is a sum of two fading periodic time signals. Its spectrum Equation (19b) has been obtained by the Fourier transform module of the Agilent VEE software. Resonance frequencies of the spectrum run amount to 22 Hz and 100 Hz, respectively.

Experimental results published in [14,23] have been made before the theory presented in Section 2 of mechanical unit of vibration sensor. Theoretically, the run of impulse response spectrum is a sum of frequency amplitude characteristics of both SAW sensors. Let us compare the results with theoretical amplitude of frequency response of both sensors presented in Figure 4. Runs of experimental spectra of impulse responses of sensors (Figure 19) and theoretical resonance characteristics of sensor plates (Figure 4) are characterized by high selectivity. Relative values of their amplitudes cannot be comparable because of unknown value of their vibration activation. The results confirm that from the technical point of view, plate vibrations have frequency equal only to the first harmonic.

5. Design of Electronic Warning System

The obtained results confirm the possibility to use SAW vibration sensor plates not only to record vibrations but also to identify each sensor in the system. Because of the high selectivity of frequency responses, band-pass filters with mean frequencies equal to the resonance frequencies of sensor plates can be applied. Such properties of sensors can be used in a system monitoring vibrations in the sensor area. Such a system should consist of several SAW sensors. It should be relatively easy to connect the sensors to the system.

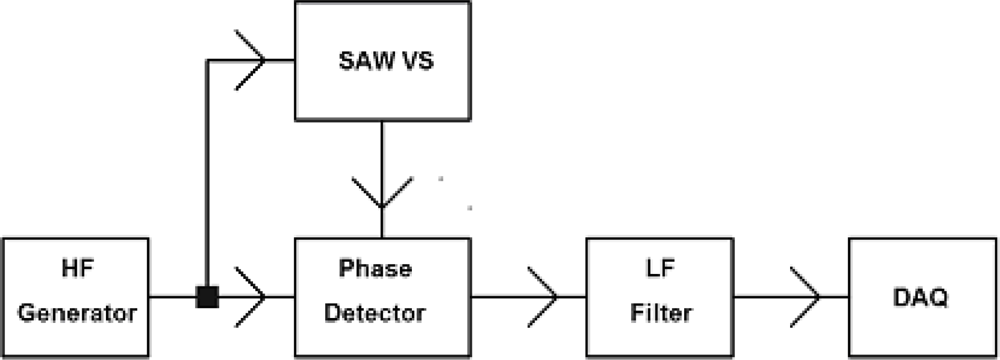

In the previous section a system with two SAW generators was shown. Now an electronic warning system that uses the other method of measuring changes in SAW time delay by phase detector will be proposed. The well-known method in literature (Figure 20) is presented for one sensor. Measuring is carried out in a system consisting of high frequency generator (HFG), the SAW-VS, phase detector (PD), low frequency filter (LF) and DAQ (data acquisition) unit.

The signal from the high frequency generator is:

u ( t ) = U   sin ( Ω 0 t )
where: U—amplitude, Ω0—frequency HFG, is divided in two paths. First path consists of SAW-VS’s and second path goes directly to phase detector input.

The output signal of low frequency filter (LF) is described by the following dependence:

u d ( t ) = k d U 1 U 2   cos   Ψ b
where:
  • Ψb—high frequency signal phase shift by SAW vibration sensor,

  • U1, U2—signal amplitudes on phase detector input,

  • kd —phase detector constant.

Changes in its value will be proportional to changes in the SAW delay caused by sensor plate movement. Because a SAW vibration sensor is an electronic four-terminal network, the unit presented in Figure 20 can be developed by cascade connected sensors as presented in Figure 21.

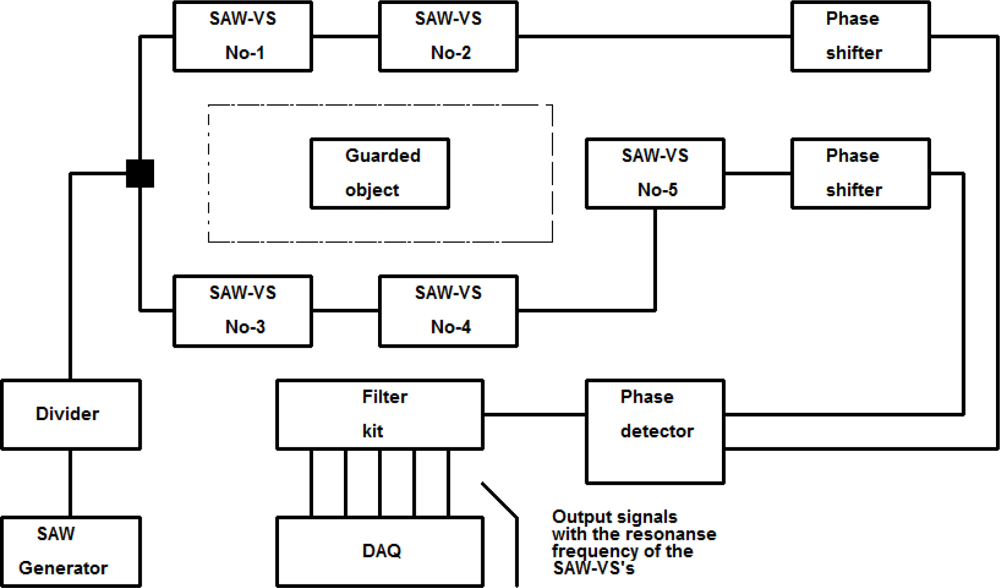

It consists of five SAW-VS’s placed in two paths and numbered 1–5, high frequency generator and phase detector. The first path consists of three cascades connected SAW-VS’s numbered 1–3 and second path with sensors 4 and 5. Output signals of the phase detector are:

u d ( t ) = k d ( Ψ 1 Ψ 2 )

By assuming that phase shifts in both paths originate from times delay of SAW filters and other sources of phase shift can be compensated phase shifts in both paths can be expressed as:

Ψ 1 = n = 1 3 ϕ n Ψ 2 = n = 4 5 ϕ n
where:
ϕ n = 2 π Ω 0 Δ τ n
  • φn—phase shift of n-th sensor,

  • Δτn—time delay changes of n-th SAW filter.

  • Ω0—frequency HFG,

If none of the sensors is vibrating, then the difference between signal phases on phase detector input should amount to 90 degrees. The condition will be fulfilled, regardless of the amount of sensors placed in path and connection cables length and their types, by phase shifters placed in both paths. Then, using the dependence, the signal on phase detector output can be presented in the following way:

U wy ( t ) = n = 1 5 B n ( t ) e ω 0 2 τ 2 t   sin ( ω rn t )

This is a sum of alternating signals of frequencies equal to the resonance frequencies of plates of all the SAW vibration sensors included in the electronic warning system. The signals’ amplitudes will depend on a type of function forcing each of the sensors to vibrate. Signal distribution is made using five-channel analog filter. Figure 22 presents the diagram of electronic warning system complemented by phase shifters and recording unit [29].

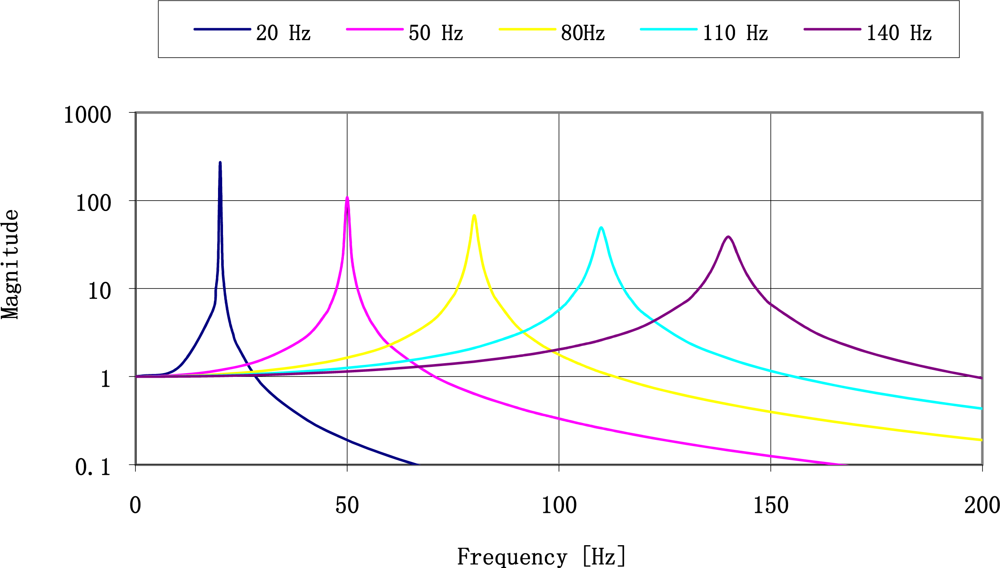

Figure 23 presents frequency responses of five SAW vibration sensors.

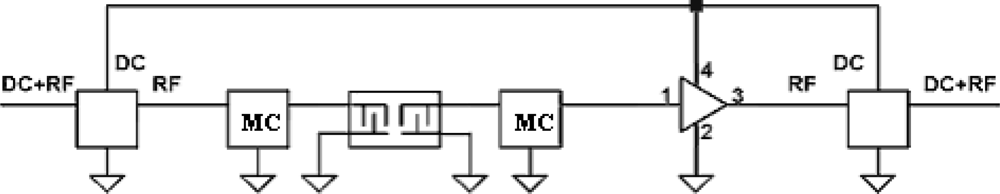

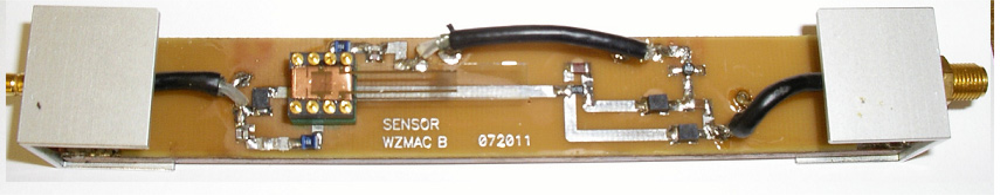

Figure 24 presents an electric operation diagram of SAW vibration sensor. In order to easily connect sensor to the warning system it has been assumed that:

  • test signal (74 MHz) and power supply signal 12 VDC will be sent by one coaxial cable;

  • losses brought by SAW delay line will be compensated by an amplifier cooperating with the line.

The assumed solution leads to an extension of the electronic system of the SAW vibration sensor. On its input there is a test signal distribution circuit (74 MHz) and power supply signal (DC). HF signal after passing through a SAW delay line and two matching circuits (MC) is amplified to the input value level. Then, it is summed with DC power supply voltage on the sensor output.

Tha advantage of a such a solution is that there are no changes of signal amplitude on the phase detector input if more sensors are connected to the warning system. The phase of signals in both paths of the system is changed. Its correction is made by phase shifters being integrated in the system (Figure 23). SAW vibration sensors for electronic warning system are presented in Figure 25.

Signals generated by vibrating sensors are distributed on the output of a five-channel filter unit. Each of signals through the recording unit is given to the alarm central unit. It is recording vibrations of each sensor the electronic warning system consists of. To carry out experimental tests, sensors are activated on a test station shown in Figure 26.

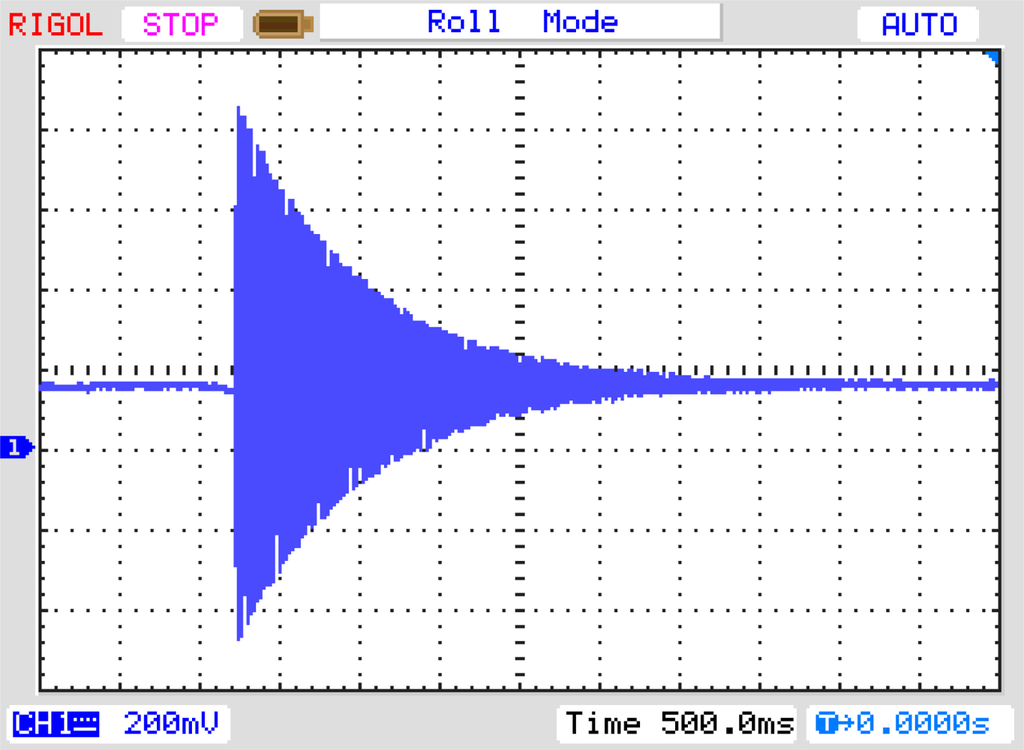

The experimental impulse response of SAW-VS sensor has been shown in Figure 27. The plate length is l = 26 mm and is weighted by the concentrated mass equal to the mass of the plate (r = 1). Its resonant frequency was 160 Hz.

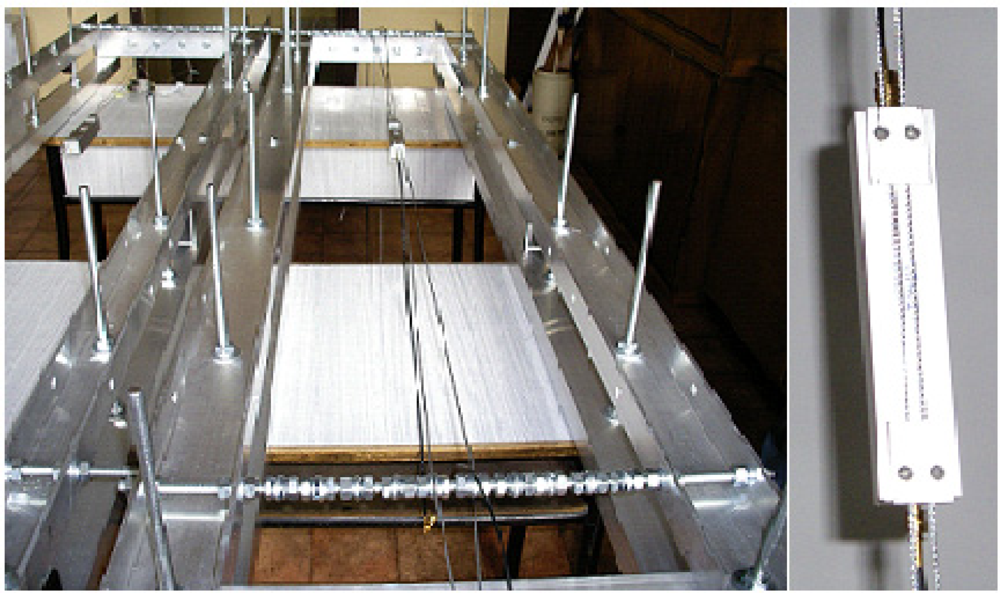

SAW vibration sensors are fixed to wire ropes. Wire ropes with adjustable tension are used to simulate vibrating strings. It makes possible to control and activate sensors according to chosen parameters, and to perform repeatability tests.

6. Conclusions

In this paper a feasibility study on SAW vibration sensors for electronic warning systems was presented. The SAW sensor has been based on a SAW delay line. The delay line has been made on a vibrating piezoelectric plate. A vibration model of anisotropic sensor plate has been made. By successive simplifications the description of vibrations of anisotropic viscoelastic plate has been reduced to a isotropic model with one degree of freedom. By means of the model an explicit description of plate movement has been obtained. Experimental examinations have proved that the sensor plate vibrates only with first harmonic frequency. Simple dependences have been obtained describing its value as a function of the plate geometry and volume of concentrated mass. Vibration amplitudes of higher harmonic frequencies are practically negligible. The model has been used to carry out an analysis of frequency responses of ST-cut quartz sensor plates, and an analysis of damping speed of plate impulse response. On the basis of these parameters a range of resonance frequencies of plates has been established which can be applied in the electronic detection unit. The lower range of resonance frequencies is limited by plate length. To describe it, an available ST-cut quartz crystal length of 100 mm has been assumed. The upper range of resonance frequencies is limited by the decay time of the impulse response of the sensor plate. In the analysis, the value of stress on a plate during its movement has been omitted. It must be lower than the value of dynamic critical stress presented in Table 1. The above problem has not been analyzed in the present paper.

Values of dynamic critical stress for ST-cut quartz have been determined in [22,23]. The values are not determined according to norms. They concern a series of plates cut by a wire-saw. When determining the values it turned out that the technology of plate production has a big influence on the value of dynamic critical stress. The paper [14] has proved that their value at chosen sensor structure does not limit determined frequency range of plates.

Sensor sensitivity increases along with decreasing resonance frequencies of plates. Thus, it is possible to design high sensitivity sensors. Lowering of the resonance frequency of the plate can be achieved by increasing plate length (Figure 28). It is the most effective way to lower the resonance frequency of sensor plates. For a sensor design with seismic mass equal to plate mass, a resonance frequency of 10 Hz can be obtained at a plate length of 140 mm. At a plate length of 200 mm its resonance frequency will amount to 5 Hz. The above relations allow one to design high-sensitive vibration sensors of plate resonance frequencies of several Hz.

Let us consider possible differences between a fabricated sensor and the model sensor presented in the paper. There will be two fundamental differences between them. The former concerns attaching immovable plate end. It will be viscoelastic and not rigid as in the model. The latter concerns making distributed mass instead of concentrated mass. Theoretically, the differences can be described by modifying the boundary conditions in the isotropic model of the plate. In practice, it will be hard to experimentally verify a modified model. Considering the obtained results it seems that the influence of presented differences on modeling results will be practically negligible.

The paper presents an example of applying SAW vibration sensors in an electronic warning system. Vibration sensors record vibrations in chosen areas. Signals from vibrating sensors are recorded by alarm central unit.

All vibration sensors included in the system can be placed in one area. Then the system will play a role of vibration analyzer in the area. Potentially, it is the second application of the discussed unit.

The possibility to use high-sensitive vibration sensors of resonance frequencies of several Hz is a further area of application of the sensors in monitoring vibrations of bridges and buildings whose vibration frequencies go from fractions of Hz to several Hz.

The presented application possibilities concern using SAW vibration sensor impulse responses. It is possible to apply such a sensor to measure one component of an acceleration vector. Then impulse response is a spurious signal for acceleration measurement and should be eliminated. Thus, application of sensor plate lengths with fast impulse response fade enables the design of acceleration sensors. Then, the character of plate movement is change of acceleration in time. In [30,31] designs of such type of sensors are presented. The presented model can be directly used for design purposes of such sensors. The SAW vibration sensor may be compared with two of the most often used sensors:

  • piezoelectric accelerometers,

  • micromechanical acceleration sensors based on silicon known as Micro Electro Mechanical Systems accelerometers.

We do not take into the consideration the impact sensors. They are light-weight and have a wide measuring band. Piezoelectric accelerometers enable acceleration measurement from parts of Hz up to some kHz. They enable measurements from 10−3 “g” up to 105 “g” (“g” is a unit of acceleration equal to Earth’s gravity at sea level = 9.81 m/s2). Their sensitivity depends on their construction and has values in the 0.2 mV/“g”−0.7 V/“g” range. Their weight is not less than 3 g and not greater than 0.5 kg. The piezoelectric accelerometers natural frequencies (resonance frequencies) are high, from some kHz up to several dozen kHz. The construction of piezoelectric acceleration sensors is simple, but the measuring process is complicated. The changes of charge (on the order of pC) are measured.

MEMS accelerometers are produced in large numbers and applied in many areas: motorization, air bags, laptops, smartphones, inertial navigation, and seismic sensors. They are cheap and small. They enable acceleration measurement for constant and variable acceleration up to hundreds of Hz. They enable measurements from parts of “g” up to 10.000 “g”. MEMS accelerometers’ sensitivity depends on their construction and has the values in the range of 0.2 mV/“g”−10 V/“g”. The higher values have sensors applied in seismology. Their weight is in the of some g to 2.5 kg. The weight of sensors applied in seismology is the highest. The MEMS accelerometers’ natural frequencies (resonance frequencies) are high, up to some kHz. Their output signal is proportional to the casing acceleration, without influence of own free vibrations. The high resonance frequencies are the main reason behind the above mentioned effect. The construction of MEMS acceleration sensors is simple and the measurements are not complicated either. The changes of capacity (order about 10−15 F) are measured. The measuring system of MEMS acceleration sensors is similar to the measuring system of SAW vibration sensors (Figure 20). The measuring systems of MEMS acceleration sensors consist of a high frequency generator (HFG), 1 MHz, two signal paths and phase detector (PD).

The construction and measurement methods of MEMS accelerometers and SAW-VS are similar. Both have a vibrating plate as a main part. The vibrating plate of MEMS accelerometer changes the capacity of a chip capacitor and it is made of silicon. The vibrating plate of SAW-VS is made of quartz. Both plates are made of materials having similar mechanical properties. It implies similar parameters of both sensors.

The normal (resonance) frequencies SAW-VS may be in the range from 10 Hz up to hundreds of Hz. It is an important difference when we compare MEMS accelerometers and SAW-VS. Sensitivity of SAW-VS depends on parameters of plate determining resonance characteristics, length of the surface wave used in sensors and construction of sensor. We compare sensitivities for constant acceleration. The SAW-VS with the plate 65 mm × 5.5 mm × 0.5 mm loaded with the concentrated mass four times greater than the mass of the plate was tested. The measured sensitivity was 0.5 V/“g”. The sensitivity for variable acceleration may be many times greater than the above mentioned due to resonance phenomenon. Sensitivity of SAW-SV depends on length of surface wave, thickness of the plate, ratio between the concentrated mass and the mass of plate and delay time of the delay-line applied in SAW-VS. We may prepare SAW-VS with greater sensitivity. SAW-VS may also work in cascades. This enables the production of systems with higher sensitivity and smaller cross acceleration sensitivity. The compared sensors do not enable forming such systems. The construction of wireless systems with SAW-VS is possible due to very high frequency of signals used in them. The SAW-VS should thus have their place in measuring technology.

This work was supported by the Polish Ministry of Science and Higher Education as a project “Vibration Warning System with SAW Vibration Sensors” included in the scientific budget of 2009–2011.

References

  1. Wohltjen, H.; Dessy, R. Surface acoustic waves probe for chemical analysis I. Introductcion and instrument design. Anal. Chem 1979, 9, 1458–1475.
  2. Nakamoto, T.; Nakamura, K.; Moriizumi, T. Study of oscillator-circuit behavior for QCM gas sensor. Proceedings of the Ultrasonics Symposium, San Antonio, TX, USA, 3–6 November 1996; 1, pp. 351–354.
  3. Gizeli, E.; Liley, M.; Love, C.R.; Vogel, H. Antibody binding to a functionalized supported lipid layer: A direct acoustic immunosensor. Anal. Chem 1997, 69, 4808–4813.
  4. Urbańczyk, M.; Jakubik, W.; Kochowski, S. Investigation of sensor properties of cooper phtalocyanine with the use of surface acoustic waves. Sens. Actuat. B 1994, 22, 133–137.
  5. Cullen, C.; Reeder, T. Measurement of SAW velocity versus strain for YX and ST quartz. Proceedings of the Ultrasonics Symposium, Los Angeles, CA, USA, 22–24 September 1975; pp. 519–522.
  6. Cullen, C.; Montress, T. Progress in the development of SAW resonator pressure transducers. Proceedings of the Ultrasonics Symposium, Boston, MA, USA, 5–7 November 1980; 2, pp. 519–522.
  7. Pohl, A.; Ostermayer, G.; Reindl, L.; Seifert, F. Monitoring the tire pressure of cars using passsive SAW sensors. Proceedings of the Ultrasonics Symposium, Toronto, ON, Canada, 5–8 October 1997; 1, pp. 471–474.
  8. Clayton, L.D.; EerNisse, E.F. Quartz thicknes-shear mode pressure sensor design for enhanced sensitivity. IEEE Trans. Ultrason. Ferroelectr. Freq. Control 1998, 45, 1196–1203.
  9. Jiang, Q.; Yang, X.M.; Zhou, H.G.; Yang, J.S. Analysis of surface acoustic wave pressure sensor. Sens. Actuat. A 2005, 118, 1–5.
  10. Drafts, B. Acoustic Wave Technology Sensors, Available online: http://www.sensorsmag.com/sensors/acoustic-ultrasound/acoustic-wave-technology-sensors-936 (accessed on 5 November 2011).
  11. Seifert, F.; Bulst, W.; Ruppel, C. Mechanical sensor based on surface acoustic waves. Sens. Actuat. A 1994, 44, 231–239.
  12. Hauden, D. Elastic waves for miniaturized piezoelectric sensors: Applications to physical quantity measurements and chemical detection. Arch. Acoust 1991, 16, 91–106.
  13. Filipiak, J.; Solarz, L.; Steczko, G. Surface acoustic wave stress sensors. Desinger analysis. Mol. Quantum Acoust 2007, 28, 71–80.
  14. Filipiak, J. Surface acoustic wave acceleration sensors (in Polish). Tech. Univ. Czestochowa 2006, 121, 1–198.
  15. Filipiak, J.; Kopycki, C. Surface acoustic waves for the detection of small vibrations. Sens. Actuat 1999, 76, 318–322.
  16. Filipiak, J.; Solarz, L.; Steczko, G. Surface acoustic wave vibration sensors for linear electronic warning systems. Acta Phys. Pol. A 2009, 116, 302–306.
  17. Nye, J.F. Physical Properties of Crystals; Clarendon Press: Oxford, UK, 1957.
  18. Mason, W.P. Physical Acoustics and the Properties of Solids; Van Nostrand: Princeton, NJ, USA, 1958.
  19. Bogusz, W.; Dżygadło, Z.; Rogula, D.; Sobczyk, K.; Solarz, L. Linear vibration of discrete systems. In Vibrations and Waves A; Kaliski, S., Solarz, L., Eds.; Elsevier: Amsterdam, The Netherlands, 1992.
  20. Filipiak, J.; Solarz, L.; Zubko, K. Analysis of acceleration sensor by the discrete model. Mol. Quantum Acoust 2004, 25, 89–99.
  21. Zubko, K. Applying of the Rayleigh Method to Determination of Elastic and Viscoelastic Parameters of Piezoelectric Crystals (in Polish)Ph.D. Thesis. Military University of Technology, Warsaw, Poland, 2006.
  22. Filipiak, J.; Zubko, K. Determination of damping in piezoelectric crystals. Mol. Quantum Acoust 2005, 26, 75–80.
  23. Kopycki, C. Effect of Substrates on the Parameters of Piezoelectric Vibration Sensor with a Surface Acoustic Wave (in Polish)Ph.D. Thesis. Military University of Technology, Warsaw, Poland, 1999.
  24. Filipiak, J. Problems of Synthesis of Components of a Surface Acoustic Wave Signal Processing to Complex Type “Chirp” (in Polish)Ph.D. Thesis. Military University of Technology, Warsaw, Poland, 1993, 1–333.
  25. Matthews, L. Surface Wave Filters; John Wiley & Sons: New York, NY, USA, 1997.
  26. Morgan, P. Surface Wave Devices for Signal Processing; Elsevier: London, UK, 1985.
  27. Oliner, A.A. Acoustic Surface Waves; Springer Verlag: Berlin, Germany, 1978.
  28. Ballantine, D.S.; White, R.M.; Martin, S.J.; Ricco, A.J.; Zellers, E.T.; Frye, G.C.; Wohltjen, H. Acoustic Wave Sensor—Theory, Design, and Physico-Chemical Applications; Academic Press: San Diego, CA, USA, 1997.
  29. Filipiak, J.; Solarz, L.; Steczko, G. The analysis of electronics warning systems with surface acoustic wave sensors (in Polish). Electr. Rev 2010, 11a, 177–179.
  30. Filipiak, J.; Kopycki, C.; Solarz, L.; Ostrowski, J. The SAW acceleration sensor. Proceedings European Frequency and Time Forum, Warszawa, Poland, March 1998; 1, pp. 229–232.
  31. Filipiak, J.; Kopycki, C.; Solarz, L.; Ostrowski, J. Lithium niobiate as the substratum for the SAW acceleration sensor. Proc. SPIE 1997, 3179, 256–260.
Sensors 11 11809f1 200
Figure 1. Basic structure of a SAW vibration sensor.

Click here to enlarge figure

Figure 1. Basic structure of a SAW vibration sensor.
Sensors 11 11809f1 1024
Sensors 11 11809f2 200
Figure 2. The plate of a vibration sensor.

Click here to enlarge figure

Figure 2. The plate of a vibration sensor.
Sensors 11 11809f2 1024
Sensors 11 11809f3 200
Figure 3. The equivalent circuit of sensor plate with one degree of freedom.

Click here to enlarge figure

Figure 3. The equivalent circuit of sensor plate with one degree of freedom.
Sensors 11 11809f3 1024
Sensors 11 11809f4 200
Figure 4. Theoretical resonance characteristics of plates with resonance frequencies of 22 Hz and 100 Hz.

Click here to enlarge figure

Figure 4. Theoretical resonance characteristics of plates with resonance frequencies of 22 Hz and 100 Hz.
Sensors 11 11809f4 1024
Sensors 11 11809f5 200
Figure 5. Maximum magnitude of frequency response versus the resonance frequency of the sensor plate.

Click here to enlarge figure

Figure 5. Maximum magnitude of frequency response versus the resonance frequency of the sensor plate.
Sensors 11 11809f5 1024
Sensors 11 11809f6 200
Figure 6. The influence of a change of a concentrated mass on sensor plate resonance frequency.

Click here to enlarge figure

Figure 6. The influence of a change of a concentrated mass on sensor plate resonance frequency.
Sensors 11 11809f6 1024
Sensors 11 11809f7 200
Figure 7. The relationship between sensor plate resonance frequency made of ST-cut quartz 0.5 mm thick, and plate length (l) and the quantity of concentrated mass (r).

Click here to enlarge figure

Figure 7. The relationship between sensor plate resonance frequency made of ST-cut quartz 0.5 mm thick, and plate length (l) and the quantity of concentrated mass (r).
Sensors 11 11809f7 1024
Sensors 11 11809f8 200
Figure 8. The concentrated mass quantities used in the considered sensor constructions.

Click here to enlarge figure

Figure 8. The concentrated mass quantities used in the considered sensor constructions.
Sensors 11 11809f8 1024
Sensors 11 11809f9 200
Figure 9. Relative decrease of impulse response amplitude after the time equal to its period in form of a function of plate length for different concentrated mass quantities (r).

Click here to enlarge figure

Figure 9. Relative decrease of impulse response amplitude after the time equal to its period in form of a function of plate length for different concentrated mass quantities (r).
Sensors 11 11809f9 1024
Sensors 11 11809f10 200
Figure 10. The relation between resonance frequency of a sensor plate and plate length and the value of concentrated mass.

Click here to enlarge figure

Figure 10. The relation between resonance frequency of a sensor plate and plate length and the value of concentrated mass.
Sensors 11 11809f10 1024
Sensors 11 11809f11 200
Figure 11. Delay lines for SAW vibration sensor.

Click here to enlarge figure

Figure 11. Delay lines for SAW vibration sensor.
Sensors 11 11809f11 1024
Sensors 11 11809f12 200
Figure 12. The interdigital transducer structure.

Click here to enlarge figure

Figure 12. The interdigital transducer structure.
Sensors 11 11809f12 1024
Sensors 11 11809f13 200
Figure 13. Transducer matching circuit.

Click here to enlarge figure

Figure 13. Transducer matching circuit.
Sensors 11 11809f13 1024
Sensors 11 11809f14 200
Figure 14. Value of coefficient of reflection from matched transducer versus frequency.

Click here to enlarge figure

Figure 14. Value of coefficient of reflection from matched transducer versus frequency.
Sensors 11 11809f14 1024
Sensors 11 11809f15 200
Figure 15. Amplitude characteristic of SAW-VS after transducers matching.

Click here to enlarge figure

Figure 15. Amplitude characteristic of SAW-VS after transducers matching.
Sensors 11 11809f15 1024
Sensors 11 11809f16 200
Figure 16. SAW delay lines ready for being assembled in vibration sensor.

Click here to enlarge figure

Figure 16. SAW delay lines ready for being assembled in vibration sensor.
Sensors 11 11809f16 1024
Sensors 11 11809f17 200
Figure 17. Scheme of equivalent circuit of a SAW generator with feedback loop.

Click here to enlarge figure

Figure 17. Scheme of equivalent circuit of a SAW generator with feedback loop.
Sensors 11 11809f17 1024
Sensors 11 11809f18 200
Figure 18. Block diagram of SAW vibration sensor.

Click here to enlarge figure

Figure 18. Block diagram of SAW vibration sensor.
Sensors 11 11809f18 1024
Sensors 11 11809f19 200
Figure 19. Impulse response (a) of a set of two cooperating SAW sensors and its spectrum (b).

Click here to enlarge figure

Figure 19. Impulse response (a) of a set of two cooperating SAW sensors and its spectrum (b).
Sensors 11 11809f19 1024
Sensors 11 11809f20 200
Figure 20. Measurement of SAW delay changes with phase detector.

Click here to enlarge figure

Figure 20. Measurement of SAW delay changes with phase detector.
Sensors 11 11809f20 1024
Sensors 11 11809f21 200
Figure 21. Schematic diagram of electronic warning system with five SAW-VS’s.

Click here to enlarge figure

Figure 21. Schematic diagram of electronic warning system with five SAW-VS’s.
Sensors 11 11809f21 1024
Sensors 11 11809f22 200
Figure 22. Block diagram of electronic warning system with phase shifters and electronic detection unit.

Click here to enlarge figure

Figure 22. Block diagram of electronic warning system with phase shifters and electronic detection unit.
Sensors 11 11809f22 1024
Sensors 11 11809f23 200
Figure 23. Example of frequency responses for five vibration sensors.

Click here to enlarge figure

Figure 23. Example of frequency responses for five vibration sensors.
Sensors 11 11809f23 1024
Sensors 11 11809f24 200
Figure 24. Electric operation diagram of SAW vibration detector.

Click here to enlarge figure

Figure 24. Electric operation diagram of SAW vibration detector.
Sensors 11 11809f24 1024
Sensors 11 11809f25 200
Figure 25. SAW vibration sensors for electronic warning system.

Click here to enlarge figure

Figure 25. SAW vibration sensors for electronic warning system.
Sensors 11 11809f25 1024
Sensors 11 11809f26 200
Figure 26. Test station for SAW vibration sensors for electronic warning system.

Click here to enlarge figure

Figure 26. Test station for SAW vibration sensors for electronic warning system.
Sensors 11 11809f26 1024
Sensors 11 11809f27 200
Figure 27. Experimental impulse response of SAW-VS.

Click here to enlarge figure

Figure 27. Experimental impulse response of SAW-VS.
Sensors 11 11809f27 1024
Sensors 11 11809f28 200
Figure 28. Resonance frequency of sensor plate versus plate length with concentrated mass equal to plate mass.

Click here to enlarge figure

Figure 28. Resonance frequency of sensor plate versus plate length with concentrated mass equal to plate mass.
Sensors 11 11809f28 1024
Table Table 1. Material parameters of quartz.

Click here to display table

Table 1. Material parameters of quartz.
ParameterST-cut quartz
Equivalent Young’s modulus [GPa]76
Dynamic critical compressive stress [MPa]80
Equivalent material damping coefficient [μs]29.3
Density [kg/m3]2,650
Table Table 2. ST-cut quartz parameters.

Click here to display table

Table 2. ST-cut quartz parameters.
MaterialCutting angle [degree]Direction of wave propagation [degree]SAW velocity V [m/s]Coupling coefficient k2 [%]Temperature coefficient
Relative dielectric permittivity ε
a 10−6/Kb 10−9/K
Quarz ST42.75° YX3,1570.160−344.5
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
