Sensors 2011, 11(12), 11605-11628; doi:10.3390/s111211605

Article
Dynamic Sensing Performance of a Point-Wise Fiber Bragg Grating Displacement Measurement System Integrated in an Active Structural Control System
Kuo-Chih Chuang 1, Heng-Tseng Liao 2 and Chien-Ching Ma 2,*
1
School of Aeronautics and Astronautics, Institute of Applied Mechanics, Zhejiang University, Hangzhou 310027, China; E-Mail: chuangkc@zju.edu.cn
2
Department of Mechanical Engineering, National Taiwan University, Taipei 106, Taiwan; E-Mail: r95522503@ntu.edu.tw
*
Author to whom correspondence should be addressed; E-Mail: ccma@ntu.edu.tw; Tel.: +886-2-2365-9996; Fax: +886-2-2365-9996.
Received: 17 October 2011; in revised form: 28 November 2011 / Accepted: 3 December 2011 /
Published: 13 December 2011

Abstract

: In this work, a fiber Bragg grating (FBG) sensing system which can measure the transient response of out-of-plane point-wise displacement responses is set up on a smart cantilever beam and the feasibility of its use as a feedback sensor in an active structural control system is studied experimentally. An FBG filter is employed in the proposed fiber sensing system to dynamically demodulate the responses obtained by the FBG displacement sensor with high sensitivity. For comparison, a laser Doppler vibrometer (LDV) is utilized simultaneously to verify displacement detection ability of the FBG sensing system. An optical full-field measurement technique called amplitude-fluctuation electronic speckle pattern interferometry (AF-ESPI) is used to provide full-field vibration mode shapes and resonant frequencies. To verify the dynamic demodulation performance of the FBG filter, a traditional FBG strain sensor calibrated with a strain gauge is first employed to measure the dynamic strain of impact-induced vibrations. Then, system identification of the smart cantilever beam is performed by FBG strain and displacement sensors. Finally, by employing a velocity feedback control algorithm, the feasibility of integrating the proposed FBG displacement sensing system in a collocated feedback system is investigated and excellent dynamic feedback performance is demonstrated. In conclusion, our experiments show that the FBG sensor is capable of performing dynamic displacement feedback and/or strain measurements with high sensitivity and resolution.
Keywords:
fiber Bragg grating; sensing system; out-of-plane; point-wise displacement sensor; amplitude-fluctuation electronic speckle pattern interferometry; smart cantilever beam; velocity feedback control

1. Introduction

Fiber Bragg grating (FBG) sensors possess many excellent properties such as small size, mass-production at low cost, and immunity to electro-magnetic interference (EMI). For more than a decade, they have been proven to be sensitive to many physical quantities such as strain, temperature, pressure, acceleration, and force [13]. Since many FBGs can be inscribed into a single fiber, they also have multiplexing ability to detect several different positions in the same structure simultaneously. Traditionally, FBG sensors are mounted on or imbedded in structures. Thus, detecting out-of-plane point-wise displacement can’t be achieved without work-around methods such as bonding an FBG sensor to a cantilever structure to indirectly measure the displacement responses [4,5]. However, indirect sensing methods are still not capable of measuring point-wise displacement. Due to the different modes of the cantilever structures, indirect sensing methods are also not suitable for dynamic measurements.

To directly utilize an FBG to measure out-of-plane point-wise displacement, a method that can point-wisely glue an FBG sensor perpendicular to the surface containing the detecting point is adopted in this paper [6]. Since sensors are one of the key elements in smart structures [7], the purpose of this work is to investigate the feasibility of integrating the proposed FBG displacement sensing system into smart structures for performing active vibration suppression. A smart cantilever beam actuated by a piezoelectric actuator is employed to demonstrate the dynamic sensing ability as well as the feedback sensing ability of the proposed FBG displacement sensing system.

The sensing principle of the FBG is based on the shift of the Bragg wavelength resulting from variations of environmental physical quantities. Under static or low frequency condition, an optical spectrum analyzer (OSA) is usually used to detect wavelength shift [8,9]. However, since the demodulating speed of the OSA is limited, wavelength shifts are not able to be recorded in time for high frequency signals. On the contrary, demodulating techniques which transfer wavelength shifts to energy variations through optical filters are capable of detecting high frequency responses. Optical filters such as the long-period fiber grating (LPFG) filters, FBG filters, and chirped FBG filters are capable of providing different dynamic sensing ranges and resolutions [1012]. Among above mentioned filters, the FBG filter can provide the highest sensitivity and it possesses high signal-to-noise (SNR) ratio due to its smallest full-width at half maximum (FWHM) compared to other grating-based filters. Thus, different from the sensing system in [6] which employs an LPFG filter to demodulate the displacement responses, this study employs an FBG filter in the sensing system to enhance the dynamic sensing performance.

There are several control algorithms that have been successfully utilized to control flexible smart structures [13]. Since the purpose of this study is focused on the dynamic sensing performance of the proposed point-wise FBG displacement sensor system in an active structural control application, a velocity feedback control is adopted in this paper to add damping of the smart cantilever beam and suppress the vibrations. The proposed FBG displacement sensor and the piezoelectric actuator is set up collocated to each other on top and bottom surfaces of the cantilever beam, respectively. Before performing experiments, an optical full-field measurement technique called amplitude-fluctuation electronic speckle pattern interferometry (AF-ESPI) is used to provide full-field vibration mode shapes and resonant frequencies. To verify the dynamic demodulation performance of the FBG filter, a traditional FBG strain sensor calibrated with a strain gauge is first employed to measure the dynamic strain of impact-induced vibrations. Then, system identification of the smart cantilever beam is performed by FBG strain and displacement sensors. To verify dynamic sensing ability of the proposed FBG displacement sensor, a laser Doppler vibrometer (LDV) is simultaneously employed as a comparison for the displacement measurement. Finally, since the effect of the velocity feedback for sinusoidal waveforms is equivalent to delay the waveforms by some phases, a delay controller is also utilized in our work as a comparison for the velocity feedback controller. To our knowledge, this is the first time that the proposed FBG displacement sensing system being integrated into a smart structure for performing active vibration control.

This paper is organized as follows. Section 2 summarizes the sensing principle, calibration method, and set-up method of the FBG displacement sensor. The model of the smart cantilever beam is presented in Section 3. The velocity feedback controller and the delay controller are briefly introduced in Section 4. Finally, the experimental setup, performances of the FBG-filter based demodulation technique, system identifications performed by FBG strain/displacement sensors, and control results of suppressing vibrations of cantilever beam are reported and discussed in Section 5.

2. FBG Sensing System

A fiber Bragg grating (FBG) is a periodic distribution of the refractive index along the fiber core. From the Bragg’s law, the Bragg wavelength λS of an FBG sensor is given by [14]:

λ S = 2 n eff Λ
where Λ is the Bragg grating period and neff is the effective refractive index of the fiber core. The shift in Bragg wavelength due to an applied strain can be expressed as:
Δ λ S = ( 1 p e ) λ S 0 ε
where ε is the strain induced in the fiber, pe is the effective photoelastic coefficient, and λS0 is the Bragg wavelength of the grating without the strain field. In order to measure the point-wise displacement of a point on a structure subjected to dynamic loadings using an FBG, one end of a fiber (of length l0) containing the FBG needs to be fixed to a stationary boundary while the other end is fixed to the sensing point. The dynamic displacement of the sensing point on the structure can be obtained from the following relation:
d ( t ) = 0 l 0 ε ( t ) d z

The spectrum of the light reflected by the FBG sensor can be approximated by a Gaussian function, given by:

R ( λ ) = R S   exp [ 4   ln 2 ( λ λ S σ S ) 2 ]
where RS is the maximum reflectivity of the FBG sensor, σS is the grating full-width at half maximum (FWHM). In order to enhance the signal-to-noise (SNR) ratio and the sensitivity, an FBG filter located at the output of a broadband source (BBS) is used as a demodulator in the sensing system. If the intensity of the BBS is P(λ), the total light power I detected by the photodetector (PD) can be expressed as:
I = P ( λ ) F ( λ ) R ( λ ) d λ P λ F ( λ ) R ( λ ) d λ
where F(λ) is the spectrum of the FBG demodulator. For a broadband source with a relative flat spectrum, the power spectrum may be assumed to be a constant as Pλ over the operation range. The PD transforms the light intensity to voltage signals.

Before performing the measurement, calibration of the FBG sensing system is necessary to ensure the linearity, maximum sensing output, and sensitivity. The calibrating criteria are based on the demodulation behavior of the FBG filter. The transmittance of the FBG filter can be approximated by [1416]:

F ( λ ) = 1 R F   exp [ 4   ln 2 ( λ λ F σ F ) 2 ]
where λF is the Bragg wavelength of the filter, RF is the maximum reflectivity, and σF is the grating FWHM of the FBG filter. Substituting Equations (4) and (6) into Equation (5), the light intensity after evaluating the integration is expressed as:
I = I DC I P   exp [ ( δ λ nor ) 2 ]

In Equation (7), IDC is the DC component of the light source given by:

I DC = π P λ R S σ S 4   ln 2
Ip is the transmittance light intensity given by:
I P = π P λ R F R S 4   ln 2 σ F σ S σ F 2 + σ S 2
and δλnor is a normalized wavelength mismatch defined as:
δ λ nor = ( 2 ln 2 σ F 2 + σ S 2 ) δ λ
where δλ = λSλF = λS0λF + ΔλS is the wavelength mismatch. Hence, the variation of intensity I will depend on the wavelength mismatch. It is noted that if λF of the FBG filter attached to a translation stage is adjusted to the left of λS before the measurement, the PD output electrical signal will increase as the FBG sensor is elongated and decrease as the FBG sensor is compressed. For the case that small dynamic strain is applied, the response of the FBG sensor is linear and the wavelength-to-intensity conversion factor K depending on the operation point can be derived from Equation (7) as:
K = d I d ( δ λ nor ) = 2 I P δ λ nor   exp [ ( δ λ nor ) 2 ]

The maximum wavelength-to-intensity conversion factor Knor,max can be obtained by setting dKnor/d(δλnor) = 0, where Knor = K/2IP. The normalized wavelength mismatch at Knor,max is 1 / 2 which indicates that an optimal operation point of δλ is:

δ λ OPT = λ S 0 λ F + Δ λ S , OPT = σ F 2 + σ S 2 8   ln 2

If the optimal operation condition, i.e., δλOPT, is matched, then the maximized PD output can be obtained. Meeting of the optimal operation condition is a method to calibrate the FBG sensor before the experiment. An optical spectrum analyzer (OSA) can be employed to monitor the optimal operation condition during the experiment. In this paper, the proposed FBG displacement sensor with high sensitivity is used to detect and feedback the displacement responses of a smart cantilever beam. Since the cantilever beam is actuated by a piezoelectric actuator near the fixed end of the cantilever beam, we can apply a sinusoidal voltage input to the piezoelectric actuator at the first resonant frequency of the cantilever beam to excite the vibration and slightly adjust the translation stage of the FBG filter to prevent the displacement waveform from saturation.

To set up an FBG as an out-of-plane FBG displacement sensor, one end of the FBG displacement sensor is glued to a vertical translation stage and the other end of the FBG is glued to the sensing point on the surface of the cantilever beam with a mix of epoxy resin and hardener. Since FBGs are very sensitive to the longitudinal strain, the set-up method mentioned above allows an FBG to be capable of measuring the out-of-plane dynamic displacement of the cantilever beam with high sensitivity. The illustration of the set-up method for the proposed FBG displacement sensor is shown in Figure 1. Details regarding the FBG displacement sensor set-up method can be found in Chuang and Ma [6].

3. Model of the Smart Cantilever Beam

In this section, the model of the smart cantilever beam is briefly presented [1719]. Due to the fact that the proposed point-wise FBG displacement sensor is very sensitive, it is attached near the fixed end of the cantilever beam to avoid saturations of measurement results. Since the thickness is small compared to the length and width of the cantilever beam, the effects of shear deformation and rotary inertia can be neglected. First, consider the free strain εa of the actuating layer when a voltage va is applied to a piezoelectric material polarized in z direction as:

ε a = d 31 t a v a
where d31 is the piezoelectric constant of the piezoelectric material, ta is the thickness of the piezoelectric actuator. Assume bonding between the actuator and the beam is perfect and the strain distribution is linear across the thickness of the beam, the strain distribution can be decomposed into flexural component and longitudinal component as:
ε ( y ) = α y + ε 0

The stress distribution inside the piezoelectric actuator is:

σ a ( y ) = E a ( α y + ε 0 ε a )
where Ea is the Young’s modulus of the piezoelectric material. The stress distribution inside the beam is:
σ b ( y ) = E b α y
where Eb is the Young’s modulus of the beam. By applying the moment equilibrium about the center of the beam:
t b / 2 t b / 2 σ b ( y ) y d y + t b / 2 t b / 2 + t a σ a ( y ) y d y = 0
and the force equilibrium along the longitudinal axis of the beam:
t b / 2 t b / 2 σ b ( y ) d y + t b / 2 t b / 2 + t a σ a ( y ) d y = 0
we can obtain ε0 and a, in which:
α = 6 E b E a t b t a ( t b + t a ) E b 2 t b 4 + E a E b ( 4 t b 3 t a + 6 t b 2 t a 2 + 4 t b t a 3 ) + E a 2 t a 4 ε a
where tb is the thickness of the beam. The induced moment M (x, t) in the beam can be expressed as:
M ( x , t ) = E b I b α = C a v a ( x , t ) = C a v a ( t ) [ u ( x x 1 ) u ( x x 2 ) ] ,
where u stands for the unit step function, x1 and x2 are coordinates of the left and right ends of the piezoelectric actuator, and Ib is the moment of inertia of the beam and:
C a = 6 d 31 I b E b 2 E a t b ( t b + t a ) E b 2 t b 4 + E a E b ( 4 t b 3 t a + 6 t b 2 t a 2 + 4 t b t a 3 ) + E a 2 t a 4

From the Euler-Bernoulli beam theory, the governing equation of motion of the cantilever beam actuated by a piezoelectric patch is given by:

2 x 2 [ E b I b 2 w ( x , t ) x 2 ] + ρ A b 2 w ( x , t ) t 2 = C a 2 v a ( x , t ) x 2
where w(x,t) is the out-of-plane displacement of the beam from its equilibrium, ρ is the mass density, and Ab is the cross-sectional area of the beam. The boundary conditions of the cantilever beam are given by:
w ( 0 , t ) = x w ( 0 , t ) = 2 x 2 w ( L , t ) = 3 x 3 w ( L , t ) = 0
where L is the length of the cantilever beam. The out-of-plane displacement w(x,t) can be expanded as an infinite series of eigenfunctions in the form:
w ( x , t ) = i = 1 ϕ i ( x ) q i ( t )
where φi(x) is the mode shape, also known as eigenfunction, satisfying the ordinary differential equations. From the following orthogonality properties:
0 L ϕ i ( x ) ϕ j ( x ) d x = δ i j
0 L E b I b ρ A b d 4 d x 4 ϕ i ( x ) ϕ j ( x ) d x = ω i 2 δ i j
where δij is the Kronecker delta function. From the boundary conditions of the cantilever, the mode shape is given by:
φ i ( x ) = C i [ cosh β i x cos β i x cos β i x + cosh β i x sin β i x + sinh β i x ( sinh β i x sin β i x ) ]
where βi are the roots of the following characteristic equation:
1 + cos β i x   cosh β i x = 0

The resonant frequencies ωi of the smart cantilever beam are evaluated from ω i = E b I b ρ A b β i 2. Multiplying the governing equation of the Euler-Bernoulli beam by φj(x) and integrating over the length of the beam, we have:

E b I b ρ A b 0 L i = 1 q i ( t ) ( d 4 d x 4 φ i ( x ) ) φ j ( x ) d x + 0 L i = 1 q ¨ i ( t ) φ i ( x ) φ j ( x ) d x = 1 ρ A b 0 L C a 2 v a ( x , t ) x 2 φ j ( x ) d x

From the orthogonality properties Equations (25) and (26), the property of Dirac delta function, and with the assumption that the voltage va(x,t) is constant in the range [x1, x2], we have:

( q ¨ i ( t ) + ω i 2 q i ( t ) ) = 1 ρ A b 0 L C a 2 v a ( x , t ) x 2 φ i ( x ) d x   = 1 ρ A b 0 L C a [ δ ( x x 1 ) δ ( x x 2 ) ] v a ( t ) φ i ( x ) d x = C a ρ A b [ φ i ( x 2 ) φ i ( x 1 ) ] v a ( t ) i = 1 , ... ,

By adding natural damping of the beam, the governing equation qi(t) for the smart cantilever beam can be written as follows:

q ¨ i ( t ) + 2 ς i ω i q ˙ i ( t ) + ω i 2 q i ( t ) = C a ρ A b [ φ i ( x 2 ) φ i ( x 1 ) ] v a ( t ) i = 1 , ... ,

In this study, a simple but effective negative velocity feedback controller is employed to suppress vibrations of the smart cantilever beam as well as to demonstrate dynamic sensing performance of the proposed FBG displacement sensor system. In velocity feedback control, the displacement responses obtained by the FBG sensor are differentiated and fed back to the piezoceramic actuator. The structure of the velocity feedback controller can be written as follows:

v a ( t ) = G q ˙ i ( t )
where G is the constant control gain. Equation (31) can then be rewritten as:
q ¨ i ( t ) + ( 2 ς i ω i + G C a ρ A b [ φ i ( x 2 ) φ i ( x 1 ) ] ) q ˙ i ( t ) + ω i 2 q i ( t ) = 0 i = 1 , ... ,

Thus, it is obvious that velocity feedback control has the effect to add damping of the flexible structure and can be used to suppress the vibration.

In this study, the velocity feedback controller is developed in Simulink and implemented by a dSPACE DS1104 system with a sampling frequency set to 50 kHz. Figure 2 shows the Simulink program in which the exciting and control process are combined into one program. First the smart cantilever beam is excited by the piezoceramic actuator to the steady state at the first or second natural frequency. During the steady-state vibration, actuator’s input is terminated suddenly to induce free vibration. At the same time, feedback loop is connected to apply control algorithms to suppress the vibration of the cantilever beam.

4. Experimental Results and Discussion

Figure 3 shows the schematic diagram of the FBG sensing system. A broadband source (BBS) with a wavelength ranging from 1,520 to 1,570 nm transmits light to an isolator, which is used to prevent the light from reflecting back to the light source. Then the light beam enters an FBG filter to form a transmittance spectrum. The FBG filter is attached to a translation stage so that the dip transmittance of the filter can be adjusted to meet the optimal demodulation condition. Finally the light beam is coupled to a directional circulator and reflected back to the corresponding photodetector (PDA10CS, InGaAs amplified detector, Thorlabs, Inc.) on the output channel. The electrical signals are fed back into the dSPACE DS1104 hardware to perform the active vibration suppression. The original Bragg wavelength of the FBG sensor is 1,560.82 nm. The FBG sensor used in our experiment is fabricated with FWHM of approximately 0.13 nm and reflectivity of less than 90% to avoid distortions and saturations of the responses. The FBG sensor and FBG filter are both fabricated with grating lengths of 10 mm. The reflection spectrum of the FBG sensor and the transmittance spectrum of the FBG filter are shown in Figures 4 and 5, respectively.

The cantilever beam used in the experiment is made of 6,061 aluminum. The dimensions of the cantilever beam are shown in Figure 1. The actuator used in this study is an APC 855 piezoceramic plate and its parameters are shown in Table 1. Before performing the sensing and feedback experiments, we employ an optical amplitude-fluctuation electronic speckle pattern interferometry (AF-ESPI) [20] technique to provide full-field vibration mode shapes as well as the resonant frequencies of the smart cantilever beam. Compared to the ordinary time-averaging method, the fringe patterns obtained by the AF-ESPI method largely enhance visibility and reduce noise. When the vibration frequency of the smart cantilever beam is near the resonant frequency, stationary distinct fringe patterns will be observed in a monitor. Thus, the AF-ESPI can be used to simultaneously obtain full-field vibration mode shapes as well as resonant frequencies. The mode shapes and resonant frequencies of the smart cantilever beam obtained by the AF-ESPI technique are shown in Tables 2 and 3 for the bending modes and the torsional modes, respectively. The brightest lines in AF-ESPI measurements are the nodal lines of the vibration mode shapes.

In this study, a non-contact laser Doppler vibrometer (LDV) which can measure point-wise out-of-plane displacement responses is employed simultaneously to compare measurement results obtained from the proposed FBG displacement senor.

A traditional FBG strain sensor and a strain gauge are also used to verify the performance of the FBG filter before performing the experiments for the FBG displacement sensor. The sensing locations of the FBG displacement sensor, LDV, FBG strain sensor, and strain gauge are shown in Figure 6.

The performance of the FBG filter is first demonstrated by the strain sensors (i.e., FBG strain sensor and strain gauge). A steel ball with 3.8 mm in diameter is dropped on the centerline and 10 mm away from the free end to induce transient wave propagation in the cantilever beam. Figure 7 demonstrates the measured results of the transient strain responses obtained by the traditional FBG strain sensor and strain gauge simultaneously. To observe the strain responses in detail, Figure 7 is replotted within 0.03 s and the results are shown in Figure 8. Since the transient strain responses obtained by the two strain sensors agree well with each other in Figure 8, the FBG is proved to be capable of measuring dynamic strain with high resolution both in time and space. From Figures 7 and 8, we can see that the proposed FBG filter offers excellent dynamic demodulation performance.

The frequency spectrum of the smart cantilever beam can be constructed from taking the fast Fourier transform of the transient strain responses obtained by the FBG strain sensor and the results are shown in Figure 9. Next, we excite the piezoelectric actuator with random inputs to perform system identification by the stochastic spectral estimation. The random signal input is generated by dSPACE DS1104 system with the sampling frequency set to 50 kHz. From the input and output data recorded by dSPACE DS1104 system, the frequency response function (FRF) of the system is determined from the relation [21]:

G ( j ω ) = S yu ( j ω ) S uu ( j ω )
where Suu () is the auto-spectral density function of the input random signal and Syu () is the cross-spectral density function of input and output signals (i.e., responses obtained by the FBG strain sensor).

The frequency responses obtained by the FBG strain sensor and strain gauge are shown in Figures 10 and 11, respectively.

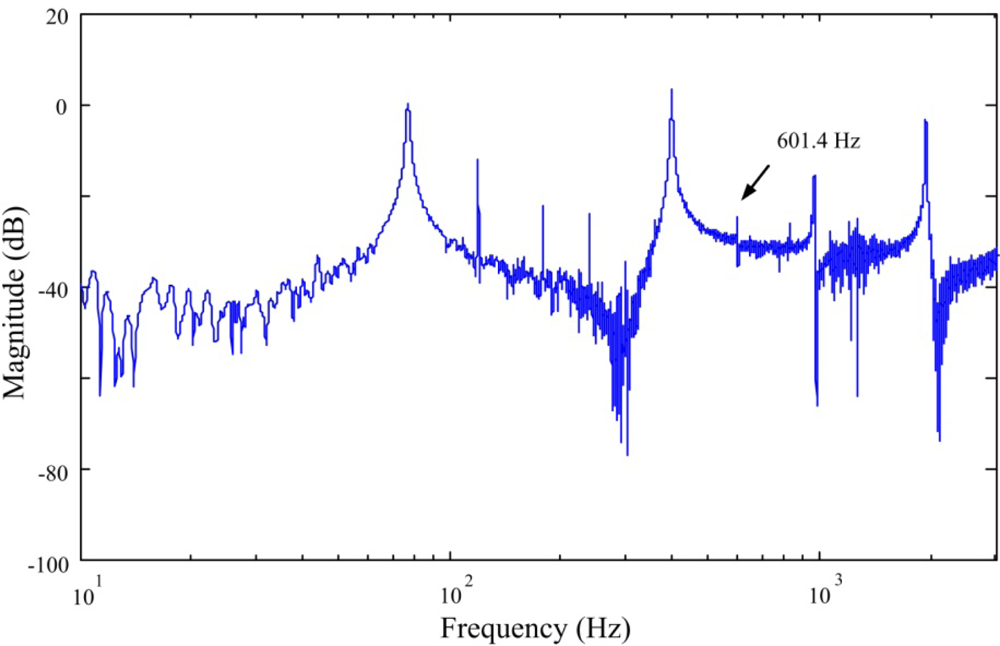

From both Figures 10 and 11, we can see that a lateral mode (i.e., 602 Hz in Figure 10 and 601.4 Hz in Figure 11) is measured by the two sensors. However, frequency response obtained by the conventional strain gauge (i.e., Figure 11) contains more measurement noises especially between the first and the second bending modes of the smart cantilever beam. The identified first three bending modes of the smart cantilever beam without the presence of the steel ball are 76 Hz, 400 Hz, and 975 Hz, respectively. Since the error between the first resonant frequency is quite small, it is acceptable to say that the resonant frequencies can be obtained from the impact-induced transient responses. However, for the purpose of active vibration control, the first bending mode of the smart cantilever beam is considered to be 76 Hz in this work.

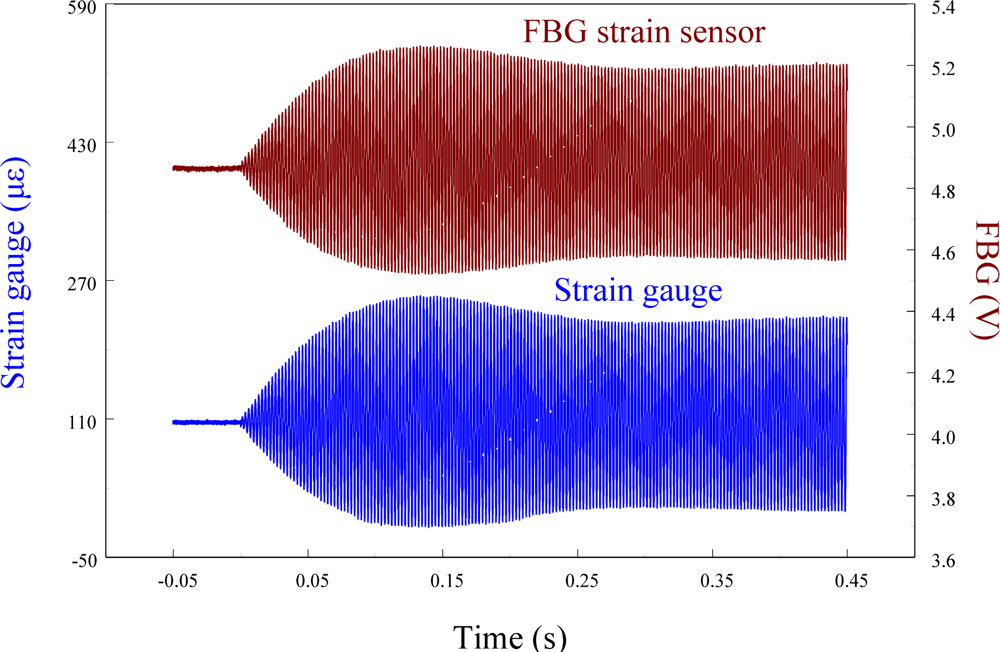

We further investigate the dynamic demodulation ability of the FBG filter and the response time for the piezoceramic actuator to achieve the steady state vibration condition. The smart cantilever beam is excited by the piezoelectric actuator at the first resonant frequency (76 Hz) and the second resonant frequency (400 Hz). Figure 12 demonstrates the dynamic strain from transient response to steady state of the smart cantilever beam excited at 76 Hz.

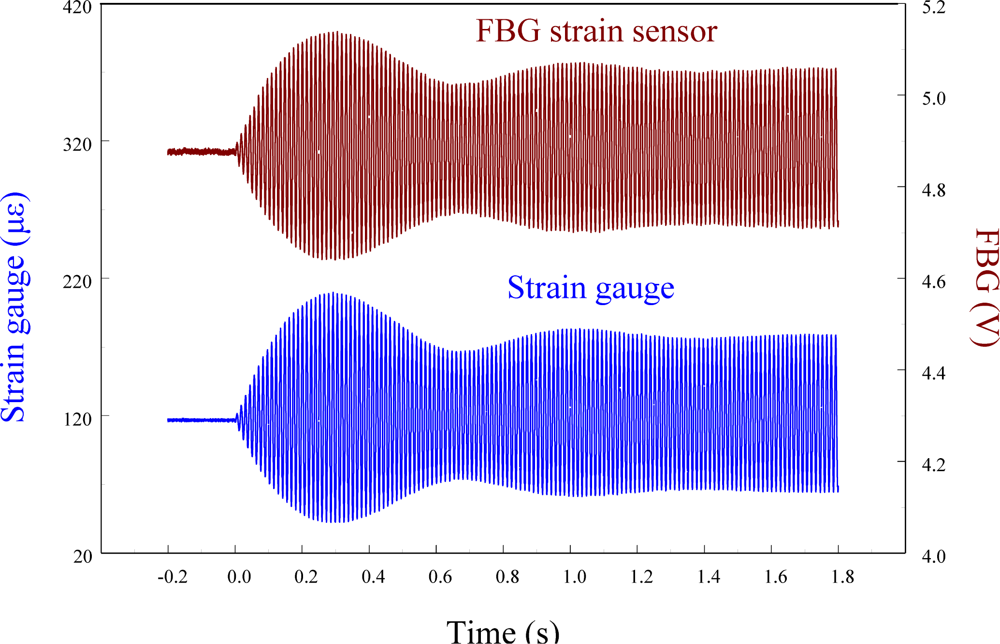

From Figure 12, we can see that there is an overshoot in the transient strain responses before reaching the steady state. The response time from the beginning of excitation to the steady state is about 1.26 s. The transient strain responses of the smart cantilever beam excited at the second resonant frequency (i.e., 400 Hz) is demonstrated in Figure 13. The response time in this case is about 0.33 s. The same phenomenon of overshoot, although is smaller, can still be observed in the transient strain responses excited at 400 Hz.

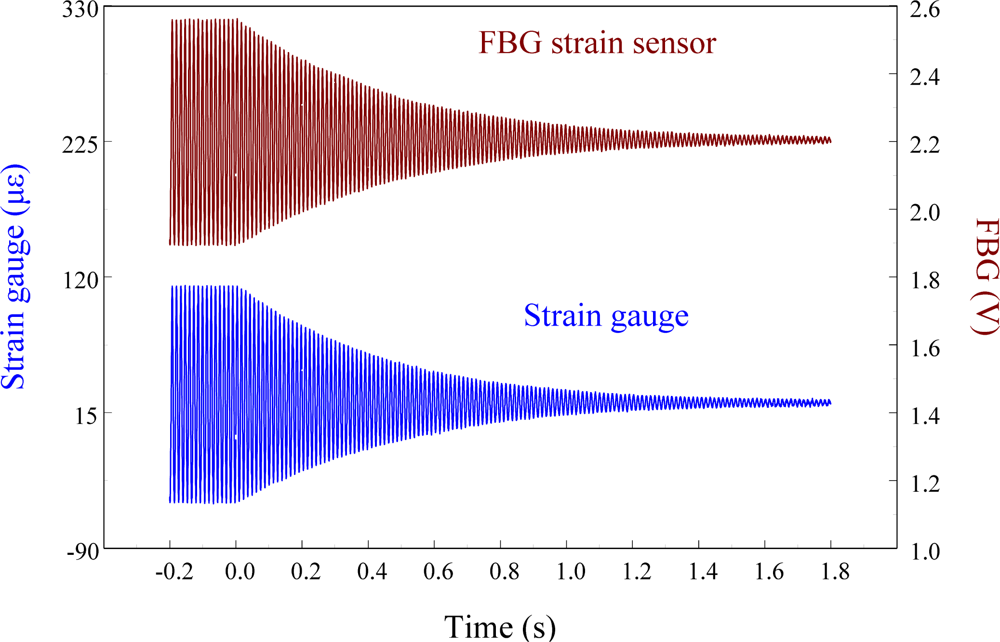

Figure 14 shows the sensing results obtained from two strain sensors simultaneously when the smart cantilever beam vibrates freely after excitation at 76 Hz is removed.

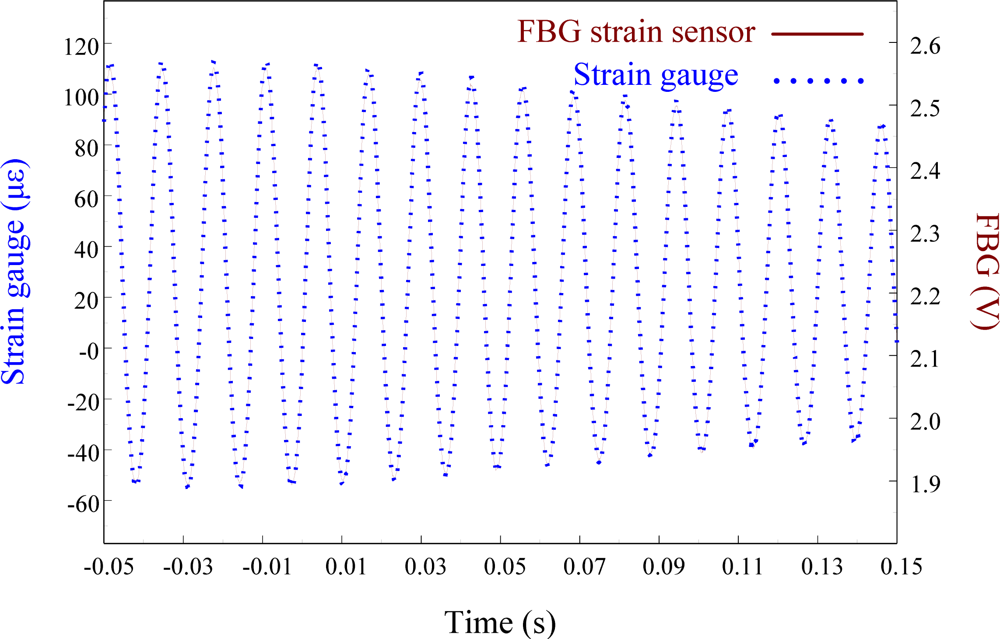

Figure 15 overlaps the two results and focuses on the responses with a span of 0.2 s. Since the responses measured from these two strain sensors correspond excellently with each other, we can again see that the FBG filter is capable of demodulating responses obtained from the FBG sensor dynamically. Finally, to see the demodulation effect of the FBG filter in an active vibration control system, the negative velocity feedback controller is utilized. As shown in Figure 16, with response before control and the control signal as comparisons, the control result obtained from the FBG strain sensor approaches to zero at about 0.3 s. Since the control effect shown in Figure 16 agrees well with the prediction that the velocity feedback can add damping of the cantilever beam, the dynamic demodulation performance of the FBG filter in an active vibration control system is demonstrated.

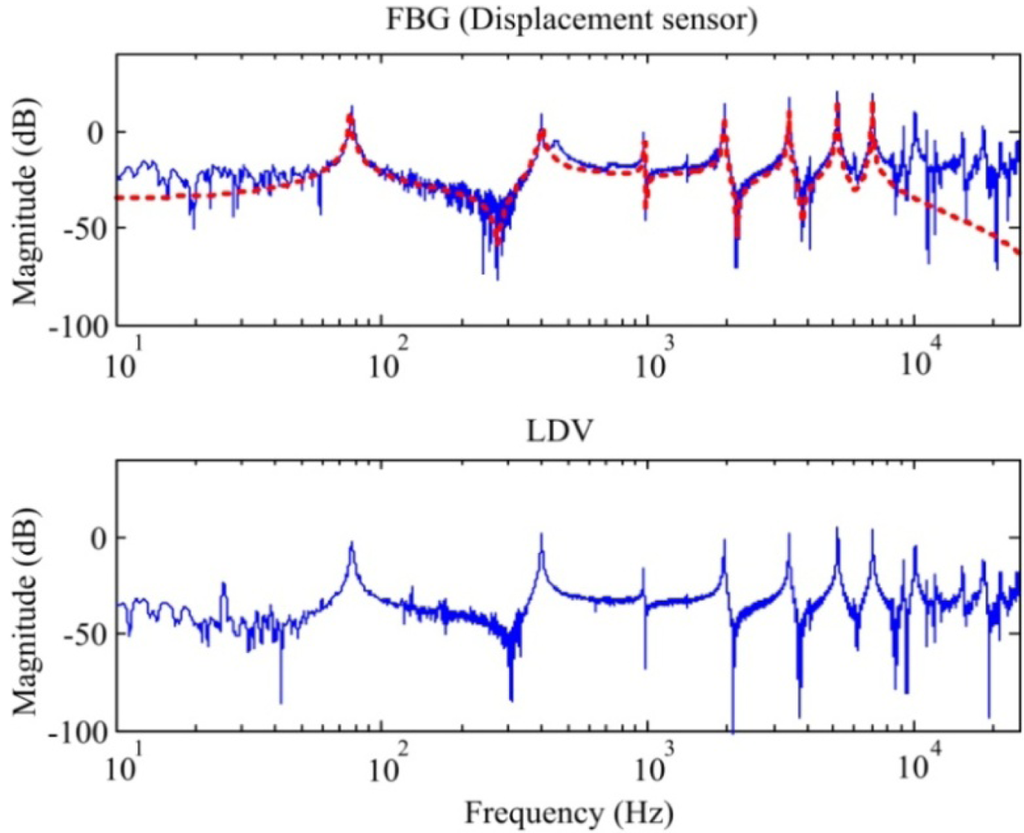

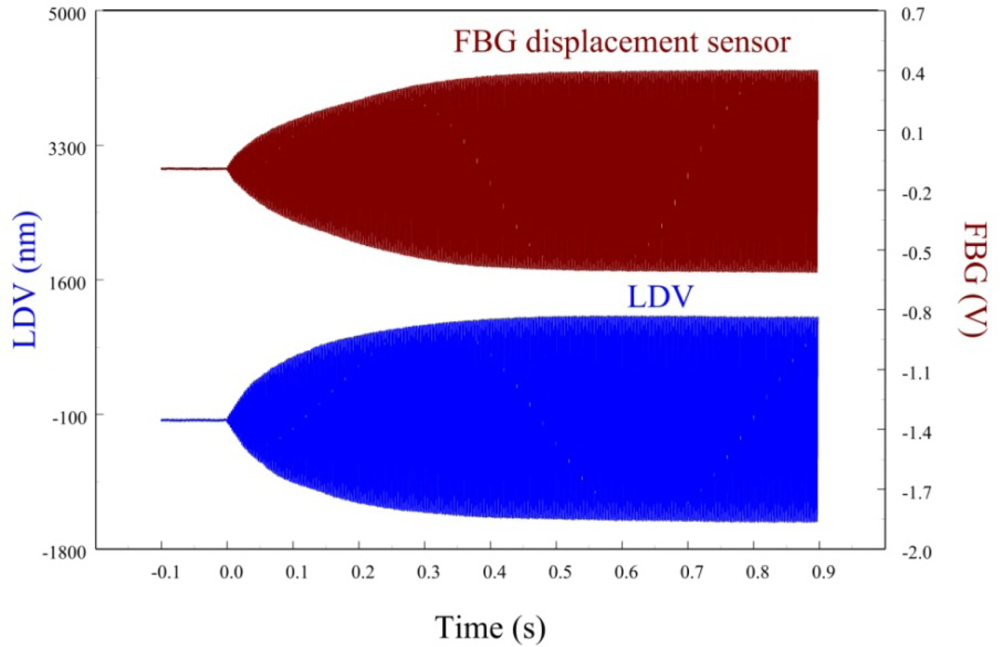

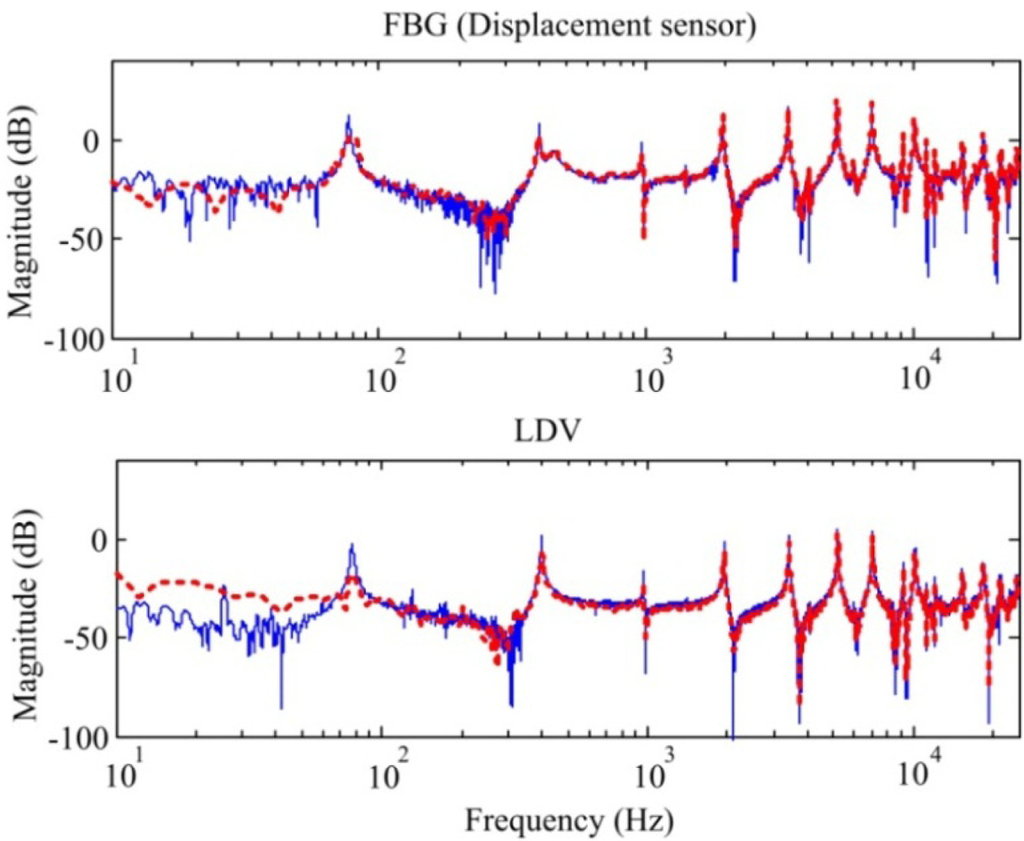

Now we can focus on the dynamic sensing performance of the proposed out-of-plane FBG displacement sensor. First, we perform the system identification of the smart cantilever beam again by the stochastic spectral estimation with the FBG displacement sensor and a non-contact laser Doppler vibrometer (LDV). Since the LDV has high sensitivity and resolution, its measurement results are used for comparisons with the results obtained by the FBG displacement sensor. The obtained frequency responses obtained by the two sensors are shown in Figure 17. A fourteenth model obtained from the concept of constructing the Bode plot is obtained and represented as dashed lines, as shown in Figure 17. Thus, we can see that the proposed FBG displacement sensing system can be utilized to perform system identification for the smart cantilever beam. In Figure 17, the frequency responses obtained by the FBG and LDV agree well with each other except for the low frequencies below the first bending mode. In fact, the discrepancies for low frequencies are due to the length of the random inputs recorded in the computer.

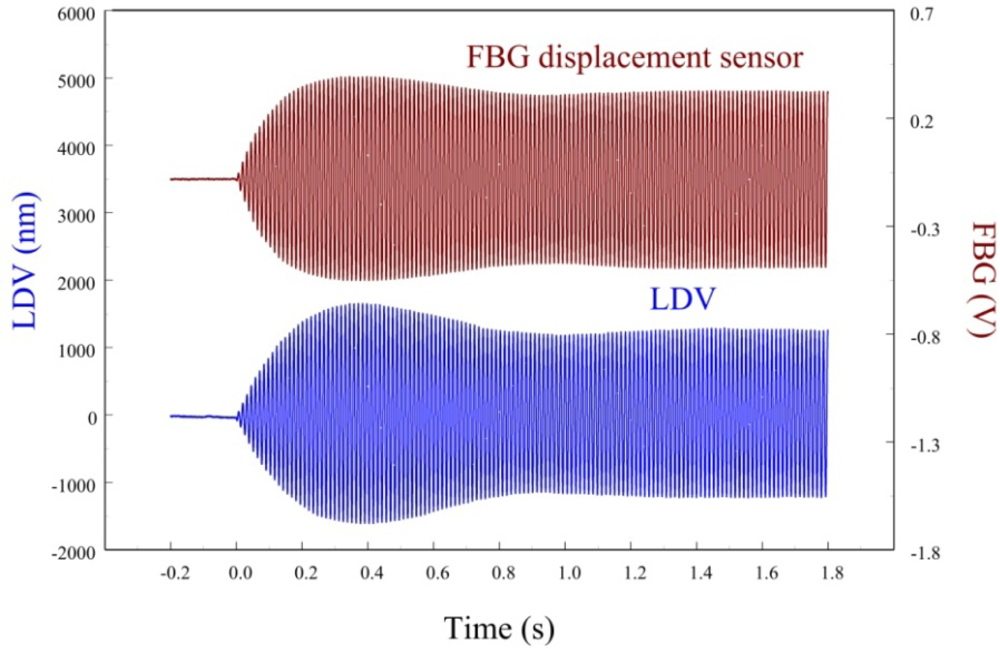

To see this effect, we excite the piezoelectric actuator again with shorter random inputs (only last for 1 s), the results obtained by the two displacement sensors are represented in Figure 18 as dashed lines. Compared with the identified frequency responses (i.e., solid lines shown in Figure 18) with longer random inputs (last for 10 s), we can see that identified modes are almost the same except for the low frequencies. Repeatability of our experimental setup and the proposed FBG displacement sensor can be demonstrated in Figure 18 for frequency contents at high frequencies.

Note that the lateral mode measured in strain frequency responses shown in Figures 10 and 11 is not obtained from the displacement frequency responses (i.e., Figures 17 and 18) due to the fact that the proposed FBG displacement sensor as well as the LDV is only sensitive to out-of-plane motions.

In this paper, only the first two bending modes of the cantilever beam are considered and controlled by velocity feedback control. Similar to strain experiments, we also investigate dynamic sensing performances of the proposed FBG displacement sensor by measuring transient responses of the smart cantilever beam after being excited at the first two bending modes. Figures 19 and 20 are the measurement results when the smart cantilever beam is excited at 76 Hz and 400 Hz, respectively. Figure 21 demonstrates the experimental results obtained by the two displacement sensors and simulation result obtained from the identified model of the smart cantilever beam. Compared with LDV in Figures 19 to 21, we can see that the proposed FBG displacement sensor has excellent dynamic sensing performance. From Figure 21 we can also see that the proposed FBG displacement sensor is capable of being employed to perform system identification for the flexible structures.

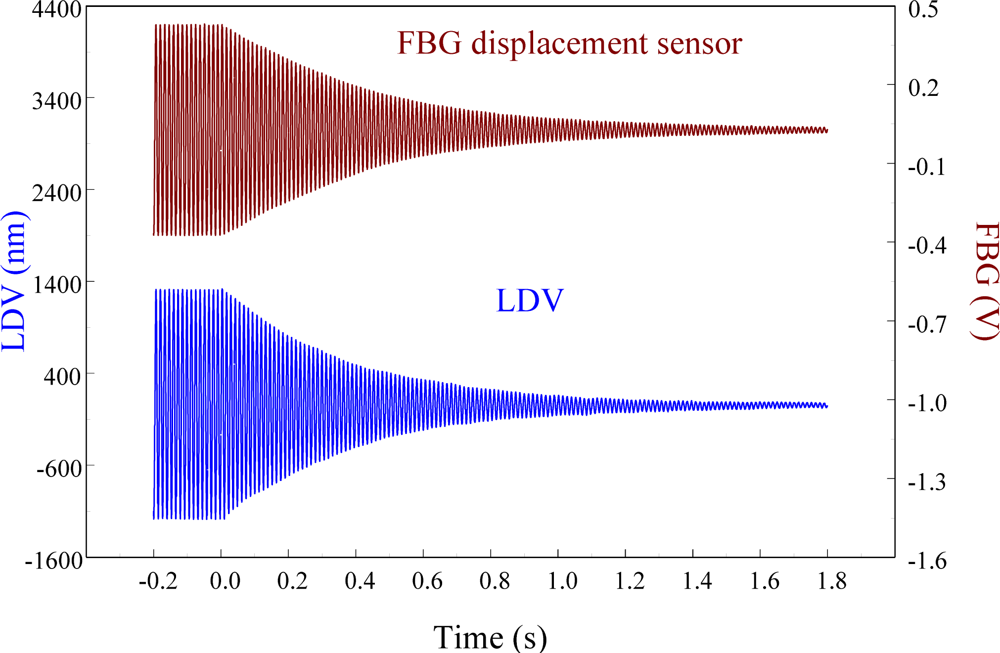

Figure 22 shows the displacement responses of the cantilever beam at first resonant frequency (i.e., 76 Hz) in which excitation is removed at t = 0.

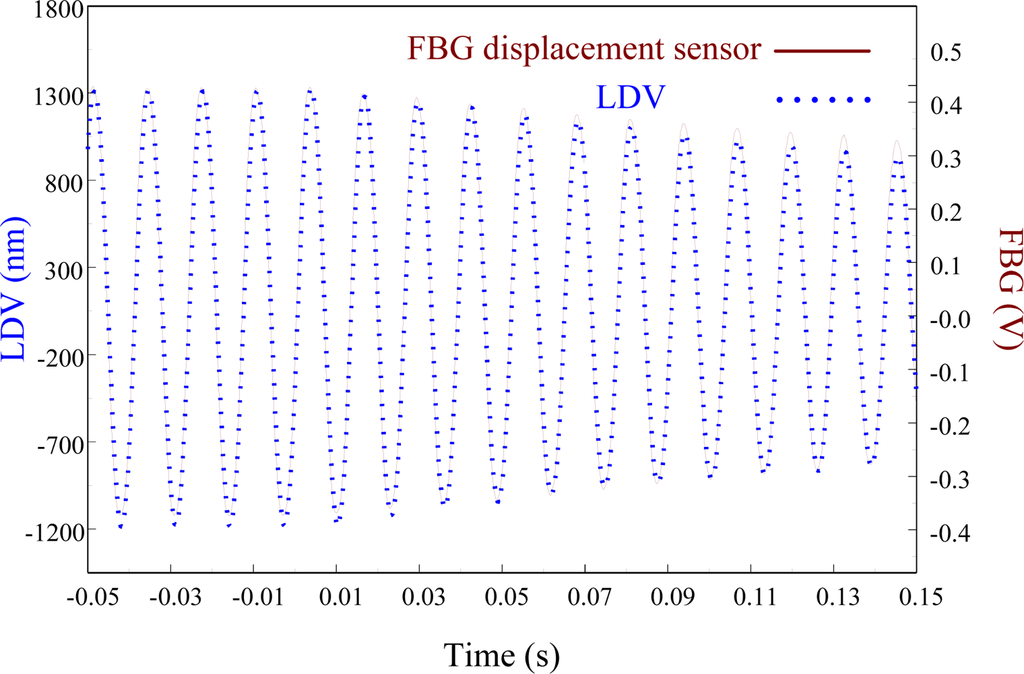

Figure 23 zooms in on the responses in Figure 22 and focuses on the responses within a span of 0.2 s, showing excellent agreement between two displacement sensors. The maximum peak to peak value of LDV is 2,506.44 nm. Thus, the sensitivity of the proposed FBG displacement sensor is 0.321 mV/nm by calibration with LDV.

To see the feasibility of employing the proposed FBG displacement sensor in smart structures, the velocity feedback controller is used and the control results are shown in Figure 24. It is seen that the vibrations are damped out very quickly. The settling time for the free vibration to reduce to 5% of the disturbance level is 0.15 s.

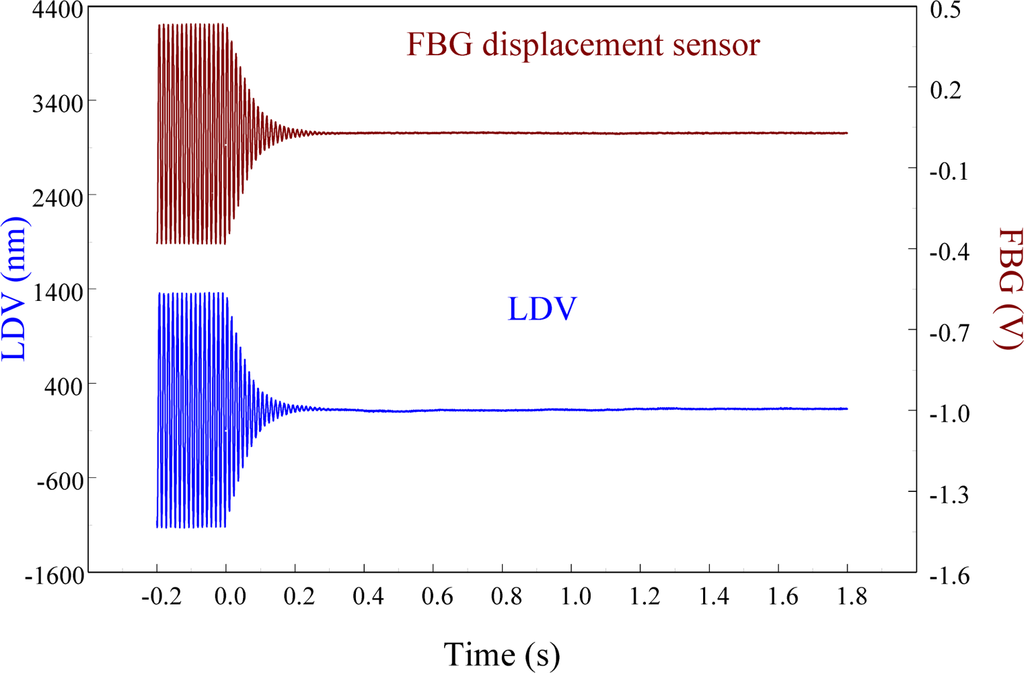

The agreement of the responses shown in Figure 24 between two sensors after the controller is applied demonstrates that the proposed out-of-plane point-wise FBG displacement is capable of being integrated into a smart structure to suppress the vibrations. According to vibration theory, damping ratio of the structure can be estimated from the log decrement:

ς = 1 2 π n log [ a 1 a n ]
where an is amplitude of n th cycle. Based on Equation (35), damping ratios of the cantilever beam excited at the first resonant frequency obtained from FBG displacement sensor without and with control are 0.0265 and 0.0042, respectively. Figure 25 shows the responses obtained from the proposed FBG displacement sensor before and after the velocity feedback controller is applied to the smart cantilever beam, with the control signal as a comparison.

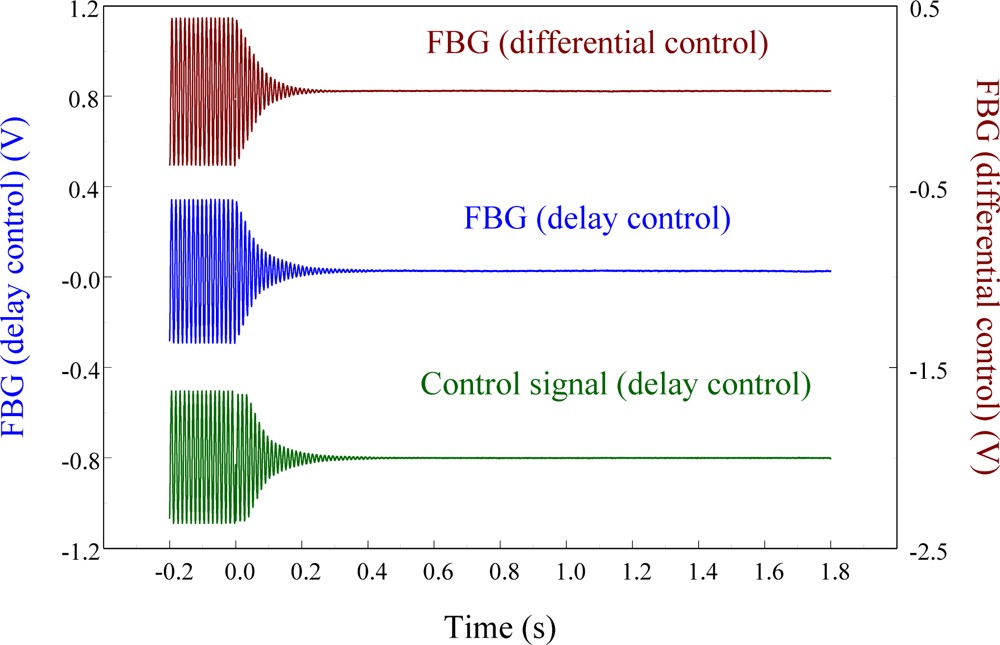

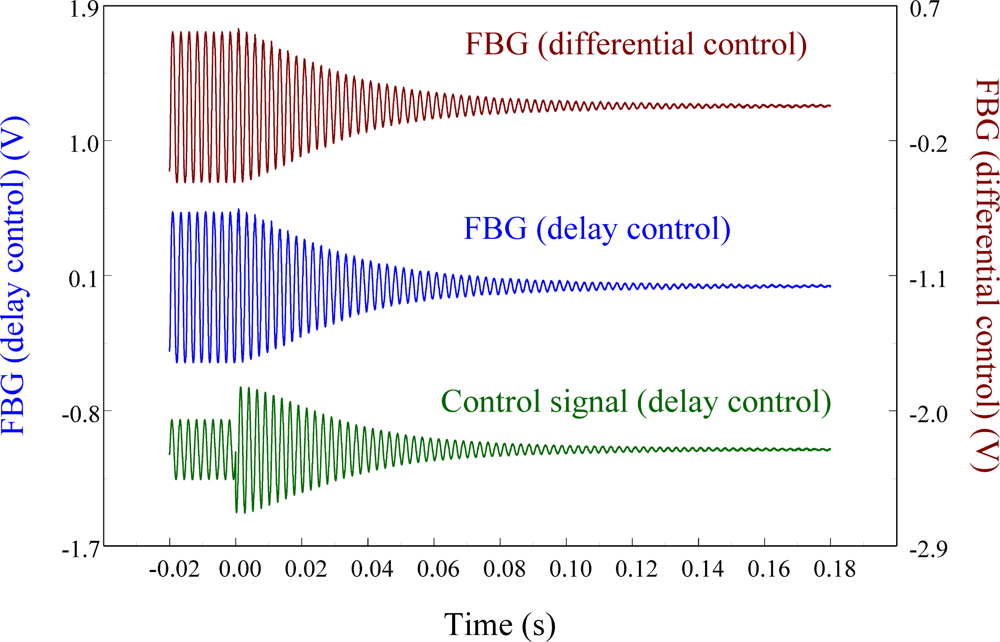

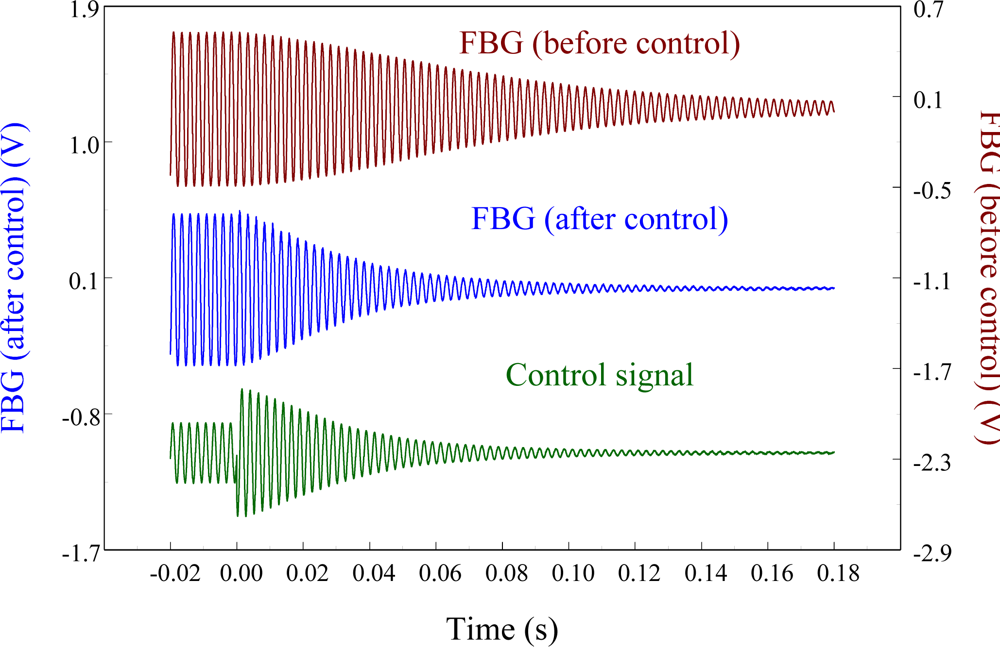

Next, the delay controller is applied to the system as a comparison to the velocity feedback controller. Figure 26 shows the measurement result under 3/4 phase delay control. We can see that the results obtained from differential control (i.e., velocity feedback) and delay control are almost the same.

The resonant frequency of the second bending mode of the smart cantilever beam is 400 Hz. Free vibrations at 400 Hz obtained from FBG displacement sensor and LDV are shown in Figure 27 after t = 0. The control effect of the velocity feedback controller obtained from the FBG displacement sensor is shown in Figure 28.

Damping ratios of the cantilever beam obtained from FBG displacement sensor before and after velocity feedback control is applied are 0.0134 and 0.0018, respectively. Similarly, the 3/4 phase delay controller is again applied to the smart cantilever beam and the comparison of two controllers (i.e., differential controller and delay controller) is shown in Figure 29.

5. Conclusions

In this study, we investigate the feasibility of utilizing a fiber Bragg grating (FBG) displacement sensor to perform active vibration suppression of a smart cantilever beam. The set-up method proposed for the FBG displacement sensor allows the FBG to detect and feed back point-wise out-of-plane displacement responses. Before performing experiments, an optical full-field measurement technique called amplitude-fluctuation electronic speckle pattern interferometry (AF-ESPI) is used to provide full-field vibration mode shapes and resonant frequencies. Furthermore, an FBG filter-based demodulation technique is adopted to obtain high SNR and dynamic sensitivity and its demodulation performance is demonstrated by a traditional FBG strain sensor and strain gauge. Then, measurement ability of the proposed FBG displacement sensor is demonstrated by excellent agreements between experimental results obtained from the FBG displacement sensor and a laser Doppler vibrometer (LDV) sensor simultaneously. Both FBG strain and displacement sensors are utilized to perform system identification of the smart cantilever beam. Finally, a simple but effective velocity feedback control algorithm is used to verify the sensing performance of the proposed FBG displacement sensing system in an active structural control system. To our knowledge, this is the first time that a point-wise FBG displacement sensor has been integrated into a smart structure for performing active vibration control.

The authors gratefully acknowledge the financial support of this research by the National Science Council (Republic of China) under Grant NSC96-2221-E002-210-MY3.

References

  1. Kersey, A.D.; Davis, M.A.; Patrick, H.J.; LeBlanc, M.; Koo, K.P.; Askins, C.G.; Putnam, M.A.; Friebele, E.J. Fiber grating sensors. J. Lightwave Technol 1997, 15, 1442–1463. [Google Scholar]
  2. Rao, Y.J. In-fibre Bragg grating sensors. Meas. Sci. Technol 1997, 8, 355–375. [Google Scholar]
  3. Hill, K.O.; Meltz, G. Fiber Bragg technology fundamentals and overview. J. Lightwave Technol 1997, 15, 2163–2167. [Google Scholar]
  4. Zhang, W.G.; Dong, X.Y.; Zhao, Q.D.; Kai, G.Y.; Yuan, S.Z. FBG-type sensor for simultaneous measurement of force (or displacement) and temperature based on bilateral cantilever beam. IEEE Photonics Technol. Lett 2001, 13, 1340–1342. [Google Scholar]
  5. Dong, X.Y.; Liu, Q.; Liu, Z.G.; Dong, X.Y. Simultaneous displacement and temperature measurement with cantilever-based fiber Bragg grating sensor. Opt. Commun 2001, 192, 213–217. [Google Scholar]
  6. Chuang, K.C.; Ma, C.C. Pointwise fiber Bragg grating displacement sensor system for dynamic measurements. Appl. Opt 2008, 47, 3561–3567. [Google Scholar]
  7. Chopra, I. Review of state of art of smart structures and integrated systems. AIAA J 2002, 40, 2145–2187. [Google Scholar]
  8. Huang, S.; Ohn, M.M.; LeBlanc, M.; Measures, R.M. Continuous arbitrary strain profile measurements with fiber Bragg grating. Smart Mater. Struct 1998, 7, 248–256. [Google Scholar]
  9. Lu, P.; Chen, Q. Fiber Bragg grating sensor for simultaneous measurement of flow rate and direction. Meas. Sci. Technol 2008, 19, 125302. [Google Scholar]
  10. Fallon, R.W.; Zhang, L.; Everall, L.A.; Williams, J.A.R.; Bennion, I. All-fibre optical sensing system: Bragg grating sensor interrogated by a long-period grating. Meas. Sci. Technol 1998, 9, 1969–1973. [Google Scholar]
  11. Mora, J.; Cruz, J.L.; Andres, M.V.; Duchowicz, R. Simple high-resolution wavelength monitor based on a fiber Bragg grating. Appl. Opt 2004, 43, 744–749. [Google Scholar]
  12. Kim, S.; Kim, S.; Kwon, J.; Lee, B. Fiber Bragg grating strain sensor demodulator using a chirped fiber grating. IEEE Photonics Technol. Lett 2001, 13, 839–841. [Google Scholar]
  13. Aphale, S.S.; Fleming, A.J.; Moheimani, S.O.R. Integral resonant control of collocated smart structures. Smart Mater. Struct 2007, 16, 439–446. [Google Scholar]
  14. Chuang, K.C.; Ma, C.C. Multidimensional dynamic displacement and strain measurement using an intensity demodulation-based fiber Bragg grating sensing system. J. Lightwave Technol 2010, 28, 1897–1905. [Google Scholar]
  15. Jin, W.; Zhou, Y.; Chan, P.K.C.; Xu, H.G. A fibre-optic grating sensor for the study of flow-induced vibrations. Sens. Actuat. A 2000, 79, 36–45. [Google Scholar]
  16. Xu, M.G.; Geiger, H.; Dakin, J.P. Modeling and performance analysis of a fiber Bragg grating interrogation system using an acousto-optic tunable filter. J. Lightwave Technol 1996, 14, 391–396. [Google Scholar]
  17. Pota, H.R.; Moheimani, S.O.R.; Smith, M. Resonant controllers for smart structures. Smart Mater. Struct 2002, 11, 1–8. [Google Scholar]
  18. Pota, H.R.; Alberts, T.E. Multivariable transfer functions for a slewing piezoelectric laminate beam. ASME J. Dyn. Syst. Meas. Control 1995, 117, 352–359. [Google Scholar]
  19. Moheimani, S.O.R.; Fleming, A.J. Piezoelectric Transducers for Vibration Control and Damping; Springer: Berlin, Germany, 2006. [Google Scholar]
  20. Ma, C.C.; Huang, C.H. The investigation of three-dimensional vibration for piezoelectric rectangular parallelepipeds using the AF-ESPI method. IEEE T. Ultrason. Ferr 2001, 48, 142–153. [Google Scholar]
  21. Chuang, K.C.; Ma, C.C. Tracking control of a multilayer piezoelectric actuator using a fiber Bragg grating displacement sensor system. IEEE T. Ultrason. Ferr 2009, 56, 2036–2049. [Google Scholar]
Sensors 11 11605f1 1024

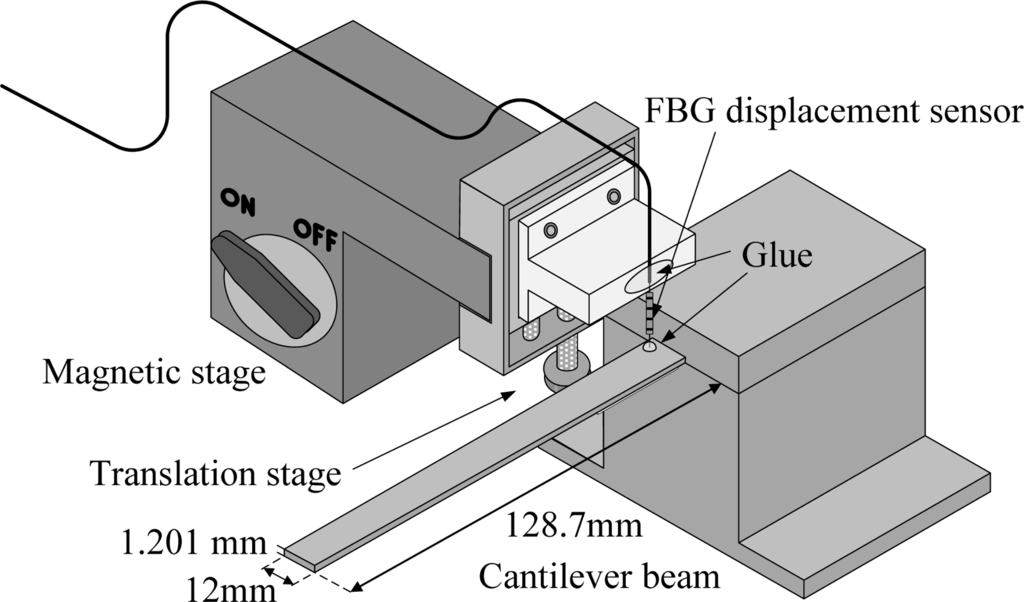

Figure 1. Illustration for the set-up method for the displacement FBG sensor.

Click here to enlarge figure

Figure 1. Illustration for the set-up method for the displacement FBG sensor.
Sensors 11 11605f1 1024
Sensors 11 11605f2 1024
Figure 2. Simulink program for active vibration control.

Click here to enlarge figure

Figure 2. Simulink program for active vibration control.
Sensors 11 11605f2 1024
Sensors 11 11605f3 1024

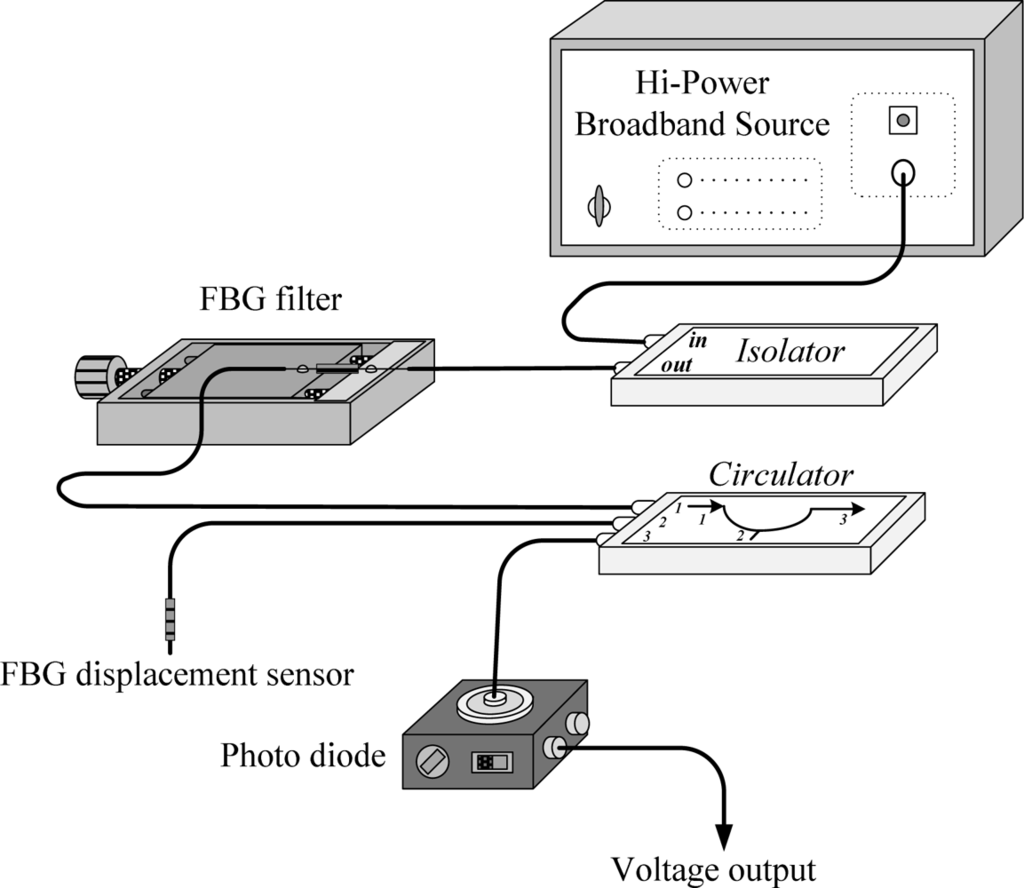

Figure 3. Schematic diagram for the FBG displacement sensing system.

Click here to enlarge figure

Figure 3. Schematic diagram for the FBG displacement sensing system.
Sensors 11 11605f3 1024
Sensors 11 11605f4 1024

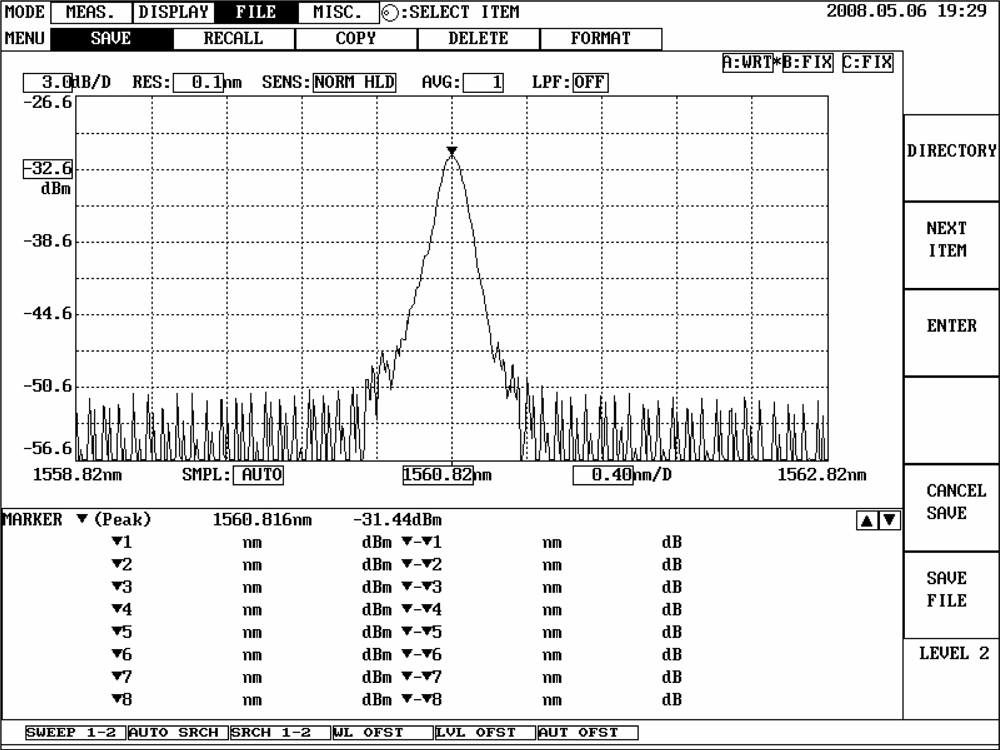

Figure 4. Reflection spectrum of the FBG displacement sensor.

Click here to enlarge figure

Figure 4. Reflection spectrum of the FBG displacement sensor.
Sensors 11 11605f4 1024
Sensors 11 11605f5 1024

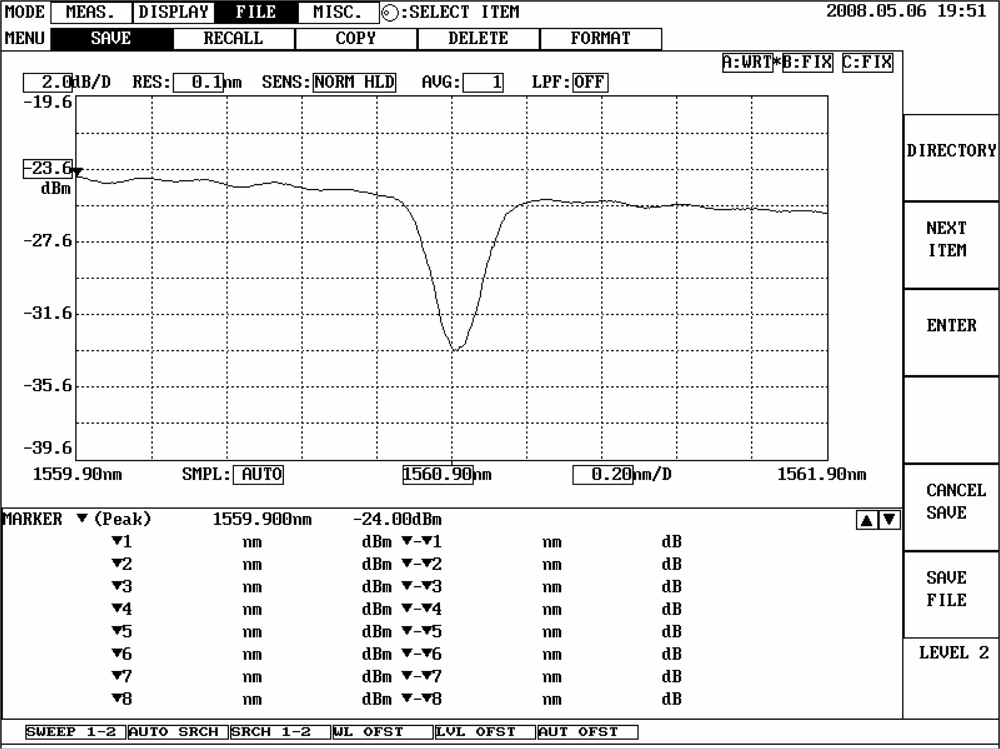

Figure 5. Transmittance spectrum of the FBG filter.

Click here to enlarge figure

Figure 5. Transmittance spectrum of the FBG filter.
Sensors 11 11605f5 1024
Sensors 11 11605f6 1024
Figure 6. Illustration of locations of the sensors on the cantilever beam.

Click here to enlarge figure

Figure 6. Illustration of locations of the sensors on the cantilever beam.
Sensors 11 11605f6 1024
Sensors 11 11605f7 1024
Figure 7. Transient strain responses of the smart cantilever beam subjected to the impact loading by a steel ball.

Click here to enlarge figure

Figure 7. Transient strain responses of the smart cantilever beam subjected to the impact loading by a steel ball.
Sensors 11 11605f7 1024
Sensors 11 11605f8 1024

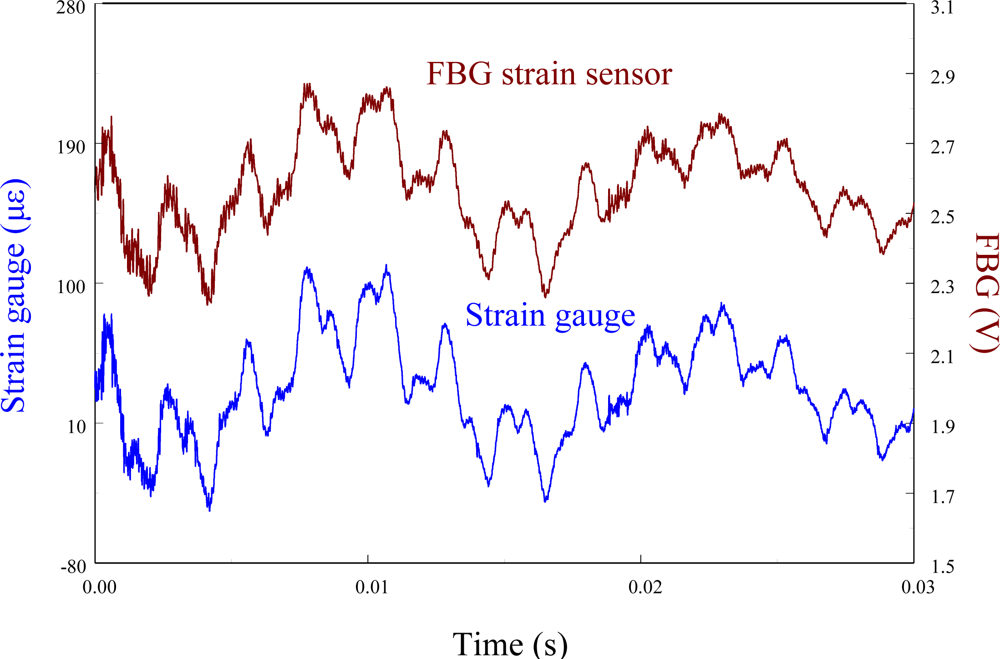

Figure 8. Transient strain responses of the smart cantilever beam subjected to the impact loading by a steel ball within 0.03 s.

Click here to enlarge figure

Figure 8. Transient strain responses of the smart cantilever beam subjected to the impact loading by a steel ball within 0.03 s.
Sensors 11 11605f8 1024
Sensors 11 11605f9 1024
Figure 9. Frequency spectrum of the smart cantilever beam.

Click here to enlarge figure

Figure 9. Frequency spectrum of the smart cantilever beam.
Sensors 11 11605f9 1024
Sensors 11 11605f10 1024

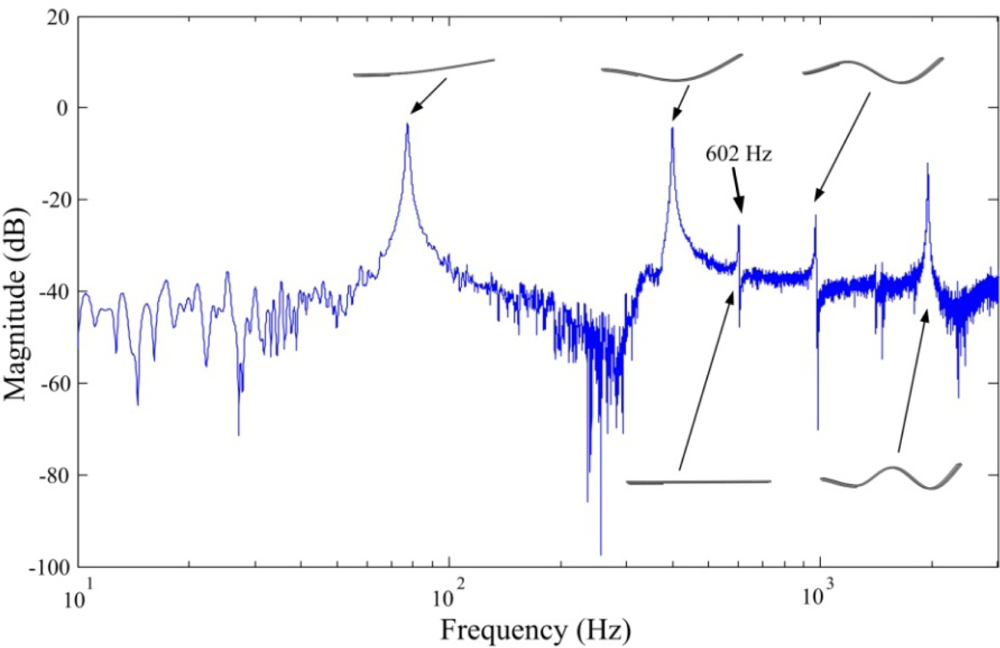

Figure 10. Frequency response of the smart cantilever beam obtained by the FBG strain sensor.

Click here to enlarge figure

Figure 10. Frequency response of the smart cantilever beam obtained by the FBG strain sensor.
Sensors 11 11605f10 1024
Sensors 11 11605f11 1024
Figure 11. Frequency response of the smart cantilever beam obtained by the strain gauge.

Click here to enlarge figure

Figure 11. Frequency response of the smart cantilever beam obtained by the strain gauge.
Sensors 11 11605f11 1024
Sensors 11 11605f12 1024
Figure 12. Transient strain responses of the smart cantilever beam excited by the piezoelectric actuator at 76 Hz.

Click here to enlarge figure

Figure 12. Transient strain responses of the smart cantilever beam excited by the piezoelectric actuator at 76 Hz.
Sensors 11 11605f12 1024
Sensors 11 11605f13 1024
Figure 13. Transient strain responses of the smart cantilever beam excited by the piezoelectric actuator at 400 Hz.

Click here to enlarge figure

Figure 13. Transient strain responses of the smart cantilever beam excited by the piezoelectric actuator at 400 Hz.
Sensors 11 11605f13 1024
Sensors 11 11605f14 1024
Figure 14. Free vibration of the smart cantilever beam excited at first resonant frequency (76 Hz) obtained from FBG strain sensor and strain gauge.

Click here to enlarge figure

Figure 14. Free vibration of the smart cantilever beam excited at first resonant frequency (76 Hz) obtained from FBG strain sensor and strain gauge.
Sensors 11 11605f14 1024
Sensors 11 11605f15 1024
Figure 15. Free vibration of the smart cantilever beam excited at first resonant frequency (76 Hz) with a span of 0.2 s.

Click here to enlarge figure

Figure 15. Free vibration of the smart cantilever beam excited at first resonant frequency (76 Hz) with a span of 0.2 s.
Sensors 11 11605f15 1024
Sensors 11 11605f16 1024

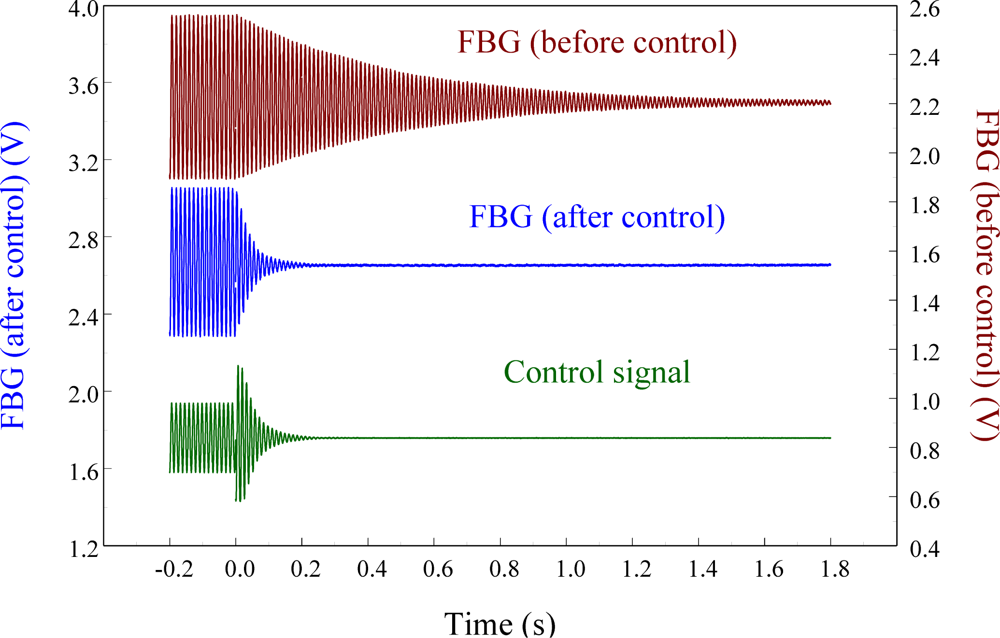

Figure 16. Strain response of cantilever beam excited at first natural frequency (76 Hz) under velocity feedback control.

Click here to enlarge figure

Figure 16. Strain response of cantilever beam excited at first natural frequency (76 Hz) under velocity feedback control.
Sensors 11 11605f16 1024
Sensors 11 11605f17 1024
Figure 17. Frequency responses obtained by the FBG displacement sensor and LDV.

Click here to enlarge figure

Figure 17. Frequency responses obtained by the FBG displacement sensor and LDV.
Sensors 11 11605f17 1024
Sensors 11 11605f18 1024
Figure 18. Frequency responses obtained by the FBG displacement sensor and LDV with short measurement data.

Click here to enlarge figure

Figure 18. Frequency responses obtained by the FBG displacement sensor and LDV with short measurement data.
Sensors 11 11605f18 1024
Sensors 11 11605f19 1024
Figure 19. Transient displacement responses of the smart cantilever beam excited by the piezoelectric actuator at 76 Hz.

Click here to enlarge figure

Figure 19. Transient displacement responses of the smart cantilever beam excited by the piezoelectric actuator at 76 Hz.
Sensors 11 11605f19 1024
Sensors 11 11605f20 1024
Figure 20. Transient displacement responses of the smart cantilever beam excited by the piezoelectric actuator at 400 Hz.

Click here to enlarge figure

Figure 20. Transient displacement responses of the smart cantilever beam excited by the piezoelectric actuator at 400 Hz.
Sensors 11 11605f20 1024
Sensors 11 11605f21 1024
Figure 21. Transient displacement responses of the smart cantilever beam obtained from experiments and simulation.

Click here to enlarge figure

Figure 21. Transient displacement responses of the smart cantilever beam obtained from experiments and simulation.
Sensors 11 11605f21 1024
Sensors 11 11605f22 1024
Figure 22. Free vibration of the smart cantilever beam excited at first resonant frequency (76 Hz) obtained from the FBG displacement sensor and LDV.

Click here to enlarge figure

Figure 22. Free vibration of the smart cantilever beam excited at first resonant frequency (76 Hz) obtained from the FBG displacement sensor and LDV.
Sensors 11 11605f22 1024
Sensors 11 11605f23 1024
Figure 23. Free vibration of the smart cantilever beam excited at first resonant frequency (76 Hz) with a span of 0.2 s obtained from the FBG displacement sensor.

Click here to enlarge figure

Figure 23. Free vibration of the smart cantilever beam excited at first resonant frequency (76 Hz) with a span of 0.2 s obtained from the FBG displacement sensor.
Sensors 11 11605f23 1024
Sensors 11 11605f24 1024
Figure 24. Active vibration control of the smart cantilever beam excited at first resonant frequency (76 Hz) obtained from displacement sensors.

Click here to enlarge figure

Figure 24. Active vibration control of the smart cantilever beam excited at first resonant frequency (76 Hz) obtained from displacement sensors.
Sensors 11 11605f24 1024
Sensors 11 11605f25 1024

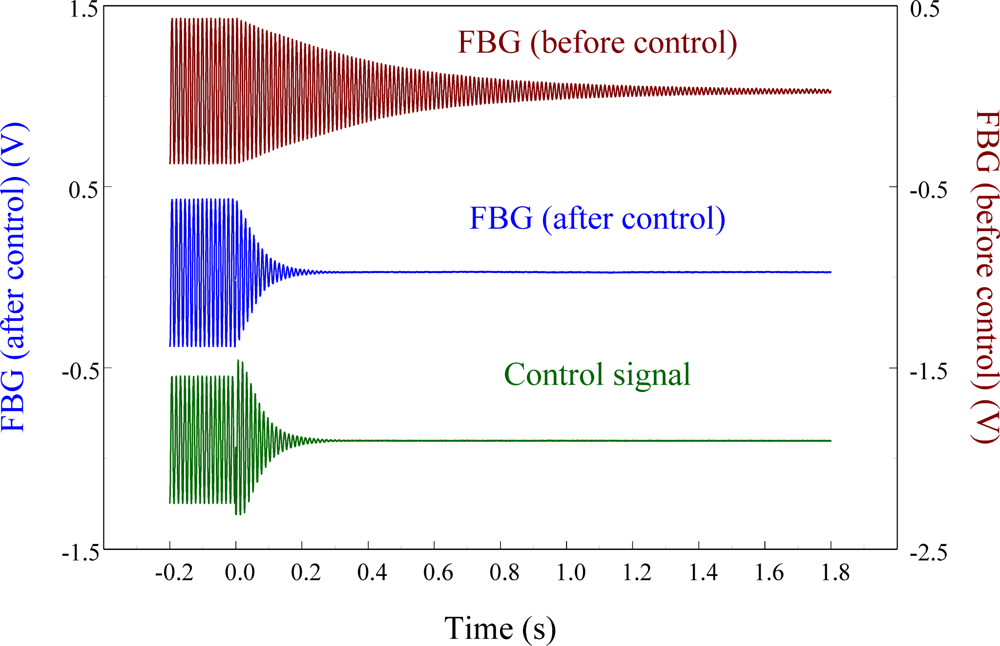

Figure 25. Active vibration control of the smart cantilever beam excited at first resonant frequency (76 Hz) obtained from FBG displacement sensor.

Click here to enlarge figure

Figure 25. Active vibration control of the smart cantilever beam excited at first resonant frequency (76 Hz) obtained from FBG displacement sensor.
Sensors 11 11605f25 1024
Sensors 11 11605f26 1024
Figure 26. Active vibration control of the smart cantilever beam excited at first resonant frequency (76 Hz) under 3/4 phase delay control.

Click here to enlarge figure

Figure 26. Active vibration control of the smart cantilever beam excited at first resonant frequency (76 Hz) under 3/4 phase delay control.
Sensors 11 11605f26 1024
Sensors 11 11605f27 1024
Figure 27. Free vibration of the smart cantilever beam excited at second resonant frequency (400 Hz).

Click here to enlarge figure

Figure 27. Free vibration of the smart cantilever beam excited at second resonant frequency (400 Hz).
Sensors 11 11605f27 1024
Sensors 11 11605f28 1024
Figure 28. Active vibration control of the smart cantilever beam excited at second resonant frequency (400 Hz) obtained from FBG displacement sensor.

Click here to enlarge figure

Figure 28. Active vibration control of the smart cantilever beam excited at second resonant frequency (400 Hz) obtained from FBG displacement sensor.
Sensors 11 11605f28 1024
Sensors 11 11605f29 1024
Figure 29. Comparison of the velocity feedback controller and delay control.

Click here to enlarge figure

Figure 29. Comparison of the velocity feedback controller and delay control.
Sensors 11 11605f29 1024
Table Table 1. Parameters of the piezoceramic actuator.

Click here to display table

Table 1. Parameters of the piezoceramic actuator.
Piezoceramic length0.03 m
Piezoceramic width0.01 m
Piezoceramic thickness ta1 × 10−3 m
Piezoceramic position x11 × 10−3 m
Piezoceramic position x231 × 10−3 m
Young’s modulus Ea1,218 × 108 N/m2
Charge constant d31−8.6 × 10−11 m/V
Capacitance4.98 nF
Table Table 2. Bending modes of the smart cantilever beam.

Click here to display table

Table 2. Bending modes of the smart cantilever beam.
Bending Mode
ModeMode ShapeFrequency
1 Sensors 11 11605i176 Hz
2 Sensors 11 11605i2405 Hz
3 Sensors 11 11605i3975 Hz
4 Sensors 11 11605i41,950 Hz
5 Sensors 11 11605i53,418 Hz
6 Sensors 11 11605i65,206 Hz
7 Sensors 11 11605i77,051 Hz
8 Sensors 11 11605i89,182 Hz
9 Sensors 11 11605i912,056 Hz
10 Sensors 11 11605i1015,330 Hz
Table Table 3. Torsional modes of the smart cantilever beam.

Click here to display table

Table 3. Torsional modes of the smart cantilever beam.
Torsional Mode
ModeMode ShapeFrequency
1 Sensors 11 11605i111,407 Hz
2 Sensors 11 11605i124,055 Hz
3------
4 Sensors 11 11605i138,320 Hz
5 Sensors 11 11605i1411,215 Hz
6 Sensors 11 11605i1514,330 Hz
Sensors EISSN 1424-8220 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
