Sensors 2011, 11(10), 9260-9274; doi:10.3390/s111009260

Analysis of Deflection Enhancement Using Epsilon Assembly Microcantilevers Based Sensors

1 Thermal Engineering and Desalination Technology Department, King Abdulaziz University, P.O. 80204, Jeddah 21589, Saudi Arabia 2 Mechanical Engineering Department, University of California, Riverside, CA 92521, USA
* Author to whom correspondence should be addressed.
Received: 23 August 2011; in revised form: 21 September 2011 / Accepted: 23 September 2011 / Published: 28 September 2011
(This article belongs to the Section Physical Sensors)
PDF Full-text Download PDF Full-Text [356 KB, Updated Version, uploaded 29 September 2011 15:50 CEST]
The original version is still available [290 KB, uploaded 28 September 2011 13:32 CEST]

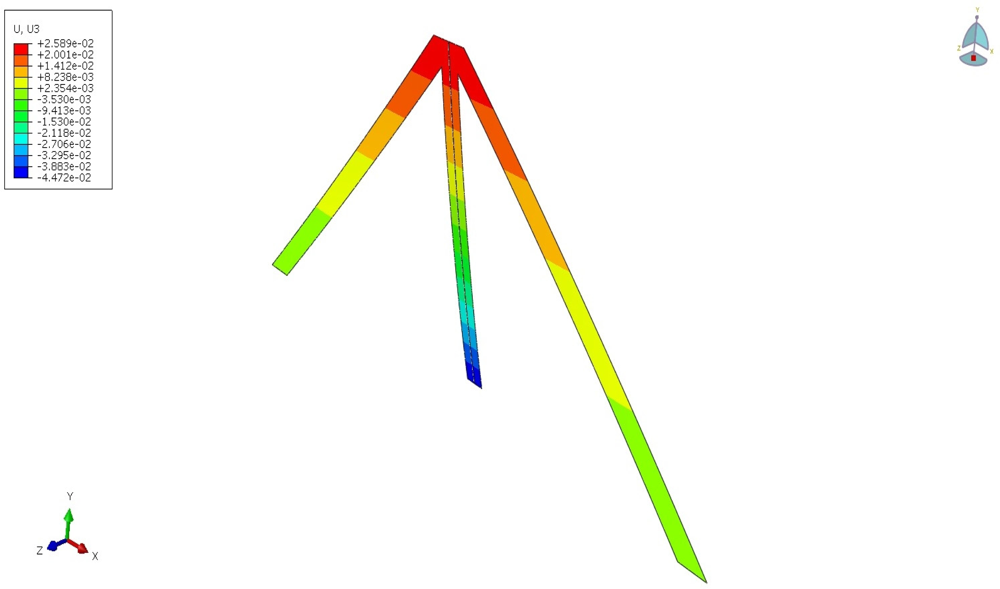

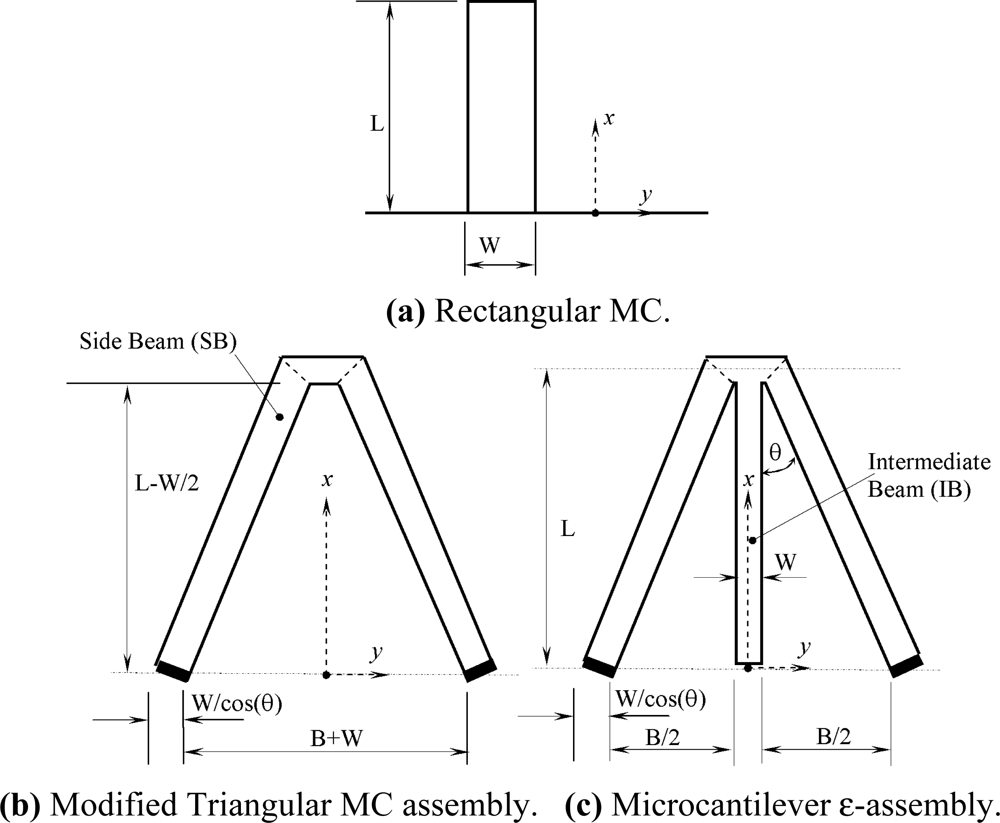

Abstract: The present work analyzes theoretically and verifies the advantage of utilizing ε-microcantilever assemblies in microsensing applications. The deflection profile of these innovative ε-assembly microcantilevers is compared with that of the rectangular microcantilever and modified triangular microcantlever. Various force-loading conditions are considered. The theorem of linear elasticity for thin beams is used to obtain the deflections. The obtained defections are validated against an accurate numerical solution utilizing finite element method with maximum deviation less than 10 percent. It is found that the ε-assembly produces larger deflections than the rectangular microcantilever under the same base surface stress and same extension length. In addition, the ε-microcantilever assembly is found to produce larger deflection than the modified triangular microcantilever. This deflection enhancement is found to increase as the ε-assembly’s free length decreases for various types of force loading conditions. Consequently, the ε-microcantilever is shown to be superior in microsensing applications as it provides favorable high detection capability with a reduced susceptibility to external noises. Finally, this work paves a way for experimentally testing the ε-assembly to show whether detective potential of microsensors can be increased.
Keywords: microcantilever; assembly; detection; deflection; enhancement

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Khaled, A.-R.A.; Vafai, K. Analysis of Deflection Enhancement Using Epsilon Assembly Microcantilevers Based Sensors. Sensors 2011, 11, 9260-9274.

AMA Style

Khaled A-RA, Vafai K. Analysis of Deflection Enhancement Using Epsilon Assembly Microcantilevers Based Sensors. Sensors. 2011; 11(10):9260-9274.

Chicago/Turabian Style

Khaled, Abdul-Rahim A.; Vafai, Kambiz. 2011. "Analysis of Deflection Enhancement Using Epsilon Assembly Microcantilevers Based Sensors." Sensors 11, no. 10: 9260-9274.
