Sensors 2010, 10(7), 6773-6787; doi:10.3390/s100706773

Review
Catalysts as Sensors—A Promising Novel Approach in Automotive Exhaust Gas Aftertreatment
Ralf Moos
University of Bayreuth, Bayreuth Engine Research Center, Bayreuth, Germany; E-Mail: Functional.Materials@Uni-Bayreuth.de; Tel.: +49-921-55-7401
Received: 4 June 2001; in revised form: 7 July 2010 / Accepted: 9 July 2010 /
Published: 13 July 2010

Abstract

: Sensors that detect directly and in situ the status of automotive exhaust gas catalysts by monitoring the electrical properties of the catalyst coating itself are overviewed. Examples included in this review are the in-situ determination of the electrical impedance of three-way catalysts based on ceria-zirconia solutions and of lean NOx traps of earth-alkaline based coatings, as well as approaches to determine the ammonia loading in Fe-SCR-zeolites with electrical ac measurements. Even more sophisticated approaches based on interactions with electromagnetic waves are also reviewed. For that purpose, metallic stick-like antennas are inserted into the exhaust pipe. The catalyst properties are measured in a contactless manner, directly indicating the catalyst status. The radio frequency probes gauge the oxygen loading degree of three-way catalysts, the NOx-loading of lean NOx traps, and the soot loading of Diesel particulate filters.
Keywords:
on-board diagnosis (OBD); lambda probe; three-way catalyst (TWC); microwave; ammonia SCR; lean NOx trap (LNT)

1. Introduction

In the past years, many efforts were being made to develop novel automotive exhaust gas sensors that are sensitive, selective, have long-term stability, and are cost effective (see for instance Refs. [16] and the literature quoted therein). However, as of today, only zirconia-based sensors like the binary lambda probe, the universal exhaust gas oxygen sensor (also known as UEGO sensor or linear lambda probe), and the amperometric NOx-sensor have been serialized. Besides direct engine control, all these selective gas sensors are applied in the exhaust to detect the status of the catalyst indirectly with the help of models. Depending on the catalyst type, status in this respect may mean:

  • ○ Current oxygen loading of three-way catalysts (TWC)

  • ○ Current NOx-loading of lean NOx traps (LNT)

  • ○ Current NH3-loading of ammonia-SCR catalysts (SCR)

  • ○ Soot loading of Diesel particulate filters (DPF)

  • ○ Conversion efficiency

  • ○ Sulfur poisoning

  • ○ And others.

Recently, a novel approach emerged. The catalyst status is detected directly by monitoring the electrical properties of the catalyst coating itself. This article reviews several attempts in this field. Overviewed examples include:

  • In-situ monitoring of the impedance of ceria-zirconia based TWCs to determine their degree of oxygen loading,

  • In-situ measurement of the impedance of earth-alkaline oxide-based LNT coating materials to detect the status of an LNT with respect to its NOx-loading, its status of regeneration, its degree of sulfurization, and its thermal aging,

  • ○ Approaches to determine the ammonia loading in Fe-SCR-zeolites with electrical ac measurements.

Even more sophisticated and extremely promising are very recent microwave-based approaches. Here, radio frequency antennas in the form of simple metallic sticks are inserted into the exhaust pipe and the reflection parameters or the transmission parameters are determined. Such a system measures the catalyst properties in a contactless manner indicating directly the catalyst status.

It will be shown that these measurements allow to detect:

  • ○ The oxygen loading degree of a TWC

  • ○ The NOx-loading of an LNT and

  • ○ The soot loading of a DPF.

2. Background

Increasing fuel costs combined with the pressure on the automotive industry to reduce CO2 emissions has lead to booming market shares for Diesel passenger cars. Since Diesel engines are operated leanly, NOx removal with conventional three-way catalysts is not possible, e.g., [6,7]. Therefore, novel exhaust gas aftertreatment concepts are required.

The ammonia SCR process has been adapted for automotive requirements. For heavy duty vehicles, systems are already in serial application and they have recently also been serialized for passenger cars [8]. In NH3-SCR systems, an ammonia forming substance, e.g., a urea water solution, is injected into the exhaust. In the SCR catalyst, NH3 is formed, serving as a selective reduction agent for NOx. According to the reaction mechanism, NH3 is initially adsorbed (stored) in the SCR-catalyst. Especially at low temperatures, NOx reduction (conversion rate) is strongly dependent on the amount of stored NH3 [9,10].

In lean NOx traps (LNT), NOx is adsorbed and stored in the form of nitrates during a lean phase. Nitrate reduction occurs in a subsequent short rich phase, just before the NOx storage capacity of the LNT is exhausted and it begins to let pass NOx [11]. The fact that due to sulfur oxide in the exhaust, sulfates form and prevent further NOx storage is a critical issue. Then, an energy-consuming desulfurization phase is required, which should be initiated as seldom as possible [12]. For both novel NOx removal technologies, NH3-SCR and LNT, novel exhaust gas sensors that provide information on the status of the catalyst (amount of stored NOx, degree of sulfate-poisoning, amount of stored NH3) to supplement the well-known and mature lambda probe would be helpful for catalyst control.

Due to the strongly reduced particulate matter limits, Diesel particulate filters have been serialized. DPFs must be regenerated on a regular basis to burn off the soot adsorbed in the course of time [13]. As the regeneration processes consume fuel, the number of regenerations must be kept to a minimum. Hence, a detailed knowledge of the actual soot loading of the filter is required.

The exhausts of most gasoline-run internal combustion engines are cleaned by three-way catalyst converters [6,7]. A stoichiometric air-to-fuel ratio (λ = 1) is required for best conversion of limited exhaust components, like NOx, hydrocarbons, or CO. For this purpose, lambda probes are installed upstream and downstream of each catalyst to determine the current air-to-fuel ratio in the gas phase [1,2]. In order to buffer lean-to-rich fluctuations, the TWC washcoat (catalytically active coating of the honeycomb-like substrate) contains large amounts of doped ceria-zirconia solutions as an oxygen storage component, making use of the two different oxidation states of cerium at exhaust gas temperatures. The total oxygen storage capacity (OSC) is directly related to the amount of ceria present [14]. With λ measurements up- and downstream of a TWC, its degree of oxidation is calculated by model-based approaches. This indirect characterization of the catalyst’s oxygen loading degree is state-of-the-art.

To summarize this section, it becomes obvious that almost all exhaust gas aftertreatment devices store gases or particles. It would be helpful to determine directly the loading status with catalyst status sensors. In the past few years, a novel approach emerged. It has been investigated, whether and in which cases the catalyst status can be gauged directly by monitoring the electrical properties of the catalyst coating itself.

3. Impedance-Based Direct Catalyst Diagnosis

3.1. Three-Way Catalyst (TWC)

According to well-known defect chemistry [15], the washcoat changes its electrical conductivity in dependence of the oxidation state of ceria. This effect has been investigated for conductometric exhaust gas oxygen sensors [16], but it can also be used to directly determine the oxygen loading status of a TWC [17]. For that purpose, a TWC washcoat is applied onto interdigitated electrodes (IDE), which are inserted into the catalyst. A typical sensor element setup is depicted in Figure 1 (left). Several of these sensor elements are arranged in a catalyst housing along the flow axis (Figure 1, right, numbers 1–4) to spatially resolve the local loading degree in the catalyst. The sensors are heated by the exhaust, i.e., their operation temperature is the temperature of the exhaust gas.

In other words, since the oxygen partial pressure changes by 10 to 20 decades between lean and rich [1], a strongly changing resistance can be expected if the sensor film (=the washcoat) varies its oxygen loading degree from fully loaded to completely depleted.

Reiß et al. [17] conducted lean-rich switches both in synthetic exhausts and in dynamometer test benches. It was clearly shown how an oxygen loading front moves through the catalyst. Furthermore, by normalizing and summing up the signals over the length of the catalyst, an overall oxygen loading could be determined, which agrees very well with the values obtained from the oxygen balance determined by analyzing the exhaust upstream and downstream of the TWC [18].

A very interesting experiment is shown in Figure 2. The gas composition was switched from lean to rich. After a lean period lasting until t ≈ 200 s, an alternation between rich and lean gas (each for 1 min, net slightly rich) was conducted. The upstream lambda probe mirrors these changes clearly. The second λ-signal remains constant at about λ ≈ 1 during the switches, until at t ≈ 900 s λ-oscillations occur downstream of the TWC.

The washcoat conductivity, here expressed as an oxygen loading degree (details in [18]), measured with the first sensor follows the different gas compositions albeit slightly time delayed. The remaining sensor devices do not show a significant oscillation, but rather a distinct switch from loaded to unloaded. This behavior can be explained well if one assumes an oxidation (or reduction) front moving through the catalyst in the gas flow direction. Since diffusion into the coating and reaction of the gas with noble metals and ceria can be considered to be much faster than the oxygen transport along the flow axis [14], the first few centimeters of the TWC buffer most of the fast lean-rich switches. Hence, not λ-alterations but only an overall oxygen depletion zone moves through the catalyst, as clearly shown by the direct oxygen loading sensor.

3.2. Lean NOx Trap (LNT)

A similar approach has been intensively investigated for lean NOx traps. Here, the situation is more complex, because the washcoat has not only the functionality to store oxygen but mainly stores NOx in the form of nitrates. Details of this principle can be found in [6,11,19]. Similar to Figure 1, an IDE is applied on an electrically insulating ceramic plate. It is coated with the identical coating of the ceramic LNT monolith. The sensor is operated at the same temperature as the LNT, e.g., at 300 °C. The sensor impedance is determined at some kHz.

Zimmermann et al. initially studied the principal behavior (Figure 3, after [20,21]). Different gas compositions (“α”, “β”, “γ”) are applied to the sensor one after the other. During the rich composition “γ” with λ ≈ 0.8, nitrate reduction occurs. It is followed by a lean composition “α” with λ ≈ 2.1. In contrast to the real engine process, “α” does not contain NOx. This is to distinguish in the basic experiment between the effect of NOx storage and oxygen storage.

The NOx storage phase does not begin until “β” (a composition like “α” but with NO) is applied. The electrical impedance, Z, takes three final values. They denote three different states of the LNT: Zγ (rich, regenerated), Zα (lean and freshly regenerated) and Zβ (lean and NOx loaded). Let us start our considerations at the lean regenerated point, Zα. As soon as NO is added to the exhaust, the catalyst coating stores NOx and the impedance decreases as the NOx-loading increases until Zβ reaches the final value for “fully NOx loaded in the lean”. Because LNT and sensor material are identical, it is clear that the catalyst loading degree can be determined directly with the help of the electrical measurement. Of course, the temperature dependence of the electrical impedance has to be corrected [21]. It should be noted, as an aside, that if one uses an LNT material which stores all offered NOx, but which does not release NOx under the absence of NOx, one can even design an integrating sensor device utilizing this principle [22].

Engine dynamometer tests were conducted as well [20,21,23]. Four sensors, each having the same LNT coating, were inserted in an LNT. The sensor positions are indicated in Figure 4. The canned catalyst consisted of two LNT bricks. Two sensors were inserted in each of them (S1…S4). Sensors and LNT were treated in the same manner. Therefore, the sensor can be regarded as a representative of the catalyst coating at the sensor position. The first sensor represents the first part of the catalyst; the other sensors stand for the behavior along the flow axis. An electronic circuit was built to calculate a “degree of NO-loading” from the impedance values of each sensor based on a previous correlation between the amount of stored NO in the LNT and the sensor impedance. In this experiment, the LNT was operated at an exhaust temperature of 300 °C. SO2 was added to the exhaust to sulfur-poison the LNT within a few hours.

The obtained loading signals in Figure 4 clearly show the sulfur poisoning front proceeding through the LNT. During the rich-lean cycles, the loading at S1 varies between 0 and 100%. At the outset, the NOx-loading at S3 and S4 never reached 100%. Due to the sulfur poisoning front moving towards the end of the LNT, one sensor after the other loses its storage behavior. With increased sulfur uptake, the NOx-storage process occurs in the rear parts of the LNT. It could even be demonstrated how desulfurization occurs [20].

3.3. Ammonia-SCR-Catalyst

NOx-conversion depends on the degree of ammonia loading of the SCR-catalyst [24]. Especially at low temperatures, a high conversion rate goes along with a well NH3-loaded SCR-catalyst. The actual degree of ammonia loading (sometimes also called surface coverage ratio [25]) can be determined by complex models that are based on the total NH3 storage capacity of the SCR-coating as a function of the engine operation data in conjunction with a NOx-balance using NOx sensors. Direct measurement utilizing an ammonia loading sensor would probably be more accurate. Again, the basic idea is to use a part of the catalyst material itself as a sensor for that [26].

The impedance of a film of catalyst material depends on the amount of stored ammonia. During a short local temperature increase in which ammonia desorbs, the conductivity is measured. The conductivity change can be seen as a measure for the ammonia loading of the catalyst. A similar setup to the TWC oxygen loading sensor as sketched in Figure 1 (left) is used, however the temperature sensor on the lower side is replaced by a heater film.

Fundamental tests were conducted with a zeolite SCR material in synthetic exhaust with 5% O2, 1% H2O and N2 by Kubinski and Visser [26]. At the beginning, the catalyst coating is free of stored ammonia. During the loading mode at constant temperature, ammonia is added to the feed gas and is stored in the film. During the following measuring mode, the temperature is increased utilizing the heater on the sensor bottom side and stored NH3 desorbs and/or gets oxidized. In this case, the measurand is the amplitude of an ac current at an applied constant voltage amplitude. It is proportional to the complex electrical conductance. Figure 5 shows a typical result.

During loading, the current increases since the electrical conductivity of the zeolite increases with ammonia loading, as known from zeolite ammonia sensors [2729] or zeolite-based in situ ammonia diagnostics in a TPD [30]. The final value depends on the NH3-concentration of the gas, since the equilibrium amount of stored NH3 is a function of the NH3-concentration in the exhaust. During the measuring mode (heating, t’ > 0), the measured current increases further due to the thermally activated electrical conductivity. With increasing release of the stored ammonia, the current decreases strongly. The signal maximum increases with increasing NH3-loading time and reaches a saturation level after a distinct loading time. The loading time until the saturation level is reached depends on temperature and on the NH3 concentration of the gas. The area under these curves correlates with the stored amount of ammonia ([26] with data from [10]). The advantage of this procedure is that the catalyst material itself serves as a sensor and shows directly the loading degree - and possibly, at least by plausibility considerations-, aging, and functionality of the SCR system.

4. Radio Frequency-Based Contactless Direct Catalyst Diagnosis

4.1. Oxygen Loading of a TWC

As shown above, the electrical conductivity of washcoat materials depend on the catalyst loading state. In the case of TWC, the conductivity of the washcoat component ceria-zirconia is a function of the oxygen loading [31]. Hence, by utilizing interactions of the catalyst material with microwaves it might be suitable to measure directly and in a contactless manner the catalyst state. A typical test setup is shown in Figure 6.

A radio frequency (rf) signal above the cut-off frequency is applied on the catalyst device by a coaxial antenna. The canning of the ceramic monolith is an electrical conductor. From an electrical standpoint, the setup can be seen as a partially filled circular waveguide. More details of the radio frequency setup are explained in Ref. [32] and first results on engine dynamometers are discussed in [33]. At some distinct frequencies, which depend on the catalyst geometry and on the material permittivity, resonances occur and the so-called input reflection coefficient, S11, which denotes the ratio of the backscattered and the impinged wave, shows prominent minima. A change in the conductivity of the catalyst coating should have an influence on the S11-spectra.

This is demonstrated in Figure 7. Again, lean-rich switches were conducted. Very clear differences can be observed between the oxidized (lean) and the oxygen-depleted (rich) state, denoting the two levels of the oxygen buffer. Possible signal characteristics that may serve as measurands are the value of S11 at the resonance frequency, fres, or the resonance frequency, fres, itself. In the following, only the resonance frequency, fres, is considered.

It is interesting to see what happens if one observes in detail the transition from lean to rich. For that, the resonance frequency was tracked during lean-rich switches (Figure 8). The output signals of the lambda probe (Figure 8, top, green and red) indicate the engine operating conditions. When the TWC is completely oxygen loaded, the engine is switched to rich combustion (at t1 ≈ 9 s). After approximately 4 s at t2, the buffer phase is over, since the oxygen storage capacity of the TWC is exhausted. Then, λ downstream of the TWC becomes rich. The lambda probe downstream of the TWC (red) measures a too low λ value due to its hydrogen cross sensitivity [34]. At t3 ≈ 28 s, the subsequent oxygen loading phase begins. The TWC stores oxygen until it is fully oxygen-loaded at t4 ≈ 36 s. Since the deviations from the stoichiometric value is lower by a factor of two, the oxygen loading (t4t3 = 8 s) takes twice as long as the oxygen release (t2t1 = 4 s). As soon as the TWC starts to release oxygen, the resonance frequency (black curve) decreases continuously until a constant value is reached. During the subsequent oxygen loading phase, fres increases again with a constant slope to a value that indicates the oxidized state. The oxygen loading degree is determined by roughly balancing oxygen up- and downstream of the TWC (blue dotted curve). In addition, it is measured by nine TWC status control sensors as shown in Figures 1 and 2 (blue drawn curve). The sensors are positioned along the flow axis and the averaged degree of oxygen loading of the catalyst is calculated as a result of a weighted summing up of each of the nine sensor signals (details in [18]). The good agreement between resonance frequency and analytically determined oxygen loading proves that the resonance frequency is a suitable measure to determine the oxygen loading degree of a TWC. The influence of CO, H2 and H2O are investigated as well and are found out to be very low, suggesting that the gas composition dependency of the rf-system is lower than it is for a lambda probe [35]. It will be interesting to evaluate whether the rf-system is also capable to detect catalyst aging. At the moment, it seems possible to establish an alternative control concept that does not need two lambda probes.

4.2. NOx-loading of LNTs

The conductivity of LNT-coatings varies with its degree of NOx-loading as well with the amount of stored oxygen. Therefore, one might expect to determine the status of NOx-loading with a similar rf-setup as shown in Section 4.1. In an initial attempt, which is, however, by far not as developed as for TWCs, it has been demonstrated that one can distinguish between oxygen loading and NOx-loading [23]. As expected from Section 3.2., the effects of NOx-loading are much smaller, but it is assumed that also the degree of sulfur poisoning can be detected. No engine test data exist at the moment.

4.3. Soot Loading of DPFs

A novel idea is to monitor the amount of soot deposited on a Diesel particulate filter (DPF) by the radio frequency method. Since soot has a noticeable conductivity, it makes sense to investigate how soot loading affects the resonance spectra.

DPFs are ceramic wall-flow filters with alternate plugged channels. The exhaust is forced through the porous channel walls, in which the particulate matter is trapped. A detailed overview on DPF technology can be found in refs. [13,36,37]. With increased soot loading, the flow resistance increases. When a soot loading of several g/L filter volume is deposited, the particulate filter has to be regenerated to avoid clogging and increasing fuel consumption, i.e., soot has to be oxidized at higher exhaust temperatures. In serial applications, a pressure sensor determines the pressure differences up- and downstream of the DPF. By applying a complex pressure model at specific volumetric flow rates, a determination can be made when the filter requires soot regeneration [6]. At the moment, only soot sensors are under serial development [3841]. They determine the amount of soot particles in the exhaust flow but not the filter loading. Although it has been shown recently that coke deposits in industrial fixed bed catalysts can be directly and in-situ monitored by impedance spectroscopy of a representative catalyst pellet [42], on a soot loading sensor measuring directly the impedance of a DPF has not been reported in the scientific literature.

However, a very promising approach has been proposed recently. In a setup similar to Figure 6, soot filters were investigated. It is shown in Figure 9 that a unique relationship between soot loading and the characteristics of the scattering parameters exists [43]. Suitable signal characteristics are resonance frequencies, resonance peak bandwidths, attenuation at resonance and fractional power loss. The inset of Figure 9 depicts the shift of the resonance frequency with soot loading of coated as well as of uncoated DPFs (2.3 liter filter volume). The authors of [43] state that the measurement principle has been validated enough. Further tests should be directed to investigate the influence of disturbing quantities like temperature and agglomeration of unburnt hydrocarbons or of water.

5. Conclusions and Outlook

Together with the reviewed results on rf methods for the oxygen loading of three-way catalysts and the NOx-loading of lean NOx traps, all major catalyst devices can be monitored in a contactless manner. While for real world applications the rf method might be especially interesting due to its simple and inexpensive setup, the impedance-based approach might lead to a deeper understanding of the catalyst materials and their interplay with the gas phase. In any case, both direct methods provide a novel insight into the state of the catalyst. They might not replace but rather support the commonly used exhaust gas sensors.

Despite the fact that the above-shown data are very promising, it is clear that both measurement techniques—the impedance-based and the rf-based method—are far from serial application in the near future. The influence of disturbing quantities has to be investigated more in detail, as well as the suitability for long-term application in the exhaust has to be demonstrated. The rf-based measuring technique may look charming at a first glance, but electromagnetic compatibility issues have to be considered and suitable sensor electronic prototypes needs to be developed prior one can even think of a serial application. And after all, one has to demonstrate not only the technical merits but also to prove that an rf-based system provides also economic benefits - a must in the automotive industry.

The author gratefully acknowledges financial support by the German research foundation (DFG) under grants Mo 1060/6-1 and Fi 956/3-1 and thanks automotive OEMs and suppliers like Umicore AG & Co. KG, BMW, and Continental for supporting parts of the work. Highly acknowledged are contributions from colleagues, coworkers, and students of the Bayreuth Engine Research Center (BERC), namely Gerhard Fischerauer, and in alphabetical order Martin Förster, Gunter Hagen, Sebastian Reiß, Matthias Spörl and Marion Wedemann.

References

  1. Riegel, J; Neumann, H; Wiedenmann, H-M. Exhaust gas sensors for automotive emission control. Solid State Ionics 2002, 152–153, 783–800. [Google Scholar]
  2. Moos, R. A brief overview on automotive exhaust gas sensors based on electroceramics. Int. J. Appl. Ceram. Technol 2005, 2, 401–413. [Google Scholar]
  3. Zhuiykov, S; Miura, N. Development of zirconia-based potentiometric NOx sensors for automotive and energy industries in the early 21st century: What are the prospects for sensors? Sens. Actuator. B Chem 2007, 121, 639–651. [Google Scholar]
  4. Fergus, JW. Solid electrolyte based sensors for the measurement of CO and hydrocarbon gases. Sens. Actuator. B Chem 2007, 122, 683–693. [Google Scholar]
  5. Moos, R; Schönauer, D. Review: Recent developments in the field of automotive exhaust gas ammonia sensing. Sens. Lett 2008, 6, 821–825. [Google Scholar]
  6. Alkemade, UG; Schumann, B. Engines and exhaust after treatment systems for future automotive applications. Solid State Ionics 2006, 177, 2291–2296. [Google Scholar]
  7. Shelef, M; McCabe, RW. Twenty-five years after introduction of automotive catalysts: What next? Catal. Today 2000, 62, 35–50. [Google Scholar]
  8. Koebel, M; Elsener, M; Kröcher, O; Schär, C; Röthlisberger, R; Jaussi, F; Mangold, M. NOx reduction in the exhaust of mobile heavy-duty diesel engines by urea-SCR. Topics Catal 2004, 43, 30–31. [Google Scholar]
  9. Busca, G; Lietti, L; Ramis, G; Berti, F. Chemical and mechanistic aspects of the selective catalytic reduction of NOx by ammonia over oxide catalysts: A review. Appl. Catal. B Environ 1998, 18, 1–36. [Google Scholar]
  10. Kröcher, O; Devadas, M; Elsener, M; Wokaun, A; Söger, N; Pfeifer, M; Demel, Y; Mussmann, L. Investigation of the selective catalytic reduction of NO by NH3 on Fe-ZSM5 monolith catalysts. Appl. Catal. B Environ 2006, 66, 208–216. [Google Scholar]
  11. Takeuchi, M; Matsumoto, S. NOx storage-reduction catalysts for gasoline engines. Topics Catal 2004, 28, 151–156. [Google Scholar]
  12. Rohr, F; Göbel, U; Kattwinkel, P; Kreuzer, T; Müller, W; Philipp, S; Gélin, P. New insight into the interaction of sulfur with diesel NOx storage catalysts. Appl. Catal. B Environ 2007, 70, 189–197. [Google Scholar]
  13. Twigg, MV; Phillips, PR. Cleaning the air we breathe—Controlling diesel particulate emissions from passenger cars. Platinum Met. Rev 2009, 53, 27–34. [Google Scholar]
  14. Möller, R; Votsmeier, M; Onder, C; Guzzella, L; Gieshoff, J. Is oxygen storage in three-way catalysts an equilibrium controlled process? Appl. Catal. B Environ 2009, 91, 30–38. [Google Scholar]
  15. Tuller, HL; Nowick, AS. Defect structure and electrical properties of nonstoichiometric CeO2 single crystals. J. Electrochem. Soc 1979, 126, 209–217. [Google Scholar]
  16. Izu, N; Oh-hori, N; Shin, W; Matsubara, Í; Murayama, N; Itou, M. Response properties of resistive oxygen sensors using Ce1−xZrxO2 (x = 0.05, 0.10) thick films in propane combustion gas. Sens. Actuator. B Chem 2008, 130, 105–109. [Google Scholar]
  17. Reiß, S; Wedemann, M; Moos, R; Rösch, M. Electrical in situ characterization of three-way catalyst coatings. Topics Catal 2009, 52, 1898–1902. [Google Scholar]
  18. Reiß, S; Spörl, M; Hagen, G; Fischerauer, G; Moos, R. Combination of wirebound and microwave measurements for in-situ characterization of automotive three-way catalysts. IEEE Sens J 2010. [Google Scholar] [CrossRef]
  19. Tuttlies, U; Schmeißer, V; Eigenberger, G. A new simulation model for NOx storage catalyst dynamics. Topics Catal 2004, 30–31, 187–192. [Google Scholar]
  20. Moos, R; Zimmermann, C; Birkhofer, T; Knezevic, A; Plog, C; Busch, MR; Ried, T. Sensor for directly determining the state of a NOx storage catalyst. SAE Paper 2008. 2008-01-0447. [Google Scholar]
  21. Zimmermann, C. Neuartiger Sensor zur Bestimmung des Zustandes eines NOx-Speicher-katalysators (Novel sensor for determining the state of a NOx storage catalyst). Ph.D. thesis. University of Bayreuth: Bayreuth, Germany, 2007. [Google Scholar]
  22. Geupel, A; Schönauer, D; Röder-Roith, U; Kubinski, DJ; Mulla, S; Ballinger, TH; Chen, H-Y; Visser, JH; Moos, R. Integrating nitrogen oxide sensor: A novel concept for measuring low concentrations in the exhaust gas. Sens. Actuator. B Chem 2010, 145, 756–761. [Google Scholar]
  23. Moos, R; Wedemann, M; Spörl, M; Reiß, S; Fischerauer, G. Direct catalyst monitoring by electrical means: An overview on promising novel principles. Topics Catal 2009, 52, 2035–2040. [Google Scholar]
  24. Traebert, A; Zimmermann, L; Frey, R; Johansson, T. System layout and DeNOx-Performance of a combined after-treatment-system for commercial vehicles—simulation study and test bench investigations. Proceedings of the 6th International Exhaust Gas and Particulate Emissions Forum, Ludwigsburg, Germany, 9–10 March 2010; pp. 161–168.
  25. Hsieh, MF; Wang, J. Nonlinear observer designs for diesel engine selective catalytic reduction (SCR) ammonia coverage ratio estimation. Proceedings of Decision and Control, 2009 held jointly with the 2009 28th Chinese Control Conference. CDC/CCC, Shanghai, China, 16–18 December 2009. [CrossRef]
  26. Kubinski, DJ; Visser, J. Sensor and method for determining the ammonia loading of a zeolite SCR catalyst. Sens. Actuator. B Chem 2008, 130, 425–429. [Google Scholar]
  27. Simon, U; Flesch, U; Maunz, W; Müller, R; Plog, C. The effect of NH3 on the ionic conductivity of dehydrated zeolites Na beta and H beta. Microporous Mesoporous Mater 1998, 21, 111–116. [Google Scholar]
  28. Moos, R; Müller, R; Plog, C; Knezevic, A; Leye, H; Irion, E; Braun, T; Marquardt, K; Binder, K. Selective ammonia exhaust gas sensor for automotive applications. Sens. Actuator. B Chem 2002, 83, 181–189. [Google Scholar]
  29. Franke, M; Simon, U; Moos, R; Knezevic, A; Müller, R; Plog, C. Development and working principle of an ammonia gas sensor based on a refined model for solvate supported proton transport in zeolites. Phys. Chem. Chem. Phys 2003, 5, 5195–5198. [Google Scholar]
  30. Rodríguez-González, L; Simon, U. NH3-TPD measurements using a zeolite-based sensor. Meas. Sci. Technol 2010, 21, 027003. [Google Scholar]
  31. Boaro, M; Trovarelli, A; Hwang, JH; Mason, TO. Electrical and oxygen storage/release properties of nanocrystalline ceria-zirconia solid solutions. Solid State Ionics 2002, 147, 85–95. [Google Scholar]
  32. Fischerauer, G; Spörl, M; Gollwitzer, A; Wedemann, M; Moos, R. Catalyst state observation via the perturbation of a microwave cavity resonator. Frequenz 2008, 62, 180–184. [Google Scholar]
  33. Moos, R; Spörl, M; Hagen, G; Gollwitzer, A; Wedemann, M; Fischerauer, G. TWC: Lambda control and OBD without lambda probe—an initial approach. SAE Papers 2008. 2008-01-0916. [Google Scholar]
  34. Saji, K; Kondo, H; Takeuchi, T; Igarashi, I. Voltage step characteristics of oxygen concentration cell sensors for nonequilibrium gas mixtures. J. Electrochem. Soc 1988, 137, 1686–1691. [Google Scholar]
  35. Reiß, S; Wedemann, M; Spörl, M; Fischerauer, G; Moos, R. Effects of H2O, CO2, CO, and flow rates on the RF-based monitoring of three-way catalysts. Sens Lett 2009. Submitted. [Google Scholar]
  36. Fino, D. Diesel emission control: Catalytic filters for particulate removal. Sci. Technol. Adv. Mater 2007, 8, 93–100. [Google Scholar]
  37. Johnson, TV. Diesel emission control in review. SAE Papers 2007. 2007-01-0233. [Google Scholar]
  38. Riegel, J; Klett, S. Sensors for modern exhaust gas after-treatment systems. Proceedings of the 5th International Exhaust Gas and Particulate Emissions Forum, Ludwigsburg, Germany, 19–20 February 2008; pp. 84–97.
  39. Weigel, M; Roduner, C; Lauer, T. Particle-filter onboard-diagnosis by means of a soot-sensor downstream of the particle-filter. Proceedings of the 6th International Exhaust Gas and Particulate Emissions Forum, Ludwigsburg, Germany, 9–10 March 2010; pp. 62–69.
  40. Hagen, G; Feistkorn, C; Wiegärtner, S; Heinrich, A; Brüggemann, D; Moos, R. Conductometric soot sensor for automotive exhausts: Initial studies. Sensors 2010, 10, 1589–1598. [Google Scholar]
  41. Ochs, T; Schittenhelm, H; Genssle, A; Kamp, B. Particulate matter sensor for on board diagnostics (obd) of diesel particulate filters (DPF). SAE Papers 2010. 2010-01-0307. [Google Scholar]
  42. Müller, N; Moos, R; Jess, A. In situ monitoring of coke deposits during coking and regeneration of solid catalysts by electrical impedance-based sensors. Chem. Eng. Technol 2010, 33, 103–112. [Google Scholar]
  43. Fischerauer, G; Förster, M; Moos, R. Sensing the soot load in automotive diesel particulate filters by microwave methods. Meas. Sci. Technol 2010, 21, 035108. [Google Scholar]
Sensors 10 06773f1 1024

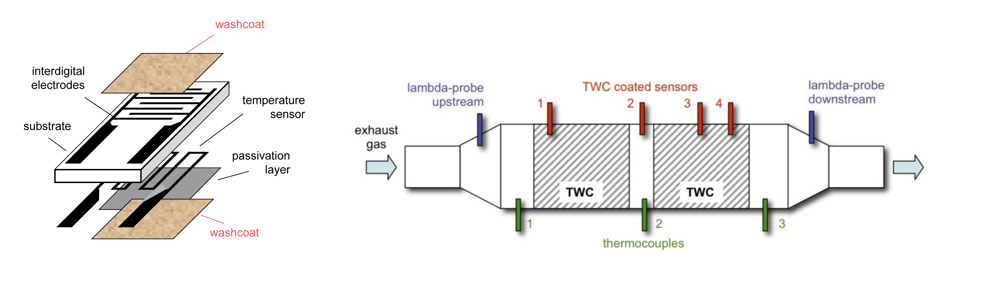

Figure 1. Schematic sensor element setup (left). Sensor positions in the catalyst (right). The numbers 1, 2, 3, and 4 denote the location of sensor elements. Results obtained from these sensors are shown in Figure 2. Modified after [17].

Click here to enlarge figure

Figure 1. Schematic sensor element setup (left). Sensor positions in the catalyst (right). The numbers 1, 2, 3, and 4 denote the location of sensor elements. Results obtained from these sensors are shown in Figure 2. Modified after [17].
Sensors 10 06773f1 1024
Sensors 10 06773f2 1024

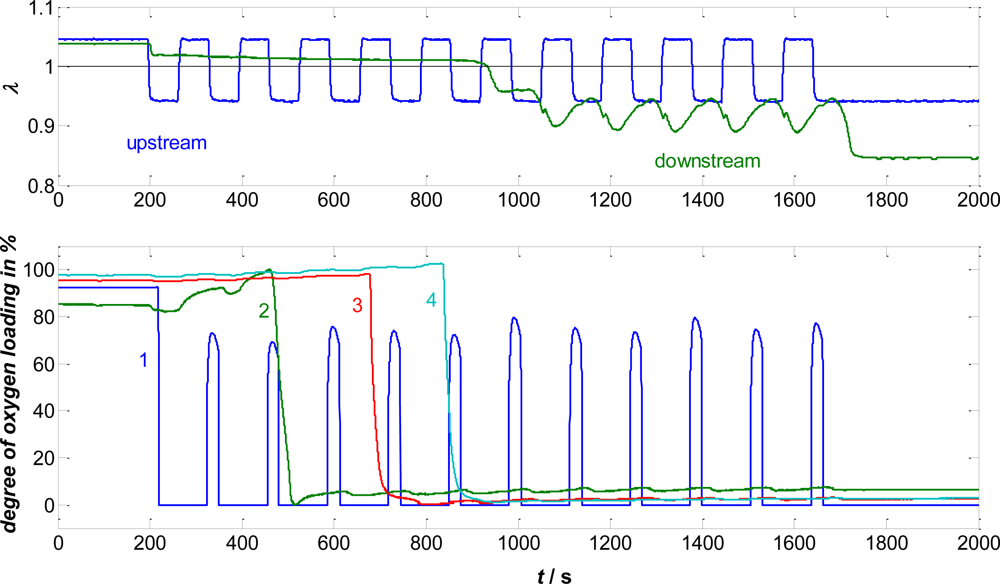

Figure 2. Oxygen loading experiment with the setup of Figure 1. Air-to-fuel ratio, measured by lambda probes (top). Sensor conductivity expressed in terms of % oxygen loading (bottom). Modified and recalculated using data from [17].

Click here to enlarge figure

Figure 2. Oxygen loading experiment with the setup of Figure 1. Air-to-fuel ratio, measured by lambda probes (top). Sensor conductivity expressed in terms of % oxygen loading (bottom). Modified and recalculated using data from [17].
Sensors 10 06773f2 1024
Sensors 10 06773f3 1024
Figure 3. Sketch of the electrical impedance of LNT materials at 350 °C. Simplified after Refs. [20] and [21].

Click here to enlarge figure

Figure 3. Sketch of the electrical impedance of LNT materials at 350 °C. Simplified after Refs. [20] and [21].
Sensors 10 06773f3 1024
Sensors 10 06773f4 1024
Figure 4. Engine dynamometer test of four sensors representing the status of the LNT coating along the flow axis as indicated. SO2 is added to speed up sulfurization. Please note: the increasing spike frequency is a result of the increased regeneration frequency initiated by the engine control to compensate the decreasing NOx storage capability due to sulfur poisoning. From [20] and [21]. Reprinted with permission from SAE paper 2008-01-0447 © 2008 SAE International.

Click here to enlarge figure

Figure 4. Engine dynamometer test of four sensors representing the status of the LNT coating along the flow axis as indicated. SO2 is added to speed up sulfurization. Please note: the increasing spike frequency is a result of the increased regeneration frequency initiated by the engine control to compensate the decreasing NOx storage capability due to sulfur poisoning. From [20] and [21]. Reprinted with permission from SAE paper 2008-01-0447 © 2008 SAE International.
Sensors 10 06773f4 1024
Sensors 10 06773f5 1024
Figure 5. Current, I, as a result of an applied ac voltage (left). At t = 0, NH3 was added to the feed gas and the catalyst film got loaded. After 40 minutes, the temperature was actively increased (measuring mode starts at t’ = 0). Course of the current in the measuring mode for different loading times (right). Loading temperature always 267 °C. Modified after [26], reprinted with permission from Elsevier.

Click here to enlarge figure

Figure 5. Current, I, as a result of an applied ac voltage (left). At t = 0, NH3 was added to the feed gas and the catalyst film got loaded. After 40 minutes, the temperature was actively increased (measuring mode starts at t’ = 0). Course of the current in the measuring mode for different loading times (right). Loading temperature always 267 °C. Modified after [26], reprinted with permission from Elsevier.
Sensors 10 06773f5 1024
Sensors 10 06773f6 1024

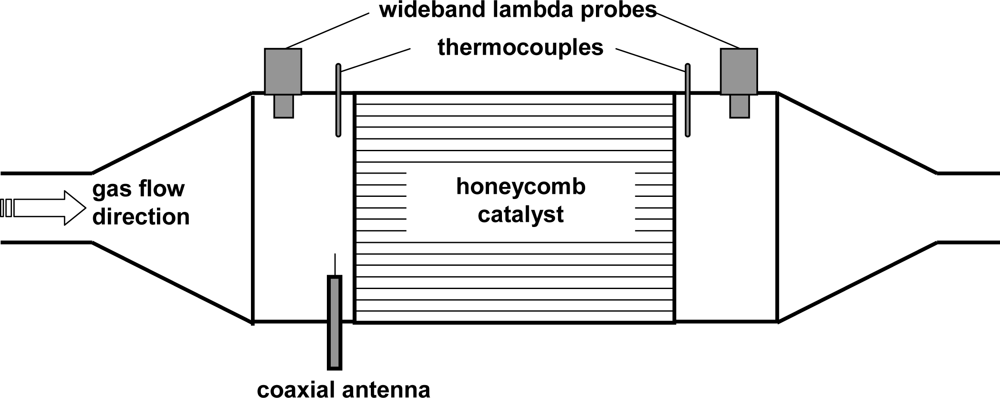

Figure 6. Schematic test setup for verifying the principle of the radio frequency-based catalyst status detection method.

Click here to enlarge figure

Figure 6. Schematic test setup for verifying the principle of the radio frequency-based catalyst status detection method.
Sensors 10 06773f6 1024
Sensors 10 06773f7 1024

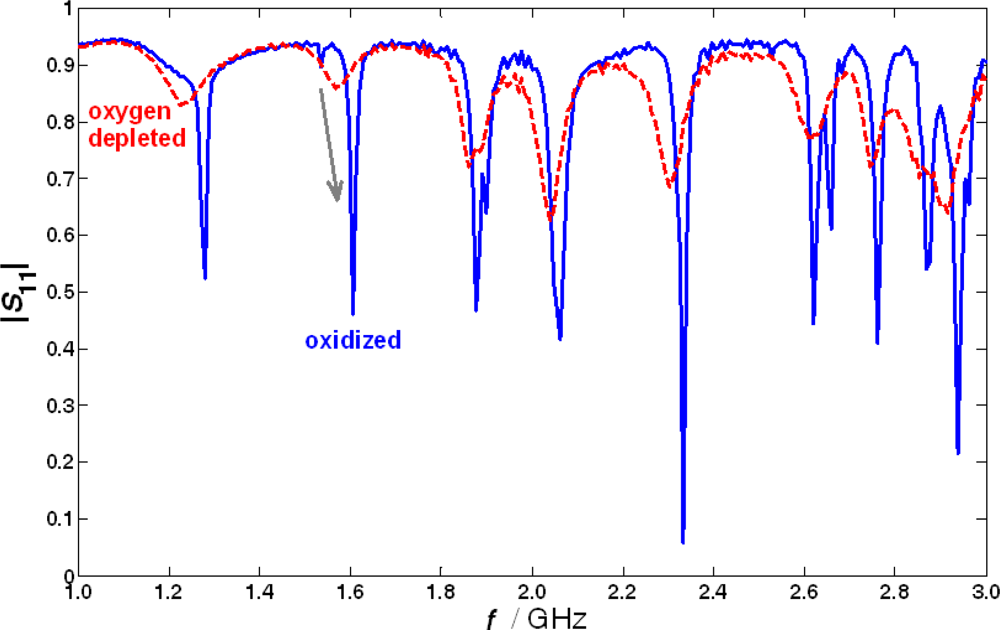

Figure 7. Spectrum of the input reflection coefficient of a TWC when fully oxidized or oxygen-depleted (engine test; T ≈ 450 °C, space velocity 60,000 h−1, catalyst size approx. ∅118 mm × 127 mm).

Click here to enlarge figure

Figure 7. Spectrum of the input reflection coefficient of a TWC when fully oxidized or oxygen-depleted (engine test; T ≈ 450 °C, space velocity 60,000 h−1, catalyst size approx. ∅118 mm × 127 mm).
Sensors 10 06773f7 1024
Sensors 10 06773f8 1024

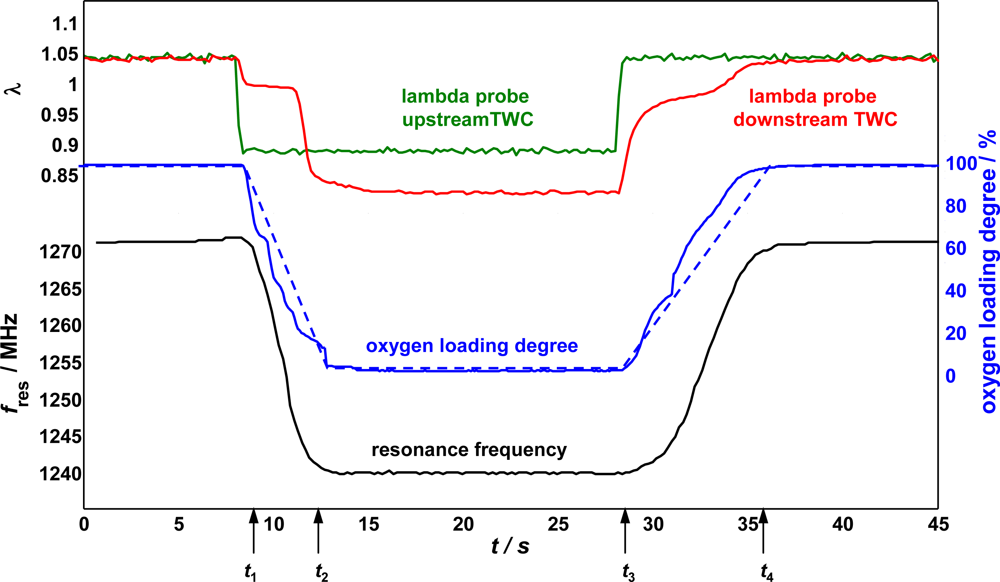

Figure 8. Lambda probe signals up- and downstream of the TWC (green rsp. red), resonance frequency (fres) during oxygen loading and unloading (black), and measured (blue) and roughly calculated (dotted blue) degree of oxygen loading. Recalculated, partly using data from [18].

Click here to enlarge figure

Figure 8. Lambda probe signals up- and downstream of the TWC (green rsp. red), resonance frequency (fres) during oxygen loading and unloading (black), and measured (blue) and roughly calculated (dotted blue) degree of oxygen loading. Recalculated, partly using data from [18].
Sensors 10 06773f8 1024
Sensors 10 06773f9 1024

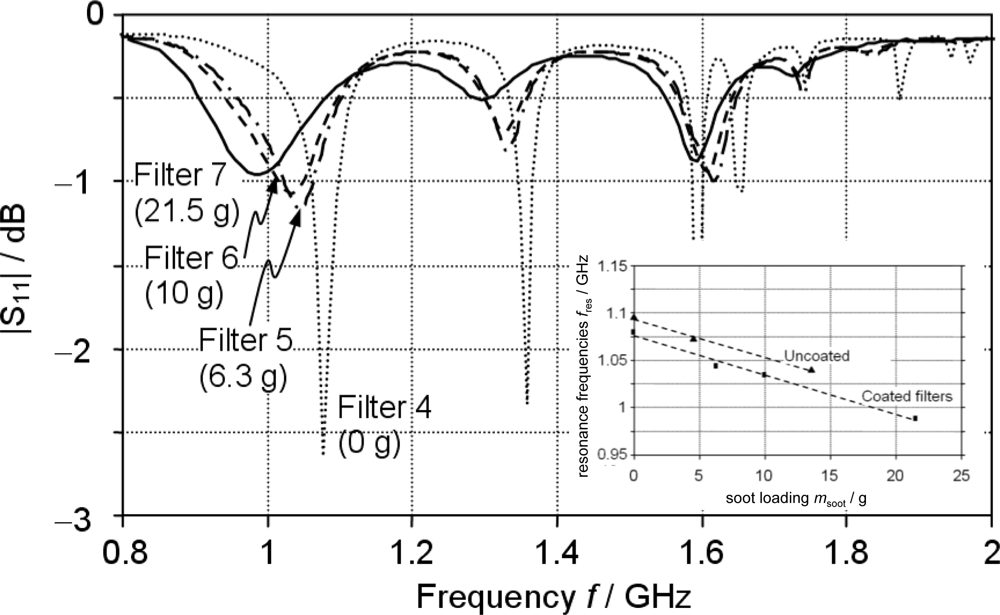

Figure 9. Reflection spectra obtained for DPFs with different soot loadings as indicated. DPF volume: 2.3 liter. Please note: in contrast to Figure 7, |S11| is given in dB. Slightly modified after [43], reprinted with permission from Institute of Physics and IOP Publishing 2010.

Click here to enlarge figure

Figure 9. Reflection spectra obtained for DPFs with different soot loadings as indicated. DPF volume: 2.3 liter. Please note: in contrast to Figure 7, |S11| is given in dB. Slightly modified after [43], reprinted with permission from Institute of Physics and IOP Publishing 2010.
Sensors 10 06773f9 1024
