A Fiber Optic Doppler Sensor and Its Application in Debonding Detection for Composite Structures
Previous Article in Journal
Application of a Hybrid 3D-2D Laser Scanning System to the Characterization of Slate Slabs
Sensors 2010, 10(6), 5962-5974; doi:10.3390/s100605962

Exploring Infrared Sensoring for Real Time Welding Defects Monitoring in GTAW

*  and
Automation and Control Group, Departamento de Engenharia Mecânica/Mecatrônica, Faculdade de Tecnologia, The Brasilia University, Brasília–DF, CEP: 70910-900, Brazil
* Author to whom correspondence should be addressed.
Received: 25 April 2010 / Revised: 15 May 2010 / Accepted: 30 May 2010 / Published: 14 June 2010
(This article belongs to the Section Chemical Sensors)
View Full-Text   |   Download PDF [918 KB, uploaded 21 June 2014]   |   Browse Figures

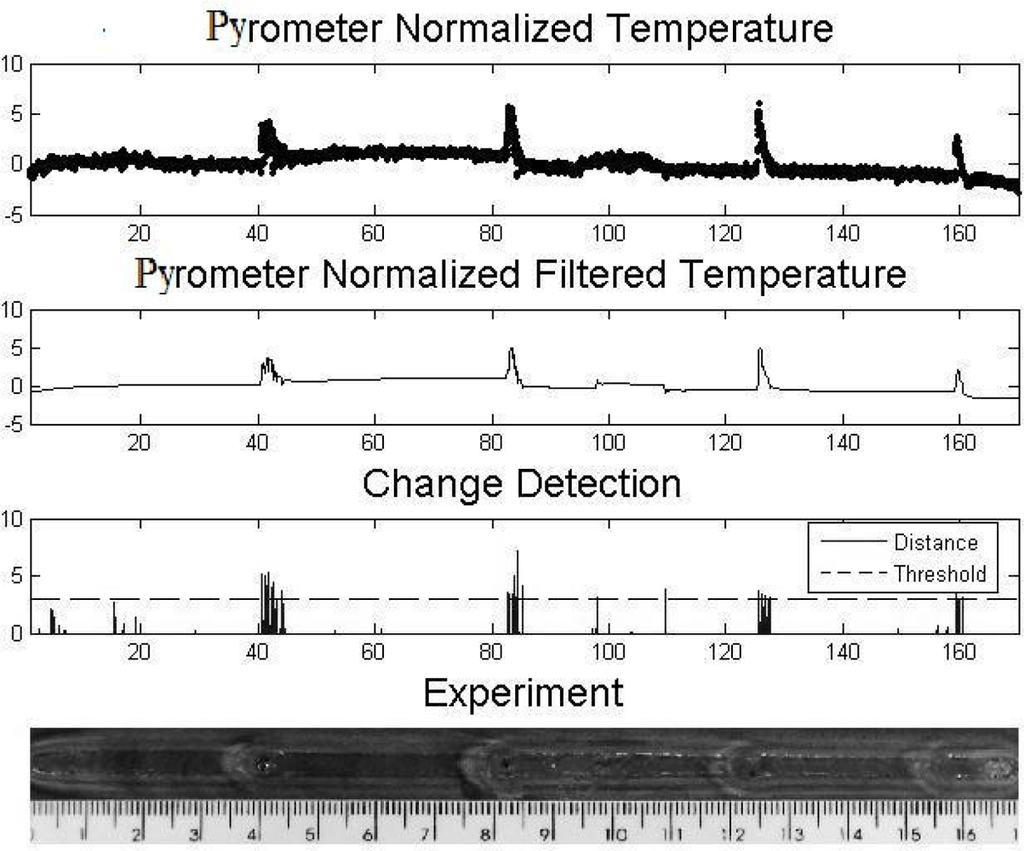

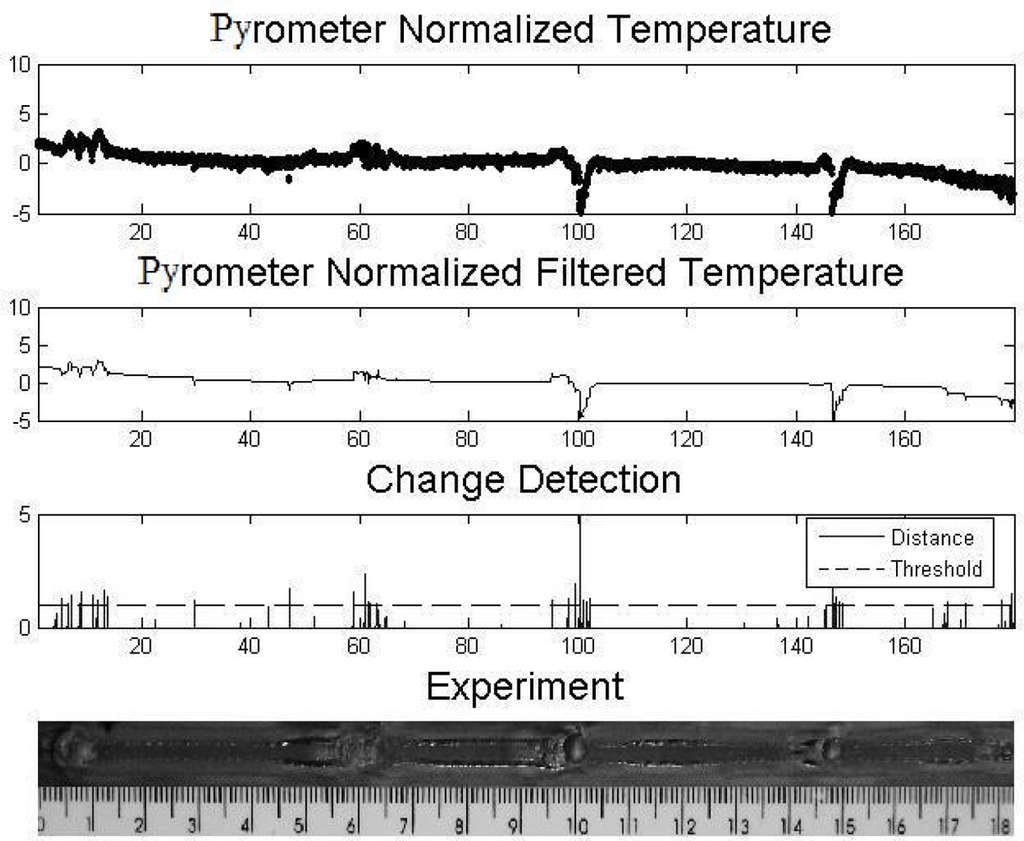

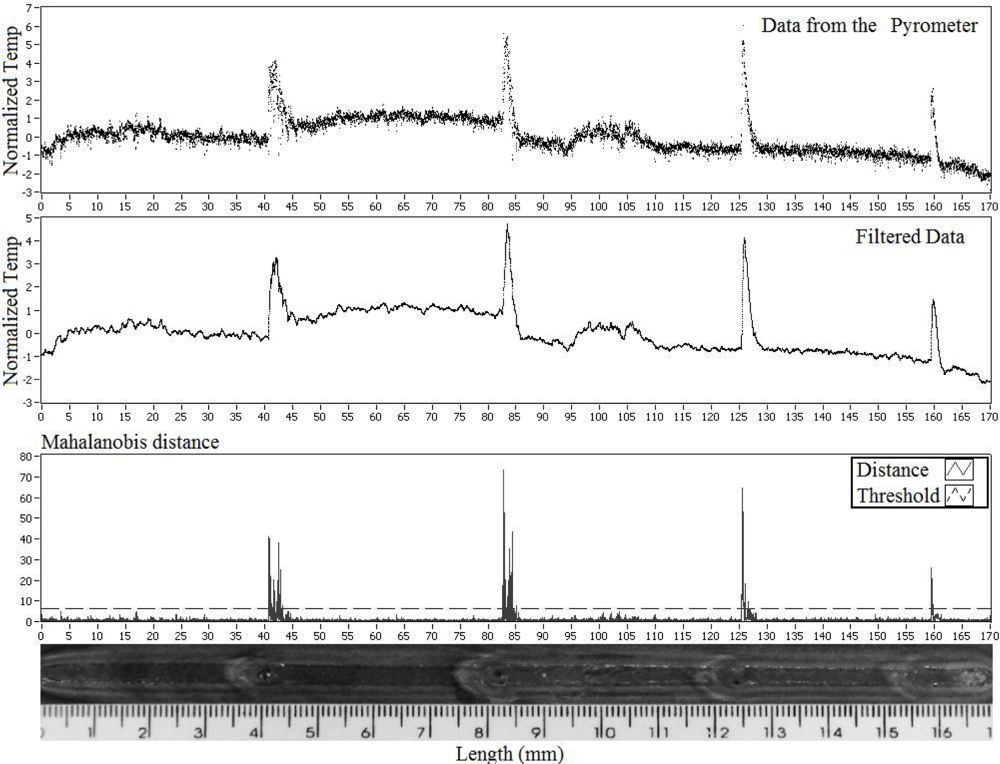

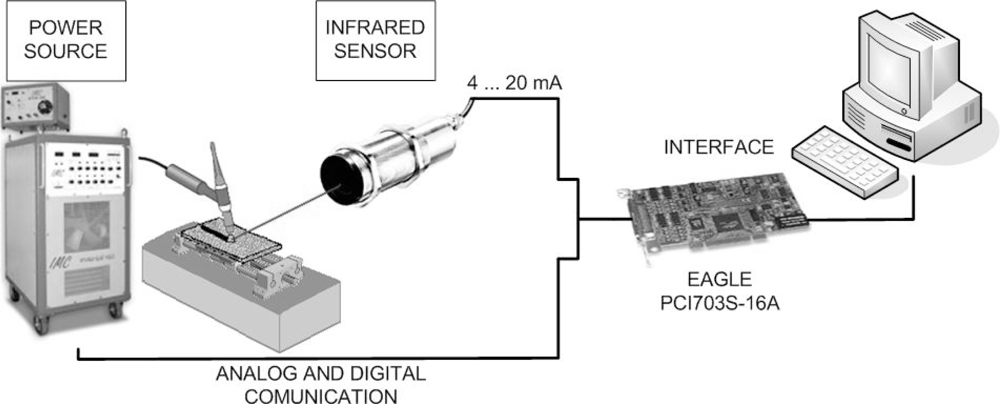

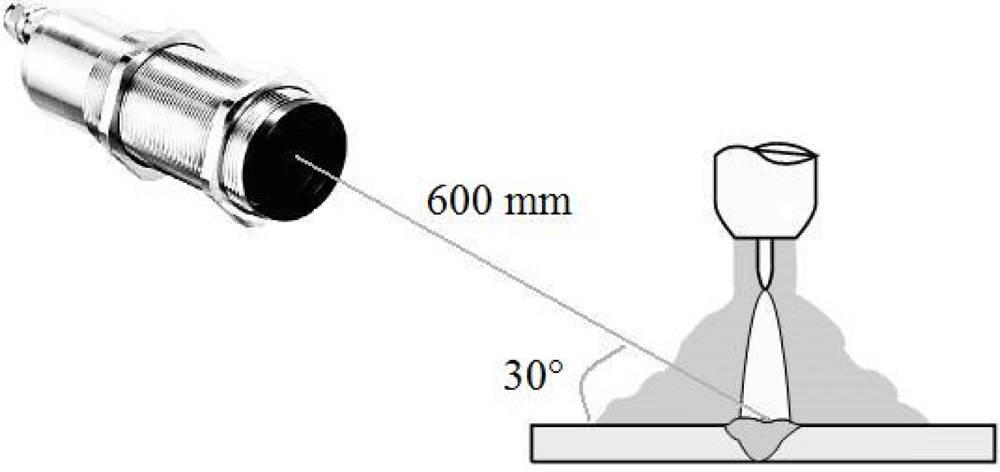

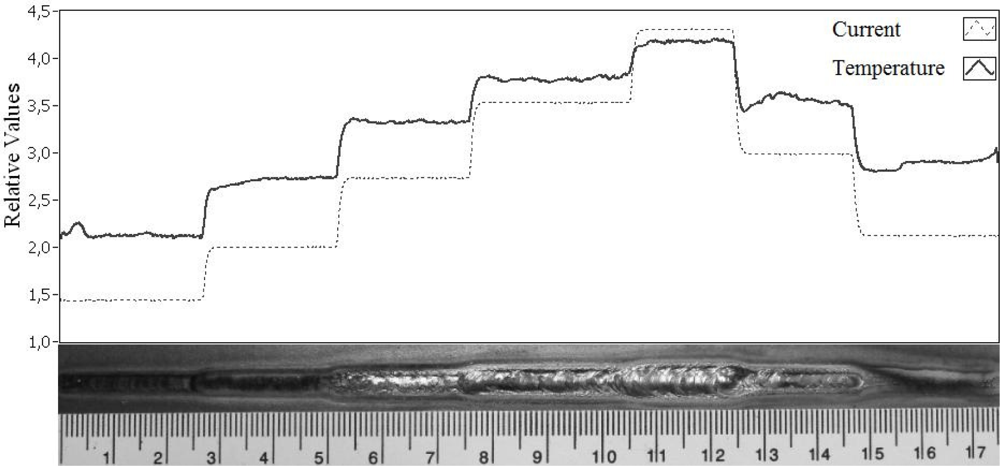

This paper presents an evaluation of an infrared sensor for monitoring the welding pool temperature in a Gas Tungsten Arc Welding (GTAW) process. The purpose of the study is to develop a real time system control. It is known that the arc welding pool temperature is related to the weld penetration depth; therefore, by monitoring the temperature, the arc pool temperature and penetration depth are also monitored. Various experiments were performed; in some of them the current was varied and the temperature changes were registered, in others, defects were induced throughout the path of the weld bead for a fixed current. These simulated defects resulted in abrupt changes in the average temperature values, thus providing an indication of the presence of a defect. The data has been registered with an acquisition card. To identify defects in the samples under infrared emissions, the timing series were analyzed through graphics and statistic methods. The selection of this technique demonstrates the potential for infrared emission as a welding monitoring parameter sensor.
Keywords: Gas Tungsten Arc Welding; welding monitoring; infrared; statistic methods Gas Tungsten Arc Welding; welding monitoring; infrared; statistic methods
This is an open access article distributed under the Creative Commons Attribution License (CC BY) which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Share & Cite This Article

Further Mendeley | CiteULike
Export to BibTeX |
EndNote |
MDPI and ACS Style

Alfaro, S.C.A.; Franco, F.D. Exploring Infrared Sensoring for Real Time Welding Defects Monitoring in GTAW. Sensors 2010, 10, 5962-5974.
