Sensors 2010, 10(11), 9668-9686; doi:10.3390/s101109668

An Analytical Model of Joule Heating in Piezoresistive Microcantilevers

Department of Mechanical Engineering, Inha University, 253 Yonghyun-dong, Nam-Ku, Incheon, 402-751, Korea
*
Author to whom correspondence should be addressed.
Received: 6 September 2010 / Revised: 27 September 2010 / Accepted: 9 October 2010 / Published: 1 November 2010
(This article belongs to the Section Biosensors)
View Full-Text   |   Download PDF [703 KB, uploaded 21 June 2014]   |

Abstract

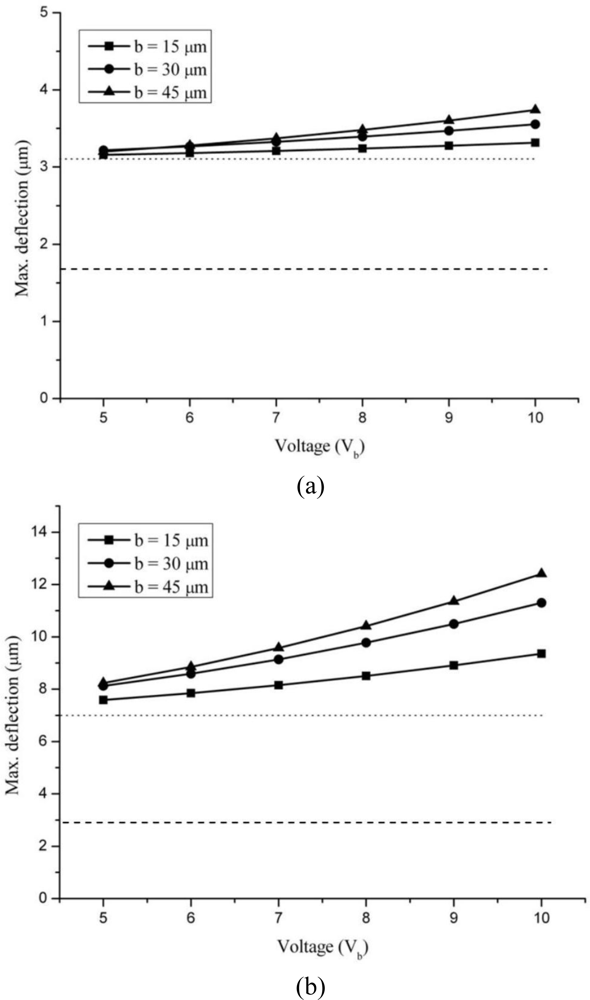

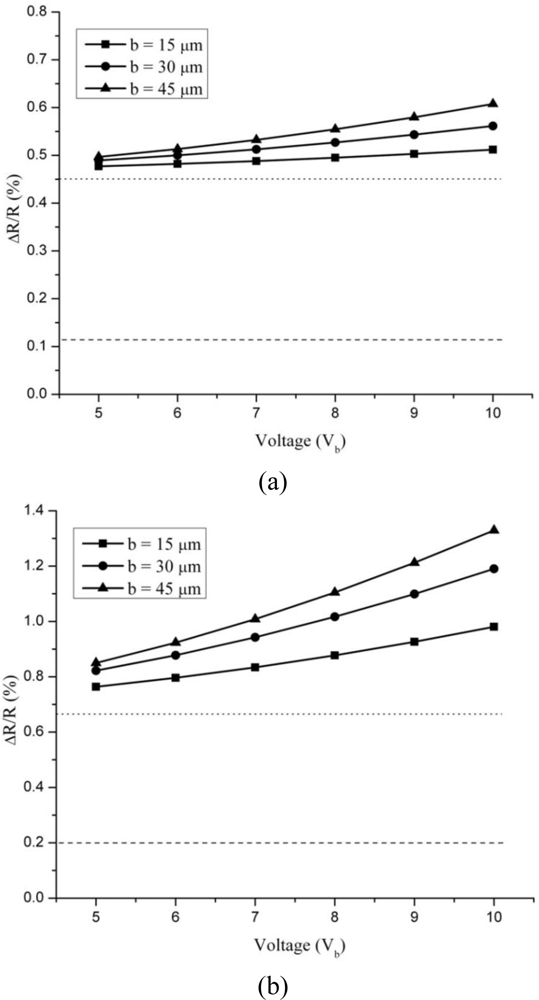

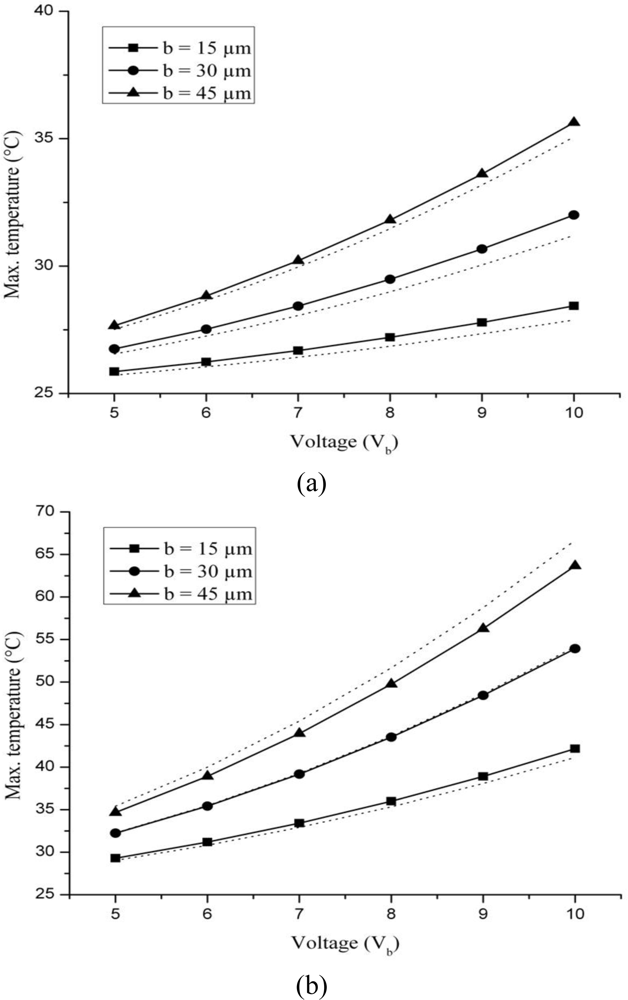

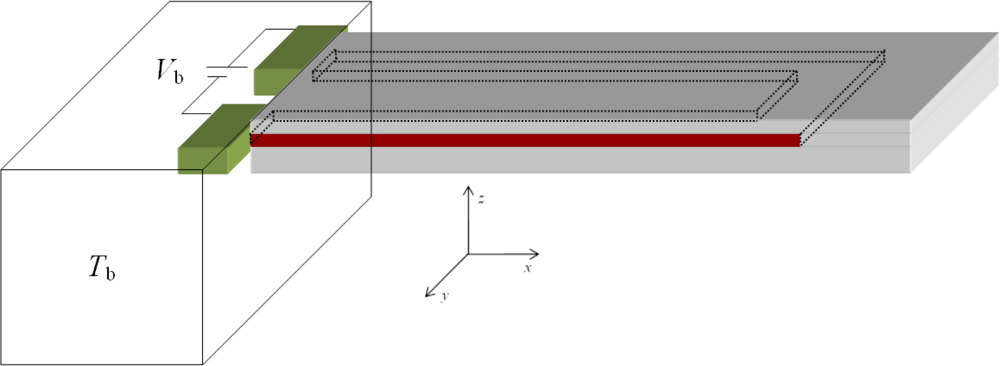

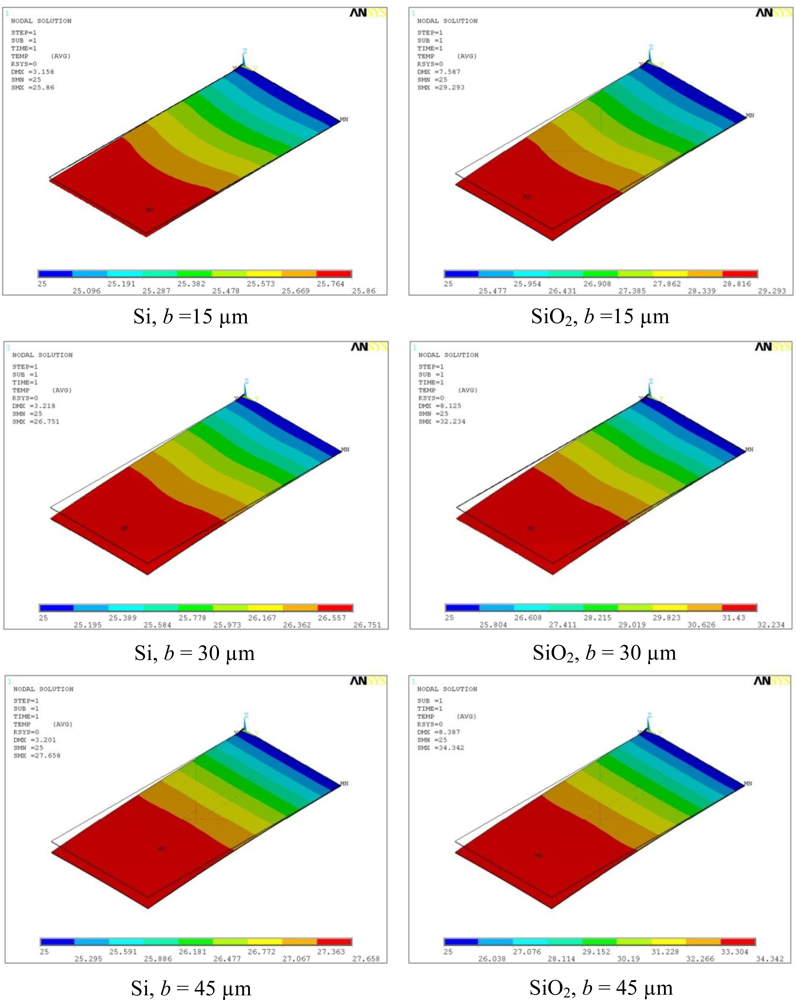

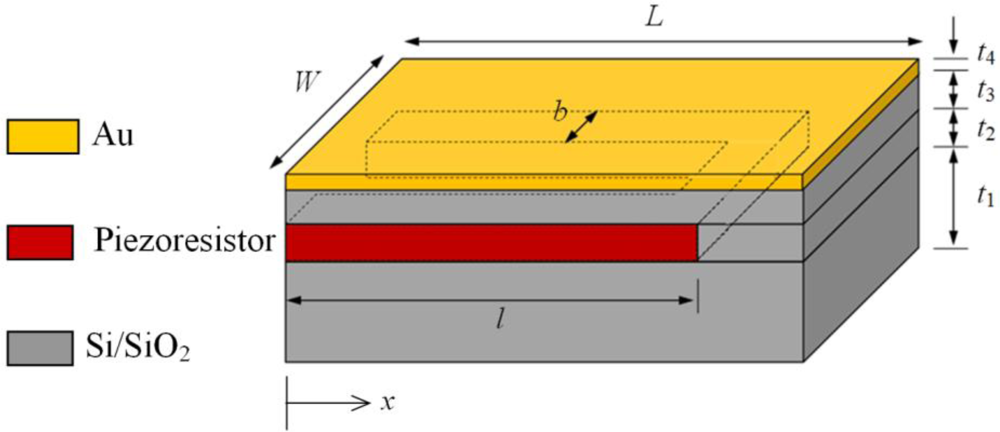

The present study investigates Joule heating in piezoresistive microcantilever sensors. Joule heating and thermal deflections are a major source of noise in such sensors. This work uses analytical and numerical techniques to characterise the Joule heating in 4-layer piezoresistive microcantilevers made of silicon and silicon dioxide substrates but with the same U-shaped silicon piezoresistor. A theoretical model for predicting the temperature generated due to Joule heating is developed. The commercial finite element software ANSYS Multiphysics was used to study the effect of electrical potential on temperature and deflection produced in the cantilevers. The effect of piezoresistor width on Joule heating is also studied. Results show that Joule heating strongly depends on the applied potential and width of piezoresistor and that a silicon substrate cantilever has better thermal characteristics than a silicon dioxide cantilever. View Full-Text
Keywords: Joule heating; piezoresistivity; microcantilever; bimetallic effect; biosensors Joule heating; piezoresistivity; microcantilever; bimetallic effect; biosensors
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
