Int. J. Mol. Sci. 2008, 9(4), 571-577;

Full Research Paper
Extraction of Glycyrrhizic Acid and Glabridin from Licorice
Minglei Tian , Hongyuan Yan and Kyung Ho Row *
Center for Advanced Bioseperation Technology, Department of Chemical Engineering, Inha University, Incheon 402-751, Korea
*
Author to whom correspondence should be addressed: Tel. +82-32-860-7470; Fax: +82-32-872-0959; E-mail: rowkho@inha.ac.kr
Received: 25 January 2008; in revised form: 18 February 2008 / Accepted: 12 March 2008 /
Published: 16 April 2008

Abstract

: The extraction and separation conditions of glycyrrhizic acid and glabridin from licorice were investigated. By changing the different extraction solvents, procedures, times and temperature, the optimum extraction condition was established: the used of ethanol/water (30:70, v/v) as an extraction solvent, and 60 min dipping time under 50°C. The extracts of licorice were separated and determined by reversed-phase high performance liquid chromatography with a methanol/water (70:30, v/v, containing 1% acetic acid) as the mobile phase. Under the optimum extraction condition, 2.39 mg/g of glycyrrhizic acid and 0.92 mg/g of glabridin were extracted from Chinese licorice and the recoveries were 89.7% and 72.5% respectively.
Keywords:
glycyrrhizic acid; glabridin; licorice; extraction; high-performance liquid chromatography

1. Introduction

Licorice, the root of the glycyrrhiza plant species, has been used medicinally for more than 4000 years [1]. The genus glycyrrhiza consists of approximately 30 species, in which six species produce a sweet saponin glycyrrhizic acid (GA), and they are widely used in Asia countries [2]. These medicinal plants were used as flavorings, sweeteners and as herbal medicine, and they were also used for improving health, detoxification and cures for injury [3].

Glycyrrhizic acid (GA) (Figure 1 (A)), the most studied active constituent of licorice, is a sweet-tasting material. The constituent is 50 times sweeter than sugar, making it a widely used as a sweetening additive in the food industry [4]. In many countries, GA is used as a major therapeutic agent to treat chronic viral hepatitis and allergic dermatitis [5]. It is also known to have anti-inflammation [6], anti-ulcer [7], anti-hepatotoxic [8] and antivirus activities [9, 10].

Glabridin (Figure 1 (B)) has been reported to exhibit multiple pharmacological activities, such as cytotoxic activity, antimicrobial activity, estrogenic and anti-proliferative activity against human breast cancer cells. It also affects melanogenesis, inflammation, low-density lipoprotein oxidation and protection of mitochondrial functions from oxidative stresses [11].

There have been some reports on the separation of GA and glabridin [2, 9] but the methods were about respectively extraction, the method about the simultaneously extraction of these two compounds was still not established. The purpose of this study is to establish a simple and convenient extraction process of GA and glabridin from licorice by liquid-liquid extraction followed with RP-HPLC analysis. By changing extraction solvents, methods, times and temperatures, the optimum extraction condition was established. 2.39 mg/g of GA and 0.92 mg/g of glabridin were successfully extracted from 1.0g Chinese licorice.

2. Results and Discussion

2.1. Effect of different extraction solvents

The different extraction solvents used in the experiment for the extraction of GA and glabridin from licorice were water, methanol, ethanol, acetonitrile and chloroform. 50 mLs of each solvent was used to extract 1.0 g licorice for 240 min under room temperature respectively. Table 1 show that both of two compounds can be extracted by polar solvents and GA showed the highest extracted amount by water. Furthermore, glabridin was easily extracted by methanol and ethanol and it showed higher extracted amount by ethanol. So water and ethanol were obtained as the extraction solvent for the following experiment.

In order to determine the effect of different compositions of ethanol/water, 50 mL different compositions of ethanol/water (90:10, 70:30, 50:50, 30:70, 10:90, v/v) were mixed with 1.0 g licorice for 240 min respectively. Table 2 indicates ethanol/water (30:70, v/v) was the optimum extraction solvent in this work.

2.2. Effect of different extraction method

The different extraction methods such as dipping extraction and ultrasonic extraction were investigated by 1.0 g licorice powder extracted with 50 mL ethanol/water (30:70, v/v). In dipping extraction, the powder of licorice was mixed and stirred with solvent for different times. In Figure 2, the extracted amounts of GA and glabridin increased as the dipping times was increased from 10 min to 90 min and no obvious increased after further prolong extraction time. Equivalent samples were then prepared by an ultrasonic method without dipping time. Figure 3 shows that the extracted amounts of GA and glabridin increased with an increase of ultrasonic time. However, comparing the results of the two methods, it was found that the amounts extracted via the ultrasonic method were lower, while more energy was required in the experiments. Thus, it was determined that the ultrasonic method was not appropriate for this approach.

2.3. The optimum extraction temperature

Different dipping temperatures ranged from 25°C to 60°C were evaluated, the dipping time was 60 min and the results were shown in Figure 4. The extracted amounts of GA and glabridin increased quickly with the temperature increasing from 20°C to 50°C and almost constant when temperature higher than 50°C. Compared the results with dipping method, the extracted amounts of GA and glabridin from licorice by 90 min dipping under room temperature were the almost same as 60 min dipping under 50°C. The results indicated shorter dipping time with higher temperature and 50°C was the optimized temperature for licorice extraction in this work.

2.4. Method validations

The analyte peak area values were plotted against the corresponding concentrations of the analytes and the calibration curves were constructed by means of the least-square method. Concentrations of 0.1, 0.2, 0.4, 0.8, and 1.0 mg/mL for standards solutions of GA and glabridin were used, and each concentration was injected 3 times. Calibration curves of the two compounds show good linearity and the regression equations of GA and glabridin were Y=6623.7x+18.794 and Y= 7593.6x+89.523 with r2 > 0.9996, respectively. The intra-day and inter-day repeatability of the method evaluated as relative standard deviations (RSDs) were performed by injecting 0.5mg/mL of GA and glabridin in quintet in 5-day period.

The mean recoveries of GA and glabridin from licorice were evaluated by spiking three different levels of GA (0.5, 0.6, 0.8 mg/mL) and glabridin (0.05, 0.06, 0.07 mg/mL) to sample in replicates of three. The measured concentrations were compared with the theoretical concentration to calculate the recovery rates. The recoveries, RSDs, and the limit of detections (LOD) are persented in Table 3. Comparison with the real sample analysis, verified that the values noted above were of acceptable precision and accuracy.

3. Experimental Section

3.1. Materials

Licorice was purchased from China. Glycyrrhizic acid (mono-ammonium salt hydrate) was obtained from Sigma Chemical Co. (St. Louis, MO). Glabridin was purchased from Wako Pure Chemical Industries, Ltd. (Japan). Methanol, ethanol, acetonitrile and chloroform (HPLC Grade) were from Duksan Pure Chemical. Co., Ltd. (Korea). Water was twice distilled and filtered (FH-0.45 μm, Advantec MFS, Inc., Japan) by using a decompressing pump (Division of Millipore, Waters, USA).

3.2. HPLC analysis

The HPLC system in this study is comprised of a M930 solvent delivery pump (Young Lin Co. Korea), a UV detector (M 720 Absorbance Detector, Young-In Scientific Co., Korea) and an integrated data system (Autochrowin. Ver. 1.42, Young Lin Co., Korea). The Reodyne injection valve with 25 μL sample loop was used. The flow rate was 1.0 mL/min and UV wavelength was set at 252 nm. All the solvents were filtered by Disposable Syringe Filter Unit (0.2 μm) for further HPLC analysis. GA and glabridin were analyzed by a column (C18, 5μm, 150×4.6 mm, RStech Corporation, Korea) with a mobile phase consisting of methanol-water (70:30, v/v, containing 1% acetic acid).

3.3. Samples preparation

The licorice roots were oven-dried, sliced and crushed into powder for the extraction experiments. Extraction procedures of GA and glabridin are shown in Figure 5. The stocked standards of GA and glabridin were dissolved in methanol and further diluted to different working standard solution.

4. Conclusion

In this study, a simple and convenient method for the extraction of glycyrrhizic acid and glabridin from licorice is developed and validated. Mixture of ethanol/water (30:70, v/v) and extraction time 60 min under 50°C is the optimum condition to extract GA and glabridin from licorice. The extracted amounts are 2.39 and 0.92 mg/g and recoveries are 89.7% and 72.5% respectively.

Acknowledgments

The authors gratefully appreciate the financial support by the Center for Advanced Bioseparation Technology and Inha University, Korea.

References and Notes

  1. Aoki, F; Nakagawa, K; Tanaka, A. Determination of glabridin in human plasma by solid-phase extraction and LC-MS/MS. J Chrom B 2005, 828, 70–74. [Google Scholar]
  2. Fukai, T; Satoh, K; Nomura, T. Preliminary evaluation of antinephritis and radical scavenging activities of glabridin from Glycyrrhiza glabra. Fitoterapia 2003, 74, 624–629. [Google Scholar]
  3. Cherng, JM; Lin, HJ; Hung, MS. Inhibition of nuclear factor kB is associated with neuroprotective effects of glycyrrhizic acid on glutamate-induced excitotoxicity in primary neurons. Eur J Pharm 2006, 547, 10–21. [Google Scholar]
  4. Acharya, SK; Dasarathy, S; Tandon, A. A preliminary open trial on interferon stimulator (SNMC) derived from glycyrrhiza-glabra in the treatment of subacute hepatic-failure. Indian J Med Res B, Biomed Res Infect Dis 1993, 98, 69–74. [Google Scholar]
  5. Tanahashi, T; Mune, T; Morita, H. Glycyrrhizic acid suppresses type 2 11 β-hydroxysteroid dehydrogenase expression in vino. J Ster Biochem & Mol Biol 2002, 80, 441–447. [Google Scholar]
  6. Fujisawa, Y; Sakamoto, M; Matsushita, M. Glycyrrhizin inhibits the lytic pathway of complement: possible mechanism of its anti-inflammatory effect on liver. Microbiol Immunol 2000, 44, 799–804. [Google Scholar]
  7. Dehpour, AR. Zolfaghari, M.E.; Samadian, T. Antiulcer activities of liquorice and its derivatives in experimental gastric lesion induced by ibuprofen in rats. Int J Pharm 1995, 119, 133–138. [Google Scholar]
  8. Akihiko, I; Norio, H; Kazuhiro, K. Effect of glycyrrhizin on viral replication and quasispecies in patients with type C chronic hepatitis. Int Hepatol Commun 1997, 50, 233–238. [Google Scholar]
  9. Cinatl, J; Morgenstern, B; Bauer, G. Glycyrrhizin, an active component of liquorice roots, and replication of SARS-associated coronavirus. Lancet 2003, 361, 2045–2046. [Google Scholar]
  10. Fu, B; Liu, J; Li, H. The application of macroporous resins in the separation of licorice flavonoids and glycyrrhizic acid. J Chrom A 2005, 1089, 18–24. [Google Scholar]
  11. Choi, E. The licorice root derived isoflavan glabridin increases the function of osteoblastic MC3T3-E1 cells. Biochem Pharm 2005, 70, 363–368. [Google Scholar]
Ijms 09 00571f1 1024

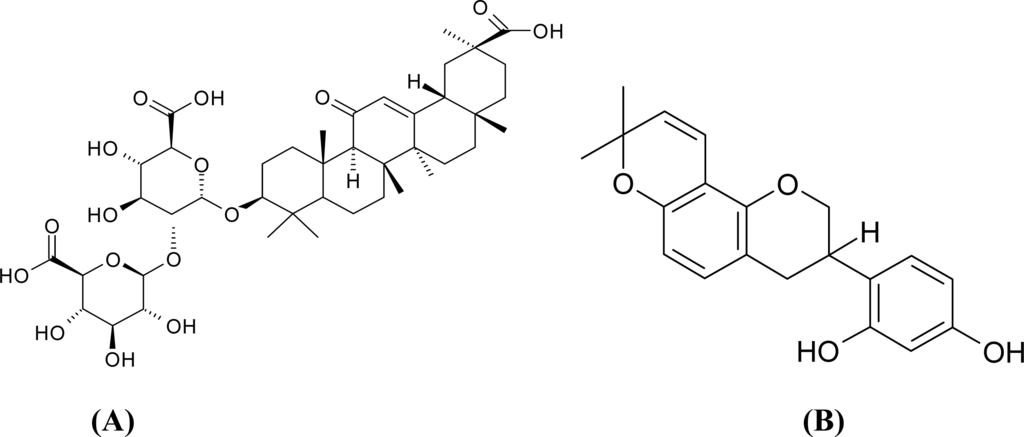

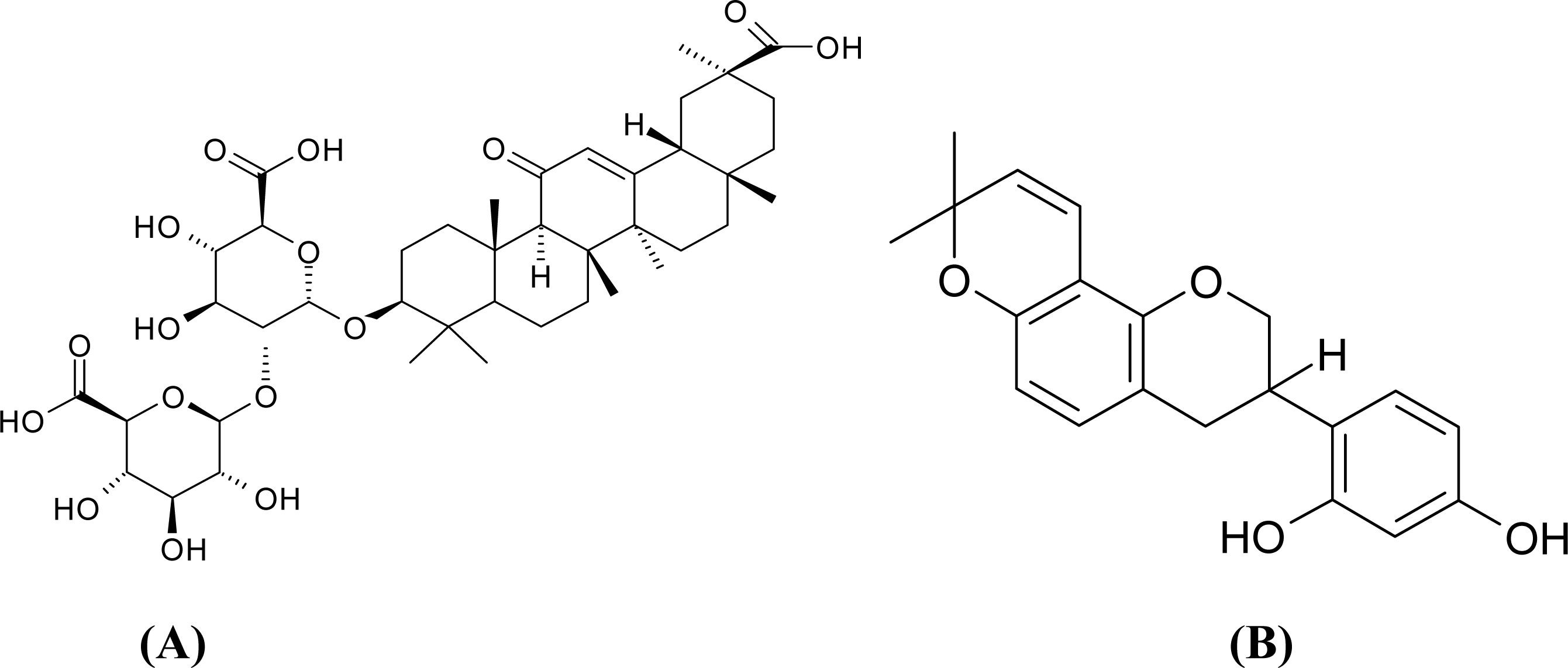

Figure 1. Molecular structures of glycyrrhizic acid (A) and glabridin (B).

Click here to enlarge figure

Figure 1. Molecular structures of glycyrrhizic acid (A) and glabridin (B).
Ijms 09 00571f1 1024
Ijms 09 00571f2 1024

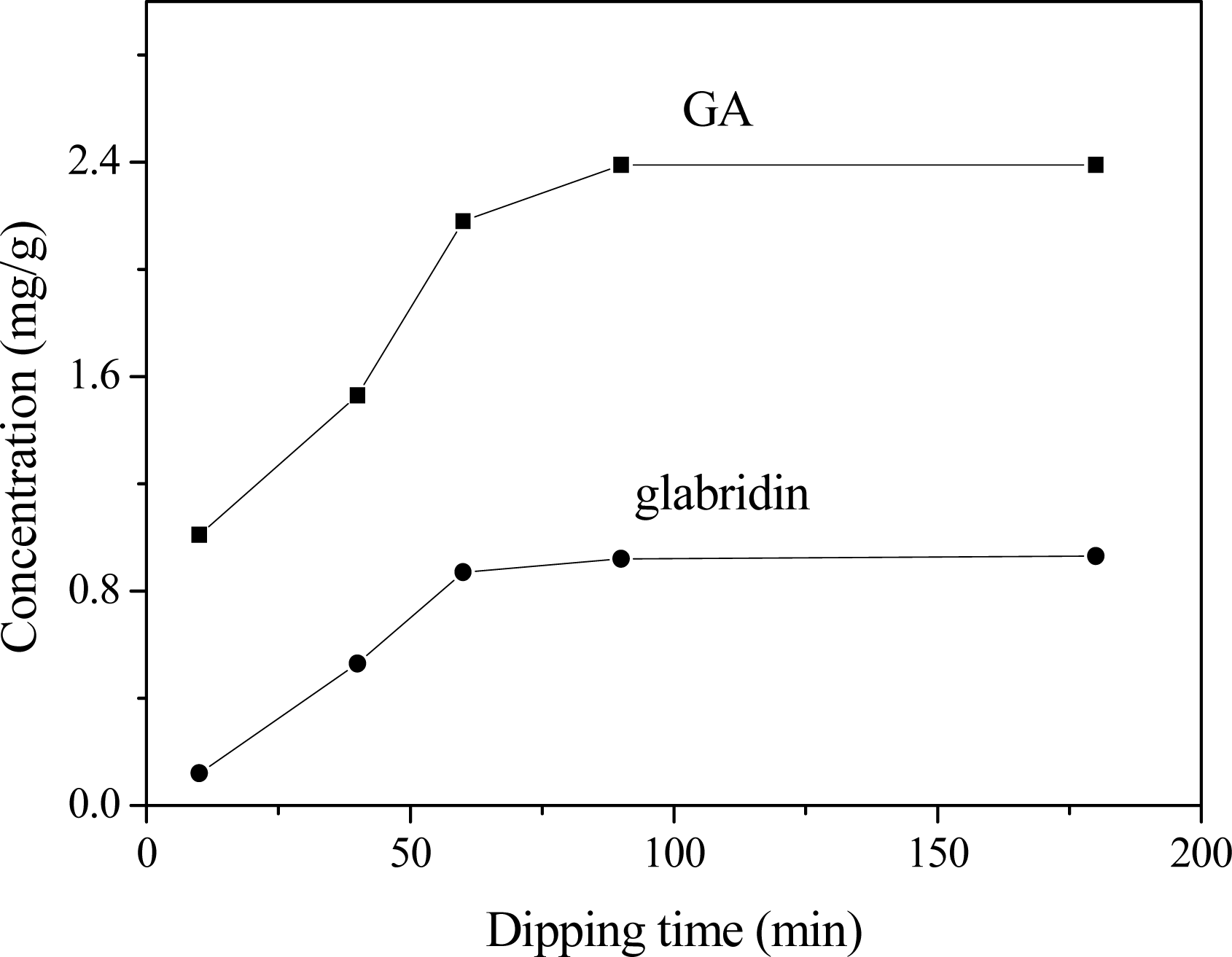

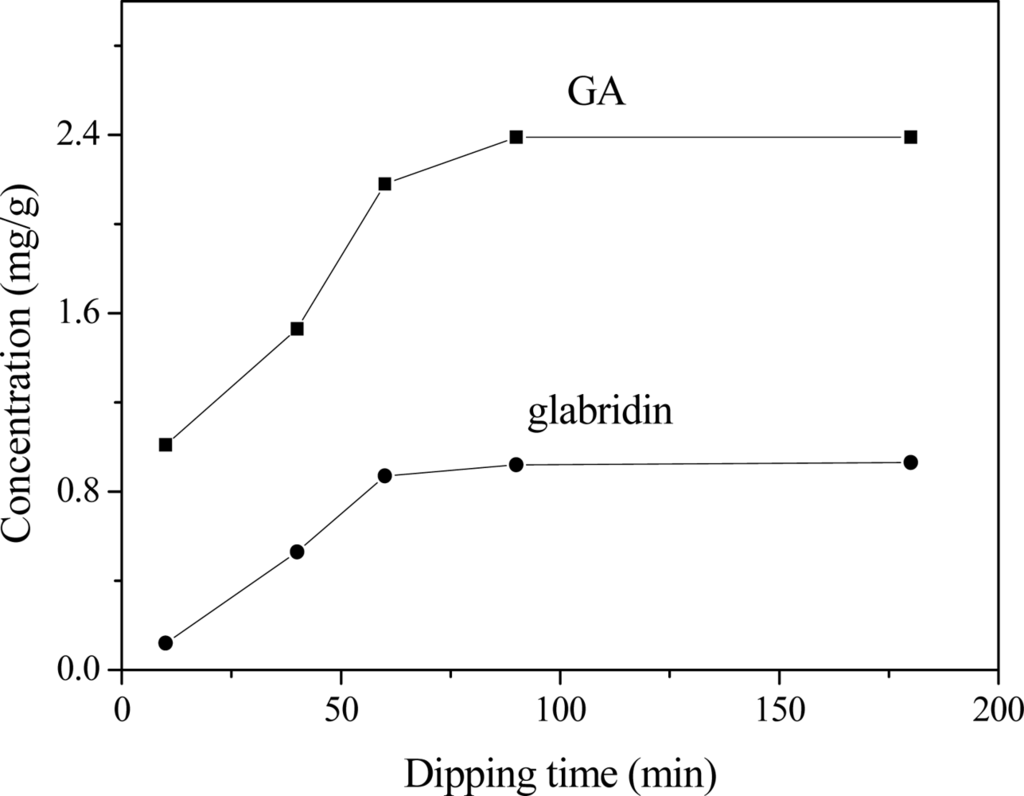

Figure 2. Effect of different dipping times on extracted amounts of licorice.

Click here to enlarge figure

Figure 2. Effect of different dipping times on extracted amounts of licorice.
Ijms 09 00571f2 1024
Ijms 09 00571f3 1024

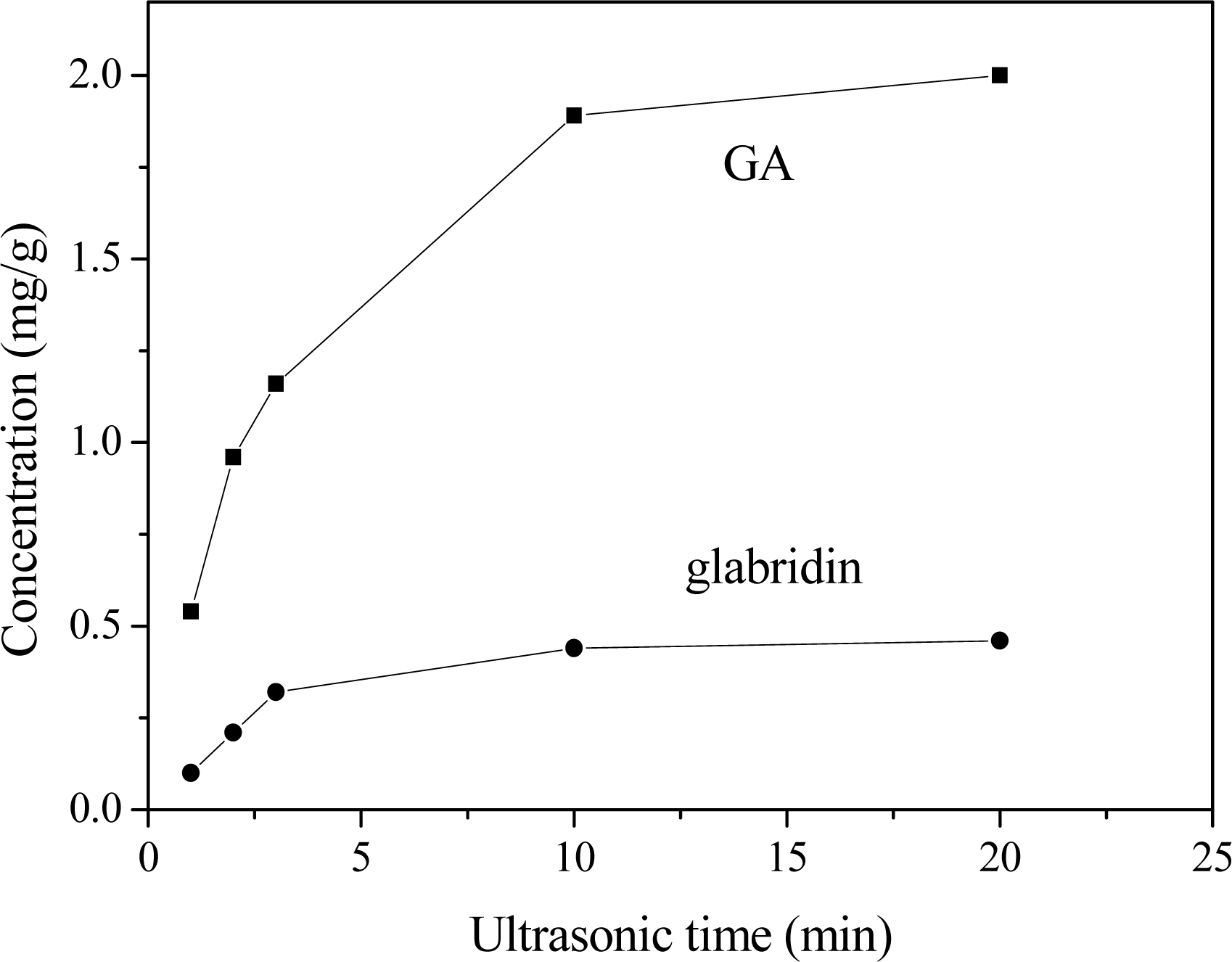

Figure 3. Effect of different ultrasonic times on extracted amounts of licorice.

Click here to enlarge figure

Figure 3. Effect of different ultrasonic times on extracted amounts of licorice.
Ijms 09 00571f3 1024
Ijms 09 00571f4 1024

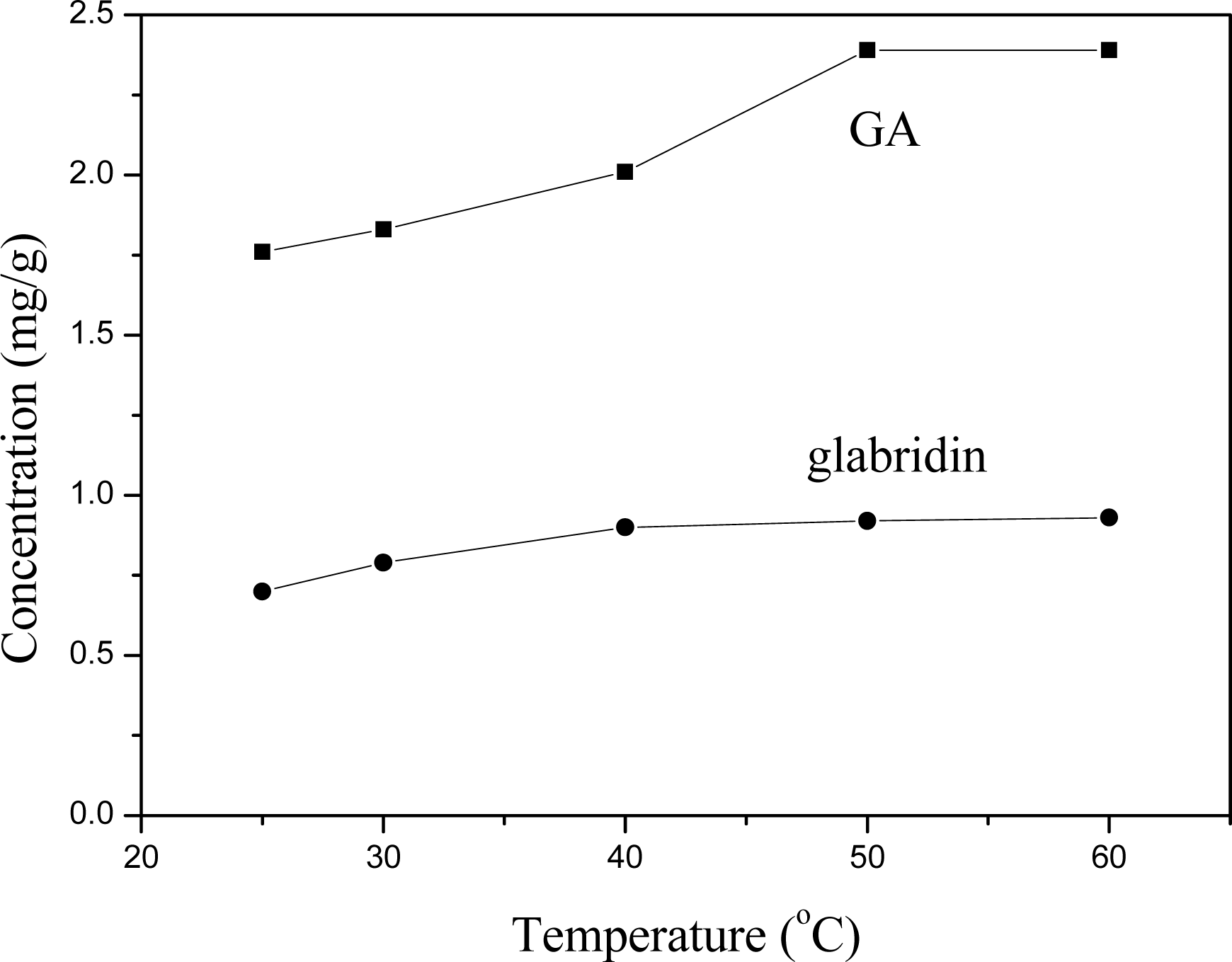

Figure 4. Effect of different extraction temperatures on extracted amounts of licorice.

Click here to enlarge figure

Figure 4. Effect of different extraction temperatures on extracted amounts of licorice.
Ijms 09 00571f4 1024
Ijms 09 00571f5 1024

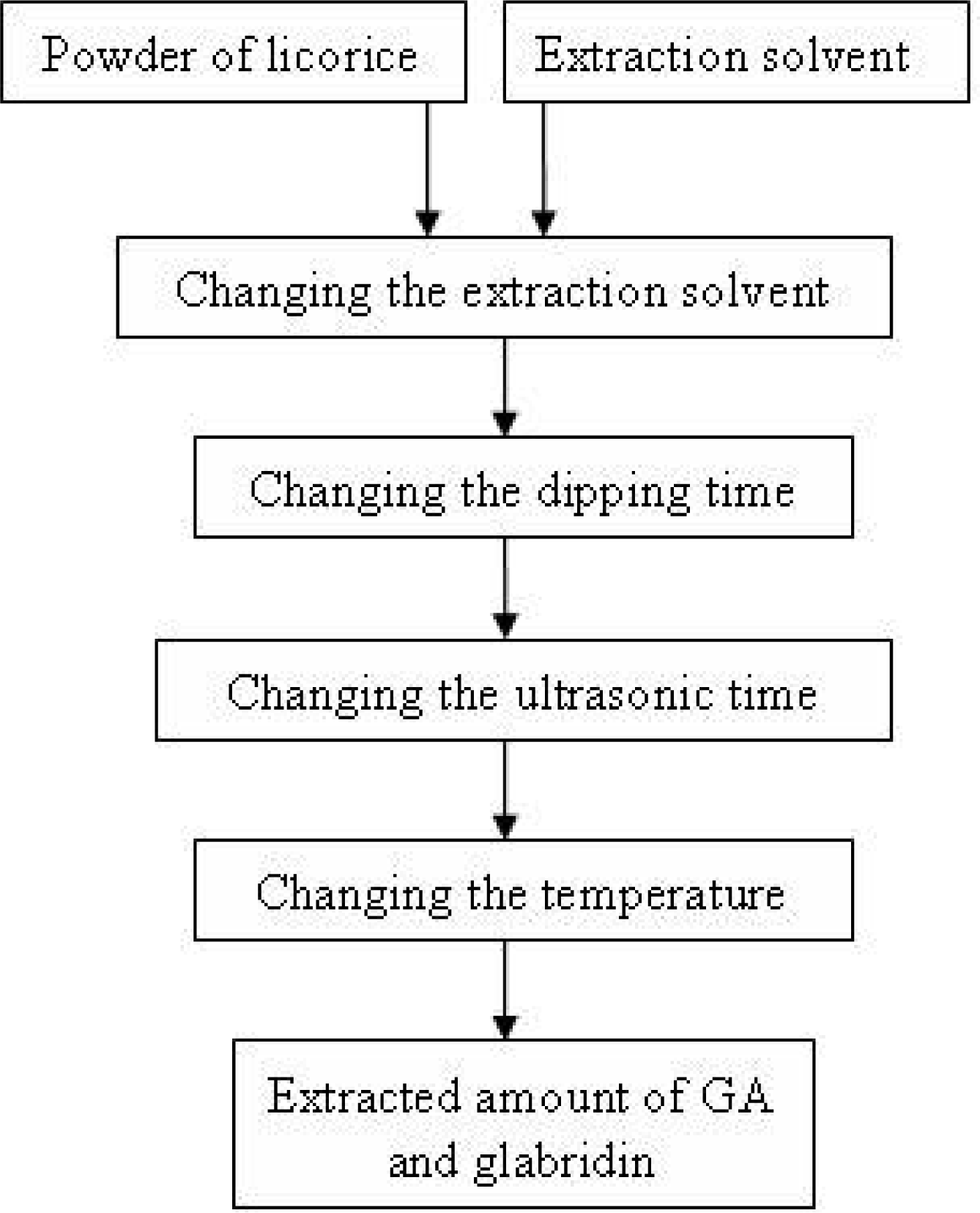

Figure 5. Extraction procedures of GA and glabridin.

Click here to enlarge figure

Figure 5. Extraction procedures of GA and glabridin.
Ijms 09 00571f5 1024
Table Table 1. Extracted amounts of GA and glabridin with different solvents.

Click here to display table

Table 1. Extracted amounts of GA and glabridin with different solvents.
Compounds (mg/g) SolventsGAglabridin
water2.440.18
methanol0.860.72
ethanol0.860.93
acetonitrile*0.006
chloroform**

*not detected

Table Table 2. Extracted amounts of GA and glabridin with different compositions of ethanol/water.

Click here to display table

Table 2. Extracted amounts of GA and glabridin with different compositions of ethanol/water.
Compounds (mg/g) Ethanol/water (v: v)GAglabridin
10:902.440.82
30:702.390.92
50:502.010.92
70:301.530.93
90:101.090.93
Table Table 3. RSDs, Recovery rates and LODs of the two compounds from licorice

Click here to display table

Table 3. RSDs, Recovery rates and LODs of the two compounds from licorice
CompoundsRSD (%)
Recovery rate
LOD (ng/mL)
Intra-dayInter-dayAdded (mg/mL)Recovery (%)RSD (%)
GA0.540.590.588.7%0.66464
0.690.1%
0.890.3%
glabridin0.830.900.0574.5%0.77229
0.0669.9%
0.0773.3%
