Int. J. Mol. Sci. 2008, 9(10), 1944-1960; doi:10.3390/ijms9101944
Published: 20 October 2008
Abstract: Fluorescence in situ hybridization (FISH) is a well-established technique that is used for a variety of purposes, ranging from pathogen detection in clinical diagnostics to the determination of chromosomal stability in stem cell research. The key step of FISH involves the detection of a nucleic acid region and as such, DNA molecules have typically been used to probe for the sequences of interest. However, since the turn of the century, an increasing number of laboratories have started to move on to the more robust DNA mimics methods, most notably peptide and locked nucleic acids (PNA and LNA). In this review, we will cover the state-of-the-art of the different DNA mimics in regard to their application as efficient markers for the presence of individual microbial cells, and consider their potential advantages and pitfalls. Available PNA probes are then reassessed in terms of sensitivity and specificity using rRNA databases. In addition, we also attempt to predict the applicability of DNA mimics in well-known techniques attempting to detect in situ low number of copies of specific nucleic acid sequences such as catalyzed reporter deposition (CARD) and recognition of individual genes (RING) FISH.
1. FISH for Microbial Detection
Conventional in situ hybridization (ISH) is based on the annealing of DNA or RNA molecules to a specific target sequence within a cell. To identify that a successful ISH has occurred, different detection methods have been devised. For instance, in chemiluminescent in situ hybridization (CISH), the nucleic acids are coupled with an enzyme such as soybean peroxidase . This enzyme will then recognize the presence and cleave a chemiluminescent substratum, thereby releasing light that can be captured. More commonly, nucleic acids are attached to a fluorescent label in a technique named as fluorescence in situ hybridization (FISH) . Typical labels include cyanine (e. g. Cy3 and Cy5) and fluorescein molecules, but a novel generation of fluorophore families that includes de Alexa Fluors and of nanosized crystal particles named quantum dots [3, 4], is gaining widespread acceptance. The advantages of these new dyes are based on an increased photostability and brightness. Due to serious methodological problems that affect the robustness of RNA FISH (even though RNA ISH is quite common to target gene expression), hybridization generally occurs employing DNA molecules. FISH is rapidly becoming one of the most well-established molecular biology techniques, with applications on pathogen detection in clinical samples for patient management [5, 6], identification of novel biomarkers for cancer progression [7, 8], characterization of communities structure and diversity of natural habitats [2, 9, 10], determination of genes presence and expression [11, 12] and even chromosomal stability in stem cell research , among many others. In this review, we will focus exclusively on the recent developments of DNA mimics for the identification of microorganisms.
Prior to the analysis of the hybridization results by epifluorescence microscopy or eventually flow cytometry, the FISH method usually comprises three steps – fixation, hybridization and washing. The fixation step involves the application of chemical fixatives, such as formalin, paraformaldehyde and ethanol that are very commonly used in bacterial and human cells [6, 14, 15]. During the hybridization step, temperature, pH, ionic strength and formamide concentrations are all well defined to guarantee that the probe accesses and hybridizes with the target sequence. The washing step ensures that all loosely bound or unbound labelled probes are removed from the sample, hence providing specificity to the detection. After optimization of the hybridization method, it is expected that the probes will only recognize their complementary sequence, hence providing specificity to the method. In general, the probes used for FISH identification target a sequence of the 16S ribosomal RNA in members of the Bacteria or Archaea domain, or the 18S rRNA in members of Eucaryota. The choice of rRNA as a target molecule is related to the abundance of these structures in the cell and to their use as a phylogenetic marker [15, 16]. Ribosome numbers in a single cell range from 102–103 for Mycobacterium tuberculosis to 104–105 for Escherichia coli , which implies that the observed fluorescence intensity is the result of multiple probe labels and is related to ribosomal content [17, 18]. As such, low signal intensity might result from low rRNA content in cells .
In spite of the recent surge in the application of DNA FISH, all of those who have worked with this method are aware that not everything is straightforward in probe design and protocol development. For a start, cell membranes are not always permeable to DNA probes. Consequently, pre-treatment with lysozyme or other proteolytic enzymes may be required, particularly for Gram-positive bacteria [15, 19]. Furthermore, rRNA accessibility due to ribosomal secondary structure might imply increased hybridization times of up to 96 hours , whereas the degradation of the probe by proteases or endonucleases of living cells may also constitute an obstacle to the implementation of this method [21, 22]. Finally, there have also been concerns about the ability of the method to discriminate sequences with single-base mismatches, hence affecting the specificity . Interestingly, the reason why so many DNA probes failed to provide bright signals has been recently related to low affinity between the probe and target, i.e. to the overall Gibbs free energy change (ΔG° overall) involving the rRNA and DNA interactions during FISH . A strategy involving the elongation of DNA probes has subsequently been shown to increase affinity and hence improve the brightness of probes with a ΔG°overall below the threshold of 10–13.5 kcal/mol [20, 24].
With all the problems that have been described associated with DNA FISH, it is no wonder that researchers started to search for alternatives to improve the robustness of this method. The solution appears to have arrived in the form of nucleic acid analogues [25, 26], a new class of molecules that has been originally explored for the regulation of gene expression [27, 28], but that have also found a niche of application on the FISH arena. This new class of molecules is better known as DNA mimics (Figure 1).
2. Emergence of DNA Mimics

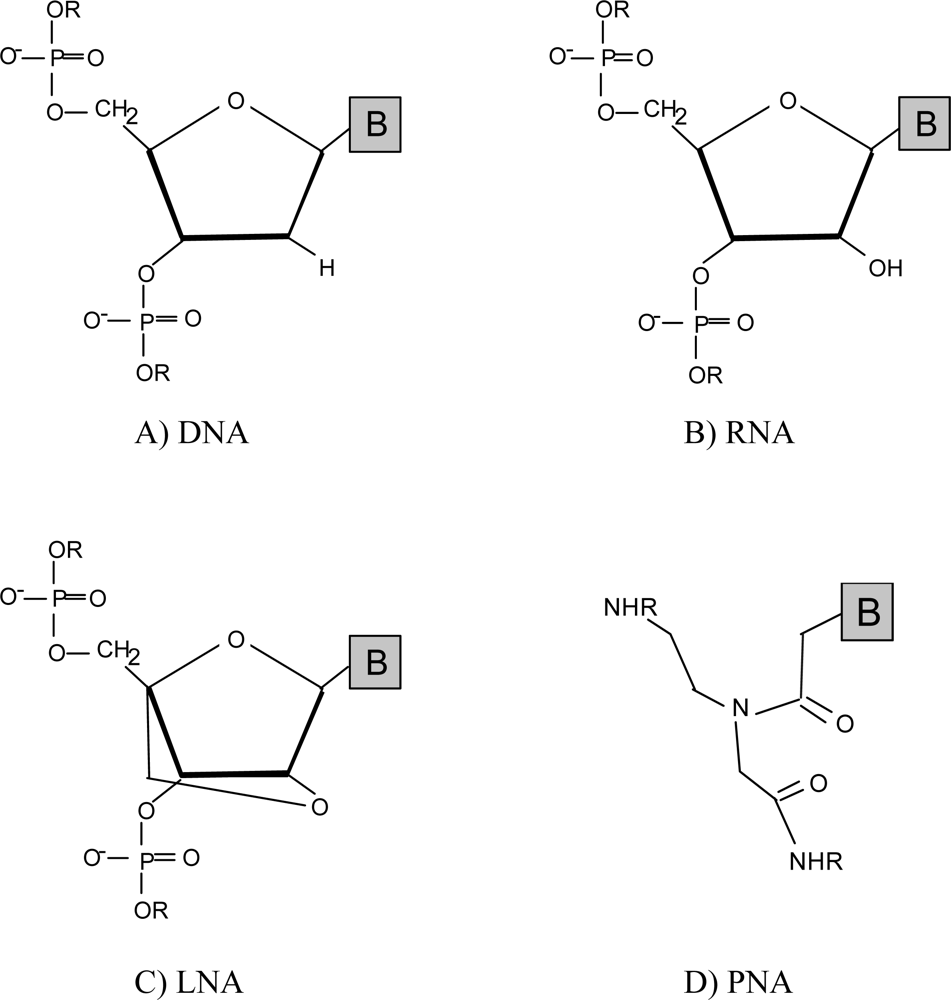

DNA mimics are emerging as very promising molecules for cell detection in environmental and clinical samples. In fact, only two years after the description of the FISH technique by DeLong et al. , Nielsen and co-workers published the design and synthesis of peptide nucleic acids (PNA), one of the first DNA analogues to be published . The value of PNA probes for clinical diagnostics has been very recently established by Forrest et al. [29, 30]. When applying PNA FISH methods for the rapid differentiation of S. aureus from coagulase-negative staphylococci (CoNS) and also for the identification of C. albicans in blood cultures, it was determined that there was a significant reduction in median length of hospital stay and a trend towards less antibiotics usage. Consequently, the application of both methods was found to contribute to a decrease in hospital costs per patient and the assay on C. albicans has been recently cleared by the US FDA as an in vitro diagnostic kit for identification of yeast directly from positive blood cultures .
The number of other DNA mimics that have been reported to potentially have application on FISH procedures has in the meantime risen exponentially. The most common, besides PNA, are locked nucleic acid (LNA)  and 2’-O-methyl (2’-OMe) RNA , but other PNA or LNA-modified molecules have also appeared very recently [e.g. 33, 34–36]. Of these, the two mimics that have been applied for the identification of microorganisms are PNA and LNA [15, 37, 38]. These and other DNA mimics, along with their most relevant characteristics and applications, are described next.
2.1. Peptide nucleic acids (PNA)
PNAs were introduced in FISH studies for the detection of microorganisms during the late 1990s [38–41]. In this DNA mimic, the negatively charged sugar-phosphate backbone of DNA is replaced by a neutral polyamide backbone composed of N-(2-aminoethyl) glycine units (Figure 1) . Because of PNA chemical configuration, the nucleobases are practically positioned in the same place and within the same distance as it occurs to the natural DNA. Consequently, PNA can hybridize with complementary DNA or RNA sequences [23, 42].
The lack of electrostatic repulsion, due to the non-charged nature of the PNA backbone is perhaps the main reason responsible for its properties, such as the improved thermal stability compared with DNA/DNA duplexes [42, 43], which implies that the melting temperature (Tm) for PNA/DNA duplexes is higher than for DNA/DNA. This increased Tm is useful for synthesizing PNA probes that are shorter than most DNA probes. In fact, sequences of approximately 15 bp have been found to be optimal for PNA probes which contrast with probes of 20–24 bp for DNA. As a consequence, the effect on the Tm of a single-base mismatch in a PNA/DNA hybridization will have much more impact than in a DNA/DNA hybridization. This factor has great influence on the higher specificity that PNA exhibits for DNA sequence detection . In addition, hybridization could be performed efficiently under low salt concentrations , a condition that promotes the destabilization of rRNA secondary structures and results in an improved access to target sequences that would be more elusive using conventional FISH [20, 46, 47]. Like for all other synthetic molecules, PNA also denotes an increased resistance to nucleases and proteases [14, 16, 48]. Finally, diffusion through the cell membrane and naturally occurring microstructures such as the EPS biofilm matrix might be easier, even in Gram-positive bacteria, due to the hydrophobic character of PNA as compared to DNA . However, Stender et al. refer the importance of checking for self-complementarity in the design of PNA probes since strong hybridization between PNA complementary sequences can occur .
The past few years have seen a significant increase in the number of published PNA probes. In Table 1, the PNA probes that have been designed until the present moment have been described, along with several characteristics such as specificity and sensitivity. Specificity and sensitivity are two of the most important parameters to take into account during probe design. Specificity is expressed as the percentage of the number of strains of the microorganism of interest detected by the probe divided by the total number of microbial strains detected by the probe. Sensitivity is calculated as the percentage of the number of strains of the microorganism of interest detected by the probe divided by the total number of strains of the microorganism of interest present in the database . To calculate these parameters, the Ribosomal Database Project II (RDP II) and the National Centre for Biotechnology Information (NCBI) was used to assess 16S rRNA targets [49, 50], whereas only the NCBI database was used for 18S, 23S and 26S targets. The accuracy of these results is obviously related to the quality and quantity of the sequences deposited in the database, and will vary with time as databases are being constantly updated.
As expected, the large majority of sequences present in Table 1 present a very high (>90%) theoretical specificity and sensitivity. However, some of the probes do present values that are far from expected. One of the explanations is that some probes might have been designed to detect a specific strain of the microorganism of interest. For instance, Azevedo et al. designed a probe with 100% specificity but only 24% sensitive . However, the primary aim of the researchers was to detect a specific H. pylori strain that was inoculated in a biofilm system in an in vitro study. It was therefore important to have very high specificity, but sensitivity (as defined here) was not that relevant in this case as long as the strain of interest was detected. Other possible explanation is that when the probes were originally designed, the number of available sequences in the databases was lower. In fact, with the increasing number of sequences available, it is easy to foresee a scenario where hardly any probe will be 100% specific. The criterion for the choice of the correct probe should therefore fall on the possibility of finding the non-target microorganisms in the samples that will be analyzed for the microorganism of interest.
Peptide nucleic acids are clearly the most advanced technology in respect to applications in FISH, and the robustness of the method implied that some of the probes are now commercially available to perform in vitro diagnostic tests (http://www.advandx.com). The synthesis of custom PNA probes is accessible via a South Korean company named Panagene (http://www.panagene.com).
2.2. Locked nucleic acids (LNA)
Locked nucleic acid (LNA) is a synthetic RNA derivative in which the ribose is linked to a methylene bridge between 2’-oxigen and 4’-carbon atoms, i.e. formed with 2’-O, 4’-C-methylene-ß-D-ribofuranosyl nucleotides (Figure 1) [32, 52]. The connection encloses the sugar, which is responsible for the new conformation that is preferable for the formation of hybrids with complementary DNA or RNA sequences . In fact, it has been shown by thermal studies that DNA duplexes containing LNA residues have the ability to increase the melting temperature between 2 °C and 10 °C per single LNA nucleotide incorporation [26, 54]. Wahlestedt et al. demonstrated that LNA oligonucleotides have high in vivo efficacy, and hence are very useful in functional genomics and therapeutic applications . As such, these oligonucleotides have so far found more utility in antisense studies rather in FISH methodologies [26, 28].
Typically, FISH probes incorporate only few LNA nucleotides into a DNA strand, compensating the increased affinity of the new strand by a decrease in the number of base pairs used on the probe. Due to strong thermal stability, LNA may self-anneal, being difficult to design, but a web site is available with a help designing tool (www.exiqon.com) . As for PNA, it is important to design LNA probes without extensive self-complementary sequences or applying chimeric LNAs. Equally, this DNA mimic is not susceptible to nucleases, which means that it is optimal when applied in living cell protocols .
LNA technology is only now providing the first steps towards application for rapid identification of microorganisms . Nevertheless, applications of LNA in FISH technology for the detection of human miRNA and mRNA [56, 57], together with studies that report increased fluorescence intensities of probes after the substitution of DNA bases by LNA bases [37, 58], indicate that this technology also holds great promise.
2.3. Other mimics
2’-OMe RNA, 2’-deoxy-2’-fluoro-ß-d-ribonucleic acid (2’-F RNA) and morpholinos are three other common backbone modified structures that might be important for the development of future in situ hybridization procedures. Adding to these, numerous PNA and LNA-based molecules have been developed. Due to their synthetic nature, they all possess increased resistance to enzymes such as nucleases.
2’-OMe RNA probes have demonstrated high affinity, increased specificity and capacity to bind RNA target sequences [59, 60]. In fact, these probes form more stable complexes with complementary RNA sequences than natural DNA and RNA oligonucleotides . This efficient hybridization combined with its chemical structure may lead to the utilization of these polymers in many antisense applications [62, 63]. Even though 2’-OMe RNA probes have never been employed in micro-organisms, they have already found application for RNA detection in living eukaryotic cells [60, 64].
The chemical structure of 2’-F RNA is very similar to that of RNA, where the 2’-OH group is replaced by a fluorine . Hybridization analysis demonstrated that 2’-F RNA hybridized with greater affinity to RNA than 2’-OMe RNA [65, 66]. In 2’-F RNA the Δ Tm increases the more 2’-F RNA bases are incorporated in the probe, i.e., the bigger the 2’-F RNA sequence is, the higher the Tm. However, applications in FISH have been hindered by the difficulty and high cost of synthesis of this molecule.
Morpholinos [e.g. 67, 68–71], PNA-based backbones or monomers such as trans-4-hydroxy-N-acetylpyrrolidine-2-phosphonate (PHypNAs) and trans-4-hydroxy-l-proline (HypNA-pPNAs) [72–74] and LNA-based molecules such as phosphorothiolate-LNA and 2’-thio-LNA [75–79] are other chemically synthesised molecules with similar structures to that of DNA/RNA. Up until now, they have been primarily tested for antisense therapy, but their structure might also lead for applications in FISH procedures. It is therefore to be expected that the future will bring a range of new molecules with capacity of detecting cells by FISH, bringing possible benefits to the robustness of the technique.
3. Conclusions and Future Work
Before the appearance of DNA mimics, FISH techniques employed natural DNA molecules to perform hybridizations. By now, DNA mimics have unequivocally proved that they might contribute to improve the robustness of the method. Their main advantages include resistance to the attack of enzymes due to their synthetic nature; higher affinity for RNA sequences with a lower number of base pairs, which leads not only to more successful hybridizations but also to easier discrimination of single-base mismatches; and for certain mimics such as PNA, hybridization under low salt conditions allow unrestricted access to the full sequence of rRNA. This begs the question: Why have DNA mimics failed so far to impose themselves over standard DNA methods? The answer is threefold: First of all, not all microbiology laboratories are aware of these technologies, and when they are, it is not always easy to identify the companies or research groups that might provide you with the desired probe and know-how; Secondly, most of the probes have costs many times higher than those associated with DNA probes; Finally, the status of research for DNA probes is many years ahead than that of most DNA mimics. As a consequence, there is a general lack of information on some basic thermodynamic properties. For instance, whereas the estimation of hybridization temperature is quite straightforward for DNA probes in different hybridization solutions [80, 81], all other mimics, arguably with the exception of PNA , have little data available. Before imposing DNA mimics-based procedures as the methods of excellence for the whole-cell detection of microorganisms in different settings, these issues need addressing.
In the future, the robustness of DNA mimics methods might improve the application of multiplex procedures, where various species are targeted with different probes at the same time. In fact, Perry-O’Keefe et al. developed a new PNA FISH procedure for the simultaneous detection of both Gram-negative and Gram-positive species, something never accomplished using DNA probes . The use of DNA mimics to perform FISH in living cells could be another major area of application but it also appears to be a trickier one, because of all the deleterious processes that the cells undergo during the fixation, hybridization and washing steps. Besides having to support relatively high temperatures, cells will have to support the toxicity of compounds present in the solutions, such as paraformaldehyde and ethanol in the fixation step. So far, hybridization of unfixed cells as been accomplished , but there are serious questions over whether these cells remained viable during the whole hybridization process . Nevertheless, with a battery of DNA mimics available, the chances of developing an experiment where the adverse effects of the hybridization process might be overcome are multiplied.
Finally, DNA mimics might also be of use for the detection of low-copy genomic sequences in the chromosome. Using DNA probes, techniques such as catalyzed reporter deposition (CARD) FISH , recognition of individual genes (RING) FISH  and rolling circle amplification  have tried to solve this problem. In CARD FISH, the enzyme horseradish peroxidase is covalently crosslinked to a nucleic acid probe, and if the probe hybridizes, the enzyme will be present inside the cell. When fluorescently-labelled tyramide is added, the enzyme will induce the deposition of these molecules by peroxidase activity. The major shortcoming of this technique is the large size of the enzyme, which means that damaging permeabilization procedures are necessary. Whereas the application of DNA mimics in this method is not expected to significantly affect the entry of the labelled probe, the increased specificity and sensitivity of these analogs might be very useful for the detection of single nucleotide polymorphisms (SNP). So far, only DNA CARD FISH has been attempted, but enzymes coupled with PNA are already accessible via Panagene. RING FISH is based on the hybridization of multiple-labelled probes (one labelled nucleotide every 10–20 bp) that usually have more than two hundred bases length. The probe then anchors other probes that in turn form a network around the cell periphery and emit an halo of fluorescence . As the probe is particularly long, the incorporation of LNA residues would likely improve the specificity and sensitivity of the method. Even though PNA might minimize the membrane permeabilization issue, it is not clear how would such a long PNA probe behave on this method. On rolling circle amplification, the use of DNA mimics as probes seems to be of little use, as the method requires an amplification step mediated by the enzyme DNA-polymerase. Interestingly, the method does use PNA molecules to open the double helix configuration of DNA .
Due to their special chemical features, DNA mimics-based methods are expected to play a very important role in cell and gene detection in clinical and environmental samples in the future. The real challenge will be to determine the best nucleic acid for each specific case/method. Even though the chemistry of the molecules will allow us to take some theoretical assumptions, there are many uncertainties on how DNA mimics behave under most conditions. As such, new reliable and systematic screening protocols that compare all these different molecules – both biological and synthetic – should be developed.
This work was supported by the Portuguese Institute Fundação para a Ciência e Tecnologia (Post-Doc Fellowship SFRH/BPD/20484/2004 and PhD grants SFRH/BD/38124/2007 and SFRH/BD/29297/2006).
References and Notes
- Kricka, LJ. Stains, labels and detection strategies for nucleic acids assays. Ann. Clin. Biochem. 2002, 39, 114–129.
- Amann, R; Fuchs, BM. Single-cell identification in microbial communities by improved fluorescence in situ hybridization techniques. Nat. Rev. Microbiol 2008, 6, 339–348.
- Michalet, X; Pinaud, FF; Bentolila, LA; Tsay, JM; Doose, S; Li, JJ; Sundaresan, G; Wu, AM; Gambhir, SS; Weiss, S. Quantum dots for live cells, in vivo imaging, and diagnostics. Science 2005, 307, 538–544.
- Berlier, JE; Rothe, A; Buller, G; Bradford, J; Gray, DR; Filanoski, BJ; Telford, WG; Yue, S; Liu, J; Cheung, CY; Chang, W; Hirsch, JD; Beechem, JM; Haugland, RP. Quantitative comparison of long-wavelength Alexa Fluor dyes to Cy dyes: Fluorescence of the dyes and their bioconjugates. J. Histochem. Cytochem. 2003, 51, 1699–1712.
- Barken, KB; Haagensen, JA; Tolker-Nielsen, T. Advances in nucleic acid-based diagnostics of bacterial infections. Clin. Chim. Acta 2007, 384, 1–11.
- Guimaraes, N; Azevedo, NF; Figueiredo, C; Keevil, CW; Vieira, MJ. Development and application of a novel peptide nucleic acid probe for the specific detection of Helicobacter pylori in gastric biopsy specimens. J. Clin. Microbiol 2007, 45, 3089–3094.
- Bayani, J; Squire, JA. Application and interpretation of FISH in biomarker studies. Cancer Lett 2007, 249, 97–109.
- Arentsen, HC; de la Rosette, JJ; de Reijke, TM; Langbein, S. Fluorescence in situ hybridization: A multitarget approach in diagnosis and management of urothelial cancer. Expert. Rev. Mol. Diagn. 2007, 7, 11–19.
- Sanz, JL; Kochling, T. Molecular biology techniques used in wastewater treatment: An overview. Process Biochem 2007, 42, 119–133.
- Rogers, SW; Moorman, TB; Ong, SK. Fluorescent in situ hybridization and micro-autoradiography applied to ecophysiology in soil. Soil Sci. Soc. Amer. J. 2007, 71, 620–631.
- Dmochowski, IJ; Tang, XJ. Taking control of gene expression with light-activated oligonucleotides. Biotechniques 2007, 43, 161–171.
- Miyauchi, R; Oki, K; Aoi, Y; Tsuneda, S. Diversity of nitrite reductase genes in “Candidatus Accumulibacter phosphatis”-dominated cultures enriched by flow-cytometric sorting. Appl. Environ. Microbiol. 2007, 73, 5331–5337.
- Catalina, P; Cobo, F; Cortes, JL; Nieto, AI; Cabrera, C; Montes, R; Concha, A; Menendez, P. Conventional and molecular cytogenetic diagnostic methods in stem cell research: A concise review. Cell Biol. Int. 2007, 31, 861–869.
- Wagner, M; Horn, M; Daims, H. Fluorescence in situ hybridisation for the identification and characterisation of prokaryotes. Curr. Opin. Microbiol. 2003, 6, 302–309.
- Silverman, AP; Kool, ET. Oligonucleotide probes for RNA-targeted fluorescence in situ hybridization. Adv. Clin. Chem 2007, 43, 79–115.
- Stender, H; Fiandaca, M; Hyldig-Nielsen, JJ; Coull, J. PNA for rapid microbiology. J. Microbiol. Methods 2002, 48, 1–17.
- Delong, EF; Wickham, GS; Pace, NR. Phylogenetic Stains - Ribosomal RNA-Based Probes for the Identification of Single Cells. Science 1989, 243, 1360–1363.
- Pernthaler, A; Pernthaler, J; Amann, R. Fluorescence in situ hybridization and catalyzed reporter deposition for the identification of marine bacteria. Appl. Environ. Microbiol. 2002, 68, 3094–3101.
- Wagner, M; Schmid, M; Juretschko, S; Trebesius, KH; Bubert, A; Goebel, W; Schleifer, KH. In situ detection of a virulence factor mRNA and 16S rRNA in Listeria monocytogenes. FEMS Microbiol. Lett 1998, 160, 159–168.
- Yilmaz, LS; Okten, HE; Noguera, DR. Making all parts of the 16S rRNA of Escherichia coli accessible in situ to single DNA oligonucleotides. Appl. Environ. Microbiol. 2006, 72, 733–744.
- Yazbeck, DR; Min, KL; Damha, MJ. Molecular requirements for degradation of a modified sense RNA strand by Escherichia coli ribonuclease H1. Nucleic Acids Res 2002, 30, 3015–3025.
- Cummins, LL; Owens, SR; Risen, LM; Lesnik, EA; Freier, SM; Mcgee, D; Guinosso, CJ; Cook, PD. Characterization of fully 2’-modified oligoribonucleotide heteroduplex and homoduplex hybridization and nuclease sensitivity. Nucleic Acids Res. 1995, 23, 2019–2024.
- Shakeel, S; Karim, S; Ali, A. Peptide nucleic acid (PNA) - a review. J. Chem. Technol. Biotechnol. 2006, 81, 892–899.
- Yilmaz, LS; Noguera, DR. Mechanistic approach to the problem of hybridization efficiency in fluorescent in situ hybridization. Appl. Environ. Microbiol. 2004, 70, 7126–7139.
- Nielsen, PE; Egholm, M; Berg, RH; Buchardt, O. Sequence-selective recognition of DNA by strand displacement with a thymine-substituted polyamide. Science 1991, 254, 1497–1500.
- Petersen, M; Wengel, J. LNA: A versatile tool for therapeutics and genomics. Trends Biotechnol 2003, 21, 74–81.
- Hanvey, JC; Peffer, NJ; Bisi, JE; Thomson, SA; Cadilla, R; Josey, JA; Ricca, DJ; Hassman, CF; Bonham, MA; Au, KG; Carter, SG; Bruckenstein, DA; Boyd, AL; Noble, SA; Babiss, LE. Antisense and Antigene Properties of Peptide Nucleic-Acids. Science 1992, 258, 1481–1485.
- Wahlestedt, C; Salmi, P; Good, L; Kela, J; Johnsson, T; Hokfelt, T; Broberger, C; Porreca, F; Lai, J; Ren, KK; Ossipov, M; Koshkin, A; Jakobsen, N; Skouv, J; Oerum, H; Jacobsen, MH; Wengel, J. Potent and nontoxic antisense oligonucleotides containing locked nucleic acids. Proc. Natl. Acad. Sci. USA 2000, 97, 5633–5638.
- Forrest, GN; Mehta, S; Weekes, E; Lincalis, DP; Johnson, JK; Venezia, RA. Impact of rapid in situ hybridization testing on coagulase-negative staphylococci positive blood cultures. J. Antimicrob. Chemother 2006, 58, 154–158.
- Forrest, GN; Mankes, K; Jabra-Rizk, MA; Weekes, E; Johnson, JK; Lincalis, DP; Venezia, RA. Peptide nucleic acid fluorescence in situ hybridization-based identification of Candida albicans and its impact on mortality and antifungal therapy costs. J. Clin. Microbiol. 2006, 44, 3381–3383.
- Shepard, JR; Addison, RM; Alexander, BD; Della-Latta, P; Gherna, M; Haase, G; Hall, G; Johnson, JK; Merz, WG; Peltroche-Llacsahuanga, H; Stender, H; Venezia, RA; Wilson, D; Procop, GW; Wu, F; Fiandaca, MJ. Multicenter evaluation of the Candida albicans/Candida glabrata peptide nucleic acid fluorescent in situ hybridization method for simultaneous dual-color identification of C. albicans and C. glabrata directly from blood culture bottles. J. Clin. Microbiol 2008, 46, 50–55.
- Koshkin, AA; Nielsen, P; Meldgaard, M; Rajwanshi, VK; Singh, SK; Wengel, J. LNA (locked nucleic acid): An RNA mimic forming exceedingly stable LNA : LNA duplexes. J. Am. Chem. Soc. 1998, 120, 13252–13253.
- Shirude, PS; Kumar, VA; Ganesh, KN. (2S,5R/2R,5S)-aminoethylpipecolyl aepip-aegPNA chimera: synthesis and duplex/triplex stability. Tetrahedron 2004, 60, 9485–9491.
- Corradini, R; Sforza, S; Tedeschi, T; Totsingan, F; Marchelli, R. Peptide nucleic acids with a structurally biased backbone: Effects of conformational constraints and stereochemistry. Curr. Top. Med. Chem. 2007, 7, 681–694.
- Jensen, J; Sjogren, G; Hansen, JB; Rosenbohm, C; Koch, T. Synthesis and biological evaluation of LNA phosphoramidates. Nucleos. Nucleot. Nucleic Acids 2008, 27, 37–42.
- Sharma, PK; Kumar, S; Nielsen, P. Synthesis of a branched locked nucleic acid (LNA) analogue. Nucleos. Nucleot. Nucleic Acids 2007, 26, 1505–1508.
- Kubota, K; Ohashi, A; Imachi, H; Harada, H. Improved in situ hybridization efficiency with locked-nucleic-acid-incorporated DNA probes. Appl. Environ. Microbiol 2006, 72, 5311–5317.
- Stender, H; Mollerup, TA; Lund, K; Petersen, KH; Hongmanee, P; Godtfredsen, SE. Direct detection and identification of Mycobacterium tuberculosis in smear-positive sputum samples by fluorescence in situ hybridization (FISH) using peptide nucleic acid (PNA) probes. Int. J. Tuberc. Lung Dis 1999, 3, 830–837.
- Stender, H; Broomer, A; Oliveira, K; Perry-O’Keefe, H; Hyldig-Nielsen, JJ; Sage, A; Young, B; Coull, J. Rapid detection, identification, and enumeration of Pseudomonas aeruginosa in bottled water using peptide nucleic acid probes. J. Microbiol. Methods 2000, 42, 245–253.
- Drobniewski, FA; More, PG; Harris, GS. Differentiation of Mycobacterium tuberculosis complex and nontuberculous mycobacterial liquid cultures by using peptide nucleic acid-fluorescence in situ hybridization probes. J. Clin. Microbiol 2000, 38, 444–447.
- Prescott, AM; Fricker, CR. Use of PNA oligonucleotides for the in situ detection of Escherichia coli in water. Mol. Cell. Probes 1999, 13, 261–268.
- Nielsen, PE. Peptide nucleic acid: a versatile tool in genetic diagnostics and molecular biology. Curr. Opin. Biotechnol. 2001, 12, 16–20.
- Perry-O’Keefe, H; Rigby, S; Oliveira, K; Sorensen, D; Stender, H; Coull, J; Hyldig-Nielsen, JJ. Identification of indicator microorganisms using a standardized PNA FISH method. J. Microbiol. Methods 2001, 47, 281–292.
- Lomakin, A; Frank-Kamenetskii, MD. A theoretical analysis of specificity of nucleic acid interactions with oligonucleotides and peptide nucleic acids (PNAs). J. Mol. Biol. 1998, 276, 57–70.
- Orum, H; Nielsen, PE; Jorgensen, M; Larsson, C; Stanley, C; Koch, T. Sequence-Specific Purification of Nucleic-Acids by PNA-Controlled Hybrid Selection. Biotechniques 1995, 19, 472–480.
- Fuchs, BM; Syutsubo, K; Ludwig, W; Amann, R. In situ accessibility of Escherichia coli 23S rRNA to fluorescently labeled oligonucleotide probes. Appl. Environ. Microbiol 2001, 67, 961–968.
- Fuchs, BM; Wallner, G; Beisker, W; Schwippl, I; Ludwig, W; Amann, R. Flow cytometric analysis of the in situ accessibility of Escherichia coli 16S rRNA for fluorescently labeled oligonucleotide probes. Appl. Environ. Microbiol 1998, 64, 4973–4982.
- Demidov, VV; Potaman, VN; Frank-Kamenetskii, MD; Egholm, M; Buchard, O; Sonnichsen, SH; Nielsen, PE. Stability of peptide nucleic acids in human serum and cellular extracts. Biochem. Pharmacol. 1994, 48, 1310–1313.
- Cole, JR; Chai, B; Farris, RJ; Wang, Q; Kulam, SA; McGarrell, DM; Garrity, GM; Tiedje, JM. The Ribosomal Database Project (RDP-II): Sequences and tools for high-throughput rRNA analysis. Nucleic Acids Res 2005, 33, D294–D296.
- McGinnis, S; Madden, TL. BLAST: At the core of a powerful and diverse set of sequence analysis tools. Nucleic Acids Res 2004, 32, W20–W25.
- Azevedo, NF; Vieira, MJ; Keevil, CW. Establishment of a continuous model system to study Helicobacter pylori survival in potable water biofilms. Water Sci. Technol 2003, 47, 155–160.
- Vester, B; Wengel, J. LNA (Locked nucleic acid): High-affinity targeting of complementary RNA and DNA. Biochemistry 2004, 43, 13233–13241.
- Demidov, VV. PNA and LNA throw light on DNA. Trends Biotechnol 2003, 21, 4–7.
- Kauppinen, S; Vester, B; Wengel, J. Locked nucleic acid: high-affinity targeting of complementary RNA for RNomics. Handb. Exp. Pharmacol. 2006, 173, 405–422.
- Darfeuille, F; Hansen, JB; Orum, H; Primo, CD; Toulme, JJ. LNA/DNA chimeric oligomers mimic RNA aptamers targeted to the TAR RNA element of HIV-1. Nucleic Acids Res 2004, 32, 3101–3107.
- Kloosterman, WP; Wienholds, E; de Bruijn, E; Kauppinen, S; Plasterk, RH. In situ detection of miRNAs in animal embryos using LNA-modified oligonucleotide probes. Nat. Methods 2006, 3, 27–29.
- Silahtaroglu, AN; Tommerup, N; Vissing, H. FISHing with locked nucleic acids (LNA): evaluation of different LNA/DNA mixmers. Mol. Cell. Probes 2003, 17, 165–169.
- Thomsen, R; Nielsen, PS; Jensen, TH. Dramatically improved RNA in situ hybridization signals using LNA-modified probes. RNA 2005, 11, 1745–1748.
- Pitts, AE; Corey, DR. Inhibition of human telomerase by 2 ‘-O-methyl-RNA. Proc. Natl. Acad. Sci. USA 1998, 95, 11549–11554.
- Majlessi, M; Nelson, NC; Becker, MM. Advantages of 2 ‘-O-methyl oligoribonucleotide probes for detecting RNA targets. Nucleic Acids Res. 1998, 26, 2224–2229.
- Tsourkas, A; Behlke, MA; Bao, G. Hybridization of 2 ‘-O-methyl and 2 ‘-deoxy molecular beacons to RNA and DNA targets. Nucleic Acids Res. 2002, 30, 5168–5174.
- Lamond, AI; Sproat, BS. Antisense oligonucleotides made of 2’-o-alkylrna - their properties and applications in rna biochemistry. FEBS Lett 1993, 325, 123–127.
- Sproat, BS. Chemistry and Applications of Oligonucleotide Analogs. J. Biotechnol. 1995, 41, 221–238.
- Molenaar, C; Marras, SA; Slats, JCM; Truffert, JC; Lemaitre, M; Raap, AK; Dirks, RW; Tanke, HJ. Linear 2’ O-Methyl RNA probes for the visualization of RNA in living cells. Nucleic Acids Res. 2001, 29, E89–E99.
- Monia, BP; Lesnik, EA; Gonzalez, C; Lima, WF; Mcgee, D; Guinosso, CJ; Kawasaki, AM; Cook, PD; Freier, SM. Evaluation of 2’-modified oligonucleotides containing 2’-deoxy gaps as antisense inhibitors of gene-expression. J. Biol. Chem. 1993, 268, 14514–14522.
- Kawasaki, AM; Casper, MD; Freier, SM; Lesnik, EA; Zounes, MC; Cummins, LL; Gonzalez, C; Cook, PD. Uniformly modified 2’-deoxy-2’-fluoro phosphorothioate oligonucleotides as nuclease-resistant antisense compounds with high-affinity and specificity for rna targets. J. Med. Chem. 1993, 36, 831–841.
- Summerton, J. Morpholino antisense oligomers: the case for an RNase H-independent structural type. Biochim. Biophys. Acta 1999, 1489, 141–158.
- Ge, Q; Pastey, M; Kobasa, D; Puthavathana, P; Lupfer, C; Bestwick, RK; Iversen, PL; Chen, J; Stein, DA. Inhibition of multiple subtypes of influenza A virus in cell cultures with morpholino oligomers. Antimicrob. Agents Chemother. 2006, 50, 3724–3733.
- Deas, TS; Bennett, CJ; Jones, SA; Tilgner, M; Ren, P; Behr, MJ; Stein, DA; Iversen, PL; Kramer, LD; Bernard, KA; Shi, PY. In vitro resistance selection and in vivo efficacy of morpholino oligomers against West Nile virus. Antimicrob. Agents Chemother. 2007, 51, 2470–2482.
- Tilley, LD; Hine, OS; Kellogg, JA; Hassinger, JN; Weller, DD; Iversen, PL; Geller, BL. Gene-specific effects of antisense phosphorodiamidate morpholino oligomer-peptide conjugates on Escherichia coli and Salmonella enterica serovar typhimurium in pure culture and in tissue culture. Antimicrob. Agents Chemother 2006, 50, 2789–2796.
- Klee, EW; Shim, KJ; Pickart, MA; Ekker, SC; Ellis, LB. AMOD: A morpholino oligonucleotide selection tool. Nucleic Acids Res 2005, 33, W506–W511.
- Efimov, VA; Birikh, KR; Staroverov, DB; Lukyanov, SA; Tereshina, MB; Zaraisky, AG; Chakhmakhcheva, OG. Hydroxyproline-based DNA mimics provide an efficient gene silencing in vitro and in vivo. Nucleic Acids Res. 2006, 34, 2247–2257.
- Efimov, VA; Buryakova, AA; Chakhmakhcheva, OG. Synthesis of polyacrylamides N-substituted with PNA-like oligonucleotide mimics for molecular diagnostic applications. Nucleic Acids Res. 1999, 27, 4416–4426.
- Efimov, VA; Choob, MV; Buryakova, AA; Kalinkina, AL; Chakhmakhcheva, OG. Synthesis and evaluation of some properties of chimeric oligomers containing PNA and phosphono-PNA residues. Nucleic Acids Res 1998, 26, 566–575.
- Fluiter, K; Frieden, M; Vreijling, J; Rosenbohm, C; De Wissel, MB; Christensen, SM; Koch, T; Orum, H; Baas, F. On the in vitro and in vivo properties of four locked nucleic acid nucleotides incorporated into an anti-H-Ras antisense oligonucleotide. Chembiochem 2005, 6, 1104–1109.
- Rosenbohm, C; Christensen, SM; Sorensen, MD; Pedersen, DS; Larsen, LE; Wengel, J; Koch, T. Synthesis of 2’-amino-LNA: a new strategy. Org. Biomol. Chem. 2003, 1, 655–663.
- Sorensen, MD; Kvaerno, L; Bryld, T; Hakansson, AE; Verbeure, B; Gaubert, G; Herdewijn, P; Wengel, J. Alpha-L-ribo-configured locked nucleic acid (alpha-L-LNA): Synthesis and properties. J. Am. Chem. Soc. 2002, 124, 2164–2176.
- Kumar, R; Singh, SK; Koshkin, AA; Rajwanshi, VK; Meldgaard, M; Wengel, J. The first analogues of LNA (locked nucleic acids): phosphorothioate-LNA and 2’-thio-LNA. Bioorg. Med. Chem. Lett. 1998, 8, 2219–2222.
- Hakansson, AE; Koshkin, AA; Sorensen, MD; Wengel, J. Convenient syntheses of 7-hydroxy-1-(hydroxymethyl)-3-(thymin-1-yl)-2,5-dioxabicyclo. J. Org. Chem 2000, 65, 5161–5166.
- SantaLucia, J; Hicks, D. The thermodynamics of DNA structural motifs. Annu. Rev. Biophys. Biomol. Struct. 2004, 33, 415–440.
- SantaLucia, J; Allawi, HT; Seneviratne, A. Improved nearest-neighbor parameters for predicting DNA duplex stability. Biochem 1996, 35, 3555–3562.
- Giesen, U; Kleider, W; Berding, C; Geiger, A; Orum, H; Nielsen, PE. A formula for thermal stability (Tm) prediction of PNA/DNA duplexes. Nucleic Acids Res 1998, 26, 5004–5006.
- Silverman, AP; Kool, ET. Quenched autoligation probes allow discrimination of live bacterial species by single nucleotide differences in rRNA. Nucleic Acids Res 2005, 33, 4978–4986.
- Zwirglmaier, K; Ludwig, W; Schleifer, KH. Recognition of individual genes in a single bacterial cell by fluorescence in situ hybridization - RING-FISH. Mol. Microbiol 2004, 51, 89–96.
- Smolina, I; Lee, C; Frank-Kamenetskii, M. Detection of low-copy-number genomic DNA sequences in individual bacterial cells by using peptide nucleic acid-assisted rolling-circle amplification and fluorescence in situ hybridization. Appl. Environ. Microbiol 2007, 73, 2324–2328.
- Rigby, S; Procop, GW; Haase, G; Wilson, D; Hall, G; Kurtzman, C; Oliveira, K; Von Oy, S; Hyldig-Nielsen, JJ; Coull, J; Stender, H. Fluorescence in situ hybridization with peptide nucleic acid probes for rapid identification of Candida albicans directly from blood culture bottles. J. Clin. Microbiol. 2002, 40, 2182–2186.
- Oliveira, K; Haase, G; Kurtzman, C; Hyldig-Nielsen, JJ; Stender, H. Differentiation ofCandida albicans and Candida dubliniensis by fluorescent in situ hybridization with peptide nucleic acid probes. J. Clin. Microbiol. 2001, 39, 4138–4141.
- Stender, H; Kurtzman, C; Hyldig-Nielsen, JJ; Sorensen, D; Broomer, A; Oliveira, K; Perry-O’ Keefe, H; Sage, A; Young, B; Coull, J. Identification of Dekkera bruxellensis (Brettanomyces) from wine by fluorescence in situ hybridization using peptide nucleic acid probes. Appl. Environ. Microbiol. 2001, 67, 938–941.
- Perry-O’ Keefe, H; Stender, H; Broomer, A; Oliveira, K; Coull, J; Hyldig-Nielsen, JJ. Filter-based PNA in situ hybridization for rapid detection, identification and enumeration of specific microorganisms. J. Appl. Microbiol 2001, 90, 180–189.
- Radwanska, M; Magez, S; Perry-O’Keefe, H; Stender, H; Coull, J; Sternberg, JM; Buscher, P; Hyldig-Nielsen, JJ. Direct detection and identification of African trypanosomes by fluorescence in situ hybridization with peptide nucleic acid probes. J. Clin. Microbiol 2002, 40, 4295–4297.
- Lehtola, MJ; Loades, CJ; Keevil, CW. Advantages of peptide nucleic acid oligonucleotides for sensitive site directed 16S rRNA fluorescence in situ hybridization (FISH) detection of Campylobacter jejuni, Campylobacter coli and Campylobacter lari. J. Microbiol. Methods 2005, 62, 211–219.
- Juhna, T; Birzniece, D; Larsson, S; Zulenkovs, D; Sharipo, A; Azevedo, NF; Menard-Szczebara, F; Castagnet, S; Feliers, C; Keevil, CW. Detection of Escherichia coli in biofilms from pipe samples and coupons in drinking water distribution networks. Appl. Environ. Microbiol. 2007, 73, 7456–7464.
- Bragança, SM; Azevedo, NF; Simoes, LC; Keevil, CW; Vieira, MJ. Use of fluorescent in situ hybridisation for the visualisation of Helicobacter pylori in real drinking water biofilms. Water Sci. Technol. 2007, 55, 387–393.
- Sogaard, M; Hansen, DS; Fiandaca, MJ; Stender, H; Schonheyder, HC. Peptide nucleic acid fluorescence in situ hybridization for rapid detection of Klebsiella pneumoniae from positive blood cultures. J. Med. Microbiol 2007, 56, 914–917.
- Wilks, SA; Keevil, CW. Targeting species-specific low-affinity 16S rRNA binding sites by using peptide nucleic acids for detection of legionellae in biofilms. Appl. Environ. Microbiol 2006, 72, 5453–5462.
- Brehm-Stecher, BF; Hyldig-Nielsen, JJ; Johnson, EA. Design and evaluation of 16S rRNA-targeted peptide nucleic acid probes for whole-cell detection of members of the genus Listeria. Appl. Environ. Microbiol. 2005, 71, 5451–5457.
- Lefmann, M; Schweickert, B; Buchholz, P; Gobel, UB; Ulrichs, T; Seiler, P; Theegarten, D; Moter, A. Evaluation of peptide nucleic acid-fluorescence in situ hybridization for identification of clinically relevant mycobacteria in clinical specimens and tissue sections. J. Clin. Microbiol. 2006, 44, 3760–3767.
- Lehtola, MJ; Torvinen, E; Miettinen, LT; Keevil, CW. Fluorescence in situ hybridization using peptide nucleic acid probes for rapid detection of Mycobacterium avium subsp avium and Mycobacterium avium subsp paratuberculosis in potable-water biofilms. Appl. Environ. Microbiol 2006, 72, 848–853.
|Table 1. PNA probes already described in the literature together with some of their most important characteristics.|
|Microorganism||Sequence (5'–3')||Target||GC Content (%)||Hybridization temperature (°C)/solvent concentration||Specificity (%)||Sensitivity (%)||Ref.|
|C. albicans||AGAGAGCAGCATGCA||26S||53||55°C / 30% DMF||96||46|||
|C. albicans||ACAGCAGAAGCCGTG||26S||60||50°C / 30% DMF||91||70|||
|C. dubliniensis||TAGCCAGAAGAAAGG||18S||47||50°C / 30% DMF||100||4|||
|D. bruxellensis||CGGTCTCCAGCGATT||26S||60||50°C / 50% DMF or 50°C / 30% DMF||100||85|||
|Eucarya||ACCAGACTTGCCCTC||18S||60||55°C/ 0.5% (w/v) SDS 50°C/50% DMF||N.D.||N.D.||[43, 89]|
|S. cerevisae||TTACCGAGGCAAGCT||18S||53||50°C / 50% DMF||N.D.||N.D.|||
|T. subgenus A||CGGAACCCAGCCA||18S||69||45°C / 30% DMF||N.D.||N.D.|||
|T. subgenus A||GTTGCCACCAGCAGT||18S||60||45°C / 30% DMF||N.D.||N.D.|||
|T. genus B||GCCCTAACAGGTGTG||18S||60||55°C / 30% DMF||N.D.||N.D.|||
|Z. bailii||CGAGCGAAACGCCTG||18S||67||50°C / 50% DMF||5||50|||
|C. coli, C. jejuni and C. lari||CCCTACTCAACTTGT||16S||47||50°C / 30% DMF||100||91|||
|E. coli||TCAATGAGCAAAGGT||16S||40||55°C/ 0.5%(w/v) SDS or 50°C/50% DMF or 57°C / 30% DMF||59||10||[43, 89, 91, 92]|
|E. coli||GCAAAGCAGCAAGCTC||16S||56||50°C/ 0.01% SDS||100||1|||
|Eubacteria||CTGCCTCCCGTAGGA||16S||67||55°C/ 0.5% (w/v) SDS or 50°C/50% DMF||N.D.||93|||
|H. pylori||GAGACTAAGCCCTCC||16S||60||59°C / 30% DMF||96||90|||
|H. pylori||TAATCAGCACTCTAGCAA||16S||39||55°C / 30% DMF||100||24||[51, 93]|
|L. brevis||CTCTAAGATTGGCAG||16S||47||50°C / 50% DMF||81||97|||
|Legionella genus||GACGCAGGCTAATCT||16S||53||55°C to 65°C/ 30% DMF||88||68|||
|L. pneumophila||CTGACCGTCCCAGGT||16S||67||55°C to 65°C / 30% DMF||92||100|||
|Listeria genus||CCCCAACTTACAGGC||16S||60||55°C /0.5% SDS||98||91|||
|Listeria genus||AAGGGACAAGCAGT||16S||50||55°C /0.5% SDS||97||97|||
|M. avium||ATGCGTCTTGAGGTC||16S||53||55°C / 40% DMF||95||91|||
|M. avium subsp. avium and M. avium subsp. paratuberculosis||TGCGTCTTGAGGTCC||16S||60||59°C / 30% DMF||100||89|||
|M. kansasii||TATCCCGGTGTGCAG||16S||60||55°C / 40% DMF||57||100|||
|M. leprae||CGCCTTGAAGTCCTA||16S||53||55°C / 40% DMF||100||100|||
|M. tuberculosis complex (MTC) species||GCATCCCGTGGTCCT||16S||67||60°C / 50% DMF||76||100|||
|M. tuberculosis complex (MTC) species||GGTTTTAAGGATTC||16S||40||55°C / 30% DMF||62||100|||
|Nontuberculous (NTM) mycobacteria species||GCATTACCCGCTGGC||16S||67||55°C / 30% DMF||34||34|||
|P. aeruginosa||CTGAATCCAGGAGCA||16S||53||55°C/ 0.5% (w/v) SDS or 50°C/50% DMF||80||87||[43, 89]|
|Salmonella||TAAGCCGGGATGGC||23S||64||55°C/ 0.5% (w/v) SDS or 50°C/50% DMF||41||60||[43, 89]|
|S. aureus||GCTTCTCGTCCGTTC||16S||60||55°C/ 0.5%(w/v) SDS or 50°C/50% DMF||100||92||[43, 89]|
N.D. – Not determinedAT. brucei gambiense, T. brucei rhodesiense, T. brucei brucei, T. envasi and T. equiperdumBAll Trypanozoon species
