Int. J. Mol. Sci. 2017, 18(11), 2333; https://doi.org/10.3390/ijms18112333

Simultaneous Determination and Investigation of Nine Fungicides in Fruits Using Diethylenetriamine-Functional Magnetic Core-Shell Polymer Modified Graphene Oxide as an Efficient Adsorbent Coupled to UPLC-HRMS

Department of Chemistry, Zhejiang University, Hangzhou 310028, China
*
Author to whom correspondence should be addressed.
Received: 10 October 2017 / Revised: 28 October 2017 / Accepted: 2 November 2017 / Published: 5 November 2017
(This article belongs to the Section Biochemistry, Molecular and Cellular Biology)
View Full-Text   |   Download PDF [6369 KB, uploaded 5 November 2017]   |

Abstract

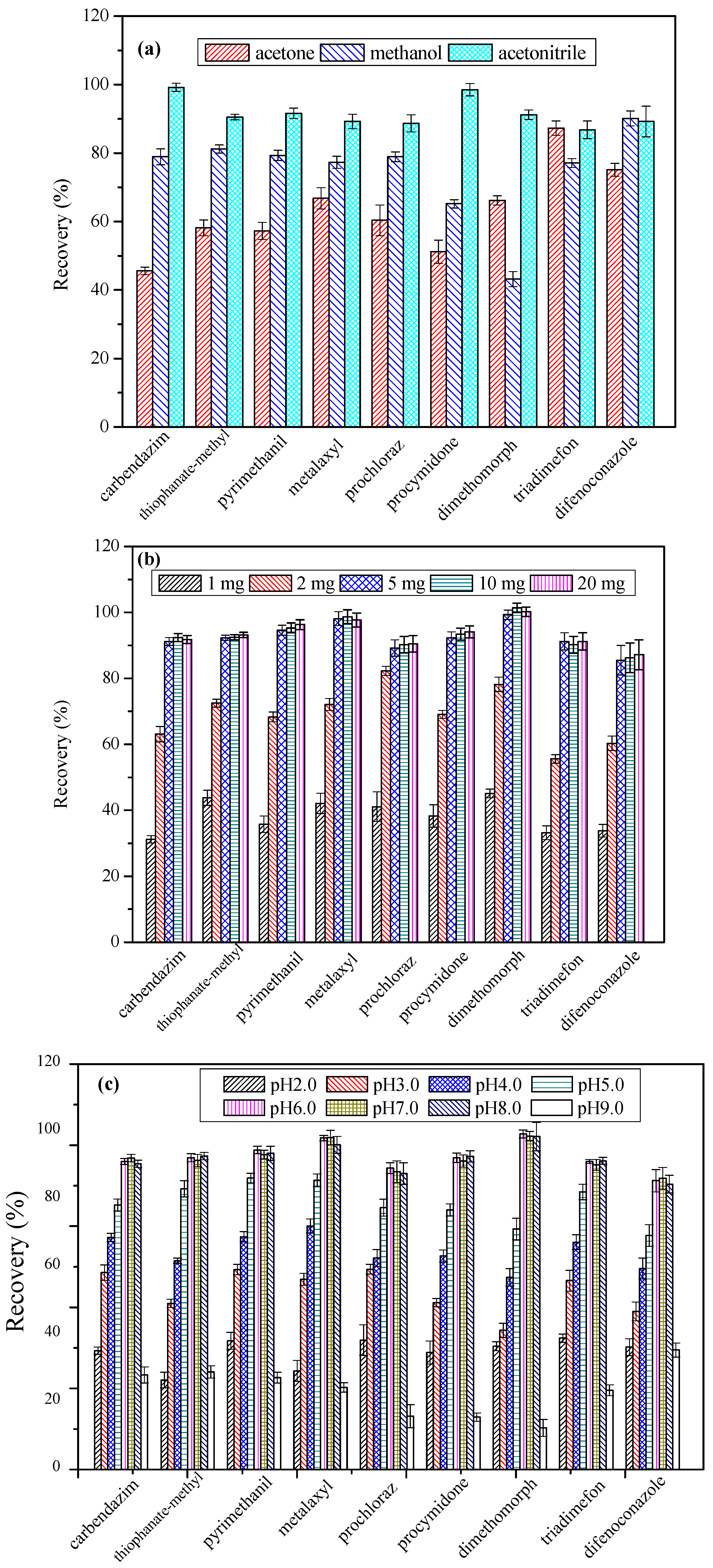

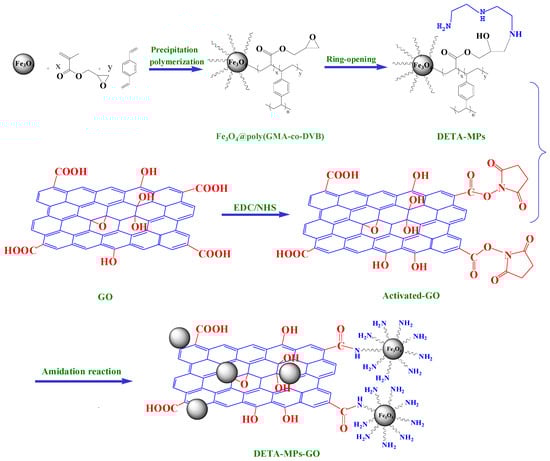

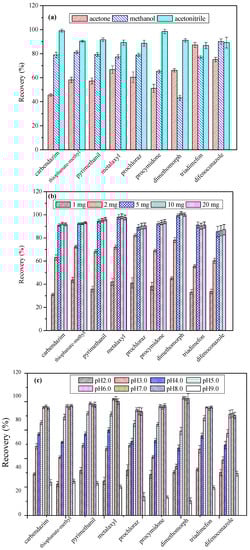

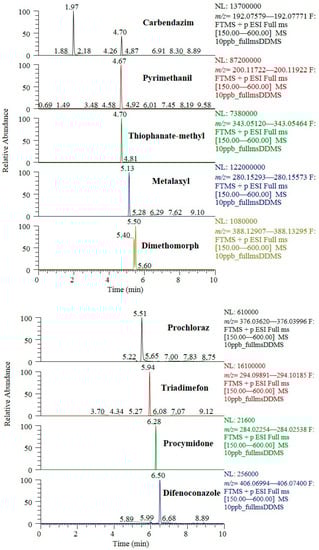

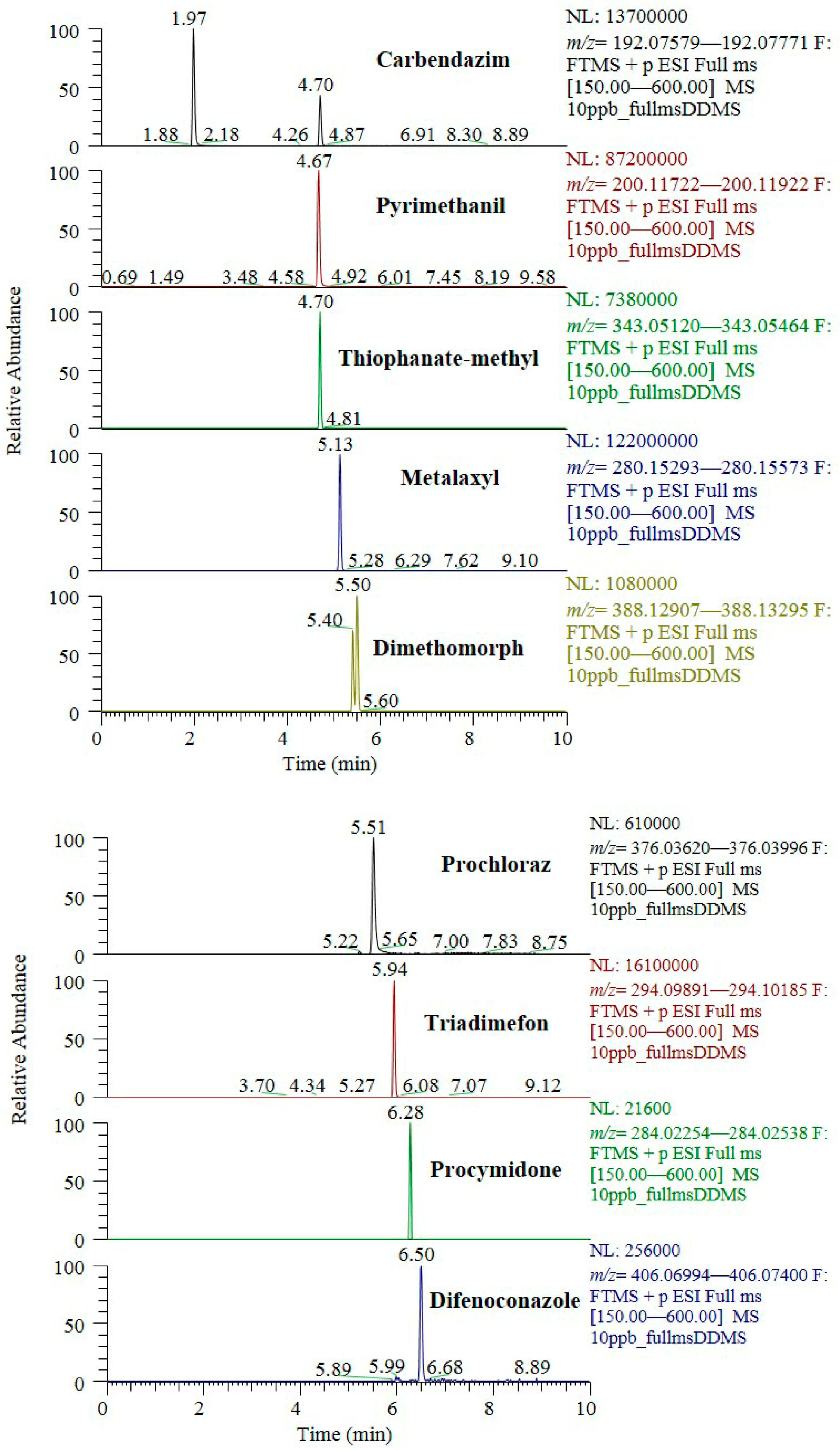

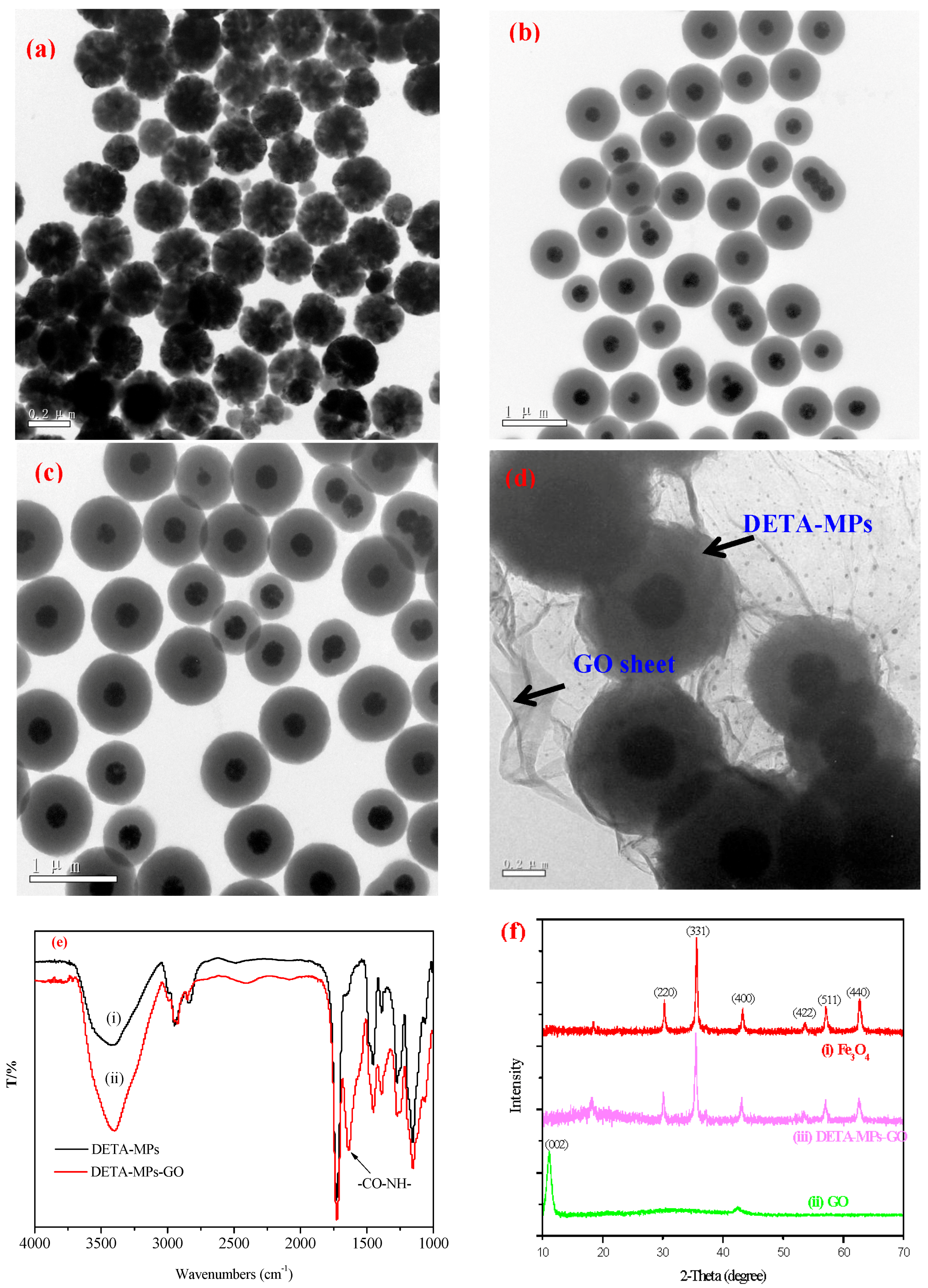

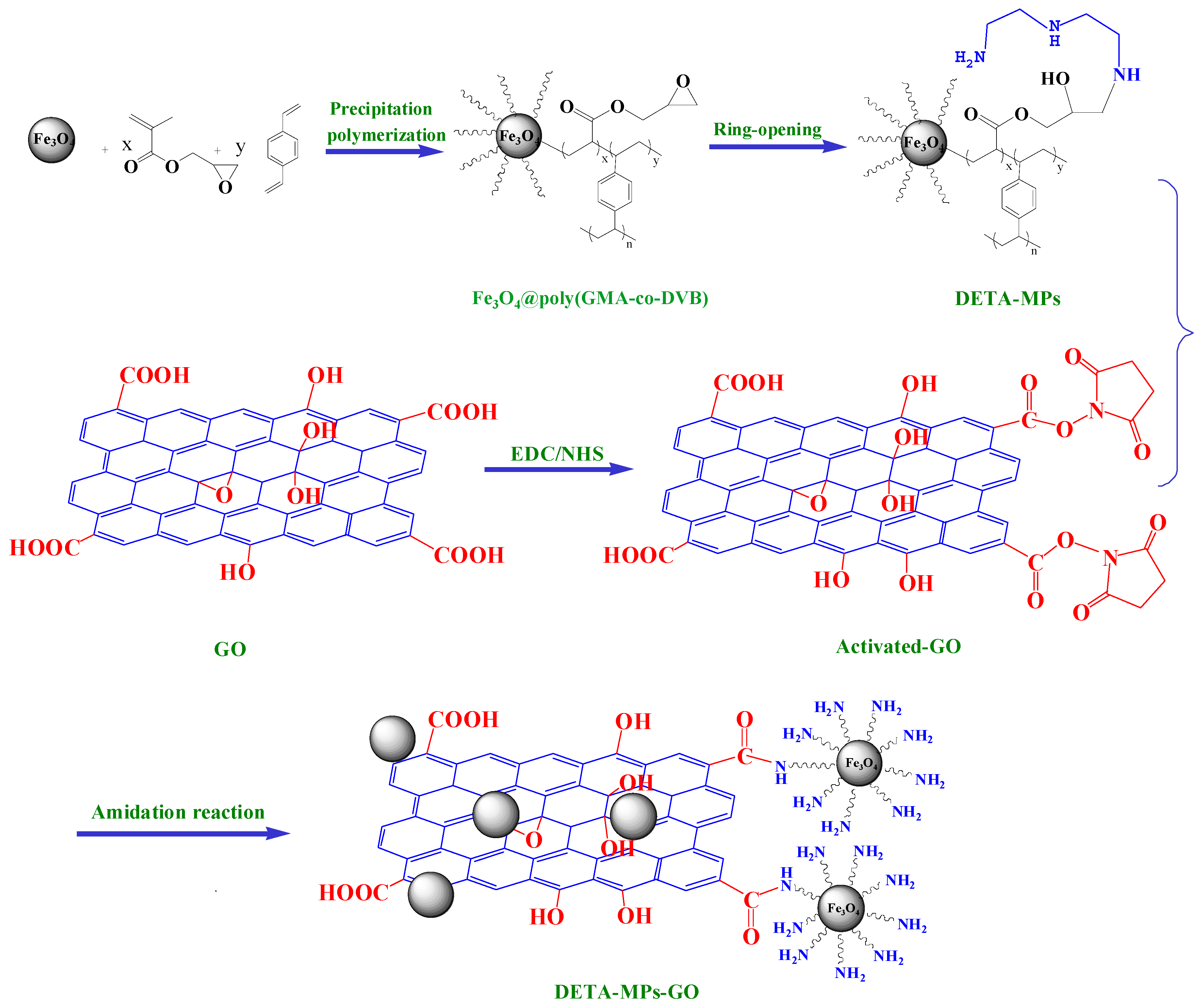

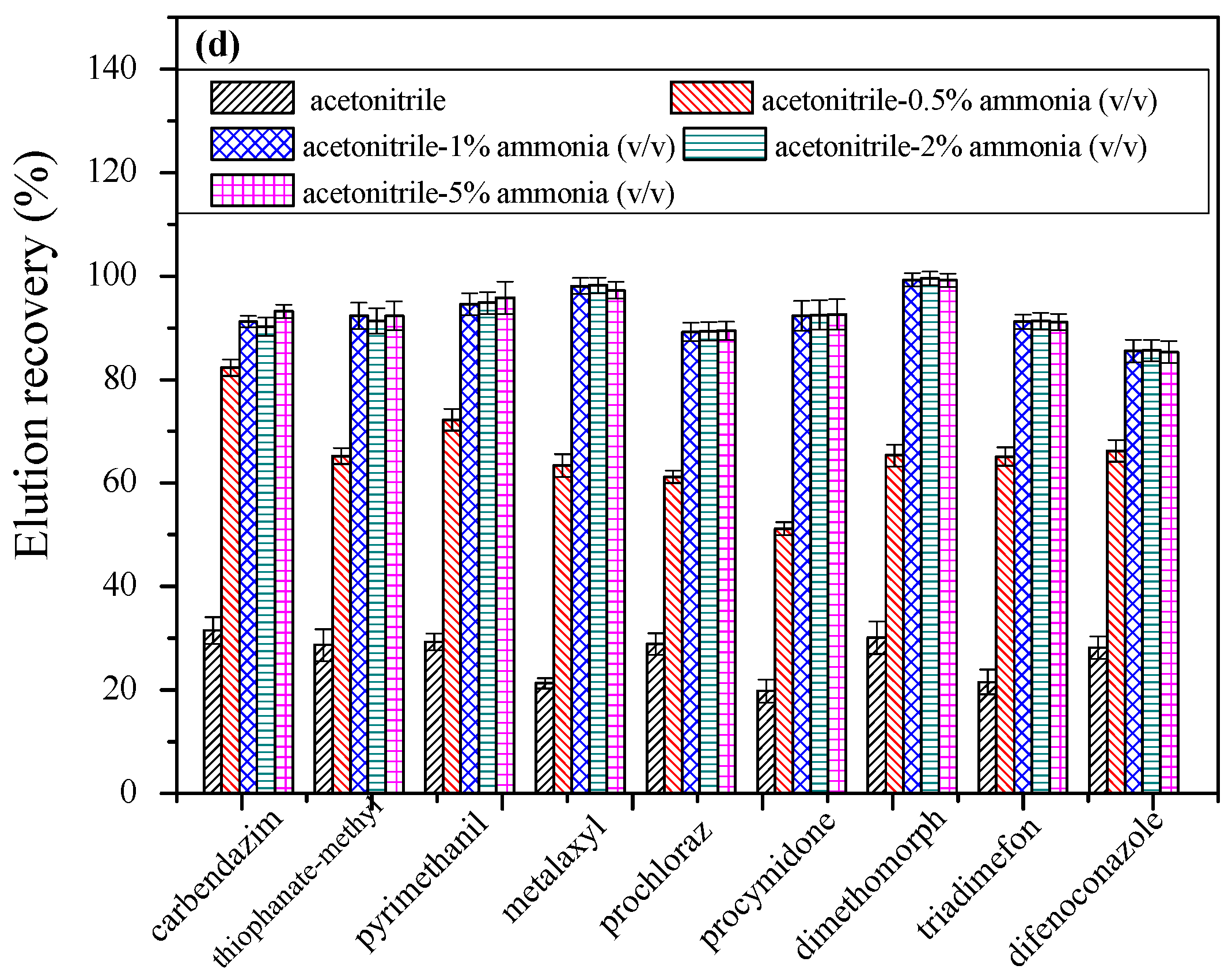

In this study, diethylenetriamine-functional magnetic core-shell polymer modified graphene oxide (DETA-MPs-GO) was prepared via precipitation polymerization and amidation reaction, and it was characterized by transmission electron microscopy (TEM), Fourier-transformed infrared spectroscopy (FTIR), and X-ray diffractometer (XRD). Subsequently, a magnetic solid-phase extraction (MSPE) procedure was applied to the as-synthesized DETA-MPs-GO for the detection of nine fungicides in fruit samples, prior to ultra-performance liquid chromatography-high resolution mass spectrometry (UPLC-HRMS). The homogenized fruit samples, spiked with D-labelled internal standards, were firstly extracted by 5 mL of acetonitrile twice and then purified by DETA-MPs-GO adsorbents. The optimization of the adsorption and elution conditions of DETA-MPs-GO toward fungicides was carried out to attain a satisfactory adsorption performance and desorption efficiency. The adsorption mechanism was carefully investigated, and the results revealed that a synergistic adsorption mechanism, including hydrogen bond and a π–π stacking interaction, was confirmed. Moreover, the limits of quantitation (LOQs) of the proposed approach were in the range of 0.01 to 0.30 μg/kg under the optimum conditions. The average recoveries at three spiking levels were 84.9% to 105.2%, with relative standard deviations (RSDs) varying from 0.8% to 8.2% (n = 6). The developed method was successfully utilized for the screening and detection of fungicides in 81 fruit samples purchased from markets. A detailed survey was carried out about the concentration distribution, types of fungicides, and combined use of fungicides in different fruits. View Full-Text
Keywords: diethylenetriamine-functional magnetic core-shell polymer modified graphene oxide (DETA-MPs-GO); magnetic solid-phase extraction (MSPE); synergistic adsorption mechanism; ultra-performance liquid chromatography-high resolution mass spectrometry (UPLC-HRMS); fungicides diethylenetriamine-functional magnetic core-shell polymer modified graphene oxide (DETA-MPs-GO); magnetic solid-phase extraction (MSPE); synergistic adsorption mechanism; ultra-performance liquid chromatography-high resolution mass spectrometry (UPLC-HRMS); fungicides
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
