Article

Structural Insights into the Molecular Design of Flutolanil Derivatives Targeted for Fumarate Respiration of Parasite Mitochondria

1
Department of Biomedical Chemistry, Graduate School of Medicine, The University of Tokyo, Tokyo 113-0033, Japan
2
Department of Applied Biology, Graduate School of Science Technology, Kyoto Institute of Technology, Kyoto 606-8585, Japan
3
Department of Biochemistry, Ahmadu Bello University, Zaria 2222, Nigeria
4
Research Center, Nihon Nohyaku Co., Ltd., 345 Oyamada-cho, Kawachinagano, Osaka 586-0094, Japan
5
Department of Integrated Analytical Chemistry, Graduate School of Pharmaceutical Sciences, The University of Tokyo, Tokyo 113-0033, Japan
6
Center for Life Science Technologies, RIKEN, Tsurumi, Yokohama 230-0045, Japan
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2015, 16(7), 15287-15308; https://doi.org/10.3390/ijms160715287
Submission received: 30 March 2015 / Revised: 19 June 2015 / Accepted: 24 June 2015 / Published: 7 July 2015
(This article belongs to the Special Issue Protein Crystallography in Molecular Biology 2015)

Abstract

:
Recent studies on the respiratory chain of Ascaris suum showed that the mitochondrial NADH-fumarate reductase system composed of complex I, rhodoquinone and complex II plays an important role in the anaerobic energy metabolism of adult A. suum. The system is the major pathway of energy metabolism for adaptation to a hypoxic environment not only in parasitic organisms, but also in some types of human cancer cells. Thus, enzymes of the pathway are potential targets for chemotherapy. We found that flutolanil is an excellent inhibitor for A. suum complex II (IC50 = 0.058 μM) but less effectively inhibits homologous porcine complex II (IC50 = 45.9 μM). In order to account for the specificity of flutolanil to A. suum complex II from the standpoint of structural biology, we determined the crystal structures of A. suum and porcine complex IIs binding flutolanil and its derivative compounds. The structures clearly demonstrated key interactions responsible for its high specificity to A. suum complex II and enabled us to find analogue compounds, which surpass flutolanil in both potency and specificity to A. suum complex II. Structures of complex IIs binding these compounds will be helpful to accelerate structure-based drug design targeted for complex IIs.

Graphical Abstract

1. Introduction

Recent research on the respiratory chain of adult Ascaris suum, a parasitic nematode residing in the hypoxic environment of the host’s small intestine, revealed that ATP synthesis is carried out by the phosphoenolpyruvate carboxykinase (PEPCK)-succinate pathway (Scheme 1) [1,2,3]. In the first step of the pathway, phosphoenolpyruvate (PEP) produced from glycolysis is carboxylated by PEPCK to generate oxaloacetate (OAA), which is then reduced to malate via the oxidation of NADH to NAD+ by the reverse reaction of malate dehydrogenase. The produced malate is transported into the mitochondria, where it is converted into pyruvate and fumarate. The second step of the pathway, NADH-fumarate reductase system or fumarate respiration, couples the oxidation of NADH produced by the conversion of malate into pyruvate to the reduction of fumarate to succinate [4].
Fumarate respiration, catalyzed by complexes I and II, is a well known electron transport chain in anaerobic bacteria [4] and also plays an essential role in the regeneration of NAD+ that is indispensable for the energy metabolism of adult A. suum [3]. The enzymes of the fumarate respiration are anchored in the inner mitochondrial membrane where complex I (NADH-rhodoquinone reductase) acts as a proton pump that is driven by the oxidation of NADH to NAD+ and coupled to the reduction of rhodoquinone (RQ) to rhodoquinol (RQH2), while complex II, serving as a RQH2-fumarate reductase (QFR), transfers electrons from RQH2 to fumarate [5]. In contrast, mammalian complex II catalyzes the reverse reaction in mammalian mitochondria, where it acts as succinate-ubiquinone reductase (SQR) in the aerobic respiratory chain. Since fumarate respiration is the major pathway of energy metabolism during adaptation to a hypoxic environment for many species of parasites including adult A. suum and bacteria inhabiting anaerobic environments [4,6,7] as well as some human cancer cells exposed to low nutrition and low oxygen conditions [8,9,10,11], the pathway is one of the most promising targets of chemotherapy for both parasitic diseases and cancer [12,13,14]. It has actually been suggested that the target of bithionol and thiabendazole used as drugs for the treatment of paragonimiasis and a fungicide [15,16], respectively, is fumarate respiration, although there is no conclusive evidence.

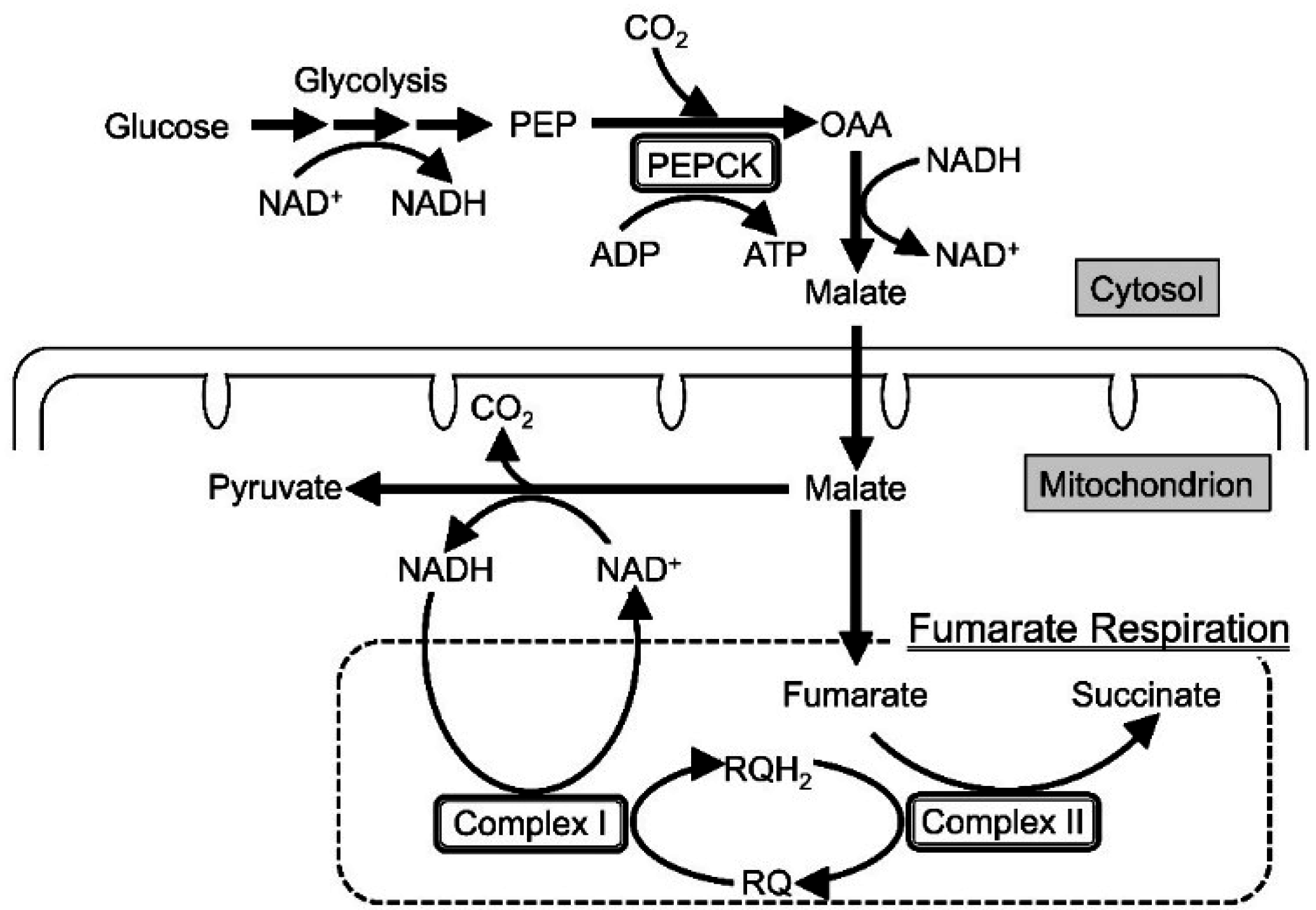

Scheme 1. Phosphoenolpyruvate carboxykinase (PEPCK)-succinate pathway of adult A. suum. The first step of the pathway converts glucose to fumarate and pyruvate via oxaloacetate and malate. In the second step, fumarate is reduced by the NADH-fumarate reductase system (fumarate respiration), in which electrons are transferred from NADH to fumarate by the action of complexes I and II. PEP: phosphoenolpyruvate; PEPCK: phosphoenolpyruvate carboxykinase; OAA: oxaloacetate; RQ: rhodoquinone; RQH2: rhodoquinol.
Scheme 1. Phosphoenolpyruvate carboxykinase (PEPCK)-succinate pathway of adult A. suum. The first step of the pathway converts glucose to fumarate and pyruvate via oxaloacetate and malate. In the second step, fumarate is reduced by the NADH-fumarate reductase system (fumarate respiration), in which electrons are transferred from NADH to fumarate by the action of complexes I and II. PEP: phosphoenolpyruvate; PEPCK: phosphoenolpyruvate carboxykinase; OAA: oxaloacetate; RQ: rhodoquinone; RQH2: rhodoquinol.
Ijms 16 15287 g007
Hitherto, we have searched for potent inhibitors for A. suum QFR in order to identify promising lead compounds for the development of anthelmintics. Since the adult A. suum is large in size and known as a representative of human and livestock worms [12,17,18], it is an ideal model parasite for both biochemical analysis and structure-based drug discovery targeted for fumarate respiration [19]. The first compound discovered was Atpenin A5 [20,21,22], but it strongly inhibited both bovine SQR and A. suum QFR with IC50 values of 0.0036 and 0.012 μM, respectively, and thus could not be developed as a drug. The search continued and finally we found flutolanil, a commercially available fungicide, to be a potent and specific inhibitor for A. suum QFR [23], inferred from its IC50 values of 0.058 and 45.9 μM for A. suum QFR and porcine SQR, respectively. These IC50 values account for a selectivity index of approximately 790 folds, and portrays flutolanil to be a promising and safe anthelmintic drug candidate. Here, we describe structures of A. suum QFR and porcine SQR in complex with flutolanil determined at 2.91 and 3.0 Å resolution, respectively. These structures show that in both enzymes, flutolanil is bound to their quinone binding sites, and in addition we were able to identify important intermolecular interactions that are responsible for the specificity and potency of flutolanil against A. suum QFR. This structural information was proved by the structure-activity relationships of flutolanil derivatives and led to the discovery of novel flutolanil analogues that surpass flutolanil in both inhibitory activity and specificity toward A. suum QFR. Importantly, the structures of QFR and SQR in complexes with these analogues would be helpful to advance efforts towards structure-based drug design with flutolanil derivatives.

2. Results and Discussion

2.1. Structures of Adult Ascaris suum QFR and Porcine Succinate-Ubiquinone Reductase (SQR)

Like bacterial and mitochondrial complex IIs with known structures, which includes SQRs from Escherichia coli [24], chicken [25] and porcine [26] as well as QFR from E. coli [27,28], the structure of A. suum QFR [29] is composed of Fp (chain A), Ip (chain B), CybL (chain C) and CybS (chain D) subunits (Figure 1). Notably, the A. suum QFR is evolutionally more closely related to the bacterial and mitochondrial SQR (including the larval SQR of A. suum) than to bacterial QFR [30,31,32,33]. The Fp subunit contains a FAD binding domain, a capping domain, a helical domain and a C-terminal domain and binds a FAD prosthetic group in the FAD binding domain (Figure S1a). The Ip subunit accommodates three iron-sulfur centers; a (2Fe–2S) iron-sulfur center in an N-terminal plant ferredoxin-like domain, and (4Fe–4S) and (3Fe–4S) centers in a C-terminal bacterial ferredoxin-like domain (Figure S1b). In contrast to the hydrophilic Fp and Ip subunits, the hydrophobic CybL and CybS subunits consist of three membrane-spanning α-helices that anchor A. suum QFR to the mitochondrial inner membrane (Figure S1c). The interface between the CybL and CybS subunits binds a heme b molecule with coordination bonds from two conserved His 131C and His 95D residues (Figure S2).

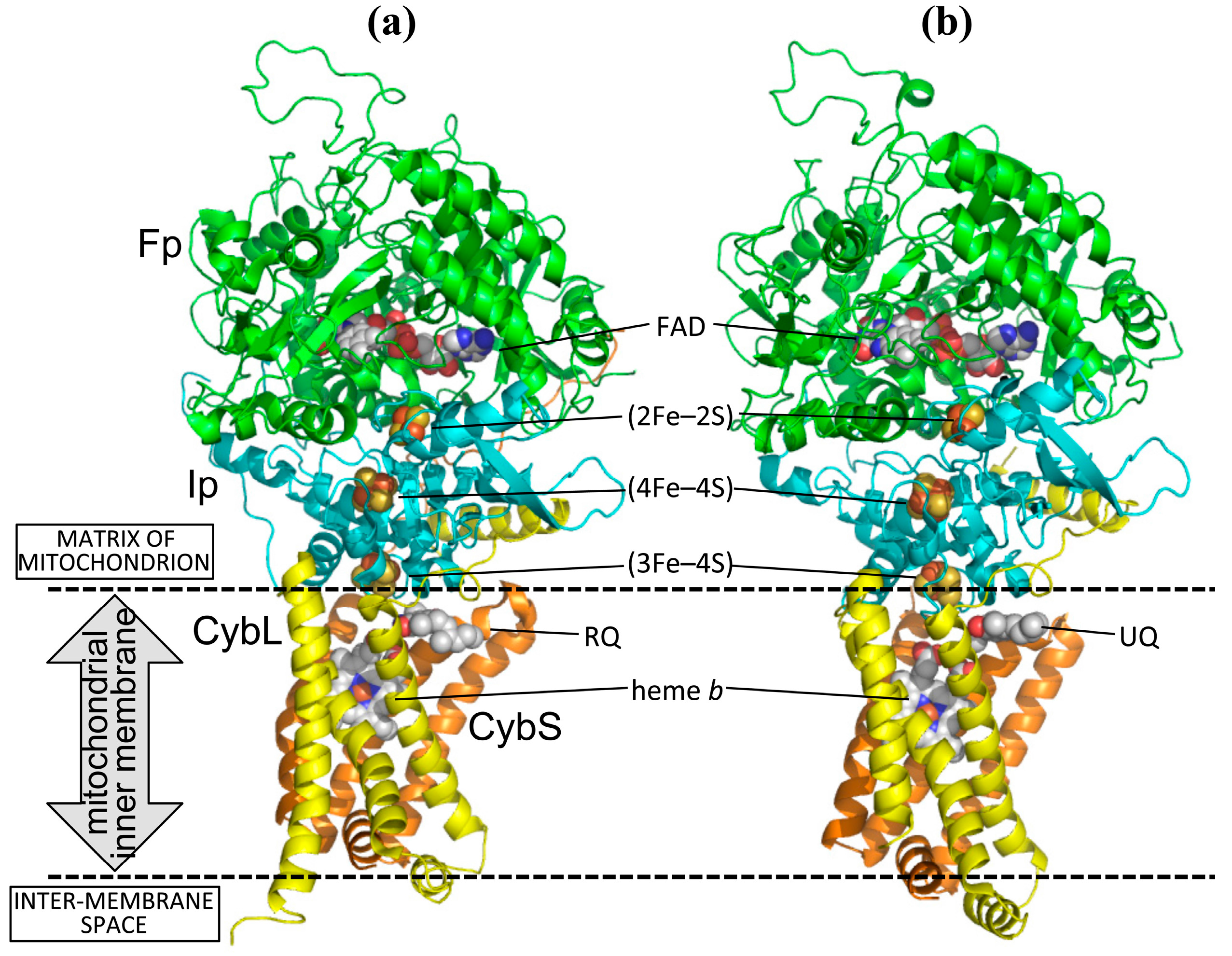

Figure 1. Cartoon representation of structures of (a) A. suum QFR and (b) porcine SQR. Fp (chain A), Ip (chain B), CybL (chain C) and CybS (chain D) subunits are colored in green, cyan, yellow and orange, respectively. Five prosthetic groups, FAD, (2Fe–2S), (4Fe–4S), (3Fe–4S) and heme b, as well as bound rhodoquinone (RQ) and ubiquinone (UQ) are shown as spheres with color codes of C (white), N (blue), O (red), S (yellow) and Fe (brown). The identity between amino acid sequences of QFR and SQR is 67%, 62%, 23% and 29% for Fp, Ip, CybL and CybS subunits, respectively. The coordinates of porcine SQR were taken from 1ZOY [26].
Figure 1. Cartoon representation of structures of (a) A. suum QFR and (b) porcine SQR. Fp (chain A), Ip (chain B), CybL (chain C) and CybS (chain D) subunits are colored in green, cyan, yellow and orange, respectively. Five prosthetic groups, FAD, (2Fe–2S), (4Fe–4S), (3Fe–4S) and heme b, as well as bound rhodoquinone (RQ) and ubiquinone (UQ) are shown as spheres with color codes of C (white), N (blue), O (red), S (yellow) and Fe (brown). The identity between amino acid sequences of QFR and SQR is 67%, 62%, 23% and 29% for Fp, Ip, CybL and CybS subunits, respectively. The coordinates of porcine SQR were taken from 1ZOY [26].
Ijms 16 15287 g001
The RQ binding site of A. suum QFR is constructed by Ip, CybL and CybS subunits and is located in the mitochondrial inner membrane near the surface of the matrix side. Twelve residues (Pro 193B, Ser 194B, Trp 197B, Ile 242B, Leu 60C, Trp 69C, Ser 72C, Gly 73C, Arg 76C, Asp 106D, Tyr 107D, Arg 109D) are close (≤4 Å) to the bound RQ quinone ring (Figure 2a). The UQ binding site of porcine SQR [26] is also formed by equivalent amino acid residues (Figure 2b), of which three (Ile 30C, Met 39C, Ile 43C) are not conserved in A. suum QFR (Figure S2). Five residues of A. suum QFR (Trp 197B, Ser 72C, Gly 73C, Arg 76C, Tyr 107D) form hydrogen bonds with the quinone ring of the bound RQ (Figure 2a), whereas Ser 42C, Ile 43C and Arg 46C of porcine SQR, the equivalents of Ser 72C, Gly 73C and Arg 76C in A. suum QFR do not form hydrogen bonds with the quinone ring of the bound UQ (Figure 2b). This is probably due to the steric hindrance between the bulky side chain of SQR Ile 43C and the bound UQ, obstructing the formation of hydrogen bonds. In A. suum QFR, Gly 73C occupies the position of SQR’s Ile 43C (Figure S2). Furthermore, while the quinone rings of the bound RQ and UQ forms hydrogen bonds with residues of quinone binding sites, the isoprene tails extend toward the entrances of the quinone binding sites located in the mitochondrial inner membrane and are not in close contact with amino acid residues.
Figure 2. Quinone binding sites and bound quinone molecules of (a) A. suum QFR and (b) porcine SQR (1ZOY). Protein subunits are represented as surface with color codes of Ip (cyan), CybL (yellow) and CybS (orange) and the bound (a) RQ and (b) UQ are shown as sticks with color codes of C (white), N (blue), O (red). Hydrogen bonds are represented as red dotted lines. Residues represented as sticks are those close to the bound quinone molecules (≤4.0 Å).
Figure 2. Quinone binding sites and bound quinone molecules of (a) A. suum QFR and (b) porcine SQR (1ZOY). Protein subunits are represented as surface with color codes of Ip (cyan), CybL (yellow) and CybS (orange) and the bound (a) RQ and (b) UQ are shown as sticks with color codes of C (white), N (blue), O (red). Hydrogen bonds are represented as red dotted lines. Residues represented as sticks are those close to the bound quinone molecules (≤4.0 Å).
Ijms 16 15287 g002

2.2. Structures of Flutolanil Binding Sites of A. suum QFR and Porcine SQR

Flutolanil (N-[3-(isopropyloxy)phenyl]-2-(trifluoromethyl)benzamide), a commercially available fungicide [34,35], is made up of two aromatic trifluoromethylbenzene and isopropoxybenzene rings that are connected by a peptide bond linker (Figure 3). This compound is a potent inhibitor for A. suum QFR (IC50 = 0.058 μM) but poorly inhibits porcine SQR (IC50 = 45.9 μM) [14,23]. To obtain insight into its high specificity and potency against A. suum QFR, the X-ray structures of A. suum QFR and porcine SQR in complex with flutolanil were determined at approximately 2.9 and 3.0 Å resolution, respectively, (Figure 4a,b). The determined structures indicate that in each enzyme, flutolanil is bound to the quinone binding site via hydrogen bonds with three conserved residues (A. suum QFR: Trp 197B, Arg 76C, Tyr 107D; porcine SQR: Trp 173B, Arg 46C, Tyr 91D), and there are 13 residues within a distance of 4.0 Å from the bound flutolanil, most of which are conserved in the amino acid sequences of both enzymes (Figure S2). In spite of these similarities, detailed inspection of the structures reveals key interactions that appear to be responsible for the specificity and potency of flutolanil toward A. suum QFR.

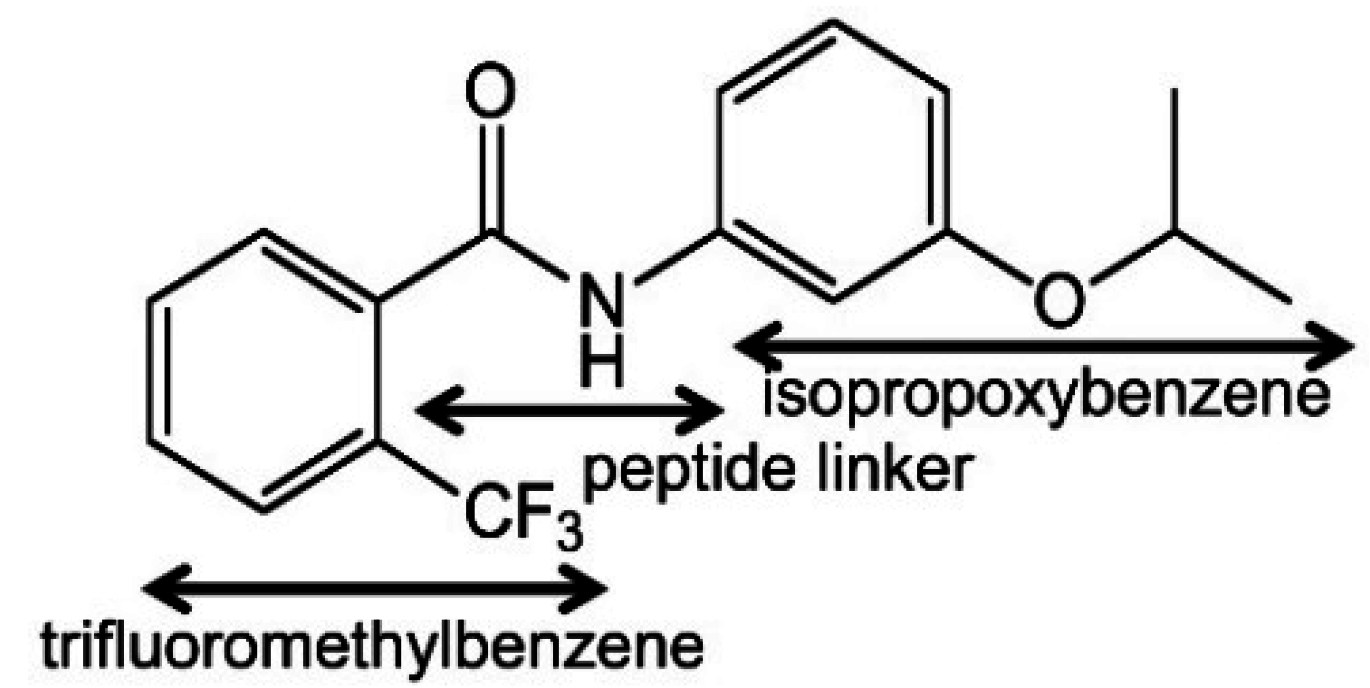

Figure 3. Structure of flutolanil.
Figure 3. Structure of flutolanil.
Ijms 16 15287 g003
Figure 4. Flutolanil binding sites of (a) A. suum QFR and (b) porcine SQR. Protein subunits are represented as surface with color codes of Ip (cyan), CybL (yellow) and CybS (orange). Flutolanil and residues near to the bound flutolanil (≤4.0 Å) are shown as sticks with color codes of N (blue) and O (red). Carbon atoms of flutolanil and residues of Ip, CybL and CybS are colored white, cyan, yellow and orange, respectively. Hydrogen bonds between flutolanil and residues (A. suum QFR: Trp 197B, Arg 76C, Tyr 107D; porcine SQR: Trp 173B, Arg 46C, Tyr 91D) are shown by red dotted lines. Bold bidirectional arrows show: (a) the Cδ+-H…π interaction between the isopropoxy methine group of flutolanil and the indole ring of Trp 69C, and the electrostatic interaction between the trifluoromethylbenzene ring of flutolanil and the Arg 76C guanidino group; and (b) the C-H…π interaction between the isopropoxy methyl group and the Trp 69C indole ring.
Figure 4. Flutolanil binding sites of (a) A. suum QFR and (b) porcine SQR. Protein subunits are represented as surface with color codes of Ip (cyan), CybL (yellow) and CybS (orange). Flutolanil and residues near to the bound flutolanil (≤4.0 Å) are shown as sticks with color codes of N (blue) and O (red). Carbon atoms of flutolanil and residues of Ip, CybL and CybS are colored white, cyan, yellow and orange, respectively. Hydrogen bonds between flutolanil and residues (A. suum QFR: Trp 197B, Arg 76C, Tyr 107D; porcine SQR: Trp 173B, Arg 46C, Tyr 91D) are shown by red dotted lines. Bold bidirectional arrows show: (a) the Cδ+-H…π interaction between the isopropoxy methine group of flutolanil and the indole ring of Trp 69C, and the electrostatic interaction between the trifluoromethylbenzene ring of flutolanil and the Arg 76C guanidino group; and (b) the C-H…π interaction between the isopropoxy methyl group and the Trp 69C indole ring.
Ijms 16 15287 g004

2.2.1. Interaction between Trifluoromethylbenzene Ring and Arginine Residue

The structure of A. suum QFR in complex with flutolanil shows that the trifluoromethylbenzene ring is bound to the same site as the RQ quinone ring and is surrounded mainly by hydrophilic residues (Pro 193B, Ser 194B, Trp 197B, His 240B, Ile 242B, Ser 72C, Arg 76C, Asp 106D, Tyr 107D), of which the guanidino group of Arg 76C interacts with the trifluoromethylbenzene ring of flutolanil via a hydrogen bond and electrostatic interaction (Figure 4a).
Since the binding site of RQ is located in the water-free mitochondrial inner membrane (Figure 1), the guanidino group of Arg 76C would be in the unprotonated electron-rich state due to the lone pair electrons of guanidino nitrogen atoms. On the other hand, the electron-withdrawing property of the trifluoromethyl substituent would induce an uneven distribution of electric charge on the trifluoromethylbenzene ring; while the trifluoromethyl substituent takes on a partial negative charge, the benzene ring becomes an electron-deficient π molecular orbital. The distance between the η1-nitrogen atom of the guanidino group and a fluorine atom of the trifluoromethyl substituent is 3.3 Å, which is shorter than the sum of van der Waals radii of –NH (2.2 Å) and F (1.4 Å), hence, suitable for the formation of a hydrogen bond of >NH…FCF2–. In addition, the electron-rich guanidino group of Arg 76C and the electron-deficient benzene ring of the trifluoromethylbenzene ring are disposed face-to-face approximately in parallel at a distance of 3.3 Å (Figure 4a), indicating that they interact with each other via electrostatic interaction. The importance of this electrostatic interaction for the potency and specificity of flutolanil as an inhibitor toward A. suum QFR is proved by structure-activity relationship studies with flutolanil derivatives, especially 1 and 2 (Table 1). For A. suum QFR, the derivative 1, which possesses an iodine instead of the trifluoromethyl substituent, shows a slightly high IC50 value as compared with flutolanil, but the IC50 value of the derivative 2 is considerably higher than that of flutolanil, suggesting that the electrostatic interaction between the guanidino group and the π molecular orbital of the benzene ring is weakened by the electron-donating property of the methyl group.
Table 1. Flutolanil derivatives.
Ijms 16 15287 i001
Table 1. Flutolanil derivatives.
Ijms 16 15287 i001
DerivativeR1R2IC50 (QFR/SQR, μM)PDB Code (QFR/SQR)
flutolanil–CF3–O–CH(CH3)20.0581/45.95C2T/4YXD
1–I–O–CH(CH3)20.0723/6.434YSZ/3AE7
2–CH3–O–CH(CH3)20.515/90.04YT0/–
3–CF3–CH2–N(CH3)23.42/256–/3AEA
4–CF3–O–C6H50.0794/16.2–/–
5–CF3–C6H50.0245/8.614YTM/3ABV
6–CF3–O–C6H5F50.330/236–/3AE9
In the porcine SQR-flutolanil complex (Figure 4b), like A. suum QFR, the trifluoromethylbenzene ring is surrounded by a similar set of residues (Pro 169B, Ser 170B, Trp 173B, His 216B, Ser 42C, Arg 46C, Asp 90D, Tyr 91D) and the η1-nitrogen atom of the guanidino group of Arg 46C donates a hydrogen bond to the trifluoromethyl substituent with a distance of 3.2 Å. However IC50 values of the derivatives 1 and 2 are comparable with that of flutolanil. This is probably due to the unfavorable arrangement of the guanidino group and the benzene ring for the electrostatic interaction. In fact they poorly overlap with each other and are separated by more than 3.7 Å. This observed difference in the orientation of the interacting groups between the inhibitor and both enzymes explains the importance of the electron-withdrawing property of R1 substituents on the effectiveness of flutolanil as an A. suum QFR inhibitor.

2.2.2. C–H…π Interaction between Isopropoxybenzene Ring and Tryptophan Residue

In contrast to the trifluoromethylbenzene, the isopropoxybenzene ring is in a hydrophobic environment constructed mainly by hydrophobic residues (Pro 193B, Trp 196B, Leu 60C, Tyr 63C, Trp 69C, Gly 73C) and is sandwiched between Leu 60C and Trp 69C (Figure 4a). Since, in the structure of flutolanil-free A. suum QFR, the side chains of Leu 60C and Trp 69C are in close contact (Figure 2a), it appears that the binding of flutolanil to the enzyme causes separation of the residues so that the isopropoxybenzene ring enters the space between them. Actually, the distance between the two residues increased from 4.4 to 6.3 Å upon binding flutolanil, and the methine group of the isopropoxybenzene forms a C-H...π interaction with the aromatic indole ring of Trp 69C at a distance of 3.3 Å. The separation of the residues might cause energetically unfavorable strain in A. suum QFR but it is perhaps compensated for by the interaction between the isopropoxy substituent and Trp 69C.
In the porcine SQR-flutolanil complex, the isopropoxybenzene ring is also surrounded by hydrophobic residues (Pro 169B, Trp 172B, Ile 30C, Tyr 33C, Trp 35C, Met 39C, Ala 40C, Ile 43C) and is inserted into the space between Ile 30C and Trp 35C, which is similarly enlarged from 4.2 to 6.3 Å. However, instead of the isopropoxy methine, the methyl group forms a C–H…π interaction with the indole ring of Trp 35C at a distance of 3.3 Å (Figure 4b). Since the methine group possesses a partial positive charge induced by the isopropoxy oxygen atom, the methine C–H…π interaction is obviously stronger than the methyl C–H…π interaction.
The importance of the partial positive charge on the methine group to the specificity and potency of flutolanil toward A. suum QFR is confirmed by the derivative 3 (Table 1), in which a partial negative charge instead of a positive charge is induced on the nitrogen atom of the dimethylaminomethyl group. Probably owing to the repulsion between the partial negative charge on the nitrogen atom and the π molecular orbital of the Trp 69C indole ring, the IC50 value of the derivative 3 for A. suum QFR drastically increases 59-fold to 3.42 μM from 0.058 μM of flutolanil, whereas for porcine SQR the IC50 value increases only 6-fold. Unfortunately, efforts to obtain crystals of the A. suum QFR in complex with the derivative 3 are currently unsuccessful, but the structure of the porcine SQR-derivative 3 complex shows that the shortest distance between the nitrogen atom of the derivative 3 and the indole ring of Trp 35C (4.6 Å) becomes longer as compared with the corresponding distance in the porcine SQR-flutolanil complex (4.1 Å), which probably avoids unfavorable interaction between the partially negative nitrogen atom and the indole ring of Trp 35C.

2.3. Structures of A. suum QFR and Porcine SQR in Complexes with Flutolanil Derivatives

Instead of the isopropoxybenzene group of flutolanil, the R2 groups of the flutolanil derivatives 4, 5 and 6 are bulky phenoxy, phenyl and pentafluorophenoxy groups, respectively (Table 1). The IC50 values of the derivatives 4 and 5 for A. suum QFR and porcine SQR are comparable to or even lower than those of flutolanil, but the derivative 6 inhibits both enzymes less effectively. In order to analyze the decreased effectiveness of the derivative 6, X-ray structural analyses of A. suum QFR and porcine SQR in complexes with the derivatives 5 and 6 were performed. The derivative 5 is bound to both enzymes in a similar manner as flutolanil: the phenyl group is situated in the same site as the flutolanil isopropoxybenzene ring and interacts with hydrophobic residues (A. suum QFR: Leu 60C and Trp 69C; porcine SQR: Ile 30C and Trp 35C). Further, in A. suum QFR the electrostatic interaction between the trifluoromethylbenzene ring and the guanidino group of Arg 76C is preserved (Figure 5a,b). In contrast, the conformation of the bound derivative 6 is markedly different from that of flutolanil in porcine SQR (Figure 5c), probably because the space between Trp 35C and Ile 30C cannot accommodate the larger pentafluorophenoxy group of the derivative 6. The same might be true for A. suum QFR, although trials of the structure determination of the A. suum QFR-derivative 6 complex have not been successful yet.

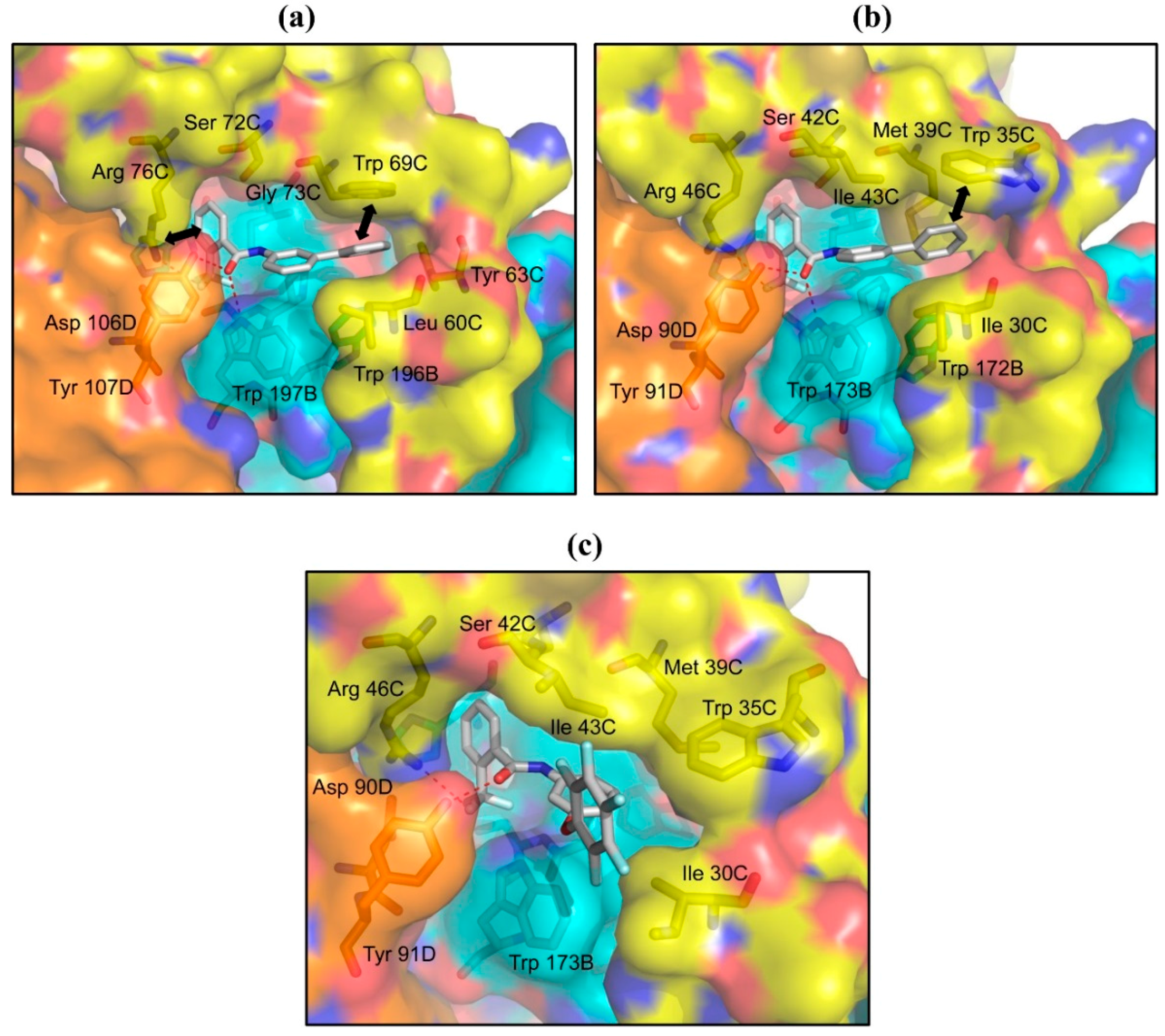

Figure 5. Binding sites of derivative 5 in (a) A. suum QFR and (b) porcine SQR and derivative 6 in (c) porcine SQR. Protein subunits are represented as surface, derivatives 5, 6 and nearby residues (≤4.0 Å) are shown as sticks using the same color codes as Figure 4. Trifluoromethyl fluorine and carbonyl oxygen atoms of derivative 5 form hydrogen bonds (red dotted lines) with residues of A. suum QFR (Trp 197B, Arg 76C and Tyr 107D) and with those of porcine SQR (Trp 173B, Arg 46C and Tyr 91D). In addition, as shown by bold bidirectional arrows, derivative 5 forms π–π and electrostatic interactions with Trp 69C and Arg 76C of A. suum QFR, respectively, whereas in porcine SQR only π–H…π interaction between Trp 35C and derivative 5 is observed. Trifluoromethyl fluorine and carbonyl oxygen atoms of derivative 6 also accept hydrogen bonds from Trp 173B, Arg 46C and Tyr 91D but do not interact with Trp 35C.
Figure 5. Binding sites of derivative 5 in (a) A. suum QFR and (b) porcine SQR and derivative 6 in (c) porcine SQR. Protein subunits are represented as surface, derivatives 5, 6 and nearby residues (≤4.0 Å) are shown as sticks using the same color codes as Figure 4. Trifluoromethyl fluorine and carbonyl oxygen atoms of derivative 5 form hydrogen bonds (red dotted lines) with residues of A. suum QFR (Trp 197B, Arg 76C and Tyr 107D) and with those of porcine SQR (Trp 173B, Arg 46C and Tyr 91D). In addition, as shown by bold bidirectional arrows, derivative 5 forms π–π and electrostatic interactions with Trp 69C and Arg 76C of A. suum QFR, respectively, whereas in porcine SQR only π–H…π interaction between Trp 35C and derivative 5 is observed. Trifluoromethyl fluorine and carbonyl oxygen atoms of derivative 6 also accept hydrogen bonds from Trp 173B, Arg 46C and Tyr 91D but do not interact with Trp 35C.
Ijms 16 15287 g005

2.4. Inhibitors with Higher Potency and Specificity

Flutolanil is composed of two aromatic rings that are linked by a peptide bond. Since it is highly restricted in its freedom of conformation due to the planar peptide linker, an investigation into the effect of a linker with higher rotational freedom on its potency was considered. Then we searched the compound library of Nihon Nohyaku Co., Ltd. (Tokyo, Japan) for flutolanil analogues possessing a –CO–NH–CH2– linker. An important criteria on the linker is the presence of a carbonyl group, this is because the carbonyl group accepts hydrogen bonds from Trp 197B and Tyr 107D in the A. suum QFR-flutolanil complex (Figure 4), and would be essential for the binding of analogues to the enzymes. Two very promising hits, NN23 and NN28, were found. The IC50 values of NN23 toward A. suum QFR and porcine SQR are 0.0055 and 111 μM, respectively, indicating that NN23 inhibits A. suum QFR about 20,000 times more strongly than porcine SQR. This is a significant improvement in both potency and specificity for A. suum QFR as compared with flutolanil. The structure of A. suum QFR in complex with NN23 (Figure 6a) reveals that the trifluoromethylbenzene ring, like flutolanil, interacts with the guanidino group of Arg 76C. In addition, hydrogen bonds of the carbonyl oxygen atom with Trp 197B and Tyr 107D are also preserved. On the other hand, the tert-butylphenyl group, similar to the isoprene side chain of the bound RQ (Figure 2a), occupies the channel between the quinone binding site and the exterior of the A. sum QFR molecule, making contacts with Leu 60C, Trp 69C, Met 70C and Val 77C within a distance of 4.0 Å. This conformation allows Leu 60C and Trp 69C to establish contact with each other as is observed in the RQ binding form (Figure 2a), which might release the possible energetically unfavorable strain caused by the binding of flutolanil. Although similar features are also observed in the structure of porcine SQR-NN23 complex (Figure 6b), the toxicity of NN23 toward porcine SQR is reduced to approximately half.
On the other hand, NN28 inhibits less effectively A. suum QFR (IC50 = 0.028 μM) and surprisingly it is virtually no longer effective against porcine SQR (IC10 > 90.0 μM). This explains why we were not able to prepare crystals of the porcine SQR-NN28 complex in spite of repeated trials. NN28 is bound to A. suum QFR in a similar manner to NN23 (Figure 6c); all interactions including electrostatic interaction between the trifluoromethylbenzene ring and the guanidino group of Arg 76C, hydrogen bonds to a fluorine atom of the trifluoromethyl substituent and the carbonyl group of the linker donated by Arg 76C, Trp 197B and Tyr 107D are observed. Conversely, the model structure of the porcine SQR-NN28 complex speculated from the experimentally determined structure of A. suum QFR-NN28 complex (Figure 6d) reveals that the chlorine atom at the 2′-position of the dichlorobenzene group collides with Ile 43C (1.79 Å). The covalent bond connecting the dichlorobenzene group and linker was rotated in order to avoid the dichlorobenzene group and Ile 43C collision, the result was a further collision of the chlorine atom with Trp 35C, Ile 30C and Trp 173B, one after another. Therefore, the model structure suggests that NN28 is unable to bind the porcine SQR.

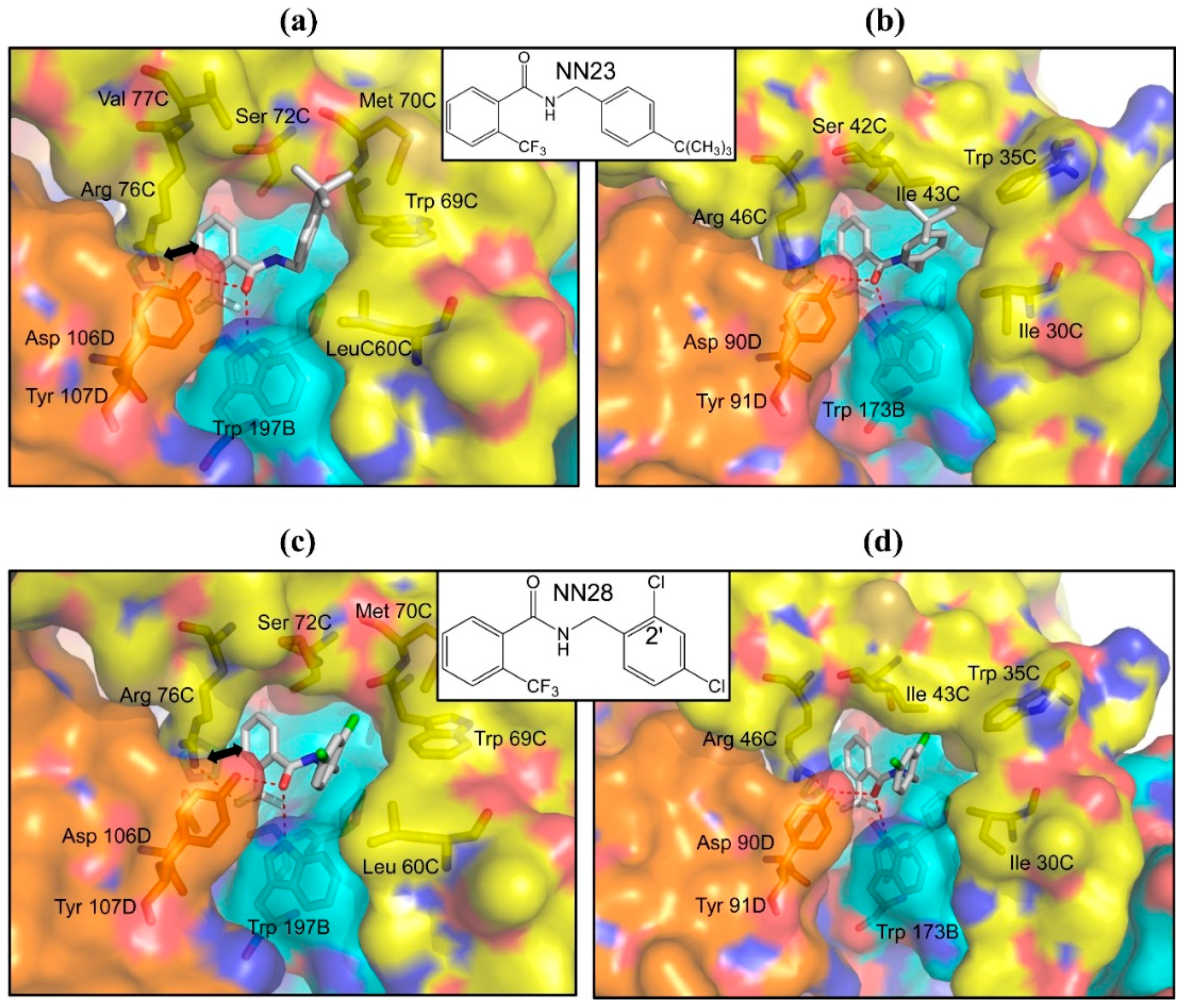

Figure 6. NN23 binding sites of (a) A. suum QFR and (b) porcine SQR; and NN28 binding site of (c) A. suum QFR. The trifluoromethyl F and carbonyl O atoms of NN23 and NN28 form hydrogen bonds with residues of A. suum QFR (Trp 197B, Arg 76C and Tyr 107D) and with those of porcine SQR (Trp 173B, Arg 46C and Tyr 91D) as indicated by red dotted lines. The bold bidirectional arrow in (a,c) shows an electrostatic interaction between NN23/NN28 and Arg 76C; (d) Model structure of the NN28 binding site speculated for porcine SQR. Possible hydrogen bonds are indicated by red dotted lines but the steric hindrance between the 2′-Cl atom of dichlorobenzene group and Ile 43C occurs in this model structure. Color codes are the same as Figure 4.
Figure 6. NN23 binding sites of (a) A. suum QFR and (b) porcine SQR; and NN28 binding site of (c) A. suum QFR. The trifluoromethyl F and carbonyl O atoms of NN23 and NN28 form hydrogen bonds with residues of A. suum QFR (Trp 197B, Arg 76C and Tyr 107D) and with those of porcine SQR (Trp 173B, Arg 46C and Tyr 91D) as indicated by red dotted lines. The bold bidirectional arrow in (a,c) shows an electrostatic interaction between NN23/NN28 and Arg 76C; (d) Model structure of the NN28 binding site speculated for porcine SQR. Possible hydrogen bonds are indicated by red dotted lines but the steric hindrance between the 2′-Cl atom of dichlorobenzene group and Ile 43C occurs in this model structure. Color codes are the same as Figure 4.
Ijms 16 15287 g006

3. Experimental Section

3.1. Purification

A. suum QFR was extracted and purified according to the previously described method [23] using reagents purchased from Wako Pure Chemical Industries, Ltd. (Osaka, Japan) unless otherwise noted. Briefly, a mitochondria-rich fraction was separated from minced muscle suspended in Chappell–Perry (CP) buffer (100 mM KCl, 50 mM Tris–HCl pH 7.4, 1 mM ATP, 5 mM MgSO4 and 1 mM EDTA) [36] by differential centrifugation. The enzyme was solubilized from the mitochondrial membrane suspended in buffer A (10 mM Tris–HCl pH 7.5, 1 mM sodium malonate) using 1.0% (w/v) sucrose monolaurate (SML) purchased from DOJINDO (Kumamoto, Japan) as a detergent. After incubating the mixture for 30 min at 277 K, the clear reddish-brown supernatant containing the solubilized enzyme was recovered by centrifugation for 1 h at 200,000× g. The purification was carried out by successive ion-exchange chromatography using DEAE Sepharose FF and Source 15Q (GE Healthcare, Uppsala, Sweden) columns. The enzyme was eluted with buffer A containing a linear gradient of 0–0.3 M NaCl in the presence of 0.1% (w/v) SML. Fractions containing pure A. suum QFR as judged by SDS-PAGE were pooled and the purified enzyme precipitated by adding solid PEG 3350 (HAMPTON RESEARCH, Aliso Viejo, CA, USA) to 0.15 g/mL was stored at 193 K.
The purification of porcine SQR from porcine heart mitochondria was carried out according to the method described by Huo et al. [37]. The method consists of extraction of the porcine heart mitochondrial membrane from fresh heart muscle by differential centrifugation, solubilization of SQR from the membrane using the detergent sodium cholate and the purification of SQR by ammonium sulfate fractionation.

3.2. Crystallization

Crystals of A. suum QFR were prepared by the microdialysis method [23] using a mixture of octaethyleneglycol monododecylether (C12E8) and N-dodecyl-β-d-maltoside (C12M) as a detergent. The purified enzyme, precipitated by PEG 3350 was dissolved in 10 mM Tris–HCl pH7.5 containing 1 mM sodium malonate, 0.6% (w/v) C12E8, 0.4% (w/v) C12M and 0.2 M NaCl. After incubation for 20 min on ice, the enzyme was precipitated by adding an equal volume of 40% (w/v) PEG 3350. The precipitate obtained by centrifugation was dissolved in the same buffer, incubated for 20 min on ice and mixed with an equal volume of 40% (w/v) PEG 3350 to precipitate the QFR. This procedure was repeated several times in order to replace SML with a detergent mixture containing C12E8 and C12M. The precipitate was finally dissolved in buffer A containing 0.06% (w/v) C12E8, 0.04% (w/v) C12M and 0.2 M NaCl, and then an equal volume of 23% (w/v) PEG 3350 was added to the QFR solution. After centrifugation to remove undissolved materials, the supernatant was sealed in a 5 μL microdialysis button and dialyzed against reservoir solution containing 15% (w/v) PEG 3350, 100 mM Tris–HCl pH 8.4, 200 mM NaCl, 1 mM sodium malonate, 0.06% (w/v) C12E8 and 0.04% (w/v) C12M. Dark red plate-shaped crystals with a maximum length of 100~200 μm were obtained in 2~3 days at 293 K.
Crystallization of porcine SQR was carried out according to the method described by Huo et al. [29]. The detergent C12M at a final concentration of 0.5% (w/v) was used for the crystallization by hanging drop vapor diffusion method. The enzyme dissolved in 25 mM HEPES (pH 7.2), 200 mM sucrose, 100 mM NaCl and 0.5 mM EDTA was crystallized using 25 mM HEPES (pH 7.2), 5% (w/v) PEG 4000, 3% (w/v) 1,6-hexanediol, 100 mM NaCl, and 10 mM CaCl2 as reservoir solution.

3.3. X-ray Diffraction Data Collection, Structure Determination and Refinement

X-ray diffraction data were collected on beamlines BL41XU (λ = 1.000 Å; Rayonix MX225HE CCD detector, Rayonix, Oak Avenue Evanston, IL, USA) and BL44XU (λ = 0.900 Å; Bruker-AXS SMART6500, Bruker-AXS, Yokohama, Japan) at SPring-8 (Harima, Japan), and on beamlines BL-17A (λ = 1.000 Å; ADSC Quantum 270r detector, ADSC, Stowe Drive Poway, CA, USA) and NW12A (λ = 1.000 Å; ADSC Quantum 210 detector, ADSC) at Photon Factory (Tsukuba, Japan) by the rotation method. For X-ray diffraction experiments at 100 K, a crystal mounted on a nylon loop was transferred to reservoir solution supplemented with 20% (w/v) glycerol and was then flash-frozen in liquid nitrogen stream. Data were processed and scaled using HKL-2000 and SCALEPACK [38] (HKL Research Inc., Charlottesville, VA, USA).
The structure of the A. suum QFR in flutolanil-free form was solved by molecular replacement using the refined coordinates of porcine SQR (PDB code 1ZOY) as a search model [29]. MOLREP program [39] as implemented within CCP4 [40] (http://www.ccp4.ac.uk/) was used for molecular replacement. Statistics of X-ray data collection and refinement are summarized in Table S1 and Table S2. Graphical representations were generated with PyMOL (http://www.pymol.org).

3.4. Enzyme Assays

The CP buffer containing the prepared mitochondrial fraction was replaced with 50 mM Tris–HCl buffer, pH 7.4 containing 1 mM disodium malonate, 210 mM mannitol, 10 mM sucrose, and 1 mM EDTA. Final concentrations of the A. suum and porcine mitochondria (quantified protein) were adjusted to 10 and 20 mg/mL, respectively. Mitochondrial fractions were separated in 50 μL aliquots, frozen by liquid nitrogen and stored at 193 K until use. Prior to assay, the mitochondrial suspensions were thawed on ice and SQR was reactivated by incubation at 298 K for 30 min in equal volume of 50 mM potassium phosphate buffer pH 7.4, containing 337 μM disodium malonate. SQR assay buffer composed of 50 mM potassium phosphate buffer pH 7.4, 0.1% SML, 2 mM potassium cyanide, and 60 μM of 2,3-dimethoxy-5-methyl-6-geranyl-1,4-benzoquinone (UQ2) was pre-equilibrated at 298 K for 20 min. The assay mixture was constituted by adding 15 μg (A. suum) or 30 μg (porcine) of reactivated mitochondrial fraction to the assay buffer and incubated for 3 min for background activity measurements. The SQR activity was initiated by the addition of 10 mM disodium succinate, and recorded as rate of UQ2 consumption, monitored at 278 nm (ε278 = 15 mM−1·cm−1) for three minutes in 1 mL quartz cuvettes with a Shimadzu UV-3000 dual wavelength spectrophotometer (Shimazu, Kyoto, Japan). Inhibition of SQR activities were assayed in the presence of varying concentration of inhibitors (diluted in DMSO) and the IC50s calculated as the concentration of inhibitor that caused 50% decrease in SQR activity relative to control (DMSO). No significant difference was observed between the IC50 of flutolanil determined for SQR and QFR activity of A. suum complex II. Hence, the more convenient SQR assay for A. suum complex II was used to determine the IC50 of flutolanil derivatives tested in this study.

4. Conclusions

In spite of the similarity in amino acid sequences and three-dimensional structures between A. suum QFR and porcine SQR, flutolanil specifically inhibits the enzymatic action of A. suum QFR. The structures of A. suum QFR and porcine SQR in flutolanil-free and flutolanil-bound forms revealed that flutolanil is bound to the quinone binding site of each enzyme in a rather different manner from that of quinone. This is probably due to the low conformational flexibility of flutolanil—it is composed of two aromatic trifluoromethylbenzene and isopropoxybenzene rings connected by a –CO–NH– linker. Although the binding of flutolanil to A. suum QFR and porcine SQR seems to cause energetically unfavorable strain in the enzymes, a close inspection of the structures suggests that this energy loss is compensated for by attractive interactions between flutolanil and the enzymes. The key interactions that appear to be responsible for the specificity and potency of flutolanil toward A. suum QFR were identified in the structure of A. suum QFR-flutolanil complex. The importance of these interactions was proved by structure-activity relationship studies with flutolanil derivatives. On the basis of this structural investigation, flutolanil analogues showing higher potency and specificity toward A. suum QFR than flutolanil were found. These inhibitors, NN23 and NN28, possess high conformational flexibility as a result of the –CO–NH–CH2– linker and are able to bind to A. suum QFR without causing the energetically unfavorable strain in the enzyme as shown by X-ray crystal structure analyses.

Supplementary Information

Figure S1. Cartoon representations of (a) Fp subunit; (b) Ip subunit and (c) membrane anchoring CybL/CybS subunits. Domains of Fp and Ip subunits are colored differently. Prosthetic groups are shown as sticks with color codes of C (white), N (blue), O (red), P (orange), S (yellow) and Fe (brown).
Figure S1. Cartoon representations of (a) Fp subunit; (b) Ip subunit and (c) membrane anchoring CybL/CybS subunits. Domains of Fp and Ip subunits are colored differently. Prosthetic groups are shown as sticks with color codes of C (white), N (blue), O (red), P (orange), S (yellow) and Fe (brown).
Ijms 16 15287 g008
Figure S2. Amino acid sequences of Fp, Ip, CybL and CybS subunits of A. suum QFR and porcine SQR. Residues conserved in complex IIs with known structures (SQRs from porcine, chicken an E. coli, and QFRs from E. coli and A. suum) are colored red, residues conserved in SQRs from porcine, chicken, E. coli and A. suum QFR are colored green, residues conserved in SQRs from porcine, chicken and A. suum QFR are colored blue. Residues within 5 Å of the bound quinone are underlined.
Figure S2. Amino acid sequences of Fp, Ip, CybL and CybS subunits of A. suum QFR and porcine SQR. Residues conserved in complex IIs with known structures (SQRs from porcine, chicken an E. coli, and QFRs from E. coli and A. suum) are colored red, residues conserved in SQRs from porcine, chicken, E. coli and A. suum QFR are colored green, residues conserved in SQRs from porcine, chicken and A. suum QFR are colored blue. Residues within 5 Å of the bound quinone are underlined.
Ijms 16 15287 g009
Table S1. Data collection and refinement statistics.
Table S1. Data collection and refinement statistics.
Data SetQFR-RQQFR-FlutolanilQFR-Derivative 1QFR-Derivative 2QFR-Derivative 5QFR-NN23QFR-NN28
Space Group
Space groupP212121P212121P212121P212121P212121P212121P212121
Data Collection
a/b/c (Å)122.8, 123.6, 219.8124.3, 131.5, 222.5123.9, 127.0, 219.3122.8, 123.4, 219.0123.7, 126.4, 220.9124.2, 127.9, 220.5124.1, 127.7, 220.7
X-ray sourceSPring8 BL44XUKEK-PF-AR NW12KEK-PF-AR NW12KEK-PF BL17ASPring8 BL44XUSPring8 BL44XUSPring8 BL44XU
Wavelength (Å)0.90001.0001.00000.980000.90000.90000.9000
Temperature (K)100100100100100100100
Resolution (Å)50.0–2.75 (2.85–2.75) a50–2.9 (2.95–2.9) a50.0–3.3 (3.36–3.3) a50–3.65 (3.71–3.65) a50.00–3.4 (3.52–3.4) a50–2.25 (2.29–2.25) a50–3.1 (3.15–3.1) a
Total reflections499,461328,842283,779196,929261,990907,709326,789
Unique reflections87,28173,07752,91437,58249,409166,61864,793
Completeness (%)99.9 (100.0) a95.4 (87.2) a98.2 (93.7) a97.3 (94.1) a95.6 (93.0) a96.4 (91.6) a96.0 (95.7) a
Rmerge I b0.092 (0.759) a0.096 (0.624) a0.137 (0.449) a0.164 (0.575) a0.136 (0.390) a0.082 (0.566) a0.114 (0.561) a
I/σ(I)7.4 (2.2) a12.4 (1.3) a5.9 (3.3) a4.5 (2.4) a11.1 (2.7) a11.4 (2.9) a16.6 (3.0) a
Redundancy5.7 (5.4) a4.5 (3.0) a5.5 (4.7) a5.4 (4.6) a5.5 (3.1) a5.7 (4.8) a5.3 (4.7) a
Refinement
Resolution (Å)20–2.7540–2.9130–3.320–3.6620–3.420–2.2520–3.1
No. of reflections78,10256,37748,82231,77243,572152,44258,730
Rwork c/Rfree d0.196/0.2520.204/0.2720.179/0.2500.193/0.2620.178/0.2390.181/0.2210.183/0.238
Number of Atoms
Protein17,88917,86217,97817,95617,96718,00717,978
FAD106106106106106106106
Malonate (Fumalate)14161416141414
FeS clusters38383838383838
Heme86868686868686
Inhibitor44464040504844
Lipid88888888448888
Solvent molecules106-15--72127
B-factors (Å2)
Protein50.886.862.359.679.249.566.7
FAD28.361.842.731.450.735.749.8
Malonate (Fumalate)38.3106.051.847.175.642.363.1
FeS clusters31.859.545.833.249.135.851.2
Heme56.575.770.173.889.547.770.6
Inhibitor58.271.765.483.794.645.575.9
Lipid71.1119.7110.4-100.672.491.7
Solvent molecules30.0-17.3--44.643.5
R.m.s. Deviation
Bond length (Å)0.0080.0130.0080.0060.0070.0090.007
Bond angle (°)1.351.601.411.141.271.451.23
PDB code5C2T3VRB4YSZ4YT04YTM4YSX4YSY
Table S2. Data collection and refinement statistics.
Table S2. Data collection and refinement statistics.
Data SetSQR-FlutolanilSQR-Derivative 1SQR-Derivative 3SQR-Derivative 5SQR-Derivative 6SQR-NN23
Space Group
Space groupP212121P212121P212121P212121P212121P212121
Data Collection
a/b/c (Å)70.4, 83.7, 292.671.2, 84.0, 293.771.5, 83.8, 295.071.7, 84.2, 294.472.6, 84.2, 295.671.4, 84.0, 294.8
X-ray sourceSPring8 BL44XUKEK-PF BL17ASPring8 BL41XUKEK-PF-AR NW12SPring8 BL41XUKEK-PF BL17A
Wavelength (Å)0.90000.980001.00001.0001.000000.9800
Temperature (K)100100100100100100
Resolution (Å)50–3.0 (3.05–3.0) a50–3.6 (3.66–3.6) a50–3.39 (3.51–3.39)50–3.2 (3.31–3.2) a50–3.3 (3.42–3.3) a50–3.1 (3.15–3.1) a
Total reflections184,860123,966172,365139,252109,564142,584
Unique reflections35,89120,32325,14629,00827,34931,105
Completeness (%)97.5 (95.1) a97.0 (77.8) a98.3 (93.9)99.8 (100.0) a98.2 (99.4) a93.3 (94.9) a
Rmerge I b0.099 (0.464) a0.149 (0.553) a0.091 (0.594)0.076 (0.277) a0.08 (0.46) a0.095 (0.516) a
I/σ(I)11.5 (2.8) a16.1 (2.2) a8.0 (3.2)19.3 (5.2) a12.8 (2.0) a11.4 (1.7) a
Redundancy5.3 (4.4) a6.1(4.4) a3.7 (3.7)4.8 (4.9) a4.0 (4.1) a3.9 (4.6) a
Refinement
Resolution (Å)20–3.050–3.6250–3.3940–3.2440–3.3120–3.1
No. of reflections33,05820,11825,08128,95027,27525,461
Rwork c/Rfree d0.206/0.2580.256/0.3050.236/0.2860.203/0.2530.257/0.3070.208/0.266
Number of Atoms
Protein848084808480848084808480
FAD535353535353
Malonate (Fumalate)777
FeS clusters191919191919
Heme434343434343
Inhibitor232323253124
Lipid444444
Solvent molecules22
B-factors (Å2)
Protein80.6145.3113.971.0124.771.1
FAD70.9127.584.556.1100.358.4
Malonate (Fumalate)177.593.1222.2
FeS clusters64.9124.784.455.194.054.7
Heme75.1135.095.752.5102.459.9
Inhibitor84.1138.0104.161.7137.562.7
Lipid147.888.9153.4
Solvent molecules44.1
R.m.s. Deviation
Bond length (Å)0.0080.0050.0050.0070.0050.007
Bond angle (°)1.310.840.881.080.8671.24
PDB code4YXD3AE73AEA3ABV3AE94YTP
a, Values in parentheses are for the highest resolution shell; b, Rmerge I = Σh Σi[|Ii(h) − <I(h)>|/Σh Σi I(h)], where Ii is the ith measurement and <I(h)> is the weighted mean of all measurements of I(h); c, Rwork = Σh|FoFc|/ΣhFo, where Fo and Fc are the observed and calculated structure factor amplitudes of reflection h; d, Rfree is as Rwork, but calculated with 10% of randomly chosen reflections omitted from refinement.

Acknowledgments

We thank all staff members of beamlines BL44XU and BL41XU at SPring-8, AR-NW12A and BL17A at Photon Factory for their help with X-ray diffraction data collection. The synchrotron beamline BL44XU at SPring-8 was used under the Cooperative Research Program of Institute for Protein Research, Osaka University.
This work was supported in part by a grant from the Targeted Proteins Research Program (to Shigeharu Harada and Kiyoshi Kita) from the Japanese Ministry of Education, Science, Culture, Sports and Technology (MEXT); by the Program for Promotion of Basic and Applied Researches for Innovations in Bio-Oriented Industry (to Shigeharu Harada and Kiyoshi Kita); Grant-in-Aid for Scientific Research (B) 23370050 (to Shigeharu Harada); Grant-in-Aid for Scientific Research (C) 26440027 (to Tomoo Shiba) from the Japanese Ministry of Education, Science, Culture, Sports and Technology (MEXT); Creative Scientific Research Grant 18GS0314 (to Kiyoshi Kita); Grant-in-Aid for Scientific Research on Priority Areas 18073004 (to Kiyoshi Kita) from the Japanese Society for the Promotion of Science; and the Grant-in-Aid for research on emerging and reemerging infectious diseases from the Japanese Ministry of Health and Welfare (to Kiyoshi Kita).

Author Contributions

Daniel Ken Inaoka and Emmanuel Oluwadare Balogun carried out the purification of QFR and SQR enzymes. Daniel Ken Inaoka, Tomoo Shiba, Dan Sato, Tsuyoshi Sasaki and Madoka Nagahama were in charge of crystallization and X-ray analysis. Synthesis of inhibitors was performed by Masatsugu Oda, Shigeru Matsuoka and Masayuki Inoue, and their inhibitory activities were assayed by Junko Ohmori. Teruki Honma contributed with valuable discussions and scientific input. Kiyoshi Kita and Shigeharu Harada designed and supervised the work. All authors participated in preparing the manuscript and approved the final version.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kita, K.; Takamiya, S. Electron-transfer complexes in Ascaris mitochondria. Adv. Parasitol. 2002, 51, 95–131. [Google Scholar] [PubMed]
  2. Kita, K.; Nihei, C.; Tomitsuka, E. Parasite mitochondria as a drug target: Diversity and dynamic changes during the life cycle. Curr. Med. Chem. 2003, 10, 1241–1253. [Google Scholar] [CrossRef]
  3. Kita, K.; Shiomi, K.; Õmura, S. Parasitology in Japan: Advances in drug discovery and biochemical studies. Trends Parasitol. 2007, 23, 223–229. [Google Scholar] [CrossRef] [PubMed]
  4. Kroger, A.; Geisler, V.; Lemma, E.; Theis, F.; Lenger, R. Bacterial fumarate respiration. Arch. Microbiol. 1992, 158, 311–314. [Google Scholar] [CrossRef]
  5. Saruta, F.; Kuramochi, T.; Nakamura, K.; Takamiya, S.; Yu, Y.; Aoki, T.; Sekimizu, K.; Kojima, S.; Kita, K. Stage-specific isoforms of ComplexII (succinate-ubiquinone oxidoreductase) in mitochondria from the parasitic nematode, Ascaris suum. J. Biol. Chem. 1995, 270, 928–932. [Google Scholar] [CrossRef] [PubMed]
  6. Kohler, P.; Bachmann, R. Mechanisms of respiration and phosphorylation in Ascaris muscle mitochondria. Mol. Biochem. Parasitol. 1980, 1, 75–90. [Google Scholar] [CrossRef]
  7. Oya, H.; Kita, K. Comparative Biochemistry of Parasitic Helminths; Bennet, E., Behm, C., Bryant, C., Eds.; Chapman and hall: London, UK, 1998; pp. 35–53. [Google Scholar]
  8. Tomitsuka, E.; Kita, K.; Esumi, H. Regulation of succinate-ubiquinone reductase and fumarate reductase activities in human complex II by phosphorylation of its flavoprotein subunit. Proc. Jpn. Acad. Ser. B 2009, 85, 258–265. [Google Scholar] [CrossRef]
  9. Tomitsuka, E.; Kita, K.; Esumi, H. The NADH-fumarate reductase system, a novel mitochondrial energy metabolism, is a new target for anticancer therapy in tumor microenvironments. Ann. N. Y. Acad. Sci. 2010, 1201, 44–49. [Google Scholar] [CrossRef] [PubMed]
  10. Tomitsuka, E.; Kita, K.; Esumi, H. An anticancer agent, pyrvinium pamoate inhibits the NADH-fumarate reductase system—A unique mitochondrial metabolism in tumor microenvironments. J. Biochem. 2012, 152, 171–183. [Google Scholar] [CrossRef] [PubMed]
  11. Sakai, C.; Tomitsuka, E.; Miyagishi, M.; Harada, S.; Kita, K. Type II Fp of human mitochondrial respiratory complex II and its role in adaptation to hypoxia and nutrition-deprived conditions. Mitochondrion 2013, 13, 602–609. [Google Scholar] [CrossRef] [PubMed]
  12. Matsumoto, J.; Sakamoto, K.; Shinjyo, N.; Kido, Y.; Yamamoto, N.; Yagi, K.; Miyoshi, H.; Nonaka, N.; Katakura, K.; Kita, K.; et al. Anaerobic NADH-fumarate reductase system is predominant in the respiratory chain of Echinococcus multilocularis, providing a novel target for the chemotherapy of alveolar echinococcosis. Antimicrob. Agents Chemother. 2008, 52, 164–170. [Google Scholar] [CrossRef] [PubMed]
  13. Omura, S.; Miyadera, H.; Ui, H.; Shiomi, K.; Yamaguchi, Y.; Masuma, R.; Nagamitsu, T.; Takano, D.; Sunazuka, T.; Harder, A.; et al. An anthelmintic compound, nafuredin, shows selective inhibition of complex I in helminth mitochondria. Proc. Natl. Acad. Sci. USA 2001, 98, 60–62. [Google Scholar] [CrossRef] [PubMed]
  14. Sakai, C.; Tomitsuka, E.; Esumi, H.; Harada, S.; Kita, K. Mitochondrial fumarate reductase as a target of chemotherapy: From parasites to cancer cells. Biochim. Biophys. Acta-Gen. Subj. 2012, 1820, 643–651. [Google Scholar] [CrossRef] [PubMed]
  15. Armson, A.; Grubb, W.B.; Mendis, A.H. The effect of electron transport (ET) inhibitors and thiabendazole on the fumarate reductase (FR) and succinate dehydrogenase (SDH) of strongyloides ratti infective (L3) larvae. Int. J. Parasitol. 1995, 25, 261–263. [Google Scholar] [CrossRef]
  16. Kohler, P.; Bachmann, R. The effects of the antiparasitic drugs levamisole, thiabendazole, praziquantel, and chloroquine on mitochondrial electron transport in muscle tissue from Ascaris suum. Mol. Pharmacol. 1978, 14, 155–163. [Google Scholar] [PubMed]
  17. Komuniecki, R.; Harris, B.G.; Marr, J.; Mueller, M. Biochemistry and Molecular Biology of Parasites; Academic: London, UK, 1995; pp. 49–66. [Google Scholar]
  18. Tielens, A.G.; van Hellemond, J.J. The electron transport chain in anaerobically functioning eukaryotes. Biochim. Biophys. Acta 1998, 1365, 71–78. [Google Scholar] [CrossRef]
  19. Paranagama, M.P.; Sakamoto, K.; Amino, H.; Awano, M.; Miyoshi, H.; Kita, K. Contribution of the FAD and quinone binding sites to the production of reactive oxygen species (ROS) from Ascaris suum mitochondrial complex II. Mitochondrion 2010, 10, 158–165. [Google Scholar] [CrossRef] [PubMed]
  20. Omura, S.; Tomoda, H.; Kimura, K.; Zhen, D.Z.; Kumagai, H.; Igarashi, K.; Imamura, N.; Takahashi, Y.; Tanaka, Y.; Iwai, Y. Atpenins, new antifungal antibiotics produced by Penicillium sp. Production, isolation, physico-chemical and biological properties. J. Antibiot. Tokyo 1988, 41, 1769–1773. [Google Scholar] [CrossRef] [PubMed]
  21. Miyadera, H.; Shiomi, K.; Ui, H.; Yamaguchi, Y.; Masuma, R.; Tomoda, H.; Miyoshi, H.; Kita, K.; Osanai, A.; Omura, S. Atpenins, potent and specific inhibitors of mitochondrial complex II (succinate-ubiquinone oxidoreductase). Proc. Natl. Acad. Sci. USA 2003, 100, 473–477. [Google Scholar] [CrossRef] [PubMed]
  22. Wojtovich, A.P.; Brookes, P.S. The complex II inhibitor atpenin A5 protects against cardiac ischemia-reperfusion injury via activation of mitochondrial KATP channels. Basic Res. Cardiol. 2009, 104, 121–129. [Google Scholar] [CrossRef] [PubMed]
  23. Osanai, A.; Harada, S.; Sakamoto, K.; Shimizu, H.; Inaoka, D.K.; Kita, K. Crystallization of mitochondrial rhodoquinol-fumarate reductase from the parasitic nematode Ascaris suum with the specific inhibitor flutolanil. Acta Crystallogr. Sect. F 2009, 65, 941–944. [Google Scholar] [CrossRef] [PubMed]
  24. Yankovskaya, V.; Horsefield, R.; Tornroth, S.; Luna-Chavez, C.; Miyoshi, H.; Leger, C.; Byrne, B.; Cecchini, G.; Iwata, S. Architecture of succinate dehydrogenase and reactive oxygen species generation. Science 2003, 299, 700–704. [Google Scholar] [CrossRef] [PubMed]
  25. Huang, L.S.; Sun, G.; Cobessi, D.; Wang, A.C.; Shen, J.T.; Tung, E.Y.; Anderson, V.E.; Berry, E.A. 3-Nitropropionic acid is a suicide inhibitor of mitochondrial respiration that, upon oxidation by complex II, forms a covalent adduct with a catalytic base arginine in the active site of the enzyme. J. Biol. Chem. 2006, 281, 5965–5972. [Google Scholar] [CrossRef] [PubMed]
  26. Sun, F.; Huo, X.; Zhai, Y.; Wang, A.; Xu, J.; Su, D.; Bartlam, M.; Rao, Z. Crystal structure of mitochondrial respiratory membrane protein complex II. Cell 2005, 121, 1043–1057. [Google Scholar] [CrossRef] [PubMed]
  27. Iverson, T.M.; Luna-Chavez, C.; Cecchini, G.; Rees, D.C. Structure of the Escherichia coli fumarate reductase respiratory complex. Science 1999, 284, 1961–1966. [Google Scholar] [CrossRef] [PubMed]
  28. Iverson, T.M.; Luna-Chavez, C.; Croal, L.R.; Cecchini, G.; Rees, D.C. Crystallographic studies of the Escherichia coli quinol-fumarate reductase with inhibitors bound to the quinol-binding site. J. Biol. Chem. 2002, 277, 16124–16130. [Google Scholar] [CrossRef] [PubMed]
  29. Shimizu, H.; Osanai, A.; Sakamoto, K.; Inaoka, D.K.; Shiba, T.; Harada, S.; Kita, K. Crystal structure of mitochondrial quinol-fumarate reductase from the parasitic nematode Ascaris suum. J. Biochem. 2012, 151, 589–592. [Google Scholar] [CrossRef] [PubMed]
  30. Kuramochi, T.; Hirawake, H.; Kojima, S.; Takamiya, S.; Furushima, R.; Aoki, T.; Komuniecki, R.; Kita, K. Sequence comparison between the flavoprotein subunit of the fumarate reductase (complex II) of the anaerobic parasitic nematode, Ascaris suum and the succinate dehydrogenase of theaerobic, free-living nematode, Caenorhabditis elegans. Mol. Biochem. Parasitol. 1994, 68, 177–187. [Google Scholar] [CrossRef]
  31. Saruta, F.; Hirawake, H.; Takamiya, S.; Ma, Y.C.; Aoki, T.; Sekimizu, K.; Kojima, S.; Kita, K. Cloning of a cDNA encoding the small subunit of cytochrome b558 (cybS) of mitochondrial fumarate reductase (complex II) from adult Ascaris suum. Biochim. Biophys. Acta 1996, 1276, 1–5. [Google Scholar] [CrossRef]
  32. Amino, H.; Wang, H.; Hirawake, H.; Saruta, F.; Mizuchi, D.; Mineki, R.; Shindo, N.; Murayama, K.; Takamiya, S.; Aoki, T.; et al. Stage-specific isoforms of Ascaris suum complex II: The fumarate reductase of the parasitic adult and the succinate dehydrogenase of free-living larvae share a common iron-sulfur subunit. Mol. Biochem. Parasitol. 2000, 106, 63–76. [Google Scholar] [CrossRef]
  33. Iwata, F.; Shinjyo, N.; Amino, H.; Sakamoto, K.; Islam, M.K.; Tsuji, N.; Kita, K. Change of subunit composition of mitochondrial complex II (Succinate-ubiquinone reductase/Quinol-fumarate reductase) in Ascaris suum during the migration in the experimental host. Parasitol. Int. 2008, 57, 54–61. [Google Scholar] [CrossRef] [PubMed]
  34. Motoba, K.; Uchida, M.; Tada, E. Mode of antifungal action and selectivity of flutolanil. Agric. Biol. Chem. 1988, 52, 1445–1449. [Google Scholar] [CrossRef]
  35. Ito, Y.; Muraguchi, H.; Seshime, Y.; Oita, S.; Yanagi, S.O. Flutolanil and carboxin resistance in Coprinus cinereus conferred by a mutation in the cytochrome b560 subunit of succinate dehydrogenase complex (Complex II). Mol. Genet. Genomics 2004, 272, 328–335. [Google Scholar] [CrossRef] [PubMed]
  36. Ernster, L.; Nordenbrand, K. Skeletal muscle mitochondria. Methods Enzymol. 1967, 10, 84–94. [Google Scholar]
  37. Huo, X.; Su, D.; Wang, A.; Zhai, Y.; Xu, J.; Li, X.; Bartlam, M.; Sun, F.; Rao, Z. Preliminary molecular characterization and crystallization of mitochondrial respiratory complex II from porcine heart. FEBS J. 2007, 274, 1524–1529. [Google Scholar] [CrossRef] [PubMed]
  38. Otwinowski, Z.; Minor, W. Processing of X-ray diffraction data collected in oscillation mode. Methods Enzymol. 1997, 276, 307–326. [Google Scholar]
  39. Vagin, A.; Teplyakov, A. Molrep: An automated program for molecular replacement. J. Appl. Crystallogr. 1997, 30, 1022–1025. [Google Scholar] [CrossRef]
  40. Collaborative Computational Project, Number 4. The CCP4 suite: Programs for protein crystallography. Acta Crystallogr. Sect. D 1994, 50, 760–763.

Share and Cite

MDPI and ACS Style

Inaoka, D.K.; Shiba, T.; Sato, D.; Balogun, E.O.; Sasaki, T.; Nagahama, M.; Oda, M.; Matsuoka, S.; Ohmori, J.; Honma, T.; et al. Structural Insights into the Molecular Design of Flutolanil Derivatives Targeted for Fumarate Respiration of Parasite Mitochondria. Int. J. Mol. Sci. 2015, 16, 15287-15308. https://doi.org/10.3390/ijms160715287

AMA Style

Inaoka DK, Shiba T, Sato D, Balogun EO, Sasaki T, Nagahama M, Oda M, Matsuoka S, Ohmori J, Honma T, et al. Structural Insights into the Molecular Design of Flutolanil Derivatives Targeted for Fumarate Respiration of Parasite Mitochondria. International Journal of Molecular Sciences. 2015; 16(7):15287-15308. https://doi.org/10.3390/ijms160715287

Chicago/Turabian Style

Inaoka, Daniel Ken, Tomoo Shiba, Dan Sato, Emmanuel Oluwadare Balogun, Tsuyoshi Sasaki, Madoka Nagahama, Masatsugu Oda, Shigeru Matsuoka, Junko Ohmori, Teruki Honma, and et al. 2015. "Structural Insights into the Molecular Design of Flutolanil Derivatives Targeted for Fumarate Respiration of Parasite Mitochondria" International Journal of Molecular Sciences 16, no. 7: 15287-15308. https://doi.org/10.3390/ijms160715287

Article Metrics

Back to TopTop
