Int. J. Mol. Sci. 2014, 15(3), 3729-3745; doi:10.3390/ijms15033729
Published: 3 March 2014
Abstract: Pancreatic cancer usually has a poor prognosis, and no gene therapy has yet been developed that is effective to treat it. Since a unique characteristic of bone marrow-derived mesenchymal stem cells (MSCs) is that they migrate to tumor tissues, we wanted to determine whether MSCs could serve as a vehicle of gene therapy for targeting pancreatic cancer. First, we successfully extracted MSCs from SD rats. Next, MSCs were efficiently transduced with NK4, an antagonist of hepatocyte growth factor (HGF) which comprising the N-terminal and the subsequent four kringle domains of HGF, by an adenoviral vector. Then, we confirmed that rat MSCs preferentially migrate to pancreatic cancer cells. Last, MSCs expressing NK4 (NK4-MSCs) strongly inhibited proliferation and migration of the pancreatic cancer cell line SW1990 after co-culture. These results indicate that MSCs can serve as a vehicle of gene therapy for targeting pancreatic cancer.
Pancreatic cancer is a very aggressive malignant tumor, and has an extremely poor prognosis [1,2]. Since most pancreatic cancers are diagnosed late and often have invaded surrounding tissues, local treatment such as surgery of advanced pancreatic cancer is not a viable option. Although some adjuvant therapies, such as intraoperative radiotherapy and adjuvant chemotherapy have been tested, satisfactory results have not been obtained as of yet . Recent advances in our understanding of the genetics and epigenetics of pancreatic cancer have revealed that alterations in several tumor-related genes, including K-ras, p53, matrix metalloproteinases (MMP), hepatocyte growth factor (HGF), and epidermal growth factor receptor [4–6], may underlie the aggressiveness of this neoplasm . Gene therapy therefore provides a promising new approach for treating this often fatal disease.
Human mesenchymal stem cells (MSCs) derived from bone marrow (BM) comprise an adult population that may participate in the repair of tissue damage inflicted by natural expiry of cells, injury or disease . MSCs are thought to contribute to the regeneration of mesenchymal tissues such as bone, cartilage, muscle, ligament, tendon, adipose tissue and stroma. The ability of MSCs to migrate to areas of injury and to tumors has encouraged investigation of MSCs as therapeutic tools. MSCs have also been used for targeted delivery of therapeutic gene products to the tumor microenvironment in animal models [9,10], and the therapeutic use of MSCs is being explored for various disease conditions. Recent advances in studying MSC biology have shown that this cell population exhibits some properties that suggest the feasibility of their use as a cellular vehicle: a relative simple isolation method, the ability to be cultured in vitro and to expand to quantities required for therapy, the ability for ex vivo transduction with viral vectors, plasticity, the potential to differentiate under exogenous stimuli, high metabolic activity, an efficient machinery to express therapeutic proteins and the ability to be delivered systemically or locally .
Hepatocyte growth factor (HGF), originally identified as a mitogen of mature hepatocytes with a 69 kDa α-chain and 34 kDa β-chain, is a multifunctional growth factor that stimulates mitogenesis, motogenesis and morphogenesis in a variety of epithelial and endothelial cells [12,13]. HGF is also a strong inducer of tumor growth, angiogenesis and lymphangiogenesis, thereby promoting invasion and metastasis of tumor cells [14–16]. The biological responses to HGF are mediated through its receptor, c-Met, a receptor tyrosine kinase expressed in a variety of cells. Because c-Met is inappropriately expressed in almost all types of human cancer, the HGF/c-Met signaling pathway should be an attractive target for cancer therapies . The HGF-antagonist-designated NK4, consisting of the NH2-terminal hairpin domain and the four kringle domains of the HGF α-chain, binds to c-Met and competitively antagonizes HGF-induced tyrosine phosphorylation of c-Met, resulting in inhibition of HGF-mediated cell proliferation, migration, invasion, angiogenesis and lymphangiogenesis and in antiapoptotic effects that contribute to malignant growth of tumor cells . NK4 had been reported to inhibit cell proliferation by transfer to pancreatic cancer cells . However, the systemic administration of viral vectors often causes severe adverse effects, such as liver toxicity and humoral and cytotoxic immune responses.
In this study, we introduced the NK4 gene into MSCs by using an adenoviral vector and investigated it affects on the proliferation, apoptosis and migration of pancreatic cancer cells. The objective of this study was to explore whether BM-MSCs may be used as a NK4 carrier for human pancreatic cancer treatment––a possibility that would require an experimental basis for the clinical application of manipulations of the NK4 gene product.
2. Results and Discussion

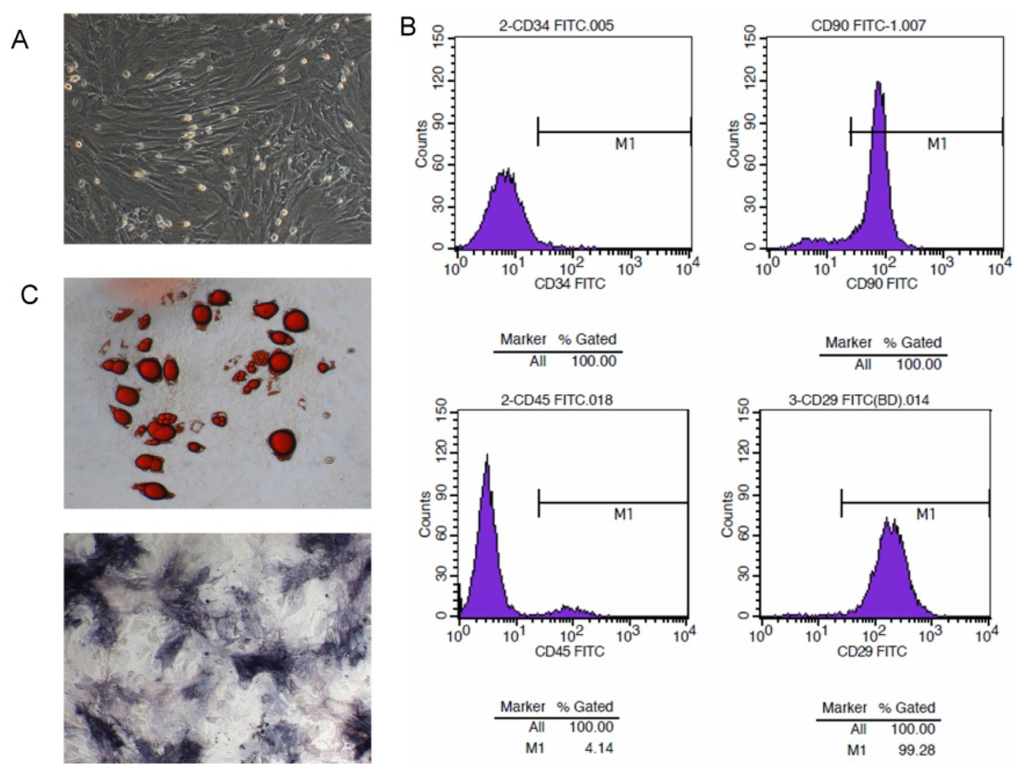

2.1. Isolation and Character Identification of Bone Marrow-Derived MSCs
MSCs were isolated from murine bone marrow cells after passage three or four generations, when they displayed a large and polygonal morphology (Figure 1A). In order to verify the character of bone marrow-derived MSCs, they were analyzed by flow cytometry for the expression of surface markers. These cells revealed the typical antigenic profile of MSCs and were positive for CD29 and CD90 antigens as reported previously [20,21]. In contrast, these cells were negative for CD45 and CD34 (Figure 1B); since CD45 [22,23] and CD34  are positive markers for hematopoietic stem cells, (HSC) differentiation from MSCs though CD34 is currently controversial . Furthermore, induced directional differentiation tests in vitro showed that adipose cells and osteocytes were stained after MSC induction through lipoblast and osteoblast inducers (Figure 1C). The MSCs had a differentiation capability for adipogenesis and osteogenesis.

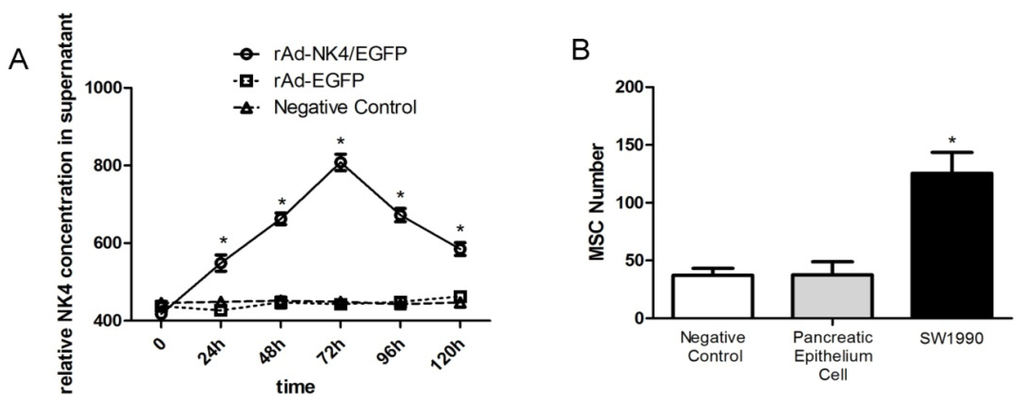

2.4. NK4 Expression in MSC Cell Supernatant and Oncotropism to Pancreatic Cancer Cells
To confirm the whether NK4 could be secreted to the extracellular environment with stable expression after transfection with rAd-NK4/EGFP, ELISA assays were used to detect NK4 expression levels in MSCs cell supernatant. Over time, NK4 expression levels increased after MSCs transfection with rAd-NK4/EGFP having the highest level at 72 h then decreasing; the rAd-EGFP group and control group, had no NK4 expression in the MSCs cell supernatant (Figure 4A). This indicated that NK4 protein could be expressed in the MSCs and secreted out of the MSCs.
Transwell migration assays wereused to test the oncotropism of MSCs to pancreatic cancer cells. After 24 h, the number of rAd-NK4/EGFP MSCs migrated to the contralateral of the membrane was considerably larger in the pancreatic cancer cell group than in the pancreatic epithelial cell group and control (Figure 4B). There was no significant difference between the pancreatic epithelial cell group and control. This indicated rAd-NK4/EGFP MSCs have obvious tropism to pancreatic cancer in vitro and no distinct tendency to pancreatic epithelial cells.

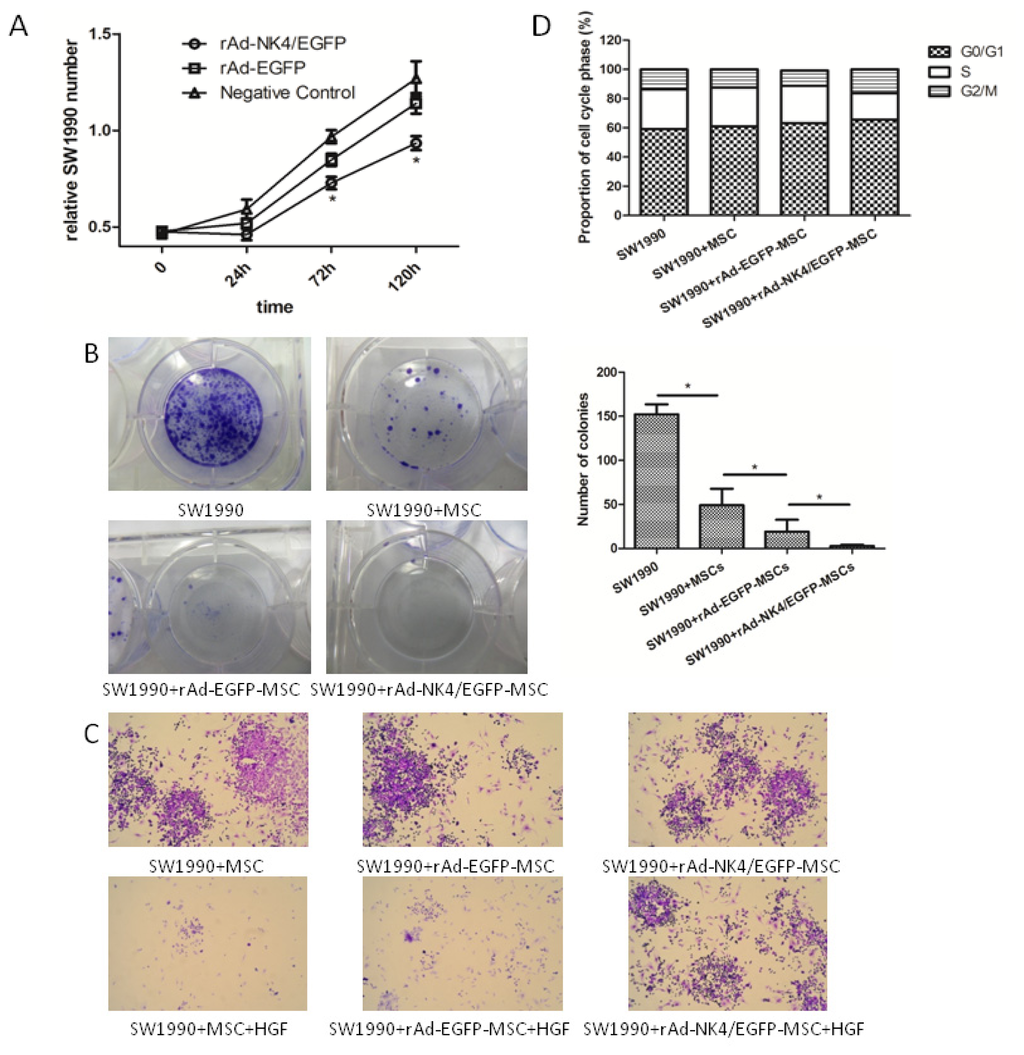

2.5. Effect of Transfected MSCs on Biological Characteristics of Pancreatic Cancer Cell
MTT assays were performed to investigate to effect of rAd-NK4/EGFP MSCs on the proliferation of pancreatic cancer cells in vitro. MSCs, rAd-EGFP MSCs and rAd-NK4/EGFP MSCs were co-cultured with pancreatic cancer cell line SW1990 to study the effect of MSCs secreted NK4 on cancer proliferation. As shown in Figure 5A, the growth rate of SW1990 cells was slower than in the control groups during the early stages of tumor formation which was consistent with the previous finding that NK4 is required for the growth of the cancer [26–28]. This result indicated that SW1990 cells proliferation is significantly inhibited by rAd-NK4/EGFP MSCs co-culture.
To measure the effect of MSCs on pancreatic cancer cell viability, colony-forming assay was used. SW1990 were seeded, as described in Methods, in dishes after co-culture with different MSCs groups for 72 h (Figure 5B). The absolute number of colony forming cells in the rAd-NK4/EGFP MSCs group was significantly decreased at 3 weeks after co-culture, in comparison to controls. Though this indicated that MSCs induced a partial inhibition of colony formation in the control group, the ability of SW1990 to form large colonies was completely inhibited by rAd-NK4/EGFP MSCs.
To evaluate the characteristic changes of migration in pancreatic cancer cells co-cultured with MSCs, cell scatter assay was applied. Briefly, SW1990 cells were allowed to grow together with MSCs and treated with HGF to induce scattering. A colony is judged as “scattered” when half of the cells have lost contact with their neighbors and exhibited a fibroblast-like morphology. As shown in Figure 5C, an obvious scattering of SW1990 cells was induced following 48 h treatment with HGF and control MSCs, while in the rAd-NK4/EGFP MSC treated group the phenomena of HGF-induced cell scatter was inhibited.
To further evaluate the effect of rAd-NK4/EGFP MSCs treatment upon cell cycle profiles, flow cytometry was performed. The data showed that rAd-NK4/EGFP MSCs increased the proportion of SW1990 cells in the G1 phase from 59.3% to 65.6%, (Figure 5D) and decreased that in the S phase from 27.1% to 18.1%, indicating that rAd-NK4/EGFP MSCs inhibit cell cycle progression. This result suggests that rAd-NK4/EGFP MSCs could block the SW1990 cell cycle progression by inhibiting the G1-S phase transition and arresting cells in G1.
In this study, we demonstrated that systemically administered MSCs expressing NK4 efficiently migrated to the pancreatic cancer cells and inhibited tumor progression. This antitumor effect was due to the suppression of epithelial-mesenchymal transition (EMT) and cell cycle in the cancer cell. We also confirmed higher gene transduction efficiency of MSCs with an adenovirus vector using the Gateway technique, compared to conventional adenoviral vectors.
We found that systemically administered MSCs migrated efficiently to cancer cells in the pancreas but not to normal cells. These findings are consistent with earlier reports that systemically administered MSCs can migrate to tumors but not to healthy tissues [9,10,29,30]. Recent reports have shown that bone marrow-derived MSCs are able to recognize the sites of tumors and wounds and contribute to the development of solid tumors and the healing of wounds by differentiating into appropriate cells [31,32]. Although the molecular processes that drive migration of MSCs to tumor tissues remain unclear, the tropism of MSCs to tumor tissues could be mediated, at least in part, by specific growth factors and chemokines [33,34].
Successful treatment of multiple tumors by engineered MSCs has been reported. Intravenous injection of human MSCs expressing interferon-β into SCID mice successfully treated multiple lung metastases by inhibiting tumor growth in the lung . However, high titers (3000 MOI) of the Ad5 vector were needed for the expression of appropriate amounts of interferon-β because of the low efficiency of gene transduction to MSCs. In contrast, an adenoviral vector with Gateway technique could efficiently transduce the genes to MSCs at a relatively low dose (100 MOI).
Malignant tumor cell proliferation is an important characteristic of cancer development, and EMT has an important role in the promotion of oncogenesis, tumor development and growth. In our study, MSCs secreting NK4 inhibited proliferation of SW1990 cells in vitro in a short period. Over a longer time, MSCs secreting NK4 significantly inhibited SW1990 cell viability, while MSCs alone may also partially have a similar result. This is an interesting phenomenon which may be caused by the different source of MSCs and SW1990 cells, and need further study. Previously, it was reported that injection of an adenoviral vector expressing NK4 into tumors strongly inhibited cancer cell growth in human pancreatic cancer . The ability of NK4 to inhibit lung tumor angiogenesis and lymphangiogenesis and induction of apoptosis had also been reported . All of this indicates the significant impact of NK4 in tumor inhibition and the possibility of MSC to deliver NK4 to the neoplastic foci. Therefore, MSCs expressing NK4 is worth further study in pancreatic cancer animal models and may have potential value in clinical therapy of pancreatic cancer.
The mechanism by which NK4 inhibits proliferation in SW1990 cells may be its inhibitory effect on HGF-induced EMT. Death from cancer is generally associated with metastasis; a biological phenomenon linked to the tumor cell’s ability to migrate, seed and colonize distant sites. Hepatocyte growth factor has attracted considerable attention as a stromal-derived mediator in tumor-stromal interaction, on the basis of its paracrine action and close involvement in cancer growth, invasion and metastasis. As a competitive antagonist of HGF, NK4 binds to the c-Met receptor, without eliciting any biological influence, thus preventing HGF from activating the receptor . Through our in vitro assay, we found that MSCs secreting NK4 could inhibit HGF-induced cell scatter. Cell scattering is used to describe the dispersion of compact colonies of epithelial cells induced by certain soluble factors. Because the scattering of epithelial colonies possesses characteristics of epithelial-mesenchymal transition, such as the loss of epithelial cell-cell junctions and the acquisition of a motile mesenchymal cell phenotype, the scatter assay has been used for studying epithelial-mesenchymal transition and for detecting factors able to induce migratory behavior of cells. Many reports had proved HGF can induce EMT through the PI3K/Akt/mTOR signaling pathway in several types of cancers [38,39]. This may also play an important role in pancreatic cancer and be worth future study.
Since many factors including the cell cycle can impact the proliferation of the tumor, we investigated the SW1990 cell cycle stage after treatement with MSCs expressing NK4. As shown in Figure 5D, MSCs secreting NK4 arrested the SW1990 cell cycle by decreasing the number of cells in S-phase and increasing those in the G1-phase. The results of recent studies showed that the PI3K/Akt signaling pathway regulates fundamental cellular functions, such as transcription, translation, proliferation, growth, and survival . PI3K activity is important for the G1-to-S transition , and Akt regulates a platelet derived growth factor-induced decrease in p27kip1, a nuclear protein that inhibits both the G1- and S-phases . PI3K/Akt activation and subsequent inhibitory phosphorylation of GSK-3β is required for HGF-induced suppression of RANTES in human kidney proximal tubule epithelial cells . Furthermore, the PI3K/Akt signaling pathway is a major regulator of GSK-3β, an important component of diverse signaling pathways involved in the regulation of cell fate, protein synthesis, glycogen metabolism, cell mobility, proliferation, and survival . The SW1990 cell cycle arrest caused by MSCs secreting NK4 may play its role through blocking the PI3K/Akt/GSK-3β pathway; the exact mechanism needs further investigation.
Taken together, these results indicate that MSCs can serve as a vehicle of gene therapy for targeting pancreatic cancer.
3. Experimental Section
3.1. Rat and Cells
Eight- to ten-week-old SD rats were purchased from the laboratory animal center of Wenzhou Medical University. All experiments were performed under protocols approved by the Institutional Review Board of animal experiments of Wenzhou Medical University. Human embryonic kidney (HEK) 293 cells were purchased from the American Type Culture Collection (ATCC, Manassas, VA, USA). Pancreatic cancer cells SW1990 and pancreatic epithelial cells were provided from the Shanghai cell bank, Chinese Academy of medical science.
3.2. Preparation and Culture of Bone Marrow-Derived MSCs
MSCs were isolated from bone marrow cells by adherence purification on tissue culture plastic. Briefly, bone marrow cells of 8- to 10-week-old SD rats were obtained by flushing the femora and tibiae with Dulbecco’s modified Eagle’s medium-low glucose (DMEM; Gibco, Grand Island, NY, USA). The cells were collected and seeded at a density of 3 × 105 cells/cm2 in 24-well plates and grown in DMEM supplemented with 10% fetal bovine serum (FBS; Gibco, Life te, Grand Island, NY, USA), 50 U/mL penicillin and 50 mg/mL streptomycin for 72 h followed by re-feeding of fresh media. When the culture reached confluence, the plastic-adherent cells were lifted up with 0.25% trypsin and 1 mM EDTA, suspended in fresh media and transferred into a new flask. Finally, large and polygonal cells (MSCs) were collected and used during the third or fourth passage for experiments.
3.3. Molecular Characterization of MSC
Immunophenotypic surface marker analysis was performed on a FACS Canto II (BD, Heidelberg, Germany) upon staining with the following antibodies as described before: CD29-phycoerythrin (PE, clone MAR4; BD), CD34-APC (clone 8G12; BD), CD45-APC (clone HI30; BD), CD90-APC (clone 5E10; BD).
For adipogenic differentiation, MSC were cultured in medium supplemented with 1 mM dexamethasone, 10 mg/L insulin, 50 mM IBMX, and 0.2 mM indometacin. Twenty days after induction, cells were fixed with 40 g/L paraformaldehyde and lipid droplets were visualized by staining with Oil Red O solution . Fluorescence microscopic pictures were taken from four randomly chosen areas with a Leica DM IL HC microscope (Leica, Wetzlar, Germany).
Osteogenic differentiation was induced with culture medium supplemented with 1 mM dexamethasone, 1 M β-sodium glycerophosphate, and 50 mM ascorbic acid and with medium changes every 3–4 days. After 40 days, osteogenic differentiation was analyzed by alkaline phosphatase staining. Alkaline phosphatase granules located in the cytoplasm stained intensively and the color was darker than the cell. Fluorescence microscopic pictures were taken from four randomly chosen areas with a Leica DM IL HC microscope (Leica Microsystems, Wetzlar, Germany).

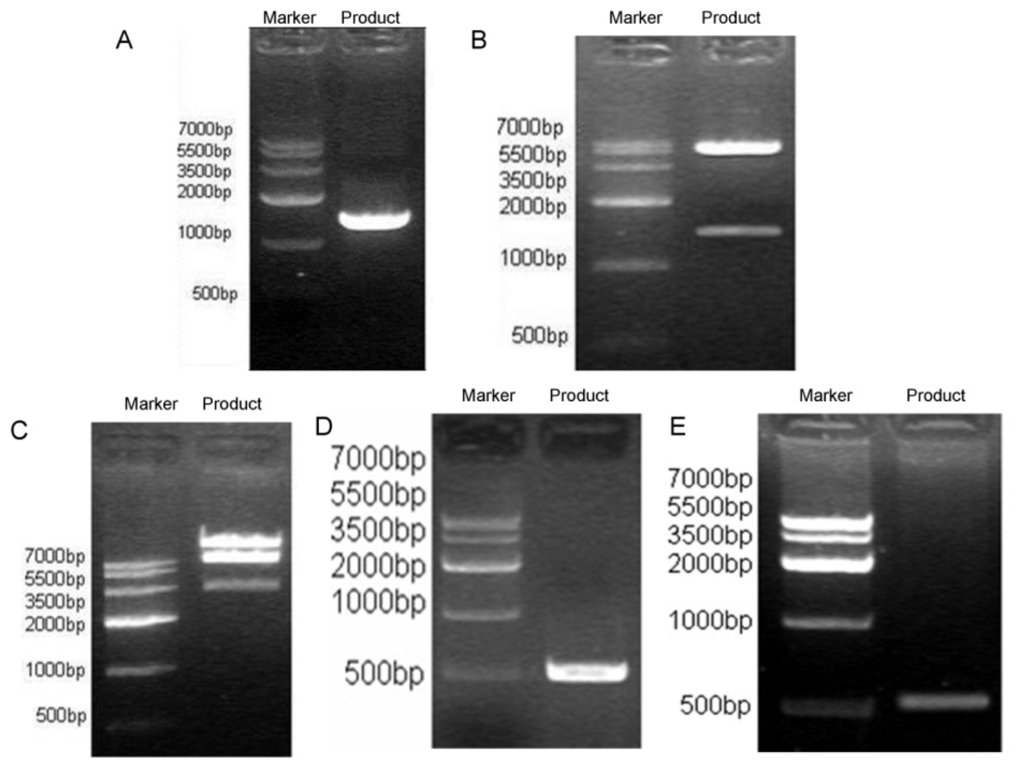

3.4. NK4 Gene Cloning to Adenovirus Shuttle Vector pYr-Adshuttle-6
Template plasmid pBluescript II-SK(+)-HGF DNA was sequencing and compared with HGF (open reading frame) published by NCBI. The cDNA was synthesized using the cDNA synthesis kit (Invitrogen, Life te, Grand Island, NY, USA) using random hexamers. Afterwards, full-length human NK4 cDNA was amplified using specific forward 5′-CTAGCTAGCGCCACCATGTGGGTGAC-3′ (NheI) and reverse 5′-ACGCGTCGACTCAGACTATTGTAGGTGT-3′ (SalI) primers. The forward primer included six nucleotides (underlined) for Kozak sequence site. The polymerase chain reaction (PCR) products were then cloned into pYr-adshuttle-6 vector according to the manufacturer’s protocol (Invitrogen, Life te, Grand Island, NY, USA) and used for transformation of competent Escherichia coli DH5α. Then, the recombinant bacteria were screened using LB agar medium containing 100 μg/mL kanamycin. The presence of the insert was confirmed by PCR and double digestion of NheI and SalI. Finally, the fidelity of the cloned sequence was confirmed by DNA sequencing. The correct clone was called pYr-adshuttle-6-NK4.
3.5. Construction of Recombinant Ad Vector DNA Containing Human NK4
The Adeno pAd/BL-DEST adenovirus expression vector was purchased from Invitrogen. The LR recombination reaction was carried out between the clone (pYr-adshuttle-6-NK4) and destination vector (pAd/BL-DEST) according to the manufacturer’s protocols (Invitrogen).

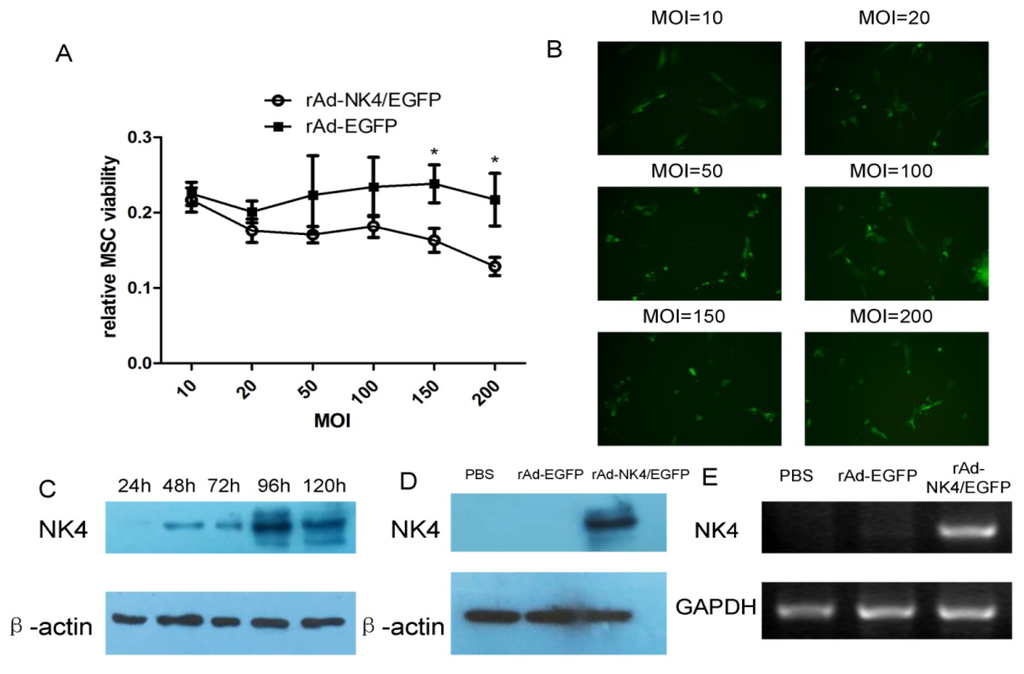

3.6. Producing Viral Stocks and Transducing MSCs
The HEK293 cells were transfected with PacI linearized recombinant adenoviruses. In brief, the recombinant adenoviruses containing the entire coding sequence of hNK4 (pAd-NK4) were digested with PacI to expose the ITRs. Then, the HEK293 cells were cultured in a 60-mm plate and transfected with the linear pAd-NK4 at a confluency of 70%. The transfection reaction was carried out using the lipo 2000 reagent as described by the manufacturer (Invitrogen, Life te, Grand Island, NY, USA). In order to harvest the viruses, the cells were lysed with three consecutive freeze-thaw cycles, and then the viruses were collected from supernatant. Next, the adenoviruses were amplified by infecting additional HEK293 cells with the crude viral lysate, and then subjected to viral titer determination by plaque assay on HEK293 cells. The recombinant adenovirus containing NK4 DNA was called rAd-NK4/EGFP.
Subsequently, for transduction of MSCs with rAd-NK4/EGFP, 8 × 105 cells/well were seeded in six-well plates in growth medium containing DMEM-LG (Gibco, Life te, Grand Island, NY, USA) and 10% FBS and incubated for 12 h. Virus stock was diluted with serum-free low glucose DMEM and serial dilution of viral stock was added to the cells. Following determination of the appropriate MOI, MSCs were infected with rAd-NK4/EGFP. The NK4 transduced MSCs were analyzed by reverse transcription polymerase chain reaction (RT-PCR) and western blotting for overexpression of NK4.
Viral yield was determined by the limiting dilution method, known as the determination of 50% tissue culture infective dose, described previously . The data from three separate infection studies were expressed as plaque-forming units per milliliter.
3.8. 3-(4,5,-Dimethyl thiazolyl-2)-2,5-diphenyl tetrazolium bromide (MTT)
MSCs were harvested after transduced with rAd-NK4/EGFP for various MOIs (0–200 h). A total of 300 mL MTT reagent (Sigma, St. Louis, MO, USA) was added to each well 2 h prior to harvest. The supernatant was then removed and incubated with 400 mL dimethylsulfoxide (Sigma, St. Louis, MO, USA) for 10 min. Absorbance at 540 nm was recorded using an enzyme-linked immunosorbent assay-plate reader.
3.9. Western Blot Analysis
Cells were harvested, washed twice with PBS, and lysed with buffer (20 mM Tris (pH 7.5), 1 mM EDTA, 1 mM EGTA, 1% Triton X-100, 1 mg/mL aprotinin, and 1 mM phenylmethylsulfonylfluoride (PMSF)) for 30 min on ice. The lysates were then cleared by centrifugation (22,250× g at 4 °C for 10 min). Protein concentration was determined by the Bradford method. Equal amounts of protein (20 mg) were resolved by 10% SDS-PAGE and transferred to a polyvinylidene fluoride (PVDF) membrane. After the blots were washed with TBST (tris-buffer solution-Tween-20) (10 mM Tris-HCl (pH 7.6), 150 mM NaCl, and 0.05% Tween-20), the membranes were blocked with 5% skim milk for 1 h and incubated with an appropriate primary antibody at the dilution recommended by the supplier. The membrane was then washed and primary antibodies were detected with a horseradish peroxidase-conjugated secondary antibody. The bands were visualized by enhanced chemiluminescence (Amersham Pharmacia Biotech Inc., GE, Fairfield, CT, USA). Densitometric analysis was performed using the TINA version 2.09 program package (DesignSoft, Budapest, Hungary). The ratios between treated and control samples were calculated for each individual experiment and expressed as a percentage of controls.
Molecular characterization of cells used in differentiation assays was done by RT-PCR. Total RNA was extracted with the GenElute™ Mammalian Total RNA Miniprep Kit (Sigma-Aldrich, St. Louis, MO, USA). First-strand cDNA synthesis was performed on 1 μg of total RNA; cDNA samples were thereafter amplified in a thermocycler (Bio-Rad Laboratories, Hercules, CA, USA) for 35 cycles (94 °C for 45 s, 60 °C for 45 s and 72 °C for 45 s) with specific oligonucleotide primers (Metabion, Martinsried, Germany) to assess mRNA expression for NK4 and GAPDH, as endogenous control. Enzymatically dissociated, freshly isolated MSC cells were used as controls. The oligonucleotide primer sequences for both RT-PCR are shown in Table 1.
3.11. Determination of MSC Supernatant NK4 with Enzyme-Linked Immunosorbent Assay
MSC supernatant was obtained from each treatment group. ELISA was performed by using Quantikine immunoassay from R & D Systems (Madison, WI, USA). In brief, supernantants were incubated in the precoated 96-well plates for 4 h at room temperature. After three washes, conjugated antibody was added for 2 h at room temperature, incubated in the substrate solution for 30 min, and the reaction was stopped by the addition of stop solution. The optical density of each well was determined by using a microplate reader at 450 nm.
3.12. Co-Culture Migration Assay
Migration assays were performed in transwell inserts with 8-μm pore uncoated membrane filters (Corning Incorporated, Corning, NY, USA). Pancreatic cancer cell SW1990, pancreatic epithelial cells and negative control were seeded onto the bottom chambers. MSCs were added to the upper chambers 24 h later. MSCs were allowed to migrate for 24 h at 37 °C. Then, the upper sides of the filters were carefully washed with cold PBS and non-migrated cells at the top of the filter were removed using a cotton swab. Cells that had migrated to the bottom of the filters were fixed with paraformaldehyde and crystal violet stained, and imaged with a Nikon Eclipse TE2000-U inverted epifluorescence microscope (Nikon, Tokyo, Japan). Stained cells were counted in 10 pictures taken at ×400 magnification. The average cell number counted per field was multiplied by the ratio between the surfaces (total/counted) to determine the total number of migrated cells. Inhibition of migration was calculated normalizing data to control cells.
3.13. Colony-Forming Assay
The MSCs and SW1990 were co-cultured as described above and plated in triplicate at 200 cells per well in 24-well plates. From the third day after plating, SW1990 cells were cultured with 1640 Medium (MEM) (Gibco, Invitrogen, Grand Island, NY, USA) with 10% FBS and antibiotics. Medium was changed three times a week and cells cultured at 37 °C in a humidified 5% CO2 incubator. Three weeks after seeding, cells were fixed with methanol for 15 min and stained with 5% Giemsa (Sigma-Aldrich, St. Louis, MO, USA). Colonies containing more than 10 cells were counted and their number was normalized to the inoculation cell number per well.
3.14. Cell Scatter Assay
SW1990 cells (2.5 × 103 cells/well) were seeded into 12-well plates. After culturing for 48 h at 37 °C, the medium was replaced with 2% cell maintenance medium. The cell cultures were divided into a control group, a rAd-EGFP-MSC group (100 MOI), and a rAd-NK4/EGFP-MSC group 100 MOI) and treated with recombinant human HGF (PeproTech EC, Rocky Hill, NJ, USA) at a final concentration of 10 μg/L for 48 h. At the end of the experiment, cells were fixed with formalin and stained with crystal violet. The cell colony scattering was observed and photographed.
3.15. Cell Cycle Detection
The MSCs and SW1990 were co-cultured at 2 × 105 cells/well. Cells were obtained after 72 h, and adherent cells were digested by trypsin, washed with PBS and fixed with 70% pre-cooled ethanol at 4 °C overnight. An equal amount of PBS was added twice for washing. Up to 5 μL RNase A was added at 37 °C for 1 h, followed by the addition of propidium iodide at 4 °C in the dark for 30 min. Cell cycle was analyzed by flow cytometry using the MCYCLE software (version 1.0, Beckman, New York, NY, USA).
3.16. Statistical Analysis
All the images shown in this paper are representative of at least three independent experiments carried out under the same conditions. Statistical analysis was performed by ANOVA test followed by Bonferroni’s multiple comparison tests. p < 0.05 were considered statistically significant. Data are expressed as the mean ± standard deviation (SD).
In conclusion, we demonstrated that NK4-MSCs inhibited the pancreatic cancer progression in vitro. Proliferation of pancreatic cancer cells was inhibited by interfering with EMT and the cell cycle. This NK4-MSC-based therapy could therefore be an attractive drug-delivery system for homing in and then attacking the cancer. This approach would be not only a powerful but also a safe strategy for targeting the milieu of malignant cells.
The work was supported by the Wenzhou Science and Technology project (y20120007) and the Zhejiang Top Priority Subject of Surgery (2008-255).
Conflicts of Interest
The authors declare no conflict of interest.
- Saif, M.W. Advancements in the management of pancreatic cancer: 2013. JOP 2013, 14, 112–118. [Google Scholar]
- Mancuso, A.; Calabro, F.; Sternberg, C.N. Current therapies and advances in the treatment of pancreatic cancer. Crit. Rev. Oncol. Hematol. 2006, 58, 231–241. [Google Scholar]
- Manabe, T.; Mizumoto, K.; Nagai, E.; Matsumoto, K.; Nakamura, T.; Nukiwa, T.; Tanaka, M.; Matsuda, T. Cell-based protein delivery system for the inhibition of the growth of pancreatic cancer: Nk4 gene-transduced oral mucosal epithelial cell sheet. Clin. Cancer Res. 2003, 9, 3158–3166. [Google Scholar]
- Bardeesy, N.; DePinho, R.A. Pancreatic cancer biology and genetics. Nat. Rev. Cancer 2002, 2, 897–909. [Google Scholar]
- Sato, N.; Goggins, M. The role of epigenetic alterations in pancreatic cancer. J. Hepatobiliary Pancreat. Surg. 2006, 13, 286–295. [Google Scholar]
- Jimeno, A.; Hidalgo, M. Molecular biomarkers: Their increasing role in the diagnosis characterization and therapy guidance in pancreatic cancer. Mol. Cancer Ther. 2006, 5, 787–796. [Google Scholar]
- MacKenzie, M.J. Molecular therapy in pancreatic adenocarcinoma. Lancet Oncol. 2004, 5, 541–549. [Google Scholar]
- Caplan, A.I.; Dennis, J.E. Mesenchymal stem cells as trophic mediators. J. Cell Biochem. 2006, 98, 1076–1084. [Google Scholar]
- Studeny, M.; Marini, F.C.; Dembinski, J.L.; Zompetta, C.; Cabreira-Hansen, M.; Bekele, B.N.; Champlin, R.E.; Andreeff, M. Mesenchymal stem cells: Potential precursors for tumor stroma and targeted-delivery vehicles for anticancer agents. J. Natl. Cancer Inst. 2004, 96, 1593–1603. [Google Scholar]
- Nakamizo, A.; Marini, F.; Amano, T.; Khan, A.; Studeny, M.; Gumin, J.; Chen, J.; Hentschel, S.; Vecil, G.; Dembinski, J.; et al. Human bone marrow-derived mesenchymal stem cells in the treatment of gliomas. Cancer Res. 2005, 65, 3307–3318. [Google Scholar]
- Pereboeva, L.; Komarova, S.; Mikheeva, G.; Krasnykh, V.; Curiel, D.T. Approaches to utilize mesenchymal progenitor cells as cellular vehicles. Stem Cells 2003, 21, 389–404. [Google Scholar]
- Montesano, R.; Matsumoto, K.; Nakamura, T.; Orci, L. Identification of a fibroblast-derived epithelial morphogen as hepatocyte growth factor. Cell 1991, 67, 901–908. [Google Scholar]
- Matsumoto, K.; Kataoka, H.; Date, K.; Nakamura, T. Cooperative interaction between α- and β-chains of hepatocyte growth factor on c-met receptor confers ligand-induced receptor tyrosine phosphorylation and multiple biological responses. J. Biol. Chem. 1998, 273, 22913–22920. [Google Scholar]
- Bellusci, S.; Moens, G.; Gaudino, G.; Comoglio, P.; Nakamura, T.; Thiery, J.P.; Jouanneau, J. Creation of an hepatocyte growth factor/scatter factor autocrine loop in carcinoma cells induces invasive properties associated with increased tumorigenicity. Oncogene 1994, 9, 1091–1099. [Google Scholar]
- Weidner, K.M.; Hartmann, G.; Sachs, M.; Birchmeier, W. Properties and functions of scatter factor/hepatocyte growth factor and its receptor c-met. Am. J. Respir. Cell Mol. Biol. 1993, 8, 229–237. [Google Scholar]
- Cao, R.; Bjorndahl, M.A.; Gallego, M.I.; Chen, S.; Religa, P.; Hansen, A.J.; Cao, Y. Hepatocyte growth factor is a lymphangiogenic factor with an indirect mechanism of action. Blood 2006, 107, 3531–3536. [Google Scholar]
- Maulik, G.; Shrikhande, A.; Kijima, T.; Ma, P.C.; Morrison, P.T.; Salgia, R. Role of the hepatocyte growth factor receptor c-met in oncogenesis and potential for therapeutic inhibition. Cytokine Growth Factor Rev. 2002, 13, 41–59. [Google Scholar]
- Date, K.; Matsumoto, K.; Kuba, K.; Shimura, H.; Tanaka, M.; Nakamura, T. Inhibition of tumor growth and invasion by a four-kringle antagonist (HGF/NK4) for hepatocyte growth factor. Oncogene 1998, 17, 3045–3054. [Google Scholar]
- Lai, R.X.; Yuan, S.Z.; Nakamura, T. Effect of transferred nk4 gene on biological characteristics of human pancreatic cancer cell line sw1990. Ai Zheng 2004, 23, 1134–1138. [Google Scholar]
- Bruckner, S.; Tautenhahn, H.M.; Winkler, S.; Stock, P.; Jonas, S.; Dollinger, M.; Christ, B. Isolation and hepatocyte differentiation of mesenchymal stem cells from porcine bone marrow— “surgical waste” as a novel msc source. Transplant Proc. 2013, 45, 2056–2058. [Google Scholar]
- Pelekanos, R.A.; Li, J.; Gongora, M.; Chandrakanthan, V.; Scown, J.; Suhaimi, N.; Brooke, G.; Christensen, M.E.; Doan, T.; Rice, A.M.; et al. Comprehensive transcriptome and immunophenotype analysis of renal and cardiac msc-like populations supports strong congruence with bone marrow msc despite maintenance of distinct identities. Stem Cell Res. 2012, 8, 58–73. [Google Scholar]
- Chow, K.S.; Jun, D.; Helm, K.M.; Wagner, D.H.; Majka, S.M. Isolation & characterization of hoechst(low) cd45(negative) mouse lung mesenchymal stem cells. J. Vis. Exp. 2011, e3159. [Google Scholar]
- Ooi, Y.Y.; Ramasamy, R.; Vidyadaran, S. Mouse bone marrow mesenchymal stem cells acquire cd45-cd106+ immunophenotype only at later passages. Med. J. Malays. 2008, 63, 65–66. [Google Scholar]
- Kaiser, S.; Hackanson, B.; Follo, M.; Mehlhorn, A.; Geiger, K.; Ihorst, G.; Kapp, U. Bm cells giving rise to msc in culture have a heterogeneous cd34 and cd45 phenotype. Cytotherapy 2007, 9, 439–450. [Google Scholar]
- Lin, C.S.; Ning, H.; Lin, G.; Lue, T.F. Is cd34 truly a negative marker for mesenchymal stromal cells? Cytotherapy 2012, 14, 1159–1163. [Google Scholar]
- Yue, D.; Wang, Y.; Ma, P.; Li, Y.Y.; Chen, H.; Wang, P.; Ren, C.S. Effects of transferred NK4 gene on proliferation migration invasion and apoptosis of human prostate cancer du145 cells. Asian J. Androl. 2010, 12, 381–389. [Google Scholar]
- Suzuki, Y.; Sakai, K.; Ueki, J.; Xu, Q.; Nakamura, T.; Shimada, H.; Matsumoto, K. Inhibition of MET/HGF receptor and angiogenesis by NK4 leads to suppression of tumor growth and migration in malignant pleural mesothelioma. Int. J. Cancer 2010, 127, 1948–1957. [Google Scholar]
- Nakamura, T.; Sakai, K.; Matsumoto, K. Anti-cancer approach with NK4: Bivalent action and mechanisms. Anticancer Agents Med. Chem. 2010, 10, 36–46. [Google Scholar]
- Nakamura, K.; Ito, Y.; Kawano, Y.; Kurozumi, K.; Kobune, M.; Tsuda, H.; Bizen, A.; Honmou, O.; Niitsu, Y.; Hamada, H. Antitumor effect of genetically engineered mesenchymal stem cells in a rat glioma model. Gene Ther. 2004, 11, 1155–1164. [Google Scholar]
- Khakoo, A.Y.; Pati, S.; Anderson, S.A.; Reid, W.; Elshal, M.F.; Rovira, I.I.; Nguyen, A.T.; Malide, D.; Combs, C.A.; Hall, G.; et al. Human mesenchymal stem cells exert potent antitumorigenic effects in a model of kaposi’s sarcoma. J. Exp. Med. 2006, 203, 1235–1247. [Google Scholar]
- Ji, J.F.; He, B.P.; Dheen, S.T.; Tay, S.S. Interactions of chemokines and chemokine receptors mediate the migration of mesenchymal stem cells to the impaired site in the brain after hypoglossal nerve injury. Stem Cells 2004, 22, 415–427. [Google Scholar]
- Rojas, M.; Xu, J.; Woods, C.R.; Mora, A.L.; Spears, W.; Roman, J.; Brigham, K.L. Bone marrow-derived mesenchymal stem cells in repair of the injured lung. Am. J. Respir. Cell Mol. Biol. 2005, 33, 145–152. [Google Scholar]
- Orimo, A.; Gupta, P.B.; Sgroi, D.C.; Arenzana-Seisdedos, F.; Delaunay, T.; Naeem, R.; Carey, V.J.; Richardson, A.L.; Weinberg, R.A. Stromal fibroblasts present in invasive human breast carcinomas promote tumor growth and angiogenesis through elevated sdf-1/cxcl12 secretion. Cell 2005, 121, 335–348. [Google Scholar]
- Burger, J.A.; Kipps, T.J. Cxcr4: A key receptor in the crosstalk between tumor cells and their microenvironment. Blood 2006, 107, 1761–1767. [Google Scholar]
- Maemondo, M.; Narumi, K.; Saijo, Y.; Usui, K.; Tahara, M.; Tazawa, R.; Hagiwara, K.; Matsumoto, K.; Nakamura, T.; Nukiwa, T. Targeting angiogenesis and hgf function using an adenoviral vector expressing the HGF antagonist NK4 for cancer therapy. Mol. Ther. 2002, 5, 177–185. [Google Scholar]
- Kanehira, M.; Xin, H.; Hoshino, K.; Maemondo, M.; Mizuguchi, H.; Hayakawa, T.; Matsumoto, K.; Nakamura, T.; Nukiwa, T.; Saijo, Y. Targeted delivery of NK4 to multiple lung tumors by bone marrow-derived mesenchymal stem cells. Cancer Gene Ther. 2007, 14, 894–903. [Google Scholar]
- Matsumoto, K.; Nakamura, T. Nk4 gene therapy targeting hgf-met and angiogenesis. Front. Biosci. 2008, 13, 1943–1951. [Google Scholar]
- Hung, C.M.; Kuo, D.H.; Chou, C.H.; Su, Y.C.; Ho, C.T.; Way, T.D. Osthole suppresses hepatocyte growth factor (HGF)-induced epithelial-mesenchymal transition via repression of the c-met/Akt/Mtor pathway in human breast cancer cells. J. Agric. Food Chem. 2011, 59, 9683–9690. [Google Scholar]
- Chang, H.Y.; Kao, M.C.; Way, T.D.; Ho, C.T.; Fu, E. Diosgenin suppresses hepatocyte growth factor (hgf)-induced epithelial-mesenchymal transition by down-regulation of mdm2 and vimentin. J. Agric. Food Chem. 2011, 59, 5357–5363. [Google Scholar]
- Vivanco, I.; Sawyers, C.L. The phosphatidylinositol 3-kinase akt pathway in human cancer. Nat. Rev. Cancer 2002, 2, 489–501. [Google Scholar]
- Roche, S.; Downward, J.; Raynal, P.; Courtneidge, S.A. A function for phosphatidylinositol 3-kinase beta (p85alpha-p110beta) in fibroblasts during mitogenesis: Requirement for insulin- and lysophosphatidic acid-mediated signal transduction. Mol. Cell. Biol. 1998, 18, 7119–7129. [Google Scholar]
- Choudhury, G.G. Akt serine threonine kinase regulates platelet-derived growth factor-induced DNA synthesis in glomerular mesangial cells: Regulation of c-fos and p27(kip1) gene expression. J. Biol. Chem. 2001, 276, 35636–35643. [Google Scholar]
- Gong, R.; Rifai, A.; Dworkin, L.D. Activation of Pi3k-Akt-Gsk3β pathway mediates hepatocyte growth factor inhibition of rantes expression in renal tubular epithelial cells. Biochem. Biophys. Res. Commun. 2005, 330, 27–33. [Google Scholar]
- Grimes, C.A.; Jope, R.S. The multifaceted roles of glycogen synthase kinase 3β in cellular signaling. Prog. Neurobiol. 2001, 65, 391–426. [Google Scholar]
- da Meirelles, L.S.; Nardi, N.B. Murine marrow-derived mesenchymal stem cell: Isolation in vitro expansion and characterization. Br. J. Haematol. 2003, 123, 702–711. [Google Scholar]
- Grigorov, B.; Rabilloud, J.; Lawrence, P.; Gerlier, D. Rapid titration of measles and other viruses: Optimization with determination of replication cycle length. PLoS One 2011, 6, e24135. [Google Scholar]
|Table 1. Primer for RT-PCR.|
