High-Level Overproduction of Thermobifida Enzyme in Streptomyces lividans Using a Novel Expression Vector
Jun-Xia Li , Long-Mei Zhao , Ru-Juan Wu , Zhao-Jun Zheng and Ri-Jun Zhang *
State Key Laboratory of Animal Nutrition, College of Animal Science and Technology, China Agricultural University, Beijing 100193, China; E-Mails: lijunxia_cau@163.com (J.-X.L.); zhaolongmei@126.com (L.-M.Z.); lingxiabenpao@aliyun.com (R.-J.W.); zhaojun064@163.com (Z.-J.Z.)
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed; E-Mail: zhangrj621@126.com; Tel.: +86-10-6273-1208; Fax: +86-10-6289-0531.
Received: 22 July 2013; in revised form: 5 August 2013 / Accepted: 23 August 2013 /
Published: 10 September 2013

Abstract

: In this study, we constructed a novel Streptomyces-E.coli shuttle vector pZRJ362 combining the xylose isomerase promoter and amylase terminator. A gene encoding the endoglucanase Cel6A in Thermobifida fusca was amplified by PCR, cloned into Streptomyces lividans host strain using the novel expression vector and Pichia pastoris GS115 host strain using the vector pPICZα-C, respectively. Afterwards, the expression pattern and the maximum expression level were comparatively studied in both expression systems. The maximum enzyme activity of Cel6A-(His)6 secreted in S. lividans supernatant after 84-h of cultivation amounted to 5.56 U/mL, which was dramatically higher than that secreted in P. pastoris about 1.4 U/mL after 96-h of cultivation. The maximum expression level of Cel6A-(His)6 in S. lividans supernatant reached up to 173 mg/L after 84-h of cultivation. The endoglucanase activity staining SDS-PAGE showed that there were some minor proteins in S. lividans supernatant which may be the Cel6A derivant by proteolytic degradation, while there was no proteolytic product detected in supernatant of P. pastoris.
Keywords:
Streptomyces lividans; Pichia pastoris; Endoglucanase; Cel6A

1. Introduction

Microbial exploitation for the production of industrial enzymes like keratinase, pectinase, cellulase, xylanase, and lipase has attracted more and more attention. Actinomycetes constitute a formidable group of industrially important microorganisms that have been explored for the production of a variety of enzymes. A large number of enzymes have been found and isolated from actinomycetes, including phospholipase [1], phosphatase [2], cellulase [3], keratinase [4], protease [5,6], α-amylase [7,8], and xylanase [911], and some genes of them were cloned and expressed in Escherichia coli [1216], Pichia pastoris [7,12,17] and Streptomyces lividans [1,13,14,18]. Comparision of the productions of these proteins in the three hosts revealed that the expression of active proteins achieved in P. pastoris and S. lividans was much higher than that achieved in E. coli, even expression of some actinomycetes enzymes in E. coli was unsuccessful. With respect to comparision of the expression yield in P. pastoris and S. lividans, the results obtained to date showed the expression yield of P. pastoris would seem to be superior to those of S. lividans [1921], despite relevant differences between P. pastoris and actinomycetes. Theoretically, owing to similarities in their codon usage, with C or G preferentially as the third base of most codons, Streptomyces could be an ideal host for the expression of genes from actinomycetes, gram-positive bacteria with a high content of G + C nucleotides [22]. The most possible explanation for the low yield in Streptomyces was the inefficient expression vector or promoter. Thus, it is highly desirable to develop an efficient expression vector in Streptomyces to overproduct proteins of interest from actinomycetes, especially overexpress the thermostable enzyme from the thermophilic genera, such as Thermobifida and Thermoactinomyces because of their overall inherent stability.

Among the thermophilic actinomycetes, Thermobifida fusca is a major degrader of plant cell walls owing to its abundant extracellular cellulases and xylanases [23]. In this study, one gene cel6A (GenBank accession No. M73321) encoding an endoglucanase was selected to study the capacity of the novel expression vector we constructed in this paper. The reason for selecting endoglucanase Cel6A lies in the potential industrial application because of its thermostability, utility through a broad pH range and high activity [24].

Although an expression vector for production of endoglucanase Cel6A from T. fusca YX in Streptomyces has been reported recently, its maximum expression level was relatively low (about 64 mg/L) [25]. Therefore, the aim of this study was to construct a Streptomyces-E. coli shuttle vector for overproduction of the endoglucanase Cel6A from T. fusca and to compare it with the production obtained in P. pastoris. In the course of these experiments, comparisons of the expression pattern, the maximum expression level in both expression systems were investigated.

2. Results and Discussion

2.1. Characteristics of pZRJ362

As presented in Figure 1, an object gene can be cloned into the MCS, located between the promoter and terminator of the pZRJ362 vector. Moreover, this vector can be transformed using intergeneric conjugation between E. coli and Streptomyces because of oriT. The vector was designed to enable selection with Amp and Thiostrepton antibiotic in E. coli and Streptomyces, respectively.

2.2. Cloning and Expression of Cel6A in Streptomyces lividans

The expression plasmids, pZRJ362-cel6A and pZRJ362-cel6A-(His)6, containing approximately 1700 bp gene sequence which encoded endoglucanase Cel6A transcribed under the control of the Actinoplanes missouriensis xylose isomerase promoter, were conjugated in S. lividans and the plasmid vector pZRJ362 was used as a negative control. The resultant S. lividans transformants were cultured in TSB medium for 96 h. As a result, a large amount of T. fusca Cel6A or Cel6A-(His)6 was secreted in S. lividans supernatants using its signal sequence, and the enzyme activity in supernatants amounted to 5.06 and 5.20 U/mL, respectively. SDS-PAGE staining with Coomassie Blue (Figure 2) confirmed the expression of Cel6A. As shown in Figure 2, a protein band with a molecular mass of about 45 kDa was detected in both supernatants of the S. lividans/pZRJ362-cel6A (molecular mass, 43 kDa) and S. lividans/pZRJ362-cel6A-(His)6 (calculated molecular mass, 43.8 kDa) transformants as the major protein but not in culture of S. lividans transformed with pZRJ362. Analysis by SDS-PAGE revealed that the target proteins were exceptionally highly expressed and secreted in S. lividans using its own signal sequence, constituting up to 80.6% of all soluble protein in supernatants (determined by Bandscan 5.0 software (Glyko, Novato, CA, USA)).

Comparision of the specific activity of Cel6A (6.48 U/mg) and Cel6A-(His)6 (6.26 U/mg) in the supernatant after 96-h of cultivation showed the hexahistidine tag at the C-terminal has no adverse on the activity of Cel6A. Therefore, we merely selected S. lividans/pZRJ362-cel6A-(His)6 for purification and further study. Concurrent with the growth of S. lividans/pZRJ362-cel6A-(His)6 transformant, the measurement for endoglucanase activity and total protein content in the supernatants was taken. The maximum endoglucanase activity was observed at 84-h of cultivation (5.56 U/mL) and the production of Cel6A-(His)6 remained basically constant at longer incubation time (Figure 3A). The accumulation of 45-kDa Cel6A-(His)6 protein in the supernatant obtained at different culture time was also confirmed by SDS-PAGE analysis (Figure 3B). Unlike the time course of enzyme activity, the total protein content reached a maximum level after about 96-h (0.81 mg/mL) (Figure 3C) and it was slightly decreased by incubation, probably due to the degradation by a bit of endogenous protease of S. lividans 1326. Based on the result that the specific activity of supernatant cultured 84-h was slightly higher than that cultured 96-h (Figure 3D), we chose the supernatant at 84-h of cultivation for further purification.

The SDS-PAGE of the purified enzyme exhibited a single band after (His)6-tag affinity column purification (Figure 4). Estimated from the specific activity of purified Cel6A-(His)6 (32.3 U/mg), the maximum expression level of Cel6A-(His)6 reached to 173 mg/L after 84-h of cultivation of S. lividans harboring pZRJ362-cel6A-(His)6. With the combination of xylose isomerase promoter and amylase terminator, the protein concentration of the secreted Cel6A-(His)6 was approximately 3-fold higher than that with the combination of Streptoverticillium cinnamoneum phospholipase D promoter and terminator [25].

2.3. Cloning and Expression of Cel6A in Pichia pastoris

The plasmid pPICZα-cel6A-(His)6 or pPICZα-cel6A carrying the mature cel6A gene was regulated by a promoter of alcohol oxidase gene and the production of Cel6A was induced with 0.5% methanol. Using pPICZα-cel6A or pPICZα-cel6A-(His)6, the maximum Cel6A activity in the BMMY medium reached approximately 1.6 U/mL and 1.4 U/mL after 96-h of cultivation, respectively. Figure 5 showed the SDS-PAGE analysis of proteins secreted into the culture supernatants by P. pastoris transformants. Several protein bands corresponding to a molecular mass about 55 kDa were observed, probably because of the formation of different numbers of glycosylated side chains. The result is consistent with the previous studies which indicated the generation of several glycosylated proteins in the supernatants of P. pastoris transformants [19]. Analyses of SDS-PAGE showed that the target proteins Cel6A-(His)6 and Cel6A accounted for 59.6% and 54.7% of all soluble protein in the supernatants (determined by Bandscan 5.0 software), respectively. As seen in SDS-PAGE gels, the expression level of Cel6A in P. pastoris was quite low in comparison with that in S. lividans. Therefore, for T. fusca endoglucanase Cel6A, the use of S. lividans/pZRJ362 as an expression system represents a dramatic improvement in comparision with the use of P. pastoris/pPICZα-C.

2.4. Expression Pattern of Cel6A in Streptomyces lividans versus Pichia pastoris

It was perhaps because of the endogenous protease of S. lividans 1326, the expression pattern of Cel6A-(His)6 in S. lividans 1326 was different from that in P. pastoris. As shown in Figure 6A, Some minor proteins (thin arrows), were thought to be derived from Cel6A-(His)6 by proteolytic degradation. This result was consistent with previous observations, which also indicated the generation of proteolytic products in the supernatants of S. lividans transformants [1,14]. These degradation products of Cel6A-(His)6 also exhibited CMCase activity (Figure 6A, the right hand figure), and this could be probably due to the retention of the catalytic domain of Cel6A. In contrast, no proteolytic product was detected in the supernatant of P. pastoris carrying pPICZα-cel6A-(His)6 (Figure 6B). As shown in Figure 6B, there were a wide range of clear bands (thin arrow) which maybe a variety of the glycosylated Cel6A-(His)6, and there were also some proteins which may be stained by Congo red (big arrow).

3. Experimental Section

3.1. Strains, Plasmids and Culture Conditions

For cloning, pMD19-T vector (TaKaRa, Dalian, China) and E. coli DH5α (Tiangen, Beijing, China) were used, restriction endonucleases and T4 DNA Ligase were purchased from New England Biolabs (Ipswich, MA, USA). For expression, P. pastoris GS115 and pPICZα-C vector were purchased from Invitrogen (San Diego, CA, USA). Genomic DNA from T. fusca YX was purchased from ATCC (catalog BAA-629D-5). S. lividans 1326 and pZRJ362 constructed in this paper were used for heterologous protein production. Methylation-deficient E. coli ET12567/pUZ8002 was used to transfer DNA from E. coli into S. lividans by conjugation. S. lividans 1326 and transformants were grown at 30 °C on mannitol soya flour agar for sporulation. For the production of Cel6A, S. lividans transformants carrying expression plasmid were inoculated in tryticase soy broth (TSB) medium (OXOID CM129, Hampshire, UK) with continuous shaking (200 rpm). When applicable, antibiotics were used to select recombinant strains including 100 μg/mL Ampicillin, 50 μg/mL Kanamycin, 25 μg/mL Chloramphenicol and 5 μg/mL Thiostrepton which were purchased from Sigma (St. Louis, MO, USA). For production of Cel6A in P. pastoris, yeast extract and peptone were obtained from OXOID (Basingstoke, Hampshire, UK), yeast nitrogen base (YNB) without amino acids was purchased from BD (Sparks, MD, USA), biotin was obtained from Amersco (Solon, OH, USA), and Zeocin was purchased from Invitrogen (San Diego, CA, USA).

3.2. Construction of Expression Plasmid pZRJ362

The plasmid pZRJ362 for protein expression using S. lividans as a host was constructed as follows. The plasmid pSP72 (Promega, Madison, WI, USA) was digested with XbaI and EcoRI to obtain the fragment carrying ori (E. coli) and Ampicillin (Amp) resistance gene bla. The plasmid pHZ1358, which was kindly provided by K. Bao and Z. Deng (Shanghai Jiao Tong University, Shanghai, China), was also digested with XbaI and EcoRI to obtain the fragment containing oriT of RP4, tsr gene for Thiostrepton resistance and the replication (rep) ORF of pIJ101 for autonomous replication of the plasmid in Streptomyces. The two fragments were mutually ligated to generate pZRJ. Afterwards, the synthetic fragment of XbaI-Xi promoter-Shine-Dalgarno sequence-MCS-amyA2 terminator-SacI was subcloned into the XbaI-SacI gap of the plasmid pZRJ, yielding the expression vector pZRJ362. The gene fragment of Xi promoter sequence encoded the promoter of xylose isomerase of Actinoplanes missouriensis and the amyA2 fragment encoded the terminator region of amylase from Streptomyces avermitilis MA-4680. Diverse restriction sites were available within the MCS to facilitate gene cloning, including NheI, KpnI, AflII, AfeI, MluI and BamHI. All the constructs were sequenced by Invitrogen (Shanghai, China).

3.3. Cloning of Endoglucanase Gene cel6A in Streptomyces lividans

The cel6A gene including the native signal peptide was PCR amplified from genomic DNA of T. fusca YX with the primers cel6A-f (5′-GCTAGCTCCCCCAGACCTCTTCGCGCTCTTC-3′) and cel6A-r (5′-GGATCCTCAGCTGGCGGCGCAGGTAAGGGTCG-3′), which included NheI and BamHI restriction sites (underlined), respectively. To simplify the purification process, we introduced (His)6-tag into the C-terminus of recombinant Cel6A. To obtain His-tagged Cel6A, the reverse primer cel6A-His (5′-GGATCCTCAGTGGTGGTGGTGGTGGTGGCTGGCGGCGCAGGTAAGGGTCG-3′) was used. These two PCR products were cloned in plasmid pMD19-T. After the digestion of NheI and BamHI, 1.6 kb fragments were ligated into the NheI-BamHI gap of pZRJ362 to generate the expression vectors pZRJ362-cel6A and pZRJ362-cel6A-(His)6, respectively. From the latter expression vector, the corresponding protein was produced with a C-terminal 6× His tag.

3.4. Cloning of Endoglucanase Gene cel6A in Pichia pastoris

To achieve the target gene encoding the mature region of endoglucanase Cel6A from T. fusca YX genome and obtain His-tagged cel6A gene, three primers (cel6A-F, cel6A-R, cel6A-His-R) were designed. The mature cel6A gene was amplified by PCR with cel6A-F (5′-ATCGATGAATGATTCTCCGTTCTACGTC-3′) as forward primer and cel6A-R (5′-TCTAGATTATCAGCTGGCGGCGCAGGTAA-3′) as reverse primer with ClaI and XbaI restriction sites denoted as the underline, respectively. To obtain His-tagged cel6A, the reverse primer cel6A-His-R (5′-TCTAGATTATCAATGATGATGATGATGATGGCTGGCGGCGCAGGTAA-3′) was used with XbaI restriction site and (His)6-tag denoted as the underline too. The PCR products were cloned into pMD19-T, yielding plasmids pMD19-cel6A and pMD19-cel6A-(His)6, respectively.

To achieve secretive expression, the P. pastoris-E. coli shuttle vector pPICZα-C and recombinant plasmid pMD19-cel6A/pMD19-cel6A-(His)6 were both digested with ClaI and XbaI and mutually ligated. Afterwards transformants were selected on the low salt LB agar plates (5 g/L yeast extract, 10 g/L tryptone, 5 g/L NaCl, 15 g/L agar, and adjusted pH to 7.5) containing 25 μg/mL Zeocin. Then recombinant plasmids designated as pPICZα-cel6A and pPICZα-cel6A-(His)6 were achieved, respectively. After being digested with PmeI, the linearized pPICZα-cel6A and pPICZα-cel6A-(His)6 were transformed into P. pastoris GS115 by electroporation using MicroPulser (Bio-Rad, Hercules, CA, USA) under the PIC setting. The P. pastoris transformants were selected at 30 °C on the YPDS agar plates (10 g/L yeast extract, 20 g/L peptone, 20 g/L dextrose, 20 g/L agar and 1 M sorbitol) containing 100 μg/mL Zeocin for 3–4 days. Then, the multi-copy transformants were screened by using YPDS agar plates containing higher Zeocin concentration (2000 μg/mL) and incubated at 30 °C for 2 days. Finally, the multi-copy transformants were checked for the integration by genomic PCR.

3.5. Production and Purification of Cel6A

For the production of heterologous protein Cel6A or Cel6A-(His)6, one spore of each S. lividans 1326 carrying the corresponding expression vector was inoculated into a test tube containing 5 mL of TSB medium supplemented with 5 μg/mL Thiostrepton, followed by cultivation at 30 °C for 3 days. Then 1 mL of the preculture medium was seeded into a 250 mL baffled flask containing 100 mL TSB medium with 5 μg/mL Thiostrepton, and incubated at 30 °C for 4–7 days.

For the production of heterologous Cel6A or Cel6A-(His)6 from P. pastoris, a single colony was inoculated into 25 mL BMGY medium (10 g/L yeast extract, 20 g/L peptone, 100 mM potassium phosphate (pH 6.0), 13.4 g/L YNB, 4 × 10−4 g/L biotin, 1% (v/v) glycerol) in a 250 mL baffled flask and shaken (220 rpm) at 29 °C for 18 h. Then the cells were harvested by centrifuging at 3000× g for 5 min and resuspended in 100 mL BMMY medium (10 g/L yeast extract, 20 g/L peptone, 100 mM potassium phosphate (pH 6.0), 13.4 g/L YNB, 4 × 10−4 g/L biotin, 0.5% (v/v) methanol) in a 500 mL baffled flask, shaken (220 rpm) for 4 days. To maintain induction, 100% methanol was added to a final concentration of 0.5% during the induction phase.

To purify the His-tagged interest protein, the mycelium was separated from the supernatant by filtrating with 0.22 μm Millex-GP Filter Unit (Merck Millipore, MA, USA). Afterwards, the His-tagged recombinant protein was purified from the supernatant using a Ni Sepharose™ 6 Fast Flow (GE Healthcare, Little Chalfont, UK) column according to the standard procedures of the manufacturer.

3.6. Endoglucanase Activity Assays

The cells were harvested at a selected time point, afterwards the cell extracts were centrifuged and the activities of culture supernatants were measured. The dinitrosalicyclic acid (DNS) method [26] was used to determine endoglucanase activity with low-viscosity carboxymethylcellulose (CMC; Sigma, St. Louis, MO, USA) as cellulose substrate. Subsequently, 450 μL of 1% CMC in acetate buffer (50 mM, pH 6.5) was placed into test tubes and incubated in a waterbath at 55 °C for 5 min, then 50 μL culture supernatants or properly diluted supernatants were added, vortexed and incubated for 30 min, and 750 μL DNS solution (1% 3,5-dinitrosalicyclic acid, 20% potassium sodium tartrate, 1% NaOH, 0.2% phenol, 0.05% Na2SO3) was added and vortexed. Subsequently, samples were boiled for 10 min, and the absorbance of 200 μL sample at 540 nm was measured on iMark Microplate Reader (Bio-Rad, Hercules, CA, USA). One enzyme unit (U) is defined as an average of 1 μmol of glucose equivalent released per min in the assay reaction. All the enzyme activity values presented were averages obtained from triplicate measurements.

3.7. SDS-PAGE and Endoglucanase Activity Staining

SDS-PAGE analyses were performed to detect the extracellular proteins. Activity staining was used for visualization of carboxymethyl-cellulase (CMCase) activity bands on the gel with slightly modifications [27]. The proteins were separated on a 12% separating gel with 0.15% CMC-Na. The gel was washed twice for 30 min each with cold wash solution (acetate buffer (50 mM, pH 6.5) containing 25% isopropanol) to remove the sodium dodecyl sulfate. After that, the gel was washed three times for 30 min each with cold acetate buffer (50 mM, pH 6.5). Then the gel was transferred to acetate buffer (50 mM, pH 6.5) and incubated at 55 °C for 1 h. Finally, the gel was stained in 0.2% Congo Red for 30 min and destained in 1 M NaCl solution. Clear bands against the red background indicated the degradation of CMC-Na.

4. Conclusions

In this study, combining the xylose isomerase promoter and amylase terminator, we have constructed a Streptomyces-E. coli shuttle vector pZRJ362. T. fusca YX endoglucanase Cel6A was highly expressed as secretory proteins in S. lividans 1326 using this novel expression vector. A most remarkable experimental finding was the higher capacity of S. lividans/pZRJ362 to produce Thermobifida heterologous protein compared to P. pastoris. This newly constructed vector may be applicable to efficient production of other actinomycetes enzymes.

Acknowledgments

This research was supported by the “Five-twelfth” National Science and Technology Support Program of China (2011BAD26B0403).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ogino, C.; Kanemasu, M.; Hayashi, Y.; Kondo, A.; Shimizu, N.; Tokuyama, S.; Tahara, Y.; Kuroda, S.; Tanizawa, K.; Fukuda, H. Over-expression system for secretory phospholipase D by Streptomyces lividans. Appl. Microbiol. Biot 2004, 64, 823–828.
  2. Henne, A.; Brüggemann, H.; Raasch, C.; Wiezer, A.; Hartsch, T.; Liesegang, H.; Johann, A.; Lienard, T.; Gohl, O.; Martinez-Arias, R. The genome sequence of the extreme thermophile Thermus thermophilus. Nat. Biotechnol 2004, 22, 547–553.
  3. Wilson, D.B. Studies of Thermobifida fusca plant cell wall degrading enzymes. Chem. Rec 2004, 4, 72–82.
  4. Xie, F.; Chao, Y.; Yang, X.; Yang, J.; Xue, Z.; Luo, Y.; Qian, S. Purification and characterization of four keratinases produced by Streptomyces sp. Strain 16 in native human foot skin medium. Bioresource Technol 2010, 101, 344–350.
  5. Mehta, V.; Thumar, J.; Singh, S. Production of alkaline protease from an alkaliphilic actinomycete. Bioresource Technol 2006, 97, 1650–1654.
  6. Thumar, J.T.; Singh, S.P. Secretion of an alkaline protease from a salt-tolerant and alkaliphilic, Streptomyces clavuligerus strain Mit-1. Braz. J. Microbiol 2007, 38, 766–772.
  7. Yang, C.-H.; Huang, Y.-C.; Chen, C.-Y.; Wen, C.-Y. Expression of Thermobifida fusca thermostable raw starch digesting alpha-amylase in Pichia pastoris and its application in raw sago starch hydrolysis. J. Ind. Microbiol. Biot 2010, 37, 401–406.
  8. Yang, C.-H.; Liu, W.-H. Cloning and characterization of a maltotriose-producing α-amylase gene from Thermobifida fusca. J. Ind. Microbiol. Biot 2007, 34, 325–330.
  9. Yang, C.-H.; Yang, S.-F.; Liu, W.-H. Production of xylooligosaccharides from xylans by extracellular xylanases from Thermobifida fusca. J. Agric. Food Chem 2007, 55, 3955–3959.
  10. Zhou, J.; Gao, Y.; Dong, Y.; Tang, X.; Li, J.; Xu, B.; Mu, Y.; Wu, Q.; Huang, Z. A novel xylanase with tolerance to ethanol, salt, protease, sds, heat, and alkali from actinomycete Lechevalieria sp. HJ3. J. Ind. Microbiol. Biot 2012, 39, 965–975.
  11. Kumar, A.; Gupta, R.; Shrivastava, B.; Khasa, Y.P.; Kuhad, R.C. Xylanase production from an alkalophilic actinomycete isolate Streptomyces sp. RCK-2010, its characterization and application in saccharification of second generation biomass. J. Mol. Catal. B 2012, 74, 170–177.
  12. Sriyapai, T.; Somyoonsap, P.; Matsui, K.; Kawai, F.; Chansiri, K. Cloning of a thermostable xylanase from Actinomadura sp. S14 and its expression in Escherichia coli and Pichia pastoris. J. Biosci. Bioeng 2011, 111, 528–536.
  13. Díaz, M.; Ferreras, E.; Moreno, R.; Yepes, A.; Berenguer, J.; Santamaría, R. High-level overproduction of Thermus enzymes in Streptomyces lividans. Appl. Microbiol. Biot 2008, 79, 1001–1008.
  14. Ghangas, G.S.; Wilson, D.B. Cloning of the Thermomonospora fusca endoglucanase E2 gene in Streptomyces lividans: Affinity purification and functional domains of the cloned gene product. Appl. Environ. Microb 1988, 54, 2521–2526.
  15. Iwasaki, Y.; Nakano, H.; Yamane, T. Phospholipase D from Streptomyces antibioticus: Cloning, sequencing, expression, and relationship to other phospholipases. Appl. Microbiol. Biot 1994, 42, 290–299.
  16. Wilson, D.B. Biochemistry and genetics of actinomycete cellulases. Crit. Rev. Biotechnol 1992, 12, 45–63.
  17. Yang, C.-H.; Lin, K.-I.; Chen, G.-H.; Chen, Y.-F.; Chen, C.-Y.; Chen, W.-L.; Huang, Y.-C. Constitutive expression of Thermobifida fusca thermostable acetylxylan esterase gene in Pichia pastoris. Int. J. Mol. Sci 2010, 11, 5143–5151.
  18. Sianidis, G.; Pozidis, C.; Becker, F.; Vrancken, K.; Sjoeholm, C.; Karamanou, S.; Takamiya-Wik, M.; Van Mellaert, L.; Schaefer, T.; Anné, J. Functional large-scale production of a novel Jonesia sp. Xyloglucanase by heterologous secretion from Streptomyces lividans. J. Biotechnol 2006, 121, 498–507.
  19. Cheng, Y.-F.; Yang, C.-H.; Liu, W.-H. Cloning and expression of Thermobifida xylanase gene in the methylotrophic yeast Pichia pastoris. Enzyme Microb. Tech 2005, 37, 541–546.
  20. Whittaker, M.M.; Whittaker, J.W. Streptomyces coelicolor oxidase (sco2837p): A new free radical metalloenzyme secreted by Streptomyces coelicolor A3 (2). Arch. Biochem. Biophys 2006, 452, 108–118.
  21. Kim, T.; Lei, X.G. Expression and characterization of a thermostable serine protease (tfpa) from Thermomonospora fusca YX in Pichia pastoris. Appl. Microbiol. Biot 2005, 68, 355–359.
  22. Nakashima, N.; Mitani, Y.; Tamura, T. Actinomycetes as host cells for production of recombinant proteins. Microb. Cell Fact 2005, 4, 7.
  23. Bachmann, S.L.; McCarthy, A.J. Purification and cooperative activity of enzymes constituting the xylan-degrading system of Thermomonospora fusca. Appl. Environ. Microb 1991, 57, 2121–2130.
  24. Lykidis, A.; Mavromatis, K.; Ivanova, N.; Anderson, I.; Land, M.; DiBartolo, G.; Martinez, M.; Lapidus, A.; Lucas, S.; Copeland, A. Genome sequence and analysis of the soil cellulolytic actinomycete Thermobifida fusca YX. J. Bacteriol 2007, 189, 2477–2486.
  25. Noda, S.; Ito, Y.; Shimizu, N.; Tanaka, T.; Ogino, C.; Kondo, A. Over-production of various secretory-form proteins in Streptomyces lividans. Protein Expres. Purif 2010, 73, 198–202.
  26. Miller, G.L.; Blum, R.; Glennon, W.E.; Burton, A.L. Measurement of carboxymethylcellulase activity. Anal. Biochem 1960, 1, 127–132.
  27. Sun, X.; Liu, Z.; Zheng, K.; Song, X.; Qu, Y. The composition of basal and induced cellulase systems in Penicillium decumbens under induction or repression conditions. Enzyme Microb. Tech 2008, 42, 560–567.
Ijms 14 18629f1 200
Figure 1. Map of the expression vector pZRJ362. bla, Ampicillin-resistance gene; tsr, Thiostrepton-resistance gene; MCS, Multi-cloning site; ori, Origin for Escherichia coli; rep, Replication gene in Streptomyces; oriT, Origin for transfer.

Click here to enlarge figure

Figure 1. Map of the expression vector pZRJ362. bla, Ampicillin-resistance gene; tsr, Thiostrepton-resistance gene; MCS, Multi-cloning site; ori, Origin for Escherichia coli; rep, Replication gene in Streptomyces; oriT, Origin for transfer.
Ijms 14 18629f1 1024
Ijms 14 18629f2 200
Figure 2. SDS-PAGE analysis of culture supernatants of Streptomyces lividans transformants. 1, Supernatant of transformant harboring pZRJ362; 2, Supernatant of transformant harboring pZRJ362-cel6A; 3, Supernatant of transformant harboring pZRJ362-cel6A-(His)6; M, Molecular weight marker. All samples containing 16 μL supernatant were loaded onto a 15% polyacrylamide gel.

Click here to enlarge figure

Figure 2. SDS-PAGE analysis of culture supernatants of Streptomyces lividans transformants. 1, Supernatant of transformant harboring pZRJ362; 2, Supernatant of transformant harboring pZRJ362-cel6A; 3, Supernatant of transformant harboring pZRJ362-cel6A-(His)6; M, Molecular weight marker. All samples containing 16 μL supernatant were loaded onto a 15% polyacrylamide gel.
Ijms 14 18629f2 1024
Ijms 14 18629f3 200

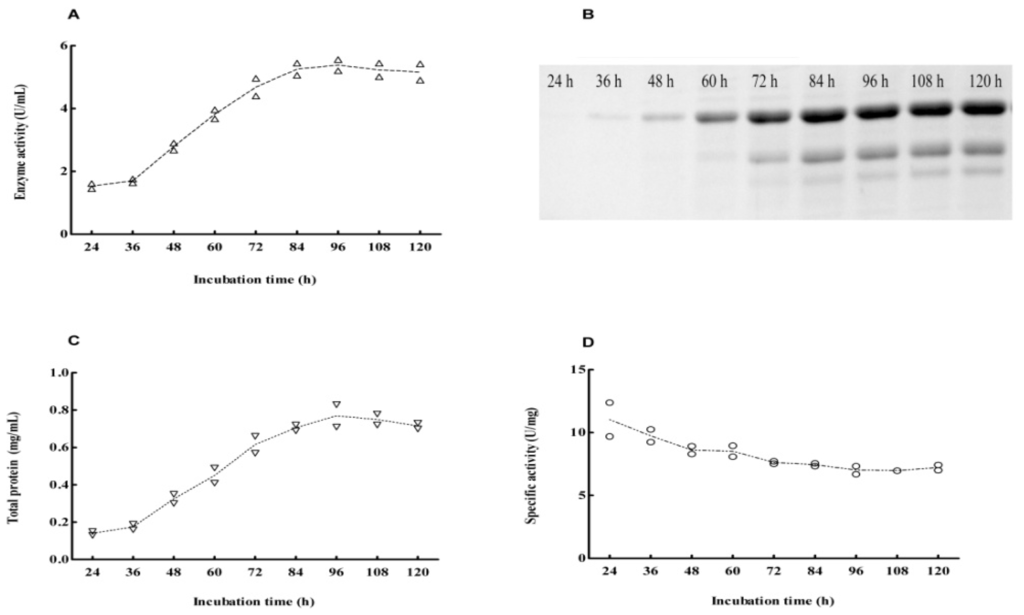

Figure 3. Time course of enzyme activity and expression of Cel6A during cultivation of Streptomyces lividans/pZRJ362-cel6A-(His)6. (A) Endoglucanase activity; (B) Expression of Cel6A-(His)6; (C) Total protein; (D) Specific activity. Endoglucanase activity (U/mL) was assayed using CMC-Na as substrate. The specific activity of supernatant was calculated as U/mg total protein. Total protein concentration was measured by Bio-Rad Protein Assay kit (Hercules, CA, USA).

Click here to enlarge figure

Figure 3. Time course of enzyme activity and expression of Cel6A during cultivation of Streptomyces lividans/pZRJ362-cel6A-(His)6. (A) Endoglucanase activity; (B) Expression of Cel6A-(His)6; (C) Total protein; (D) Specific activity. Endoglucanase activity (U/mL) was assayed using CMC-Na as substrate. The specific activity of supernatant was calculated as U/mg total protein. Total protein concentration was measured by Bio-Rad Protein Assay kit (Hercules, CA, USA).
Ijms 14 18629f3 1024
Ijms 14 18629f4 200
Figure 4. Purification of Cel6A-(His)6 from culture supernatant. 1, Supernatant of Streptomyces lividans/pZRJ362; 2, Purified Cel6A-(His)6; 3, The pass-through fraction from the (His)6-tag affinity column; 4, Supernatant of S. lividans/pZRJ362-cel6A-(His)6; M, molecular weight marker.

Click here to enlarge figure

Figure 4. Purification of Cel6A-(His)6 from culture supernatant. 1, Supernatant of Streptomyces lividans/pZRJ362; 2, Purified Cel6A-(His)6; 3, The pass-through fraction from the (His)6-tag affinity column; 4, Supernatant of S. lividans/pZRJ362-cel6A-(His)6; M, molecular weight marker.
Ijms 14 18629f4 1024
Ijms 14 18629f5 200
Figure 5. SDS-PAGE analysis of proteins produced by Pichia pastoris transformants. 1, Supernatant of transformant harboring pPICZα-cel6A-(His)6; 2, Supernatant of transformant harboring pPICZα-C; 3, Supernatant of transformant harboring pPICZα-cel6A; M, Molecular weight marker. All samples containing 16 μL supernatant were loaded onto a 15% polyacrylamide gel.

Click here to enlarge figure

Figure 5. SDS-PAGE analysis of proteins produced by Pichia pastoris transformants. 1, Supernatant of transformant harboring pPICZα-cel6A-(His)6; 2, Supernatant of transformant harboring pPICZα-C; 3, Supernatant of transformant harboring pPICZα-cel6A; M, Molecular weight marker. All samples containing 16 μL supernatant were loaded onto a 15% polyacrylamide gel.
Ijms 14 18629f5 1024
Ijms 14 18629f6 200
Figure 6. SDS-PAGE and activity staining analyses of expression pattern of Cel6A-(His)6 in Streptomyces lividans versus those in Pichia pastoris. (A), SDS-PAGE and activity staining analyses of Cel6A-(His)6 in S. lividans; 1, Supernatant of S. lividans/pZRJ362-cel6A-(His)6; M, Molecular weight marker; (B) SDS-PAGE and activity staining analyses of Cel6A-(His)6 in P. pastoris; 1, Supernatant of P. pastoris/pPICZα-cel6A-(His)6; M, Molecular weight marker.

Click here to enlarge figure

Figure 6. SDS-PAGE and activity staining analyses of expression pattern of Cel6A-(His)6 in Streptomyces lividans versus those in Pichia pastoris. (A), SDS-PAGE and activity staining analyses of Cel6A-(His)6 in S. lividans; 1, Supernatant of S. lividans/pZRJ362-cel6A-(His)6; M, Molecular weight marker; (B) SDS-PAGE and activity staining analyses of Cel6A-(His)6 in P. pastoris; 1, Supernatant of P. pastoris/pPICZα-cel6A-(His)6; M, Molecular weight marker.
Ijms 14 18629f6 1024
