Int. J. Mol. Sci. 2013, 14(3), 5025-5035; doi:10.3390/ijms14035025

Article
Isolation and Functional Analysis of ZmLTP3, a Homologue to Arabidopsis LTP3
Hua-Wen Zou 1,*, Xiao-Hai Tian 1, Guo-Hui Ma 2 and Zhi-Xin Li 1
1
College of Agriculture, Yangtze University, Jingzhou 434023, China; E-Mails: xiaohait@sina.com (X.-H.T.); lizhixin09@163.com (Z.-X.L.)
2
China National Hybrid Rice Research and Development Center, Changsha 410125, China; E-Mail: maguohui@hhrrc.ac.cn
*
Author to whom correspondence should be addressed; E-Mail: zouhuawen@gmail.com; Tel.: +86-716-8066-625; Fax: +86-716-8066-314.
Received: 23 January 2013; in revised form: 13 February 2013 / Accepted: 19 February 2013 /
Published: 1 March 2013

Abstract

: Plant lipid transfer proteins (LTPs) are encoded by multigene families and play important roles in plant physiology. One full-length cDNA encoding an Arabidopsis LTP3 homologue was isolated from maize by RT-PCR and named as ZmLTP3. RT-PCR analysis indicated that the ZmLTP3 expression is induced by salicylic acid (SA), mannitol and salt. Furthermore, in different tissues the ZmLTP3 displayed different expression patterns, indicating that ZmLTP3 may play multiple roles in stress resistance. Over-expression of ZmLTP3 in wild-type Arabidopsis resulted in the increased salt tolerance. Under salt stress condition, compared to wild-type (WT) plants, transgenic Arabidopsis grew better, had higher seedling fresh (FW), dry weight (DW), seed yields, proline content and lower MDA content and relative electric conductivity level. Our results suggest that maize ZmLTP3 might encode a member of LTPs family and play roles in salt resistance.
Keywords:
ZmLTP3; transgenic Arabidopsis; salt resistance; morphological traits; physiological traits

1. Introduction

Plant lipid transfer proteins (LTPs) are a class of abundant, small (usually 6.5 to 10.5 kDa), ubiquitous and basic (pI = 8.5~12) proteins that are capable of transferring phospholipids and fatty acids between artificial membranes in vitro[13]. LTPs are mainly classified into two subfamilies, which are referred to as LTP1 and LTP2. LTP1 members contain 90 to 95 amino acid residues with molecular masses of approximately 9 kD, while LTP2 members contain approximately 70 amino acid residues with molecular masses of approximately 7 kD [4]. The structure of plant LTPs family is highly conserved. The LTPs proteins contain eight cysteine residues with four conserved disulfide bridges and two consensus pentapeptide motifs (Thr/Ser-X1-X2-Asp-Arg/Lys and Pro-Tyr-X-Ile-Ser) [5]. There are four α-helices in the three-dimensional structure of LTPs. These four α-helices form a hydrophobic cavity which runs through the whole protein molecule and can interact with fatty acids and phospholipid molecules in vitro[6].

LTPs are widely distributed in the plant kingdom. To date a large number of LTPs have been characterized from diverse species, such as Arabidopsis, cotton, wheat, rice, tobacco and so on [712]. Besides mediating phospholipid transfer, various biological functions of plant LTPs have been identified such as wax assembly, seed storage lipid mobilization, cuticle synthesis, somatic cell development, pollen tube adhesion and so on [4,1316]. However, studies also show that LTPs play pivotal roles in plant defense mechanisms [17,18]. Due to their important roles in biotic stresses, LTPs are named as pathogenesis-related proteins and constitute the PR-14 family [19]. Compared to the roles in biotic stresses, the direct roles of LTPs in abiotic stresses are seldom reported.

In previous work, we have cloned a Pti1-like gene from maize named as ZmPti1[20]. Arabidopsis over-expressing ZmPti1 gene displayed higher salt resistance [21]. In the follow-up study, microarray analysis was conducted to study the genes expression in transgenic Arabidopsis. As a result, the expression level of LTP3 (At5g59320) was found to increase dramatically in transgenic line; i.e., 17,792 fold in the transgenic line than in the wild type line. This indicates that LTP3 maybe a downstream component of Pto/Pti1 signal pathway and play roles in abiotic stresses.

In this study, we report the cloning of ZmLTP3 (GenBank Accession No. JX435819), an Arabidopsis LTP3 homologue from maize. The expression pattern of ZmLTP3 in various maize tissues and also the seedlings treated by various stresses was studied. The functional analysis of ZmLTP3 was conducted via transgenic Arabisopsis.

2. Results

2.1. Isolation and Sequence Analysis of ZmLTP3

The maize full-length cDNA clone ZM_BFc0160J05 was analyzed in ExPASy ( http://au.expasy.org/tools/dna.html) and NCBI ( http://blast.ncbi.nlm.nih.gov/) to confirm whether it contains a full-length LTPs-like cDNA [22,23]. The results showed that it is a full-length LTPs-like cDNA (data not shown). RT-PCR was then performed to clone this full-length cDNA sequence. Analysis based on the sequencing result of RT-PCR product indicated that the deduced protein, ZmLTP3, contains 123 amino acids with an estimated molecular mass of 12.5 kDa and an isoelectric point of 9.38. Using the PlantsP program, two predicted transmembrane region was found in ZmLTP3. Multiple sequence alignment of ZmLTP3 protein sequence with other related sequences showed that ZmLTP3 has the highest identities with a wheat type 1 non-specific lipid transfer protein precursor (GenBank Accession No. AJ852546.1) indicating it belongs to type 1 subfamily (data not shown). Additionally, eight conserved cysteine residues, two consensus pentapeptides: T/S-X-X-D-R/K and P-Y-X-I-S were also found in ZmLTP3 (Figure 1).

Phylogenetic analysis of the amino acid sequences of plant LTPs revealed that ZmLTP3 and a wheat type 1 non-specific lipid transfer protein precursor (GenBank Accession No. AJ852546.1) are grouped together with another type I family (Figure 2). These above analyses strongly suggest that the ZmLTP3 may encode a functional homologue of LTP.

2.2. Expression Analysis of ZmLTP3

Expression pattern of ZmLTP3 in different tissues and under various treatments were analyzed from maize. The results showed that the expression profiles of ZmLTP3 in various tissues are significantly diverse. The expression levels of ZmLTP3 are lowest in leaves, lower in roots, higher in coleoptiles and silks, highest in ovaries (Figure 3A). Figure 3B shows the expression pattern of ZmLTP3 in response to various treatments. From the results we can see the ZmLTP3 is induced by mannitol, salt and SA treatments, but not induced by cold treatment, indicating its involvements in both biotic and abiotic stresses signal pathway.

2.3. Salt Tolerance of Transgenic Arabidopsis

The transformants were characterized by kanamycin and then PCR (data not shown). Only those PCR positive plants were allowed to produce homozygous transformants. The homozygous transformants were then used for Westen-blot analysis. As shown in Figure 4, all the PCR positive plants had a specific HA-reactive band with the molecular mass of about 13 kD. This not only showed that the PCR positive plants were transgenic plants but also showed that ZmLTP3-dHA fusion protein had been successfully expressed in transgenic transformants.

ZmLTP3-overexpressing Arabidopsis homozygous lines (OE14 and OE33), as well as the WT controls, were used for the examination of salt tolerance. After two weeks of 300 mM salt treatment, almost all the transgenic plants survived, while 71% WT plants survived. Furthermore, 68% OE14 plants and 65% OE33 plants could flower and set seeds, while the rate of WT plants was 34% (Figure 5). This result indicated that over-expression of ZmLTP3 in Arabidopsis could increase salt tolerance.

2.4. Morphological and Physiological Analysis of Transgenic Arabidopsis

Without salt stress, the wild-type and transgenic Arabidopsis plants displayed no differences in their FW, DW and seeds weight. Under salt stress, the FW, DW and seeds weight content in each plant were decreased. Interestingly, the FW, DW and seeds weight of two transgenic lines were significantly higher than that of WT plants (Figure 6). This result showed that over-expression of ZmLTP3 enhanced both biomass and economic yields in transgenic Arabidopsis under salt treatment.

Lipid peroxidation and ion leakage are often resulted from salt stress [24]. In this study, MDA content and ion leakage ratio in transgenic and WT plants were analyzed. Under normal conditions (0 day), The ZmLTP3-overexpressing Arabidopsis and WT plants exhibited no significant differences in the MDA content and ion leakage ratio. When treated with salt stress, MDA content and ion leakage ratio increased in both transgenic and WT plants, but their improvements in WT plants were significantly higher than that in transgenic plants (Figure 7A,B). In contrast, the proline content in transgenic plants was significantly higher than that in WT plants under salt stress condition. After 4 days’ of salt treatment, in the transgenic Arabidopsis plants, the proline level was over two-fold higher than the WT control (Figure 7C). These results showed that over-expression of ZmLTP3 could decrease MDA content and ion leakage, while increase proline content under salt treatment in Arabidopsis.

3. Discussion

In this report, a novel maize gene, ZmLTP3 was PCR cloned and the deduced protein contains 123 amino acids with about MW 12.5 kDa and pI 9.38. The gene has 81% identities at the DNA level and 72% at protein level with a wheat type 1 non-specific lipid transfer protein precursor (GenBank Accession no. AJ852546.1). Sequence analysis showed that the deduced protein contains eight conserved cysteine residues and two consensus pentapeptides: T/S-X-X-D-R/K and P-Y-X-I-S, which are thought to be present in the 9-kDa type 1 subfamily and play a catalytic role or a role in lipid binding [5]. Expression pattern showed that the expression profiles of ZmLTP3 differ in different tissues and can be up-regulated by not only SA, but also salt and mannitol, which indicated that ZmLTP3 may not only be responsible for biotic stress but also, may be responsible for abiotic stress. Taken together, we speculate that ZmLTP3 encodes a protein which belongs to type 1 subfamily and may play roles in both biotic and abiotic stresses.

RT-PCR analysis showed that the expression level of ZmLTP3 is highest in ovaries among all the checked tissues. We are interested in whether it influences the developments of reproductive organs. The sizes of flowers and seeds, and the average number of seeds in siliques in both WT and transgenic plants were checked under normal condition. Unfortunately, no obvious differences were found (data not shown). Maybe it plays roles in other physiology processes, which needs to be further analyzed in the follow-up study. To investigate whether ZmLTP3 plays a role in salt resistance as does ZmPti1, ZmLTP3-overexpressing transgenic Arabidopsis was characterized. Phenotypically, there were no obvious differences, including the sizes of plants, the flower time, and so on between WT and transgenic plants under normal condition. But, under salt conditions, the transgenic plants grew differently from the WT plants. Both transgenic lines exhibited earlier and more flowering properties than the WT plants under stress condition. The earlier flower time of transgenic plants maybe result from its interaction with key floral transcription repressors such as FLOWERING LOCUS T (FT) and/or other components of the autonomous flowering pathway. Because biomass and economic yields are useful traits for stress tolerance evaluation, in this study, the FW, DW and seeds weight of transgenic and WT plants were measured in both normal and salt stress conditions. Under normal condition, there were no obvious differences among the plants. When treated with salt, FW and DW of transgenic plants were significantly higher than that in WT plants, furthermore, the seeds weight of transgenic plants showed over two-fold increase in comparison with that of WT plants, suggesting that the over-expression of ZmLTP3 in Arabidopsis led to an increased salt resistance. These results strongly demonstrate that the biological function of ZmLTP3 is closely related to salt resistance in plants.

Some physiological traits related to salt-resistance were further measured to explore the mechanisms of the possible ZmLTP3-mediated salt resistance. MDA content and relative electric conductivity are important indicators for cell membrane injury caused by the oxidative stress under stresses [24]. In this study, ZmLTP3-overexpressing Arabidopsis contained a lower level of MDA content and ion leakage ratio under salt stress. In addition, it is well known that as an organic solute, proline accumulation can increase the osmotic pressure and, thus, improve the salt tolerance in plants [25]. In this study, the proline content in ZmLTP3-overexpressing Arabidopsis was higher than that in the WT plants under salt treatment, indicating its higher osmotic regulation capacity. Taken together, all these data showed that ZmLTP3 might increase the salt resistance by maintaining the stability of membrane and minimizing dehydration in living cells.

4. Experimental Section

4.1. Maize Seedlings Growth Conditions and Treatments

Plant material, growth conditions and experimental treatments were performed as described by Zou et al.[20]. In brief, the germinating maize seeds were sown on a layer of hydrophilic cotton in trays and covered with two layers of wet hydrophilic pledget. When the primary roots were about 1.5–2 cm, the roots and coleoptiles of some seedlings were harvested for RNA extraction for RT-PCR analysis, Other left seedlings were transferred to a chamber with 70% relative air humidity, 30 °C/28 °C day/night temperature, a day/night cycle of 16 h/8 h and a 300 μmol m−2 s−1 photon flux density. When the ligules of the second leaf were visible the seedlings were subjected to the following treatments. SA treatment was conducted by spraying with 2 mM SA; mannitol and NaCl treatments were performed by transferring the seedlings onto the trays watered with 600 mM mannitol and 150 mM NaCl solution; Low-temperature treatment was conducted by transferring the seedlings onto a tray with water pre-equilibrated at 4 °C in a growth chamber for 24 h prior to the treatment. The seedlings were treated at 4 °C under illumination and air humidity conditions as above. 24 h after treatments, the leaves were harvested from all the above treated seedlings for RT-PCR analysis. Mature leaves and ovaries were sampled from field-grown maize. Ovaries were excised from the central part of the ears before fertilization, and mature leaves were also sampled at the same time.

4.2. Cloning of ZmLTP3 cDNA

The sequence of LTP3 (At5g59320) was used as the query probe to search homologues in maize in NCBI database. A highly homologous maize full-length cDNA clone ZM_BFc0160J05 was obtained for analysis of motifs/domain in PlantsP database. According to the sequence, two primers, 5′-ACGCGTCTATCTCAGCTTGCTG-3′ (forward primer) and 5′-GGCAACATGCATCCACGATACCAC-3′ (reverse primer) were used to amplify cDNA of ZmLTP3 via RT-PCR from 150 mM NaCl treated maize seedling leaves. RNA was isolated using TRIzol Reagent (Invitrogen, Carlsbad, CA, USA). The RT-PCR procedure was performed according to Zou et al.[20].

4.3. RT-PCR Analysis of ZmLTP3

RT-PCR was used to semi-quantitatively determine the expression profile of the ZmLTP3 gene. 5 μg RNA from different sample was reverse-transcribed to produce cDNA. The specific primers (5′-ATGGCTGCTCCGAAGCTC-3′, sense primer; 5′-TGCAGTTAACGTTGGTGC-3′, antisense primer) were used for RT-PCR analysis. The expected length of the amplified fragment is 358 bp. The total volume of PCR reaction was 25 μL, containing 1 μL of the first strand cDNA, 0.4 μM of each primer, 1×PCR reaction buffer, 0.2 mM of dNTP and 1 U of Taq DNA polymerase. The reaction was denatured at 95 °C for 3 min, and then subjected to 25 cycles of 95 °C 30 s, 56 °C 30 s and 72 °C 1 min, plus a final extension at 72 °C for 5 min. The PCR products were separated on 1.5% agarose gel and quantified scanned using the higher performance ultraviolet transilluminator (GDS-8000, Gel Documentation System, UVP, Upland, CA, USA). Maize 18S rRNA, amplified with primers 5′-CCATAAACGATGCCGA-3′ (sense primer) and 5′-CACCACCCATAGAATCAAGA-3′ (antisense primer), was used as the internal standard in the experiment. The experiments were repeated three times with the similar results and one of them was presented.

4.4. Plasimid Construction, Arabidopsis Transformation and Transformants Characterization

The cDNA sequence of ZmLTP3 in pGEM-T vector was amplified by PCR with adding BamH I and Stu I enzyme sites into 5′ and 3′ primers respectively. Then the PCR product was digested with BamH I/Stu I. The expression vector p426GAL1 containing a fragment ZmPti1-dHA was digested with BamH I and Stu I to release the ZmPti1. The digested products were ligated with T4 DNA ligase to produce recombinant vector p426GAL1 containing ZmLTP3-dHA. Then the recombinant vector p426GAL1 was digested with BamH I and Pst I to release ZmLTP3-dHA. The expression vector pGreen0029 containing a fragment 35S-C4DDPK-CBF3-NOS was also digested with BamH I and Pst I to release the CBF3. The digested products were ligated with T4 DNA ligase. Then the recombinant vector pGreen0029 containing the fragment 35S-C4DDPK-ZmLTP3-dHA-NOS was successfully constructed after sequencing confirmation. The Arabidopsis transformation and the following characterization of transformants were performed as described previously [21], except that the primers specific to ZmLTP3 was used here to amplify by PCR.

4.5. Arabidopsis Growth Conditions and Stress Treatments

Arabidopsis growth conditions and salt treatment to pot-grown Arabidopsis were performed as described by Zou et al.[21].

4.6. Morphological and Physiological Traits Measurements

After two weeks of salt treatment, the plants were photographed; some plants were harvested for seedling fresh and dry weight, other plants restored to normal growth condition. The fresh weight of whole plants was measured immediately after harvesting. Dry weight was measured after 48 h at 80 °C. When all the other plants restored to normal growth condition maturated the seeds of WT and transgenic plants were harvested and weighed. Three replicates (100 plants per replicate) per line were used in morphological assays. Physiological assays were conducted at 0, 3, 6, 9, 12 days, respectively, after salt treatments. Proline content was determined spectrophotometrically at 520 nm following the ninhydrin method described by Bates et al.[26]. MDA was determined by a color reaction with thiobarbituric acid [27]. For relative electric conductivity parameter measurement, 0.1 g same positional leaves were removed from different plants, rinsed briefly with deionized water and immediately placed into a tube with 10 ml of deionized water. Conductivity (I1) was measured using an electro conductivity meter (model 1054, VWR Scientific, Radnor, PA, USA) after the tubes were placed at 22 °C overnight. Then, the samples were heated at 100 °C for 30 min and conductivity (I2) was measured again. Ion leakage ratio was expressed as (I1/I2) ×100%. For all the above measurements, three replicates per line were used. Statistical differences were determined using Student’s two-tailed t test.

5. Conclusions

In conclusion, we have successfully cloned ZmLTP3 cDNA from maize which is a homologue to Arabidopsis. Sequence analysis showed that it belongs to the type 1 subfamily of LTPs. Different levels of ZmLTP3 expression was found in different tissues; moreover, ZmLTP3 were induced by both biotic and abiotic stresses. Over-expression of ZmLTP3 in Arabidopsis resulted in the improved salt resistance.

Acknowledgments

This study was supported by National Natural Science Foundation of China (No. 30700433), Natural Science Funds for Distinguished Young Scholars of Hubei Province of China (No. 2010CDA096) and Special Fund for Agro-scientific Research in the Public Interest (201203032).

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Bernhard, W.R.; Thoma, S.; Botella, J.; Somerville, C.R. Isolation of a cDNA clone for spinach lipid transfer protein and evidence that the protein is synthesized by the secretory pathway. Plant Physiol 1991, 95, 164–170. [Google Scholar]
  2. Kader, J.C. Lipid transfer proteins in plants. Annu. Rev. Plant Physiol. Mol. Biol 1996, 47, 627–654. [Google Scholar]
  3. Thoma, S.; Hecht, U.; Kippers, A.; Botella, J.; Devries, S.; Somerville, C. Tissue specific expression of a gene encoding a cell wall localized lipid transfer protein from Arabidopsis. Plant Physiol 1994, 105, 35–45. [Google Scholar]
  4. Carvalho, A.O.; Gomes, V.M. Role of plant lipid transfer proteins in plant cell physiology: A concise review. Peptides 2007, 28, 1144–1153. [Google Scholar]
  5. Douliez, J.P.; Michon, T.; Elmorjani, K.; Marion, D. Structure, biological and technological functions of lipid transfer proteins and indolines, the major lipid binding proteins from cereal kernels. J. Cereal Sci 2000, 32, 1–20. [Google Scholar]
  6. Zachowski, A.; Guerbette, F.; Grosbois, M. Characterization of acyl binding by a plant lipid-transfer protein. Eur. J. Biochem 1998, 257, 443–448. [Google Scholar]
  7. Kinlaw, C.S.; Gerttula, S.M.; Carter, M.C. Lipid transfer protein genes of loblolly pine are members of a complex gene family. Plant Mol. Biol 1994, 26, 1213–1216. [Google Scholar]
  8. Feng, J.X.; Ji, S.J.; Shi, Y.H.; Wei, G.; Zhu, Y.X. Analysis of five differentially expressed gene families in fast elongating cotton fiber. Acta Biochim. Biophys. Sin 2004, 36, 51–57. [Google Scholar]
  9. Liu, K.; Jiang, H.; Moore, S.; Watkins, C.; Jahn, M. Isolation and characterization of a lipid transfer protein expressed in ripening fruit of Capsicum chinense. Planta 2006, 223, 672–683. [Google Scholar]
  10. Boutrot, F.; Meynard, D.; Guiderdoni, E.; Joudrier, P.; Gautier, M.F. The Triticum aestivum non-specific lipid transfer protein (TaLtp) gene family: Comparative promoter activity of six TaLtp genes in transgenic rice. Planta 2007, 225, 843–862. [Google Scholar]
  11. Boutrot, F.; Chantret, N.; Gautier, M.F. Genome-wide analysis of the rice and Arabidopsis non-specific lipid transfer protein (nsLtp) gene families and identification of wheat nsLtp genes by EST data mining. BMC Genomics 2008, 9, 86–105. [Google Scholar]
  12. Choi, Y.E.; Lim, S.; Kim, H.J.; Han, J.Y.; Lee, M.H.; Yang, Y.; Kim, J.A.; Kim, Y.S. Tobacco NtLTP1, a glandular-specific lipid transfer protein, is required for lipid secretion from glandular trichomes. Plant J 2012, 70, 480–491. [Google Scholar]
  13. Tsuboi, S.; Osafune, T.; Tsugeki, R.; Nishimura, M.; Yamada, M. Nonspecific lipid transfer protein in castor bean cotyledon cells: Subcellular localization and a possible role in lipid metabolism. J. Biochem 1992, 111, 500–508. [Google Scholar]
  14. Hollenbach, B.; Schreiber, L.; Hartung, W.; Dietz, K.J. Cadmium leads to stimulated expression of the lipid transfer protein genes in barley: Implications for the involvement of lipid transfer proteins in wax assembly. Planta 1997, 203, 9–19. [Google Scholar]
  15. Park, S.Y.; Lord, E.M. Expression studies of SCA in lily and confirmation of its role in pollen tube adhesion. Plant Mol. Biol 2003, 51, 183–189. [Google Scholar]
  16. Yeats, T.H.; Rose, J.K.C. The biochemistry and biology of extracellular plant lipid-transfer proteins (LTPs). Protein Sic 2008, 17, 191–198. [Google Scholar]
  17. Lee, S.B.; Go, Y.S.; Bae, H.J.; Park, J.H.; Cho, S.H.; Cho, H.J.; Lee, D.S.; Park, O.K.; Hwang, I.; Suh, M.C. Disruption of glycosylphosphatidylinositolanchored lipid transfer protein gene altered cuticular lipid composition, increased plastoglobules, and enhanced susceptibility to infection by the fungal pathogen Alternaria brassicicola. Plant Physiol 2009, 150, 42–54. [Google Scholar]
  18. Sarowar, S.; Kim, Y.J.; Kim, K.D.; Hwang, B.K.; Ok, S.H.; Shin, J.S. Overexpression of lipid transfer protein (LTP) genes enhances resistance to plant pathogens and LTP functions in long-distance systemic signaling in tobacco. Plant Cell Rep 2009, 28, 419–427. [Google Scholar]
  19. Van Loon, L.C.; van Strien, E.A. The families of pathogenesis related proteins, their activities, and comparative analysis of PR-1 type proteins. Physiol. Mol. Plant Pathol 1999, 55, 85–97. [Google Scholar]
  20. Zou, H.W.; Wu, Z.Y.; Yang, Q.; Zhang, X.H.; Cao, M.Q.; Jia, W.S.; Huang, C.L.; Xiao, X. Gene expression analyses of ZmPti1, encoding a maize Pti-like kinase, suggest a role in stress signaling. Plant Sci 2006, 171, 99–105. [Google Scholar]
  21. Zou, H.W.; Wu, Z.Y.; Zhang, X.H.; Wang, Y.Q.; Huang, C.L. Over-expression of ZmPti1, a homologue to Pti1, increases salt tolerance of Arabidopsis thaliana. Afr. J. Biotech 2010, 9, 656–662. [Google Scholar]
  22. Gasteiger, E.; Gattiker, A.; Hoogland, C.; Ivanyi, I.; Appel, R.D.; Bairoch, A. ExPASy: The proteomics server for in-depth protein knowledge and analysis. Nucleic Acids Res 2003, 31, 3784–3788. [Google Scholar]
  23. Benson, D.A.; Karsch-Mizrachi, I.; Clark, K.; Lipman, D.J.; Ostell, J.; Sayers, E.W. GenBank. Nucleic Acids Res 2012, 40, D48–D53. [Google Scholar]
  24. Mittova, V.; Guy, M.; Ta, M.; Volokita, M. Salinity up-regulates the antioxidative system in root mitochondria and peroxisomes of the wild salt-tolerant tomato species Lycopersicon pennellii. J. Exp. Bot 2004, 55, 1105–1113. [Google Scholar]
  25. Armengaud, P.; Thiery, L.; Buhot, N.; Grenier-De, M.G.; Savoure, A. Transcriptional regulation of proline biosynthesis in Medicago truncatula reveals developmental and environmental specific features. Physiol. Plant 2004, 120, 442–450. [Google Scholar]
  26. Bates, L.S.; Waldren, R.P.; Teare, I.D. Rapid determination of free proline for water stress studies. Plant Soil 1973, 39, 205–207. [Google Scholar]
  27. Heath, R.L.; Packer, L. Photoperoxidation in isolated chloroplast: I. Kinetics and stoichiometry of fatty acid peroxidation. Arch. Biochem. Biophysi 1968, 125, 189–198. [Google Scholar]
Ijms 14 05025f1 1024
Figure 1. Sequence analysis of ZmLTP3. The predicted transmembrane regions are shown within gray boxes. Two sequences in frames indicate two consensus pentapeptides, and the underlined amino acids indicate the eight conserved cysteine residues.

Click here to enlarge figure

Figure 1. Sequence analysis of ZmLTP3. The predicted transmembrane regions are shown within gray boxes. Two sequences in frames indicate two consensus pentapeptides, and the underlined amino acids indicate the eight conserved cysteine residues.
Ijms 14 05025f1 1024
Ijms 14 05025f2 1024

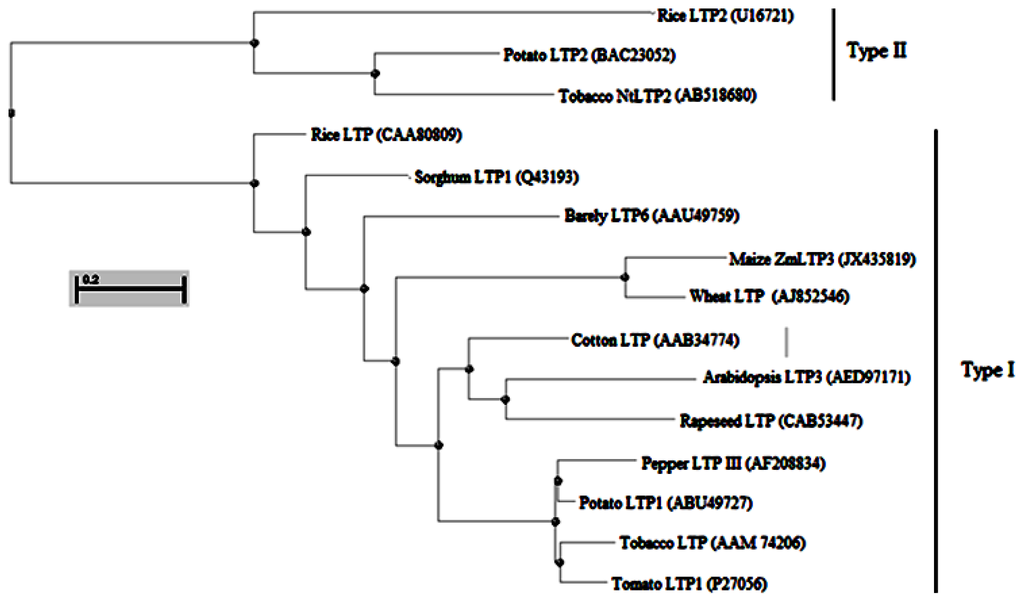

Figure 2. A phylogenetic tree of maize ZmLTP3 with other plant LTP genes. This tree was constructed using the neighbor-joining method.

Click here to enlarge figure

Figure 2. A phylogenetic tree of maize ZmLTP3 with other plant LTP genes. This tree was constructed using the neighbor-joining method.
Ijms 14 05025f2 1024
Ijms 14 05025f3 1024

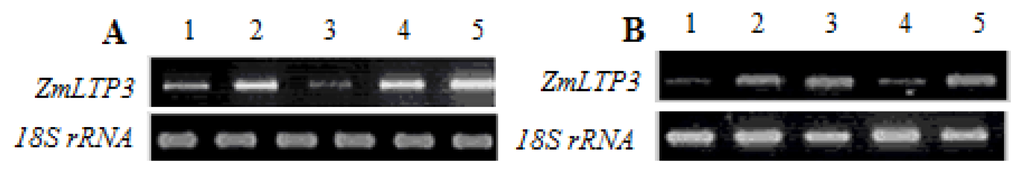

Figure 3. Expression of the ZmLTP3 gene in various tissues and in response to various treatments. (A) Expression of ZmLTP3 in various tissues. 1–5 shows different tissues: (1) roots, (2) coleoptiles, (3) leaves, (4) silks and (5) ovaries; (B) Expression of ZmLTP3 under various treatments: (1) control, (2) mannitol, (3) salt, (4) 4 °C and (5) SA.

Click here to enlarge figure

Figure 3. Expression of the ZmLTP3 gene in various tissues and in response to various treatments. (A) Expression of ZmLTP3 in various tissues. 1–5 shows different tissues: (1) roots, (2) coleoptiles, (3) leaves, (4) silks and (5) ovaries; (B) Expression of ZmLTP3 under various treatments: (1) control, (2) mannitol, (3) salt, (4) 4 °C and (5) SA.
Ijms 14 05025f3 1024
Ijms 14 05025f4 1024
Figure 4. Western blot analysis of the ZmLTP3 gene expression in wild type and homozygous transgenic lines. M, protein molecular weight marker; WT, wild type Arabidopsis; OE3, OE5, OE10, OE14 and OE33, transgenic lines.

Click here to enlarge figure

Figure 4. Western blot analysis of the ZmLTP3 gene expression in wild type and homozygous transgenic lines. M, protein molecular weight marker; WT, wild type Arabidopsis; OE3, OE5, OE10, OE14 and OE33, transgenic lines.
Ijms 14 05025f4 1024
Ijms 14 05025f5 1024
Figure 5. Effects of salt stress on growth of transgenic plants. WT, wild type Arabidopsis; OE14 and OE33, transgenic lines.

Click here to enlarge figure

Figure 5. Effects of salt stress on growth of transgenic plants. WT, wild type Arabidopsis; OE14 and OE33, transgenic lines.
Ijms 14 05025f5 1024
Ijms 14 05025f6 1024

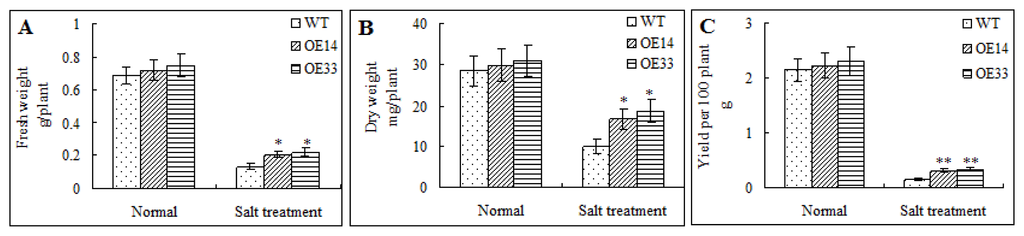

Figure 6. Morphological analysis of transgenic and WT plants under normal or salt treatment. (A) FW of plants treated with 0 mM NaCl or 300 mM NaCl; (B) DW of plants treated with 0 mM NaCl or 300 mM NaCl; (C) seeds weight of plants treated with 0 mM NaCl or 300 mM NaCl. Error bars indicate ± SE (n = 3). * and **, Significantly different from the WT at p < 0.05 and < 0.01, respectively, by Student’s t test.

Click here to enlarge figure

Figure 6. Morphological analysis of transgenic and WT plants under normal or salt treatment. (A) FW of plants treated with 0 mM NaCl or 300 mM NaCl; (B) DW of plants treated with 0 mM NaCl or 300 mM NaCl; (C) seeds weight of plants treated with 0 mM NaCl or 300 mM NaCl. Error bars indicate ± SE (n = 3). * and **, Significantly different from the WT at p < 0.05 and < 0.01, respectively, by Student’s t test.
Ijms 14 05025f6 1024
Ijms 14 05025f7 1024

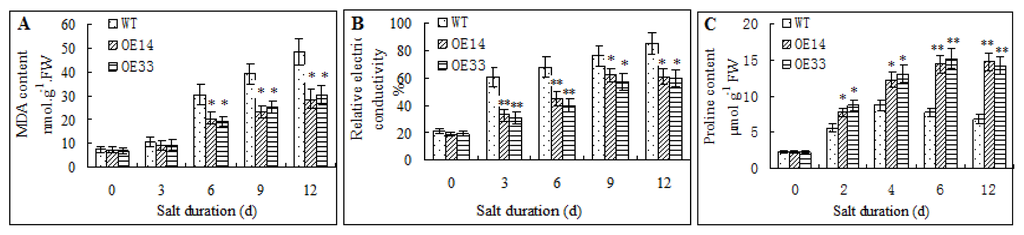

Figure 7. Physiological analysis of transgenic and WT plants under normal or salt treatment. (A) MDA content in plants treated with 0 mM NaCl or 300 mM NaCl; (B) Ion leakage ration of plants treated with 0 mM NaCl or 300 mM NaCl; (C) Proline content in plants treated with 0 mM NaCl or 300 mM NaCl. Error bars indicate ± SE (n = 3). * and **, Significantly different from the WT at p < 0.05 and < 0.01, respectively, by Student’s t test.

Click here to enlarge figure

Figure 7. Physiological analysis of transgenic and WT plants under normal or salt treatment. (A) MDA content in plants treated with 0 mM NaCl or 300 mM NaCl; (B) Ion leakage ration of plants treated with 0 mM NaCl or 300 mM NaCl; (C) Proline content in plants treated with 0 mM NaCl or 300 mM NaCl. Error bars indicate ± SE (n = 3). * and **, Significantly different from the WT at p < 0.05 and < 0.01, respectively, by Student’s t test.
Ijms 14 05025f7 1024
