Int. J. Mol. Sci. 2013, 14(11), 22544-22557; doi:10.3390/ijms141122544

Article
Synthesis of 2-Acyloxycyclohexylsulfonamides and Evaluation on Their Fungicidal Activity
Xinghai Li 1,, Zining Cui 2,, Xiaoyuan Chen 1, Decai Wu 1, Zhiqiu Qi 1 and Mingshan Ji 1,*
1
Department of Pesticide Science, Plant Protection College, Shenyang Agricultural University, Shenyang 110866, Liaoning, China; E-Mails: lixinghai30@aliyun.com (X.L.); desk101@163.com (X.C.); wudecai@163.com (D.W.); syqizhiqiu@sina.com (Z.Q.)
2
Guangdong Province Key Laboratory of Microbial Signals and Disease Control, Department of Plant Pathology, College of Natural Resources and Environment, South China Agricultural University, Guangzhou 510642, Guangdong, China; E-Mail: ziningcui@scau.edu.cn
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed; E-Mail: jimingshan@163.com; Tel.: +86-24-8849-2673; Fax: +86-24-8848-7148.
Received: 8 October 2013; in revised form: 31 October 2013 / Accepted: 4 November 2013 /
Published: 14 November 2013

Abstract

: Eighteen N-substituted phenyl-2-acyloxycyclohexylsulfonamides (III) were designed and synthesized by the reaction of N-substituted phenyl-2-hydroxyl-cycloalkylsulfonamides (I, R1) with acyl chloride (II, R2) in dichloromethane under the catalysis of TMEDA and molecular sieve. High fungicidal active compound N-(2,4,5-trichlorophenyl)-2-(2-ethoxyacetoxy) cyclohexylsulfonamide (III-18) was screened out. Mycelia growth assay against the Botrytis cinerea exhibited that EC50 and EC80 of compound III-18 were 4.17 and 17.15 μg mL−1 respectively, which was better than the commercial fungicide procymidone (EC50 = 4.46 μg mL−1 and EC80 = 35.02 μg mL−1). For in vivo activity against B. cinerea in living leaf of cucumber, the control effect of compound III-18 was better than the fungicide cyprodinil. In addition, this new compound had broader fungicidal spectra than chlorothalonil.
Keywords:
2-acyloxycycloalkylsulfonamides; Botrytis cinerea; anti-fungal spectra; structure-activity relationship

1. Introduction

Arylsulfonamides possessed excellent bioactivity against various kinds of bacteria and fungi, which were applied as medicines [18] and agrichemicals [913]. Recently, some novel arylsulfonamides containing different scaffolds, such as benzenesulfonamide (Figure 1A) [14] and the derivatives having 1,2,3-triazol (Figure 1B) [15], pyran ring (Figure 1C) [16], 1,6-caprolactam (Figure 1D) [17] and thiazolidinone (Figure 1E) [18] were reported for their obvious and diverse fungicidal activity against Sclerotinia sclerotiorum (Lib.) de Bary, Puccinia recondite f. sp. tritici, Phomopsis asparagi, Cladosporium fulvum and Fusarium oxysporum.

To explore new potential fungicides, some novel cycloalkylsulfonamides (Figure 1F–M) were designed and synthesized in our previous works, which had very good fungicidal activity, especially against the B. cinerea. 2-Oxocyclododecylsulfonamides (Figure 1F) [19] and (Figure 1G) [20] showed excellent in vitro activity against B. cinerea and Gibberella zeae (Schw.) Petch. When the ring was contracted to six-membered ring, the compounds (Figure 1H) [21], (Figure 1I) [22] with trifluoromethyl group and compound (Figure 1J) [23] also showed strong activities against B. cinerea and Sclerotinia sclerotiorum. The derivative of tetralonesulfonamide (Figure 1K) [24] exhibited good activity against B. cinerea and Rhizoctonia solani. When the carbonyl group was changed into hydroxyl group (Figure 1L) [25,26] and (Figure 1M) [27], the activity against B. cinerea was improved, not only in vitro but also in vivo.

The ester group is the common bioactive moiety and 2-hydroxycycloalkylsulfonamides possess promising fungicidal activity. In continuation of our research on the synthesis of biological cycloalkylsulfonamide compounds, esterification was applied to the N-substituted phenyl-2-hydroxycycloalkylsulfonamides (I), which was as the lead compounds to get the title compounds III (Scheme 1). Their fungicidal activity against B. cinerea and other 10 kinds of pathogenic fungi were evaluated to obtain the optimized compounds with significantly improved fungicidal activity and broad antifungal spectra.

2. Results and Discussion

2.1. Synthesis and Structure Elucidation

Oxalyl chloride was used as the chlorinating agent in this experiment, which was reacted rapidly under the catalysis of DMF. The reaction made a very high yield of the acyl chloride, which was reacted with the compounds containing hydroxy group under the catalysis of TMDEA and molecular sieves to obtain a very high yield of target compounds.

In the 1H NMR spectra of the compound III-5, 2-Hα was split by 1-Hα, 3-He and 3-Hα in the cyclohexane, forming the splitting ddd peak (Figure 2). It may be the trans chair-conformation in Figure 3. Due to the directly induced effect of the sulfonyl group and the ortho-position effect of the acyloxy to the 1-Hα, which made the CH signal slightly wide single peak in the spectra, the peak type was similar to that of NH in sulfonamide structure. In the IR spectrum, the very obvious ester carbonyl stretching vibration appeared around 1700 cm−1. NH stretching vibration was around 3200 cm−1 to 3500 cm−1.

2.2. Screening of Fungicidal Activity and SAR

2.2.1. In Vitro Fungicidal Activity of Compounds III-1III-18 against B. cinerea

From the results of mycelial growth rate (Table 1) and structure-activity relationship (SAR), it could be seen that acyloxy substituent showed higher antifungal activity when it was a small group. Among them, 2-substituted benzoyloxy compounds showed generally lower activity, while 2-(2-alkoxyacetyloxy) cycloalkylsulfonamides showed good activity. The same structure-activity relationship appeared in the test of detached leaves of cucumber (Table 1). It showed obvious bioactivity when the R2 was ethoxymethyl and methoxymethyl. The bioactivity of the N-(2,4,5-trichlorophenyl)-2-acyloxycyclohexylsulfonamides were better than that of the N-(2-trifluoromethyl-4-chlorinephenyl)-2-acyloxycyclohexyl-sulfonamides. The fungicidal activity of III-18 was a little higher than that of the procymidone in vitro tests. While the detached leaves test showed that the control efficiency of III-18 was significantly higher than that of the procymidone. According to Regulation (EC) No 1107/2009, procymidone is no longer approved in the European Union. Because of the great fungicidal activity, III-18 could be a potential substitute of this fungicide.

2.2.2. Fungicidal Activity of Compounds III-9 and III-18 against Ten Pathogenic Fungi

The screening data in Table 2 indicated that the two compounds III-9 and III-18 had broad fungicidal spectra. III-9 exhibited moderate activity against ten pathogenic fungi. Compound III-18 exhibited excellent bioactivity against the most of the selected fungus species (except for the R. solani) and the inhibitory rate was similar to or better than the commercialized fungicide chlorothalonil.

2.2.3. In Vivo Fungicidal Activity of Compounds III-18, 19 and 20 against B. cinerea

In addition, the concentration gradient experiment was evaluated by the method of cucumber leaf to check the fungicidal activity of compounds III-18, N-(2,4,5-trichlorophenyl)-2-hydroxycycloalkylsulfonamide (19) and N-(2,4,5-trichlorophenyl)-2-oxycycloalkylsulfonamide (20). The results in Table 3 showed that the activity of the compounds was gradually improved after continuous structural optimization. From the results, it could be seen that the bioactivity was not obviously different between III-18 and 19, which was much better than the activity of 20, and a little better than that of the control cyprodinil. The pathogen infection symptoms (Figure 4) showed that the leaves treated by the compound III-18 were still green and the disease spots were wet blotch plaque, which was better than the leaves treated by other compounds. The leaves treated by 20 and blank control were black and rotten.

3. Experimental Section

3.1. General Information

Infrared (IR) spectra were recorded in potassium bromide disks on a Perkin Elmer Spectrum 65 spectrophotometer. Nuclear magnetic resonance (NMR) spectra were recorded in CDCl3 unless indicated otherwise with Bruker 600 MHz or 300 MHz spectrometers, using tetramethylsilane (TMS) as the internal standard. Elemental analysis was performed by the analytical center at the Institute of Chemistry, Chinese Academy of Sciences, Beijing, China. Melting points were measured on an X-5 melting-point apparatus, and the thermometer was uncorrected. The solvents and reagents were used as received or were dried prior to use as needed.

3.2. Synthetic Procedures

3.2.1. Synthesis of Compounds I

Compounds I were synthesized according to the method given in the references [25] and [27].

3.2.2. Synthesis of Acyl Chloride II

To the solution of acid (0.05 mol) and N,N-dimethyl formamide (DMF, 0.05 mL) in dry dichloromethane (20 mL), oxalyl chloride (0.06 mol) was added dropwise. The mixture was stirred at 20–25 °C for 4 h. And the acyl chloride was distilled under pressure.

  • II-1: Benzoyl chloride, colorless liquid, bp 91–92 °C/31 mmHg, yield 85%.

  • II-2: 3-Methylbenzoyl chloride, colorless liquid, bp 90–92 °C/10 mmHg, yield 86%.

  • II-3: 4-Methylbenzoyl chloride, colorless liquid, bp 117–119 °C/15 mmHg, yield 88%.

  • II-4: 4-Methoxybenzoyl chloride, white solid, bp 153–156 °C/15mmHg, yield 80%.

  • II-5: 4-Fluorobenzoyl chloride, colorless liquid, bp 87–88 °C/25 mmHg, yield 88%.

  • II-6: 2-Chlorobenzoyl chloride, colorless liquid, bp 110–114 °C/8 mmHg, yield 85%.

  • II-7: Propionyl chloride, colorless, bp 77–79 °C, yield 84%.

  • II-8: Phenoxyacetyl chloride, colorless liquid, bp 103–105 °C/7 mmHg, yield 82%.

  • II-9: 2-Ethoxyacetyl chloride, colorless liquid, bp 65–67 °C/33 mmHg, yield 82%.

  • II-10: 2-Methoxyacetyl chloride, colorless liquid, bp 112–113 °C, yield 85%.

3.2.3. Synthesis of Compounds III-1III-18

According to the method given in the reference [28], to the solution of I (0.01 mol), N,N,N′,N′-tetramethylethylenediamine (TMEDA, 0.006 mol) and 3A molecular sieves (2 g) in dry dichloromethane (30 mL), acyl chloride II (0.011 mol) was added dropwise at room temperature. The mixture was stirred at room temperature for 2 h. And the reaction was quenched by ice water (20 mL × 2), filtered and dried with anhydrous magnesium sulfate. After evaporating the solvent under vacuum, the crude product was purified by silica gel chromatography using petroleum/ethyl acetate (10/1, v/v) as eluant to obtain III (Scheme 1).

N-(2-Trifluoromethyl-4-chlorophenyl)-2-benzoyloxy-cyclohexylsulfonamide (III-1)

White crystal, yield 90%, m.p. 119–121 °C, 1H-NMR (CDCl3, 300 MHz, Figure S1) δ: 1.37–2.25 (m, 8H, 4CH2), 3.22–3.28 (m, 1H, CH–O), 5.84 (s, 1H, CH–SO2), 6.98 (s, 1H, NH), 7.38–8.06 (m, 8H, C6H3 + C6H5); IR(KBr) ν: 3273, 2944, 2858, 1717 cm−1. Anal calcd. for C20H19ClF3NO4S: C 52.01, H 4.15, N 3.03; Found: C 51.82, H 4.13, N, 3.21.

N-(2-Trifluoromethyl-4-chlorophenyl)-2-(3-methyl-benzoyloxy)-cyclohexylsulfonamide (III-2)

White crystal, yield 88%, m.p. 112–114 °C, 1H-NMR (CDCl3, 300 MHz, Figure S2) δ : 1.41–2.25 (m, 8H, 4CH2), 2.40 (s, 3H, CH3), 3.22–3.27 (m, 1H, CH–O), 5.83 (s, 1H, CH–SO2), 6.98 (s, 1H, NH), 7.29–7.83 (m, 7H, C6H3 + C6H4); IR(KBr) ν: 3283, 2939, 2855, 1720 cm−1. Anal calcd. for C21H21ClF3NO4S: C 53.00, H 4.45, N 2.94; Found: C 53.41, H 4.28, N 2.96.

N-(2-Trifluoromethyl-4-chlorophenyl)-2-(4-methyl-benzoyloxy)-cyclohexylsulfonamide (III-3)

White crystal, yield 87%, m.p. 128–130 °C, 1H-NMR (CDCl3, 600 MHz, Figure S3) δ : 1.37–2.23 (m, 8H, 4CH2), 2.40 (s, 3H, CH3), 3.22–3.24 (m, 1H, CH–O), 5.81 (s, 1H, CH–SO2), 6.95 (s, 1H, NH), 7.22–7.91 (m, 7H, C6H3 + C6H4); IR(KBr) ν: 3277, 2949, 2865, 1708 cm−1. Anal calcd. for C21H21ClF3NO4S: C 53.00, H 4.45, N 2.94; Found: C 52.97, H 4.50, N 2.91.

N-(2-Trifluoromethyl-4-chlorophenyl)-2-(4-methoxy-benzoyloxy)-cyclohexylsulfonamide (III-4)

White crystal, yield 83%, m.p. 94–96 °C, 1H-NMR (CDCl3, 600 MHz, Figure S4) δ : 1.37–2.22 (m, 8H 4CH2), 3.21–3.24 (m, 1H CH–O), 3.86 (s, 3H OCH3), 5.79 (s, 1H CH–SO2), 6.98 (s, 1H NH), 6.90–7.99 (m, 7H C6H3 + C6H4); IR(KBr) ν: 3277, 2949, 2865, 1708 cm−1. Anal calcd. for C21H21ClF3NO5S: C 51.27; H 4.30, N 2.85; Found: C 51.21; H 4.19, N 2.93.

N-(2-Trifluoromethyl-4-chlorophenyl)-2-(4-fluoro-benzoyloxy)-cyclohexylsulfonamide (III-5)

White crystal, yield 89%, m.p. 120–122 °C, 1H-NMR (CDCl3, 600 MHz, Figure S5) δ : 1.37–2.22 (m, 8H, 4CH2), 3.23 (ddd, J = 12, 4.2, 1.8 Hz, 1H, CH–O), 5.81 (s, 1H, CH–SO2), 6.92 (s, 1H, NH), 7.09–8.07 (m, 7H, C6H3 + C6H4); IR(KBr) ν: 3277, 2935, 2859, 1760 cm−1. Anal calcd. for C20H18ClF4NO4S: C 50.06, H 3.78, N 2.92; Found: C 50.05, H 3.89, N 2.79.

N-(2-Trifluoromethyl-4-chlorophenyl)-2-(2-chloro-benzoyloxy)-cyclohexylsulfonamide (III-6)

White crystal, yield 86%, m.p. 98–100 °C, 1H-NMR (CDCl3, 600 MHz, Figure S6) δ: 1.37–2.25 (m, 8H, 4CH2), 3.21–3.24 (m, 1H, CH–O), 5.81 (s, 1H, CH–SO2), 6.96 (s, 1H, NH), 7.31–7.93 (m, 7H, C6H3 + C6H4); IR(KBr) ν: 3247, 2954, 2869, 1731 cm−1. Anal calcd. for C20H18Cl2F3NO4S: C 48.40, H 3.66, N 2.82; Found: C 48.20, H 3.45, N 2.92.

N-(2-Trifluoromethyl-4-chlorophenyl)-2-propionyloxy-cyclohexylsulfonamide (III-7)

Oil, yield 73%, 1H-NMR (CDCl3, 600 MHz, Figure S7) δ: 1.13–2.41 (m, 13H, 4CH2 + C2H5), 3.08–3.11 (m, 1H, CH–O), 5.66 (s, 1H, CH–SO2), 7.06 (s, 1H, NH), 7.49–7.72 (m, 3H, C6H3); IR(KBr) ν: 3276, 2959, 2859, 1752 cm−1. Anal calcd. for C16H19ClF3NO4S: C 46.44, H 4.63, N 3.38; Found: C 46.22, H 4.43, N 3.54.

N-(2-Trifluoromethyl-4-chlorophenyl)-2-phenoxyacetoxy-cyclohexylsulfonamide (III-8)

Oil, yield 78%, 1H-NMR (CDCl3, 600 MHz, Figure S8) δ: 1.13–2.05 (m, 8H, 4CH2), 3.09–3.12 (m, 1H, CH–O), 4.70 (s, 2H, CH2–O), 5.77 (s, 1H, CH–SO2), 6.88–7.71 (m, 9H, C6H3 + C6H5 + NH); IR(KBr) ν: 3278, 2944, 2864, 1754 cm−1. Anal calcd. for C21H21ClF3NO5S: C 51.27, H 4.30, N 2.85; Found: C 51.43, H 4.38, N 2.65.

N-(2-Trifluoromethyl-4-chlorophenyl)-2-(2-ethoxyacetoxy)-cyclohexylsulfonamide (III-9)

White crystal, yield 79%, m.p. 85–87 °C, 1H-NMR (CDCl3, 600 MHz, Figure S9) δ: 1.22–2.09 (m, 11H, 4CH2 + CH3), 3.10–3.13 (m, 1H, CH–O), 3.62 (q, J = 7.2 Hz, 2H, CH2O), 4.12 (s, 2H, OCH2CO), 5.74 (s, 1H, CH–SO2), 7.02 (s, 1H, NH), 7.50–7.71 (m, 3H, C6H3); IR(KBr) ν: 3282, 2959, 2859, 1760 cm−1. Anal calcd. for C17H21ClF3NO5S: C 46.00, H 4.77, N 3.16; Found: C 45.87, H 4.79, N 3.32.

N-(2-Trifluoromethyl-4-chlorophenyl)-2-(2-methoxyacetoxy)-cyclohexylsulfonamide (III-10)

White crystal, yield 83%, m.p. 94–96 °C, 1H-NMR (CDCl3, 300 MHz, Figure S10) δ: 1.33–2.08 (m, 8H, 4CH2), 3.09–3.15 (m, 1H, CH–O), 3.47 (s, 3H, CH3O), 4.08 (s, 2H, OCH2CO), 5.75 (s, 1H, CH–SO2), 7.03 (s, 1H, NH), 7.49–7.72 (m, 3H, C6H3); IR(KBr) ν: 3278, 2953, 2860, 1751 cm−1. Anal calcd. for C16H19ClF3NO5S: C 44.71, H 4.46, N 3.26; Found: C 44.55, H 4.52, N 3.19.

N-(2,4,5-Trichlorophenyl)-2-benzoyloxy-cyclohexylsulfonamide (III-11)

White crystal, yield 76%, m.p. 179–181 °C, 1H-NMR (CDCl3, 300 MHz, Figure S11) δ (ppm): 1.41–2.27 (m, 8H, 4CH2), 3.22–3.28 (m, 1H, CH–O), 5.83 (s, 1H, CH–SO2), 7.39–8.07 (m, 8H, C6H2 + C6H5 + NH); IR(KBr) ν: 3236, 2946, 2859, 1761 cm−1. Anal calcd. for C19H18Cl3NO4S: C 49.31, H 3.92, N 3.03; Found: C 49.69, H 3.79, N 3.05.

N-(2,4,5-Trichlorophenyl)-2-(3-methylbenzoyloxy)-cyclohexylsulfonamide (III-12)

White crystal, yield 78%, m.p. 176–178 °C, 1H-NMR (CDCl3, 300 MHz, Figure S12) δ: 1.45–2.27 (m, 8H, 4CH2), 2.41 (s, 3H, CH3), 3.18–3.24 (m, 1H, CH–O), 5.83 (s, 1H, CH–SO2), 7.20 (s, 1H, NH), 7.29–7.83 (m, 6H, C6H2 + C6H4); IR(KBr) ν: 3280, 2940, 2854, 1754 cm−1. Anal calcd. for C20H20Cl3NO4S: C 50.38, H 4.23, N 2.94; Found: C 50.25, H 4.08, N 2.99.

N-(2,4,5-Trichlorophenyl)-2-(4-methylbenzoyloxy)-cyclohexylsulfonamide (III-13)

White crystal, yield 78%, m.p. 170–172 °C, 1H-NMR (CDCl3, 600 MHz, Figure S13) δ: 1.42–2.37 (m, 8H, 4CH2), 2.41 (s, 3H, CH3), 3.19–3.22 (m, 1H, CH–O), 5.83 (d,d,d, J = 11.70, 3.90, 1.80 Hz, 1H, CH-SO2), 7.18 (s, 1H, NH), 7.30–7.83 (m, 6H, C6H2 + C6H4); IR(KBr) ν: 3278, 2946, 2859, 1708 cm−1. Anal calcd. for C20H20Cl3NO4S: C 50.38, H 4.23, N 2.94; Found: C 50.63, H 4.11, N 2.97.

N-(2,4,5-Trichlorophenyl)-2-(4-fluorobenzoyloxy)-cyclohexylsulfonamide (III-14)

White crystal, yield 79%, m.p. 160–161 °C, 1H-NMR (CDCl3, 300 MHz, Figure S14) δ: 1.49–2.25 (m, 8H, 4CH2), 3.15–3.20 (m, 1H, CH–O), 5.89 (s, 1H, CH–SO2), 7.20 (s, 1H, NH), 7.29–7.90 (m, 6H, C6H2 + C6H4); IR(KBr) ν: 3278, 2940, 2859, 1708 cm−1. Anal calcd. for C19H17Cl3FNO4S: C 47.47, H 3.56, N 2.91; Found: C 46.99, H 3.45, N 2.97.

N-(2,4,5-Trichlorophenyl)-2-(2-chlorobenzoyloxy)-cyclohexylsulfonamide (III-15)

White crystal, yield 75%, m.p. 145–147 °C, 1H-NMR (CDCl3, 300 MHz, Figure S15) δ: 1.43–2.25 (m, 8H, 4CH2), 3.16–3.21 (m, 1H, CH–O), 5.81 (s, 1H, CH–SO2), 7.94–8.90 (m, 7H, C6H2 + C6H4 + NH); IR(KBr) ν: 3244, 2946, 2859, 1708 cm−1. Anal calcd. for C19H17Cl4NO4S: C 45.90, H 3.45, N 2.82; Found: C 46.23, H 3.44, N 2.76.

N-(2,4,5-Trichlorophenyl)-2-propionyloxy-cyclohexylsulfonamide (III-16)

White crystal, yield 56%, m.p. 130–131 °C, 1H-NMR (CDCl3, 600 MHz, Figure S16) δ: 1.17–2.43 (m, 13H, 4CH2 + C2H5), 3.01–3.04 (m, 1H, CH–O), 5.65 (s, 1H, CH–SO2), 7.32 (s, 1H, NH), 7.50–7.82 (m, 2H, C6H2); IR(KBr) ν: 3251, 2940, 2859, 1734 cm−1. Anal calcd. for C15H18Cl3NO4S: C 43.44, H 4.37, N 3.38; Found: C 43.55, H 4.49, N 3.31.

N-(2,4,5-Trichlorophenyl)-2-phenoxyacetoxy-cyclohexylsulfonamide (III-17)

White crystal, yield 55%, m.p. 146–148 °C, 1H-NMR (CDCl3, 600 MHz, Figure S17), δ (ppm): 1.31–2.13 (m, 8H, 4CH2), 3.02–3.06 (m, 1H, CH–O), 4.71 (s, 2H, CH2-O), 5.77 (s, 1H, CH–SO2), 6.95–7.83 (m, 8H, C6H2 + C6H5 + NH); IR(KBr) ν: 3317, 2940, 2859, 1728 cm−1. Anal calcd. for C20H20Cl3NO5S: C 48.74, H 4.09, N 2.84; Found: C 48.66, H 4.01, N 2.98.

N-(2,4,5-Trichlorophenyl)-2-(2-ethoxyacetoxy)-cyclohexylsulfonamide (III-18)

White crystal, yield 43%, m.p. 124–126 °C, 1H-NMR (CDCl3, 600 MHz, Figure S18) δ: 1.24–2.12 (m, 11H, 4CH2 + CH3), 3.03–3.06 (m, 1H, CH–O), 3.63 (q, J = 7.2 Hz, 2H, CH2O), 4.15 (s, 2H, OCH2CO), 5.73 (s, 1H, CH–SO2), 7.34 (s, 1H, NH), 7.49–7.84 (m, 2H, C6H2); IR(KBr) ν: 3336, 2940, 2859, 1754 cm−1. Anal calcd. for C16H20Cl3NO5S: C 43.21, H 4.53, N 3.15; Found: C 42.86, H 4.46, N 3.21.

3.3. Bioassay of Fungicidal Activity

3.3.1. Effect of the Title Compounds on the Mycelial Growth

Fungicidal activities of the compounds against B. cinerea were evaluated using the method given in reference [27]. The title compounds III were dissolved in acetone and mixed with sterile molten potato dextrose agar (PDA) to obtain the gradient concentrations of 50, 25, 12.5, 6.25, 3.13, 1.56 and 0.78 μg mL−1. The commercial fungicide procymidone (with a percentage composition of 96%) was used as the positive control. The inhibition rate was calculated according to Equation (1). The EC50 and EC80 values of compounds III were estimated using logit analysis, and the results are given in Table 1.

I 1 = ( D ¯ 1 - D ¯ 0 ) / D ¯ 1 × 100 %

where I1 is the inhibition rate, D1 is the average diameter of mycelia in the blank test, and D0 is the average diameter of mycelia in the presence of compounds.

3.3.2. Effect of Compounds III-9 and III-18 against Ten Major Crop Diseases

The fungicidal activity of compounds III-9 and III-18 against ten kinds of fungi was assessed using the mycelium growth test on PDA. The compounds were dissolved in acetone and mixed PDA to obtain final concentration of 50 μg mL−1. Chlorothalonil was used as the positive control. Other test conditions were the same with the method given in the mycelial growth, and the results were shown in Table 2.

3.3.3. Effect on the Ability of B. cinerea to Colonize Detached Leaves of Cucumber

The compounds III-1III-18 were confected to 2.5% EC formulations, which were diluted to concentration of 500 μg mL−1 with water to obtain the solutions that were spread on the surface of the cucumber leaves. After air drying for 2 h at 23 °C, the upper sides of the leaves were inoculated with 5 mm plugs of B. cinerea, which was maintained on PDA [25]. The cucumber leaves were maintained at 24 ± 1 °C in culture dishes. The inhibition rate was calculated and the results were shown in Table 1.

3.3.4. In Vivo Fungicidal Activity against B. cinerea by Pot Culture Test Method in Greenhouse

Using pot culture test method according to the reference [25], the in vivo fungicidal activity of the title compounds against B. cinerea was evaluated in greenhouse. B. cinerea was maintained on potato dextrose agar (PDA) medium at 4 °C. The culture plates were cultivated at 24 ± 1 °C. Germination was conducted by soaking cucumber seeds in water for 2 h at 50 °C and then keeping the seeds moist for 24 h at 28 °C in an incubator. When the radicles were 0.5 cm, the seeds were grown in plastic pots containing a 1:1 (v/v) mixture of vermiculite and peat. Cucumber plants used for inoculations were at the stage of two seed leaves. The compounds III-18, 19 and 20 were confected to 2.5% EC formulations, which were diluted to concentration of 500, 125 and 31.25 μg mL−1 with water to obtain the solutions. Tested compounds and commercial fungicides were sprayed with a hand spray on the surface of the seed leaves. Water sprayed seed leaves were set as the CK (Figure 4). After drying, the upper sides of the leaves were inoculated with 5 mm plugs of B. cinerea, which was maintained on PDA [25]. The plants were maintained at 24 ± 1 °C and above 80% relative humidity in greenhouse. The fungicidal activity was evaluated and the results were shown in Table 3 and Figure 4.

4. Conclusions

N-substituted phenyl-2-acyloxycyclohexylsulfonamides were designed and synthesized. Their structures were confirmed by 1H NMR, IR and elementary analysis. Their fungicidal activity was better than the leading compounds N-substituted phenyl-2-hydroxycycloalkylsulfonamides. Among them, compound III-18 showed better in vitro and in vivo fungicidal activity than the fungicides procymidone and cyprodinil. In addition, this new compound had broader fungicidal spectra than chlorothalonil. The preliminary structure and activity relationship showed that the 2-alkoxyacetoxy groups were considerably more likely to improve the activity of these compounds.

Supplementary Information

Ijms 14 22544f1 200

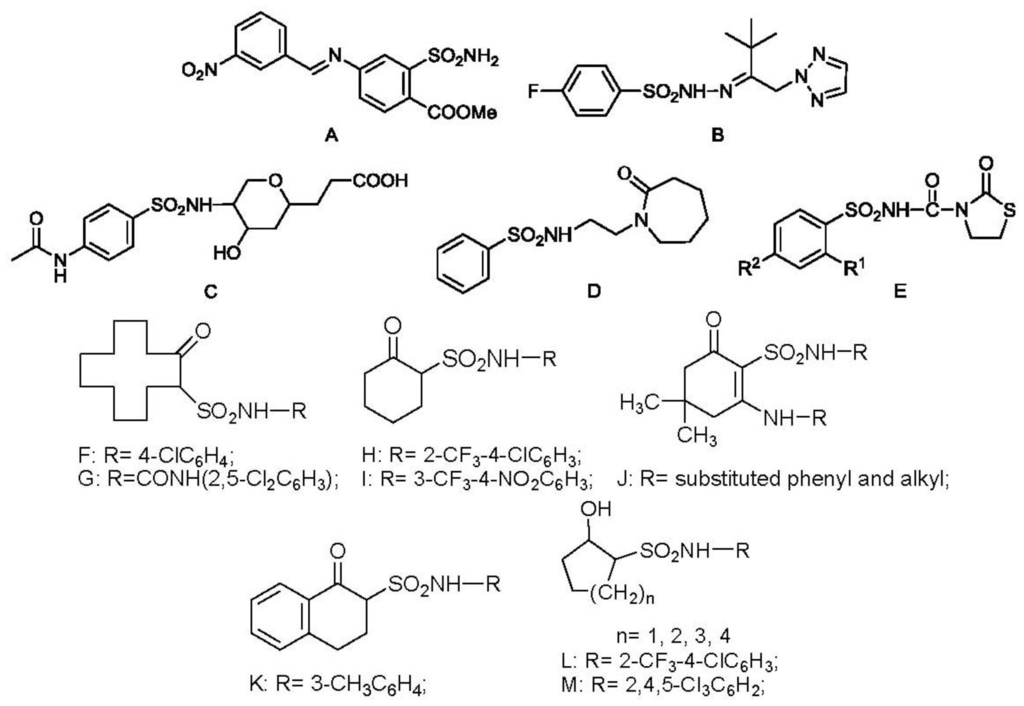

Figure 1. Structures of compounds AM.

Click here to enlarge figure

Figure 1. Structures of compounds AM.
Ijms 14 22544f1 1024
Ijms 14 22544f2 200
Figure 2. 1H-NMR spectrum of the compound III-5.

Click here to enlarge figure

Figure 2. 1H-NMR spectrum of the compound III-5.
Ijms 14 22544f2 1024
Ijms 14 22544f3 200

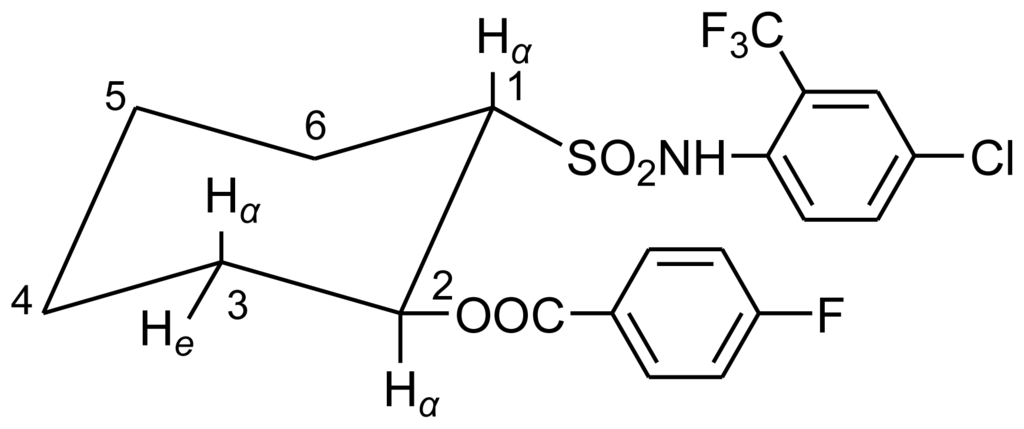

Figure 3. Proposed conformation of the compound III-5.

Click here to enlarge figure

Figure 3. Proposed conformation of the compound III-5.
Ijms 14 22544f3 1024
Ijms 14 22544f4 200
Figure 4. In vivo activity against B. cinerea in cucumber seedlings at 125 μg mL−1.

Click here to enlarge figure

Figure 4. In vivo activity against B. cinerea in cucumber seedlings at 125 μg mL−1.
Ijms 14 22544f4 1024
Ijms 14 22544f5 200

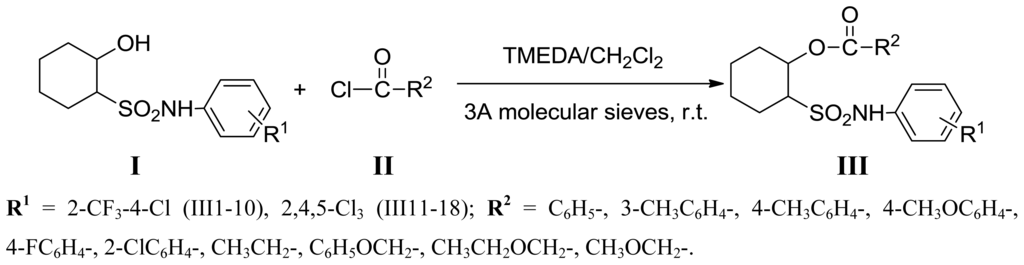

Scheme 1. Synthetic route of compounds III.R1 = 2-CF3-4-Cl (III1-10), 2,4,5-Cl3 (III11-18); R2 = C6H5-, 3-CH3C6H4-, 4-CH3C6H4-, 4-CH3OC6H4-, 4-FC6H4-, 2-ClC6H4-, CH3CH2-, C6H5OCH2-, CH3CH2OCH2-, CH3OCH2-.

Click here to enlarge figure

Scheme 1. Synthetic route of compounds III.R1 = 2-CF3-4-Cl (III1-10), 2,4,5-Cl3 (III11-18); R2 = C6H5-, 3-CH3C6H4-, 4-CH3C6H4-, 4-CH3OC6H4-, 4-FC6H4-, 2-ClC6H4-, CH3CH2-, C6H5OCH2-, CH3CH2OCH2-, CH3OCH2-.
Ijms 14 22544f5 1024
Table 1. Fungicidal activity of compounds III-1III-18 against B. cinerea.

Click here to display table

Table 1. Fungicidal activity of compounds III-1III-18 against B. cinerea.
Compd.Mycelial growth rate methodControl efficiency on detached leaves of cucumber (500 μg mL−1) (%) (±SEM)

EC50 (95% confidence limit)/(μg mL−1)EC80 (95% confidence limit)/(μg mL−1)
III-124.36 (10.23–57.99)>10061.11 (±5.73) de
III-219.94 (10.51–37.80)>10027.35 (±2.65) kl
III-3>100>10053.33 (±1.20) fg
III-472.28 (7.10–735.67)>10018.67 (±3.03) kl
III-579.66 (7.90–802.80)>10043.33 (±8.89) ghi
III-6150.33 (50.71–445.65)>10058.67 (±6.97) defg
III-76.35 (5.33–7.57)16.72 (14.03–19.92)57.58 (±3.50) fg
III-856.23 (18.13–173.76)>10048.81 (±9.20) gh
III-97.98 (6.71–9.48)20.78 (17.49–24.69)80.94 (±2.98) ab
III-107.46 (5.75–9.69)31.31 (24.13–40.68)70.67 (±8.70) cde
III-11>100-43.60 (±3.25) hij
III-12>100-39.74 (±7.32) jkl
III-1323.86 (16.65–34.19)88.48 (61.75–126.78)40.47 (±9.55) ij
III-146.20 (5.08–7.58)14.37 (11.77–17.55)45.75 (±12.55) hi
III-1529.05 (9.59–87.99)>10060.46 (±9.98) efg
III-165.40 (3.66–7.96)23.13 (15.69–34.11)58.01 (±10.22) gh
III-1716.13 (11.02–23.58)92.93 (63.55–135.90)50.30 (±6.69) ghi
III-184.17 (3.26–5.33)17.15 (13.41–21.94)96.22 (±13.10) a
procymidone4.46 (2.28–8.76)35.02 (17.94–68.78)72.11 (±5.60) bc

The letters a–l denoted the results of difference significance analysis. Means followed by the same letter within the same column are not significantly different (p ≥ 0.05, Fisher’s LSD multiple comparison test).

Table 2. Fungicidal activity of compounds III-9 and III-18 against ten pathogenic fungi.

Click here to display table

Table 2. Fungicidal activity of compounds III-9 and III-18 against ten pathogenic fungi.
FungusInhibitory rate (50 μg mL−1) (%) (±SEM)

III-9III-18chlorothalonil
Curvularia lunata (Walker) Boed66.78 (±3.07)82.93 (±1.58)86.39 (±2.05)
Bipolaris maydis Shoem58.05 (±5.38)87.99 (±1.25)90.00 (±1.38)
Gibberella zeae (Schw.) Petch59.01 (±1.48)73.23 (±1.80)90.96 (±1.48)
Colletotrichum gossypii Southw75.53 (±1.87)74.42 (±1.01)51.73 (±1.57)
Sclerotinia sclerotiorum (Lib.) de Bary78.13 (±0.90)73.13 (±1.28)95.99 (±0.49)
Fusarium oxysporum24.02 (±2.13)49.77 (±1.40)78.07 (±1.35)
Macrophoma kuwatsukai Hara53.12 (±1.23)84.91 (±2.40)79.61 (±2.35)
Alternaria solani Jones et Grout53.76 (±2.30)77.03 (±1.45)58.94 (±5.17)
Corynespora cassiicola48.9 (±1.10)77.77 (±3.83)69.52 (±3.26)
Rhizoctonia solani kühn19.64 (±3.88)44.13 (±2.91)68.65 (±2.26)
Table 3. Control efficiency of III-18, 19 and 20 against B. cinerea (leaf method).

Click here to display table

Table 3. Control efficiency of III-18, 19 and 20 against B. cinerea (leaf method).
Ijms 14 22544f6

Concentration (μg mL−1)Compd. Ijms 14 22544f7Average diameter of the spot (mm) (±SEM)Inhibitory rate (%)
500III-18−OCOCH2OC2H53.0 (±0.6)84.12 a
19−OH4.3 (±0.5)77.40 a
20=O7.0 (±1.9)63.21 b
cyprodinil4.1 (±0.5)78.47 a
125III-18−OCOCH2OC2H55.4 (±0.6)71.50 a′
19−OH6.7 (±0.9)64.40 a′b′
20=O8.5 (±1.2)55.13 b′
cyprodinil7.0 (±0.8)62.80 b′
31.25III-18−OCOCH2OC2H59.6 (±1.4)49.21 a″
19−OH10.5 (±2.0)44.22 a″
20=O9.1 (±1.8)52.02 a″
cyprodinil8.7 (±0.9)54.12 a″
0CK18.9 (±2.3)2.29

The letters a–a″ denoted the results of difference significance analysis. Means followed by the same letter within the same column are not significantly different (p ≥ 0.05, Fisher’s LSD multiple comparison test).

Acknowledgments

This work was supported by the National Natural Science Foundation of China (31101466 and 21102173), and Program for Liaoning Excellent Talents in University (LJQ2012059).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pierre, B.; Martine, V.L.; Arlette, N.; Jean-Michel, L.; Joseph, V.; Stéphane, L.; Gérard, D.; Alain, N. New 2-sulfonamidothiazoles substituted at C-4: Synthesis of polyoxygenated aryl derivatives and in vitro evaluation of antifungal activity. Eur. J. Med. Chem 1999, 34, 773–779.
  2. Ashis, K.; Saha, L.L.; Patrick, M.; Frank, O. Novel antifungals based on 4-substituted imidazole: Solid-phase synthesis of substituted aryl sulfonamides towards optimization of in vitro activity. Bioorg. Med. Chem. Lett 2000, 10, 2735–2739.
  3. Iraj, R.E.; Charalabos, C.; Panagiotis, Z.; Athina, G.; Marina, S.; Jasmina, G.; Ana, C. Sulfonamide-1,2,4-triazole derivatives as antifungal and antibacterial agents: Synthesis, biological evaluation, lipophilicity, and conformational studies. Bioorg. Med. Chem 2008, 16, 1150–1161.
  4. Mahantesha, B.K.; Shivashankar, M.V.; Kulkarni, V.P.; Rasal, H.; Patel, S.S.; Mutha, A.A.M. Synthesis and antimicrobial studies on novel sulfonamides containing 4-azidomethyl coumarin. Eur. J. Med. Chem 2010, 45, 1151–1157.
  5. Zahid, H.; Chohan, M.H.; Youssoufi, Aliasghar J.; Taibi, B.H. Identification of antibacterial and antifungal pharmacophore sites for potent bacteria and fungi inhibition: Indolenyl sulfonamide derivatives. Eur. J. Med. Chem 2010, 45, 1189–1199.
  6. Zoumpoulakis, P.; Camoutsis, C.; Pairas, G.; Soković, M.; Glamočlija, J.; Potamitis, C.; Pitsas, A. Synthesis of novel sulfonamide-1,2,4-triazoles, 1,3,4-thiadiazoles and 1,3,4-oxadiazoles, as potential antibacterial and antifungal agents. Biological evaluation and conformational analysis studies. Eur. J. Med. Chem 2012, 20, 1569–1583.
  7. Keche, A.P.; Hatnapure, G.D.; Tale, R.H.; Rodge, A.H.; Birajdar, S.S.; Kamble, V.M. A novel pyrimidine derivatives with aryl urea, thiourea and sulfonamide moieties: Synthesis, anti-inflammatory and antimicrobial evaluation. Bioorg. Med. Chem. Lett 2012, 22, 3445–3448.
  8. Keche, A.P.; Hatnapure, G.D.; Tale, R.H.; Rodge, A.H.; Kamble, V.M. Synthesis, anti-inflammatory and antimicrobial evaluation of novel 1-acetyl-3,5-diaryl-4,5-dihydro (1H) pyrazole derivatives bearing urea, thiourea and sulfonamide moieties. Bioorg. Med. Chem. Lett 2012, 22, 6611–6615.
  9. Fujita, T. Nebijin (flusulfamide, MTF-651), a new soil fungicide. Agrochem. Jpn 1994, 65, 17–19.
  10. Tanaka, S.; Kochi, S.I.; Kunita, H.; Ito, S.I.; Kameya-Iwaki, M. Biological mode of action of the fungicide, Flusulfamide, against Plasmodiophora brassicae (clubroot). Eur. J. Plant. Pathol 1999, 105, 577–584.
  11. Tabuchi, T.; Yamamoto, T.; Nakayama, M. Preparation of Aryl- or Heterocyclyl-Sulfonamide Derivatives as Agricultural and Horticultural Microbicides. WO Patent WO 2,000,065,913, 9 November 2000.
  12. Shigeru, M.; Satoshi, A.; Tomona, Y.; Yasuko, T.; Takeshi, O.; Norifusa, M. Fungicidal activity of the novel fungicide cyazofamid against Phytophthora infestans and other plant pathogenic fungi in vitro. Pestic. Biochem. Physiol. 2001, 71, 92–99.
  13. Yang, J.C.; Wu, Q.; Liu, R.L.; Ma, S.C.; Liu, C.L. Recent advances on the development of agricultural fungicides. Agrochemicals 2008, 47, 402–405.
  14. Wang, M.Y.; Li, Z.M. Synthesis and Bioactivities of Novel 2-Methoxycarbonyl-5-arylazomethine Benzenesulfonamide. Chin. J. Synth. Chem 2012, 20, 65–68.
  15. Zeng, D.Q.; Zhang, Y.M.; Chen, J. Studies on the synthesis and fungicidal activity of N-phenylsulfonyl-α-triazolyl-pinacolone-hydrazone. J. Guangxi Agric. Biol. Sci 2004, 23, 313–315.
  16. Zhong, Z.M.; Chen, R.; Xing, R.G.; Chen, X.L.; Liu, S.; Guo, Z.Y.; Ji, X.; Wang, L.; Li, P.C. Synthesis and antifungal properties of sulfanilamide derivatives of chitosan. Carbohydr. Res 2007, 342, 2390–2395.
  17. Liang, X.M.; Fang, X.Q.; Dong, Y.H.; Yuan, H.Z.; Qi, S.H.; Wang, D.Q.; Wu, J.P. Synthesis and fungicidal activity of N-(arylsulfonylaminoethyl)-1,6-caprolactam. Chin. J. Pestic. Sci 2008, 10, 156–160.
  18. Chen, Q.W.; Shen, D.L. Synthesis and biological activity of novel 2-thiazolidiones sulfonylurea derivatives. J. Zhejiang Univ. Technol 2008, 36, 562–564.
  19. Wang, X.P.; Wang, D.Q. Synthesis and antifungal activity of N-substituted-2-oxocyclododecylsulphonamides. Chem. J. Chin. Univ 1997, 18, 889–893.
  20. Li, X.H.; Yang, X.L.; Ling, Y.; Fan, Z.J.; Wang, D.Q.; Li, Z.M. The Synthesis and fungicidal Activity of Novel α-Oxocycloalkylsulfonylureas. J. Agric. Food Chem 2005, 53, 2202–2206.
  21. Li, X.H.; Yang, X.L.; Liang, X.M.; Kai, Z.P.; Yuan, H.Z.; Wang, D.Q. Synthesis and biological activities of 2-oxocycloalkylsulfonamides. Bioorg. Med. Chem 2008, 16, 4538–4544.
  22. Yang, H.Y.; Yan, X.J.; Yuan, H.Z.; Liang, X.M.; Zhang, J.J.; Wang, D.Q. Synthesis and fungicidal activity of 2-oxocyclohexylsulfonamides containing fluorine. Chin. J. Pestic. Sci 2010, 12, 449–452.
  23. Li, X.H.; Ji, M.S.; Qi, Z.Q.; Li, X.W.; Shen, Y.X.; Gu, Z.M.; Zhang, Y.; Wei, S.H.; Wang, Y.Z.; Wang, D.Q. Synthesis of 2-amino-6-oxocyclohexenylsulfonamides and their activity againstBotrytis cinerea. Pest Manag. Sci 2011, 67, 986–992.
  24. Liang, X.M.; Wang, D.Q.; Yang, H.Y.; Wu, J.P.; Zhang, J.J.; Yan, X.J. Preparation method of 1-oxotetralyl-2-sulfonamide and its usage as a fungicide. Patent CN 101,503,381, 12 August 2009.
  25. Li, X.H.; Wu, D.C.; Qi, Z.Q.; Li, X.W.; Gu, Z.M.; Wei, S.H.; Zhang, Y.; Wang, Y.Z.; Ji, M.S. Synthesis, fungicidal activity, and structure-activity relationship of 2-oxo and 2-hydroxycycloalkylsulfonamides. J. Agric. Food Chem 2010, 58, 11384–11389.
  26. Li, X.H.; Wu, D.C.; Qi, Z.Q.; Gu, Z.M.; Li, X.W.; Ji, M.S. Bactericidal activity of 2-oxo and 2-hydroxycycloalkylsulfonamide to 14 kinds of pathogenic fungi. Chin. J. Pestic. Sci 2011, 13, 423–426.
  27. Li, X.H.; Pan, Q.; Cui, Z.N.; Ji, M.S.; Qi, Z.Q. Synthesis and Fungicidal Activity of N-(2,4,5-trichlorophenyl)-2-Oxo- and 2-Hydroxycycloalkylsulfonamides. Lett. Drug Des. Discov 2013, 10, 353–359.
  28. Sano, T.; Ohashi, K.; Oriyama, T. Remarkably fast acylation of alcohols with benzoyl chloride promoted by TMEDA. Synthesis 1999, 7, 1141–1144.
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
