Int. J. Mol. Sci. 2013, 14(1), 1999-2010; doi:10.3390/ijms14011999

Articles
Quantitative and Chemical Fingerprint Analysis for the Quality Evaluation of Receptaculum Nelumbinis by RP-HPLC Coupled with Hierarchical Clustering Analysis
Yan-Bin Wu 1, Li-Jun Zheng 1, Jun Yi 2, Jian-Guo Wu 1, Ti-Qiang Chen 3 and Jin-Zhong Wu 1,*
1
Academy of Integrative Medicine, Fujian University of Traditional Chinese Medicine, Fuzhou 350122, China; E-Mails: wxsq1@163.com (Y.-B.W.); zhenglijun1985@163.com (L.-J.Z.); wjg1419@126.com (J.-G.W.)
2
Department of Science, Fujian Institute of Education, Fuzhou 350001, China; E-Mail: yijun1965@126.com
3
Fujian Academy of Agricultural Sciences, Fuzhou 350013, China; E-Mail: chen_tiqiang@189.cn
*
Author to whom correspondence should be addressed; E-Mail: jinzhongfj@126.com; Tel./Fax: +86-591-2286-1611.
Received: 28 September 2012; in revised form: 10 January 2013 / Accepted: 11 January 2013 /
Published: 21 January 2013

Abstract

: A simple and reliable method of high-performance liquid chromatography with photodiode array detection (HPLC-DAD) was developed to evaluate the quality of Receptaculum Nelumbinis (dried receptacle of Nelumbo nucifera) through establishing chromatographic fingerprint and simultaneous determination of five flavonol glycosides, including hyperoside, isoquercitrin, quercetin-3-O-β-d-glucuronide, isorhamnetin-3-O-β-d-galactoside and syringetin-3-O-β-d-glucoside. In quantitative analysis, the five components showed good regression (R > 0.9998) within linear ranges, and their recoveries were in the range of 98.31%–100.32%. In the chromatographic fingerprint, twelve peaks were selected as the characteristic peaks to assess the similarities of different samples collected from different origins in China according to the State Food and Drug Administration (SFDA) requirements. Furthermore, hierarchical cluster analysis (HCA) was also applied to evaluate the variation of chemical components among different sources of Receptaculum Nelumbinis in China. This study indicated that the combination of quantitative and chromatographic fingerprint analysis can be readily utilized as a quality control method for Receptaculum Nelumbinis and its related traditional Chinese medicinal preparations.
Keywords:
Receptaculum Nelumbinis; flavonoids compounds; fingerprint analysis; chemometric analysis; quality control

1. Introduction

Lotus (Nelumbo nucifera Gaertn.), belonging to the family Nymphaeaceae, is a kind of perennial aquatic herbage plant, which is one of the most important aquatic vegetables widely grown in China, due to its pleasant flavor and high nutritional value, especially its seeds, rhizomes and leaves. It’s easy to be cultivated and distributed in wetlands throughout temperate and tropical Asia from Iran to Japan and from China to Queensland [1]. Up to the year 2002, a total of 572 lotus accessions (including landraces, cultivars and breeding lines) with different germplasm resources were conserved in the National Garden of Aquatic Vegetable in Wuhan, Hubei province, China, including those collections from 153 counties in 18 provinces and lines bred by breeders. According to different purposes or morphological differences, the lotus is usually classified into three types: rhizome lotus, seed lotus and flower lotus. Rhizome lotus is mainly cultivated in Hubei, Jiangsu, Anhui and Zhejiang provinces, seed lotus in Jiangxi, Fujian and Hunan and flower lotus in Wuhan city, Hubei province and Beijing [2].

The previously study reported that different types of lotus have show dissimilar characteristics, which is indicative of their distinct genetic differentiations [3]. There are inextricable links between medicinal plants and their ecological environment in the process of long-term survival competition and natural selection. The genetic variation of active ingredients in germplasm resources is an important factor affecting yield and quality of drugs. To some extent, the formulation of “authentic ingredients” with excellent efficacy is attributed to the action of the “local variety”. In addition, herbs collected at different times and planted in different regions may affect the quality of their chemical composition and the amounts of major bioactive constituents [4].

Receptaculum Nelumbinis, commonly used traditional Chinese medicine (TCM), called Lianfang in Chinese, is derived from the dried receptacle of N. nucifera. It is used as an antihemorrhagic agent, especially for excess menstrual bleeding and irregular genital bleeding and also as a remedy for dehydration caused by diarrhea in summer and for prevention of miscarriage in traditional Chinese medicine [5]. In previous bioactivity research on this herb, Receptaculum Nelumbinis have exhibited a wide spectrum of biopharmacological effects, including antioxidation, improving learning and memory abilities, protective effects against experimental myocardial injury and ischemia, radioprotective activity and anti-tumor effects [610]. Our previous phytochemical investigations of Receptaculum Nelumbinis have revealed that its main components are phenolic constituents [11]. In the official Chinese pharmacopoeia (China Pharmacopoeia Committee, 2010) [12], only microscopic identification methods were used to identify this medicinal material, and the content determination of marker compounds were not recorded [12]. In the aspects of literature, only the assay of hyperoside and quercetin in Receptaculum Nelumbinis was reported [13,14]. This can’t fully account for all the activities of Receptaculum Nelumbinis and does not meet the need to effectively control the quality for Receptaculum Nelumbinis.

Therefore, in order to control the quality and to clarify the differentiation of chemical constituents in Receptaculum Nelumbinis, a HPLC-DAD method of multiple compounds determination in combination with chemical fingerprinting methodology was developed for the quality evaluation of Receptaculum Nelumbinis. In consideration of the complexity of herb medicine, the HPLC chromatograms are complex multivariate data sets, so minor differences between very similar chromatograms might be missed; the chemical pattern recognition methods, such as similarity analysis (SA) and hierarchical clustering analysis (HCA), were used to reasonably define the class of the herbal medicine and to efficiently evaluate the differentiation of the Receptaculum Nelumbinis samples. We expected that this HPLC method would be helpful for the quality control of Receptaculum Nelumbinis in the future.

2. Results and Discussion

2.1. Optimization of HPLC Conditions

In order to obtain the chromatograms with better separation of adjacent peaks within a short time, the column, mobile phase and detection wavelength were investigated. Different HPLC columns were tested for better resolution, and then baseline separation of the five constituents was obtained on an Agilent HC-C18 column. Acetonitrile-Water system was used as the mobile phase. It could give rise to more peaks, but separation was not satisfactory. According to the literature, acid could achieve better separation for dihydrochalcones [15], thus, 0.2% acetic acid was added to the acetonitrile-water system to further improve the peak shape. Due to a full-scan experiment of the five active components from 200 to 400 nm, 360 nm was selected as the detection wavelength, so that more characteristic peaks could be obtained, and the baseline was well improved on the chromatographic profiles.

2.2. Method Validation of Quantitative Analysis

The method was validated in terms of linearity, precision, repeatability, stability and recovery test. The Receptaculum Nelumbinis for method validation was collected from Fujian, China, and the variety of Nelumbo nucifera Gaertn was named Taikong 36.

The calibration curve was generated to confirm the linear relationship between the peak area and the concentrations of each reference compound in the test samples. The five standards of hyperoside, isoquercitrin, quercetin-3-O-β-d-glucuronide, isorhamnetin-3-O-β-d-galactoside and syringetin-3-O-β-d-glucoside were accurately weighed, dissolved and diluted with 50% methanol in a volumetric flask to obtain standard solutions for the calibration curves. Calibration curves were peak area versus concentration for each analyte. The linear regression equations, correlation coefficients and ranges of calibration curves for the listed flavonoid derivatives are shown in Table 1. The calibration curves showed good linear regression, with correlation coefficience over 0.9998 within test ranges.

A sample of the medicinal material was prepared as described above and was subjected to HPLC analysis six times in the same day to evaluate the precision. The repeatability was examined by the injection of six different samples, which were prepared with the same sample preparation procedure. Variations were expressed as relative standard deviations (RSD). Table 2 showed the results of the tests of precision and repeatability. The stability was analyzed in 0, 4, 8, 12, 24 and 48 h within 2 days. Stability was expressed as the RSD, and the values were less than 0.69% for the five compounds (Table 2). The recovery test was determined by the standard addition method. Five flavonol glycosides were added to the samples, and then, the extraction and analysis were performed according to the above sample preparation procedure. The mean recovery was calculated according to the following formula: recovery (%) = [(found amount − original amount)/spiked amount] × 100% and RSD (%) = (SD/mean) × 100%. The mean recovery of the five flavonoids compounds was 98.31%–100.32%, and their RSD values were less than 3.00% (Table 2).

2.3. Establishment of Chromatographic Fingerprint of Receptaculum Nelumbinis and Similarity Analysis (SA)

To standardize the HPLC profile, 20 samples of Receptaculum Nelumbinis were analyzed, and all chromatograms were introduced into the Computer-Aided Similarity Evaluation System for Chromatographic Fingerprint of TCM (China Committee of Pharmacopeia, 2004). Peaks that existed in all chromatograms of samples with reasonable heights and good resolutions were assigned as “common peak” for Receptaculum Nelumbinis. As shown in Figure 1, there are 12 distinct common peaks (from peak 1 to peak 12) in the HPLC fingerprint common patterns from the 20 samples of Receptaculum Nelumbinis, and the representative standard fingerprints of the investigated samples is shown in Figure 2. Five common peaks (peak 4, 5, 6, 8 and 9) were identified as hyperoside, isoquercitrin, quercetin-3-O-β-d-glucuronide, isorhamnetin-3-O-β-d-galactoside and syringetin-3-O-β-d-glucoside.

The similarities of chromatograms for the varieties of the receptacles of N. nucifera were calculated using the similarity evaluation system recommended by SFDA. Similarity comparison of the standard fingerprints of different samples showed that the similarity ranged from 0.282 to 0.966 (Table 3). The results (Table 3) showed that sample L11, L13 and L17 have a small similarity with its similarity, respectively, as 0.867, 0.283 and 0.282. The similarity values of the other samples were more than 0.918. These results indicated that the chemical composition and content in the Receptaculum Nelumbinis varied significantly.

2.4. Quantitative Determination of Five Compounds in Receptaculum Nelumbinis

According to the contents and pharmacological properties of major constituents in Receptaculum Nelumbinis, the peak of hyperoside, isoquercitrin, quercetin-3-O-β-d-glucuronide, isorhamnetin-3-O-β-d-galactoside and syringetin-3-O-β-d-glucoside were chosen as reference peaks. The contents of the five compounds in the twenty varieties of the receptacles of N. nucifera from different sources in China were determined by the establishing HPLC method. The representative HPLC chromatogram of the five compounds is shown in Figure 3. Each sample was analyzed in triplicate to determine the mean content (mg/g), and the results are listed in Table 4. The quantitative analysis results showed that the twenty varieties of the receptacles of N. nucifera generally contained the five flavonol glycosides, and the content of the five compounds were significantly different. The content ranges for hyperoside, isoquercitrin, quercetin-3-O-β-d-glucuronide, isorhamnetin-3-O-β-d-galactoside and syringetin-3-O-β-d-glucoside were 0.1–9.1, 0.1–6.0, 9.3–72.2, 0.3–3.3 and 0.1–1.9 mg/mL, respectively. The results in Table 4 showed that the content of each flavonol glycoside in different samples were significantly different, which is consistent with that of HPLC fingerprint analysis. Moreover, hyperoside, isoquercitrin and quercetin-3-O-β-d-glucuronide were found to be predominant among the five determined analytes. Many studies have shown that hyperoside, isoquercitrin and quercetin-3-O-β-d-glucuronide have exhibited a wide spectrum of biopharmacological effects, including beneficial cardiovascular effect, antioxidation, anti-hypertrophic effect on vascular smooth muscle cell, antiviral, anti-inflammatory and anti-tumor effect [11,1620]. The high yield of hyperoside, isoquercitrin and quercetin-3-O-β-d-glucuronide in 50% ethanol extract may contribute to the curative effect of Receptaculum Nelumbinis.

According to the quantitative analysis results, it was suggested that the genetic variation was one of the key factors affecting the contents of bioactive constituents. The results also indicated that the internal qualities of 20 batches of Receptaculum Nelumbinis samples from different sources with different varieties had marked variations, and the quality control needed evaluation by chemical fingerprinting. Multiple factors for Receptaculum Nelumbinis, such as various regions, source and different harvesting time various, would accordingly result in the differences in their qualities. Thus, the selection of the stable source of the Receptaculum Nelumbinis is quite important and meaningful for the clinical effect and quality evaluation of this medicine.

2.5. Hierarchical Clustering Analysis (HCA)

HCA is a multivariate analysis technique that is used to sort samples into groups [21]. The HCA method is well known and has been applied for fingerprint analysis, because it is a nonparametric data interpretation method and simple to use [2124]. HCA provides a visual representation of complex data. A method called average linkage between groups was applied, and Pearson correlation was selected as a measurement. The method can classify different herbs by measuring the peak areas from their corresponding LC fingerprints. The common characteristic peaks, which were calculated by the Similarity Evaluation System, were selected for the hierarchical cluster analysis [4].

In order to assess the resemblance and differences of these samples, a hierarchical agglomerative clustering analysis of Receptaculum Nelumbinis samples was performed based on the relative peak areas of all the 12 characteristics chromatographic peaks. The peak areas of characteristics constituents in 20 batches of Receptaculum Nelumbinis samples from various sources formed a matrix of 12 × 20. The results of HCA were shown in Figure 4 from which the quality characteristics were revealed more clearly. The results of the hierarchical cluster analysis showed that the samples could be divided into two quality clusters. Among them, Cluster I includes the samples L7, L11, L13 and L17 and the other in Cluster II. Cluster I was distinguished as hyperoside—poor chemotype—which contains less hyperoside than the Cluster II. These results were in correspondence to the SA. The low concentration of hyperoside in the Cluster I may be due to the poor herb quality of Receptaculum Nelumbinis. This indicated that hyperoside could be used as a marker compound to distinguish the Receptaculum Nelumbinis with different quality. The results of HCA could be validated each other and provided more references for the quality evaluation of Receptaculum Nelumbinis.

3. Experimental Section

3.1. Plant Materials and Reagents

Twenty Receptaculum Nelumbinis populations were collected from different regions of China, and all voucher specimens were taxonomically identified based on morphological characteristics by Professor J. Z. Wu and deposited at Herbarium of Academy of Integrative Medicine, Fujian University of Traditional Chinese Medicine in Fuzhou 350108, China.

HPLC grade acetonitrile and methanol were purchased from Fisher Scientific (Pittsburgh, PA, USA). HPLC grade water was prepared using a Milli-Q water purification system (Millipore, Bedford, MA, USA). Analytical grade methanol, ethanol and acetic acid were purchased from Sinopharm Chemical Reagent Co. Ltd, Shanghai, China. All the solutions were filtered through 0.45 μm membranes (Schleicher & Schuell, Dassel, Germany) and degassed by ultrasonic bath before use.

3.2. Instrument and Chromatographic Conditions

The chromatographic separation was performed on an Angilent 1200 HPLC system (Agilent Technologies Inc., Santa Clara, CA, USA), equipped with a quaternary pump, an autosampler, a degasser, an automatic thermostatic column compartment, a DAD detector and a computer with a Chemstation software program for analysis of the HPLC data. Agilent HC-C18 reversed-phase column (250 mm × 4.6, 5 μm) together with an Agilent HC-C18 guard column (12.5 mm × 4.6, 5 μm) were used with column temperature set at 25 °C. HPLC-DAD detection was used for purity assay of reference compounds. The mobile phase consisted of acetonitrile (A) and 0.2% acetic acid (v/v, B) using a gradient program of 16%–19.6% A in 0–6 min, 19.6%–20.7% A in 6–30 min. This was followed by a 10 min equilibration period to the injection of each sample. The flow rate was 1 mL/min, and detection wavelength was set at 360 nm; an aliquot of 10 μL solution was injected for acquiring chromatograms.

3.3. Preparation of Standard Solutions

Hyperoside, isoquercitrin, quercetin-3-O-β-d-glucuronide, isorhamnetin-3-O-β-d-galactoside and syringetin-3-O-β-d-glucoside were extracted, isolated and purified from Receptaculum Nelumbinis in our laboratory. The chromatogram of the five mixture compounds was shown in Figure 4. All were identified using ESI-MS, 1H-NMR and 13C-NMR spectrometric techniques. The purity of each compound was determined to be higher than 98% by HPLC. Their structures and the detailed procedures for isolation and spectrometric identification have been reported in another paper [11].

Five reference compounds were accurately weighed and dissolved in 20% acetonitrile, then diluted to appropriate concentration ranges for the establishment of calibration curves. All stock and working standard solutions were stored at 4 °C until used for analysis.

3.4. Preparation of Sample Solutions

The open-air dried lotus receptacles were cut into small pieces and ground into powder, and then 1.0 g of sample fine powder was extracted twice with 25 mL of 50% ethanol by ultrasonic for 30 min. The extracts was filtered and evaporated under vacuum, the residues were dissolved with 10 mL 20% acetonitrile solution and sonicated for 10 min. The sample solution was filtered through a 0.45 μm membrane filter prior to HPLC analysis, and the injection volume was 10 μL.

3.5. Data Analysis

The chromatographic profiles of all extracts were performed by professional software named Similarity Evaluation System for Chromatographic Fingerprint of Traditional Chinese Medicine (Version 2004 A), which was recommended by the State Food and Drug Administration of China (SFDA) for evaluating similarities of chromatographic profiles of TCM [19]. The hierarchical cluster analysis (HCA) of samples was performed using SPSS software (SPSS 16.0 for Windows Vista™, SPSS Inc., Chicago, IL, USA).

4. Conclusions

In this paper, a HPLC fingerprint and quantitative analysis method was developed to evaluate the quality of Receptaculum Nelumbinis from different sources. The method was well validated by systematically comparing chromatograms of all samples from different sources and certified helpfully to improve the quality control. Meanwhile, the chemometrics methods were applied with the HPLC fingerprint techniques for analysis of chemical variation of Receptaculum Nelumbinis samples. Chemometrics analysis indicated that the quality of Receptaculum Nelumbinis have no significant relativity with geographic location and germplasm resources. HCA could distinguish these samples as different chemical-types, but not different geographic population and germplasm resources. In the view of results of content analysis, the samples L7, L11, L13 and L17 have a lower content of hyperoside, with its content, respectively, as 0.8, 1.1, 0.1 and 0.2 mg/g. This also explained why samples L7, L11, L13 and L17 were grouped as the same type in HCA analysis and have a small similarity. Furthermore, five marker constituents were found to be specific variables, which could provide the most discrimination and quality control of Receptaculum Nelumbinis by quantitative analysis. The results demonstrated that the chemometrics techniques, such as SA and HCA, were able to classify samples objectively and successfully in accordance with their chemical constituents and content. Further, the method is a powerful, practical tool for quality control of Receptaculum Nelumbinis samples or other related traditional Chinese medicinal preparations.

Acknowledgments

This work was conducted in the Class III Laboratory of Traditional Chinese Medicine on Pharmacognosy of State Administration of Traditional Chinese Medicine of People’s Republic of China and was financially supported by Key Project of Fujian Provincial Universities for Haixi Development (Grant No. 5), the Research Foundation of Health Bureau of Fujian Province of China (Grant No. wzzd0901) and the Natural Science Foundation of Fujian province of China (Grant No. 2011J01212).

  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Woranuch, L.; Chusie, T.; Henrik, B. Management and use of Nelumbo nucifera Gaertn. In Thai wetlands. Wetl. Ecol. Manag 2009, 17, 279–289.
  2. Guo, H.B. Cultivation of lotus (Nelumbo nucifera Gaertn. ssp. nucifera) and its utilization in China. Genet. Resour. Crop Evol 2009, 56, 323–330.
  3. Han, Y.C.; Teng, C.Z.; Chang, F.H.; Robert, G.W.; Zhou, M.Q.; Hu, Z.L.; Song, Y.H. Analyses of genetic relationships in Nelumbo nucifera using nuclear ribosomal ITS sequence data, ISSR and RAPD markers. Aquat. Botan 2007, 87, 141–146.
  4. Liu, J.; Chen, X.; Yang, W.; Zhang, S.; Wang, F.; Tang, Z. Chemical fingerprinting of wild germplasm resource of Ophiopogon japonicus from Sichuan basin, China by RP-HPLC coupled with hierarchical cluster analysis. Anal. Lett 2010, 43, 2411–2423.
  5. Ishida, H.; Umino, T.; Tsuji, K.; Kosuge, T. Studies on the antihemorrhagic substances in herbs classified as hemostatics in Chinese medicine. VIII. On the antihemorrhagic principle in Nelumbins Receptaculum. Chem. Pharm. Bull 1988, 36, 4585–4587.
  6. Wu, Y.B.; Zheng, L.J.; Yi, J.; Wu, J.G.; Tan, C.J.; Chen, T.Q.; Wu, J.Z.; Wong, K.H. A comparative study on antioxidant activity of ten different parts of Nelumbo nucifera Gaertn. Afr. J. Pharm. Pharmacol 2011, 5, 2454–2461.
  7. Gong, Y.S.; Liu, L.G.; Xie, B.J.; Liao, Y.C.; Yang, E.L.; Sun, Z.D. Ameliorative effects of lotus seedpod proanthocyanidins on cognitive deficits and oxidative damage in senescence-accelerated mice. Behav. Brain Res 2008, 194, 100–107.
  8. Zhang, X.H.; Zhang, B.; Gong, P.L.; Zeng, F.D. Protective effect of procyanidins from the seedpod of the lotus on myocardial ischemia and its mechanisms. Yao Xue Xue Bao 2004, 39, 747–750.
  9. Duan, Y.; Zhang, H.; Xie, B.; Yan, Y.; Li, J.; Xu, F.; Qin, Y. Whole body radioprotective activity of an acetone-water extract from the seedpod of Nelumbo nucifera Gaertn. Food Chem. Toxicol 2010, 48, 3374–3384.
  10. Duan, Y.; Zhang, H.; Xu, F.; Xie, B.; Yang, X.; Wang, Y.; Yan, Y. Inhibition effect of procyanidins from lotus seedpod on mouse B16 melanoma in vivo and in vitro. Food Chem 2010, 122, 84–91.
  11. Wu, Y.B.; Zheng, L.J.; Wu, J.G.; Chen, T.Q.; Yi, J.; Wu, J.Z. Antioxidant activities of extract and fractions from Receptaculum Nelumbinis and related flavonol glycosides. Int. J. Mol. Sci 2012, 13, 7163–7173.
  12. Chinese Pharmacopoeia Committee. Pharmacopoeia of the People’s Republic of China; Chemical Industry Press: Beijing, China, 2010; Volume 1, pp. 193–195.
  13. Wang, J.; Liu, Y.; Cheng, B.; Shi, Y.; Chen, H. The research on the isolation and identification of hyperin in Receptaculum Nelumbinis and quality standard of Receptaculum Nelumbinis. J. Chengdu Med. Coll 2008, 3, 35–37.
  14. Wang, C.; Zhang, X. Determination of hyperin and quercetin in different processed products of Nelumbins Receptaculum by HPLC. Chin. Tradit. Patent Med 2010, 32, 1729–1732.
  15. Fan, L.L.; Tu, P.F.; Chen, H.B.; Cai, S.Q. Simultaneous quantification of five major constituents in stems of Dracaena plants and related medicinal preparations from China and Vietnam by HPLC-DAD. Biomed. Chromatogr 2009, 23, 1191–1200.
  16. Li, Z.; Liu, J.; Hu, J.; Li, X.; Wang, S.; Yi, D.; Zhao, M. Protective effects of hyperoside against human umbilical vein endothelial cell damage induced by hydrogen peroxide. J. Ethnopharmacol 2012, 139, 388–394.
  17. Silva, C.G.; Raulinoa, R.J.; Cerqueirab, D.M.; Mannarinoa, S.C.; Pereira, M.D.; Paneka, A.D.; Silvac, J.F.M.; Menezes, F.S.; Eleutherio, E.C.A. In vitro and in vivo determination of antioxidant activity and mode of action of isoquercitrin and Hyptis fasciculata. Phytomedicine 2009, 16, 761–767.
  18. Yoshizumi, M.; Tsuchiya, K.; Suzaki, Y.; Kirima, K.; Kyaw, M.; Moon, J.; Terao, J.; Tamaki, T. Quercetin glucuronide prevents VSMC hypertrophy by angiotensin II via the inhibition of JNK and AP-1signaling pathway. Biochem. Bioph. Res. Commun 2002, 293, 1458–1465.
  19. Fan, D.; Zhou, X.; Zhao, C.; Chen, H.; Zhao, Y.; Gong, X. Anti-Inflammatory, antiviral and quantitative study of quercetin-3-O-β-d-glucuronide in Polygonum perfoliatum L. Fitoterapia 2011, 82, 805–810.
  20. Yang, J.H.; Hsia, T.C.; Kuo, H.M.; Chao, P.D.L.; Chou, C.C.; Wei, Y.H.; Chung, J.G. Inhibition of lung cancer cell growth by quercetin glucuronides via G2/M arrest and induction of apoptosis. Drug Metab. Dispos 2006, 34, 296–304.
  21. Kong, W.; Zhao, Y.; Xiao, X.; Jin, C.; Li, Z. Quantitative and chemical fingerprint analysis for quality control of Rhizoma Coptidischinensis based on UPLC-PAD combined with chemometrics methods. Phytomedicine 2009, 16, 950–959.
  22. Zou, P.; Hong, Y.; Koh, H.L. Chemical fingerprinting of Isatis indigotica root by RP-HPLC and hierarchical clustering analysis. J. Pharmaceut. Biomed. Anal 2005, 38, 514–520.
  23. Lu, F.; Li, D.; Fu, C.; Liu, J.; Huang, Y.; Chen, Y.; Wen, Y.; Nohara, T. Studies on chemical fingerprints of Siraitia grosvenorii fruits (Luo Han Guo) by HPLC. J. Nat. Med 2012, 66, 70–76.
  24. Liang, Y.Z.; Xie, P.; Chan, K. Quality control of herbal medicines. J. Chromatogr. B 2004, 812, 53–70.
Ijms 14 01999f1 200
Figure 1. Average artificial HPLC fingerprint common pattern of Receptaculum Nelumbinis based on 20 samples.

Click here to enlarge figure

Figure 1. Average artificial HPLC fingerprint common pattern of Receptaculum Nelumbinis based on 20 samples.
Ijms 14 01999f1 1024
Ijms 14 01999f2 200
Figure 2. The representative standard fingerprints of Receptaculum Nelumbinis obtained by Similarity Evaluation System: (A) L1; (B) L11; (C) L13; (D) L17.

Click here to enlarge figure

Figure 2. The representative standard fingerprints of Receptaculum Nelumbinis obtained by Similarity Evaluation System: (A) L1; (B) L11; (C) L13; (D) L17.
Ijms 14 01999f2 1024
Ijms 14 01999f3 200

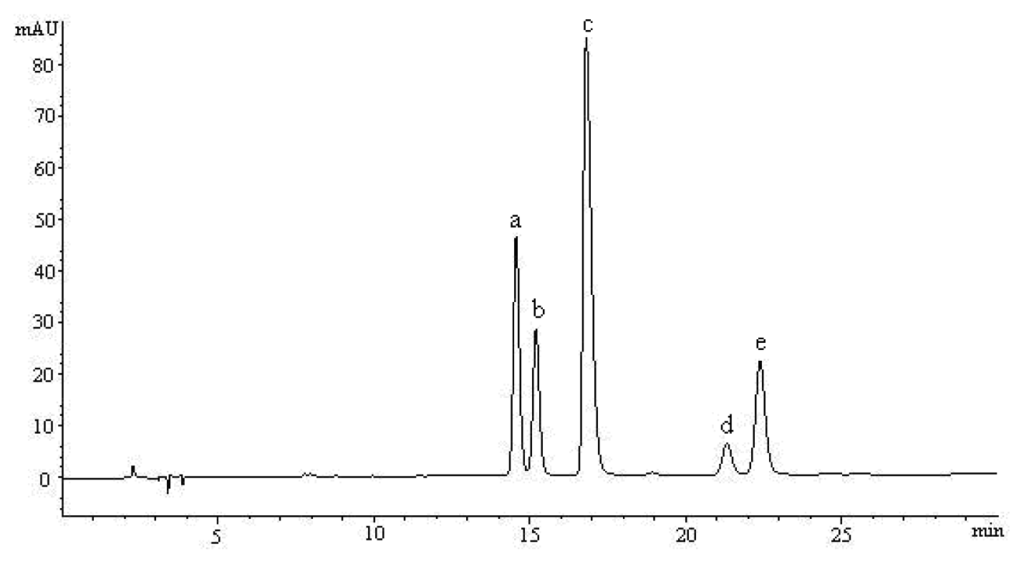

Figure 3. HPLC chromatogram of mixture standard of the five compounds: (a) Hyperoside; (b) Isoquercitrin; (c) Quercetin-3-O-β-d-glucuronide; (d) Isorhamnetin-3-O-β-d-galactoside; (e) Syringetin-3-O-β-d-glucoside.

Click here to enlarge figure

Figure 3. HPLC chromatogram of mixture standard of the five compounds: (a) Hyperoside; (b) Isoquercitrin; (c) Quercetin-3-O-β-d-glucuronide; (d) Isorhamnetin-3-O-β-d-galactoside; (e) Syringetin-3-O-β-d-glucoside.
Ijms 14 01999f3 1024
Ijms 14 01999f4 200

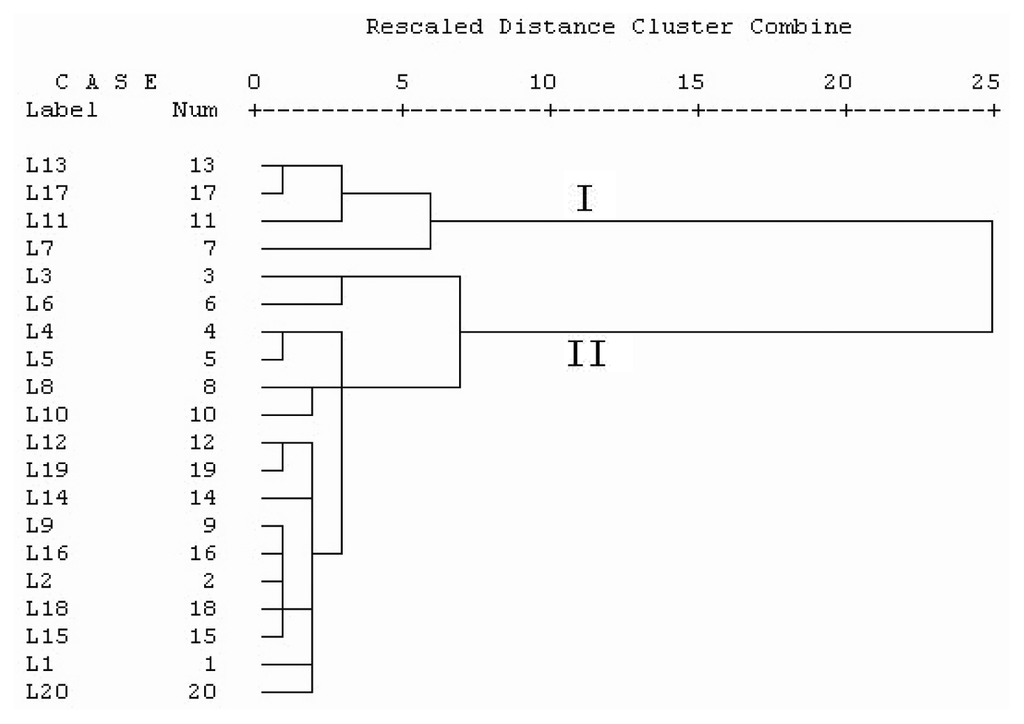

Figure 4. Results of hierarchical cluster analysis of 20 Receptaculum Nelumbinis samples (dendrogram using average linkage between groups).

Click here to enlarge figure

Figure 4. Results of hierarchical cluster analysis of 20 Receptaculum Nelumbinis samples (dendrogram using average linkage between groups).
Ijms 14 01999f4 1024
Table 1. Regression equation and correlation coefficient of calibration curves for the five compounds.

Click here to display table

Table 1. Regression equation and correlation coefficient of calibration curves for the five compounds.
CompoundRegression equationaRbLinearity range (μg/mL)
HyperosideY = 25.303x + 13.3520.99988–104 μg/mL
IsoquercitrinY = 16.058x + 22.7460.99912–64 μg/mL
Quercetin-3-O-β-d-glucuronideY = 9.6542x − 26.7180.999830–960 μg/mL
Isorhamnetin-3-O-β-d-galactosideY = 19.097x − 1.15270.99991.4–42.6 μg/mL
Syringetin-3-O-β-d-glucosideY = 13.305x + 0.93210.99970.7–22.8 μg/mL

aY peak area, x concentration of compound (μg/mL);bR = correlation coefficient, n = 6.

Table 2. Precision, reproducibility, stability and recovery of the five compounds.

Click here to display table

Table 2. Precision, reproducibility, stability and recovery of the five compounds.
CompoundPrecision RSD (%) (n = 6)Reproducibility RSD (%) (n = 6)Stability RSD (%) (n = 6)Recovery (%) (n = 6) Mean ± RSD (%)
Hyperoside0.071.990.0999.23 ± 2.61
Isoquercitrin0.142.370.1799.72 ± 2.84
Quercetin-3-O-β-d-glucuronide0.482.880.6899.54 ± 2.91
Isorhamnetin-3-O-β-d-galactoside0.082.440.1898.31 ± 3.00
Syringetin-3-O-β-d-glucoside0.492.960.69100.32 ± 2.71
Table 3. The similarities of the chromatograms of twenty varieties of the receptacles of N. nucifera.

Click here to display table

Table 3. The similarities of the chromatograms of twenty varieties of the receptacles of N. nucifera.
SamplesSimilarities
L10.956
L20.962
L30.934
L40.957
L50.954
L60.941
L70.918
L80.959
L90.966
L100.959
L110.867
L120.961
L130.283
L140.959
L150.965
L160.966
L170.282
L180.965
L190.956
L200.956
Table 4. Contents (mg/g) of five compounds in twenty varieties of the receptacles of N. nucifera (n = 3).

Click here to display table

Table 4. Contents (mg/g) of five compounds in twenty varieties of the receptacles of N. nucifera (n = 3).
SamplesCultivated varietiesCollected locationCollection timeContents (mg/g)

1a2345
L1Taikong 36Jianou, FujianOctober 20107.43.927.02.11.0
L2Zajiao 8236Jianou, FujianOctober 20106.22.929.11.80.9
L3JianjibaihualianJianou, FujianOctober 20105.54.918.41.30.6
L4Guangchang Taikong 3Guangchang, JiangxiSeptember 20102.51.414.71.20.7
L5BaihualianGuangchang, JiangxiSeptember 20101.40.58.50.60.3
L6Shilihe 1Hangzhou, ZhejiangSeptember 20102.91.89.30.30.4
L7LiyebailianHangzhou, ZhejiangSeptember 20100.80.29.40.30.1
L8Jianxuan 17Hangzhou, ZhejiangAugust 20106.86.041.81.41.5
L9Taikong 3Hangzhou, ZhejiangAugust 20107.93.833.71.91.1
L10Ganxuan 62Hangzhou, ZhejiangAugust 20102.61.714.40.40.4
L11JinfunongHangzhou, ZhejiangAugust 20101.10.130.60.60.4
L12DahonglianHangzhou, ZhejiangAugust 20107.33.629.70.91.0
L13GuanshanglianYuanmingyuan, BeijingAugust 20100.25.576.20.61.4
L14BaoyingmeirenhonglianBaoying, JiangsuAugust 20104.43.219.30.80.5
L15HonghelianHonghu, HubeiAugust 20104.12.121.31.20.8
L16JianlianJianning, FujianAugust 20104.12.121.31.20.8
L17BaiyangdingyeshenglianBaoding, HebeiAugust 20100.13.649.20.41.1
L18XingkongmudanGuangchang, JiangxiAugust 20107.54.234.81.50.9
L19CunsanlianXiangtan, HunanAugust 20104.82.819.80.60.7
L20Taikong 1Hangzhou, ZhejiangAugust 20109.13.236.53.31.9

aThe data was present at average of duplicates. 1: Hyperoside; 2: Isoquercitrin; 3: Quercetin-3-O-β-d-glucuronide; 4: Isorhamnetin-3-O-β-d-galactoside; 5: Syringetin-3-O-β-d-glucoside.
